To model beams and bracings for industrial steel structures using TSD

1. Create beam properties for First floor and model the beams

Procedure:

• Open the Tekla structure software
• And then open the week2 challenge file.

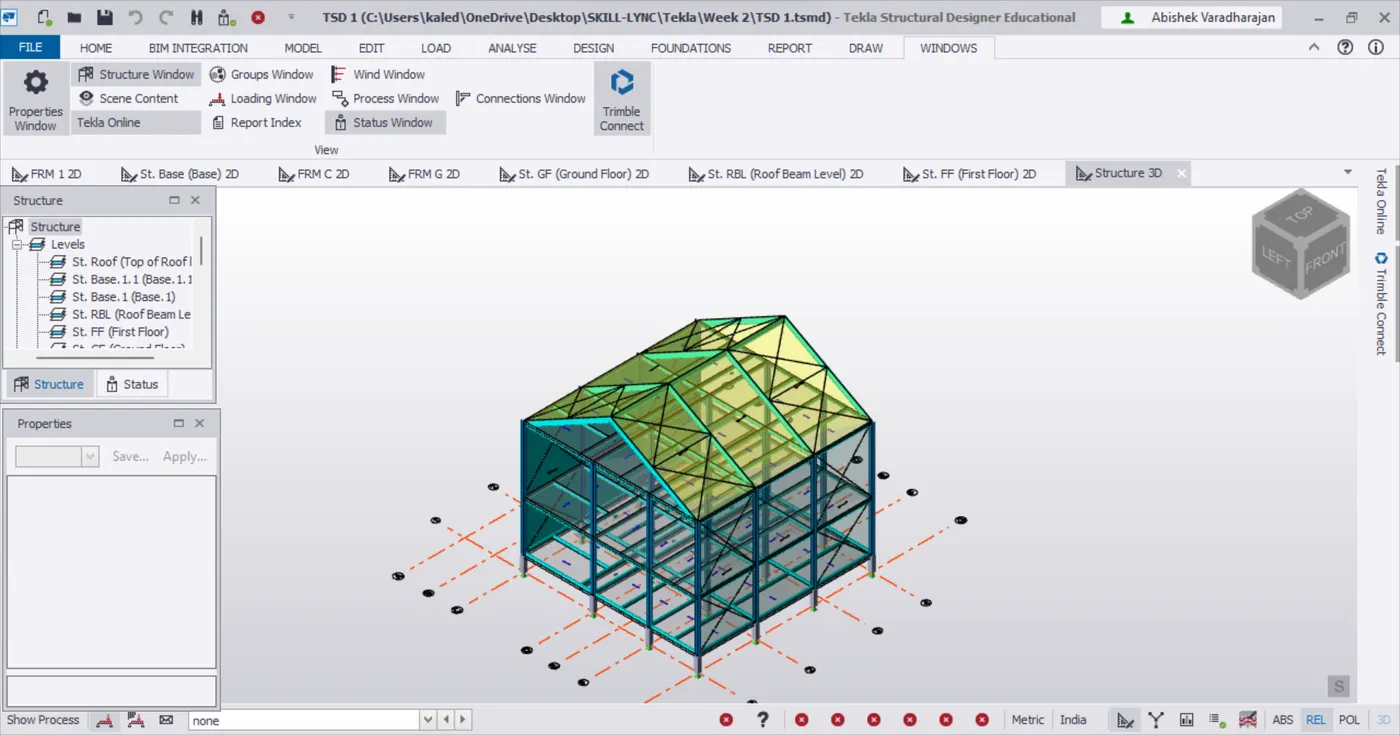

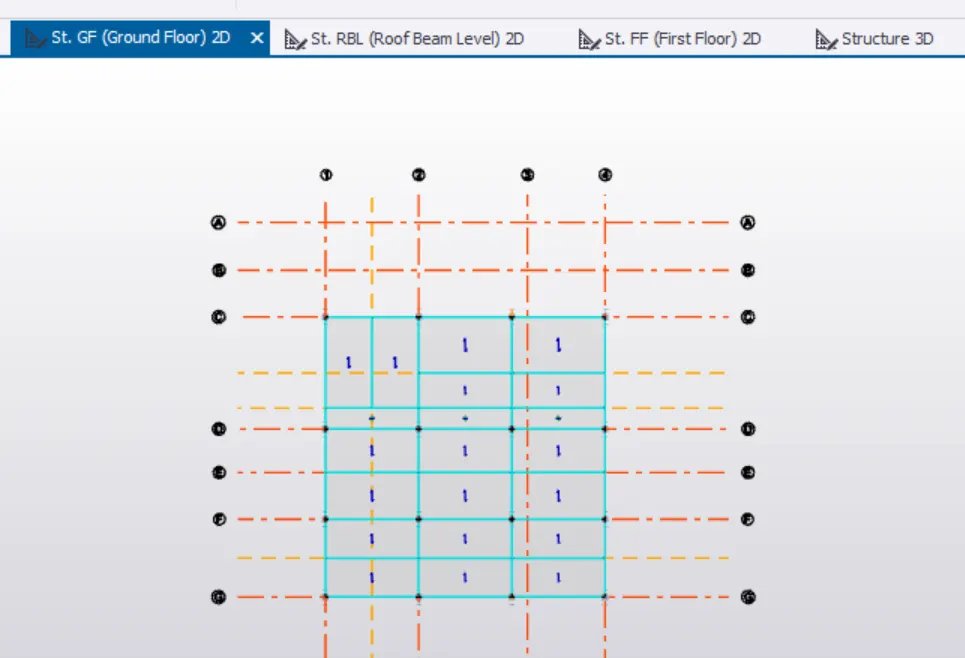

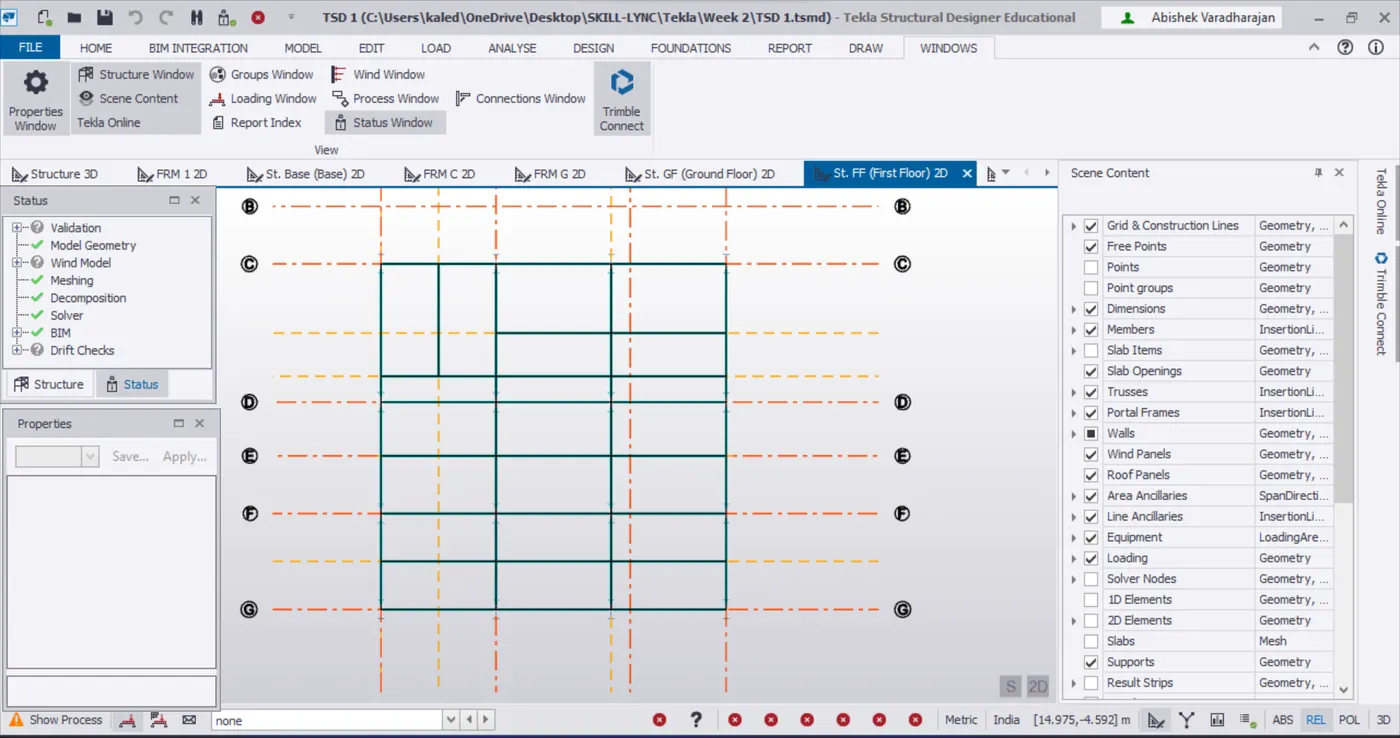

• Now go to levels and select First floor

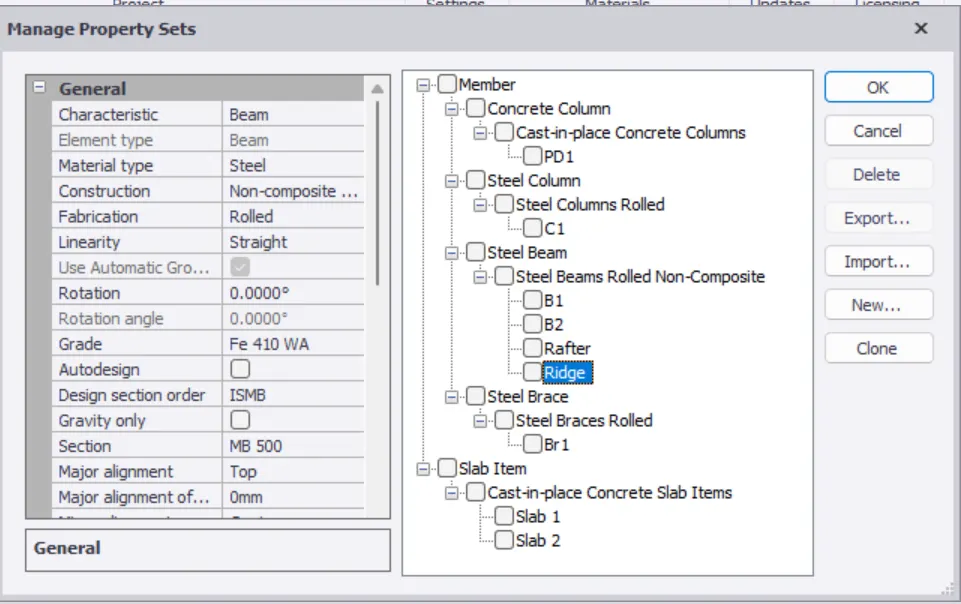

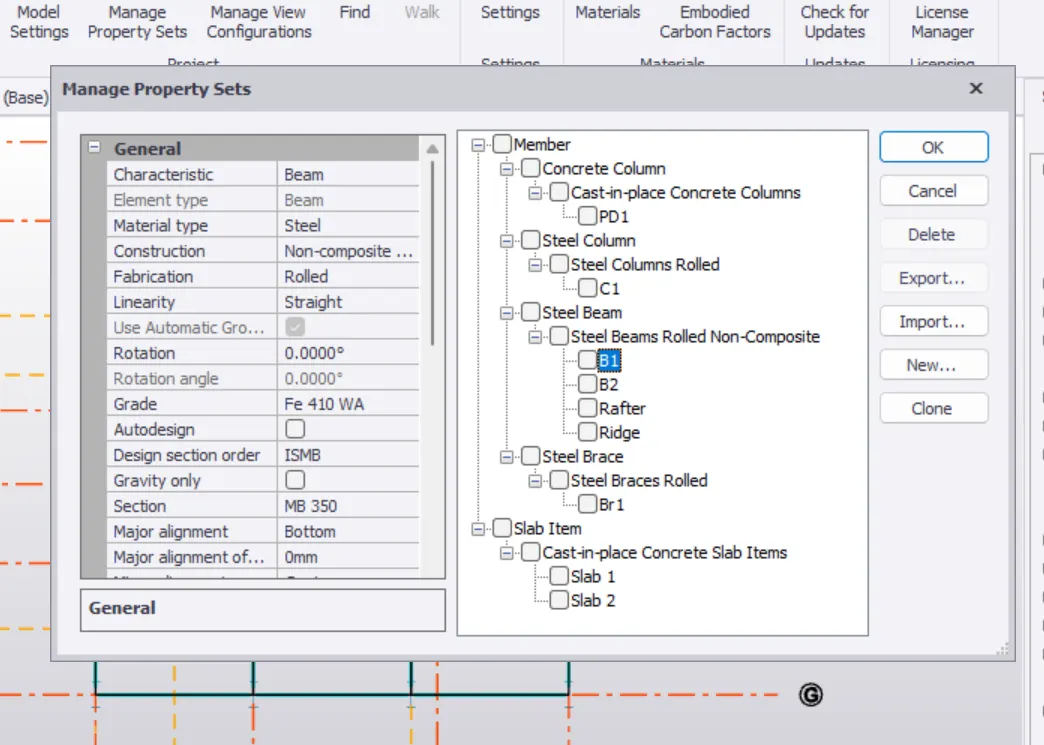

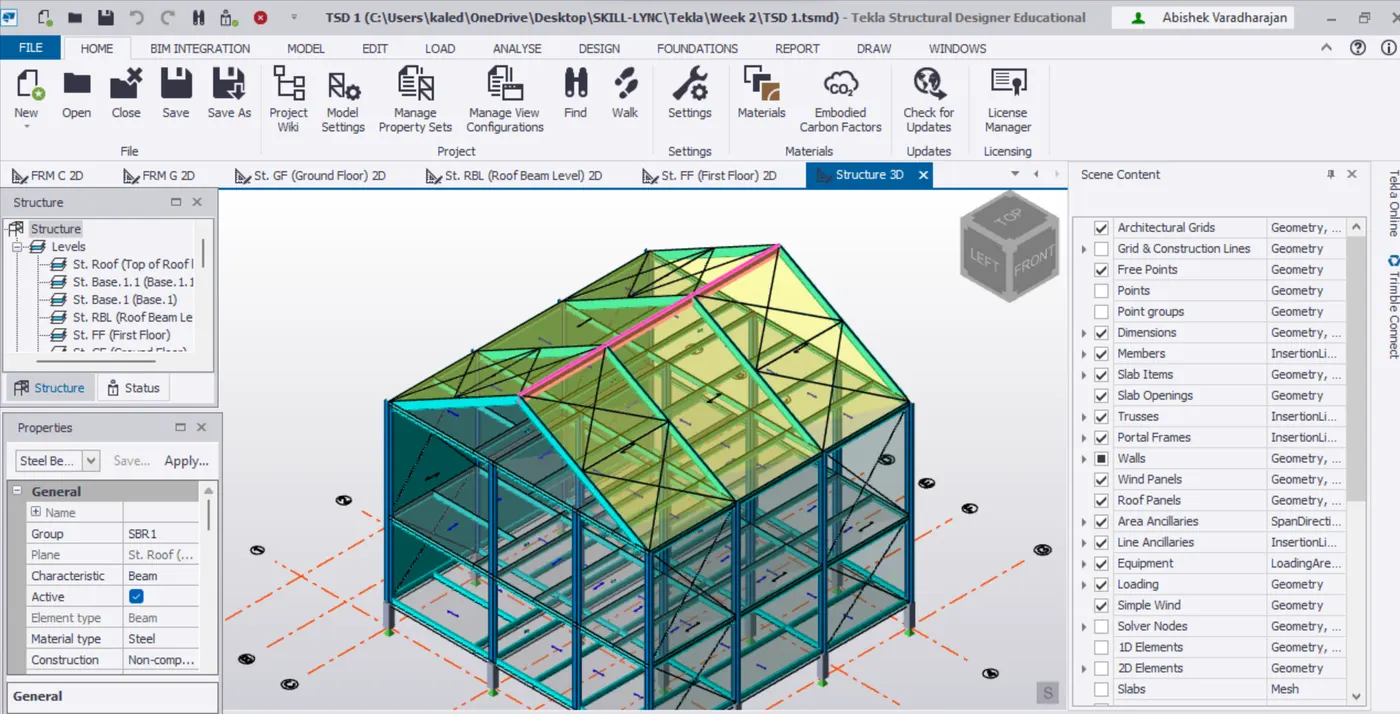

• Now go to manage property and create the new beam
• And then model the beam.

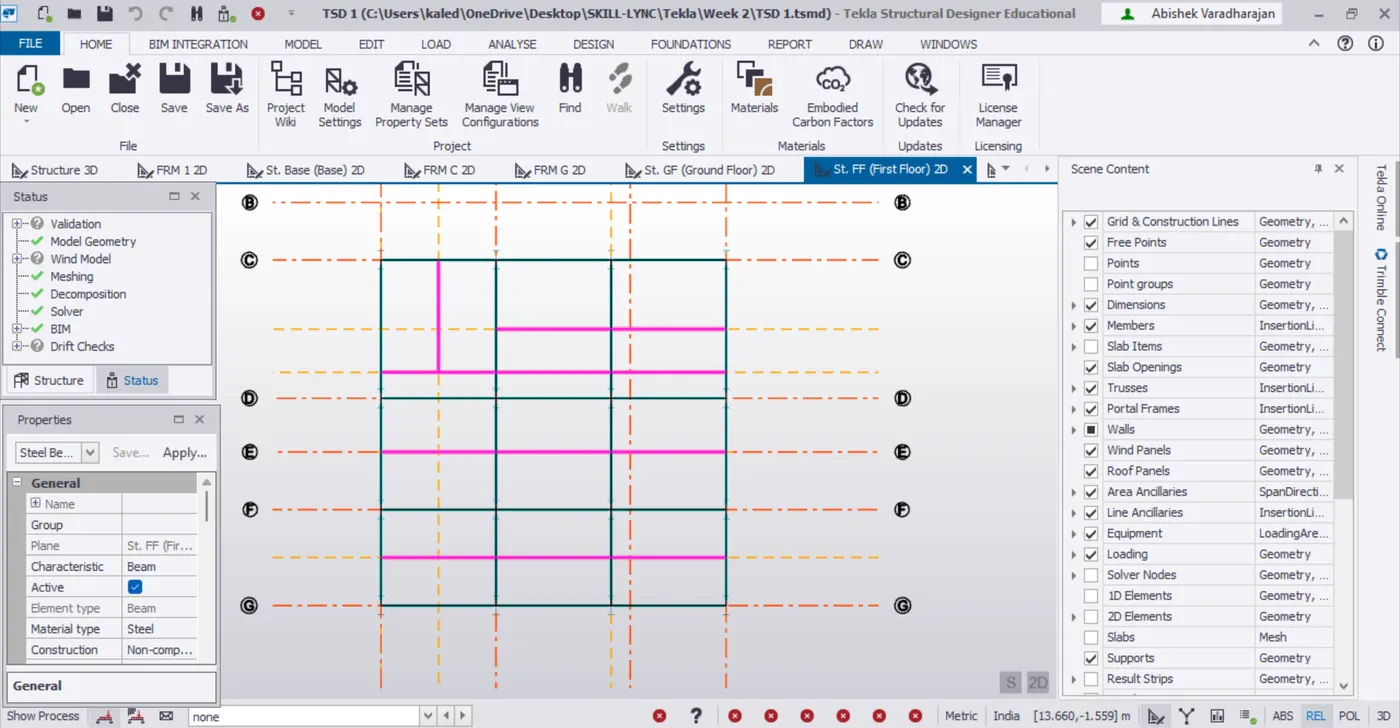

• Now Model the secondary beams in the first floor as per the plan.

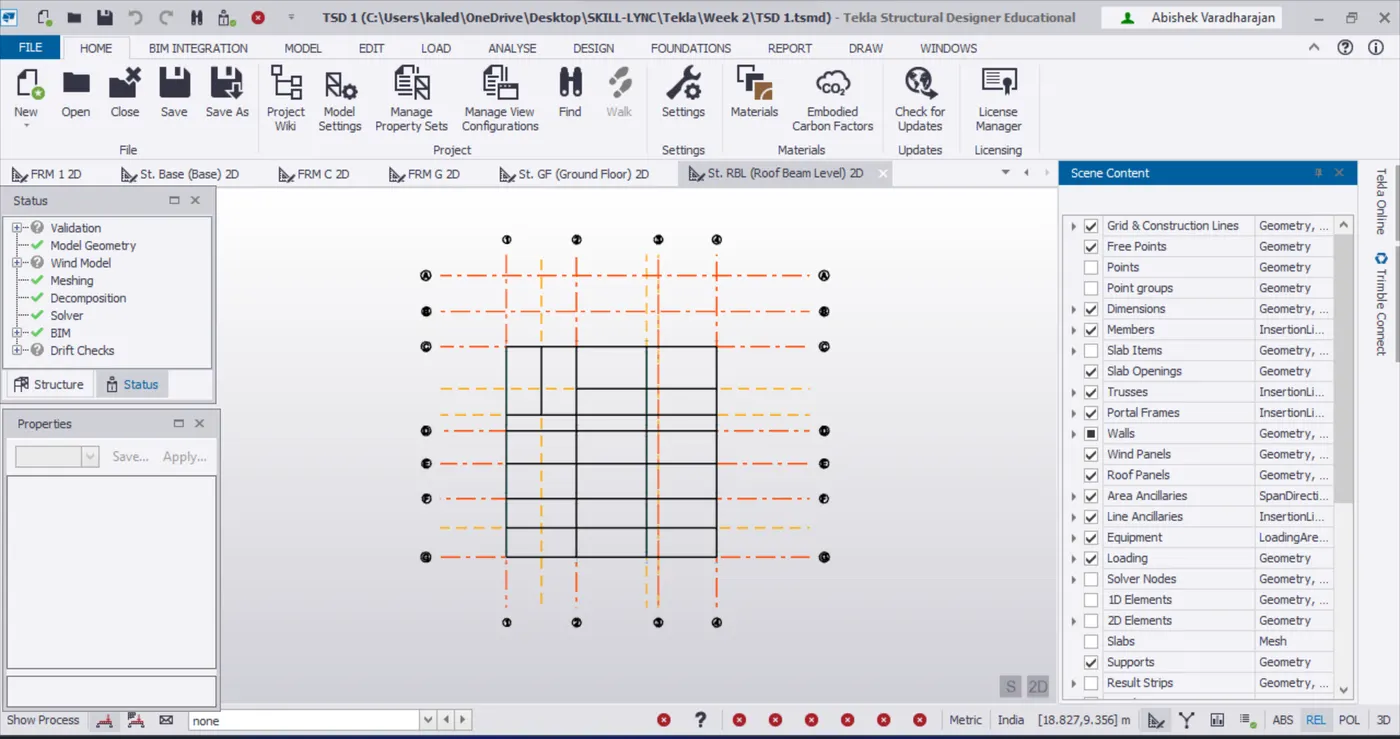

• Now model the beams in the roof level.

2. Aim: To Create a rafter beam on the second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent.

Procedure:

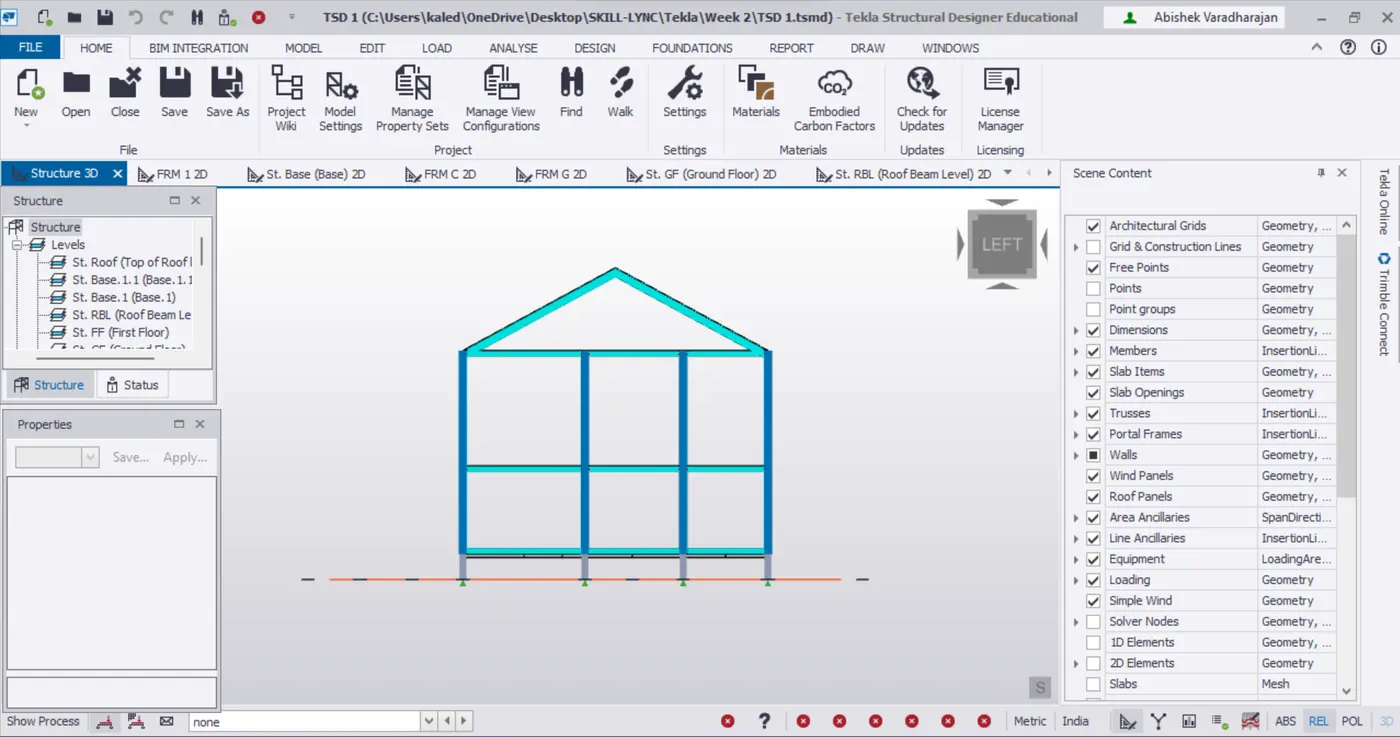

• Now create the frames at every grid.

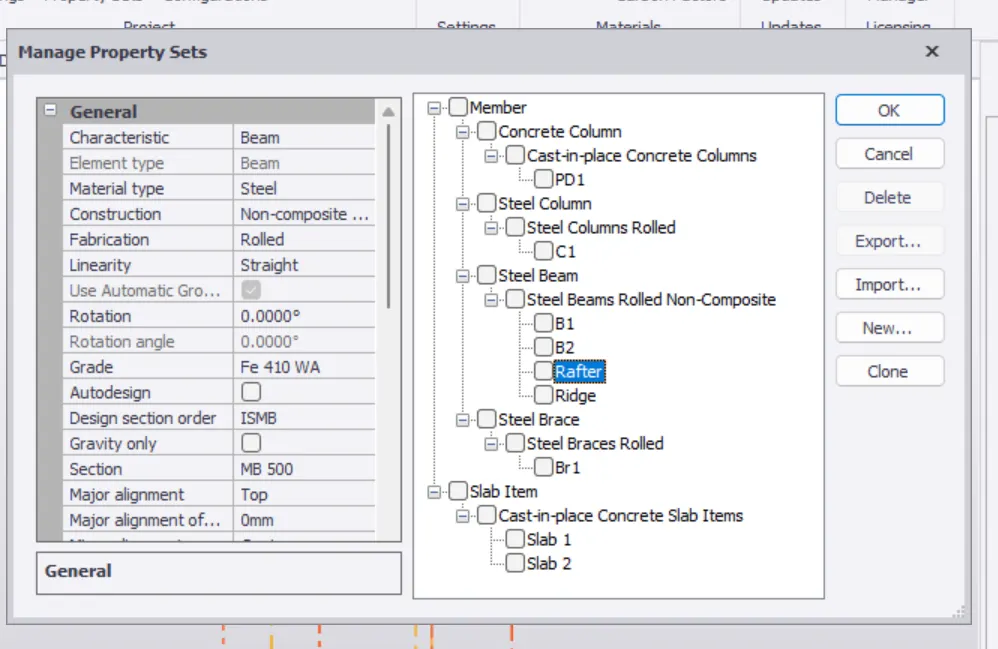

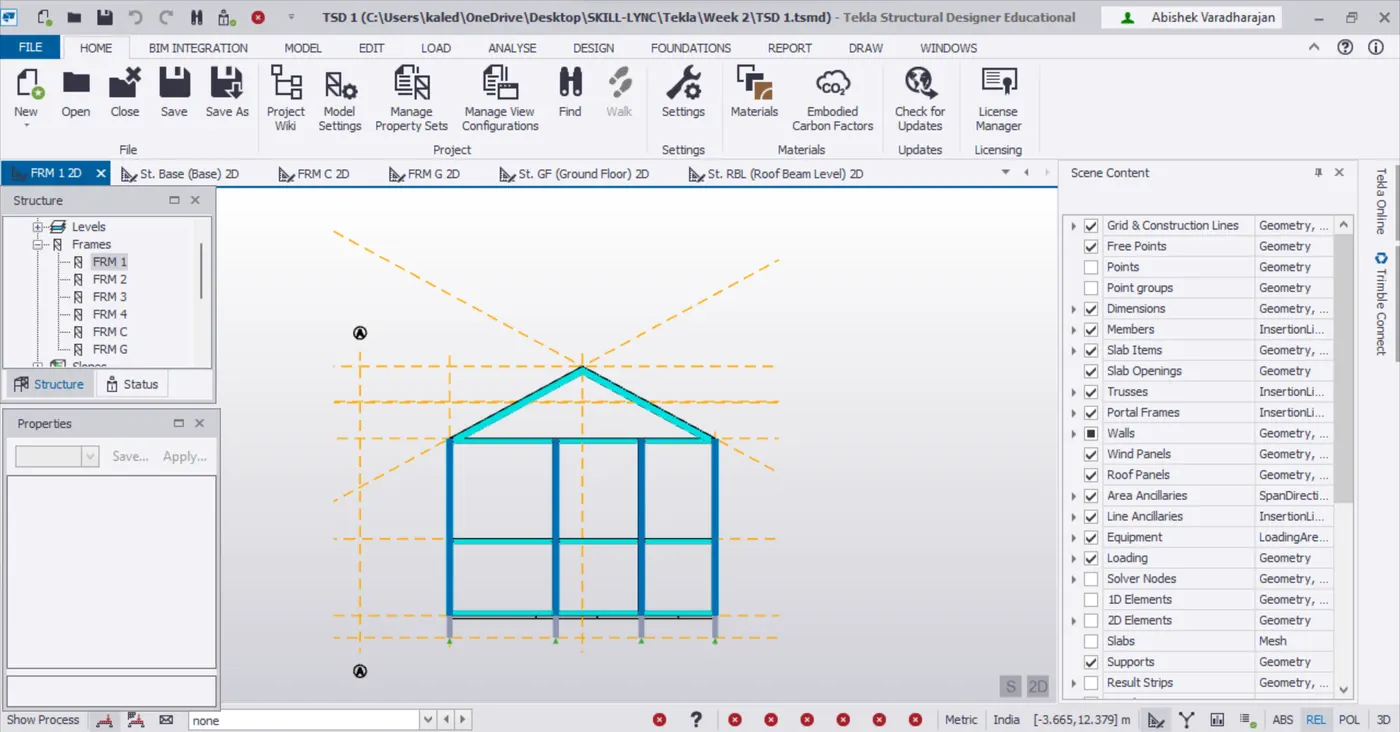

• Now create the rafter.

• And then model the rafter.

• Now create the ridge rafter to support the rafter.

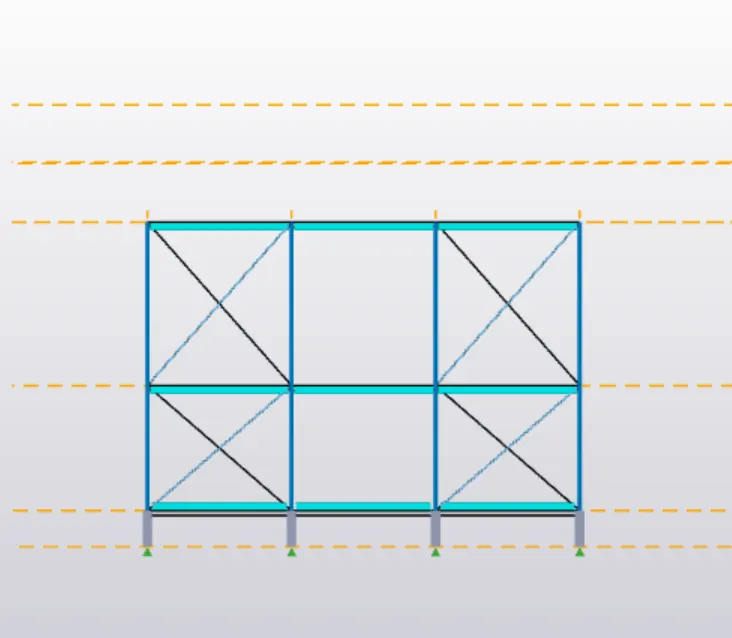

• Now create the steel brace

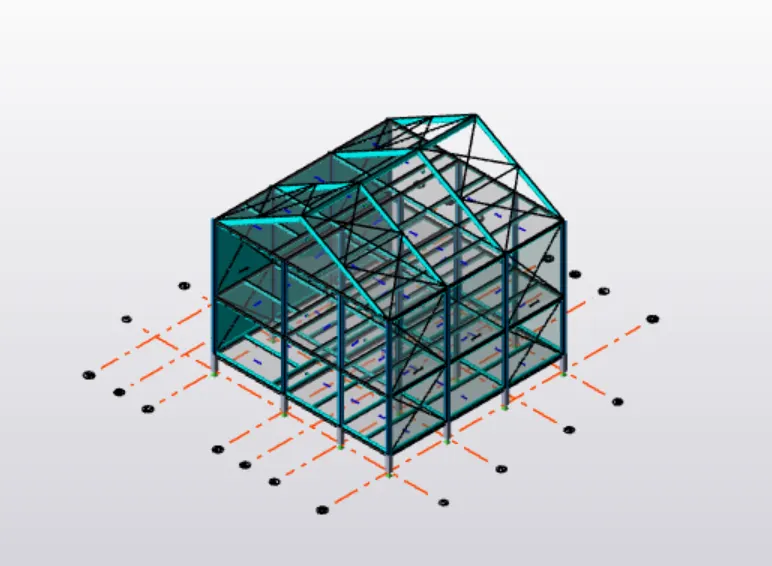

• Now model the wall panels.

• Now model the roof panel.

• Go to slab property and create the slab.
• And model the slab.

Result:
