To model beams and bracings for industrial steel structures using TSD
1. AIm: To Create beam properties for the First floor and model the beams.
Procedure:
- Open the Tekla structure software
- And then open the week2 challenge file.

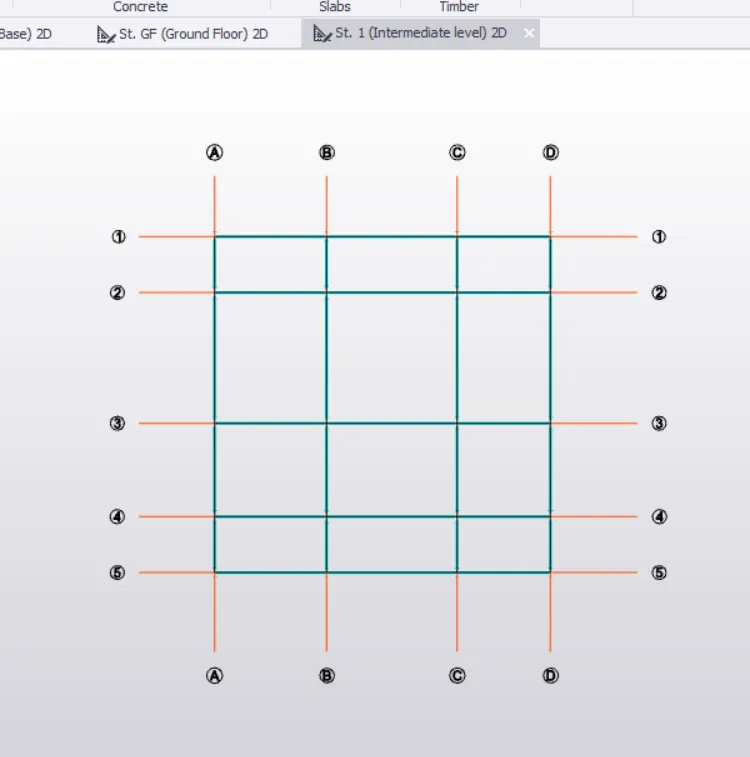

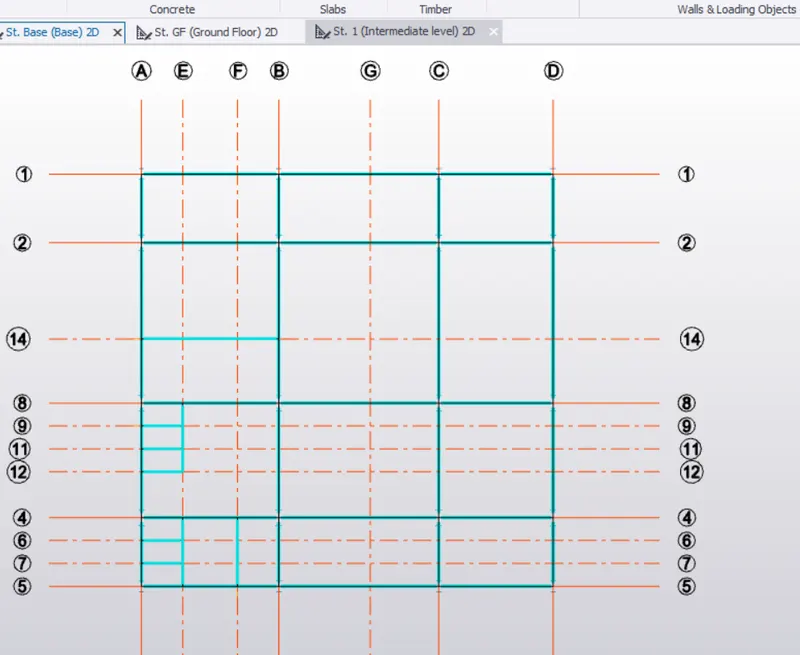

- Now go to levels and select intermediate floor

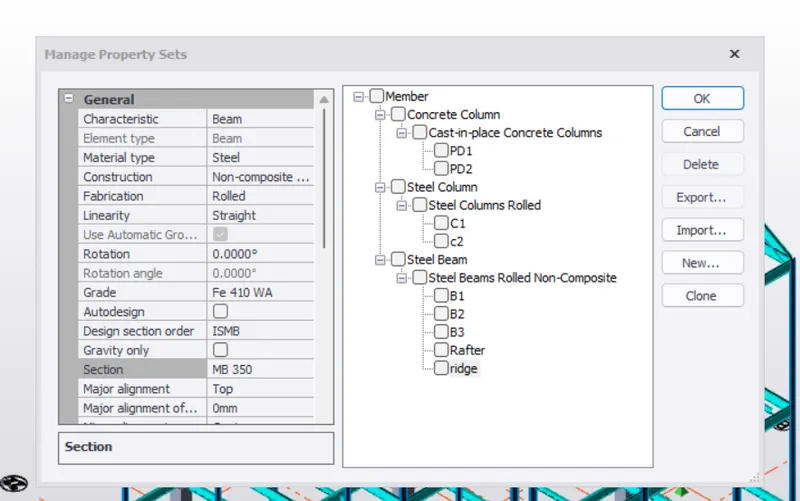

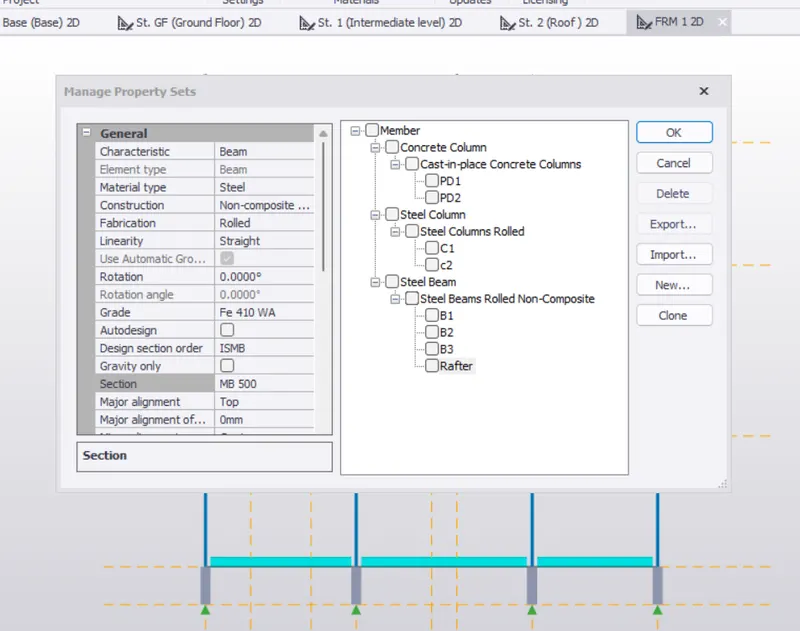

- Now go to manage property and create the new beam

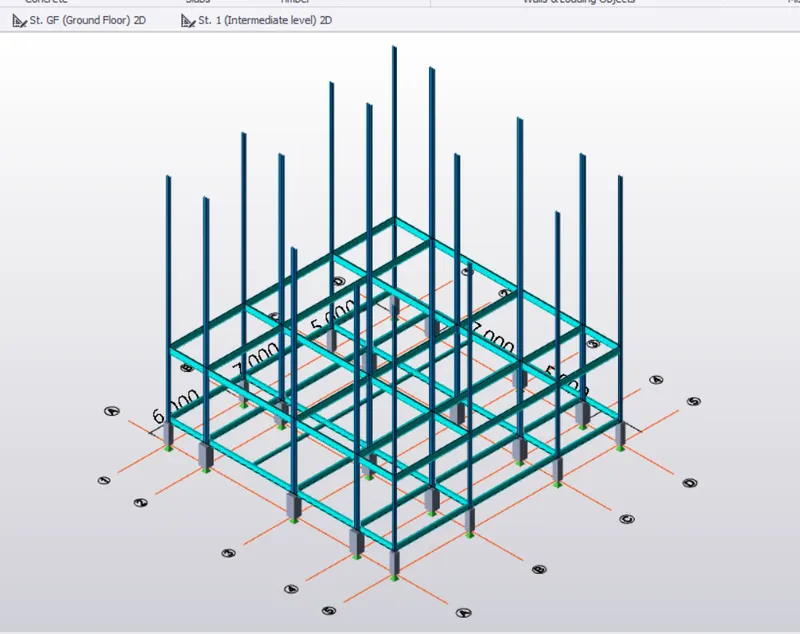

- And then model the beam.

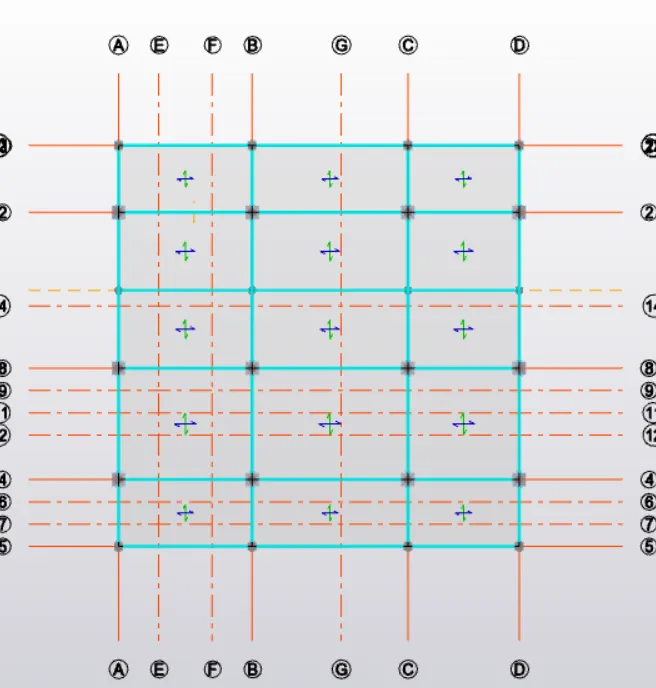

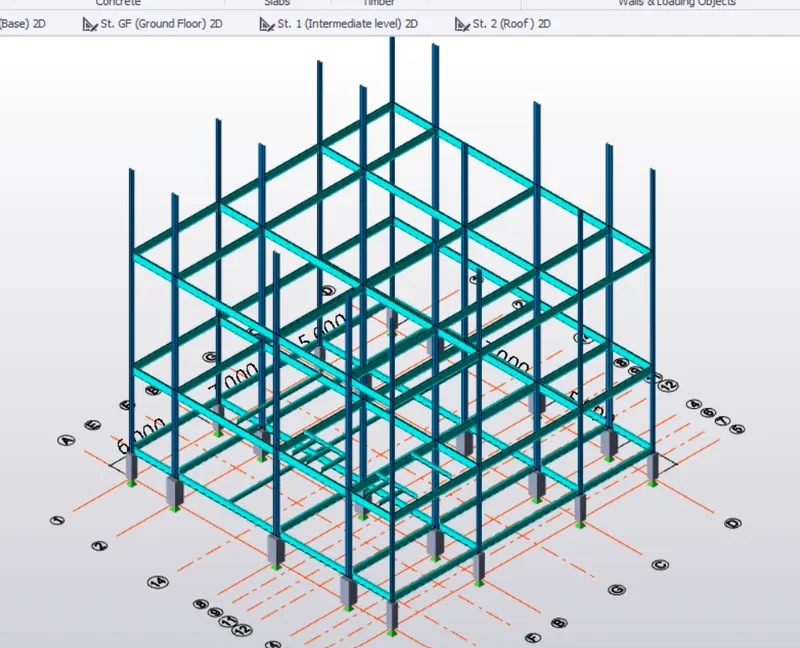

- Now Model the secondary beams in the intermediate floor as per the plan.

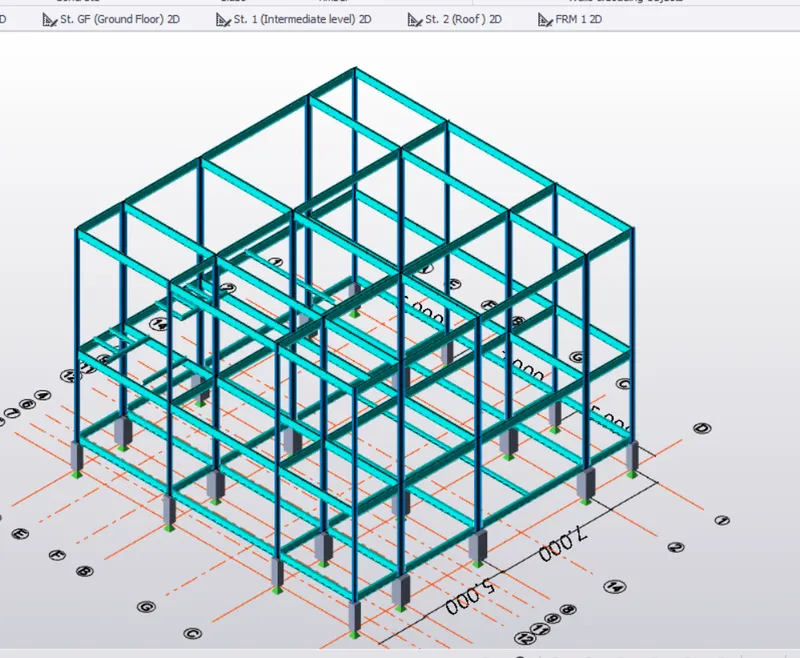

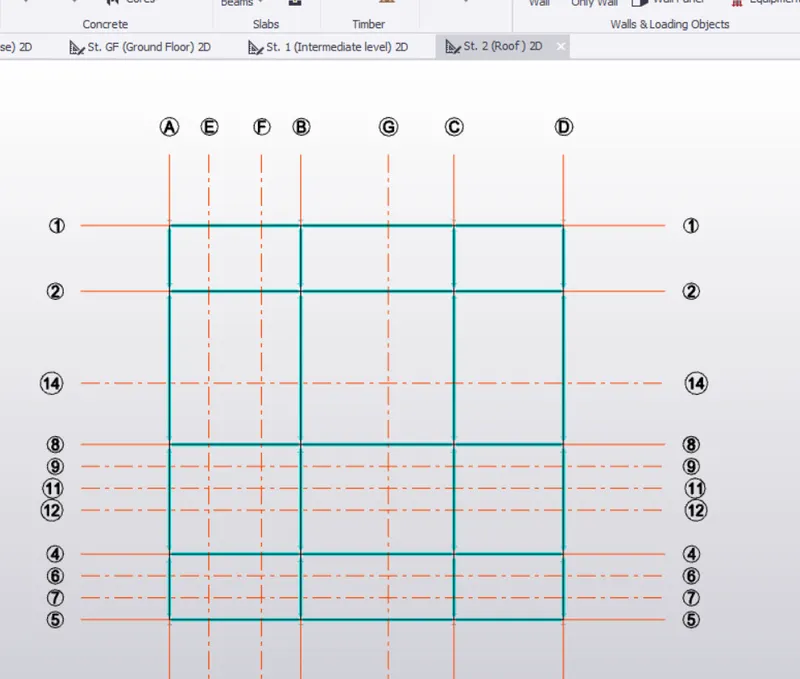

- Now model the beams in the roof level.

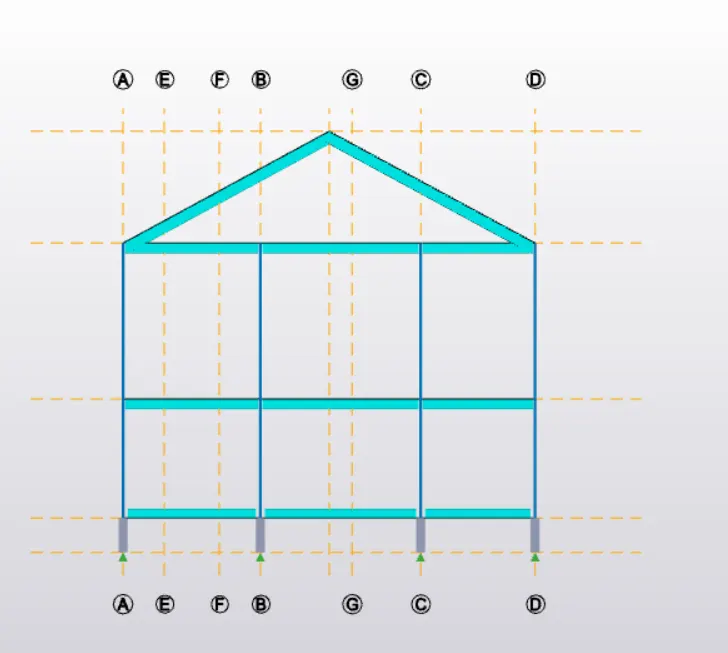

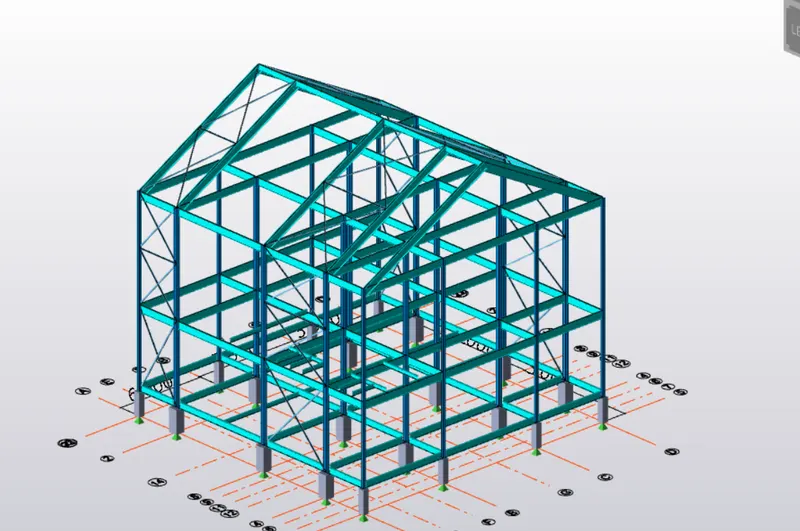

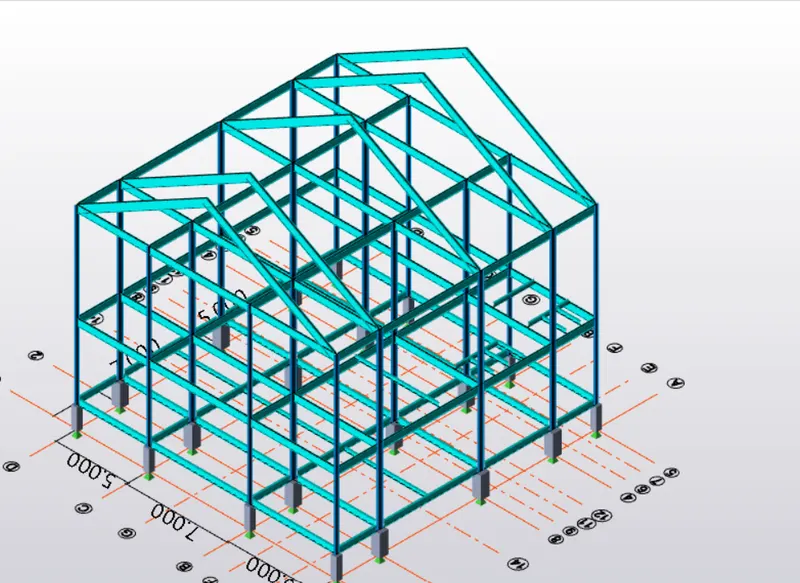

2. Aim: To Create a rafter beam on the second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent.
Procedure:

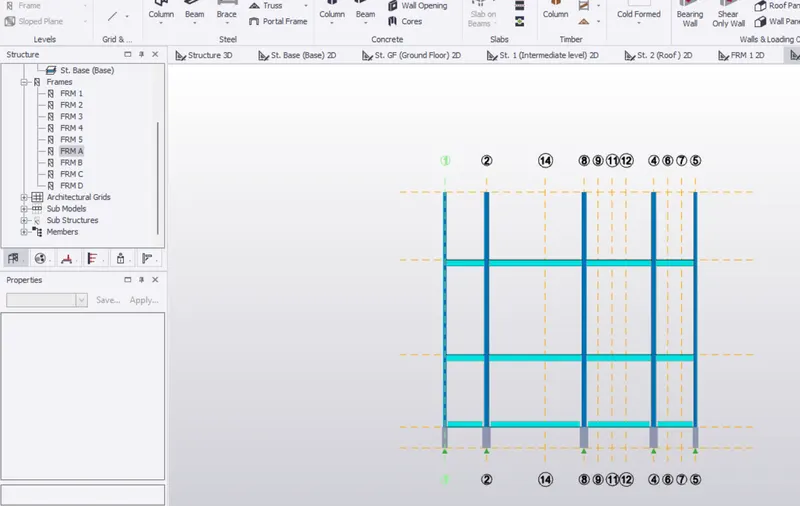

- Now create the frames at every grid.

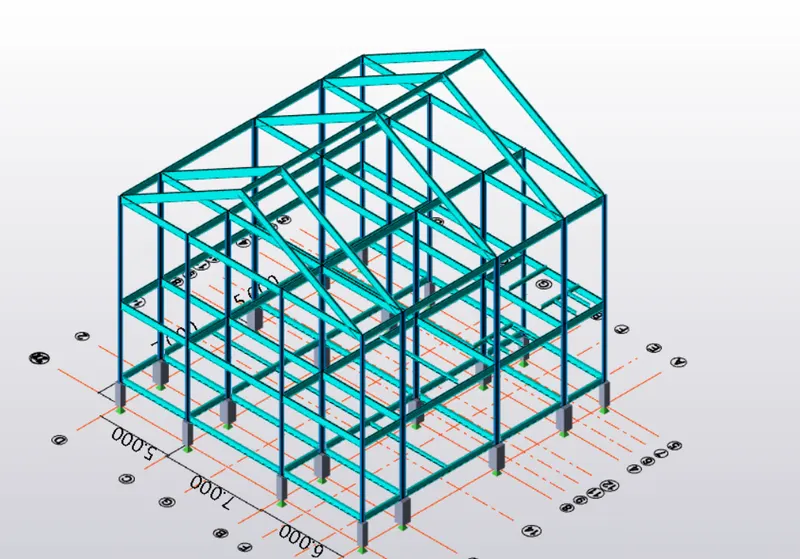

- Now create the rafter.
- And then model the rafter.
- Now create the ridge rafter to support the rafter.

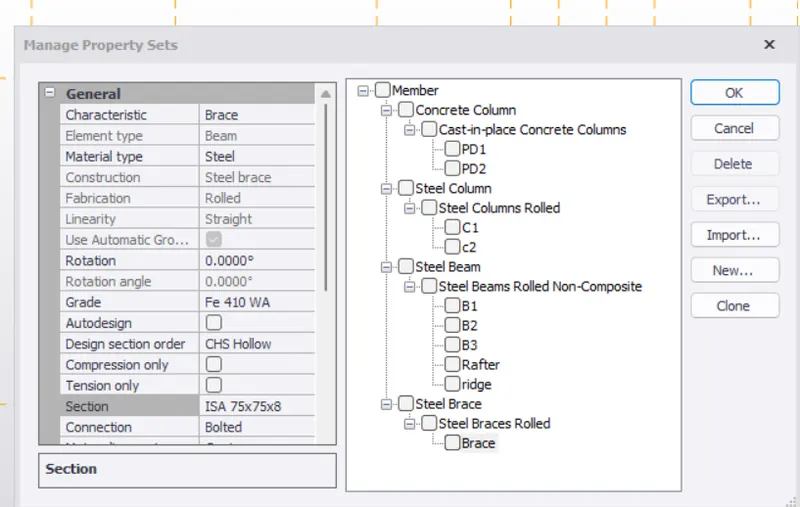

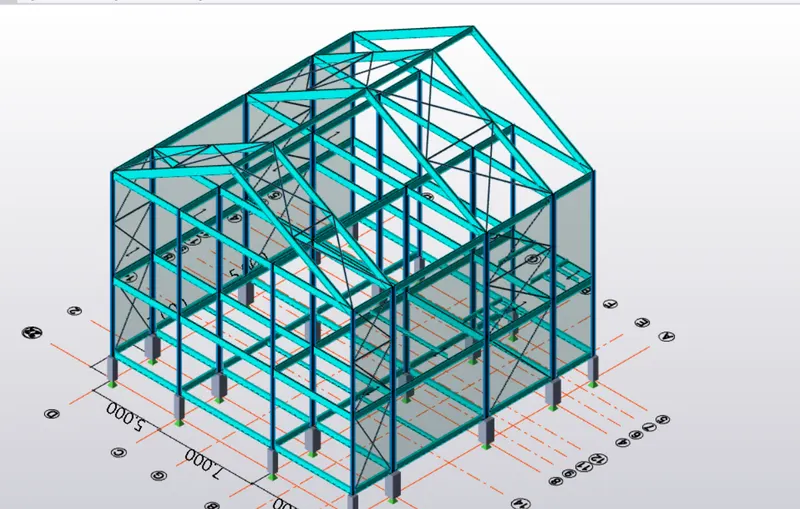

- Now create the steel brace
- Now model the wall panels.

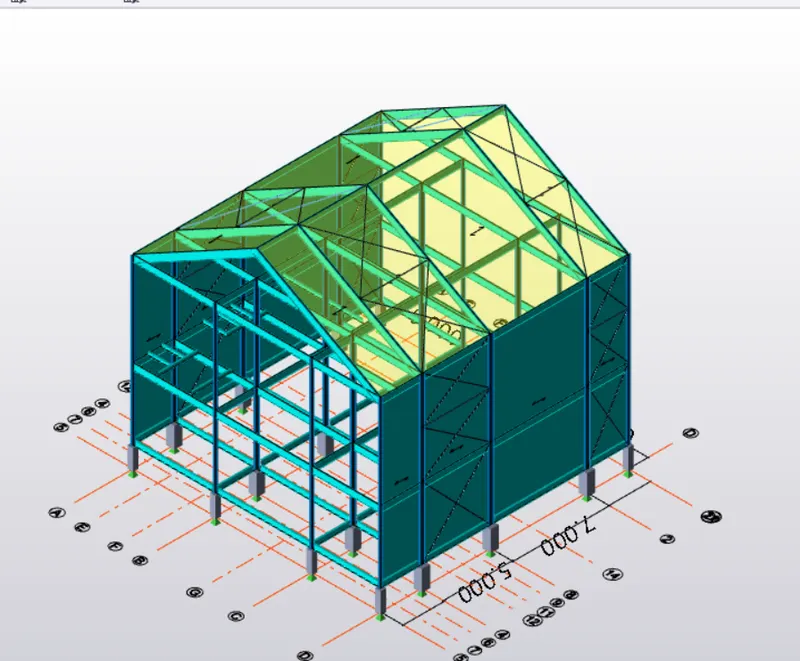

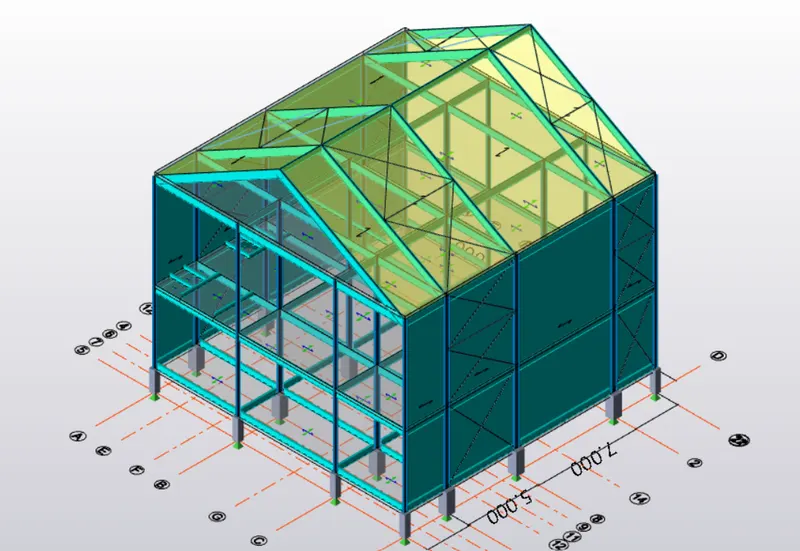

- Now model the roof panel.
- Go to slab property and create the slab.
- And model the slab.
Result:
