To model beams and bracings for industrial steel structures using TSD

1. Create beam properties for First floor and model the beams

Aim:

• To Create beam properties for the First floor and model the beams.

Procedure:

• Open the Tekla structure software
• And then open the week2 challenge file.
• Now go to levels and select intermediate floor

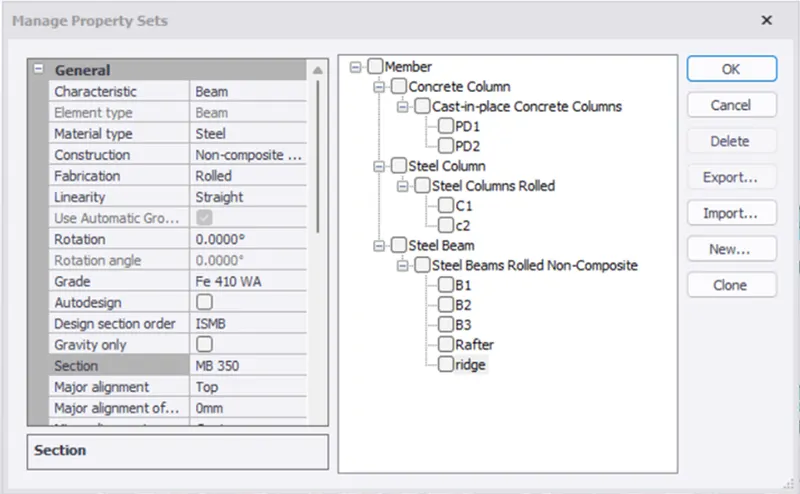

• Now go to manage property and create the new beam

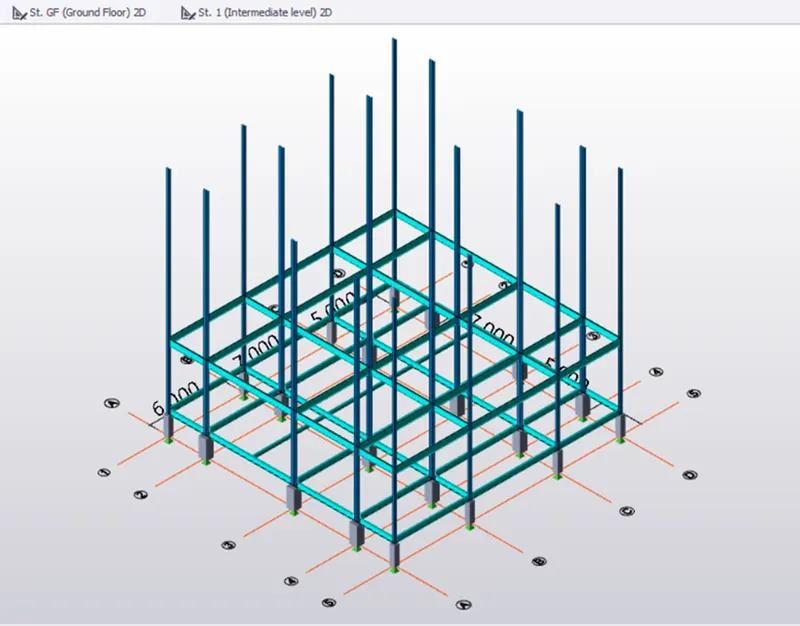

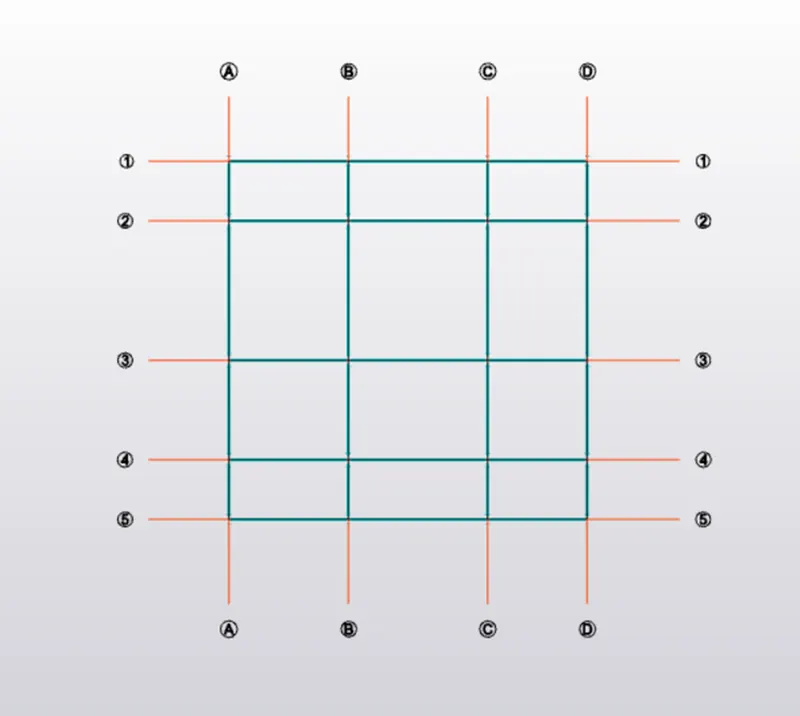

• And then model the beam.

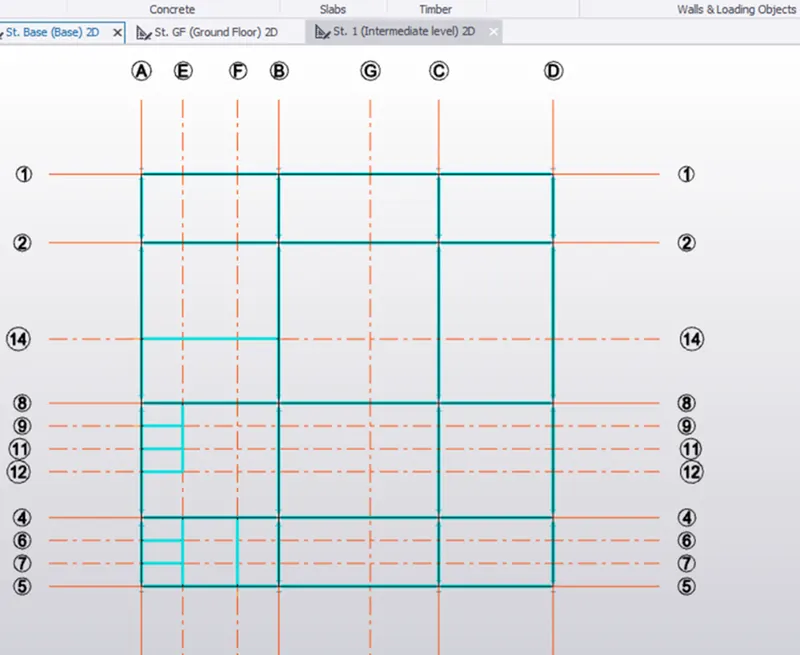

• Now Model the secondary beams in the intermediate floor as per the plan.

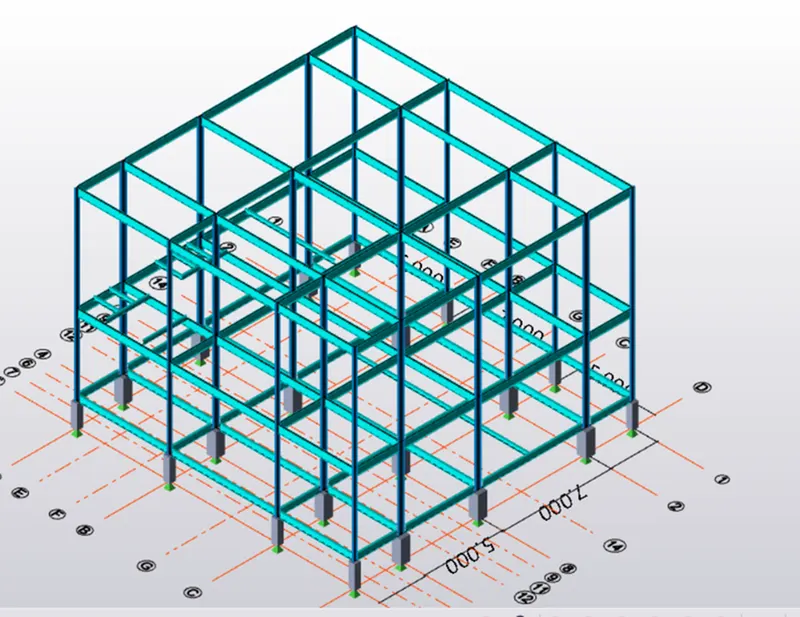

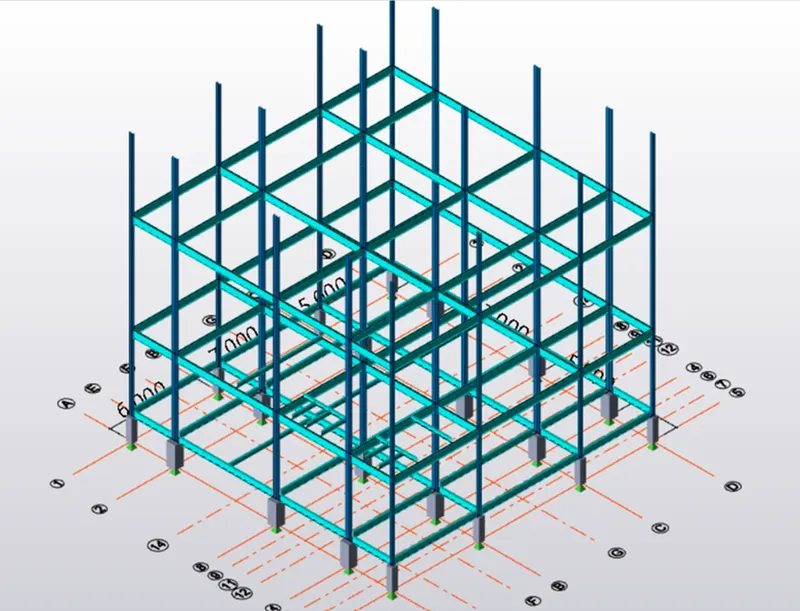

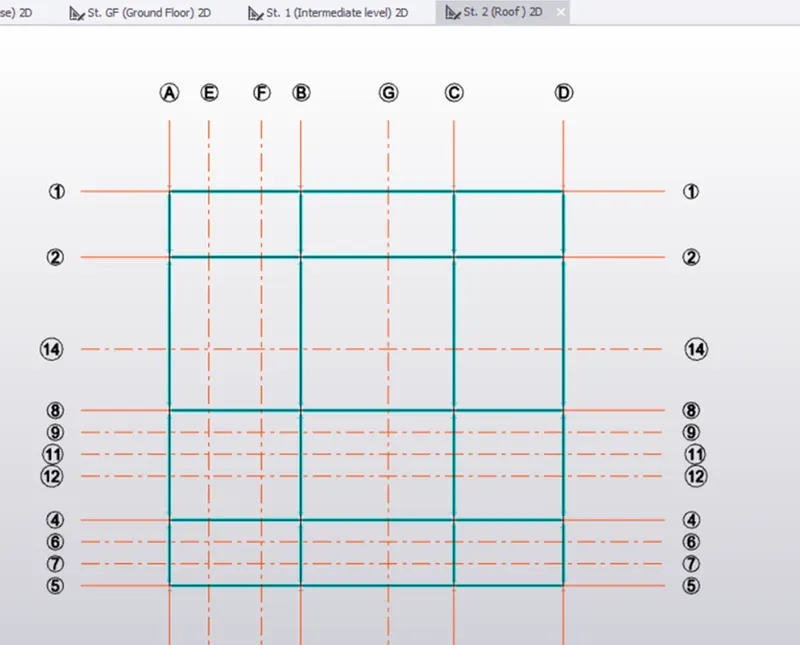

• Now model the beams in the roof level.



2. Create rafter beam on second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent



 Aim:

• To Create a rafter beam on the second floor as roof and moment frame action in one direction and add bracings at locations as per the design intent.

Procedure:

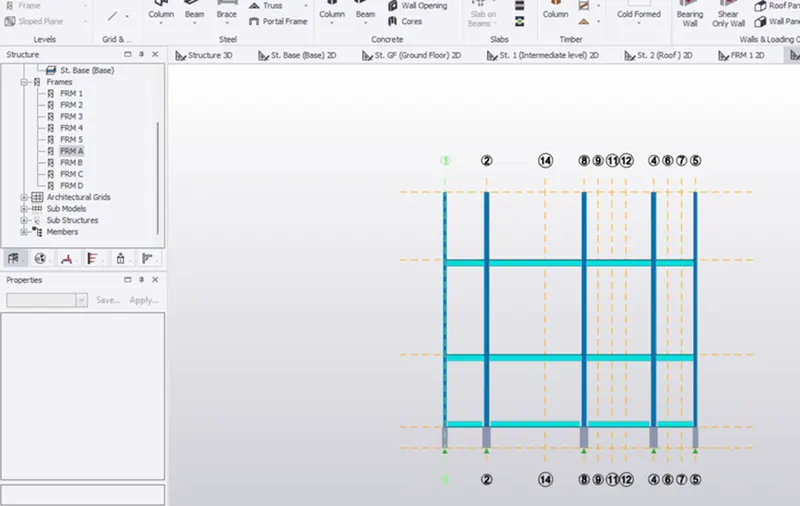

• Now create the frames at every grid.

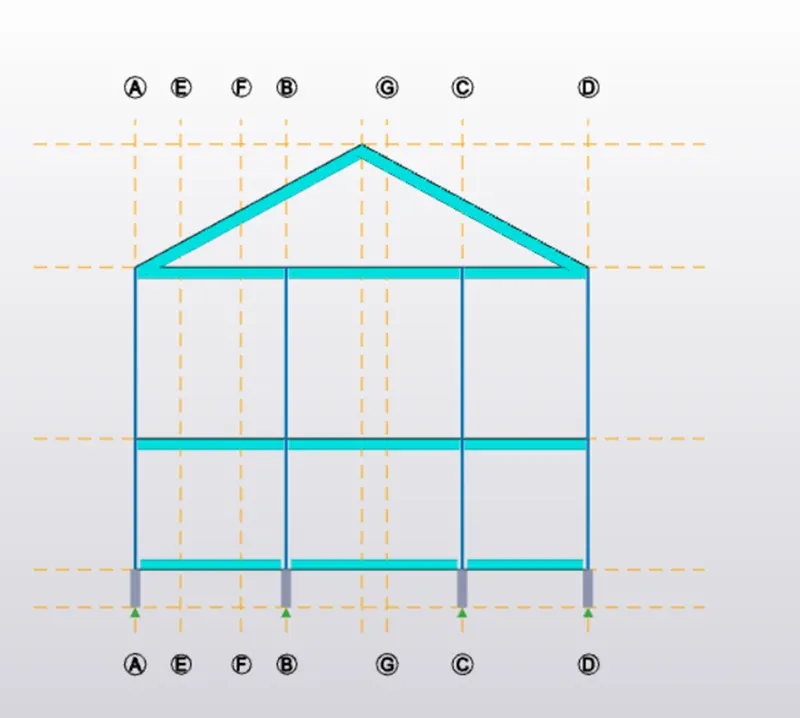

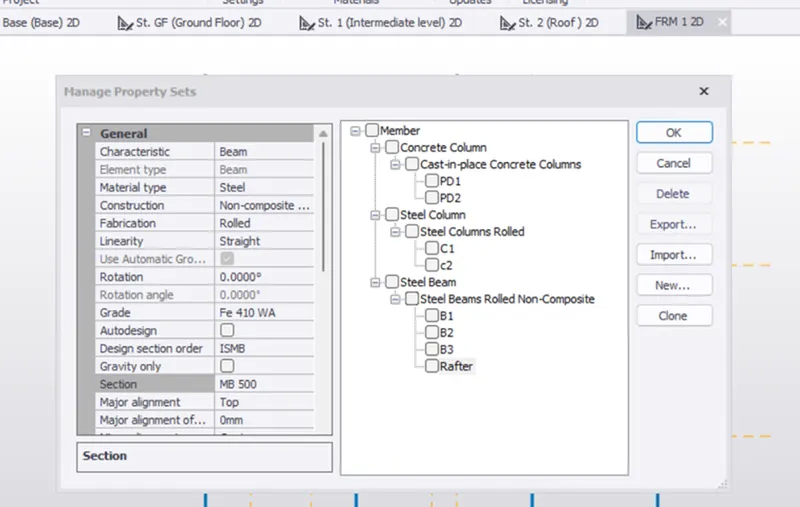

• Now create the rafter.

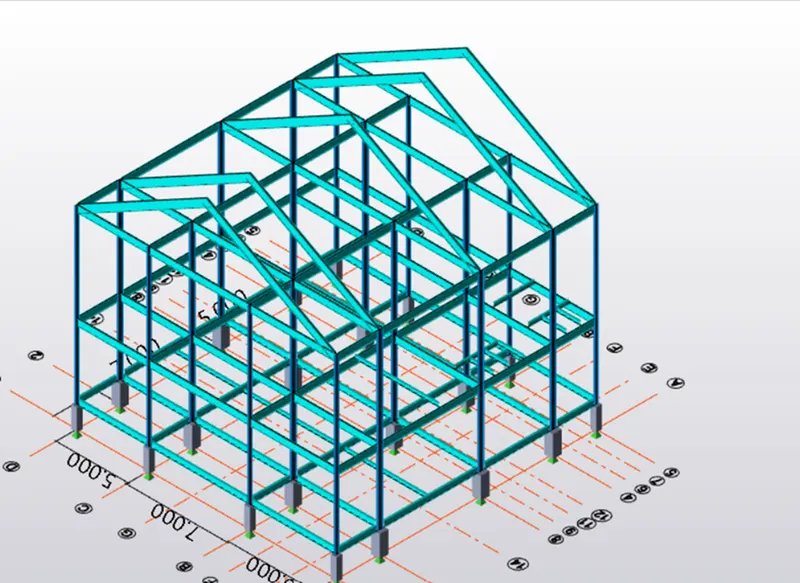

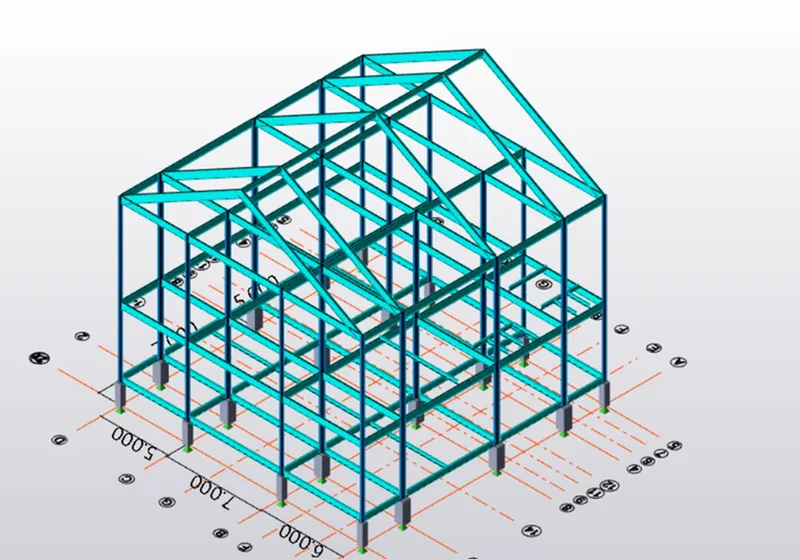

• And then model the rafter.
• Now create the ridge rafter to support the rafter.

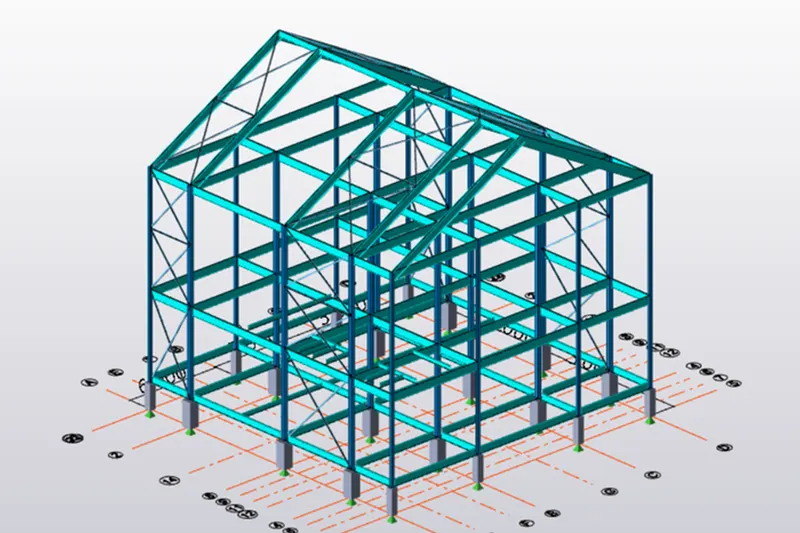

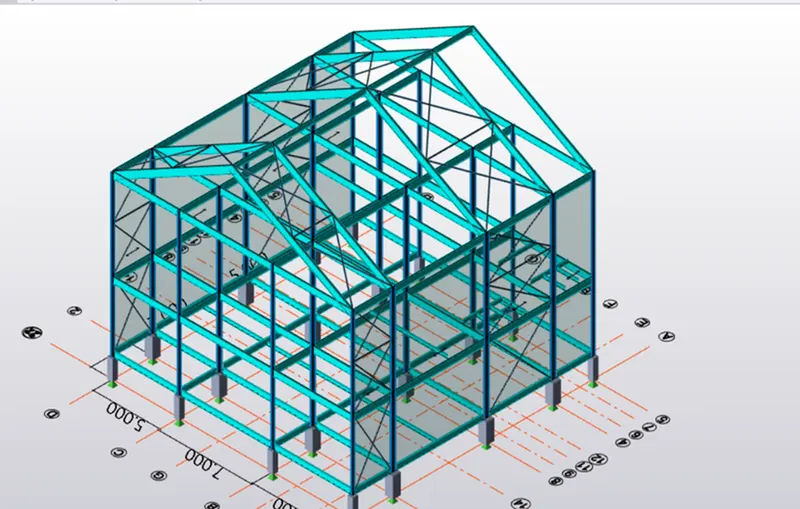

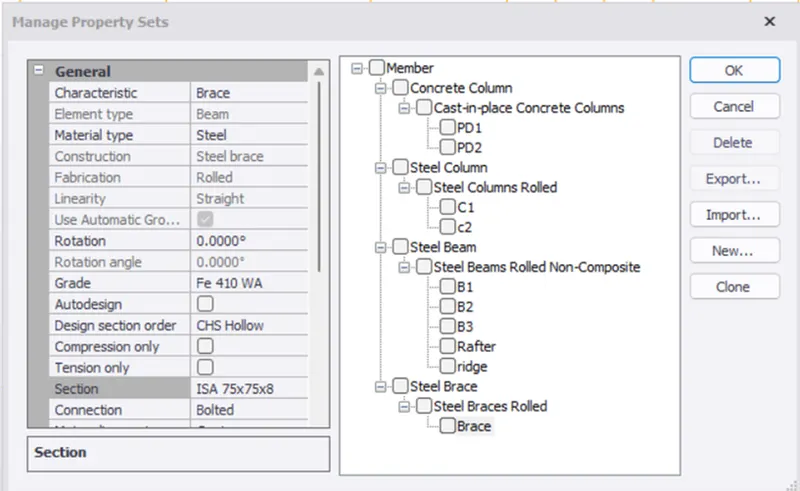

• Now create the steel bracing

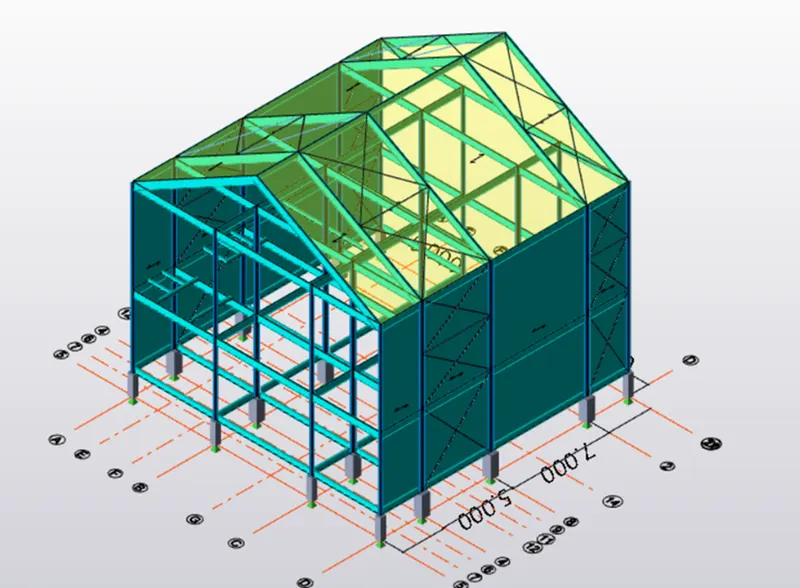

• Now model the wall panels.

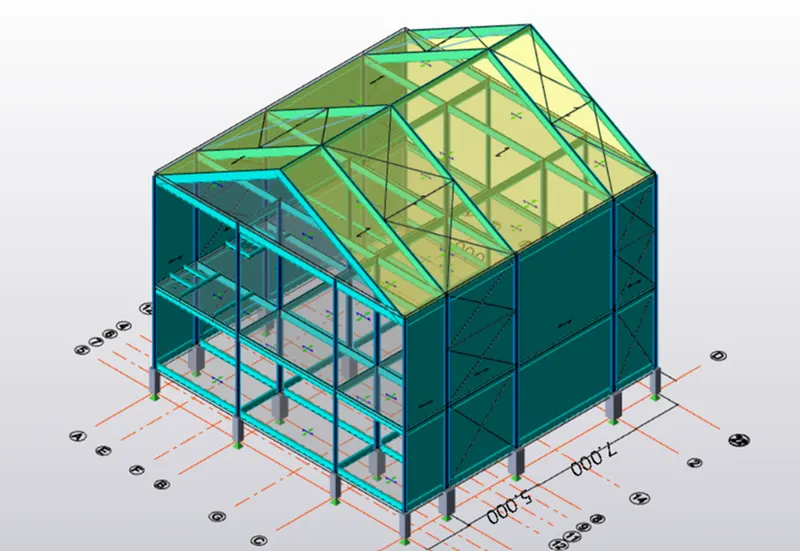

• Now model the roof panel.

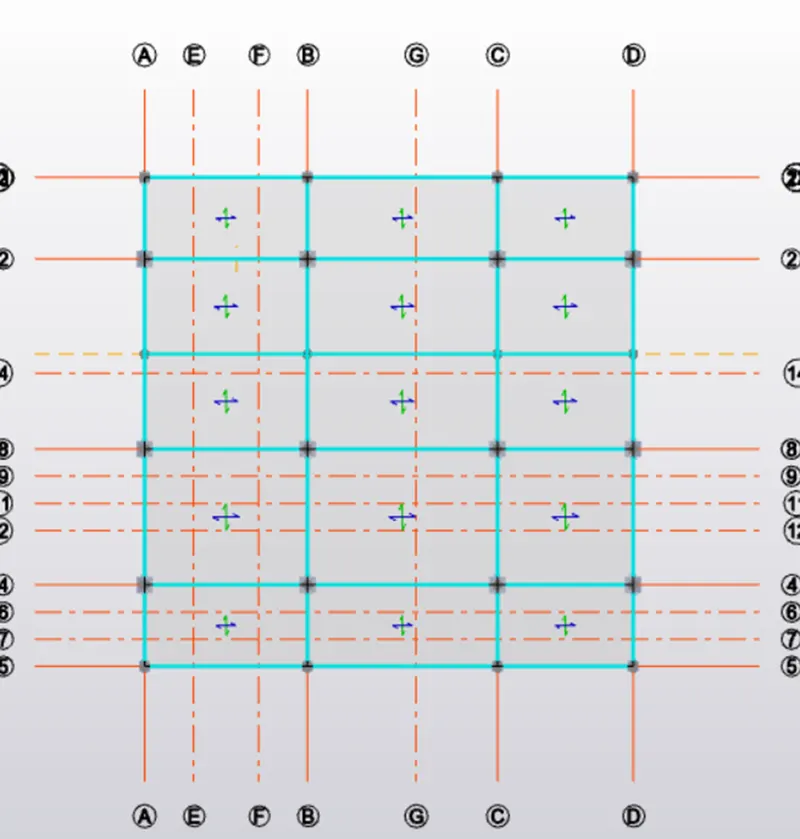

• Go to slab property and create the slab.
• And model the slab.

Result:
