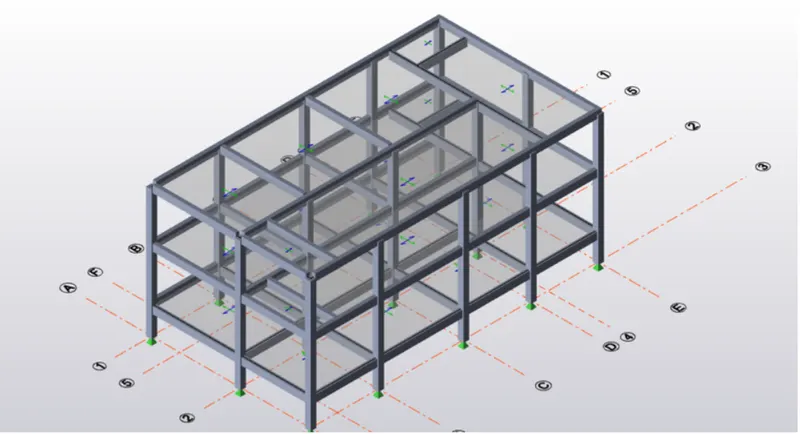

To Model a RC residential structure using TSD
- Que no.1
- Ans -

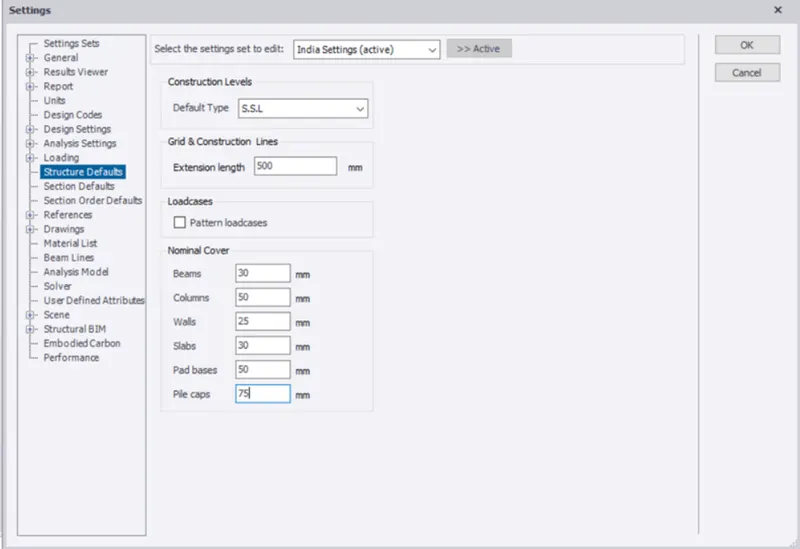

- Open the tekla go to settings select provide the members with given effective cover

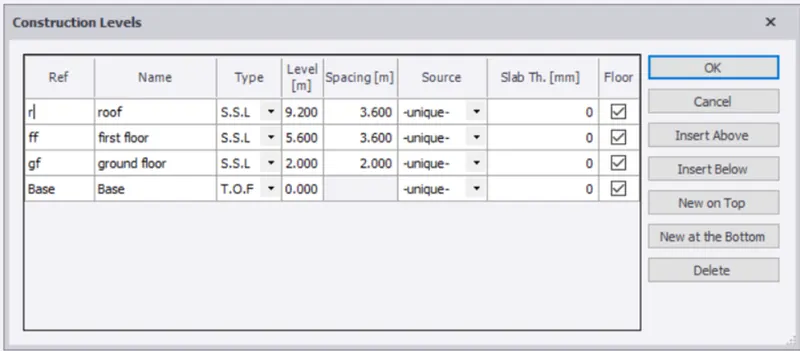

- Go to structural window and enter the required floors along with their spacing

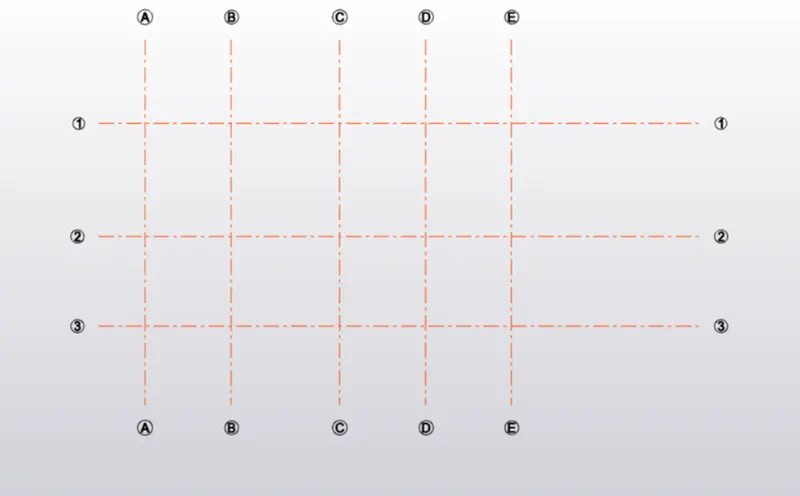

- Open the ground floor span given in question and make the grid arrangements according to that

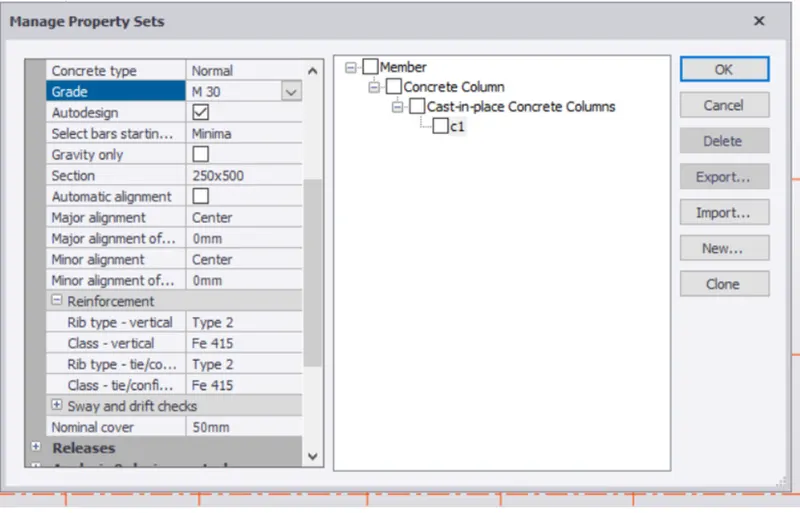

- Now go to manage property sets and define the new column along with grade and cross section.

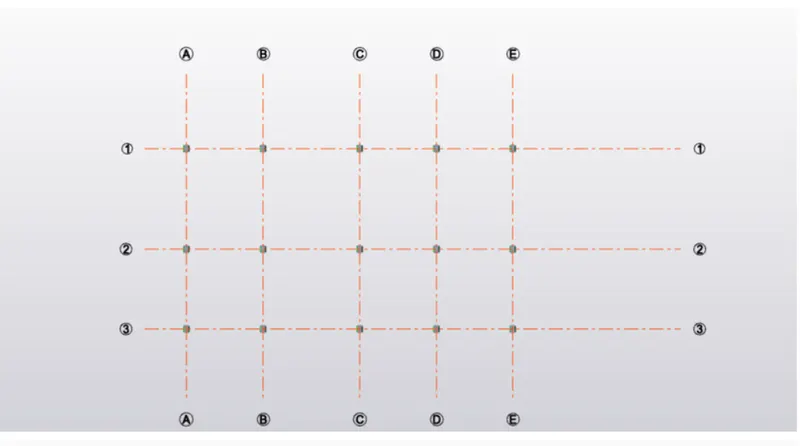

- Place these columns on the grid intersections

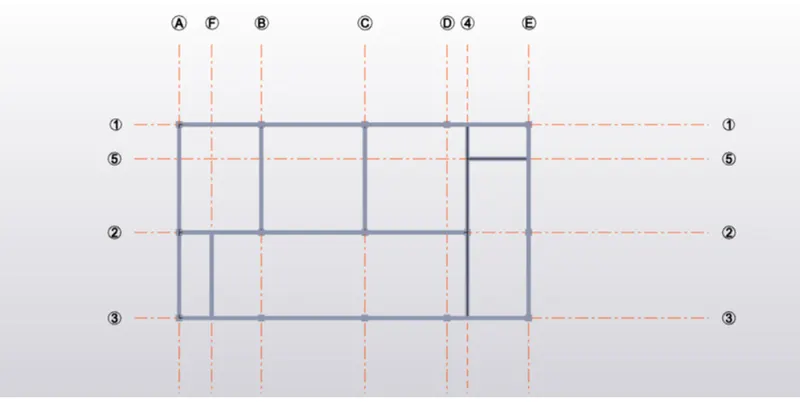

- Open the ground floor plan and draw the beams according to it

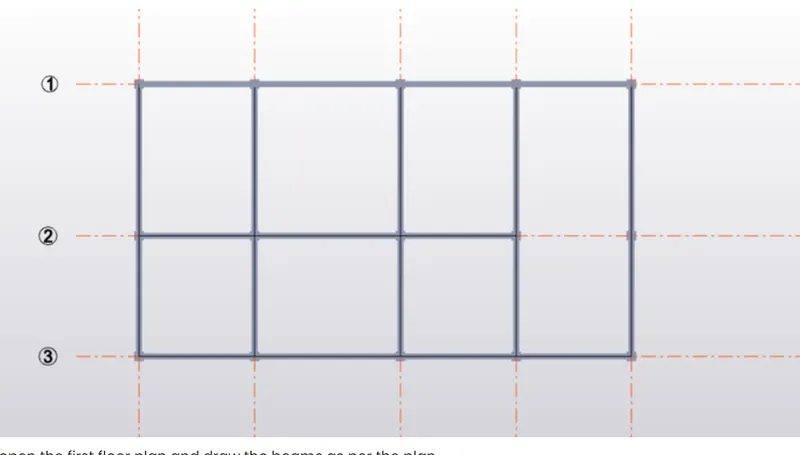

- Open the first floor plan and draw beams as per plan
