To Make a Simulink model for the “Automated Gear shift”
AIM:
To Make a Simulink model for the “Automated Gear shift” in Matlab
Simscap:
It enables you to rapidly create models of physical systems within the Simulink environment.
With Simscape, you build physical component models based on physical connections that directly integrate with block diagrams and other modelling paradigms.
Objective:
To Make a Simulink model for the “Gear shift” logic as per below conditions:
Speed Range(km/hr) Gear
0 to 15 1
16 to 25 2
26 to 40 3
41 to 60 4
Above 61 5
Give speed input while the simulation is running & display the gear number.
Block Used:
following blocks are used in Simulink to make this project
- constant
- Switch
- Chart
- Bulb

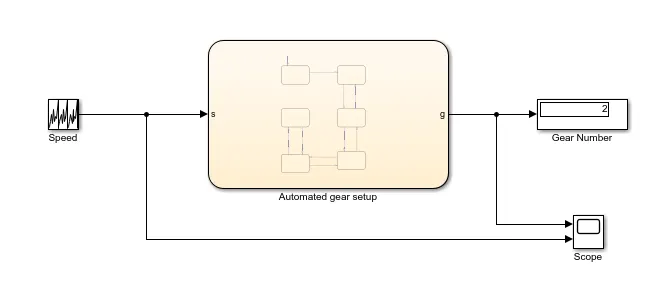

Simulink block diagram:

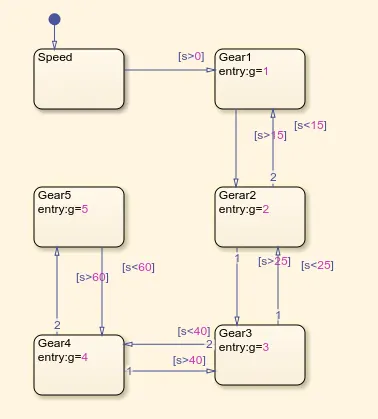

Inside chart
Chart:

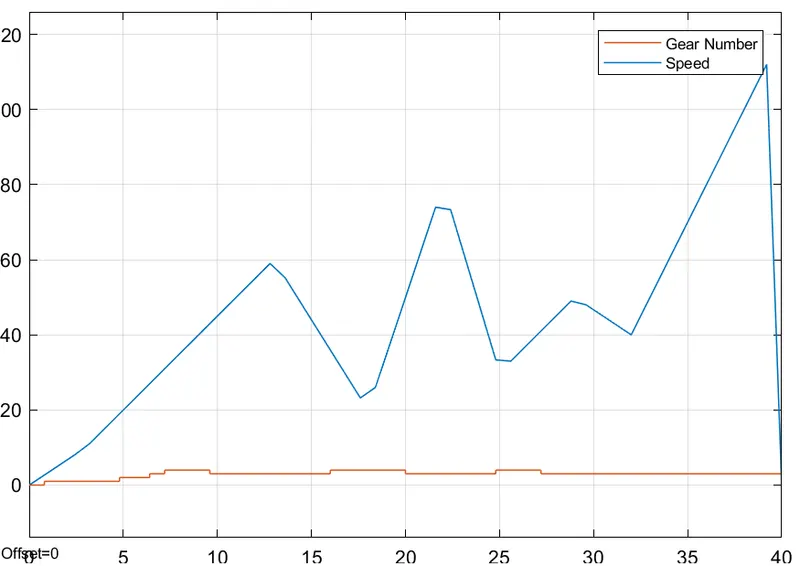

Output
The Automatic gear shifting can be observed with respect to the speed input.
