To Generate seismic loading based on IS code and to run the analysis using TSD

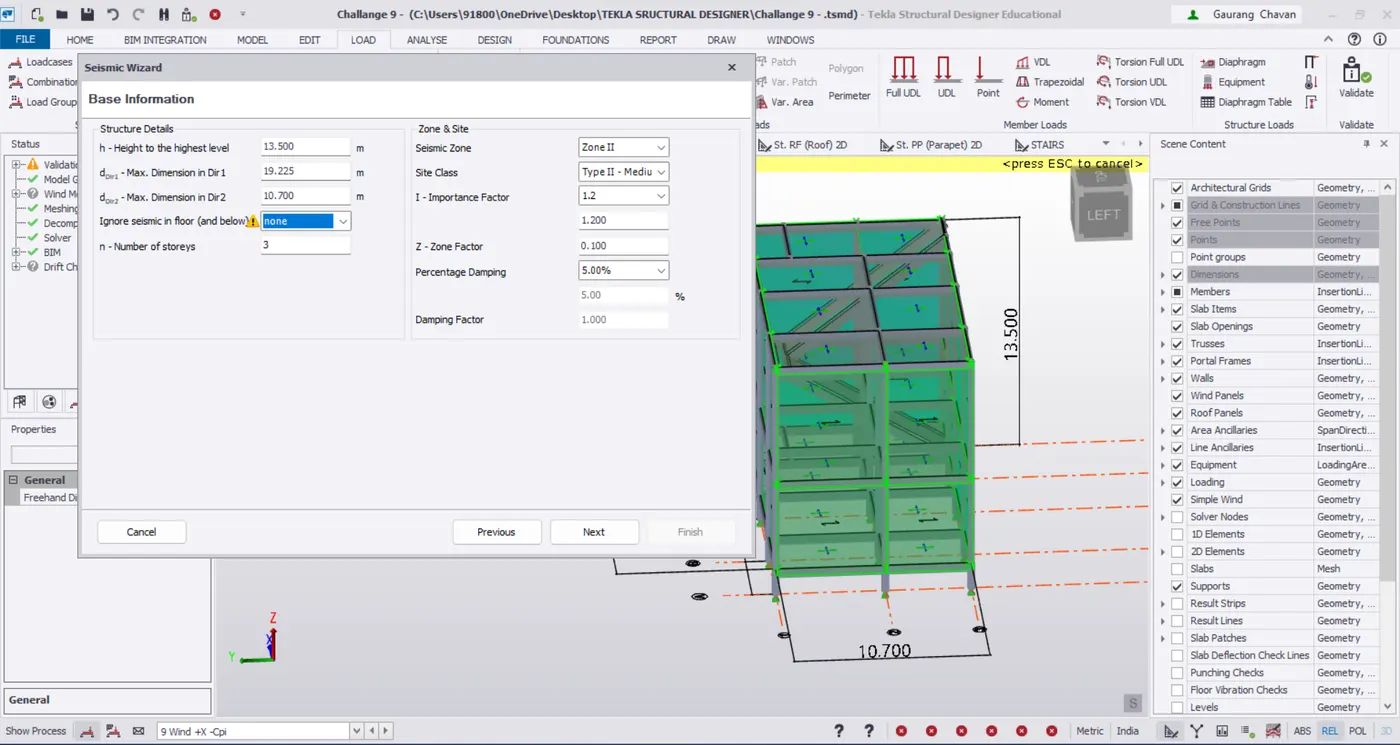

To generate seismic loading based IS codal provisions and zone II.

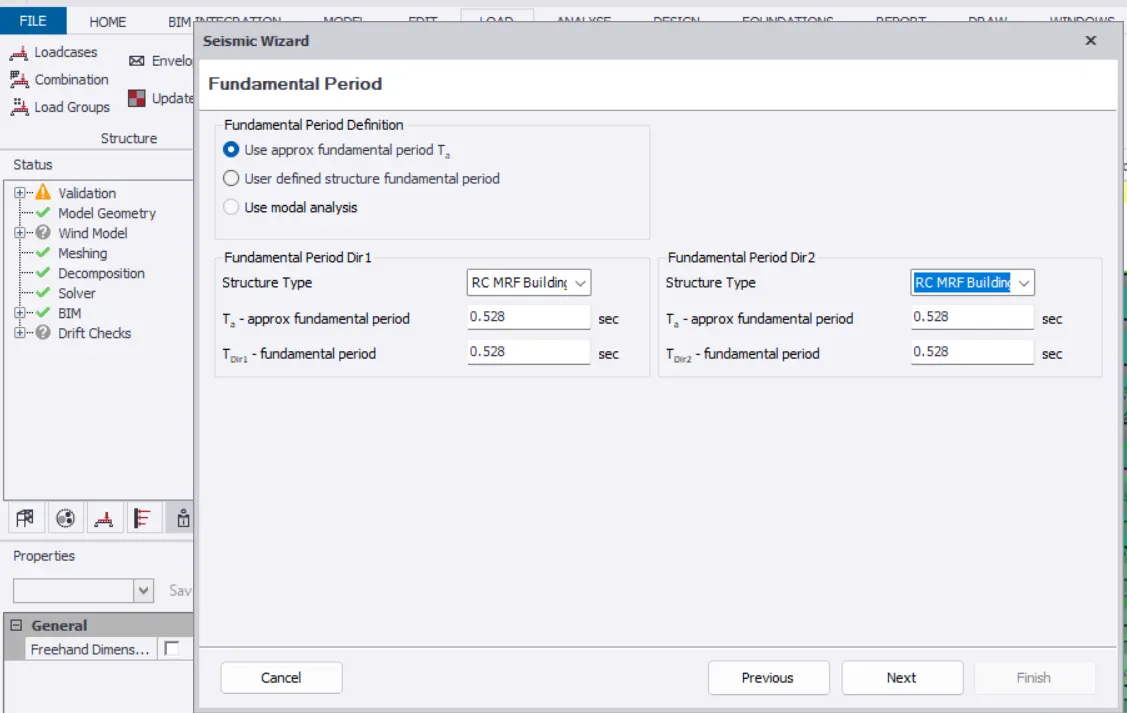

Seismic wizard changing the structure type RC MRF Bldg

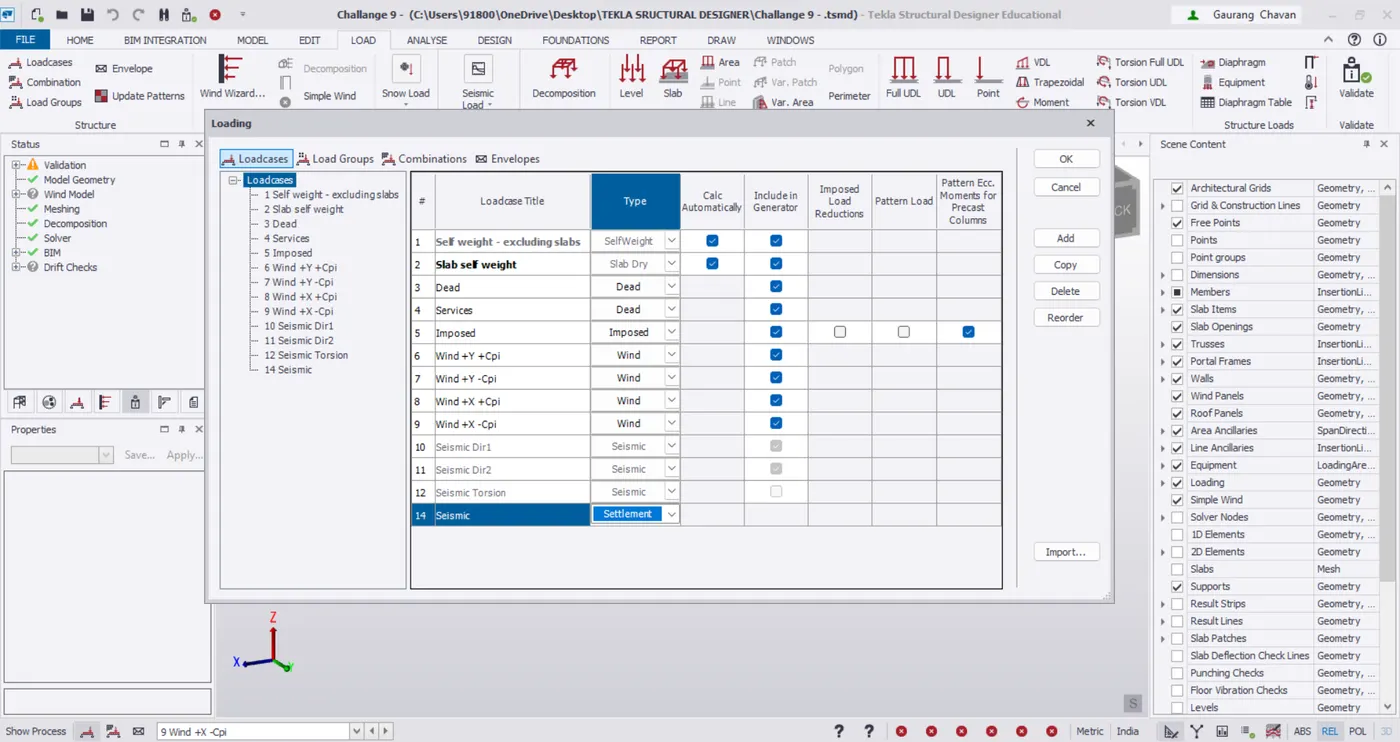

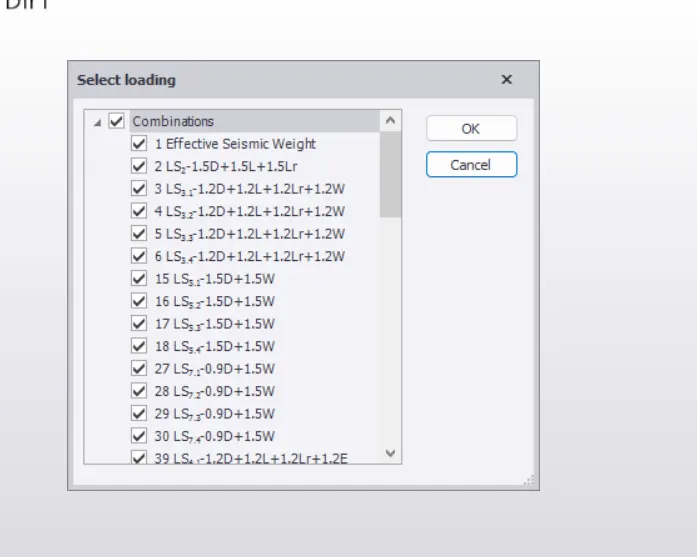

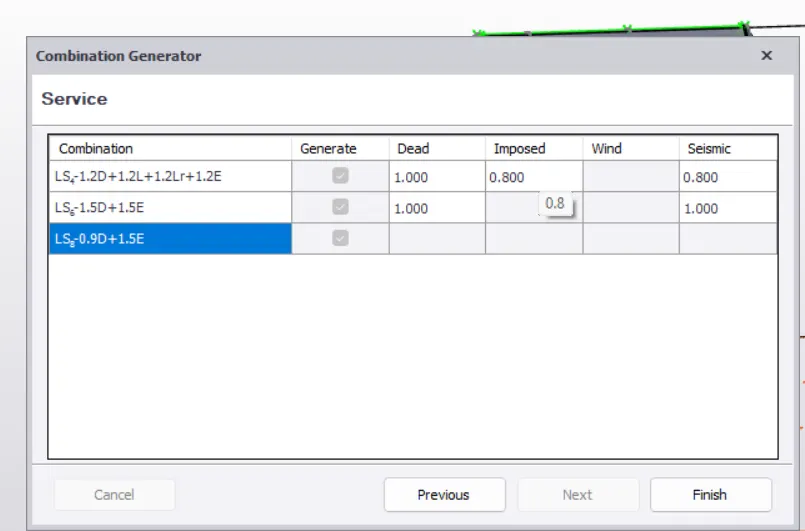

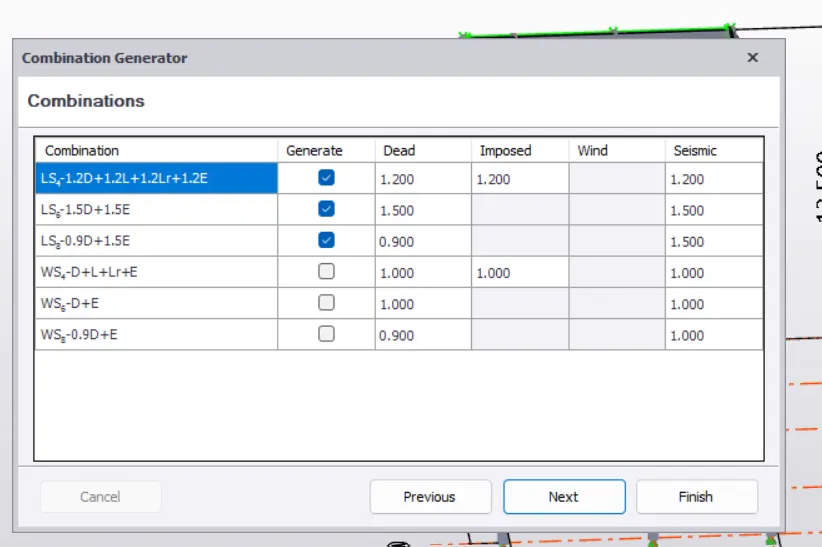

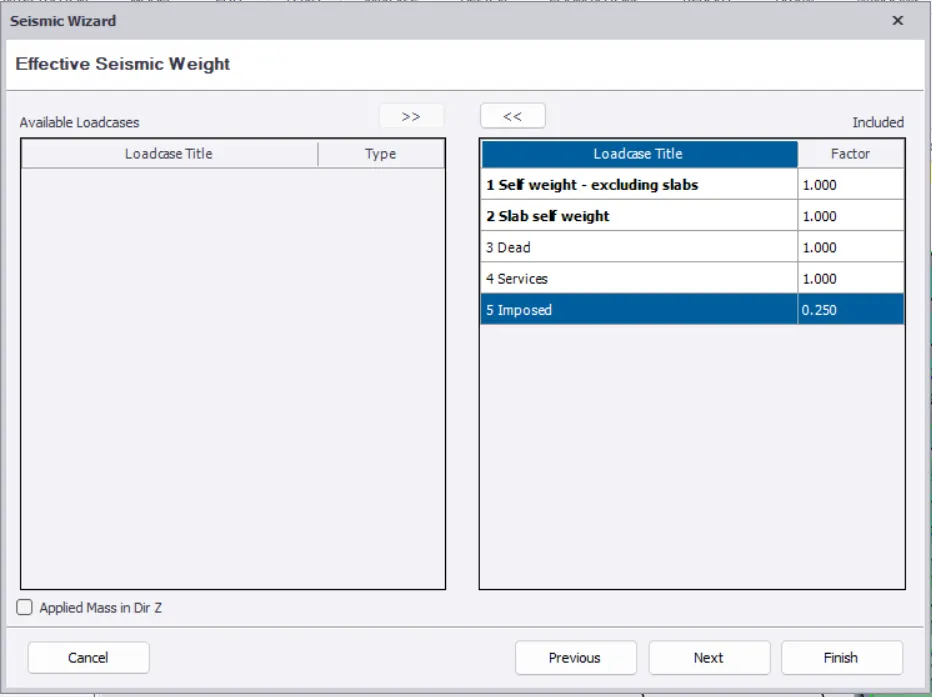

Including load cases
.
Going to analysis selecting first order analysis and then going to results and changing to get required results and sfd,bmd diagrams.

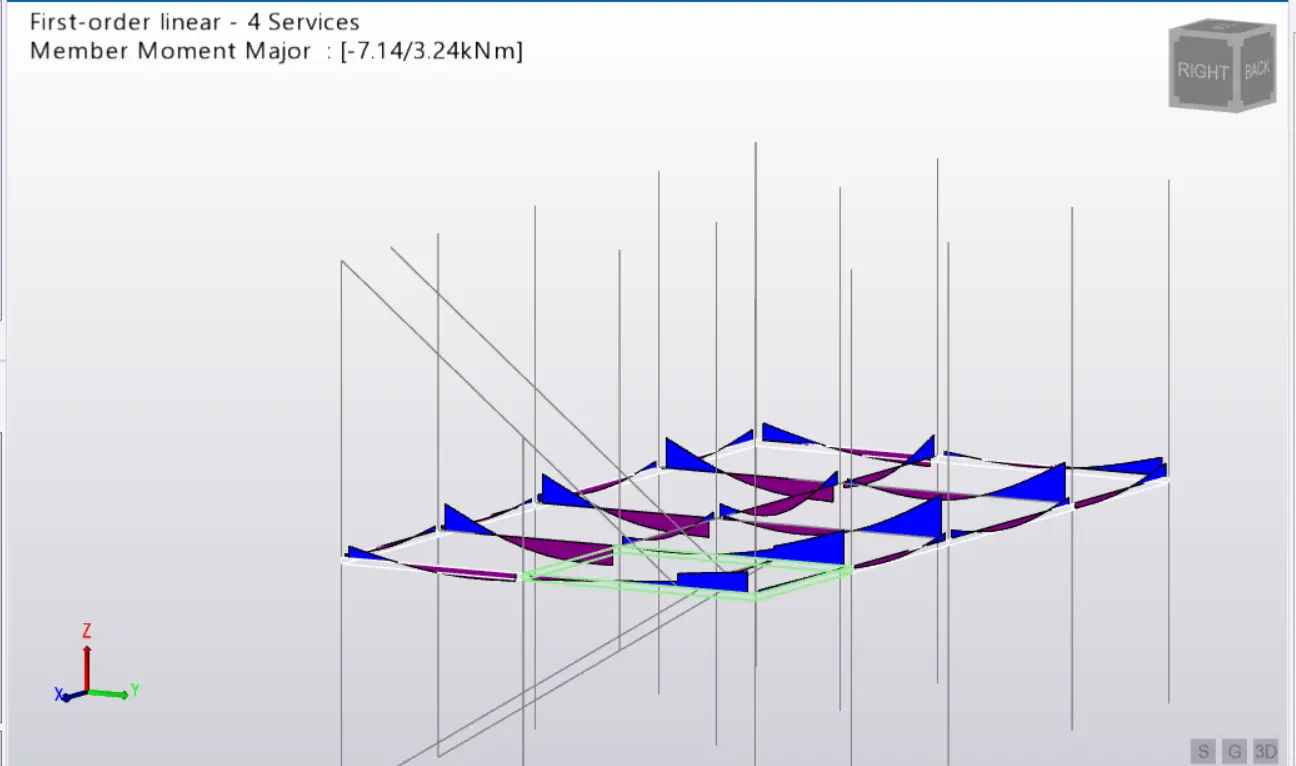

Major moment

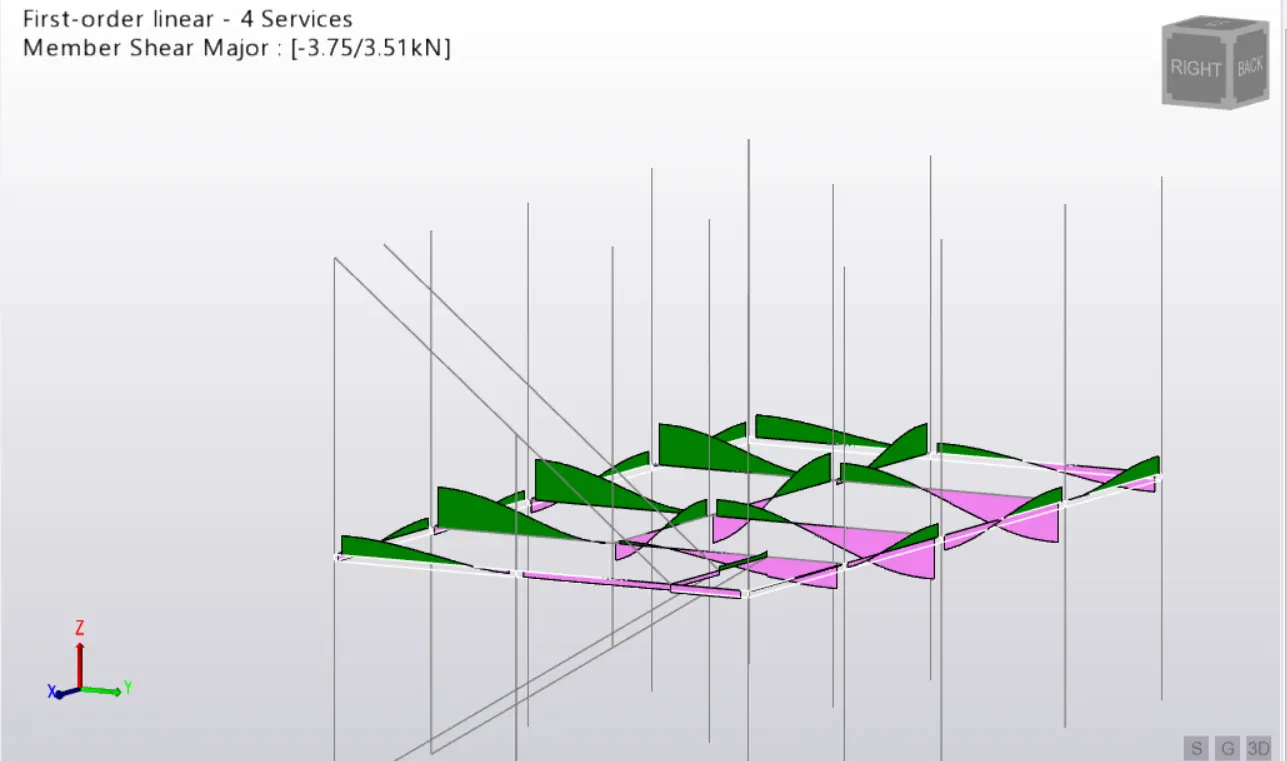

Shear Major
Moment major

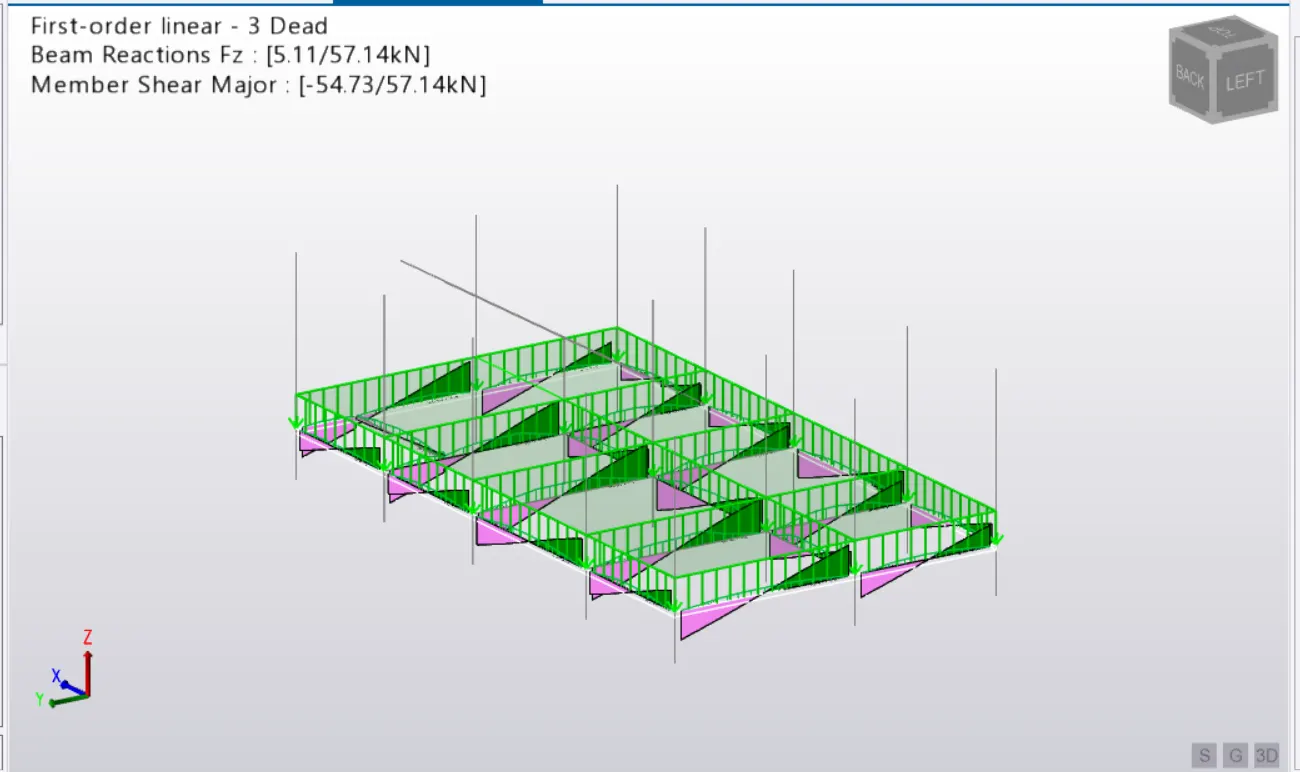

Shear major

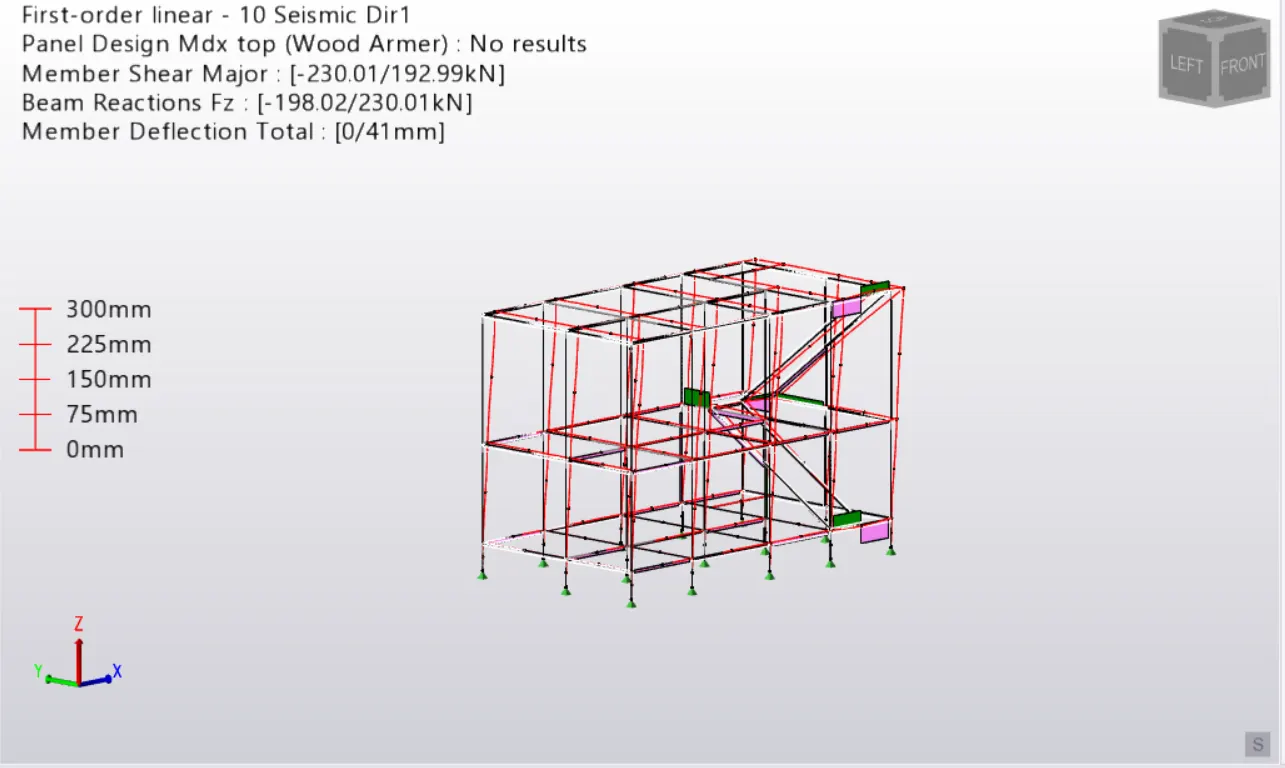

- When checking the deflection, we can see that the second beam at the ground floor is undergoing more deflection as compared to the others.
- This can be corrected by improving the concrete grade.

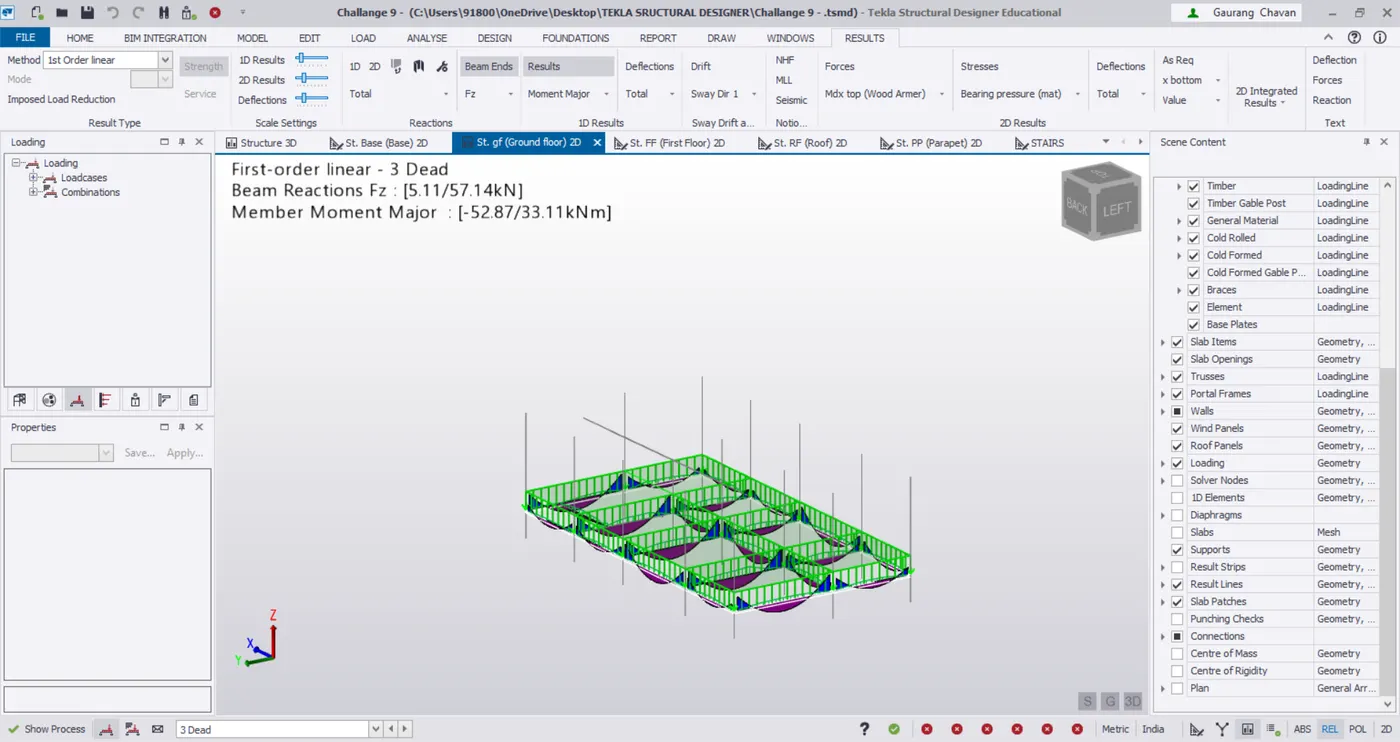

DL Beam reactions with 63.18KN

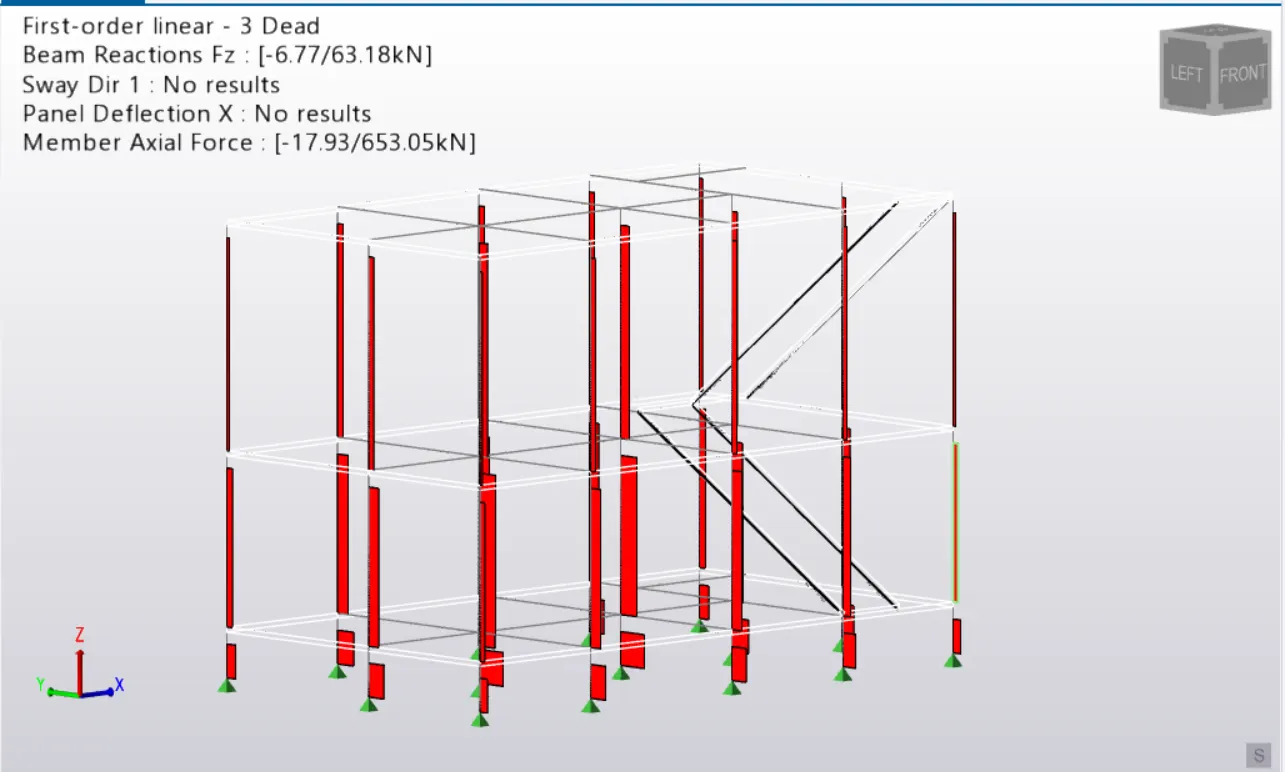

Member axial forece 653.05KN
