Challenge

Creation of geometries by Coordinate system methods using AutoCad

GGaurang Chavan28 Aug 2022

AIM:

(A) Create the geometries from P1 to P2 using all the coordinates system methods. And we need to use line tool, and find the missing dimensions.

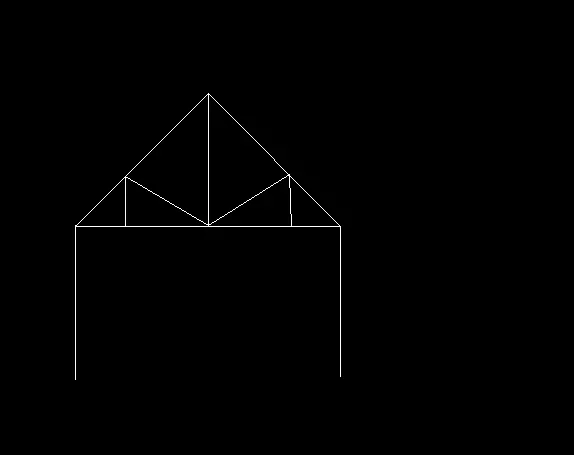

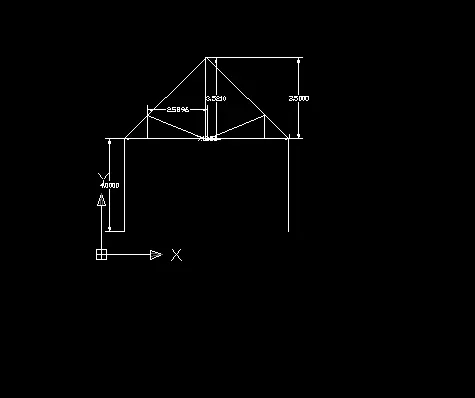

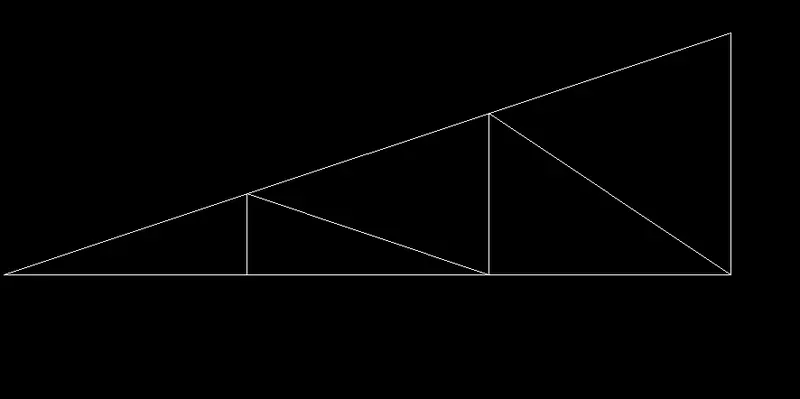

(B) Civil related problems- Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.
Introduction:
Before going to the drawing we should know about the coordinates systerns.
In Autocad there are two coordinate systems: Cartesian and polar.
To these coordinate systems the absolute and relative coordinates of Autocad as are applicable.

Coordinate Systems: Coordinate system is a system where numbers are used to determine the unique position of points and/or other geometric elements.

Also coordinates in AutoCAD can be set by mouse, input (setting) the values of coordinates in the command line and enter coordinates using dynamic input.
There are three types of co-ordinate systems.
1. Absolute coordinate systems
2. Relative coordinate systems
3. Relative rectangular coordinates
4. Relative polar coordinates
5. Direct distance entry

1. Absolute Coordinate System: In this system all points are established at some distance in the x & y-axis (sometimes z-axis) from a common origin (usually 0,0).

2. Relative Coordinate System: The location of a Relative coordinate is defined by its distance from a reference point. In AutoCAD, when using this system the first point of the drawing/geometry is always absolute, i.e. it is established with respect to origin (0.0) and then all the successive positions are established with respect to their preceding point. This system is further classified as

3. Relative rectangular coordinates: It is a coordinate system that specifies each point by a pair of numerical coordinates in the x-axis and y-axis. In this system the points succeeding the first point are typed in as '@x,y' in the command line.

4. Relative polar coordinates: This system specifies the distance (length) and angle of a particular point with respect to its previous point. In Relative polar coordinate system, points are established by typing @distance

Commands used:
1. Line command
2. Dimlinear command
3. Text command
4. Circle command

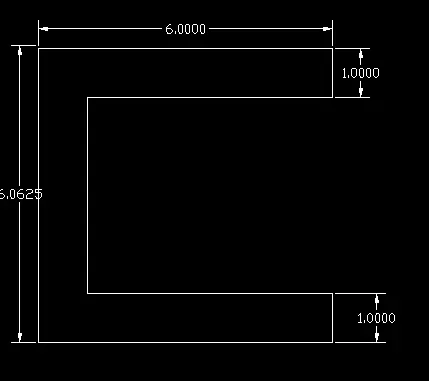

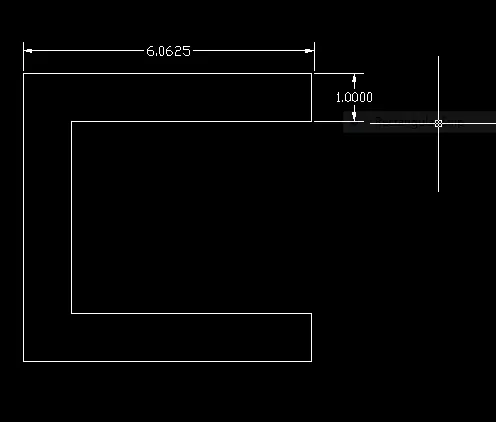

a} Absolute cooardinate system:
• Procedure:
  1. Select line tool from the ribbon tab/ write line in comand box, it will show "specify the first point"
  2. Now,
  3. Enter the first point as (2,1).
  4. Next, The command ask to enter next point.
  5. Specify the next point as ( 8,1 )
  6. Specify the next point as ( 8,2 )
  7. Specify the next point as ( 3,2 )
  8. Specify the next point as ( 3,6 )
  9. Specify the next point as ( 8,6 )
  10. Specify the next point as ( 8,7 )
  11. Specify the next point as ( 2,7 )
  12. Specify the next point as ( 2,1 ), else click on the close in commond prompt.

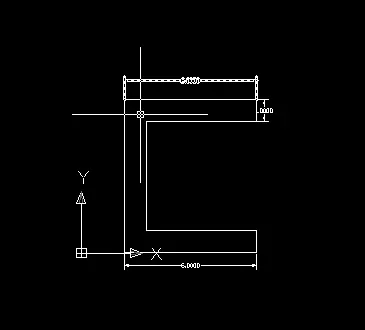

    b} Relative Rectangular coordinate system

    • Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as @6,0 in the command line.

    iv. Specify the next coordinate of point 3 as @0,1 in the command line.

    v. Specify the next coordinate of point 4 as @-5,0 in the command line.

    vi. Specify the next coordinate of point 5 as @0,4 in the command line.

    vii. Specify the next coordinate of point 6 as @5,0 in the command line.

    viii. Specify the next coordinate of point 7 as @0,1 in the command line.

    ix. Specify the next coordinate of point 8 as @-6,0 in the command line.

    x. Click 'Close' on the command line.

    c} Relative Polar coordinate system

    • Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as @6<0 in the command line.
    v. Specify the next coordinate of point 4 as @5<180 in the command line.
    x. Click 'Close' on the command line.

    iv. Specify the next coordinate of point 3 as @1<90 in the command line.

    vi. Specify the next coordinate of point 5 as @4<90 in the command line.

    vii. Specify the next coordinate of point 6 as @5<0 in the command line.
    viii. Specify the next coordinate of point 7 as @1<90 in the command line.

    ix. Specify the next coordinate of point 8 as @6<180 in the command line.

    d} Direct Distance Entry method

    • Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Enter the length of point 2 as 6 in the command line towards +ve x-axis.

    iv. Enter the length of point 3 as 1 in the command line towards +ve y-axis.

    v. Enter the length of point 4 as 5 in the command line towards -ve x-axis.

    vi. Enter the length of point 5 as 4 in the command line towards +ve y-axis.

    vii. Enter the length of point 6 as 5 in the command line towards +ve x-axis.

    viii. Enter the length of point 7 as 1 in the command line towards +ve y-axis.

    ix. Enter the length of point 8 as 6 in the command line towards -ve x-axis.

    x. Click 'Close' on the command line.

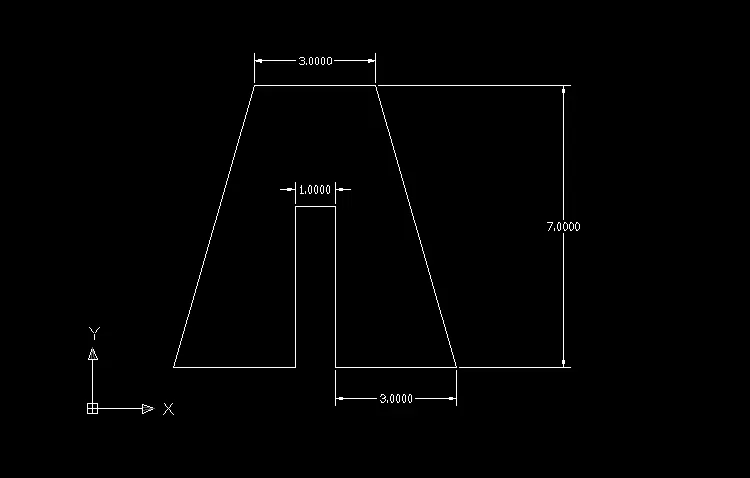

    create the geometries for P2 using all the coordinates system methods.

    a} Using Absolute coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as 5,1 in the command line.

    iv. Specify the next coordinate of point 3 as 5,5 in the command line.

    v. Specify the next coordinate of point 4 as 6,5 in the command line.

    vi. Specify the next coordinate of point 5 as 6,1 in the command line.

    vii. Specify the next coordinate of point 6 as 9,1 in the command line.

    viii. Specify the next coordinate of point 7 as 7,8 in the command line.

    ix. Specify the next coordinate of point 8 as 4,8 in the command line.

    x. Click 'Close' on the command line.

    b} Relative Rectagular coordinate systems
    Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as @3,0 in the command line.

    iv. Specify the next coordinate of point 3 as @0,4 in the command line.

    v. Specify the next coordinate of point 4 as @1,0 in the command line.

    vi. Specify the next coordinate of point 5 as @0,-4 in the command line.

    vii. Specify the next coordinate of point 6 as @3,0 in the command line.

    viii. Specify the next coordinate of point 7 as @-2,7 in the command line.

    ix. Specify the next coordinate of point 8 as @-3,0 in the command line.

    x. Click 'Close' on the command line.

    c} Using Relative Polar coordinate system

    Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as @3<0 in the command line.

    iv. Specify the next coordinate of point 3 as @4<90 in the command line.

    v. Specify the next coordinate of point 4 as @1<0 in the command line.

    vi. Specify the next coordinate of point 5 as @4<270 in the command line.

    vii. Specify the next coordinate of point 6 as @3<0 in the command line.

    viii. Specify the next coordinate of point 7 as @7<106 in the command line.

    ix. Specify the next coordinate of point 8 as @3<180 in the command line.

    x. Click 'Close' on the command line.

    d} Direct Distance Entry method

    Procedure:

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Enter the length of point 2 as 3 in the command line towards +ve x-axis.

    iv. Enter the length of point 3 as 4 in the command line towards +ve y-axis.

    v. Enter the length of point 4 as 1 in the command line towards +ve x-axis.

    vi. Enter the length of point 5 as 4 in the command line towards -ve y-axis.

    vii. Enter the length of point 6 as 3 in the command line towards +ve x-axis.

    viii. Enter the length of point 7 as 7 in the command line at an angle of <106 from +ve x-direction while keeping
    polar tracking on.

    ix. Enter the length of point 8 as 3 in the command line towards -ve x-axis.

    x. Click 'Close' on the command line.

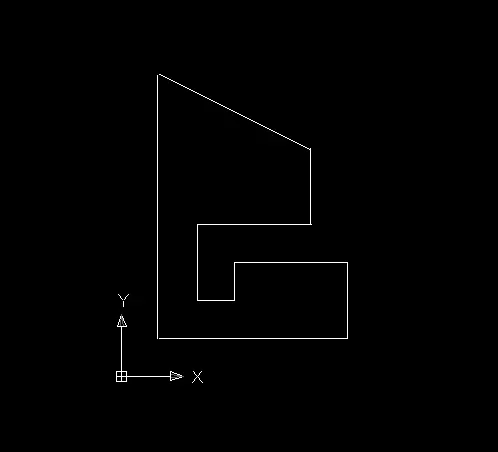

    Create the geometries from P4 to P10 using any coordinates system methods.

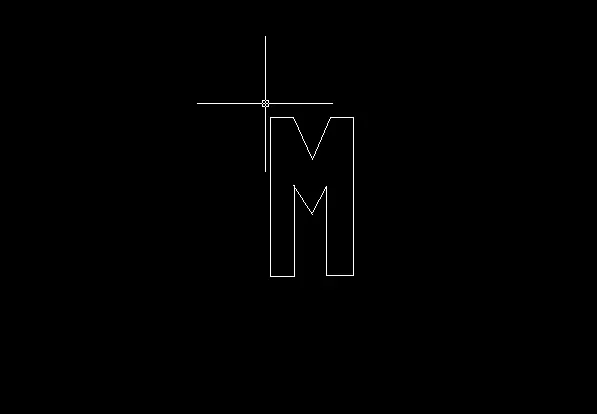

    Steps for creating the geometry in P-4 using Absolute coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as 3,1 in the command line.

    iv. Specify the next coordinate of point 3 as 3,5 in the command line.

    v. Specify the next coordinate of point 4 as 5,3 in the command line.

    vi. Specify the next coordinate of point 5 as 7,5 in the command line.

    vii. Specify the next coordinate of point 6 as 7,1 in the command line.

    viii. Specify the next coordinate of point 7 as 3,1 in the command line.

    ix. Specify the next coordinate of point 8 as 8,8 in the command line.

    x. Specify the next coordinate of point 9 as 7,8 in the command line.

    xi. Specify the next coordinate of point 10 as 5,5 in the command line.

    xii. Specify the next coordinate of point 11 as 3,8 in the command line.

    xiii. Specify the next coordinate of point 12 as 2,8 in the command line.

    xiv. Click 'Close' on the command line.

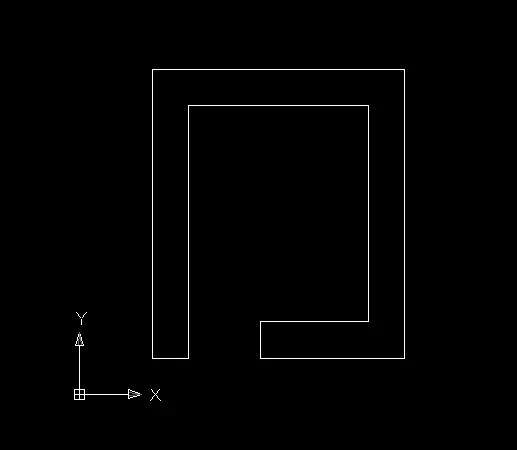

    Steps for creating the geometry in P-5 using Relative Rectangular coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as @1,0 in the command line.

    iv. Specify the next coordinate of point 3 as @0,7 in the command line.

    v. Specify the next coordinate of point 4 as @5,0 in the command line.

    vi. Specify the next coordinate of point 5 as @0,-6 in the command line.

    vii. Specify the next coordinate of point 6 asl-3,0 in the command line.

    viii. Specify the next coordinate of point 7 as @0,-1 in the command line.

    ix. Specify the next coordinate of point 8 as @4,0 in the command line.

    x. Specify the next coordinate of point 9 as @0,8 in the command line.

    xi. Specify the next coordinate of point 10 as @-7,0 in the command line.

    xii. Click 'Close' on the command line.

    Steps for creating the geometry in P-7 using Absolute coordinate system

    i. Select the Line tool by entering 'LINE command in the command tab

    ii. Specify the starting coordinate of point 1 as 2,1 in the command line.

    iii. Specify the next coordinate of point 2 as 10,1 in the command line.

    iv. Specify the next coordinate of point 3 as 10,7 in the command line.

    v. Specify the next coordinate of point 4 as 2,7 in the command line.

    vi. Click 'Close' on the command line.

    vii. Select the Line tool by entering 'LINE command in the command tab.

    viii. Specify the next coordinate of point 5 as 3.2 in the command line

    ix. Specify the next coordinate of point 6 as 5.2 in the command line

    x. Specify the next coordinate of point 7 as 5.5 in the command line.

    xi. Specify the next coordinate of point 8 as 3.5 in the command line.

    xii. Click 'Close' on the command line

    xiii. Select the Line tool by entering LINE command in the command tab

    xiv. Specify the next coordinate of point 9 as 6.2 in the command line.

    xv. Specify the next coordinate of point 10 as 8.2 in the command line.

    xvi. Specify the next coordinate of point 11 as 8.5 in the command line

    xvii. Specify the next coordinate of point 12 as 6,5 in the command line

    XVII Click Close' on the command line

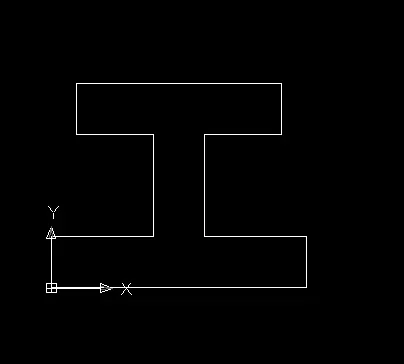

    Steps for creating the geometry in P-8 using Relative Rectangular coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 0,0 in the command line.

    iii. Specify the next coordinate of point 2 as @10,0 in the command line.

    iv. Specify the next coordinate of point 3 as @0,2 in the command line.

    v. Specify the next coordinate of point 4 as @-4,0 in the command line.

    vi. Specify the next coordinate of point 5 as @0,4 in the command line.

    vii. Specify the next coordinate of point 6 as 3,0 in the command line.

    viii. Specify the next coordinate of point 7 as @0,2 in the command line.

    ix. Specify the next coordinate of point 8 as @-8,0 in the command line.

    x. Specify the next coordinate of point 9 as @0,-2 in the command line.

    xi. Specify the next coordinate of point 10 as @3,0 in the command line.

    xii. Specify the next coordinate of point 11 as @0.-4 in the command line.

    xiii. Specify the next coordinate of point 12 as @-4,0 in the command line.

    xiv. Click 'Close' on the command line.

    Steps for creating the geometry in P-9 using Absolute coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 1,1 in the command line.

    iii. Specify the next coordinate of point 2 as 6,1 in the command line.

    iv. Specify the next coordinate of point 3 as 6,3 in the command line.

    v. Specify the next coordinate of point 4 as 3,3 in the command line.

    vi. Specify the next coordinate of point 5 as 3,2 in the command line.

    vii. Specify the next coordinate of point 6 as 2,2 in the command line.

    viii. Specify the next coordinate of point 7 as 2,4 in the command line.

    ix. Specify the next coordinate of point 8 as 3,4 in the command line.

    x. Specify the next coordinate of point 9 as 5,6 in the command line.

    xi. Specify the next coordinate of point 10 as 1,8 in the command line.

    xii. Click 'Close' on the command line.

    Steps for creating the geometry in P-10 using Relative Polar coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 1,1 in the command line.

    iii. Specify the next coordinate of point 2 as @2<0 in the command line.

    iv. Specify the next coordinate of point 3 as @3<90 in the command line.

    v. Specify the next coordinate of point 4 as @3<0 in the command line.

    vii. Specify the next coordinate of point 6 as 5-180 in the command line.

    viii. Click 'Close' on the command line.

    vi. Specify the next coordinate of point 5 as @4<90 in the command line.

    ix. Select the Line tool by entering 'LINE' command in the command tab.

    xi. Specify the next coordinate of point 8 as @3<0 in the command line.

    x. Specify the next coordinate of point 7 as 5,2 in the command line.

    xii. Specify the next coordinate of point 9 as @2<90 in the command line.

    xiii. Specify the next coordinate of point 10 as @3<180 in the command line.

    xiv. Click 'Close' on the command line.

    B) Civil related problems- Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

    Steps for creating the Wood Profile Using Direct Distance Entry method

    . Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 0,0 in the command line.

    iii. Enter the length of point 2 as 10 in the command line towards +ve x-axis.

    iv. Enter the length of point 3 as 1 in the command line towards +ve y-axis.

    v. Enter the length of point 4 as 2 in the command line towards -ve x-axis.

    vi. Enter the length of point 5 as 4 in the command line towards +ve y-axis.

    vii. Enter the length of point 6 as 2 in the command line towards +ve x-axis.

    viii. Enter the length of point 7 as 831 in the command line at an angle of <149.036 from +ve x-direction while
    keeping polar tracking on.

    ix. Enter the length of point 8 as 5.831 in the command line at an angle of <210.964 from +ve x-direction while
    keeping polar tracking on.

    x. Enter the length of point 9 as 2 in the command line towards +ve x-axis.

    xi. Enter the length of point 10 as 5 in the command line towards -ve y-axis.

    xii. Enter the length of point 11 as 2 in the command line towards +ve x-axis.

    xiii. Click 'Close' on the command line.

    xiv. Select the Circle tool by entering 'CIRCLE' command in the command tab.

    xv. Specify centre point of circle as 5,4.

    xvi. Specify radius of circle as 2.

    Steps for creating the Queen Post Truss Using Relative Rectangular coordinate system

    . Select the Line tool by entering 'LINE command in the command tab.

    ii. Specify the starting coordinate of point 1 as 1,1 in the command line. iii. Specify the next coordinate of point 2 as @4,0in the command line.

    iv. Specify the next coordinate of point 3 as @3.536,3.536 in the command line.

    V. Specify the next coordinate of point 4 as @3.536,-3.536 in the command line. vi. Specify the next coordinate of point 5 as @0,-4 in the command line.

    vii. Press 'Esc' to cancel the LINE command.

    viii. Select the Line tool again by entering 'LINE' command in the command tab. ix. Join the points 2 and 4. x. Press 'Esc' to cancel the LINE command. xix. Specify the next coordinate of point 10 as @0,-1 in the command line. xx. Press 'Esc' to cancel the LINE command. xxi. Select the Line tool again by entering 'LINE' command in the command tab.

    xi. Select the Line tool again by entering 'LINE' command in the command tab.

    xii. Specify the next coordinate of point 6 as 4.536,5 in the command line. xiii. Specify the next coordinate of point 7 as @-2.536,1 in the command line.

    xiv. Specify the next coordinate of point 8 as @0,-1 in the command line.

    xv. Press 'Esc' to cancel the LINE command. xvi. Select the Line tool again by entering 'LINE' command in the command tab.

    xvii. Specify the coordinate of point 6 as 4.536,5 in the command line.

    xviii. Specify the next coordinate of point 9 as @2.536.1 in the command line.

    xxii. Join points 3 and 6 xxiii. Press Esc' to cancel the LINE command.

    Steps for creating the Mono Pitch using Absolute coordinate system

    i. Select the Line tool by entering 'LINE' command in the command tab.

    ii. Specify the starting coordinate of point 1 as 1,1 in the command line.

    iii. Specify the next coordinate of point 2 as 7,1 in the command line.

    iv. Specify the next coordinate of point 3 as 7,3 in the command line.

    v. Click 'Close' on the command line.

    vi. Select the Line tool by entering 'LINE' command in the command tab.

    vii. Specify the next coordinate of point 4 as 3,1 in the command line.

    viii. Specify the next coordinate of point 5 as 3,1.667 in the command line.

    ix. Specify the next coordinate of point 6 as 5,1 in the command line.

    x. Specify the next coordinate of point 7 as 5,2.333 in the command line.

    xi. Specify the next coordinate of point 8 as 7,1 in the command line.

    xii. Press 'Esc' to cancel the LINE command.

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
