To Generate seismic loading based on IS code and to run the analysis using TSD

Aim: To generate report for the steel building design.

Procedure:
• Open the saved Tekla model

• Now go to the report option from the Ribbon and select model report

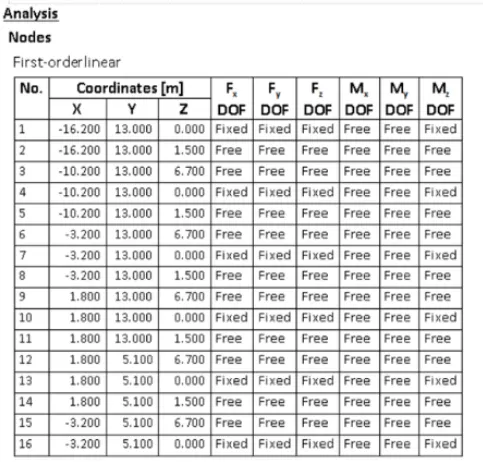

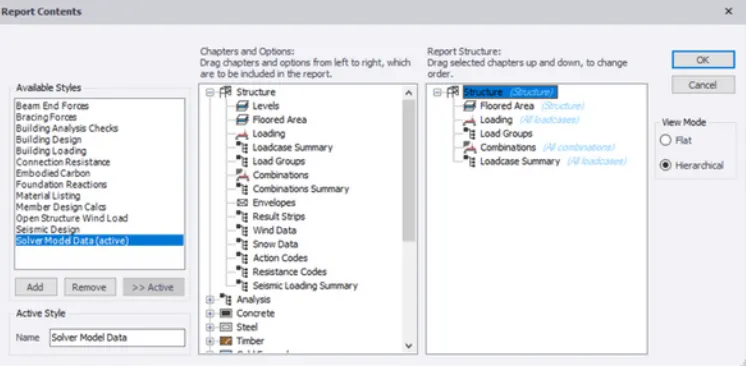

• Now select the load cases and combinations summary to obtain report.

•Click on the show report to obtain the report

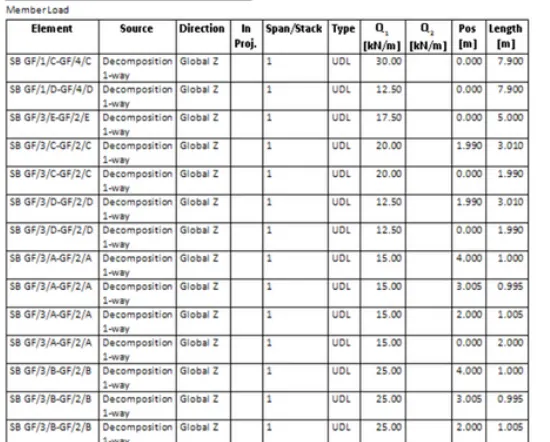

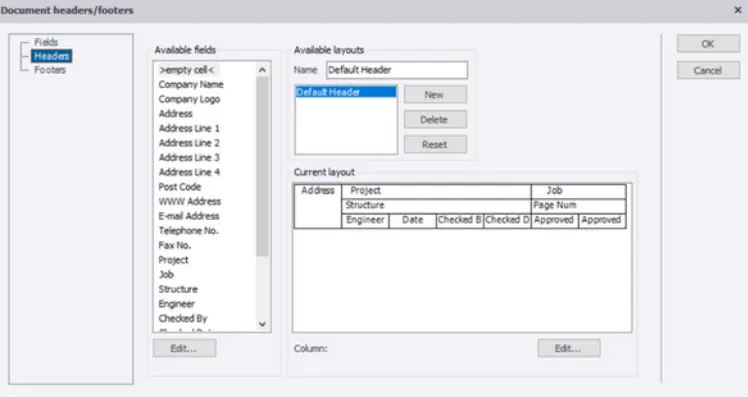

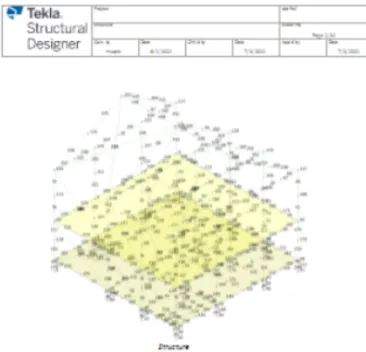

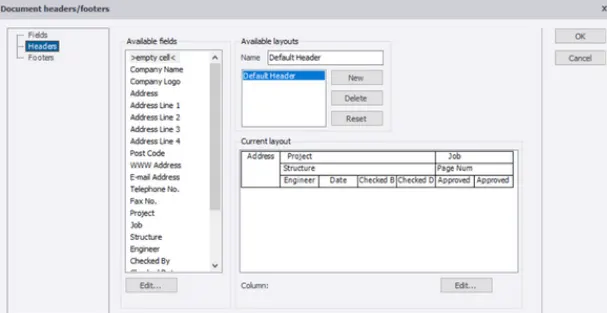

• We can change the project name, address etc, with the help of edit header option

• We can also convert this report in PDF, word etc as well.

Aim: To generate the report for RC structure along with loading summary

Procedure:

• Open the previously saved Tekla model

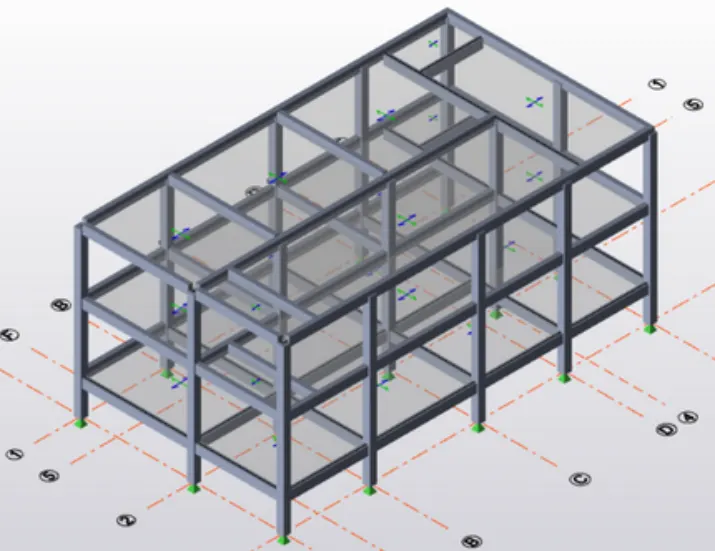

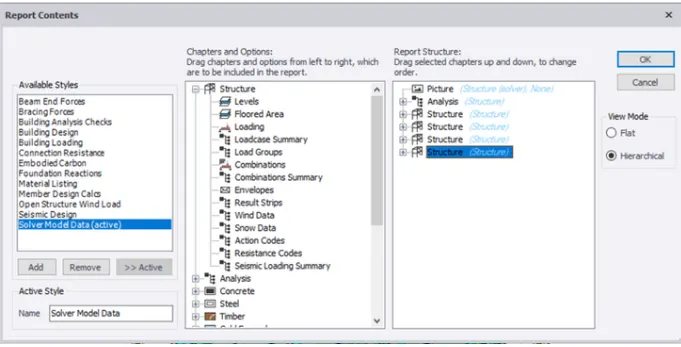

• Now go to the report option from the ribbon and select model report.

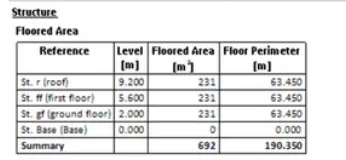

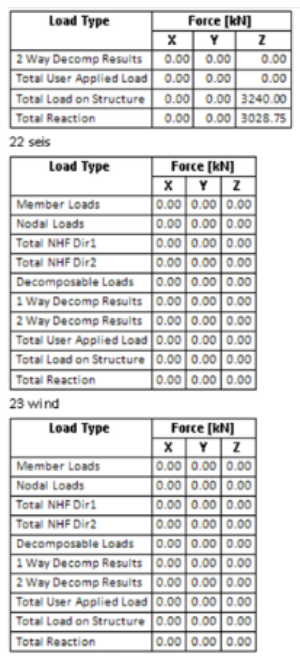

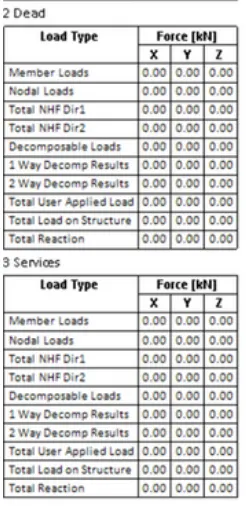

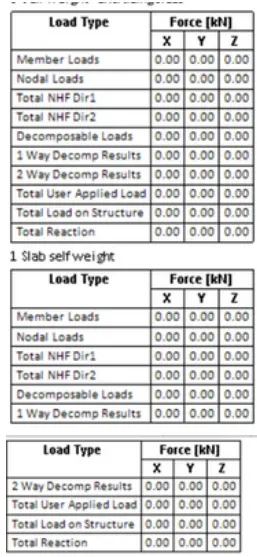

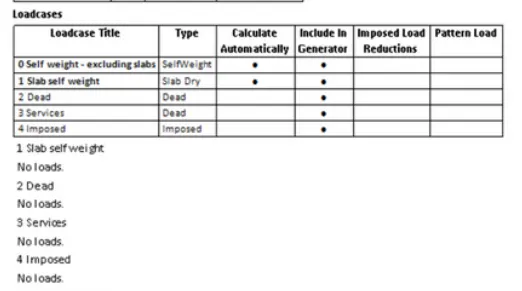

• Now select load cases and combinations summary to obtain report.

• Now click on show report option to obtain the report.

• We can make changes in the settings, project name, type etc; using the Edit header

• We can convert this report to PCF, word format etc.

Aim: To update the layers settings in the model and generate plan drawings and details from the model.

Procedure:

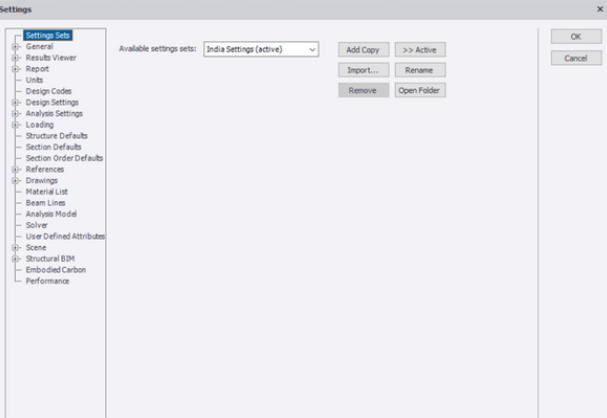

• Go to the setting option from the ribbon.

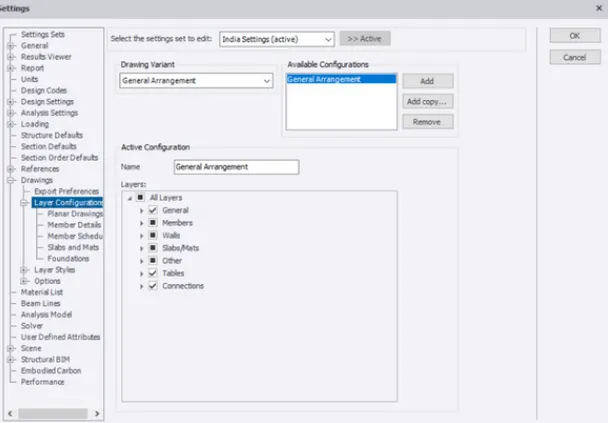

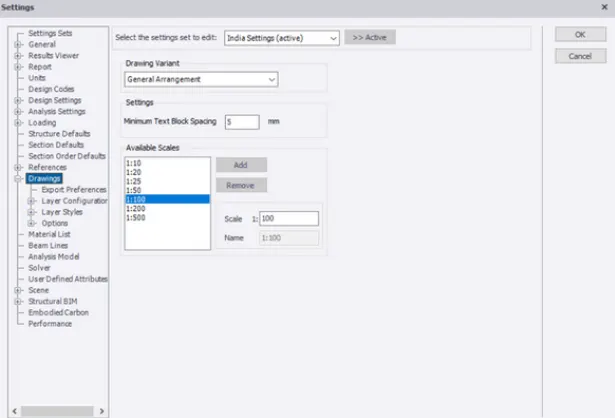

• Now select the drawing option and adjust the scale and sub layer configuration

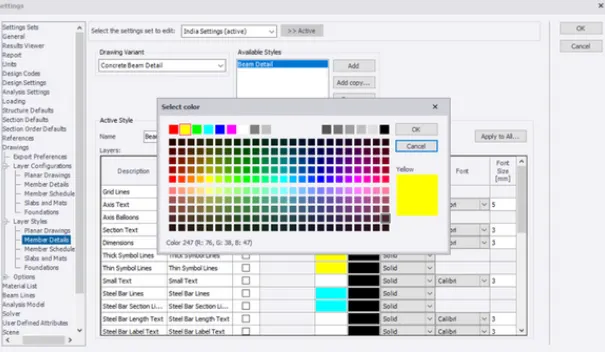

• Now we have to select the layer style and we will get the list of colours od different members of the model,
which is our choice.

• Click on a colour and then select the desired colour for our desired member.

• Thus, we can make changes in the layer settings
