To Generate report for Steel Industrial and RC structures using TSD
que 1-
- Generate report for the steel building design from challenges 1 – 6 along with the loading summary
Aim- to generate report for steel building design with loading summary
tools used- open, model report, building loading ,loadcase summary ,show report

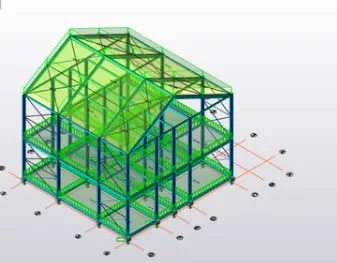

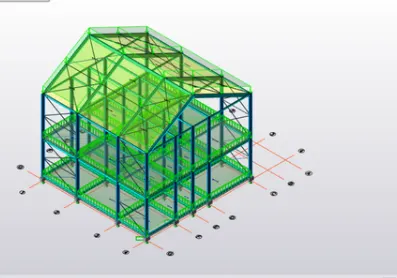

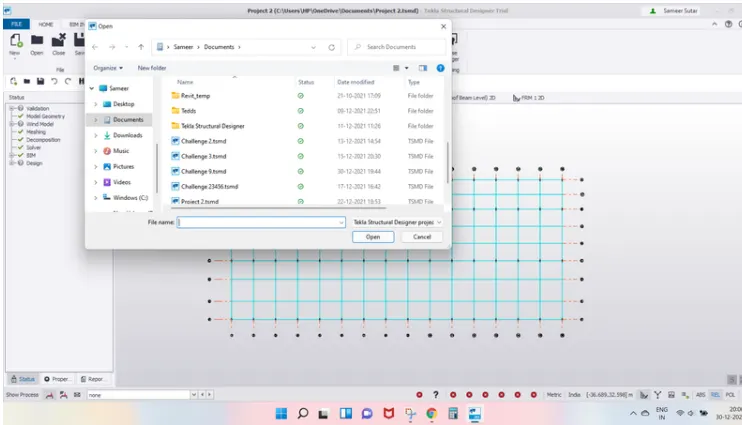

procedure- open the steel structure and click on model report

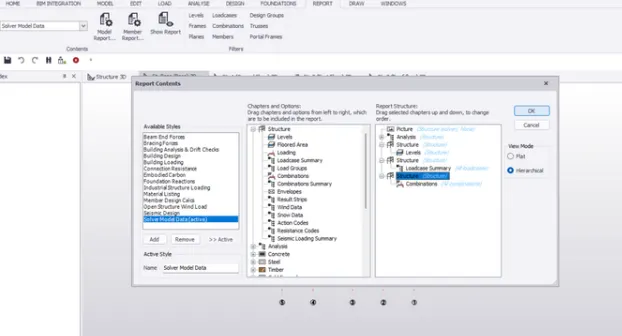

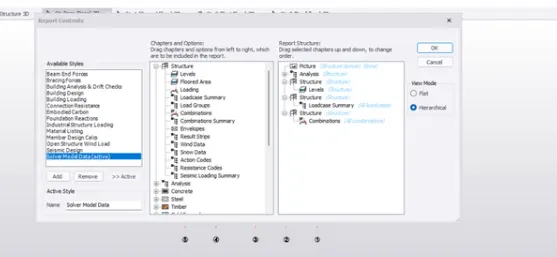

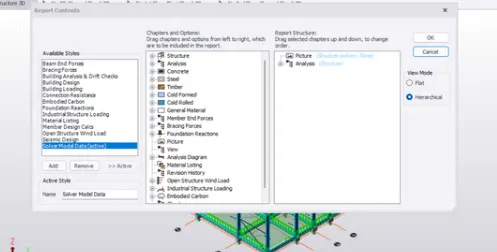

Click on building loading in available styles tab in left of report a content dialogue box

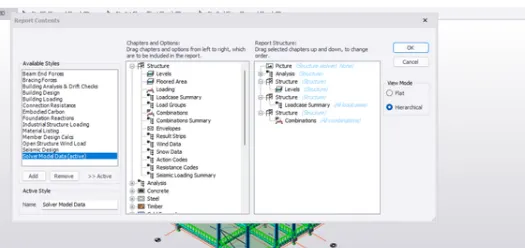

Click on structure and draw the load case summary and dragged into the content and click ok

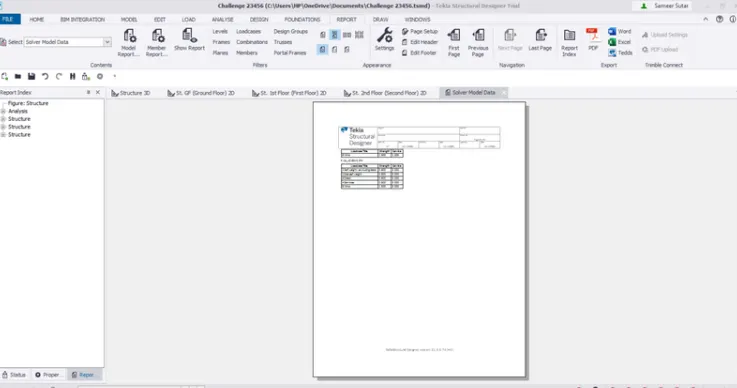

Click on a show report in a report a tab to generate reporter

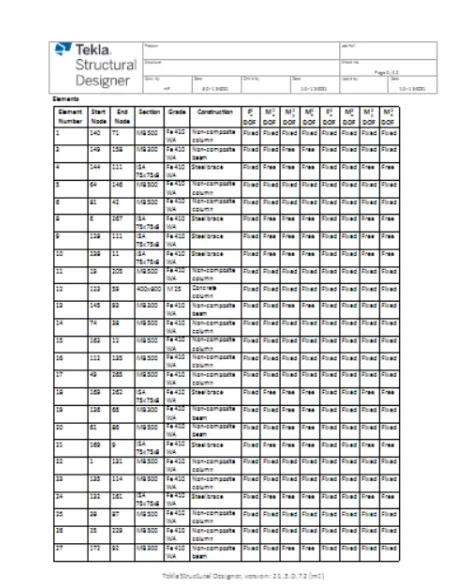

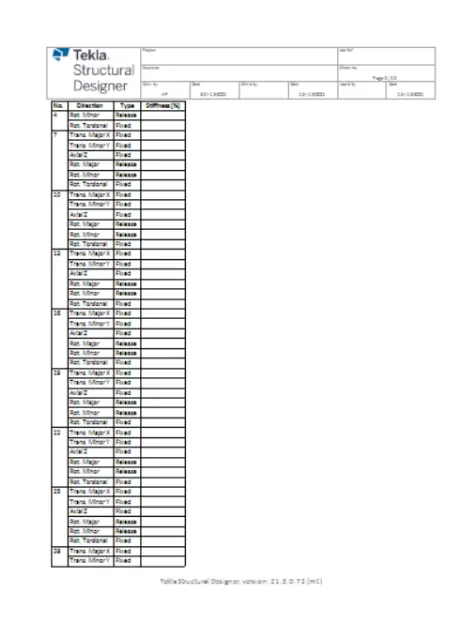

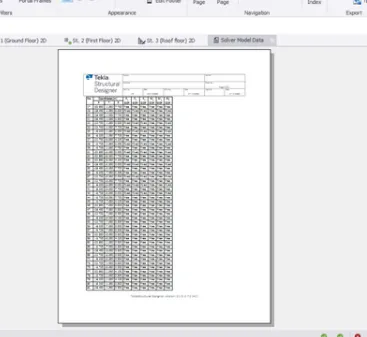

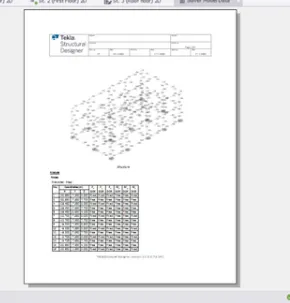

Result -the following reports are generated
Q2.Generate report for RC structure along with the loading summary
Aim- to generate report for rcc structure design with loading summary
tools used- open, model report, building loading ,loadcase summary ,show report
procedure- open the rcc structure and click on model report

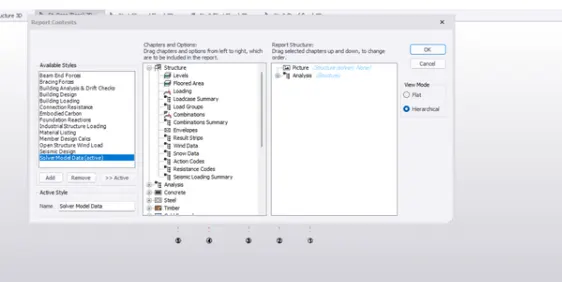

Click on building loading in available styles tab in left of report a content dialogue box
Click on structure and draw the load case summary and dragged into the content and click ok
Click on a show report in a report a tab to generate reporter

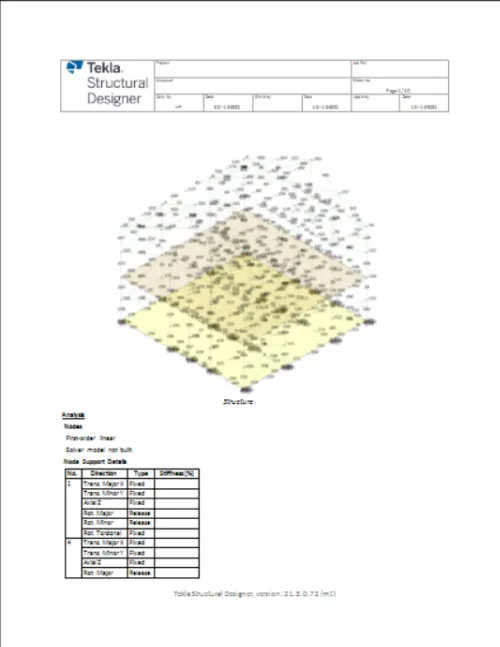

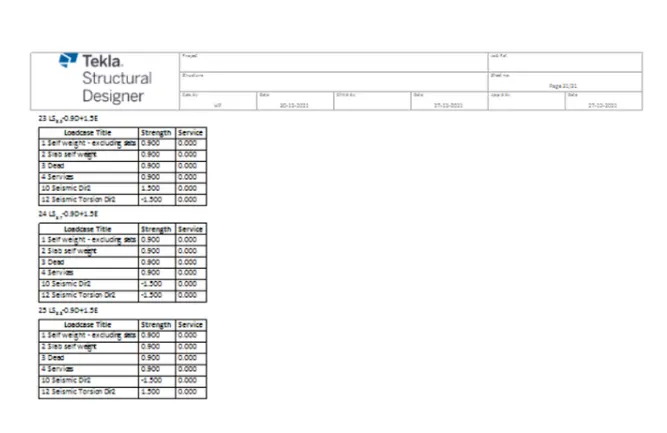

Result -the report are generated successfully

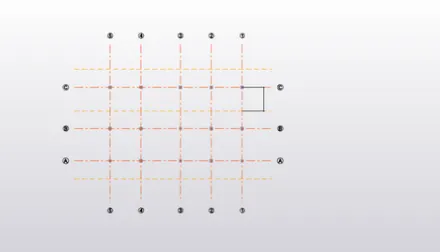

Aim -to update the layer setting in the model and generate plan drawing and details from the model
tools used -drow tab ,setting, layer styles ,colour

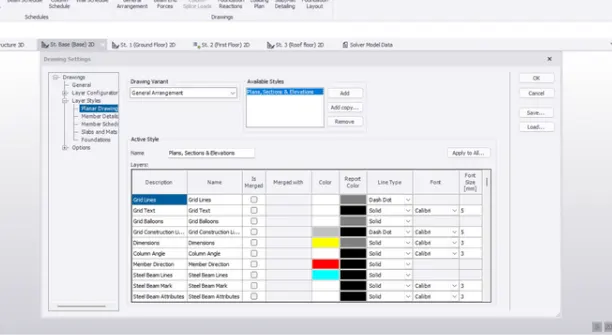

procedure- click on settings in draw tab

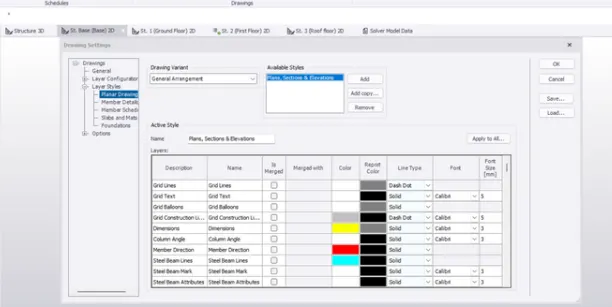

In the tab that appears click on layer style in the drawing

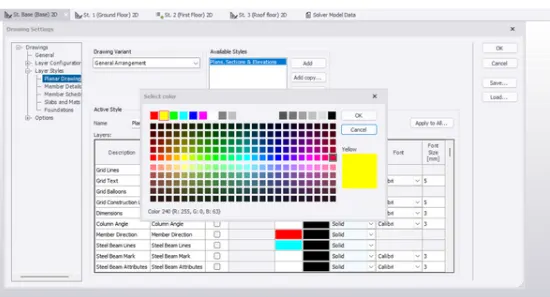

Click on the colour and select the colour as you require and click ok
Again click ok after creating the layer for all the lines member of TSD
result- The layers are successfully created
