To Generate report for Steel Industrial and RC structures using TSD
1)
Aim :-
Generate report for the steel building design from challenges 1 – 6 along with the loading summary
Procedure :-

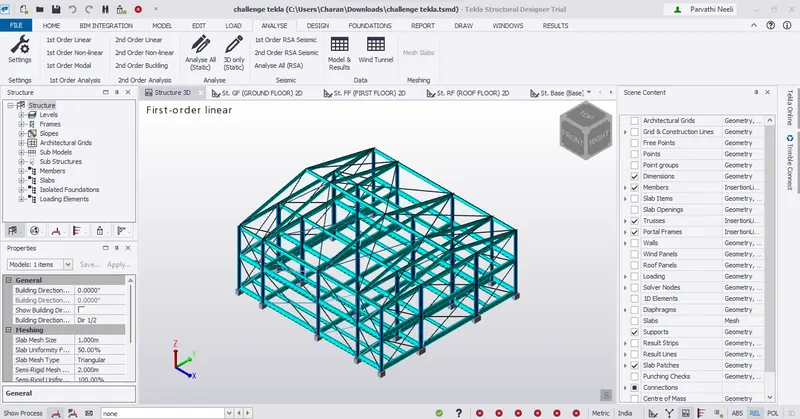

* Open the steel building Tekla file

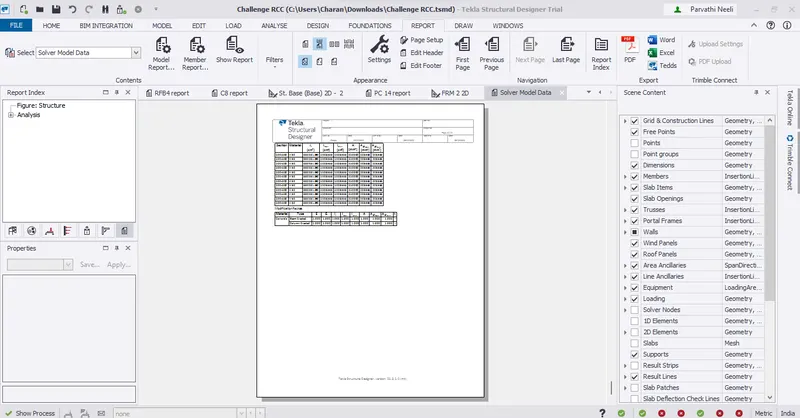

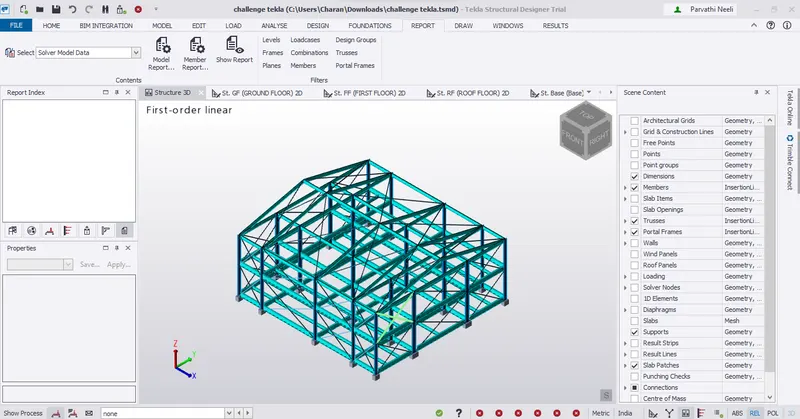

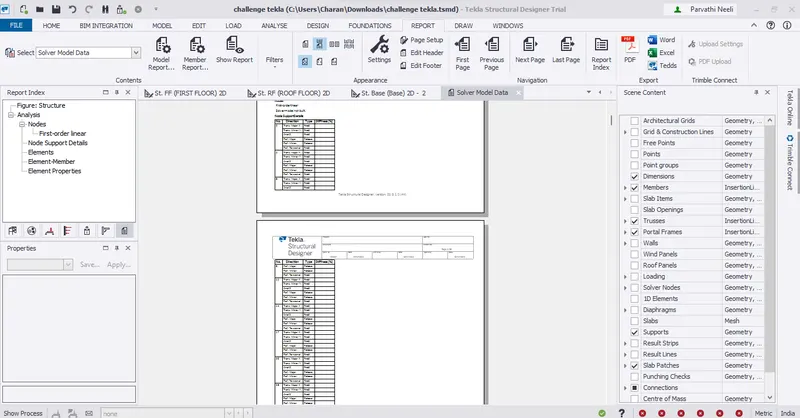

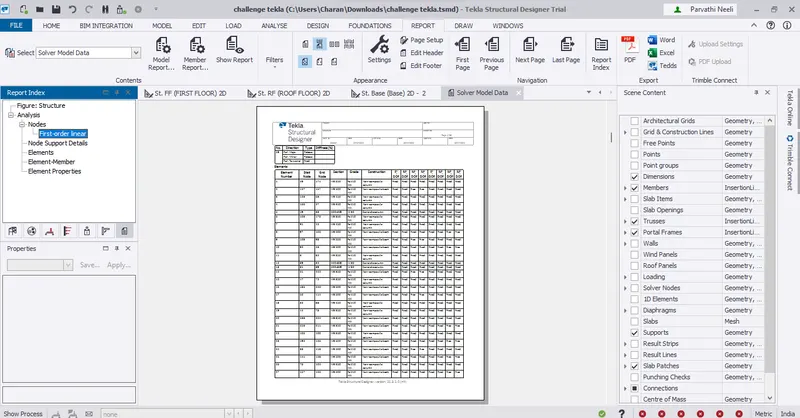

* Analyze the model to generate report

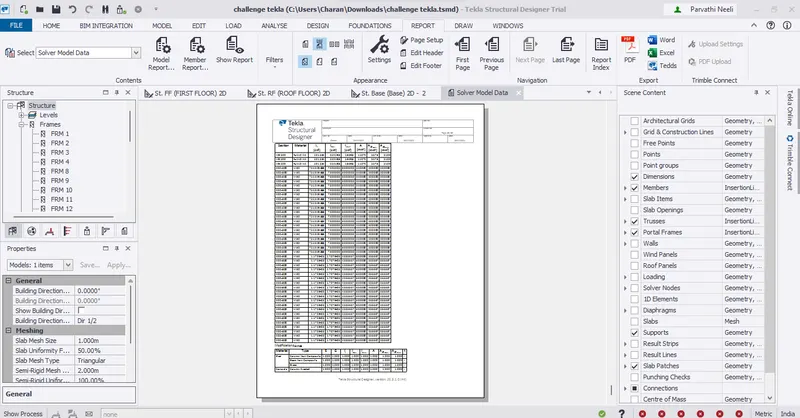

* Go to Report – Model report

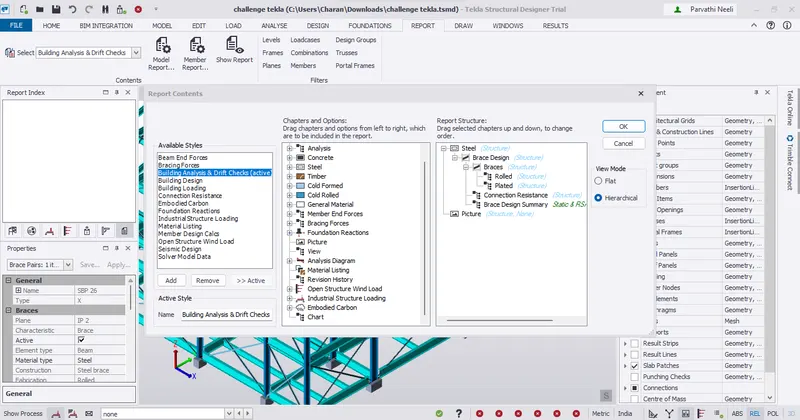

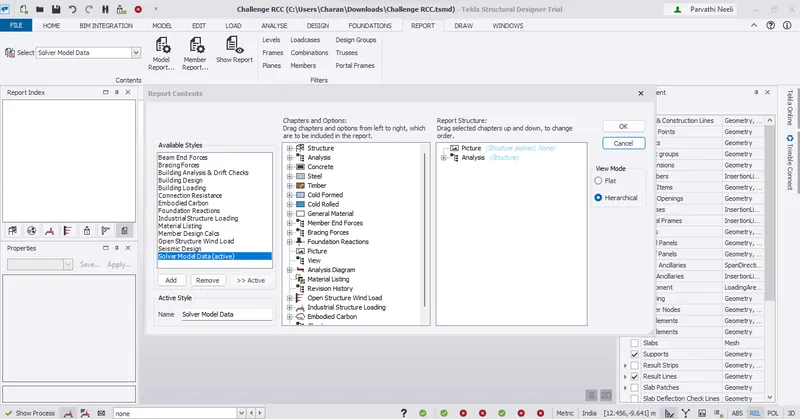

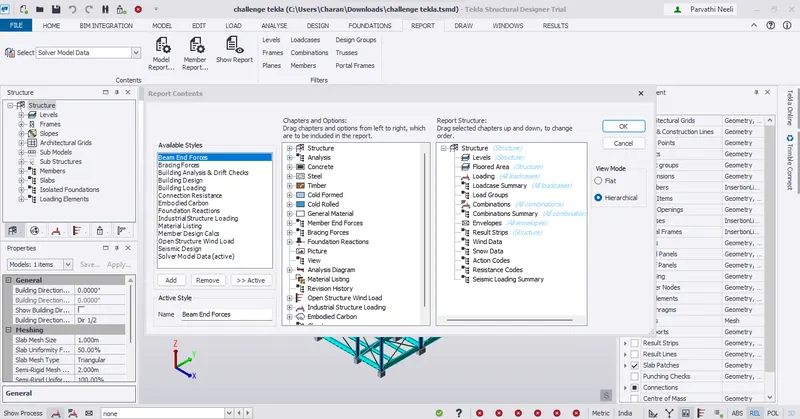

* Select Beam end forces

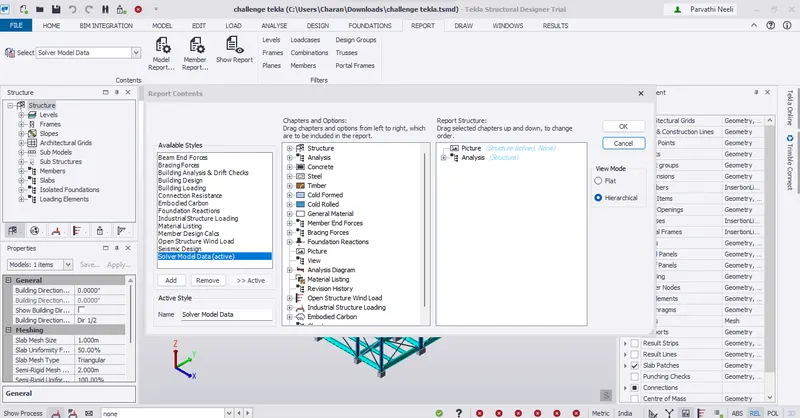

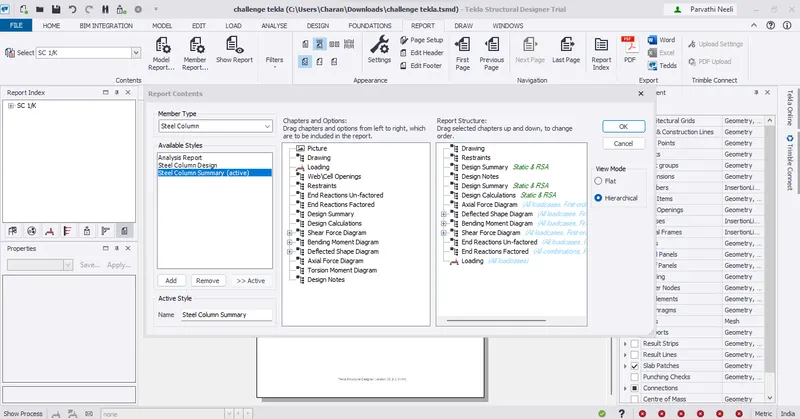

* From the Chapters and Options, click and drag the chapters to the report structure

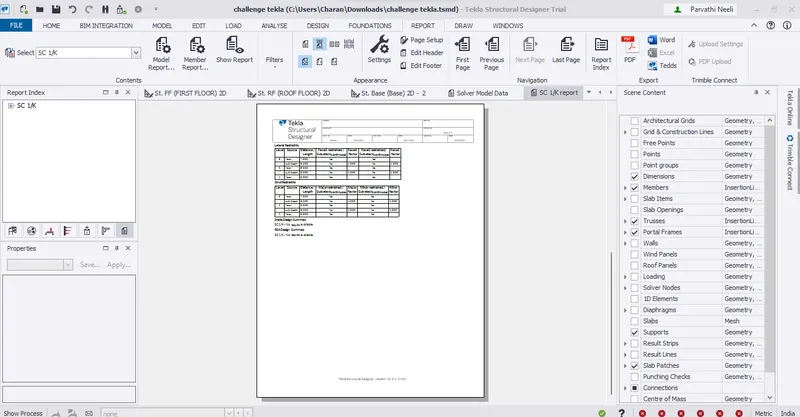

* Click on OK and Show report

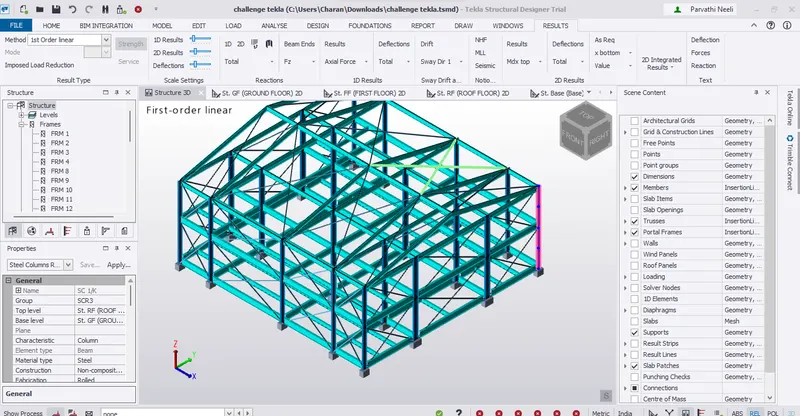

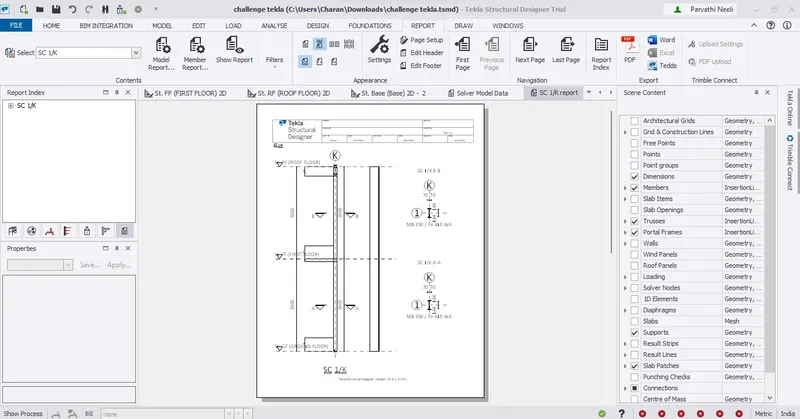

* We can also select any member, right click to generate Report for member
* We can go to Member report to add any additional details in the report

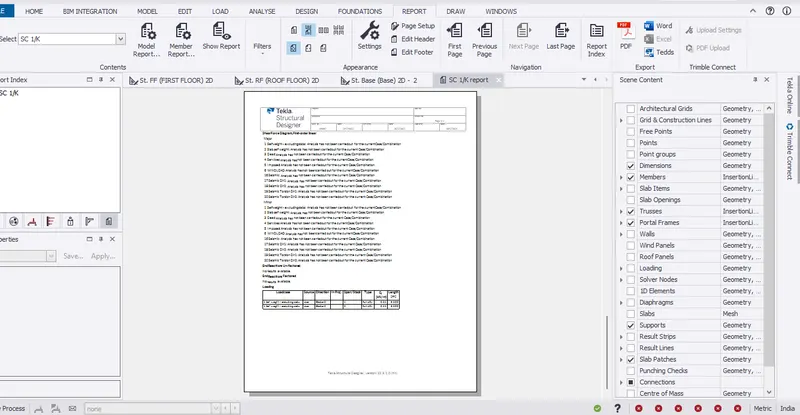

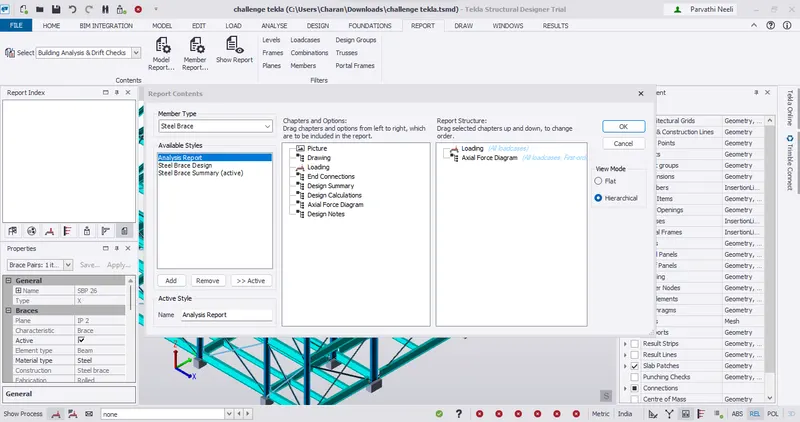

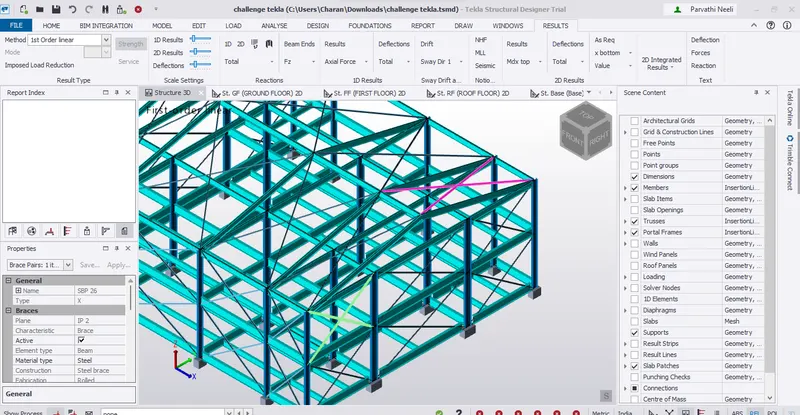

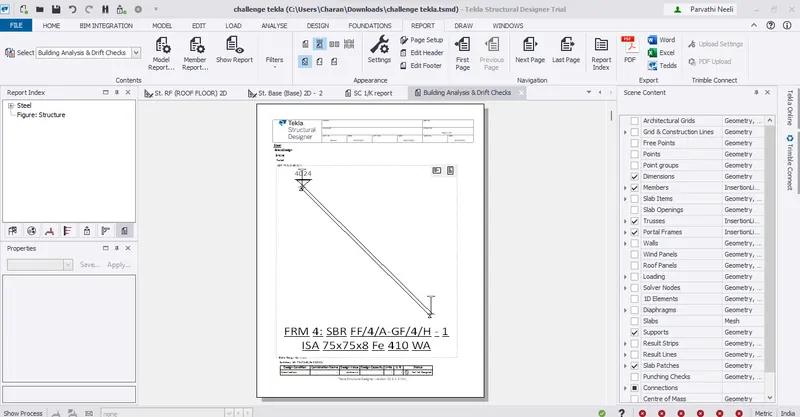

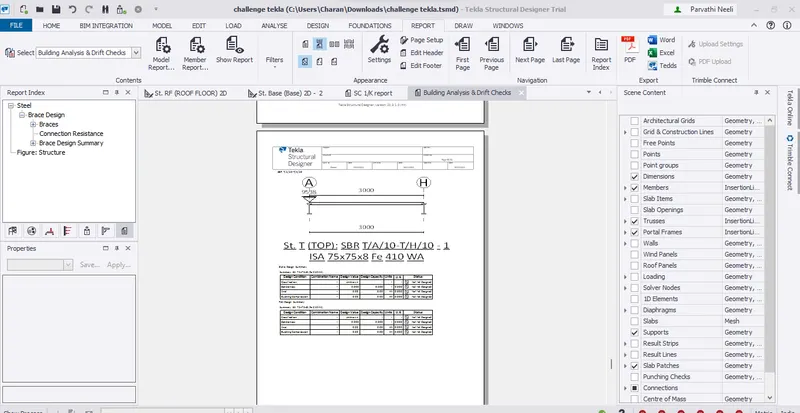

* Member report – Steel brace – for generating report for steel braces
* Note that since the braces are subjected to only axial forces, AFD is only available

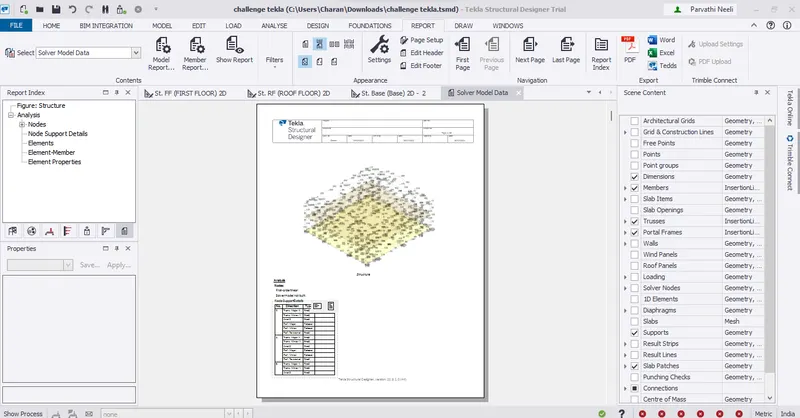

* Go to Model Report – to generate report on Steel braces
Result :-
Successfully complete to generate report for the steel building design from challenges 1 – 6 along with the loading summary
2)
Aim :-
Generate report for RC structure along with the loading summary
Procedure :-

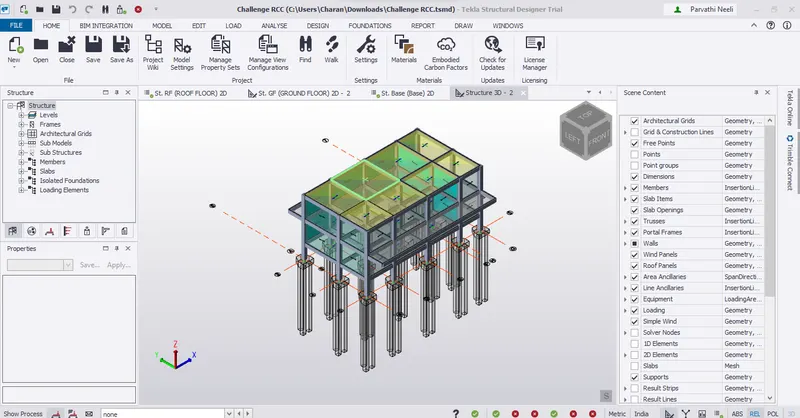

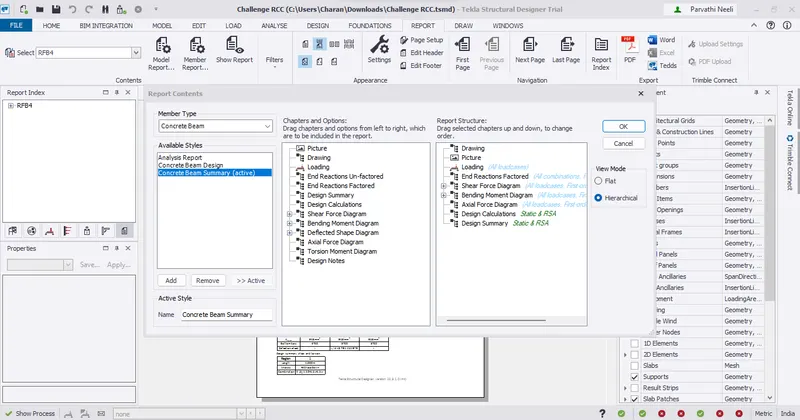

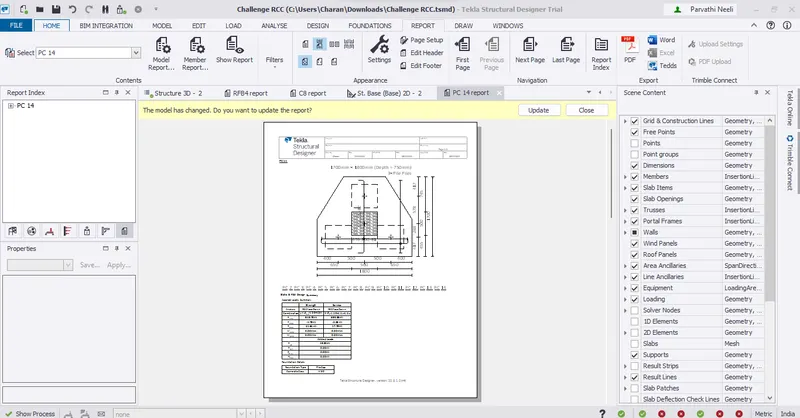

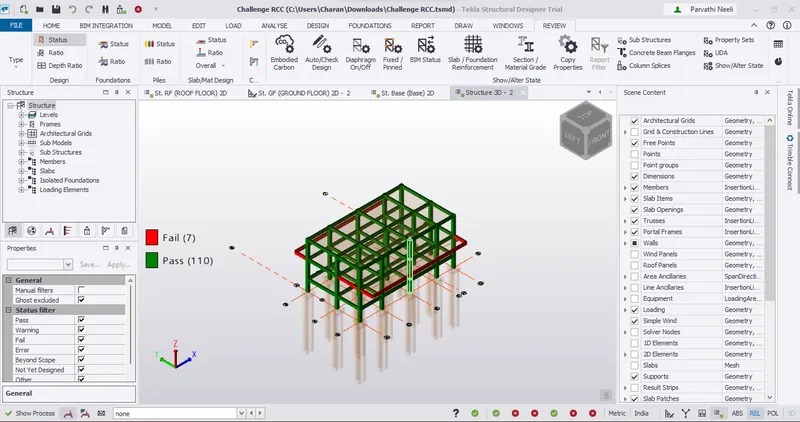

* Open the RC structure tekla file

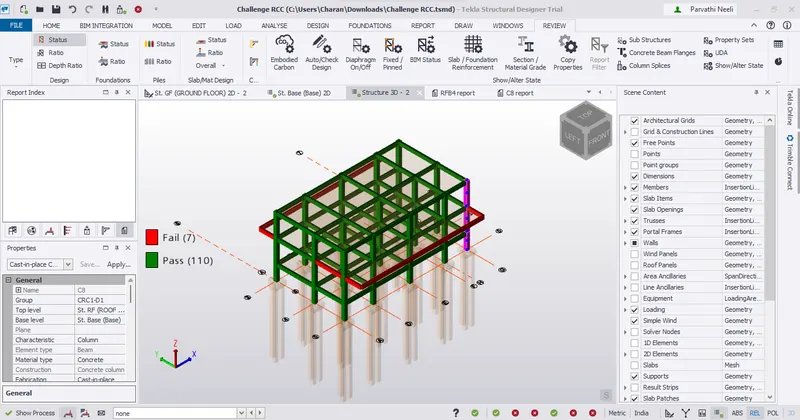

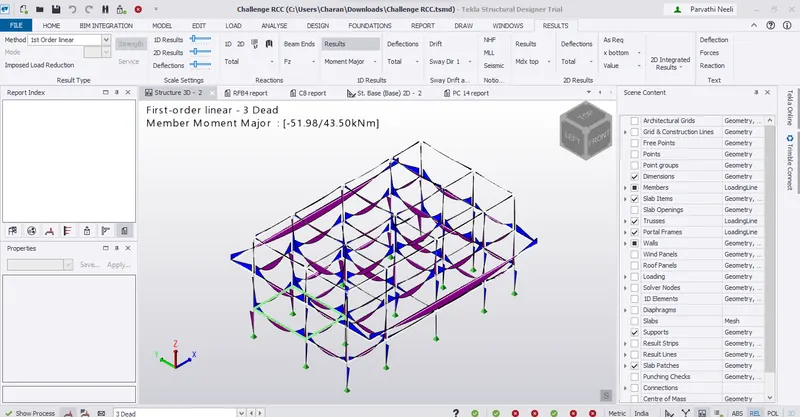

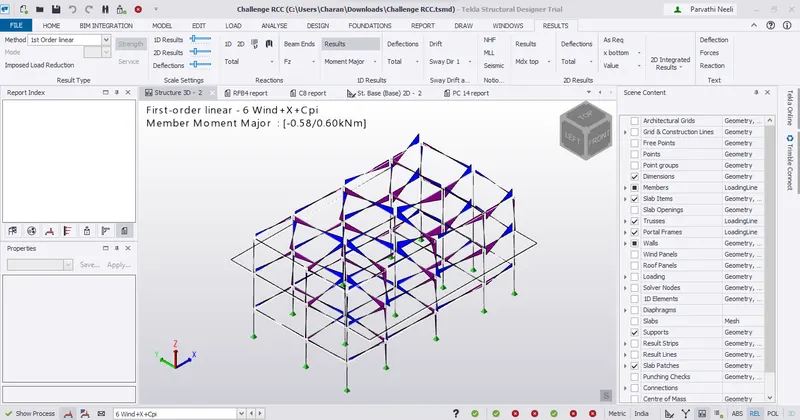

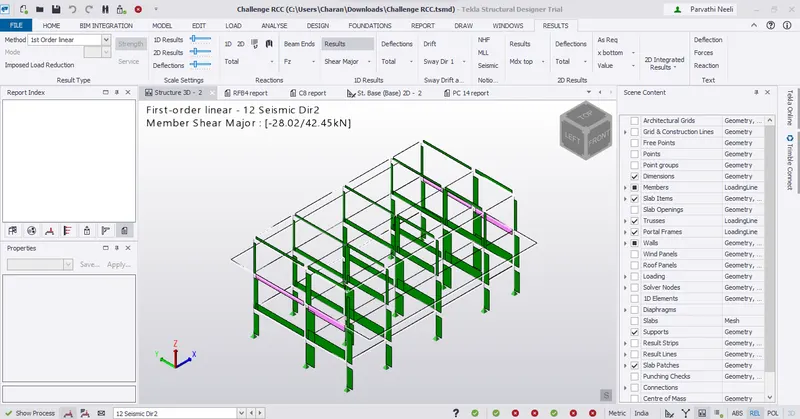

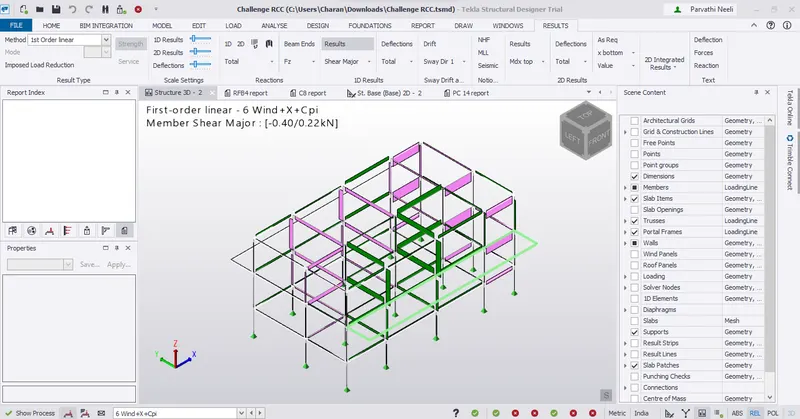

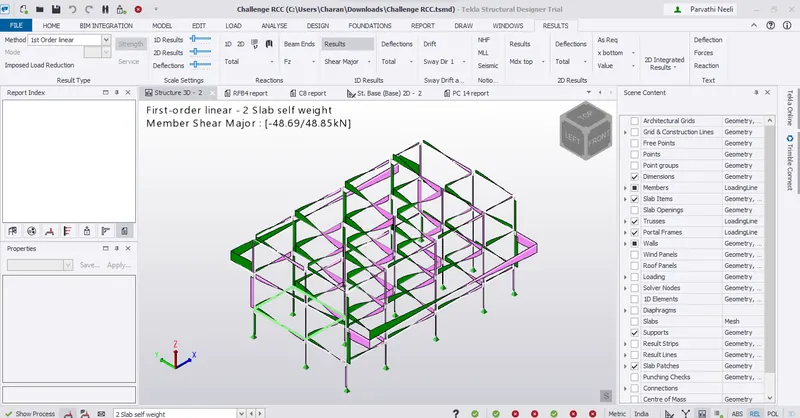

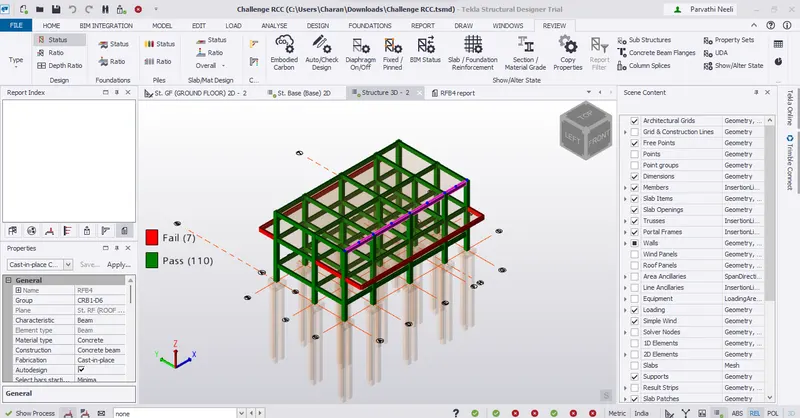

* Analyze the model to generate report

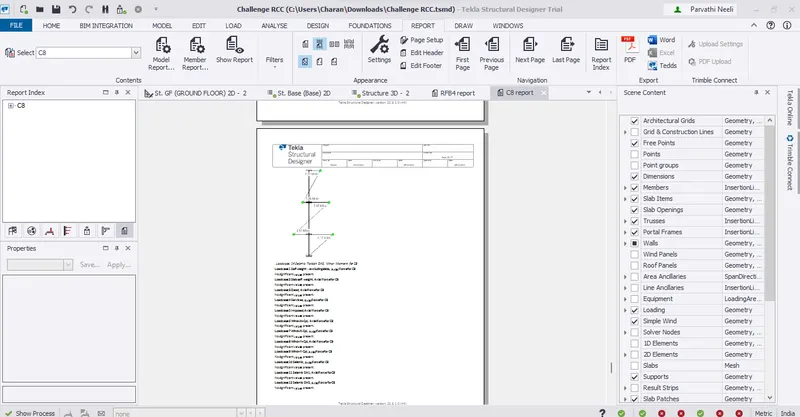

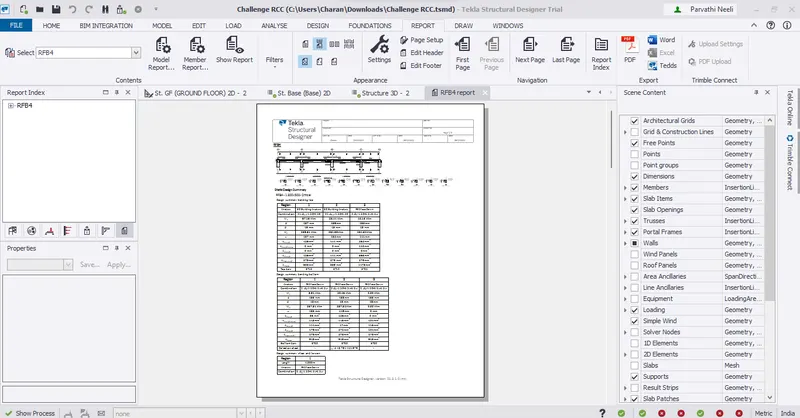

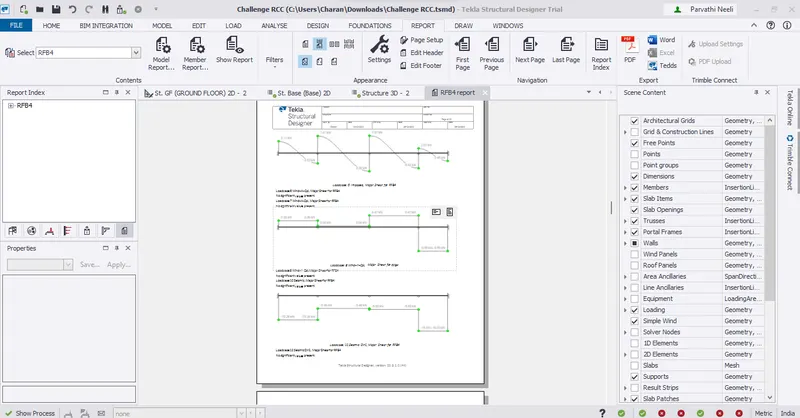

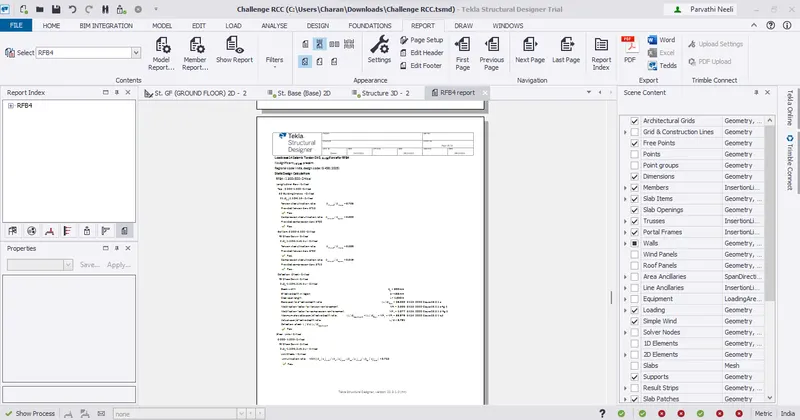

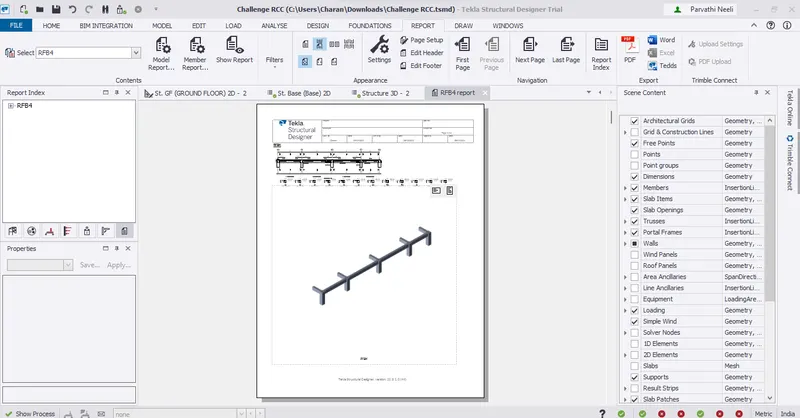

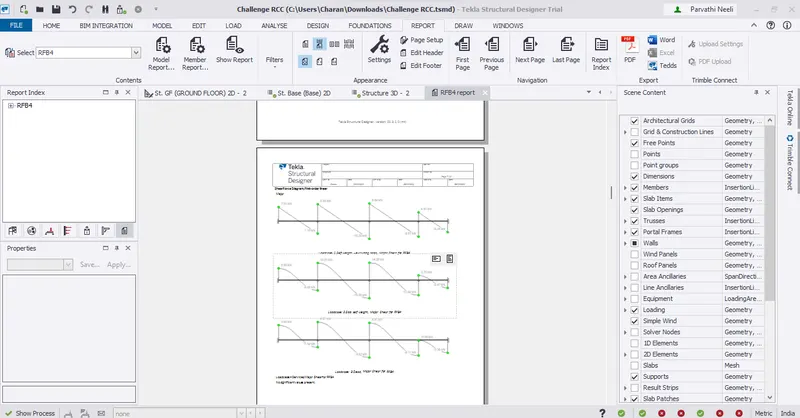

* Now go to any floor and select any beam member to generate report of the same
* Go to Member report to add additional details to the report
Column

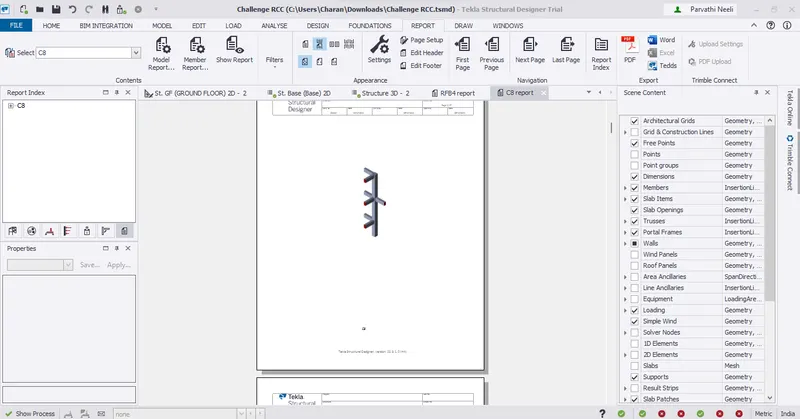

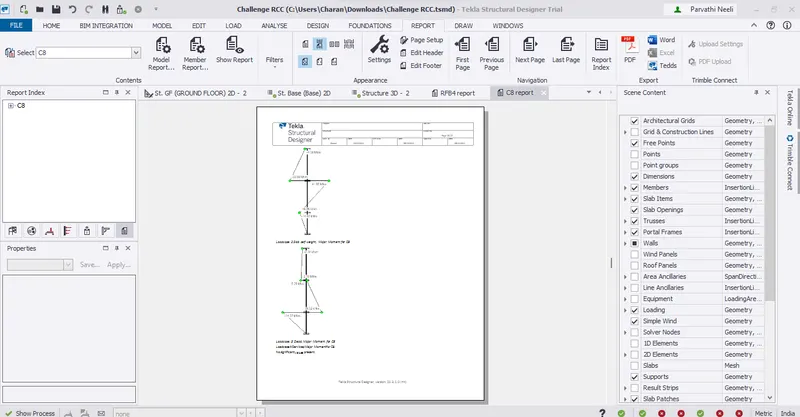

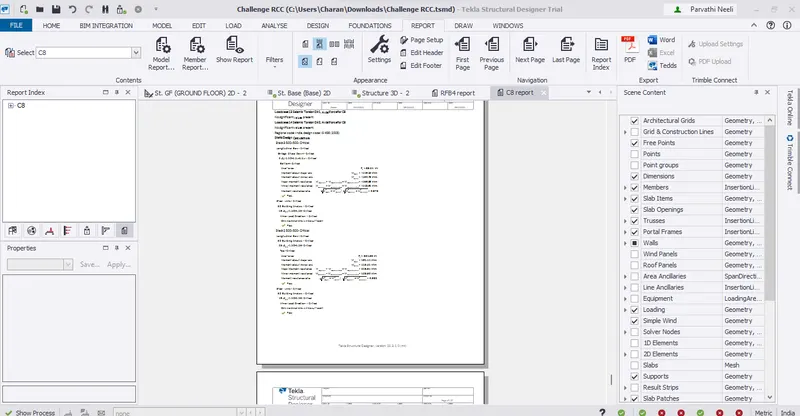

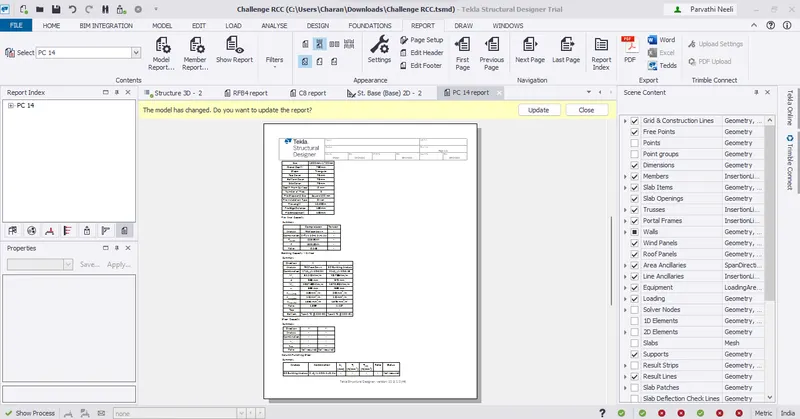

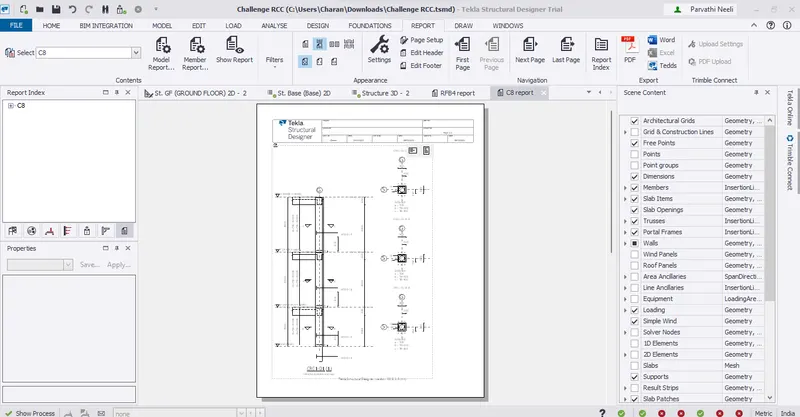

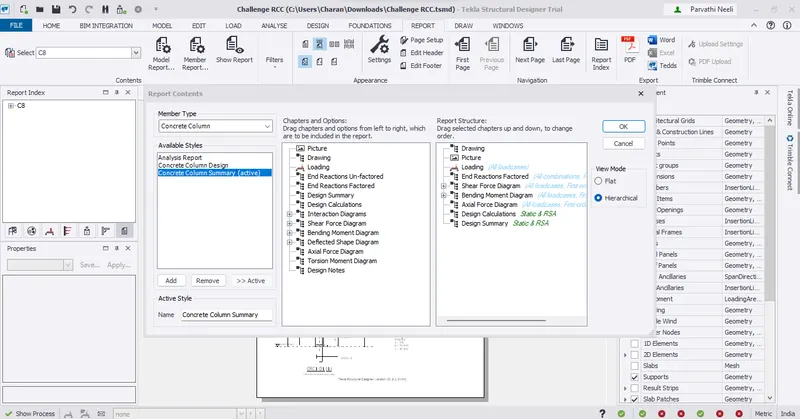

* Select any column and right click to generate report

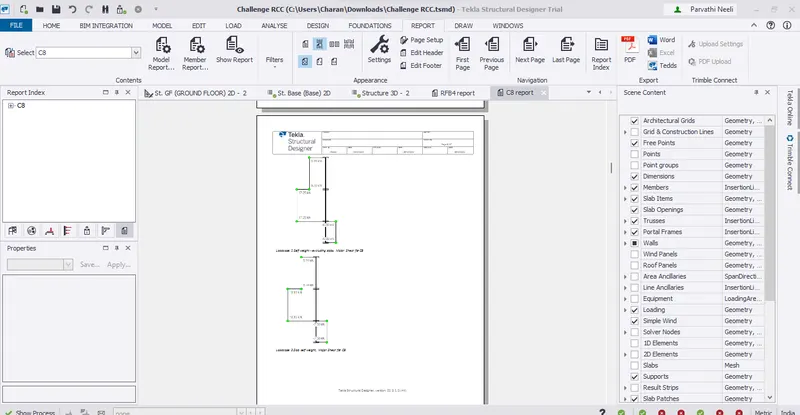

* Click on Member report to add additional details

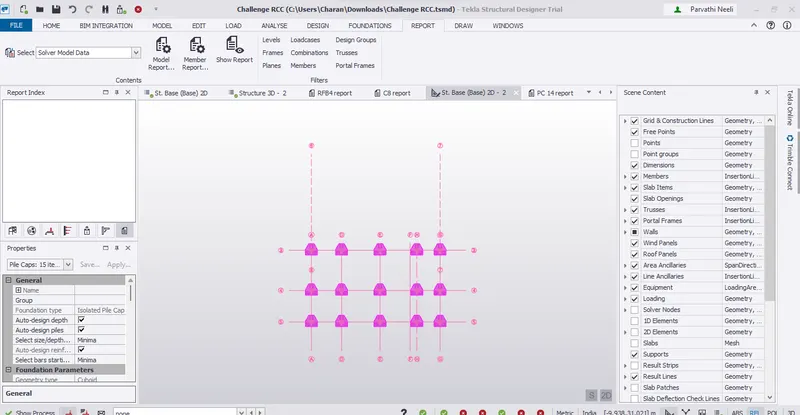

* Now go to the base level and generate report for the footing member

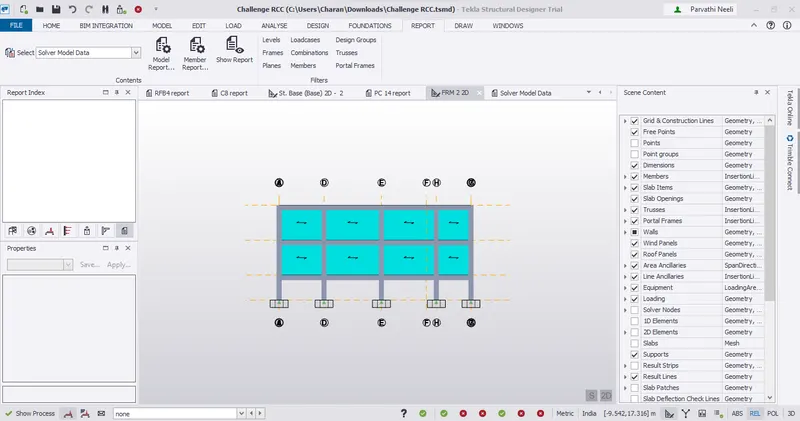

* Report can also be generated for a selected frame by right clicking on the chapter and choosing model filter
Result :-
Successfully complete to generate report for RC structure along with the loading summary
3)
Aim :-
Update the layers settings in the model and generate plan drawings and details from the model
Procedure :-

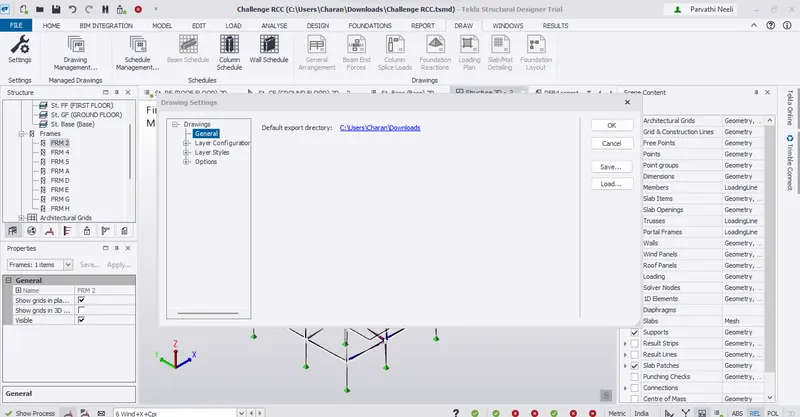

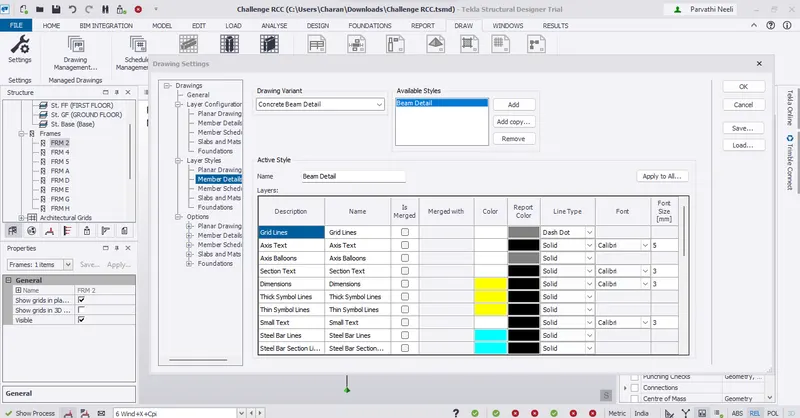

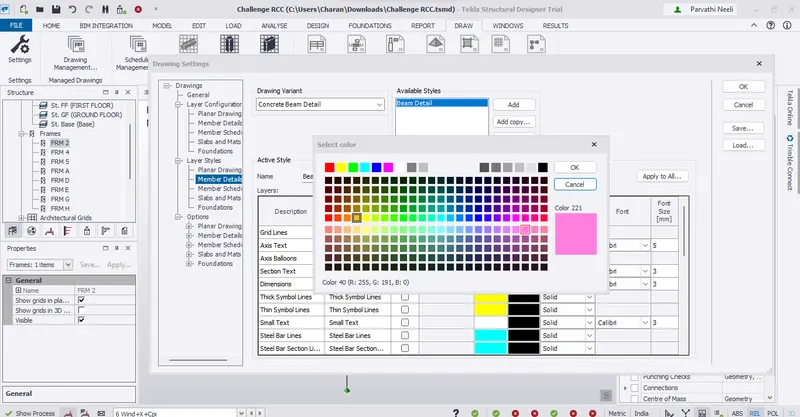

* Go to Draw – Settings

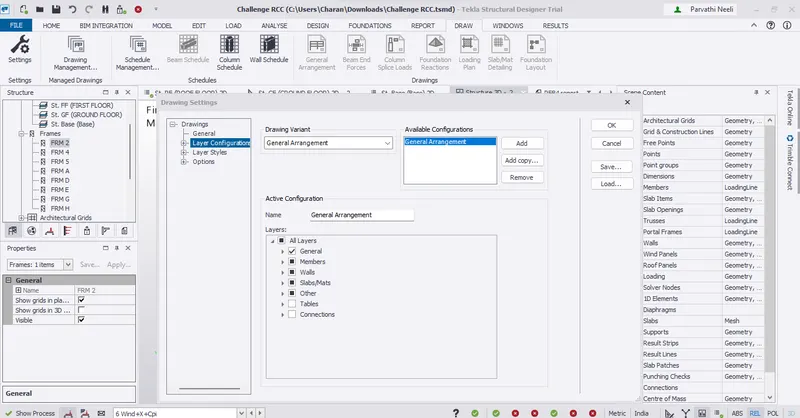

* From the Layer configuration tab, check the available configuration – General Arrangement
* We can also select the desired colour from the colour palette available

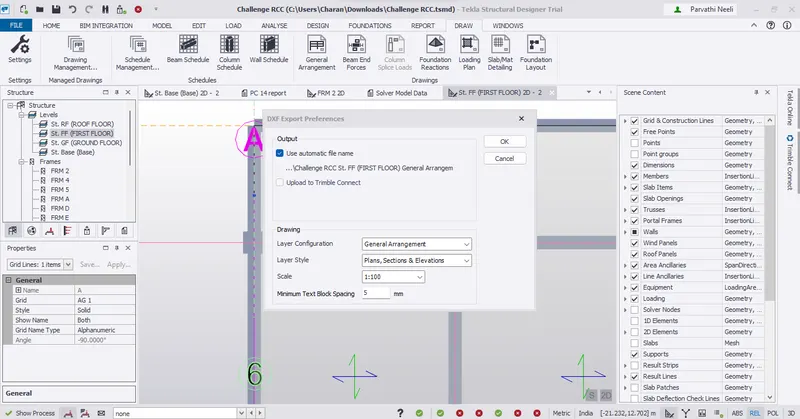

* Go to a particular level and click on General Arrangement

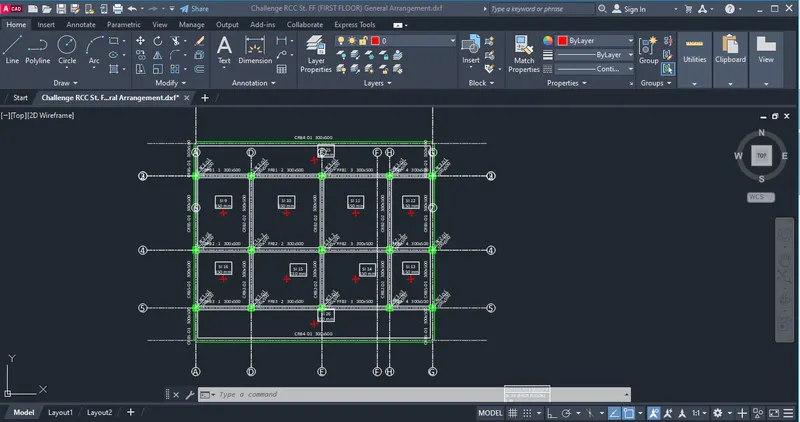

* Now .dxf files get opened in AutoCAD
Result :-
Successfully complete to update the layers settings in the model and generate plan drawings and details from the model
