To Design RC column and beam for RC residential structure using TSD

1.Based on the analysis design RC column and beam

AIM:- To Based on the analysis desin RC column and beam.

INTRODUTCTION:-

An ordinary reinforced concrete beam or the column itself is an inhomogeneous section composed of concrete and reiforcement, whose behaviour is totally different.

A reinforced concrete column is strutural member designed to cayyy compressive loads, composed of concrete with an embedded steel frame to provide reinforcement.

PROCEDURE:

DESIGN THE COLUMN:

• Open the tekla software and open previous file
• After analysis the model

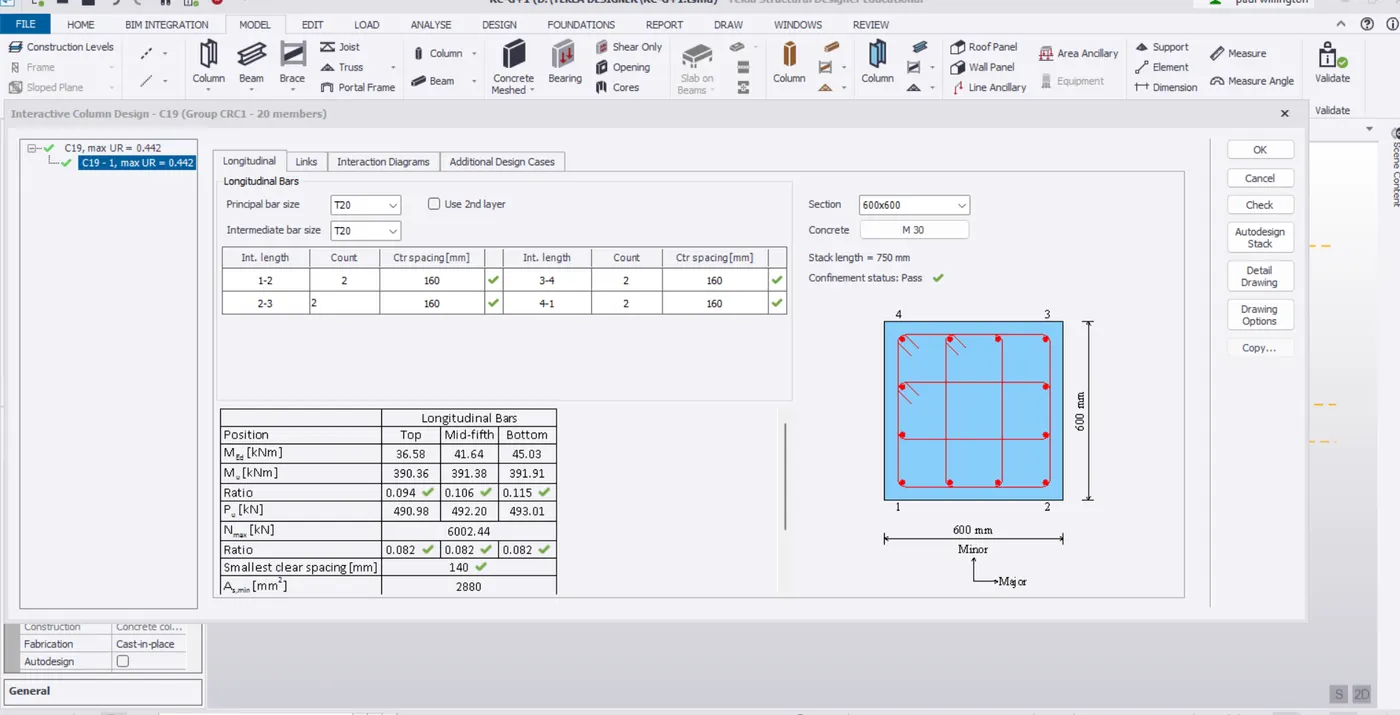

• Select the column and right click
• Select the interactive design --->static
• First we want to check the erros
• And they have any errors shown

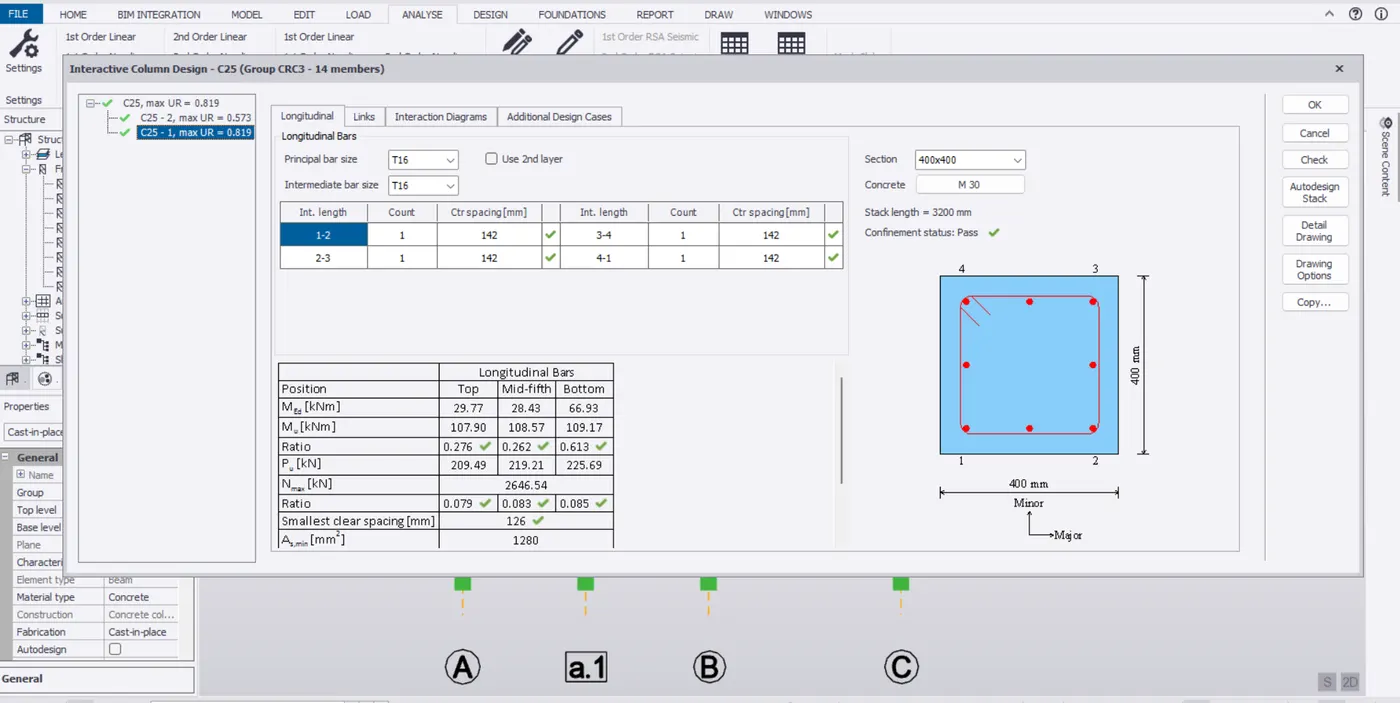

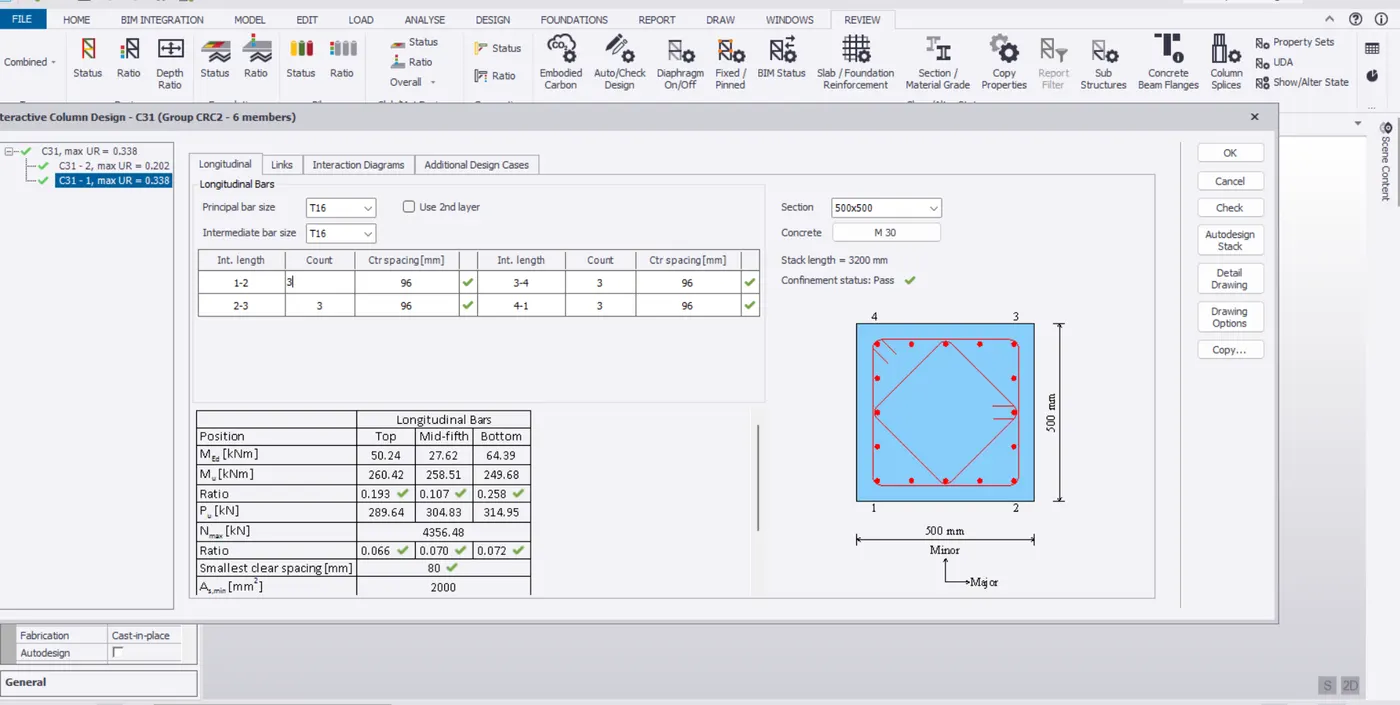

• first change the principle bar size and intermidetable bar size
• Again shows errors means just change the counts
• And again shows errors change the section size
• Repeat the same procedure for all the columns

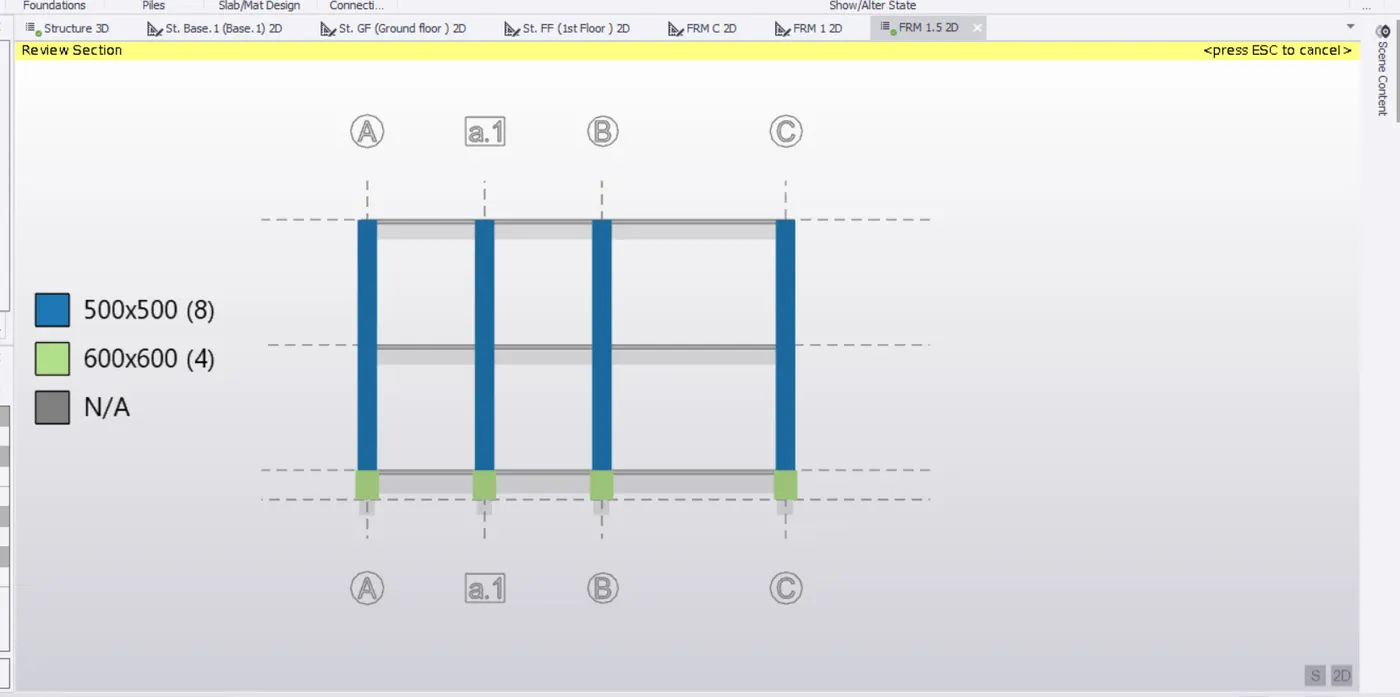

• The procedure process image as been given below

DEESIGN THE BEAM:

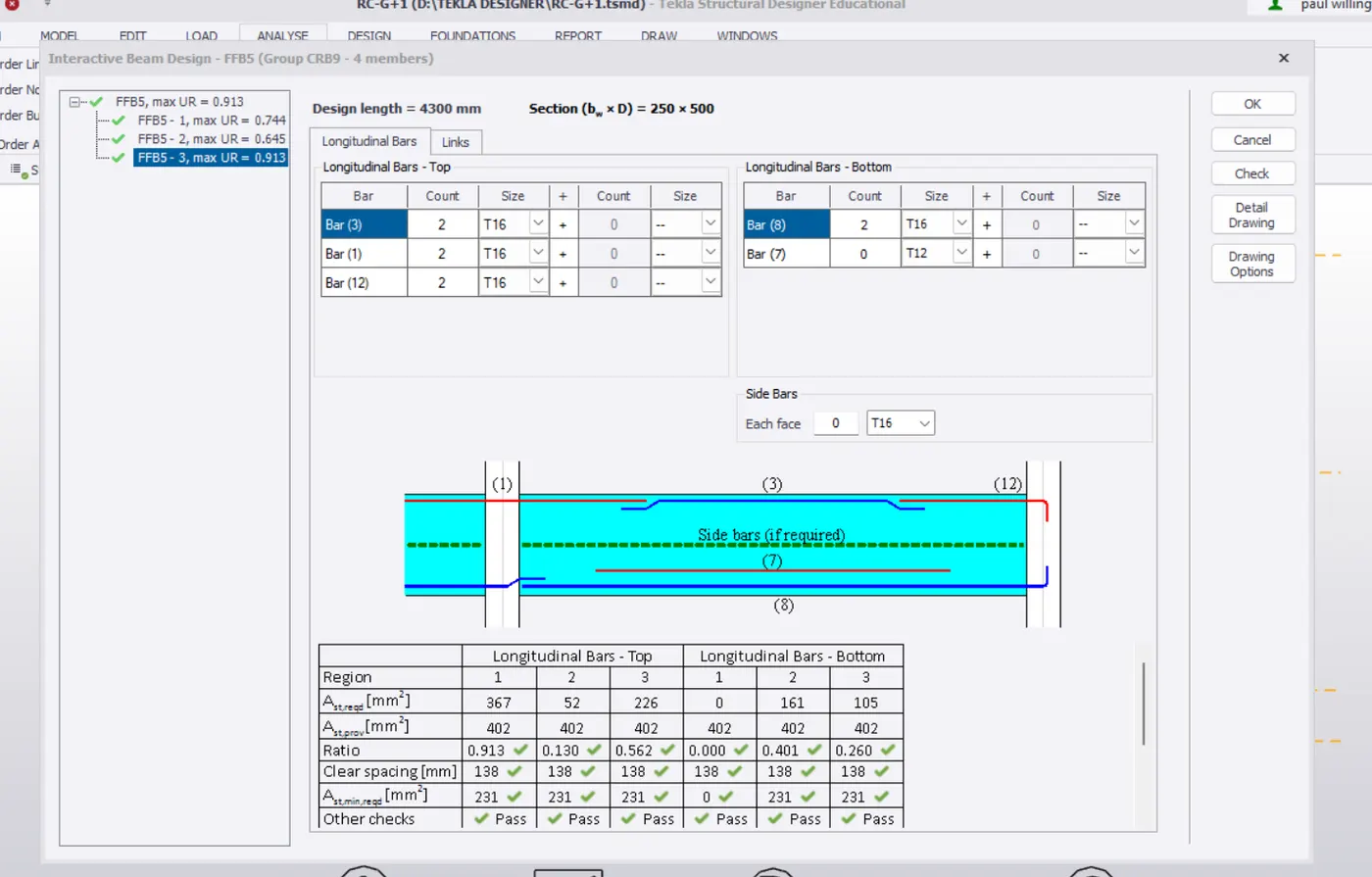

• Here we want to adjust the beam designs
• First go to the design settings under the design tab
• Go to the concrete --> Beam---->Top longitudinal bar --> select the (Bar)
• Select the beam and right click
• Select the interactive design ---> static

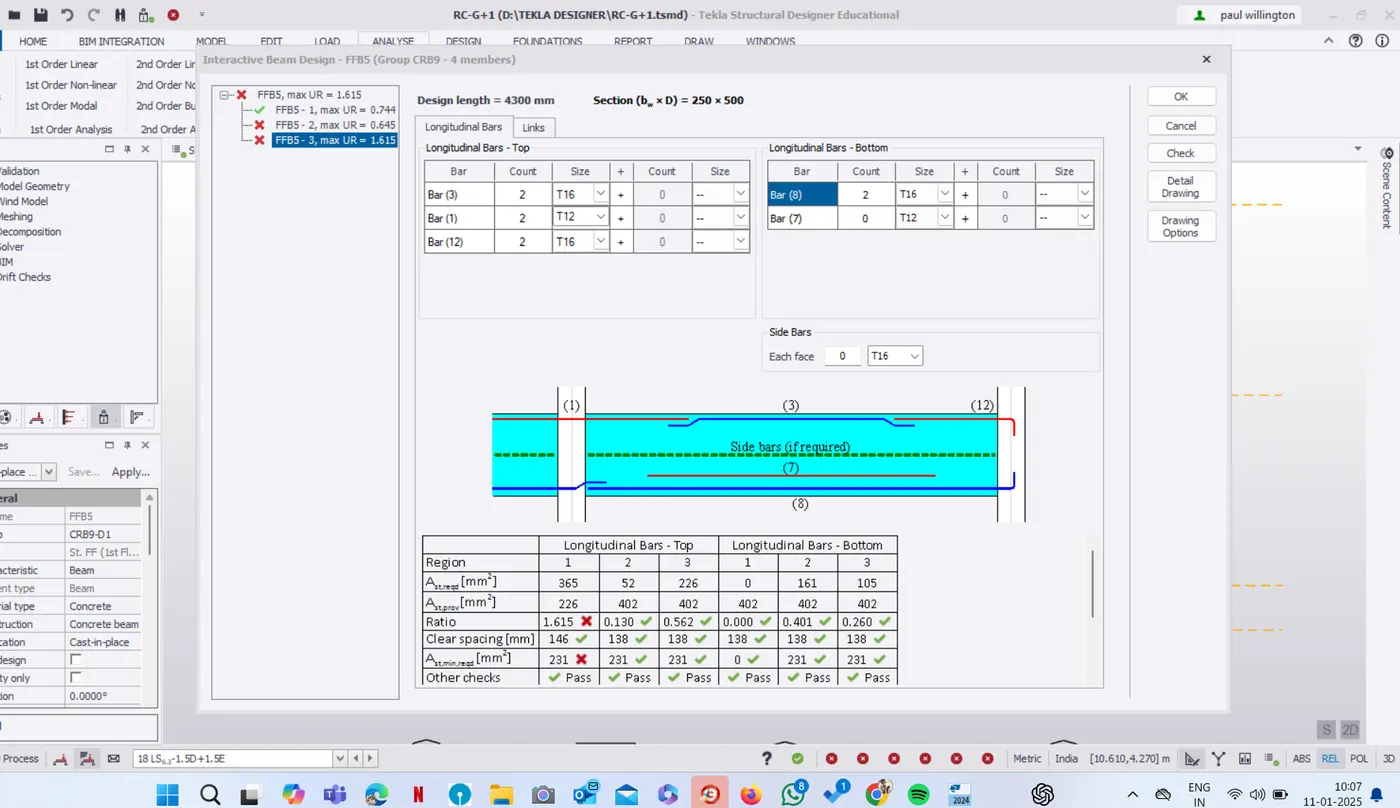

• First we want to check the errors
• And they have any errors shown

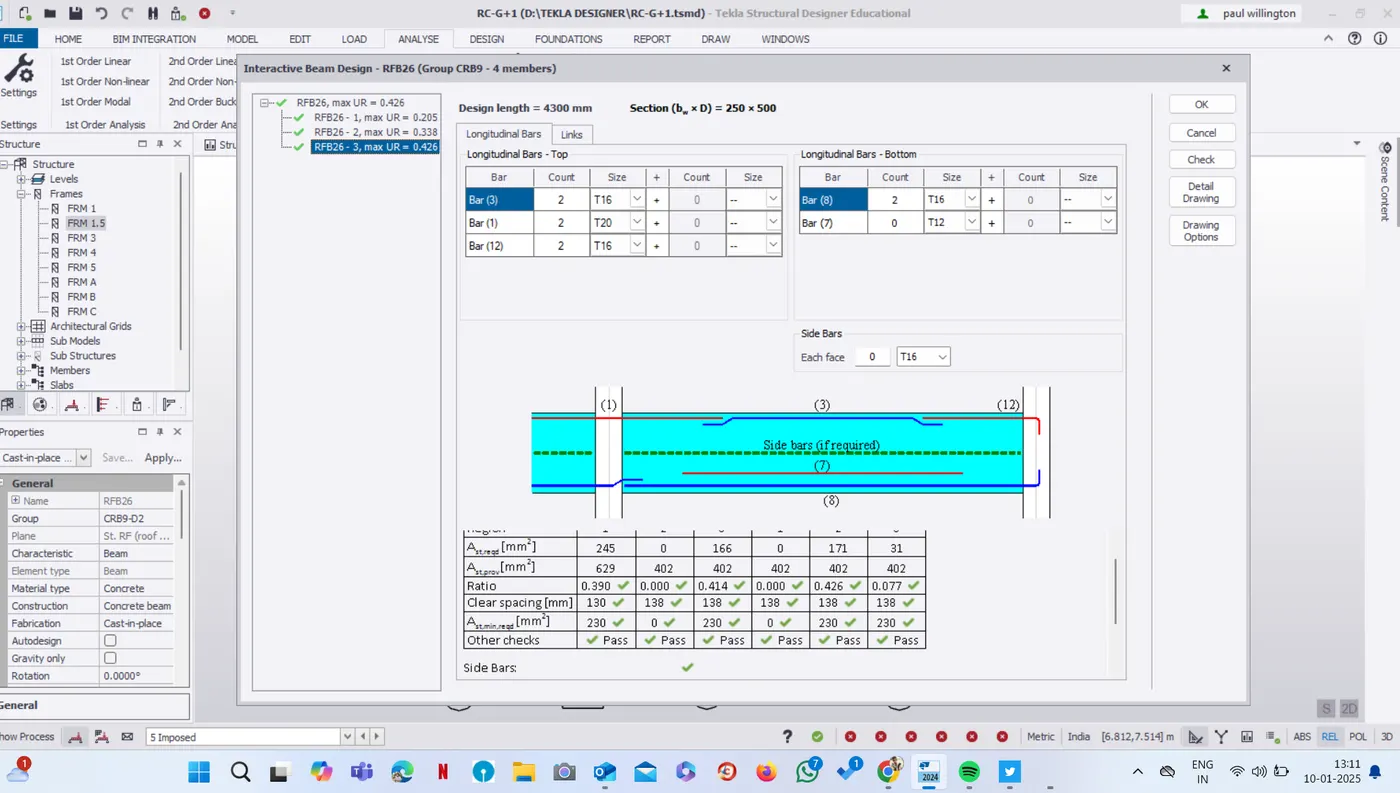

• First adjust the size and count still the beam as been passed
• Repat the same procedure for all the beams

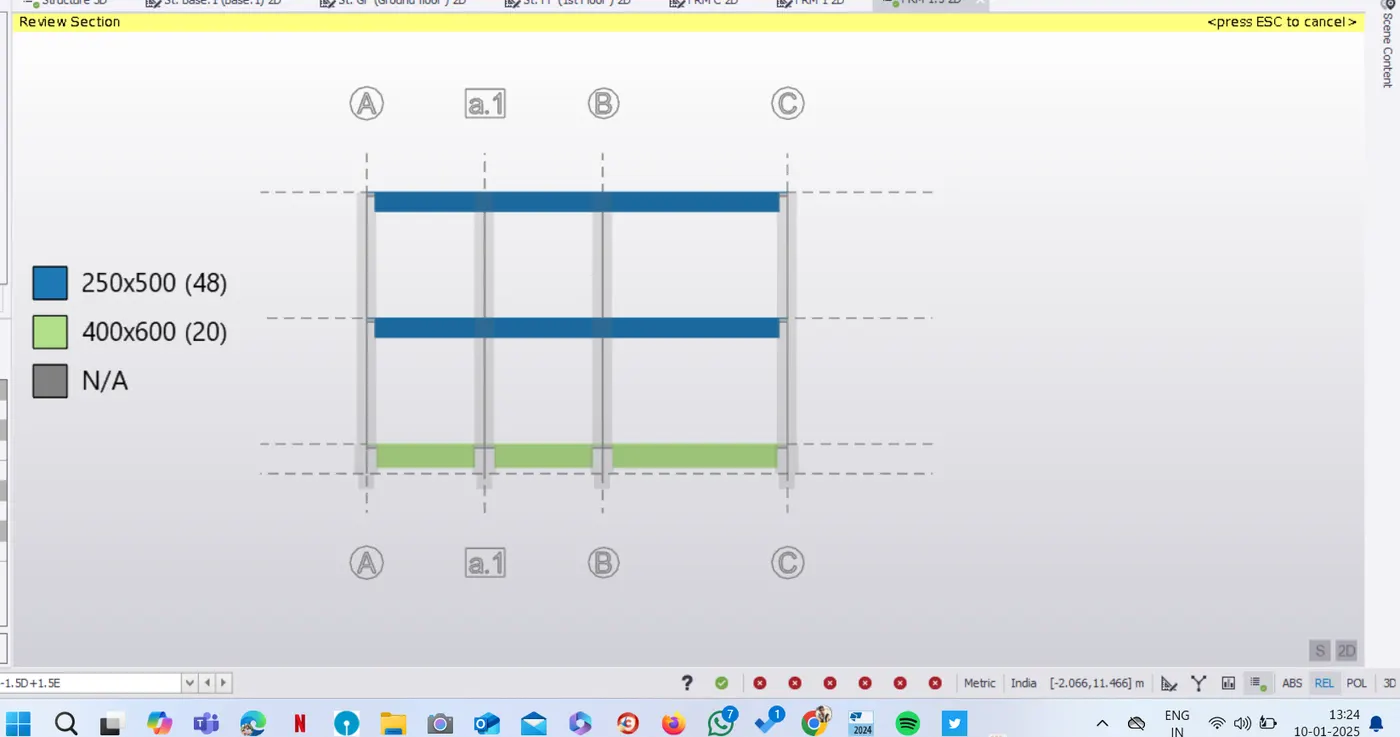

• After finish all the beams we want the status and we check the member are all passed

RESULT:

As per the question

To Based on the analysis design RC column and beam as completed.
