To Design RC column and beam for RC residential structure using TSD

1)

Aim :-

Based on the analysis design RC column and beam.

Procedure :-

* Open Tekla Structural Designer

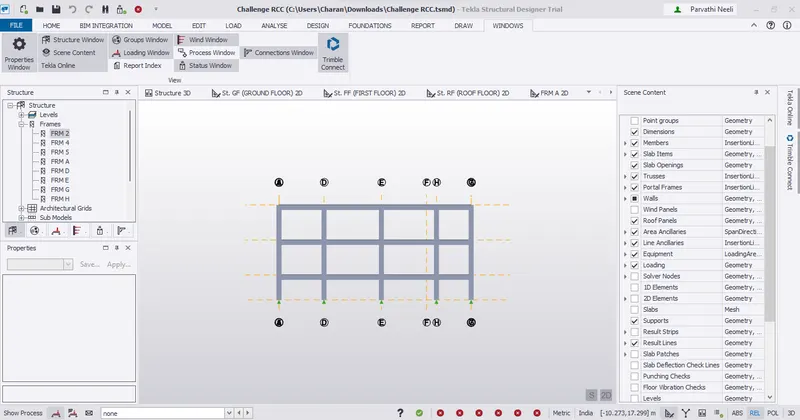

* Select Frame 2

* Lets interactive design each of the columns and beams in frame 2

* Notice that the utilization ratio for stacks 2 and 3 are much high. So the design has to be changed

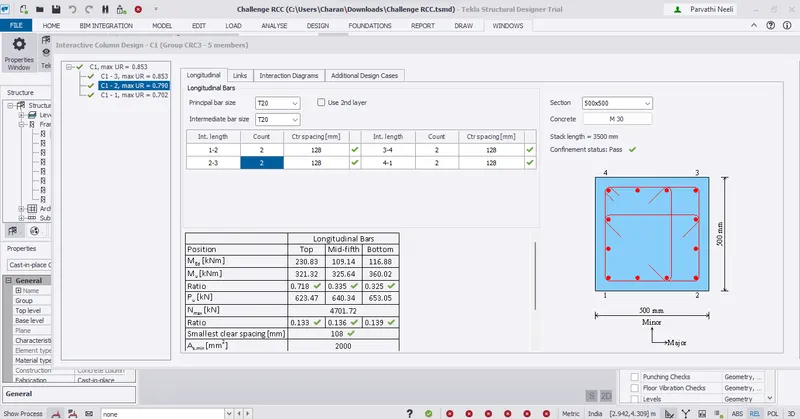

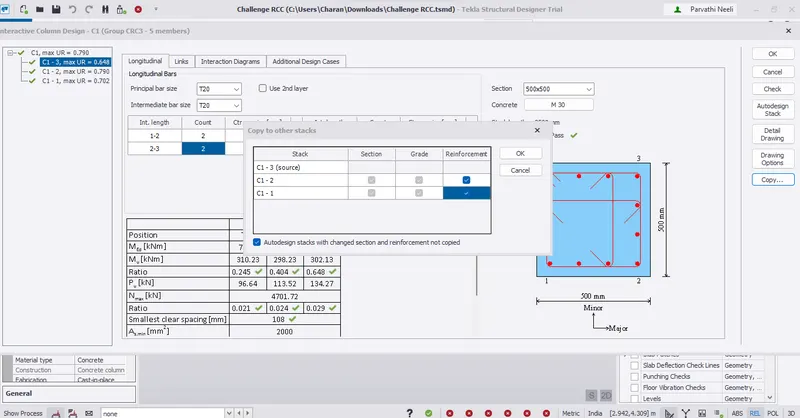

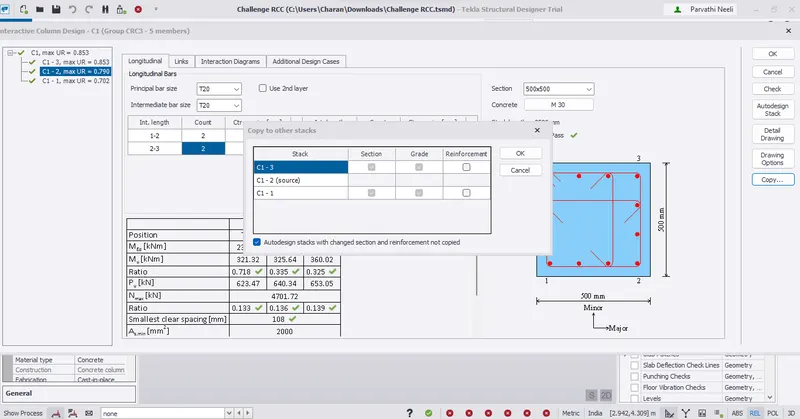

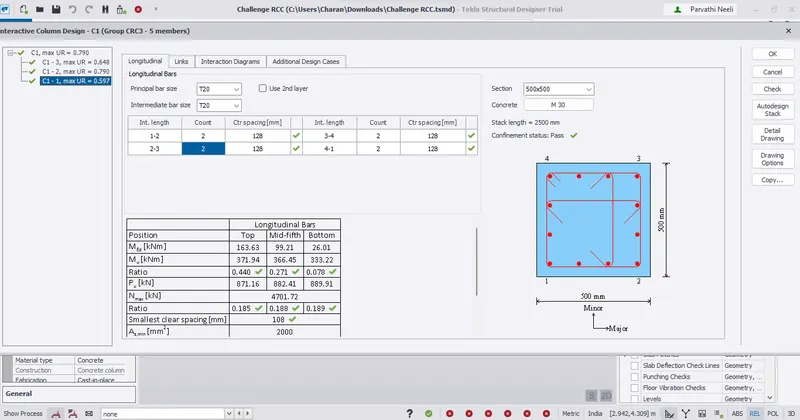

* Change the no of intermediate reinforcement to 2 and copy the same to the other stacks too

* Now select the other exterior column and change the reinforcement as the previous column

* Now check the interior columns and notice that the utilization ratio are well within limits

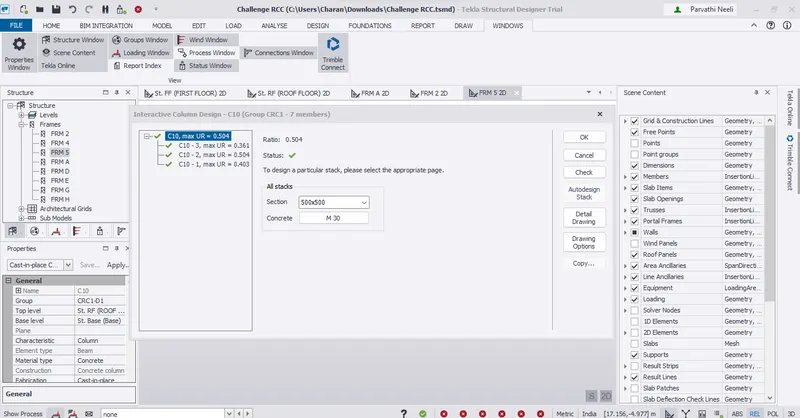

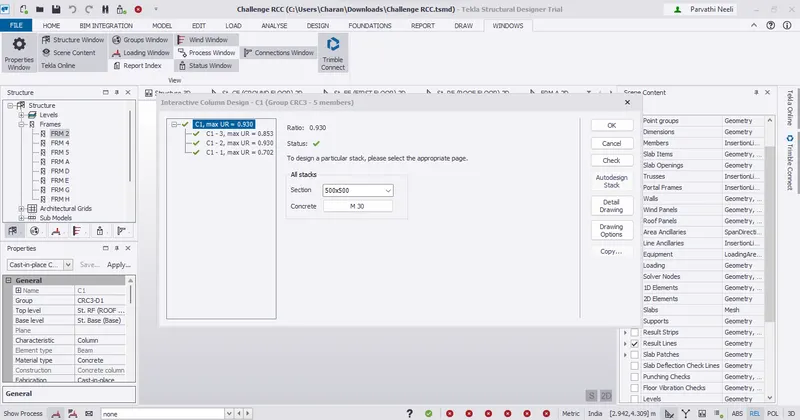

* Now select the centre column and notice that its safe and has passed the design criteria

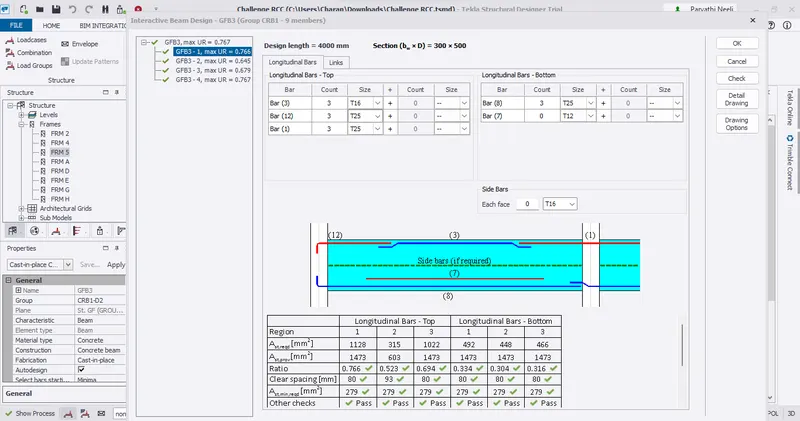

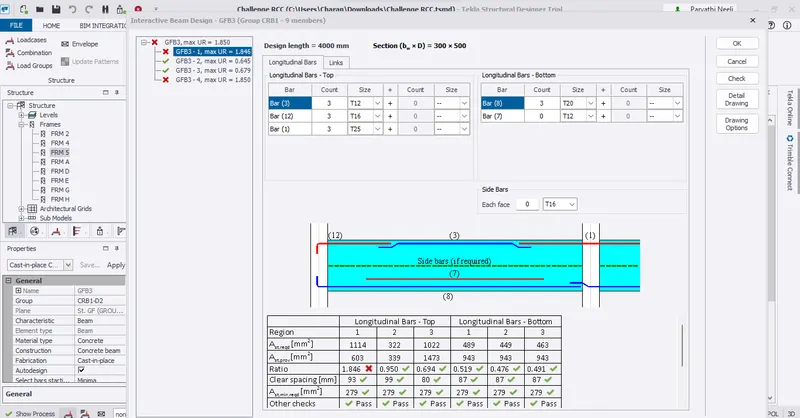

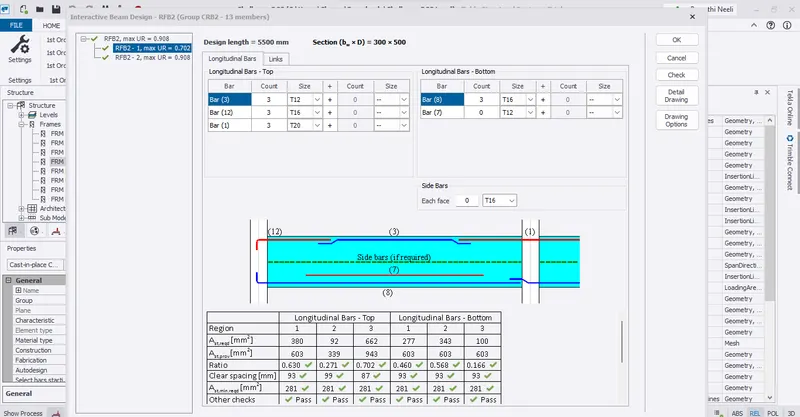

* Also check beams

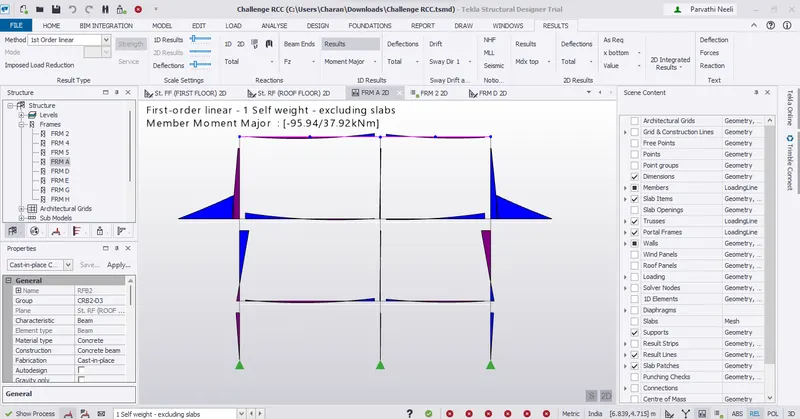

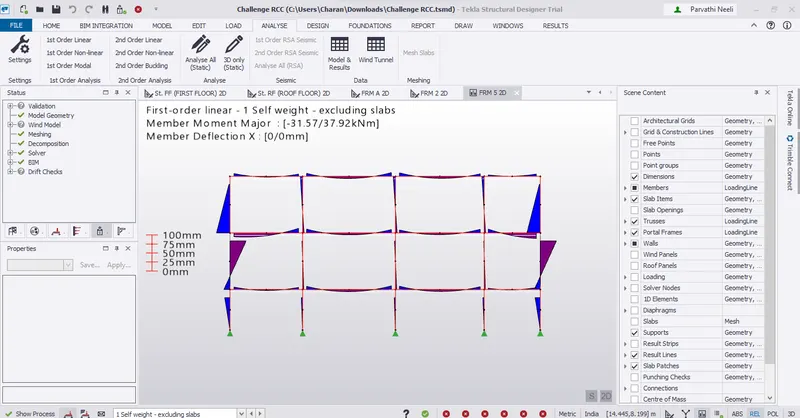

* We can also check the BMD for the beams and identify and design beams with the large bending moment

* The beams in second stack is then designed

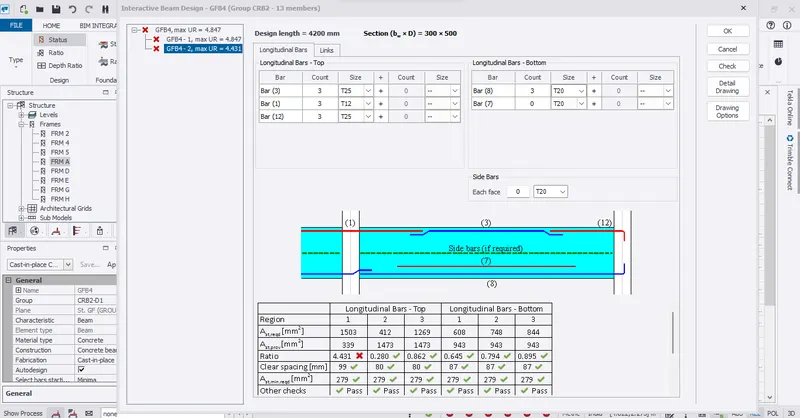

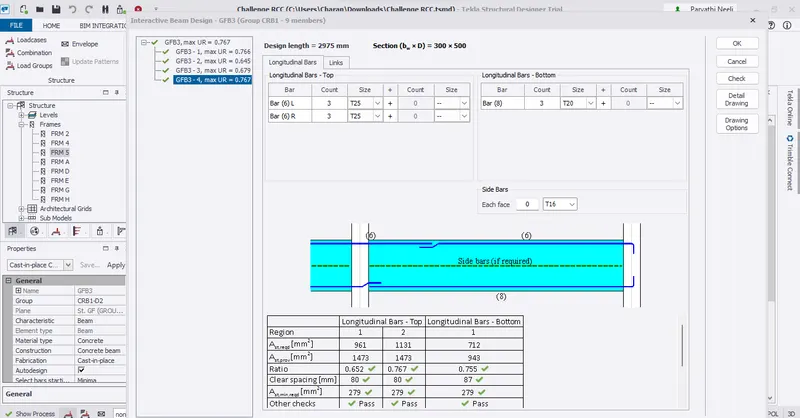

* Also notice that the ground floor beams have failed

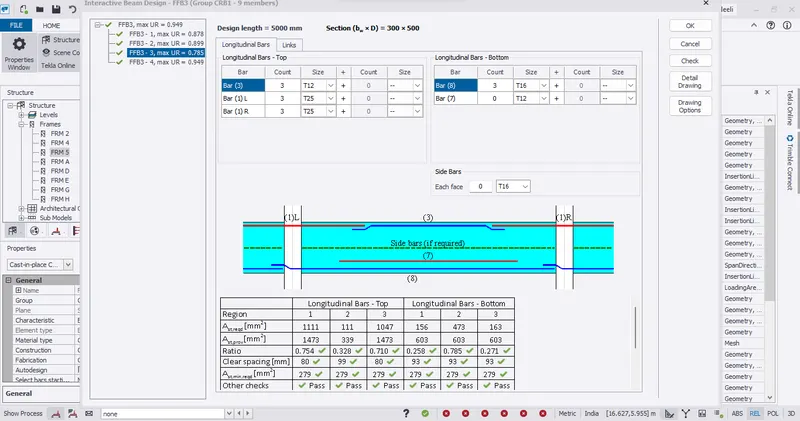

* Increase the bar diameter to pass the member

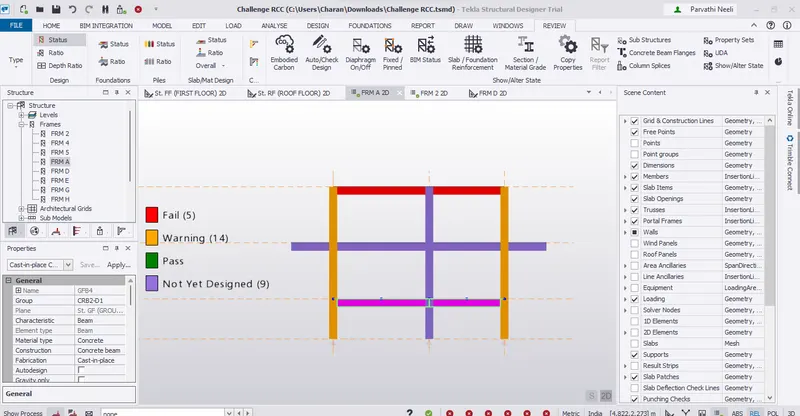

* Now review the beams of the frame

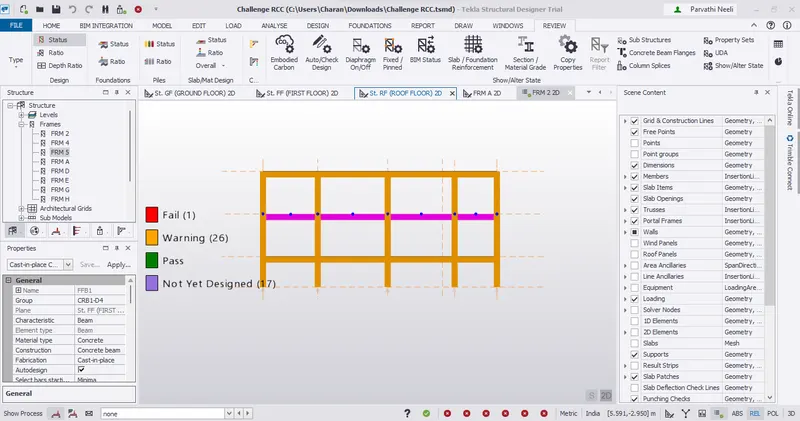

* Check the frame on the other side

* Notice that even when the diameter of bars and no of bars are increased the cantilever portion fails which means that additional secondary beams need to be provided

* Model secondary beams in the corridor region of first floor and model slab on it

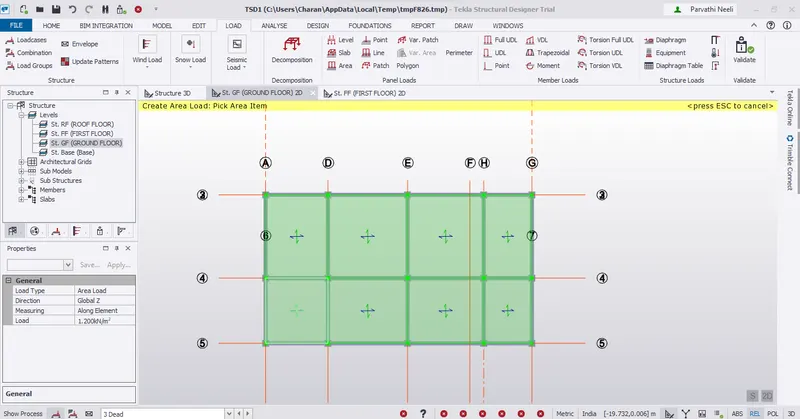

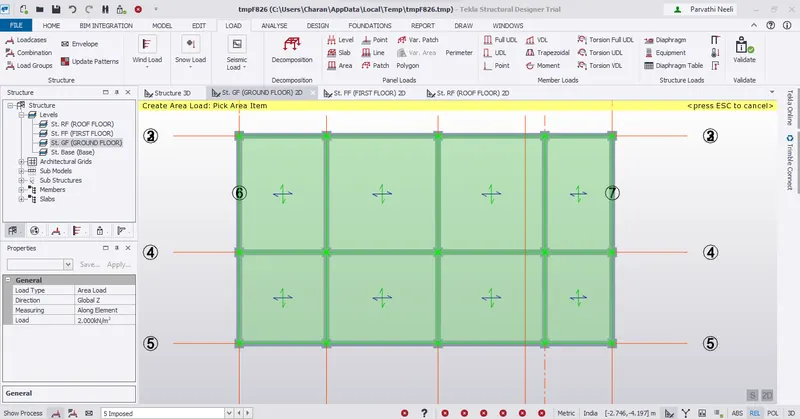

* Apply dead and imposed loads

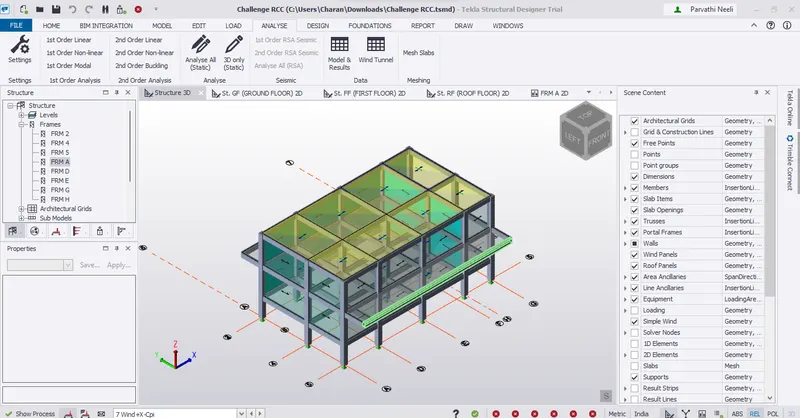

* View the structure in 3D

Result :-

Successfully complete to structure based on the analysis design RC column and beam.
