To Design RC column and beam for RC residential structure using TSD
Aim : Based on the analysis design RC column and beam.
Procedure :
The analysis starts with individual elements which are checked for bending moment,shear force,axial force which make the lement to fail.
Inorder to counteract these above inner reactions of the individual elements there we provide reinforcement according to the requirement in provision with IS codes.
The individual elements that are to be achieved are:
1.Columns
2. Beams
In TSD the elements are checked using ratio for reinforcement in main bars,distributed bars and stirrups with size of the element.
The ratio should be less than 1 for the individual element to get passed.
Column Analysis:
It is done in 3 steps
- Ist order linear analysis is performed for columns on diffrent load combinations.
- Based on the analysis find the columns which are failed.
- Redesign the columns with the required reinforcement.

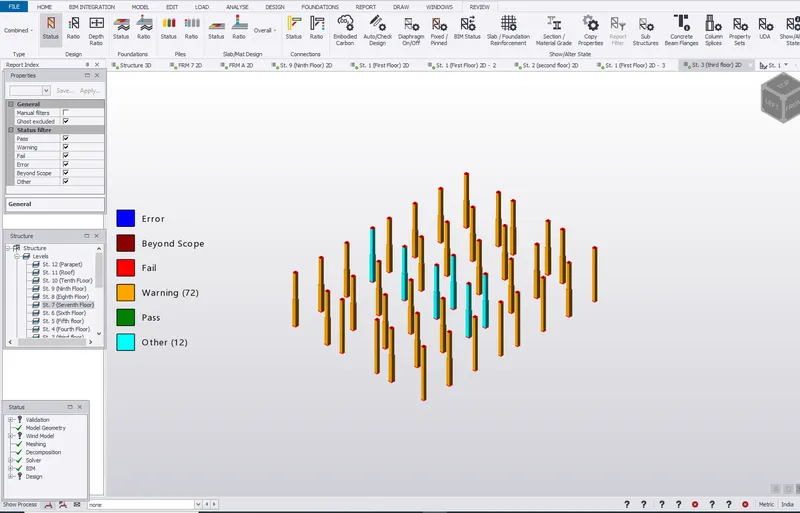

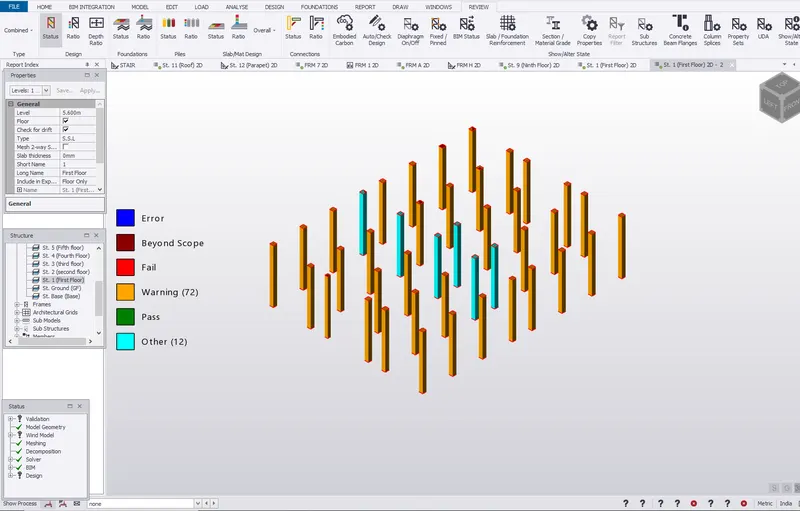

1st Floor columns: all are passed with warning

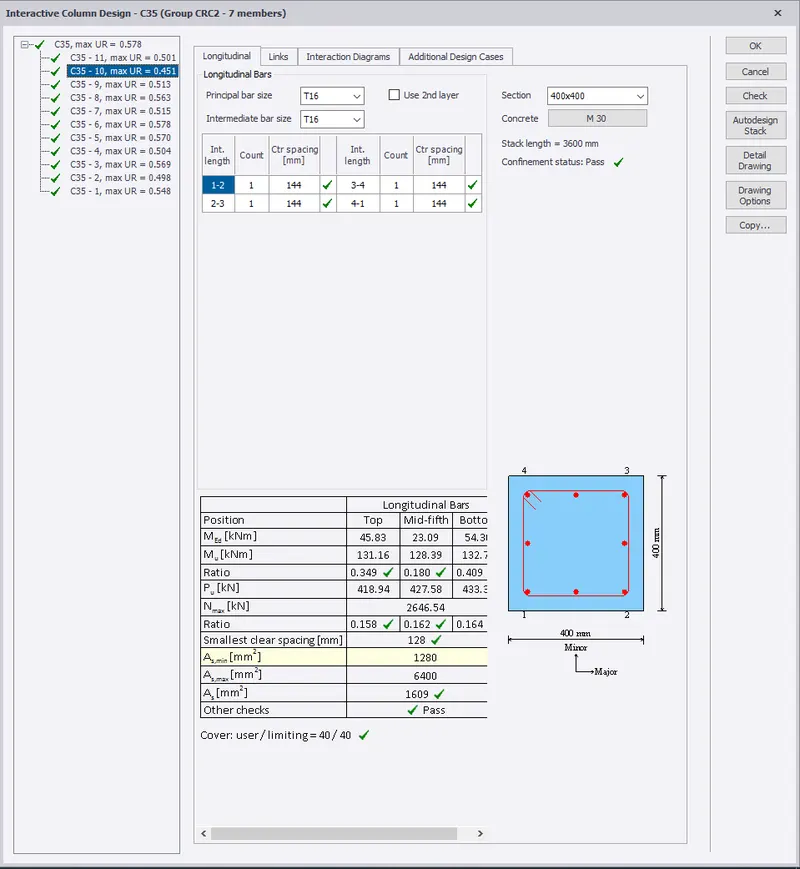

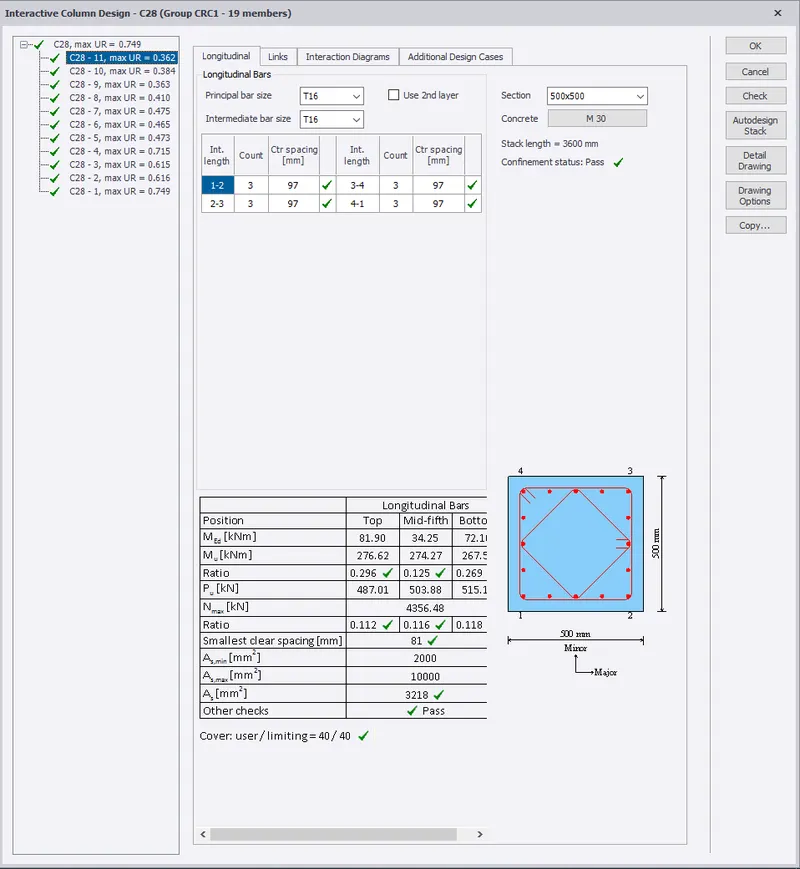

Interactive design check:

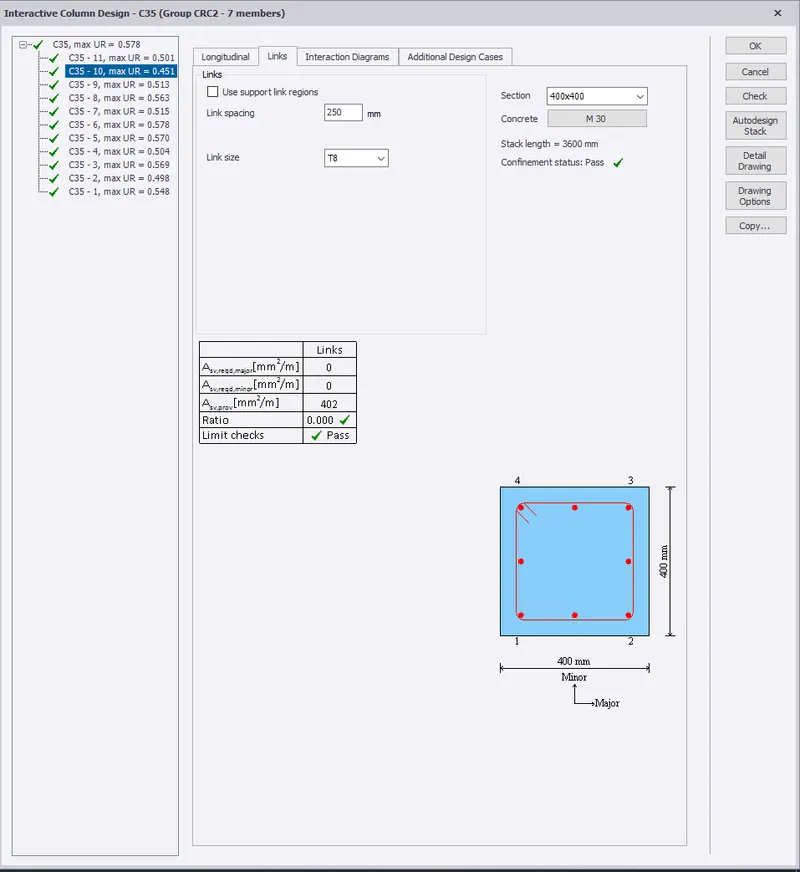

Stirrups check:

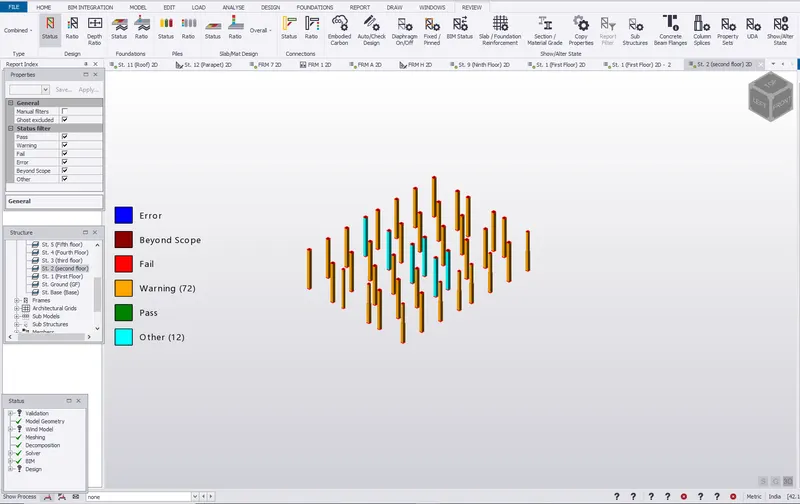

2nd floor columns:
Interactive design check:

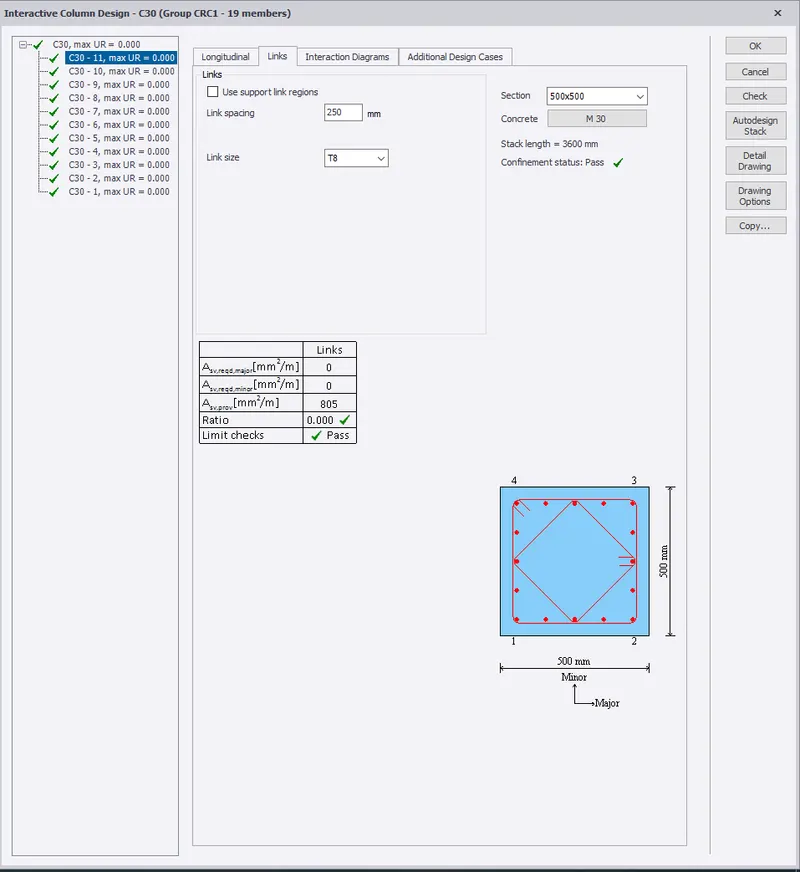

Stirrups check:
3rd floor columns:
Interactive design check:
Main reinforcement check
Stirrups check:
Beam Analysis:
Similar to columns it is done in 3 steps.
- Ist order linear analysis is performed for the beams on different load combinations.
- Based on the analysis find the beams which are failed.
- Redesign the beams with the required reinforcement.

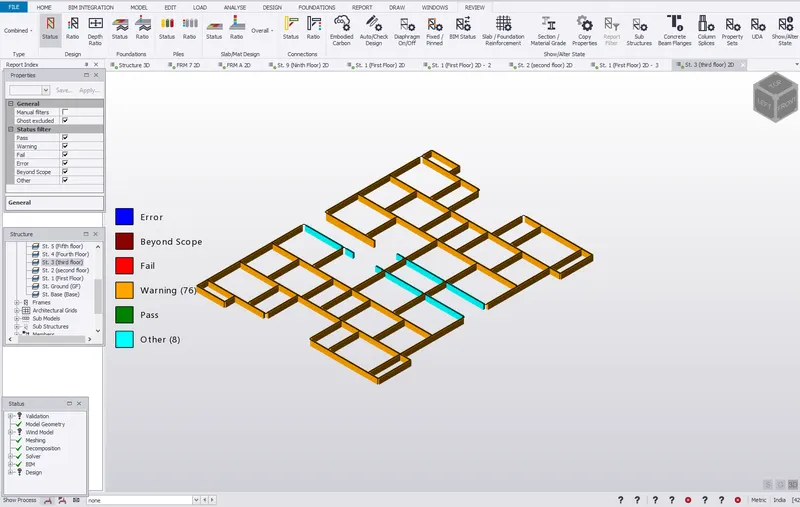

3D view of beams:

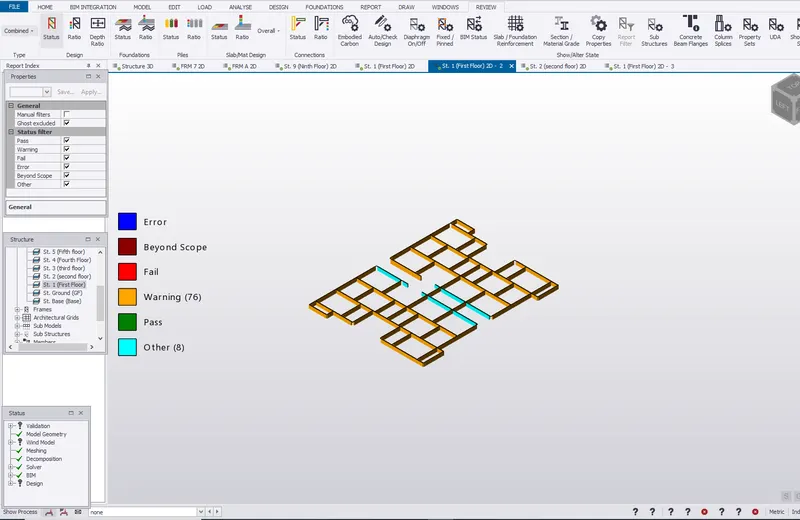

1st floor Beams:

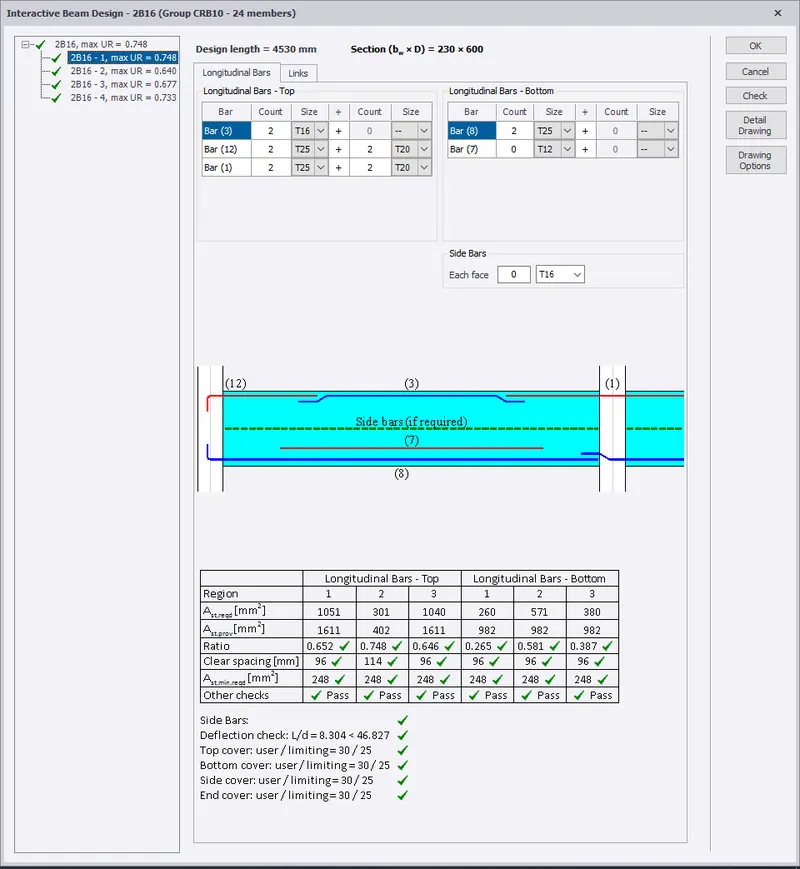

Interactive design check:
Main reinforcement check

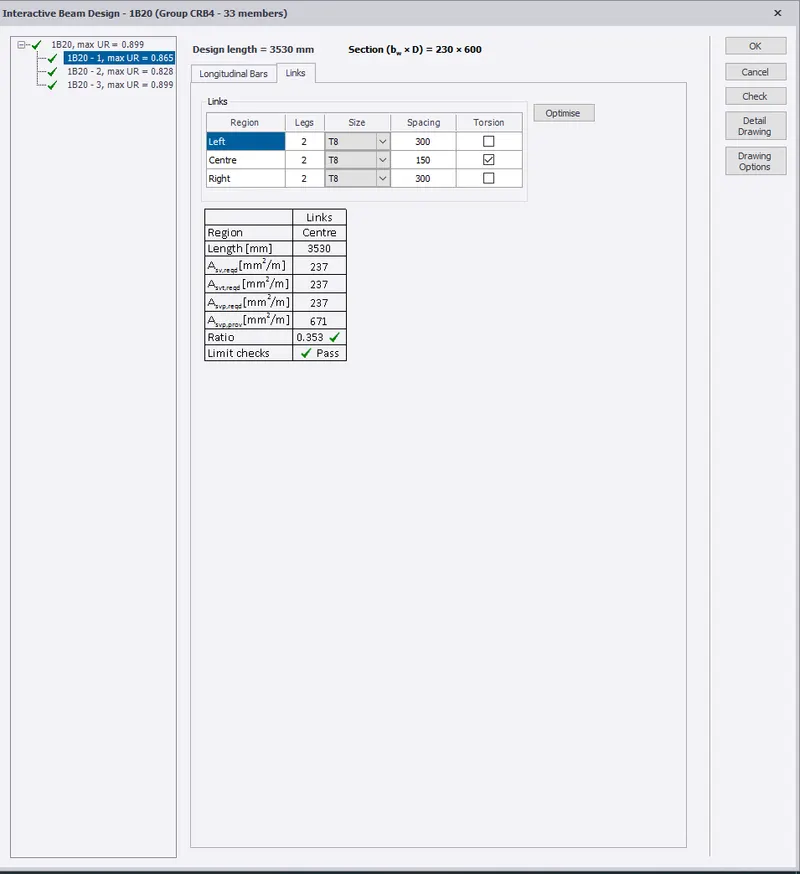

Stirrups check:
Interactive design:
Main reinforcement check

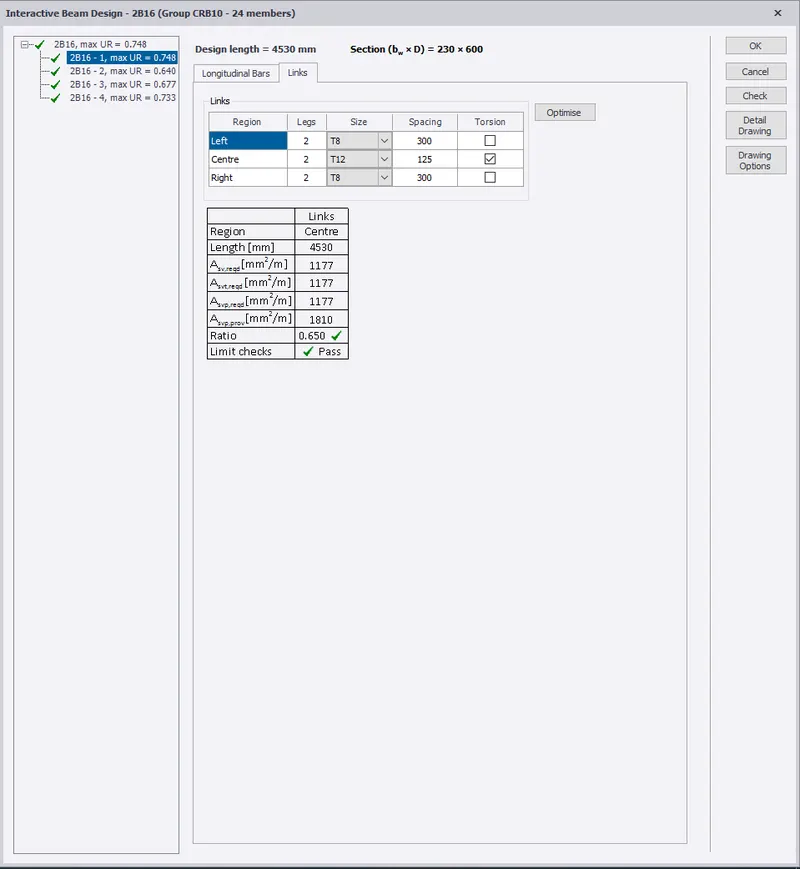

Stirrups check:
3rd floor beams:
Interactive design:

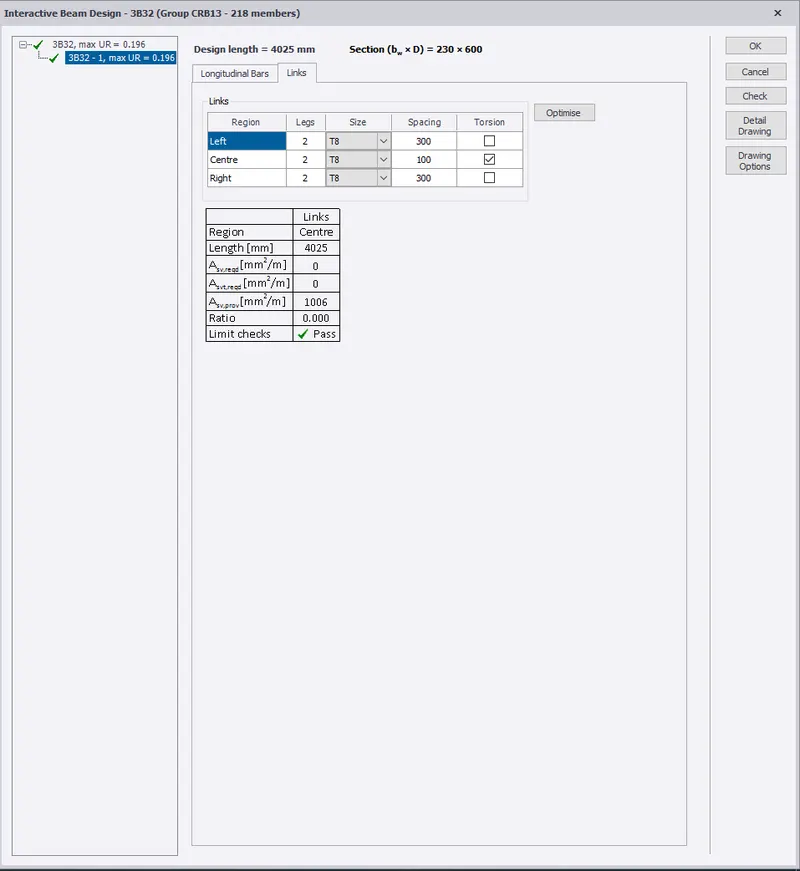

Stirrups check:

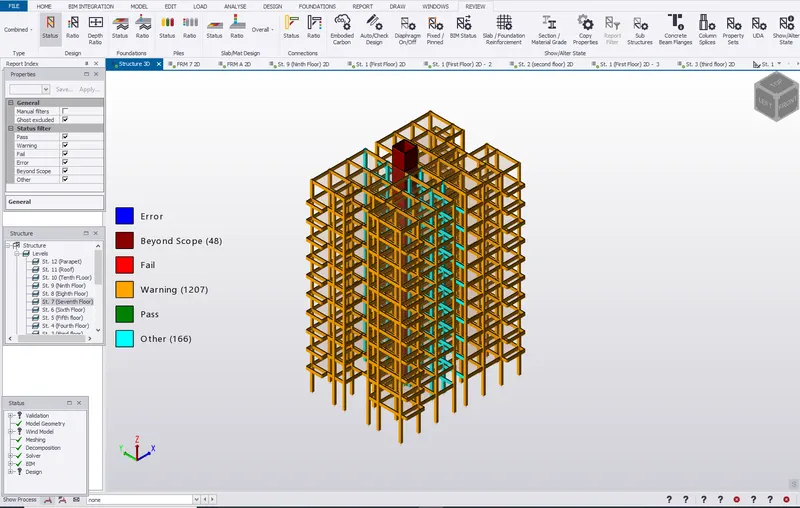

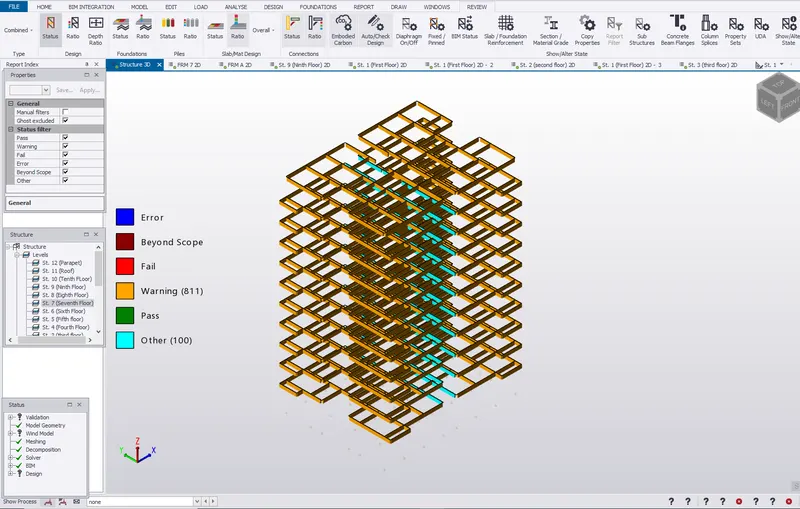

3D view of model
Conclusion : Challenge Completed
