To Design RC column and beam for RC residential structure using TSD

1.

Aim:

To design the RC columns and beams after the analysis.

Procedure:

Open the saved Tekla file.

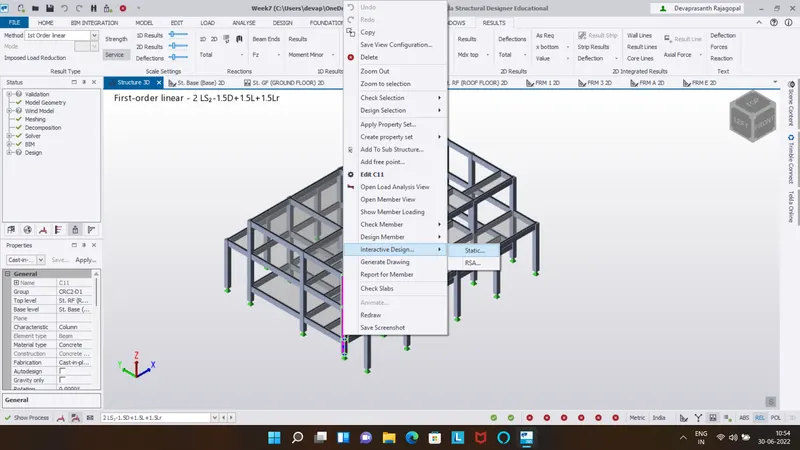

Now right click the member to be designed, and then select interactive design and select static.

Designing Columns

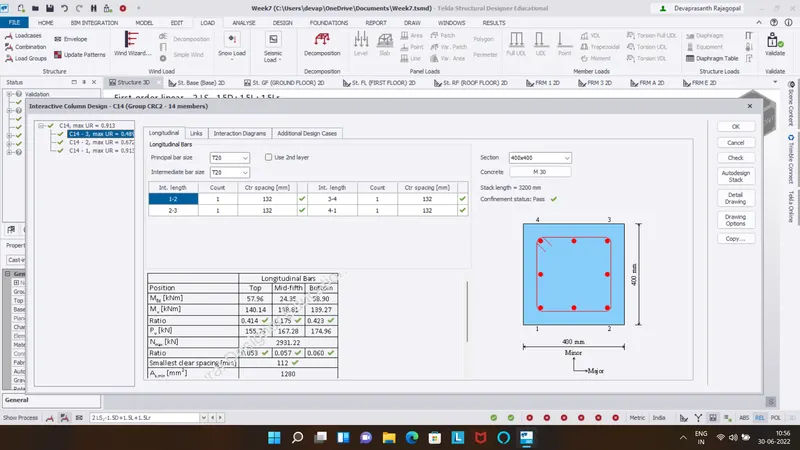

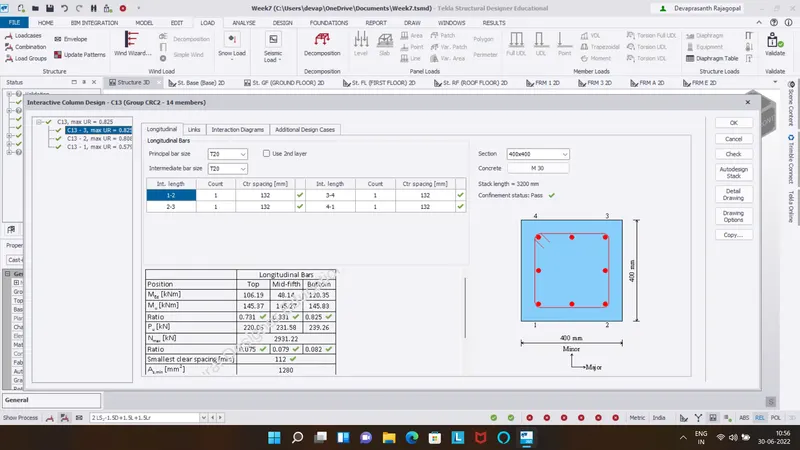

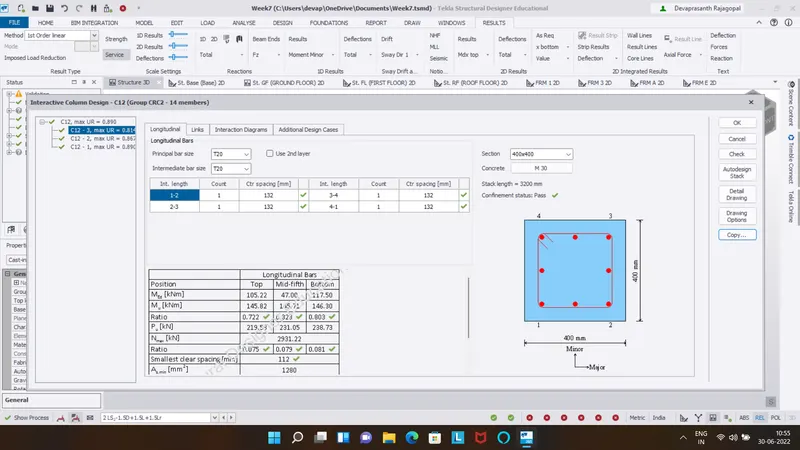

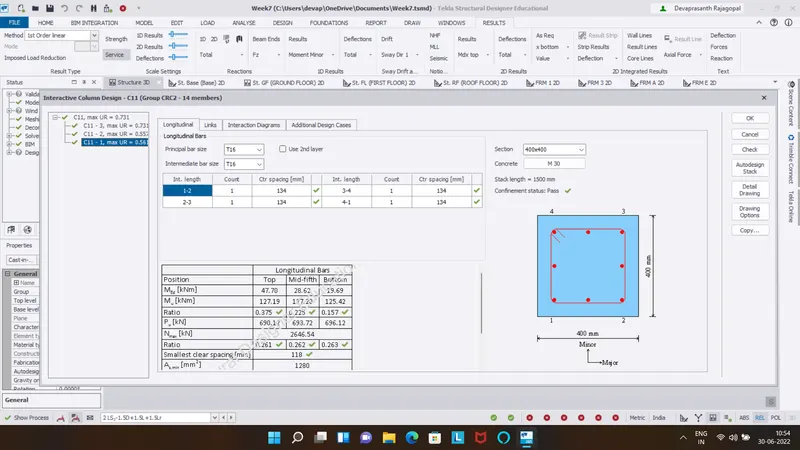

Select Static from the Interactive Design, after that, a dialogue box appears.

This dialogue box shows the bar detailing and whether the member has passed or not.

If there is any failure in any column, which can seen as a red mark in the left side, it can be corrected by increasing the size of member.

Now repeat the same procedure for all the columns.

Design of Beams

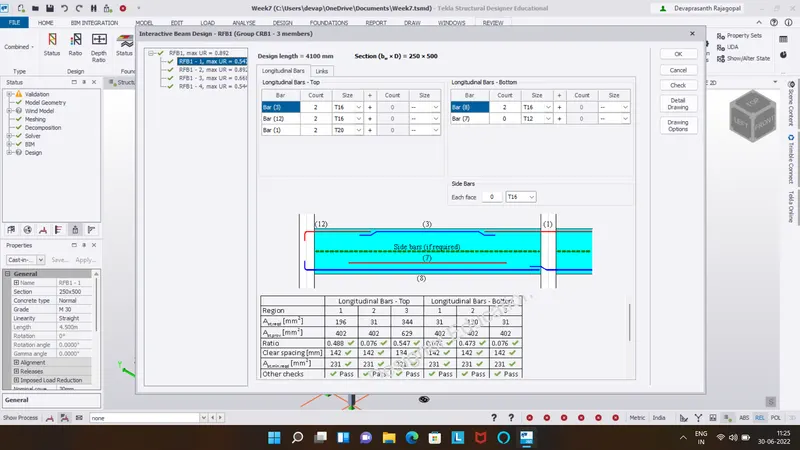

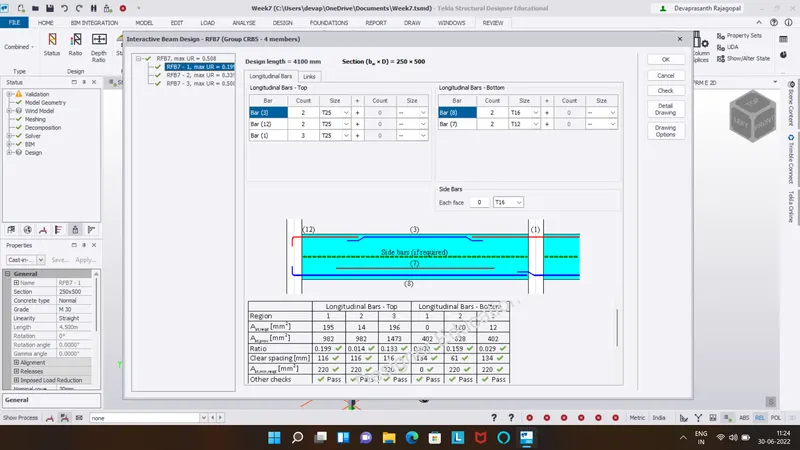

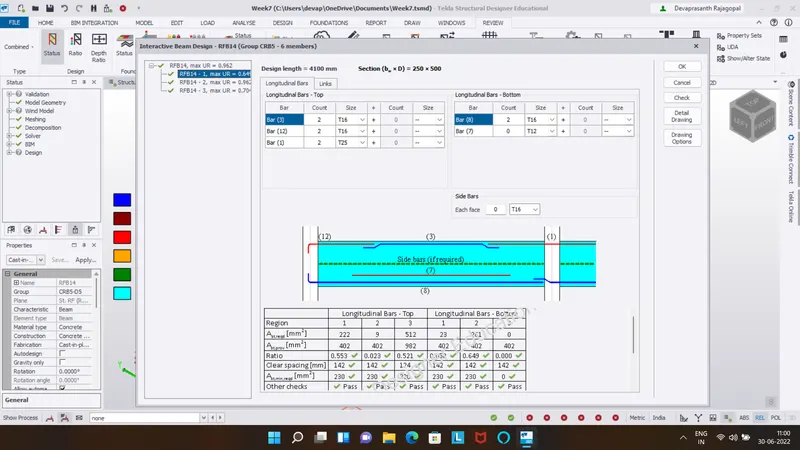

Similar to the columns, right click on any one beam , select interactive design and the select static.

If there is no irregularities in the bar, it will be shown as green.

If any beam has a red cross mark, which indicates the failure, then it can be corrected by either increasing the number of bars or by increasing the diameter of the bar.

Repeat the same procedure for all the beams

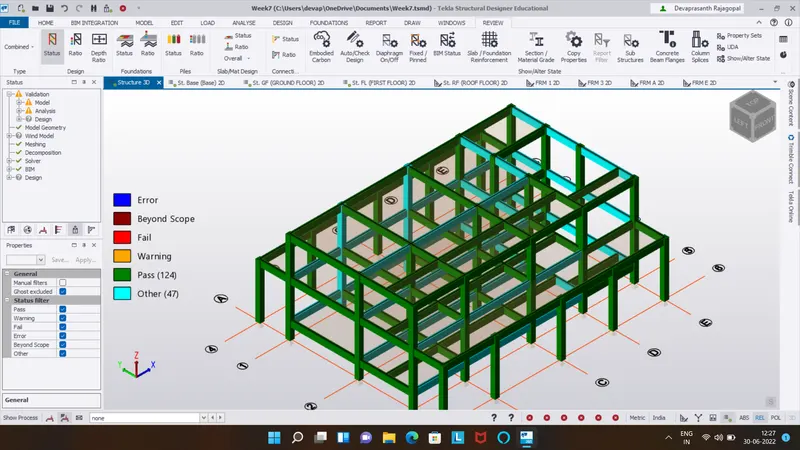

After designing all the members, we have to select status, and we can see all the members have passed, hence the analysis is correct.

Result:

Hence static
