To Design RC column and beam for RC residential structure using TSD
- Que no 1.
- Ans -
- Aim - To Based on the analysis design RC column and beam.
- Process -
- Open saved TEKLA file.

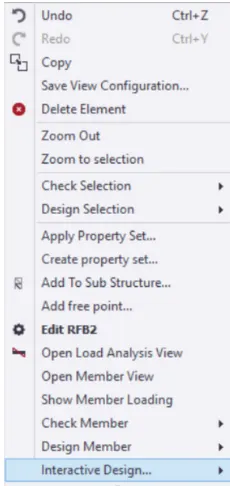

- Now right click the member to be designed and then select interactive design and select static.
- Designing Column -

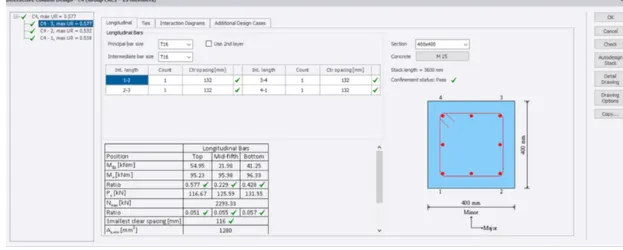

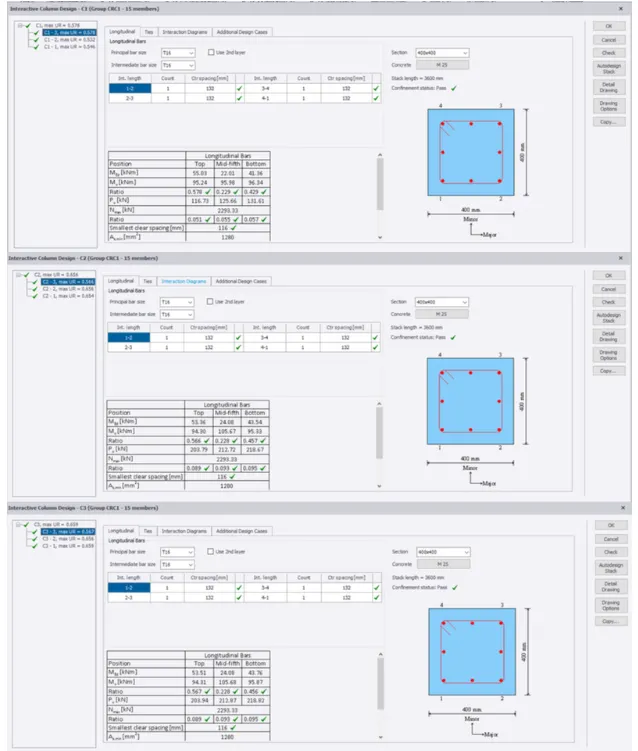

- Select static from the interactive design after that a dialogue box appears.
- This dialogue box shows the bar detailing and whether the member passed or not.
- If there is any failure in any column which can seen as a red mark in the left side it can be corrected by increasing the size of member.
- Now repeat same process for all columns.
- Design of beams -

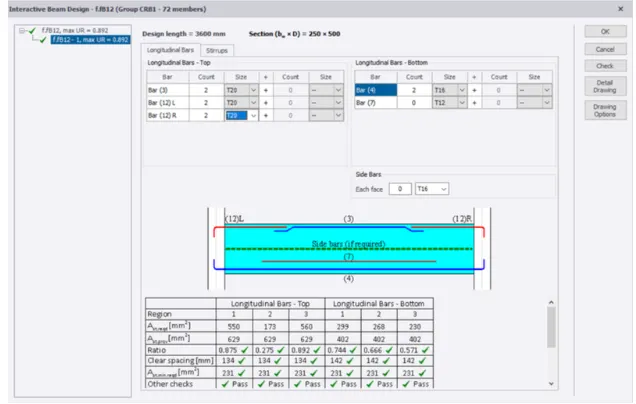

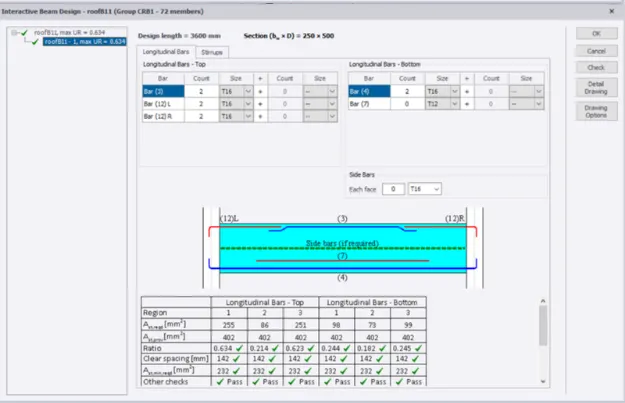

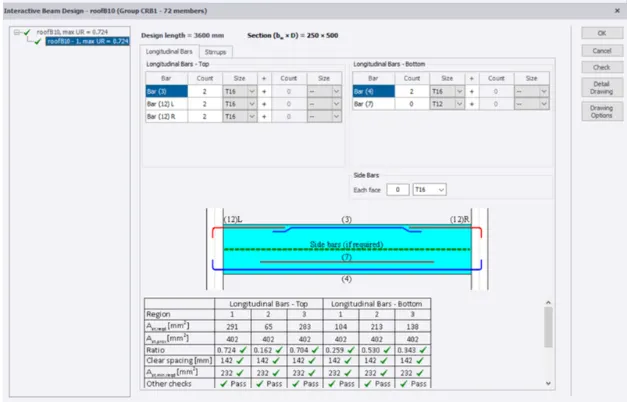

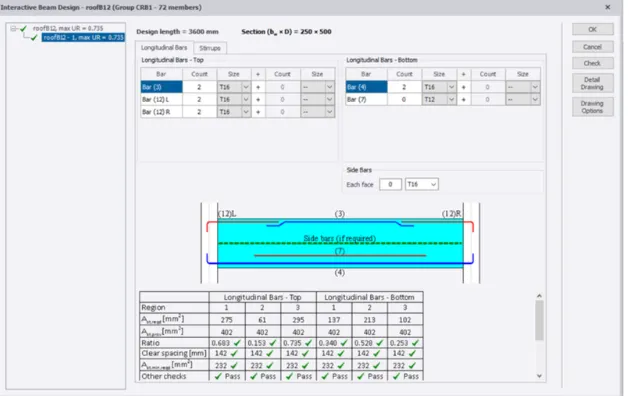

- Similar to columns right click on any one beam select interactive design and select static.
- If there is no irregularities in the bar it will be shown as green.
- If any beam has red cross mark which indicate failure then it can be corrected by either increasing the number of bars or by increasing diameter of bar.
- Repeat same process for all beams.
- After designing all the members we have to select status and we can see all members have passed hence the analysis is correct.
- Select static.
