To Analysis and Design of Steel Structures using TSD
1)
Aim - Summarize your study for the bending moment,shear force and deflection diagrams for the elements of the model
Procedure -
- Open the week 5 tekla file

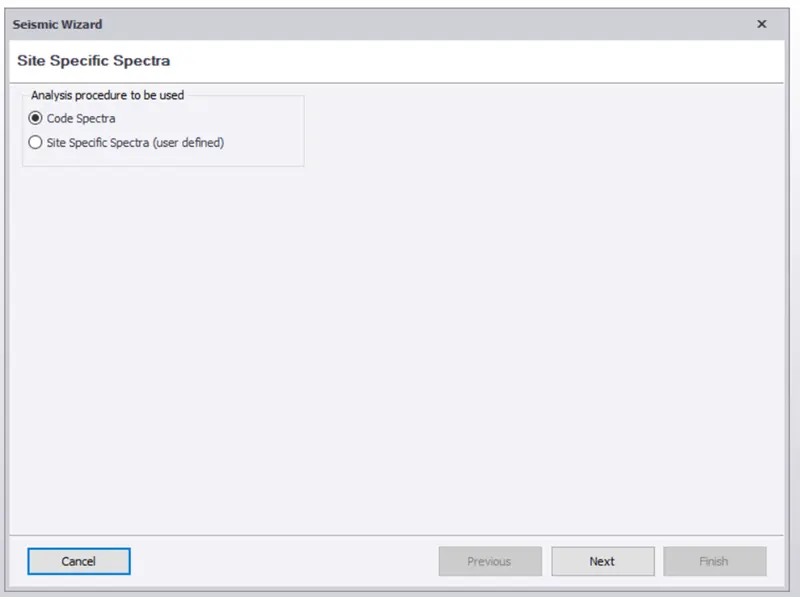

- In load panel under seismic load select seismic wizard

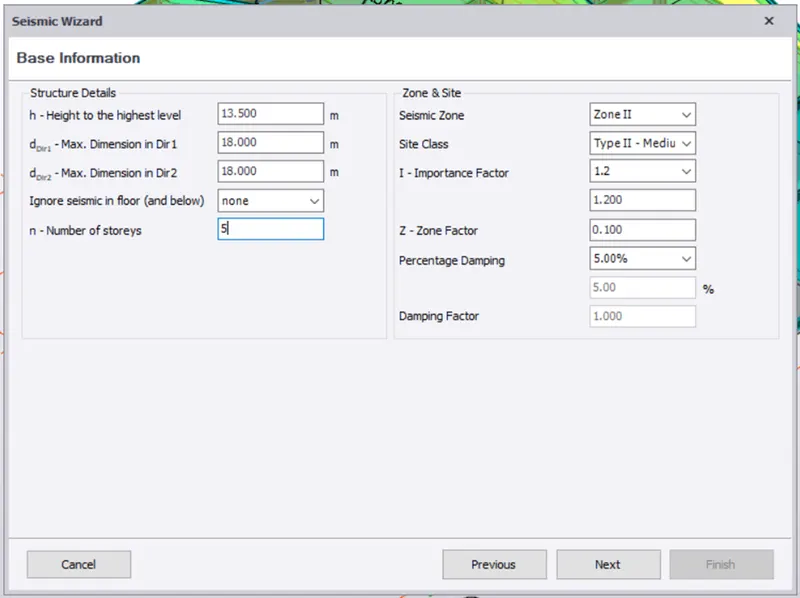

- Check structure details and seismic zone and site class

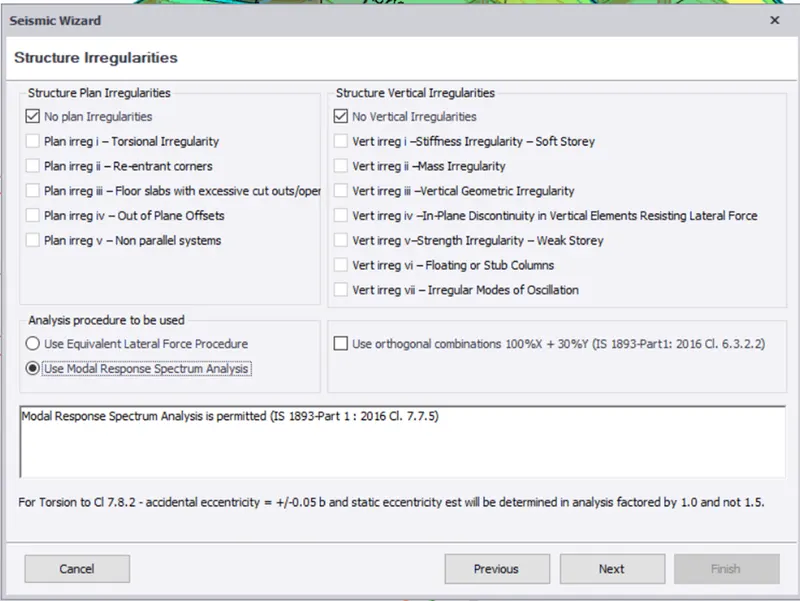

- Also check structure irregularities

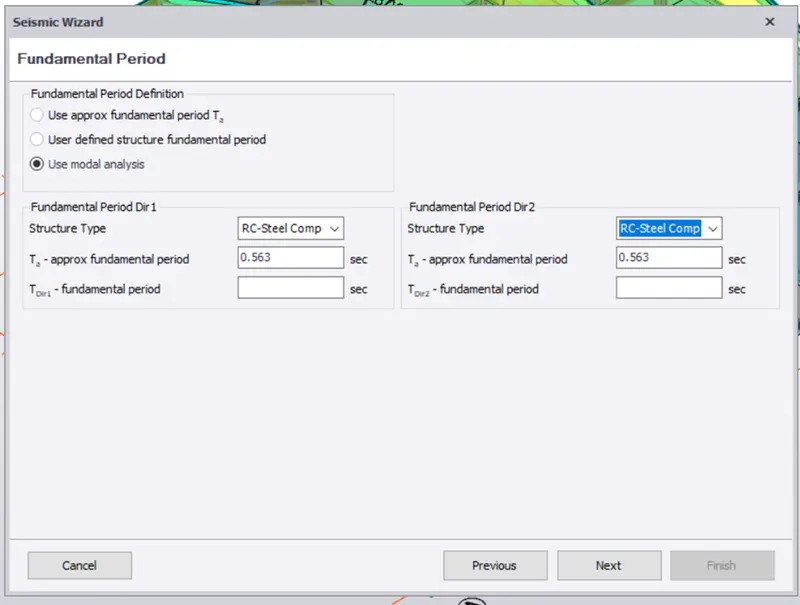

- Now check fundamental period

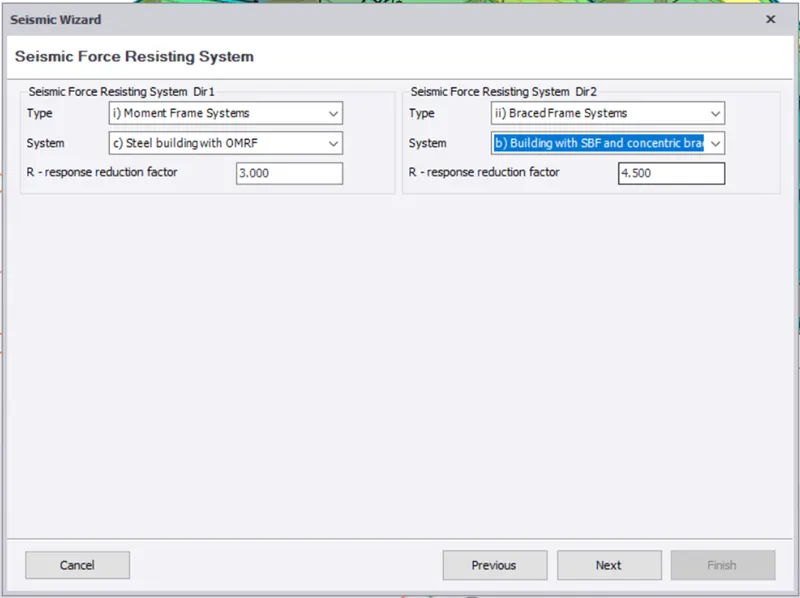

- After that,check seismic force resisting system and also select type and system which we required
- Select moment frame system and steel building with OMRF for 1st direction
- Select braced frame system and building with SBF and concentric bracing for 2nd direction

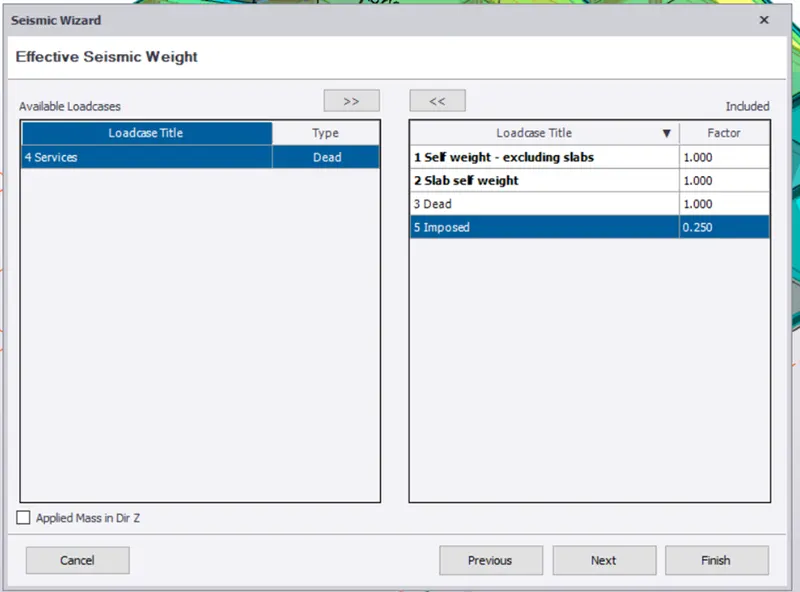

- Select the loads as self weight,slab self weight, dead and imposed

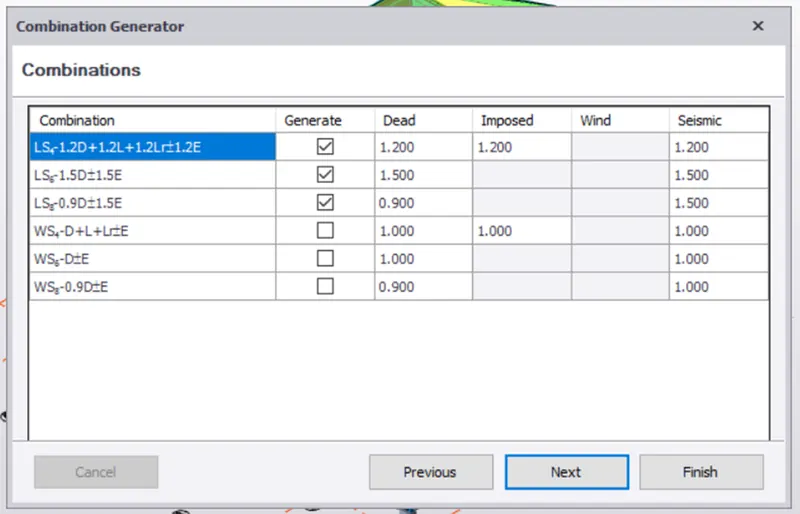

- Select the seismic combination

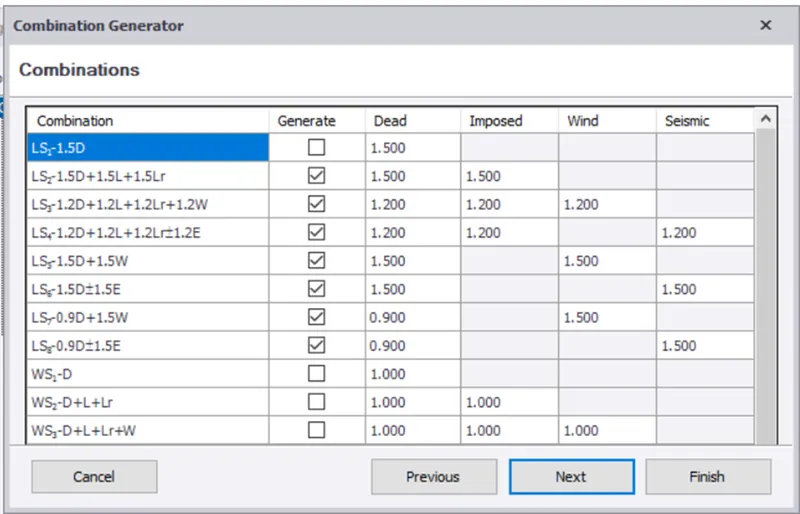

- In load combination, generate the load combination
- Now before starting the analysis check the factors

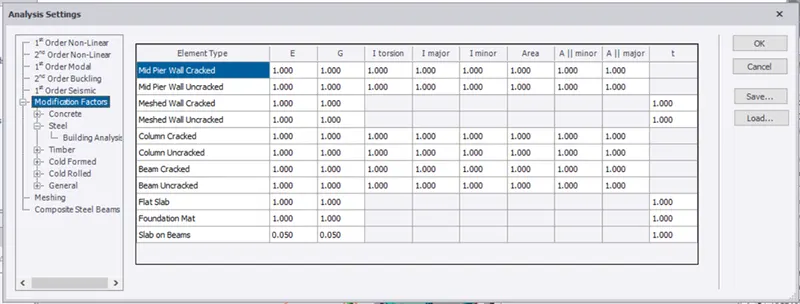

- In setting under modification factor select steel and all the values is 1.00
- For analysis of structure,select 1st order analysis
- Now select the load combination
- After that go to result view in the bottom right corner
- In result panel,select Moment Major and also select axis

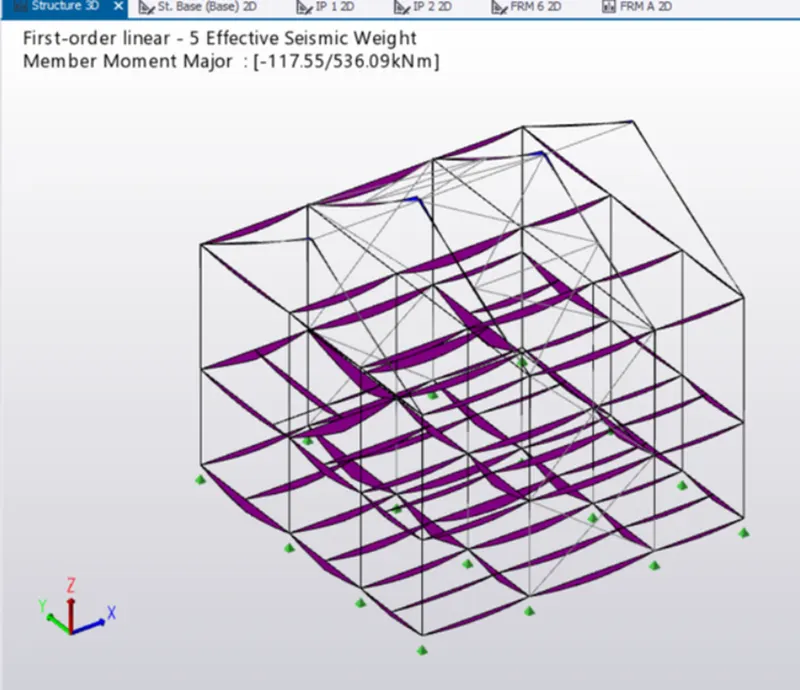

- Moment Major

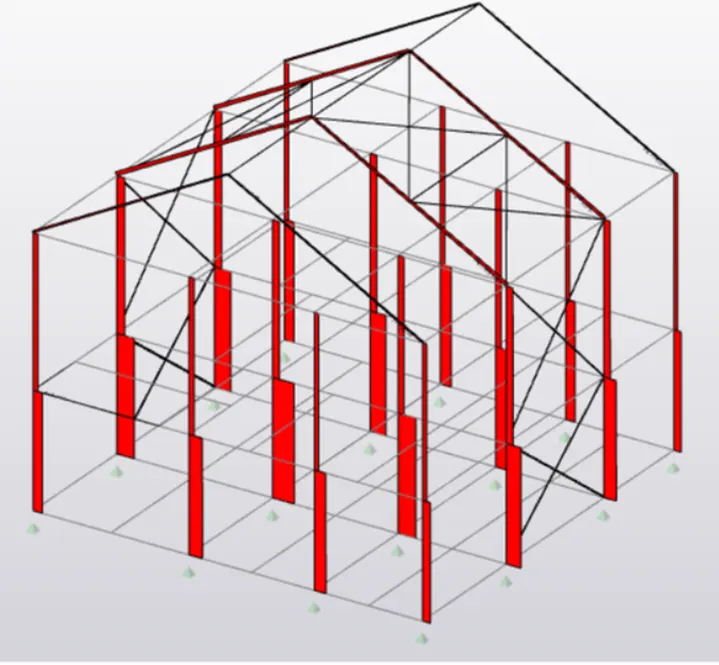

- Axial force
2)
Aim - Based on the analysis design the members and outline the thought process in selecting the member sizes along with the foundation design
Procedure -
- Now for the design of foundation click on foundation tab
- Under foundation panel,select pad base column and draw in base level

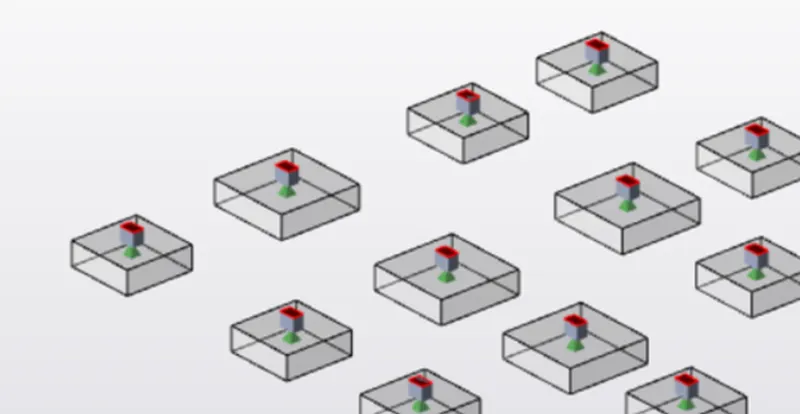

- Select the column and draw the foundation

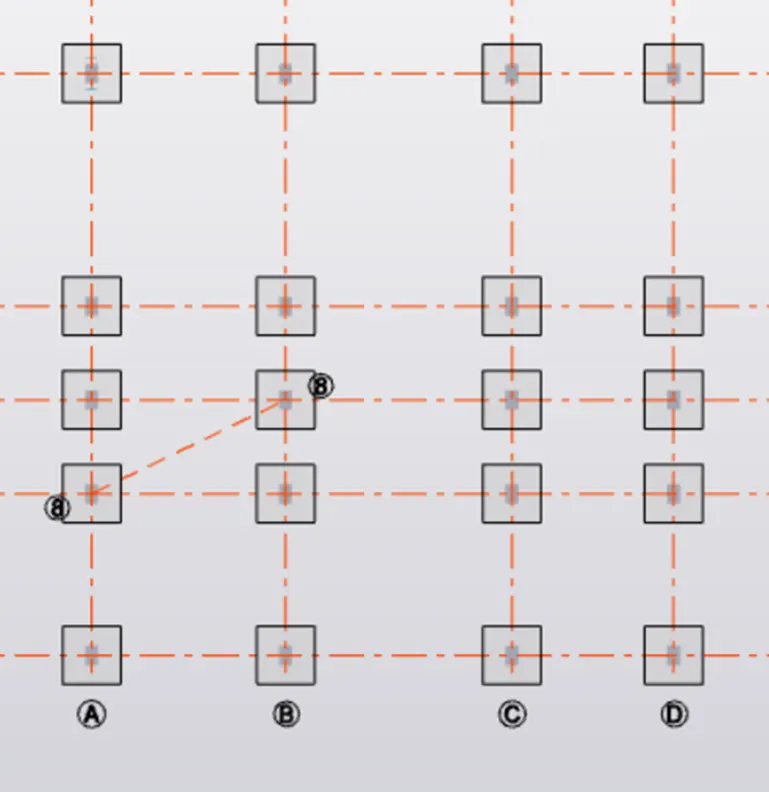

- Similarly provide foundation to all columns

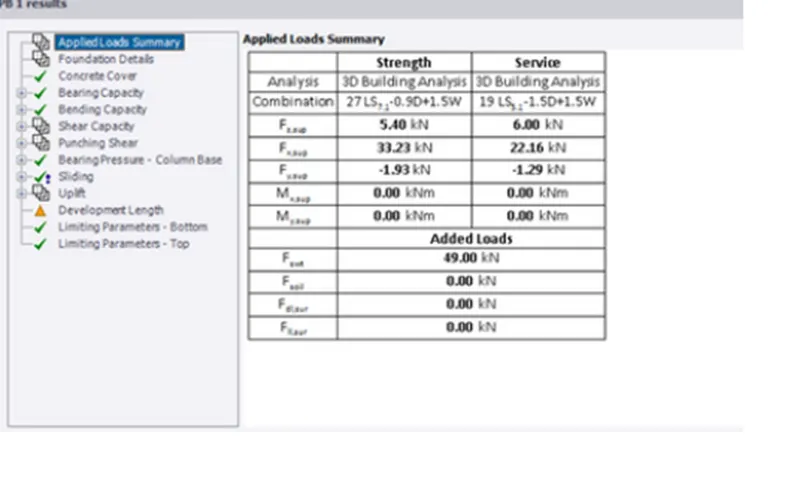

- Now check the foundation
