Implementing K-Nearest Neighbors algorithm on 'Surface defects in Steel plates' dataset.

Objective: In this project we will be carrying out the K-nearest neighbors algorithm in 'Surface defects in steel plates' dataset.

Overview:

• Explanation of the K-nearest neighbors algorithm.
• Pros and cons of K-Nearest Neighbors.
• Performing the KNN algorithm to the dataset.
• Summarizing and concluding the observations.

K-Nearest Neighbors Algorithm:

K-nearest neighbors (KNN) algorithm is a type of supervised ML algorithm which can be used for both classification as well as regression predictive problems. However, it is mainly used for classification predictive problems in industry. The following two properties would define KNN well −

• Lazy learning algorithm − KNN is a lazy learning algorithm because it does not have a specialized training phase and uses all the data for training while classification.

• Non-parametric learning algorithm − KNN is also a non-parametric learning algorithm because it doesn’t assume anything about the underlying data.

K-nearest neighbors (KNN) algorithm uses ‘feature similarity’ to predict the values of new datapoints which further means that the new data point will be assigned a value based on how closely it matches the points in the training set. We can understand its working with the help of following steps −

Step 1 − For implementing any algorithm, we need dataset. So during the first step of KNN, we must load the training as well as test data.

Step 2 − Next, we need to choose the value of K i.e. the nearest data points. K can be any integer.

Step 3 − For each point in the test data do the following −

• 3.1 − Calculate the distance between test data and each row of training data with the help of any of the method namely: Euclidean, Manhattan or Hamming distance. The most commonly used method to calculate distance is Euclidean.

• 3.2 − Now, based on the distance value, sort them in ascending order.

• 3.3 − Next, it will choose the top K rows from the sorted array.

• 3.4 − Now, it will assign a class to the test point based on most frequent class of these rows.

Step 4 − End.

The following is an example to understand the concept of K and working of KNN algorithm −

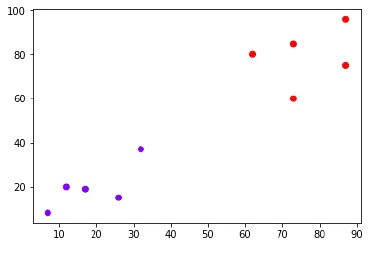

Suppose we have a dataset which can be plotted as follows −

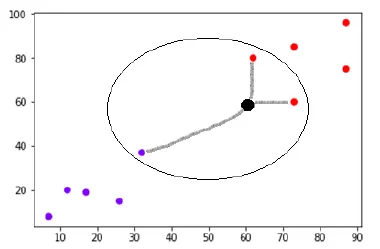

Now, we need to classify new data point with black dot (at point 60,60) into blue or red class. We are assuming K = 3 i.e. it would find three nearest data points. It is shown in the next diagram −

We can see in the above diagram the three nearest neighbors of the data point with black dot. Among those three, two of them lies in Red class hence the black dot will also be assigned in red class.

Pros and Cons of KNN algorithm:

K- Nearest Neighbors or also known as K-NN belong to the family of supervised machine learning algorithms which means we use labeled (Target Variable) dataset to predict the class of new data point. The K-NN algorithm is a robust classifier which is often used as a benchmark for more complex classifiers such as Artificial Neural Network (ANN) or Support vector machine (SVM).

Below is the list of few of the reasons to choose K-NN machine learning algorithm:

1. K-NN is pretty intuitive and simple: K-NN algorithm is very simple to understand and equally easy to implement. To classify the new data point K-NN algorithm reads through whole dataset to find out K nearest neighbors.
2. K-NN has no assumptions: K-NN is a non-parametric algorithm which means there are assumptions to be met to implement K-NN. Parametric models like linear regression has lots of assumptions to be met by data before it can be implemented which is not the case with K-NN.
3. No Training Step: K-NN does not explicitly build any model, it simply tags the new data entry based learning from historical data. New data entry would be tagged with majority class in the nearest neighbor.
4. It constantly evolves: Given it’s an instance-based learning; k-NN is a memory-based approach. The classifier immediately adapts as we collect new training data. It allows the algorithm to respond quickly to changes in the input during real-time use.
5. Very easy to implement for multi-class problem: Most of the classifier algorithms are easy to implement for binary problems and needs effort to implement for multi class whereas K-NN adjust to multi class without any extra efforts.
6. Can be used both for Classification and Regression: One of the biggest advantages of K-NN is that K-NN can be used both for classification and regression problems.
7. One Hyper Parameter: K-NN might take some time while selecting the first hyper parameter but after that rest of the parameters are aligned to it.
8. Variety of distance criteria to be choose from: K-NN algorithm gives user the flexibility to choose distance while building K-NN model.
   1. Euclidean Distance
   2. Hamming Distance
   3. Manhattan Distance
   4. Minkowski Distance

Even though K-NN has several advantages but there are certain very important disadvantages or constraints of K-NN. Below are listed few cons of K-NN.

1. K-NN slow algorithm: K-NN might be very easy to implement but as dataset grows efficiency or speed of algorithm declines very fast.
2. Curse of Dimensionality: KNN works well with small number of input variables but as the numbers of variables grow K-NN algorithm struggles to predict the output of new data point.
3. K-NN needs homogeneous features: If you decide to build k-NN using a common distance, like Euclidean or Manhattan distances, it is completely necessary that features have the same scale, since absolute differences in features weight the same, i.e., a given distance in feature 1 must means the same for feature 2.
4. Optimal number of neighbors: One of the biggest issues with K-NN is to choose the optimal number of neighbors to be consider while classifying the new data entry.
5. Imbalanced data causes problems: k-NN doesn’t perform well on imbalanced data. If we consider two classes, A and B, and the majority of the training data is labeled as A, then the model will ultimately give a lot of preference to A. This might result in getting the less common class B wrongly classified.
6. Outlier sensitivity: K-NN algorithm is very sensitive to outliers as it simply chose the neighbors based on distance criteria.
7. Missing Value treatment: K-NN inherently has no capability of dealing with missing value problem.

Performing KNN Classifier on the "Surface defects in Steel plates" dataset:

In this process we first need to import the data and then start to apply the algorithm.

The classification process will be performed in the following manner:

• Data Preperation and Cleaning.
• Data Visualisation.
• Applying K-NN algorithm to the dataset.

1. Data preperation and cleaning:

In the first process we first need to import all the necessary libraries and the dataset on which we are going to perform the algorithm.

import numpy as np
import pandas as pd
import seaborn as sn
import matplotlib.pyplot as plt

df = pd.read_csv('Faults.csv')

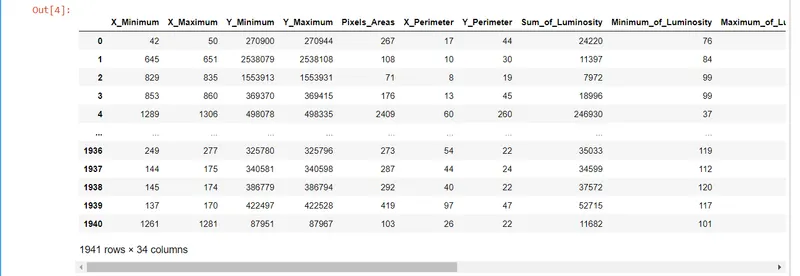

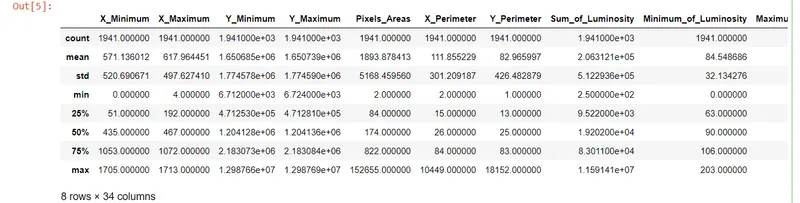

df.describe()

df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 1941 entries, 0 to 1940
Data columns (total 34 columns):
 #   Column                 Non-Null Count  Dtype
---  ------                 --------------  -----
 0   X_Minimum              1941 non-null   int64
 1   X_Maximum              1941 non-null   int64
 2   Y_Minimum              1941 non-null   int64
 3   Y_Maximum              1941 non-null   int64
 4   Pixels_Areas           1941 non-null   int64
 5   X_Perimeter            1941 non-null   int64
 6   Y_Perimeter            1941 non-null   int64
 7   Sum_of_Luminosity      1941 non-null   int64
 8   Minimum_of_Luminosity  1941 non-null   int64
 9   Maximum_of_Luminosity  1941 non-null   int64
 10  Length_of_Conveyer     1941 non-null   int64
 11  TypeOfSteel_A300       1941 non-null   int64
 12  TypeOfSteel_A400       1941 non-null   int64
 13  Steel_Plate_Thickness  1941 non-null   int64
 14  Edges_Index            1941 non-null   float64
 15  Empty_Index            1941 non-null   float64
 16  Square_Index           1941 non-null   float64
 17  Outside_X_Index        1941 non-null   float64
 18  Edges_X_Index          1941 non-null   float64
 19  Edges_Y_Index          1941 non-null   float64
 20  Outside_Global_Index   1941 non-null   float64
 21  LogOfAreas             1941 non-null   float64
 22  Log_X_Index            1941 non-null   float64
 23  Log_Y_Index            1941 non-null   float64
 24  Orientation_Index      1941 non-null   float64
 25  Luminosity_Index       1941 non-null   float64
 26  SigmoidOfAreas         1941 non-null   float64
 27  Pastry                 1941 non-null   int64
 28  Z_Scratch              1941 non-null   int64
 29  K_Scatch               1941 non-null   int64
 30  Stains                 1941 non-null   int64
 31  Dirtiness              1941 non-null   int64
 32  Bumps                  1941 non-null   int64
 33  Other_Faults           1941 non-null   int64
dtypes: float64(13), int64(21)
memory usage: 515.7 KB

Now dividing the data set into 'Faults' and 'Attributes' sets.

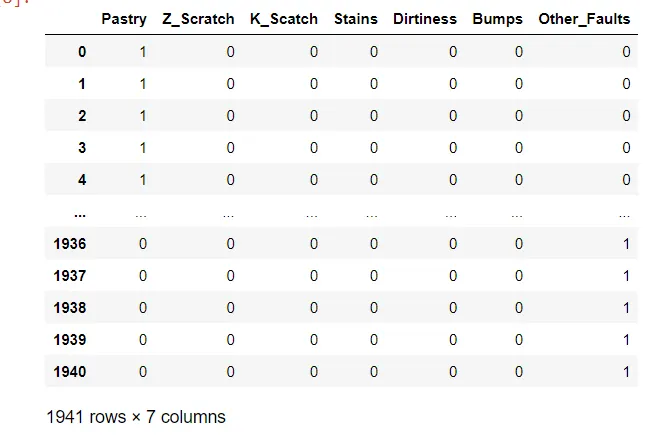

Faults = df[['Pastry','Z_Scratch','K_Scatch','Stains','Dirtiness','Bumps','Other_Faults']]
Faults

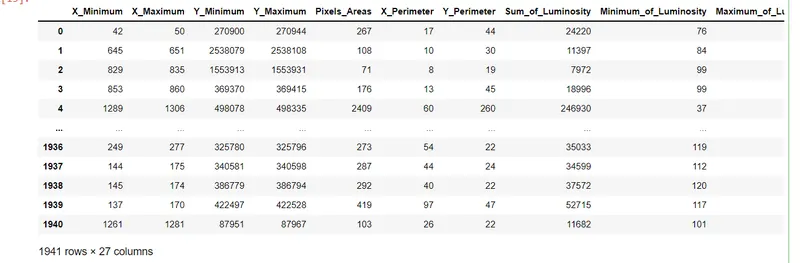

Attributes = df.drop(columns = Faults)
Attributes

2. Data Visualisation:

In this process we will check the data how it looks like.

plt.figure(figsize = (15,15))
plt.pie(x=Faults.value_counts().sort_values(),autopct = '%.2f%%',labels = Faults.columns)

Attributes.hist(figsize = (15,15))

3. Applying the K-NN algorithm:

• In this process we first import the neccessary sklearn libraries for the K-NN algorithm.
• Then we will scaled the data as data is too laarge it is difficult for the processor to run fast.
• After that we will split the data into test and training subset.
• Then after we will apply the K-NN algorithm to the dataset.
• We will check the efficiency of the model.
• We will try to predict the test model.
• Lastly we will create a heatmap of the confusion matrix.

Target = []
for i in range(Faults.shape[0]):
    if df['Pastry'].values[i] == 1:
        Target.append('Pastry')
    elif df['Z_Scratch'].values[i] == 1:
        Target.append('X_Scratch')
    elif df['K_Scatch'].values[i] == 1:
        Target.append('K_Scatch')
    elif df['Stains'].values[i] == 1:
        Target.append('Stains')
    elif df['Dirtiness'].values[i] == 1:
        Target.append('Dirtiness')
    elif df['Bumps'].values[i] == 1:
        Target.append('Bumps')
    else:
        Target.append('Other_Faults')

Target = pd.DataFrame(Target)
df['Target'] = Target
# Scaling the data
from sklearn.preprocessing import StandardScaler
scaler = StandardScaler()
Attributes_scaled = pd.DataFrame(scaler.fit_transform(Attributes),columns = Attributes.columns)

Splitting the data into training and test subset:

from sklearn.model_selection import train_test_split
X_train,X_test,Y_train,Y_test = train_test_split(Attributes_scaled,Target,test_size = 0.3,random_state = 5)

Creating a K-NN classifier model:

from sklearn.neighbors import KNeighborsClassifier
KNN = KNeighborsClassifier(n_neighbors = 40)

Fitting the training data into the model:

KNN.fit(X_train,Y_train)

Now we will check for the efficiency of that model.

KNN.score(X_test,Y_test)

0.6586620926243568

Geanerating a heatmap of the confusion matrix for this model.

y_predict = KNN.predict(X_test)
from sklearn import metrics

cm = metrics.confusion_matrix(Y_test,y_predict)
cm = pd.DataFrame(cm,columns = Faults.columns)

plt.figure(figsize = (15,15))
sn.heatmap(cm,annot = True,xticklabels = cm,yticklabels = cm)
plt.xlabel('Y test')
plt.ylabel('Y predict')

Summary and Conclusion:

• The dataset was scaled to avoid long time consumption.
• The value of K was chosen to be 40 after optimization.
• The accuracy of the model found out to be 65.8%.
• The heatmap of the confusion matrix was generated.
