Week 10 Challenge - Structural Modelling of G + 7 Residential Building Using ETAABs

Answer:

Aim: Utilizing ETABS 2018, to model and analyze the G+7 residential building from the provided architectural drawings.

Intriduction:

Engineering software called ETABS is used to analyze and design multi-story buildings.
The grid-like geometry specific to this class of structure is taken into account by modeling tools and templates, code-based load prescriptions, analysis techniques, and solution approaches.
ETABS may be used to evaluate fundamental or sophisticated systems under static or dynamic conditions.
Multi-story buildings typically have identical or closely related floor plans that repeat vertically, according to the generalization known as ETABS modeling.
Modeling features that simulate cutting-edge seismic systems and simplify the generation of analytical models.

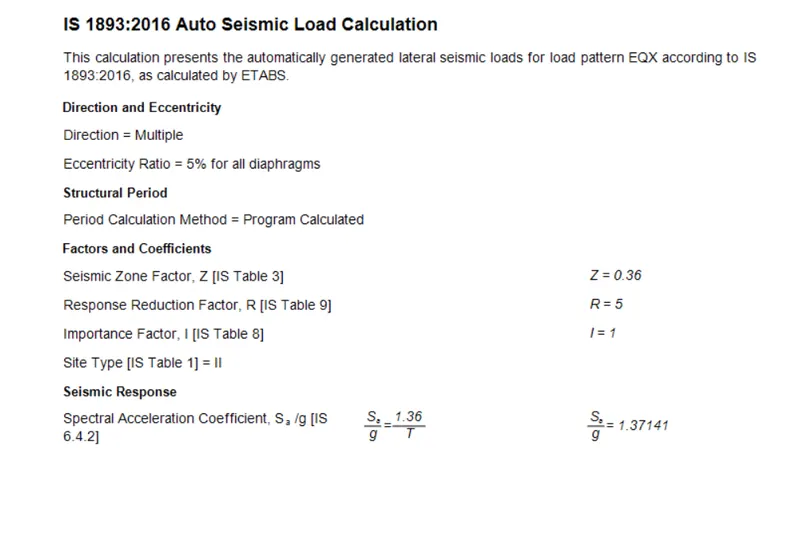

ETABS generates and assigns code-based loading conditions for gravity, seismic, wind, and thermal forces automatically after modeling is finished.

Procedure:

We must first launch the etabs software.

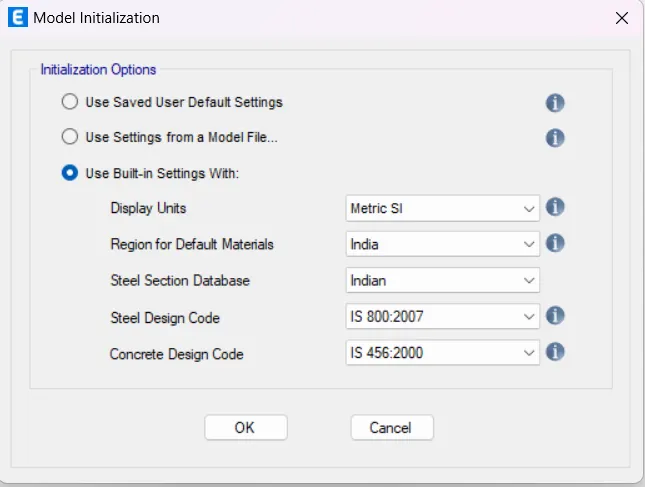

Then, as shown below, click on the file option in the top left corner and choose the new model.

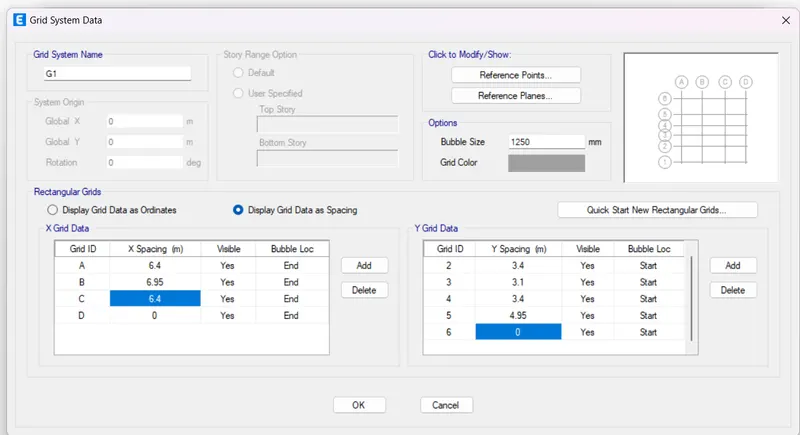

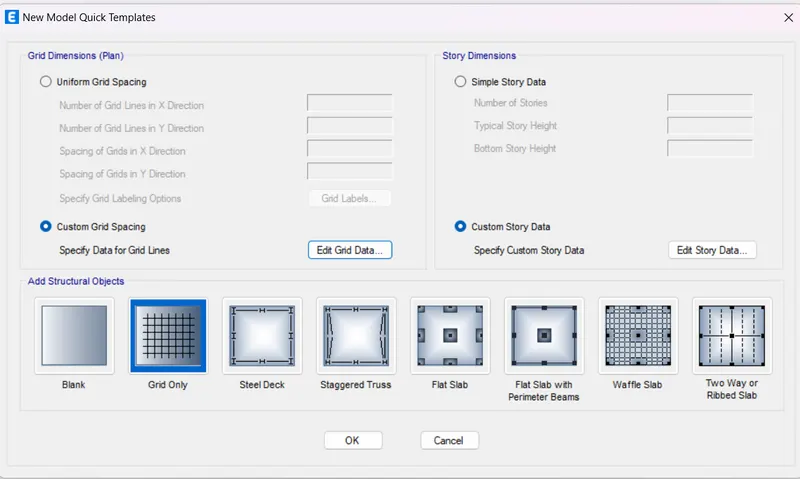

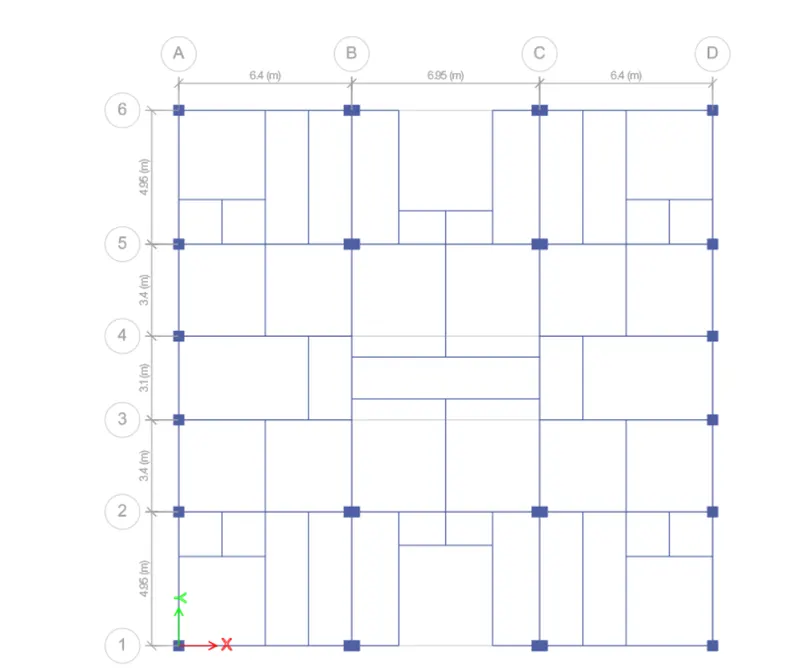

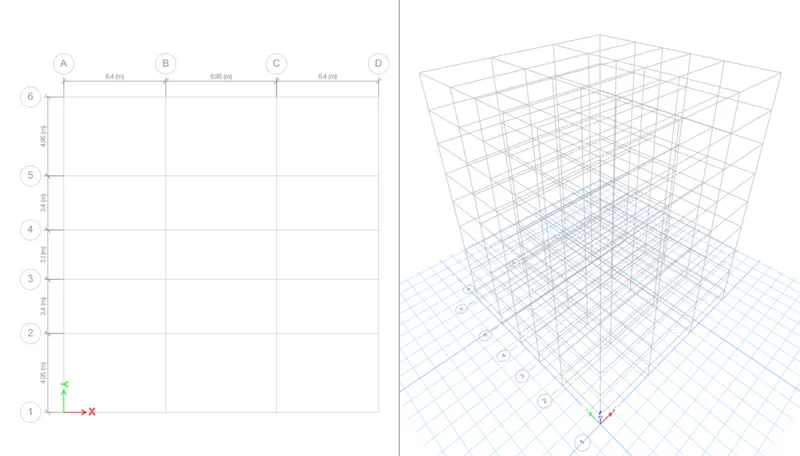

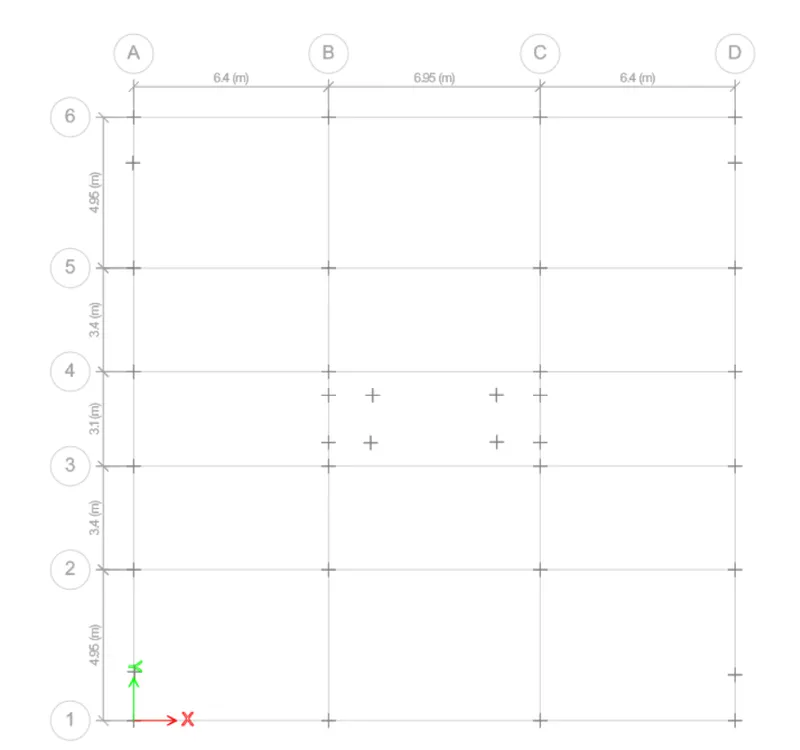

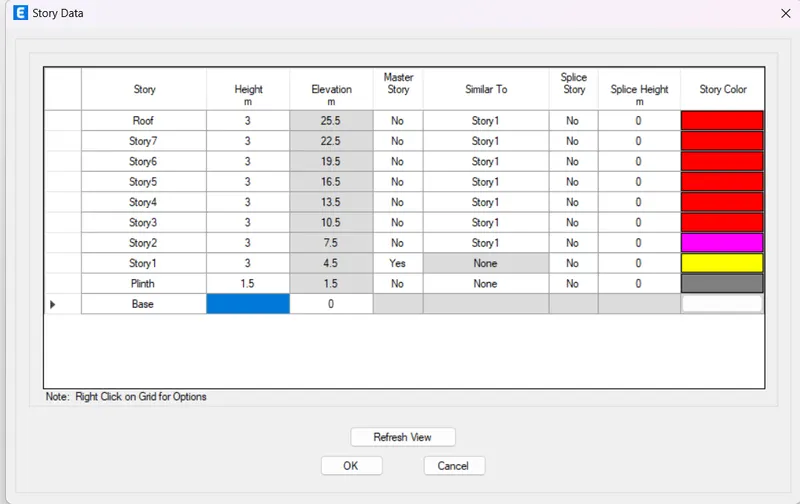

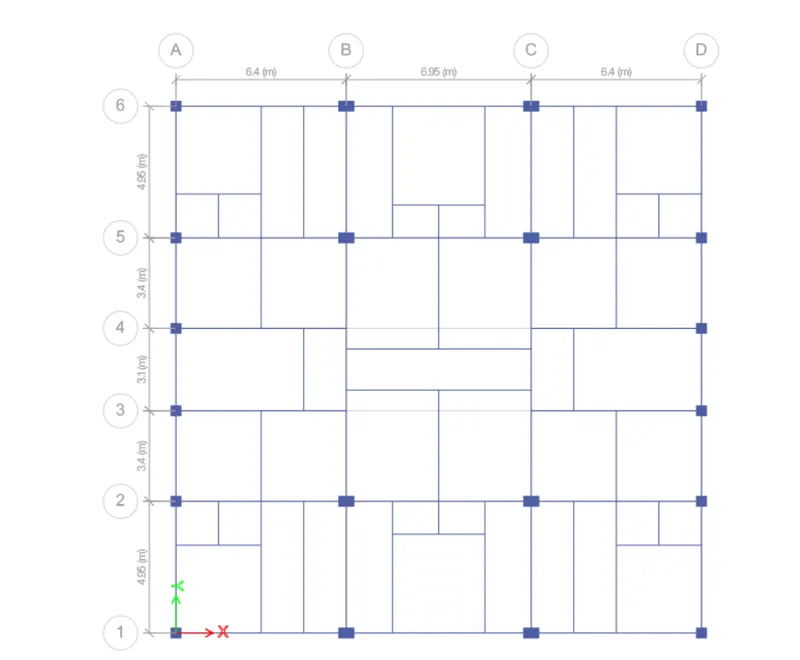

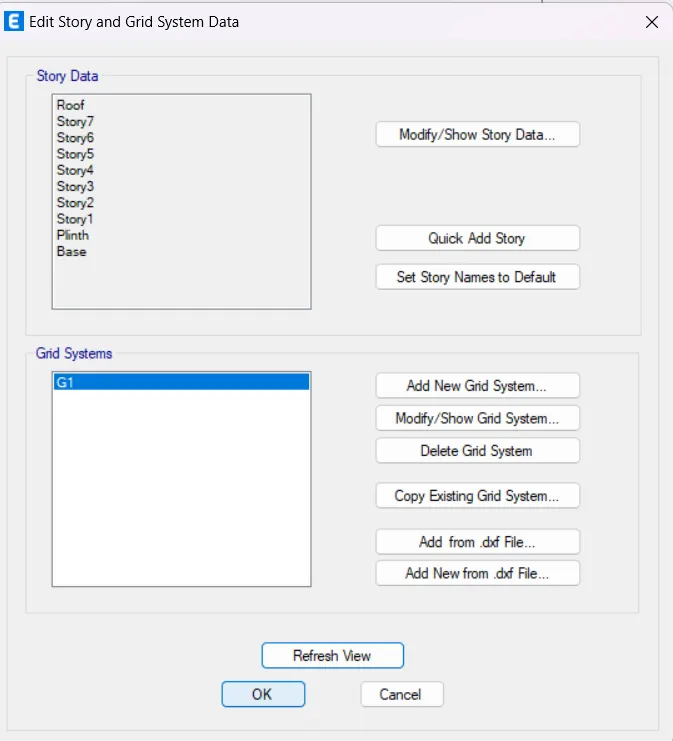

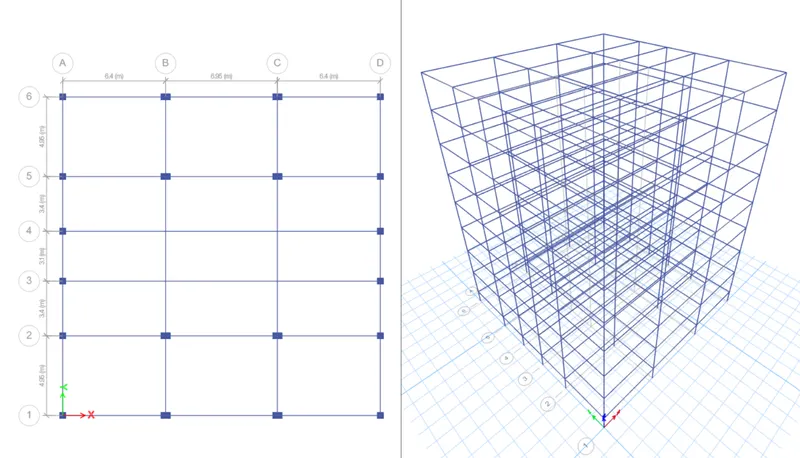

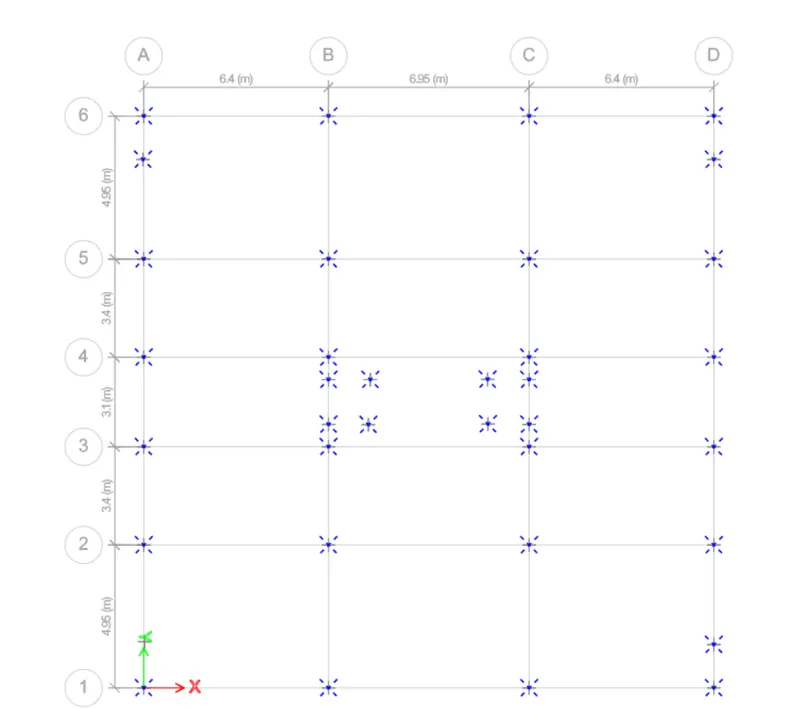

add on the grids, Stories.

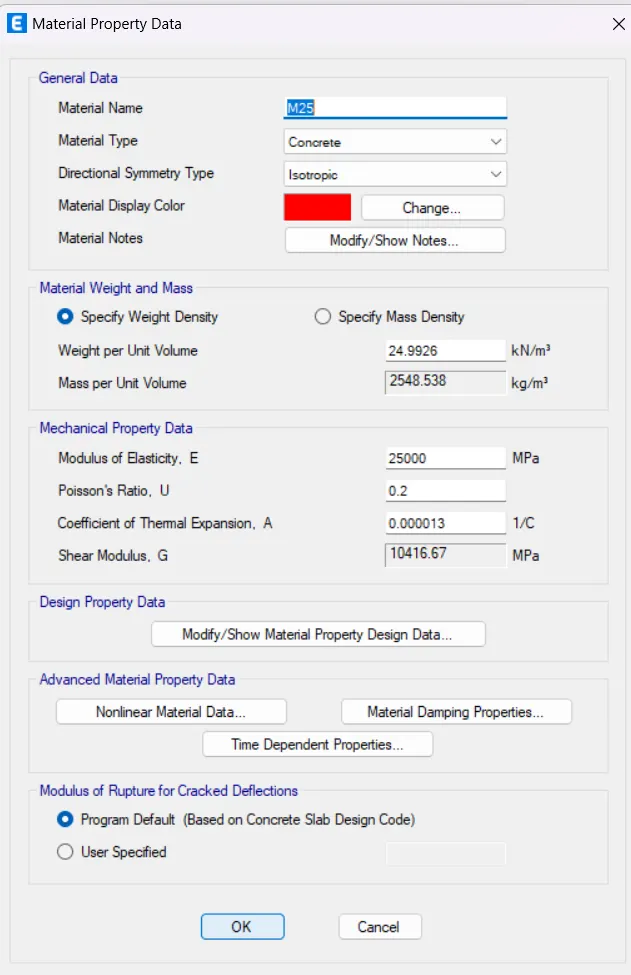

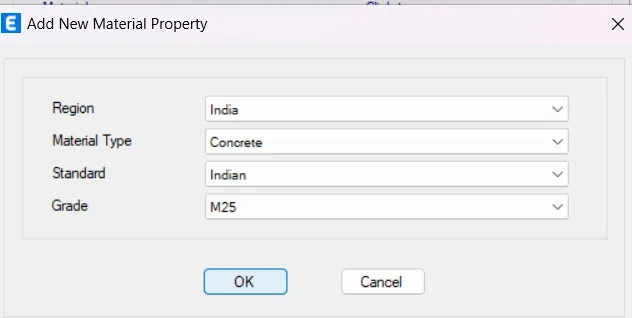

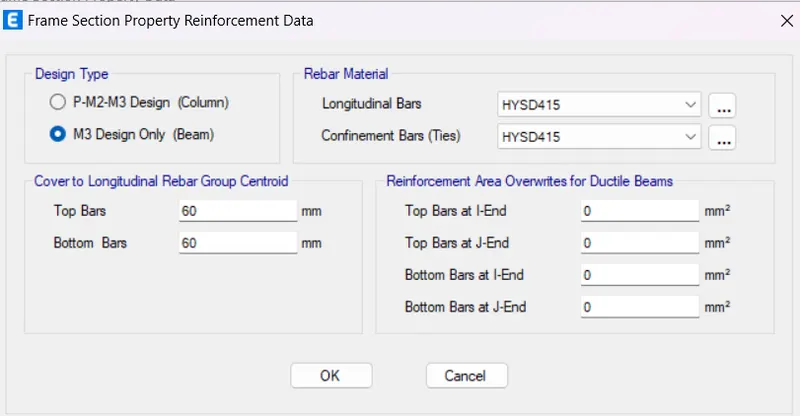

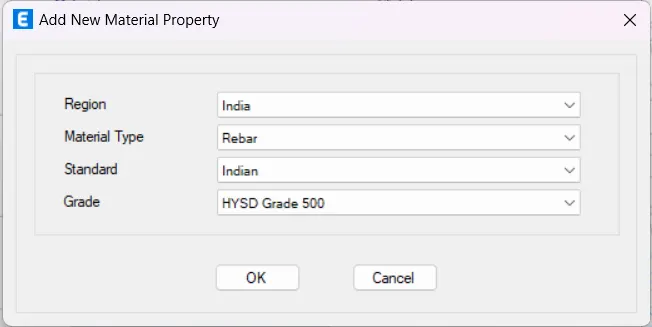

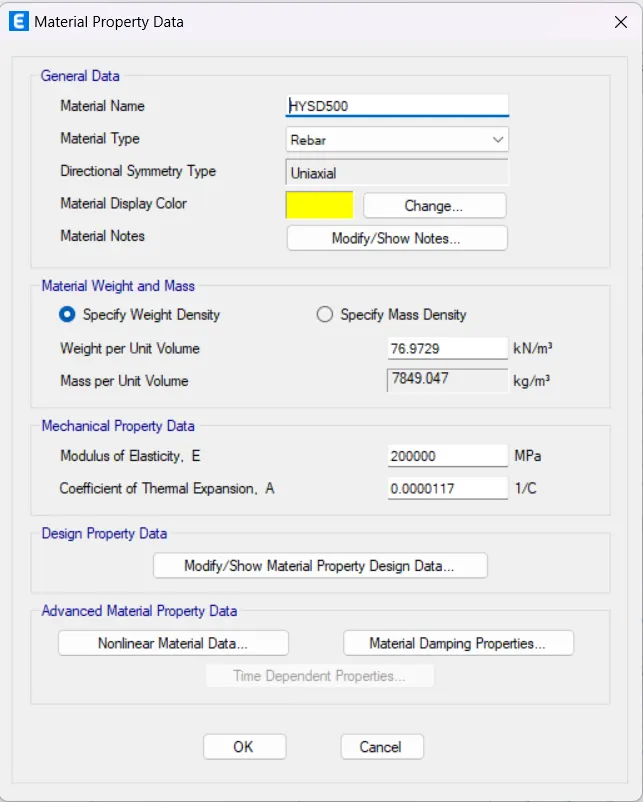

Add the material properties, Concrete M25 grade, Rebar HYSD grade 500

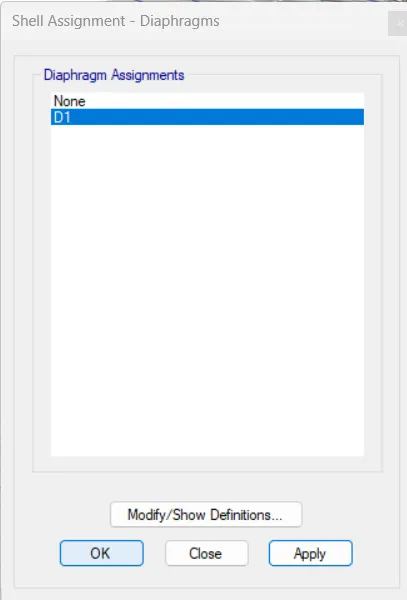

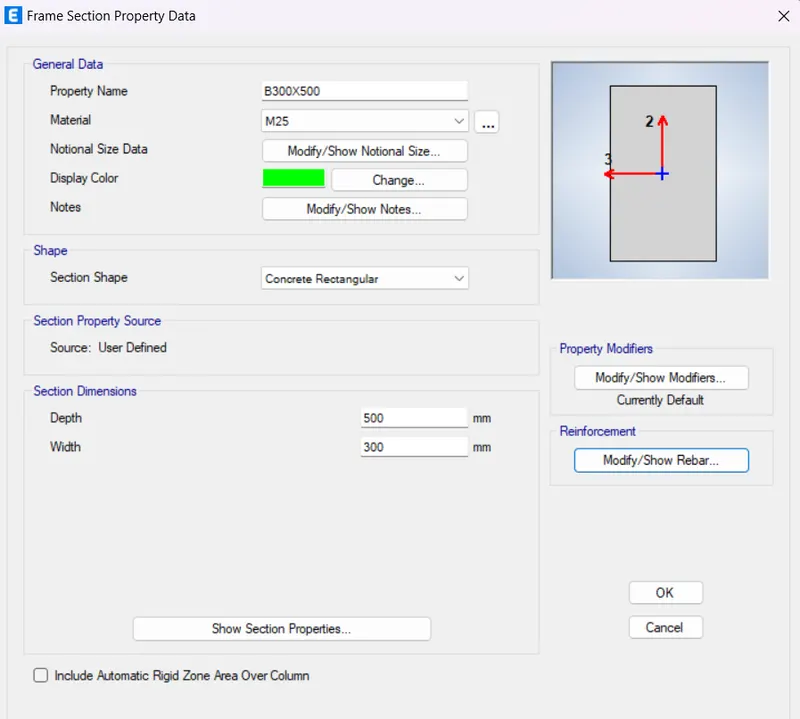

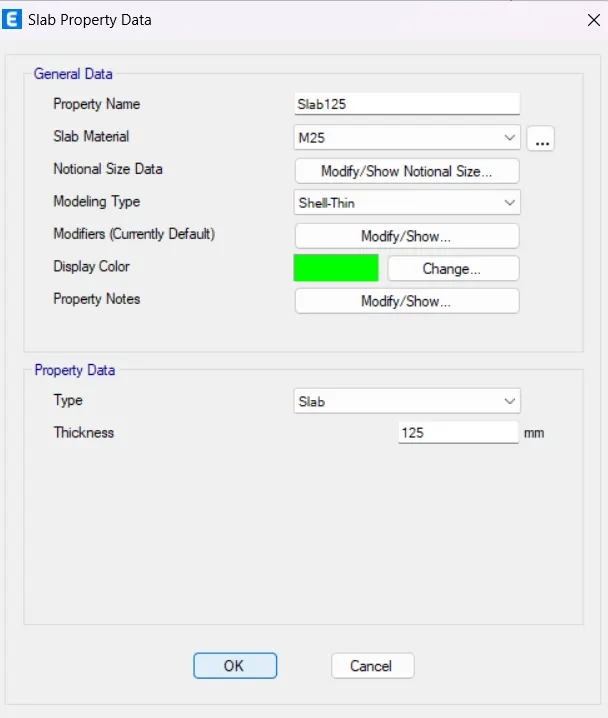

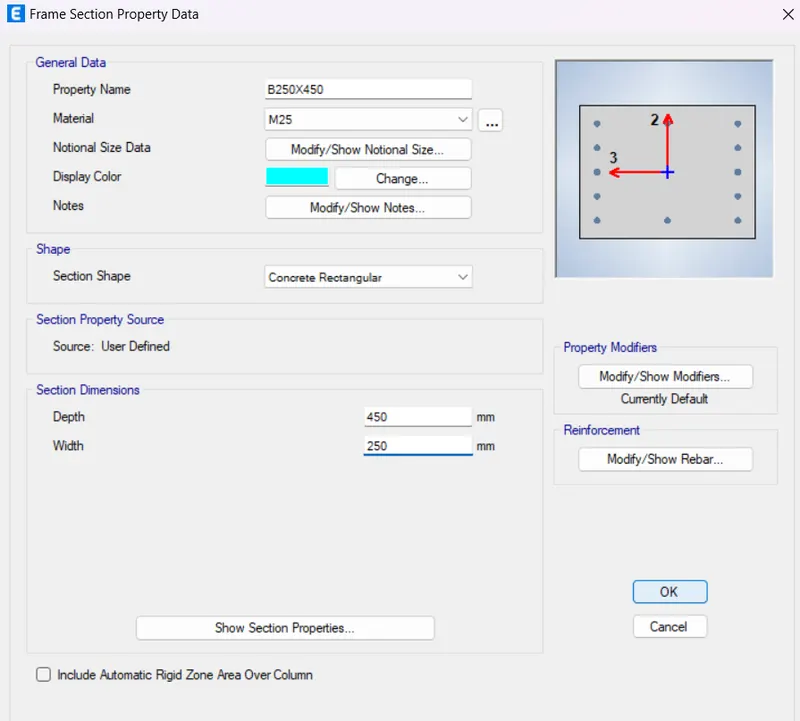

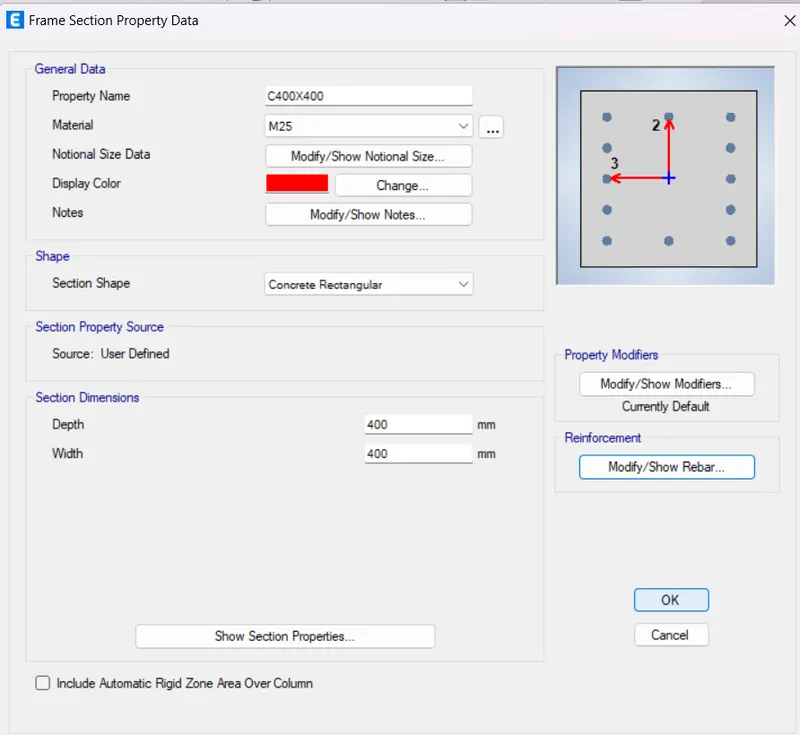

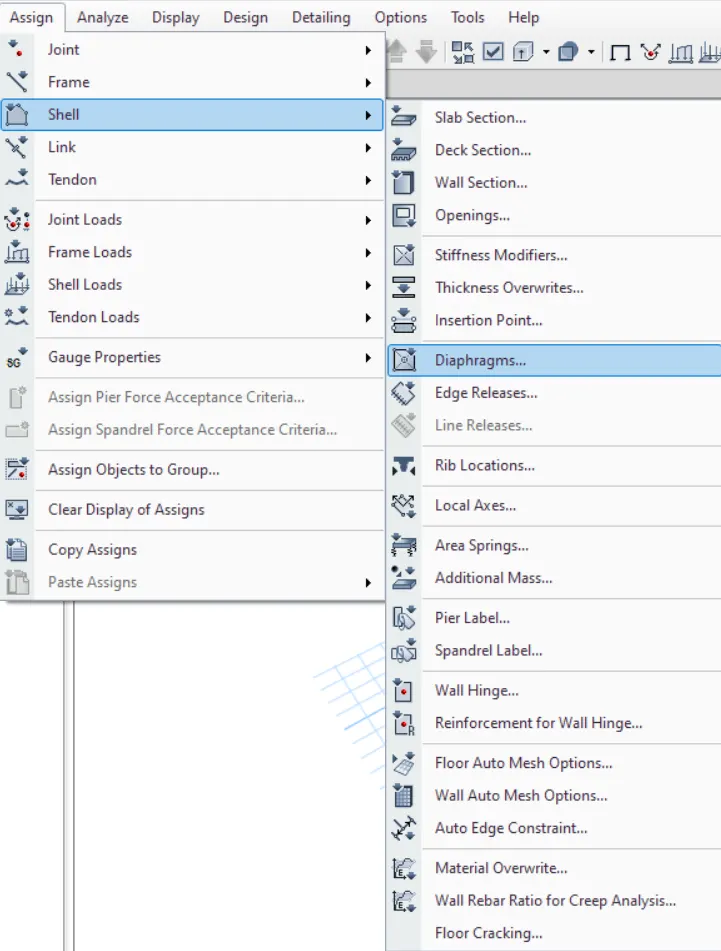

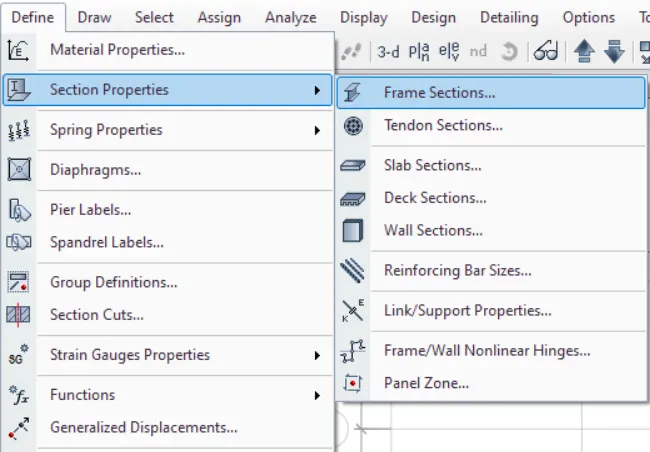

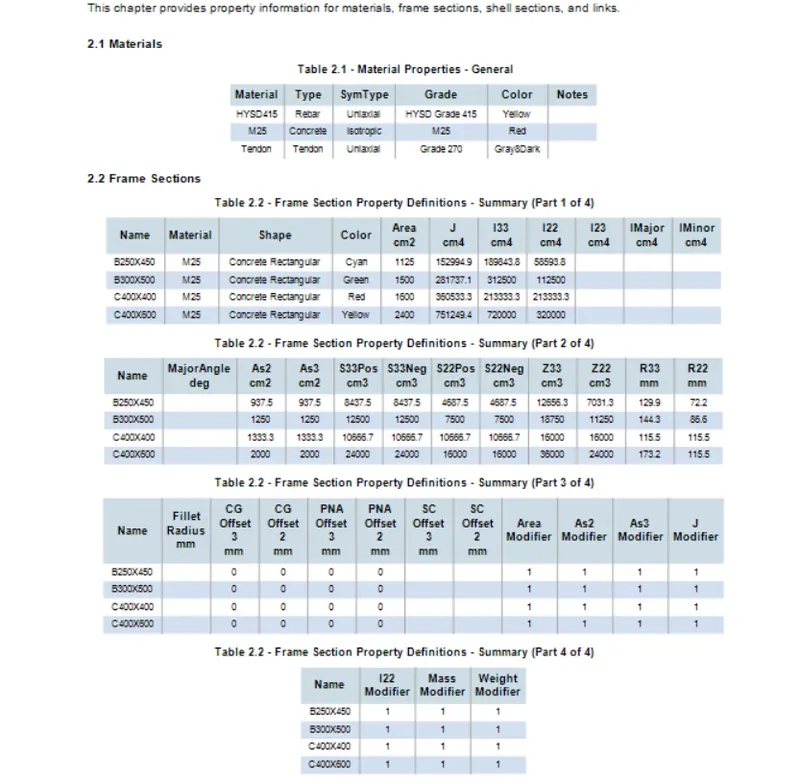

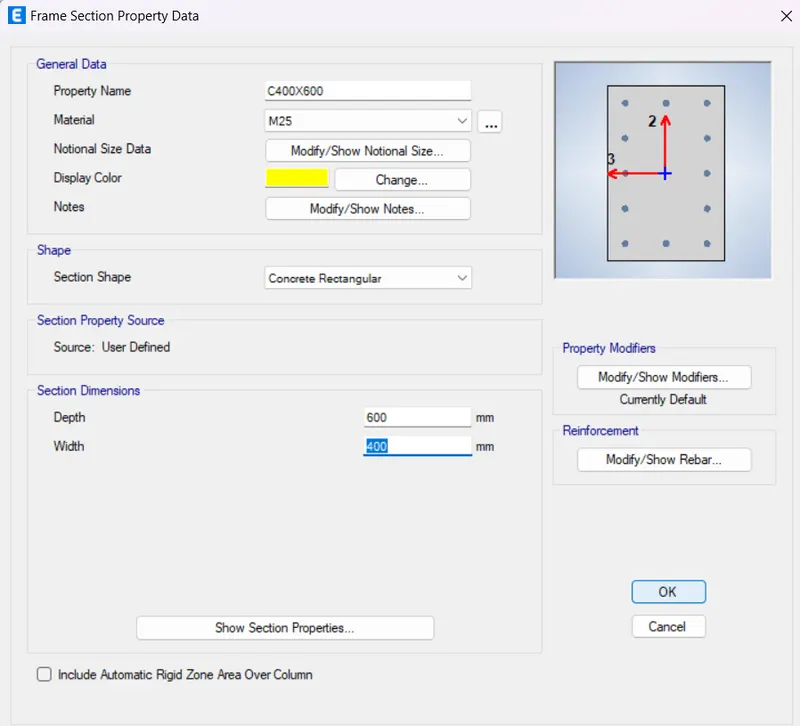

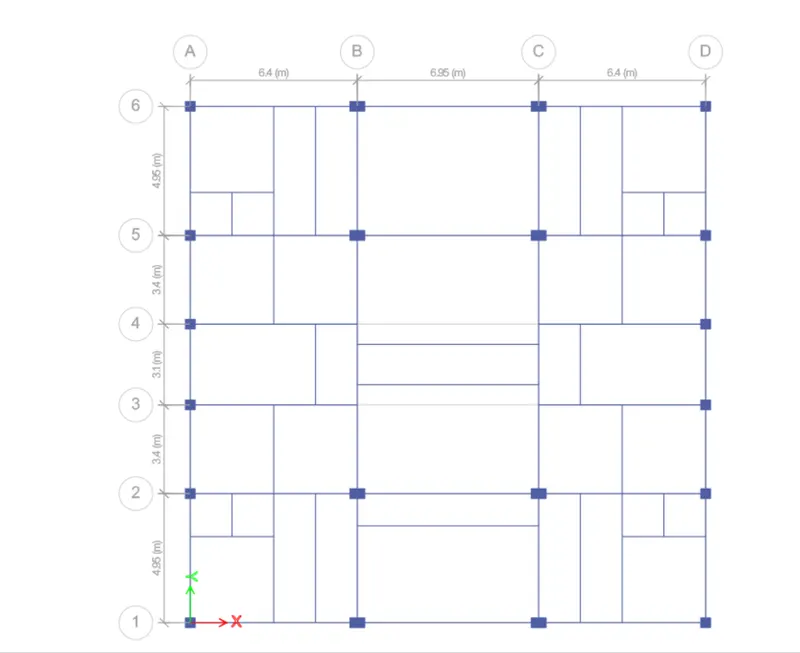

Section properties, add frame section Beam, column, slab, secondary beams, Diaphrams,

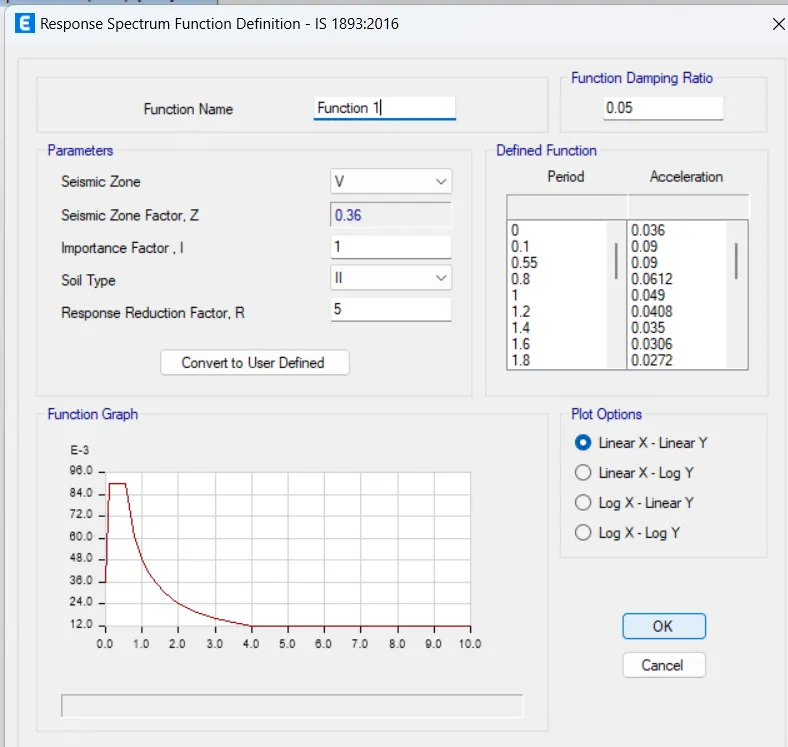

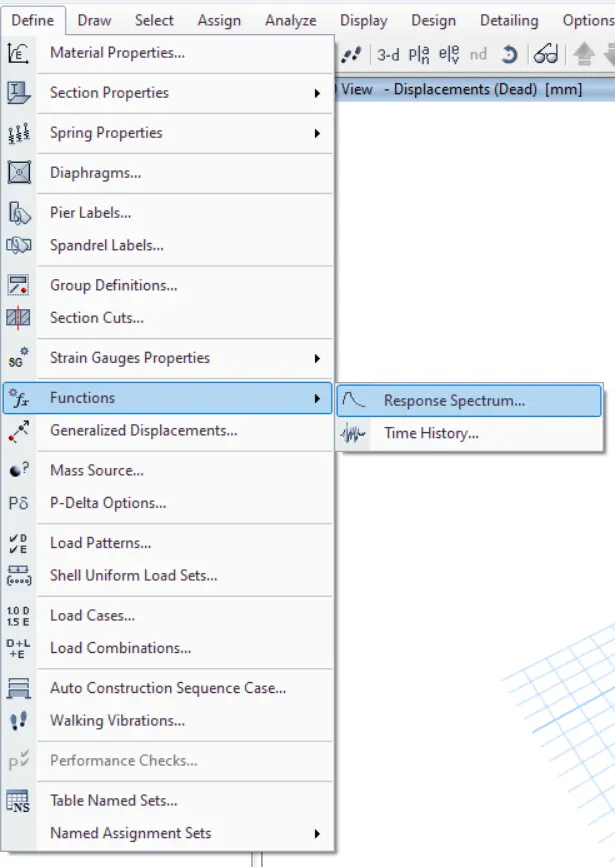

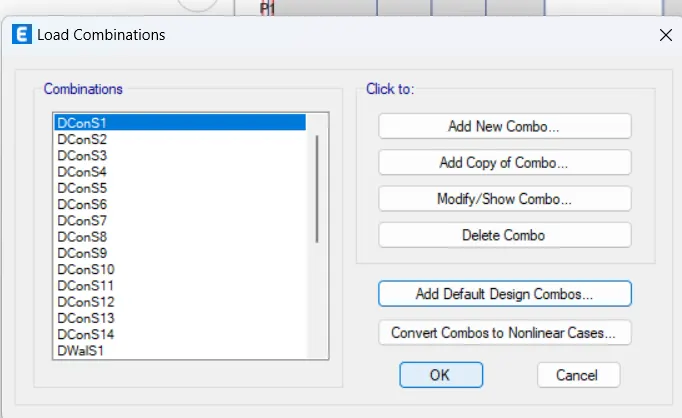

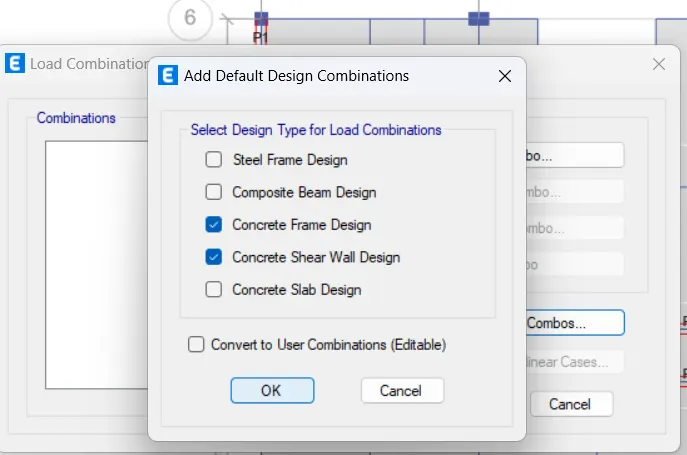

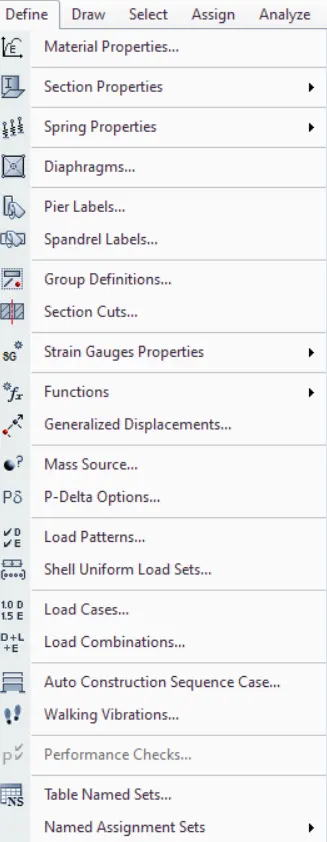

Add Load combinations, Loads

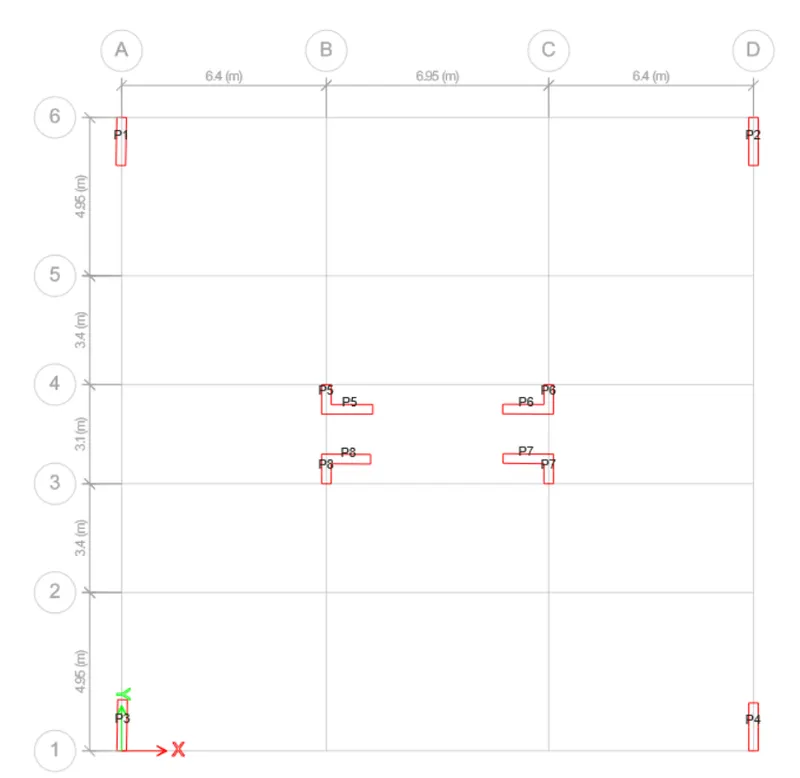

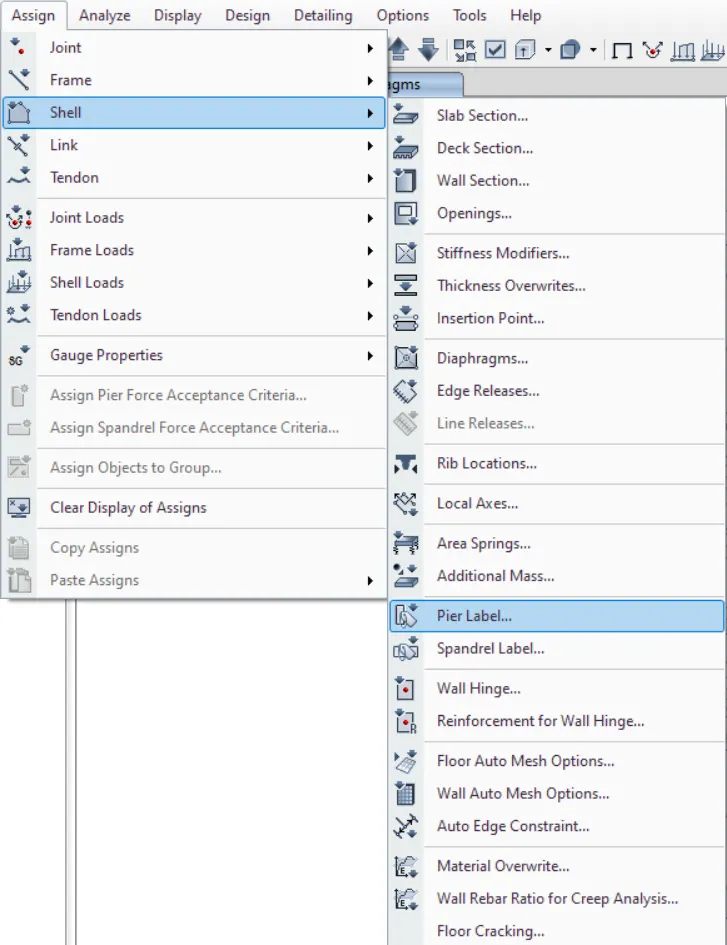

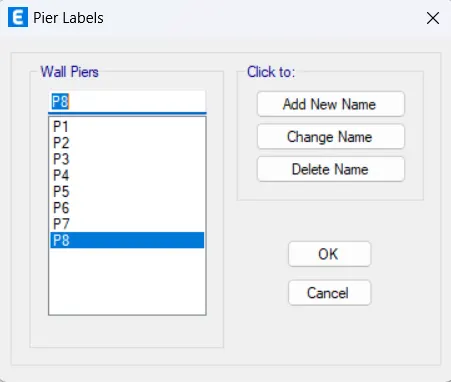

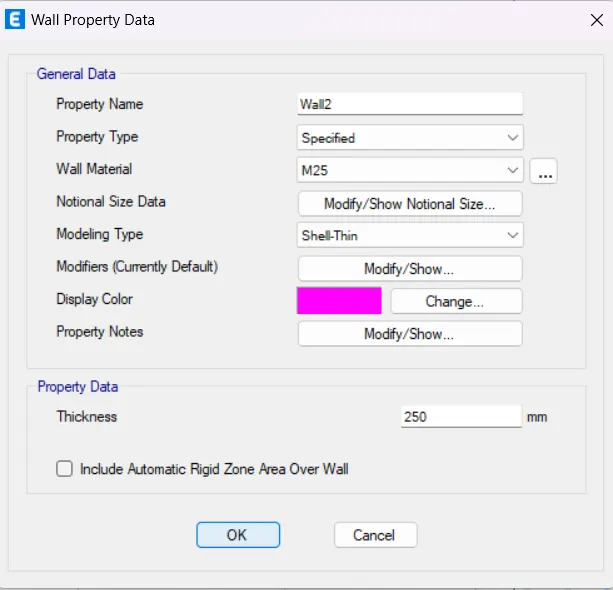

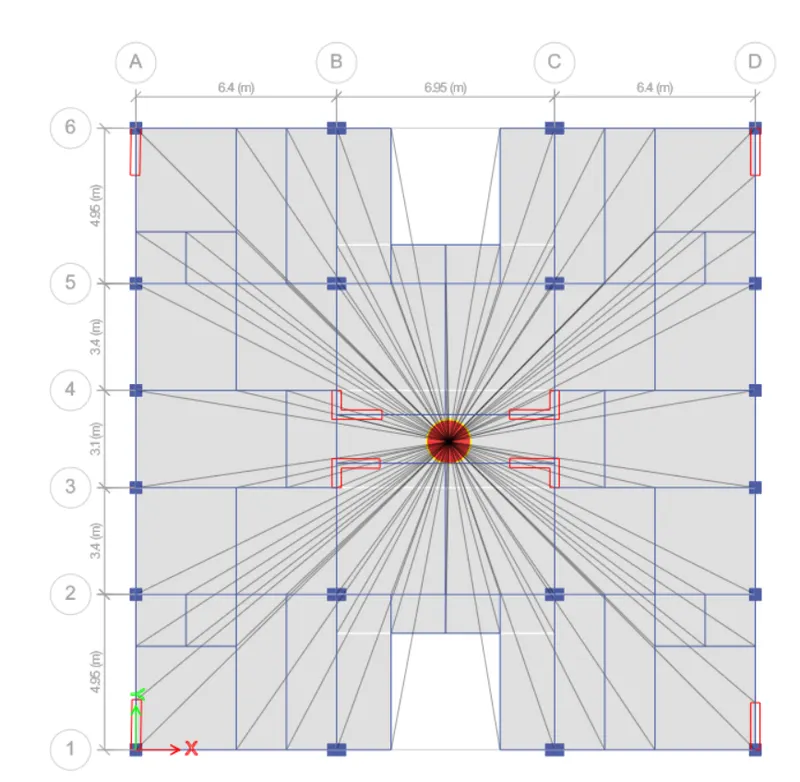

Add shear wall with peir labels

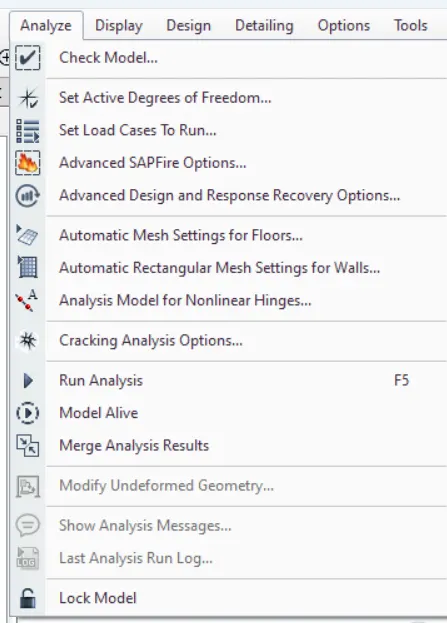

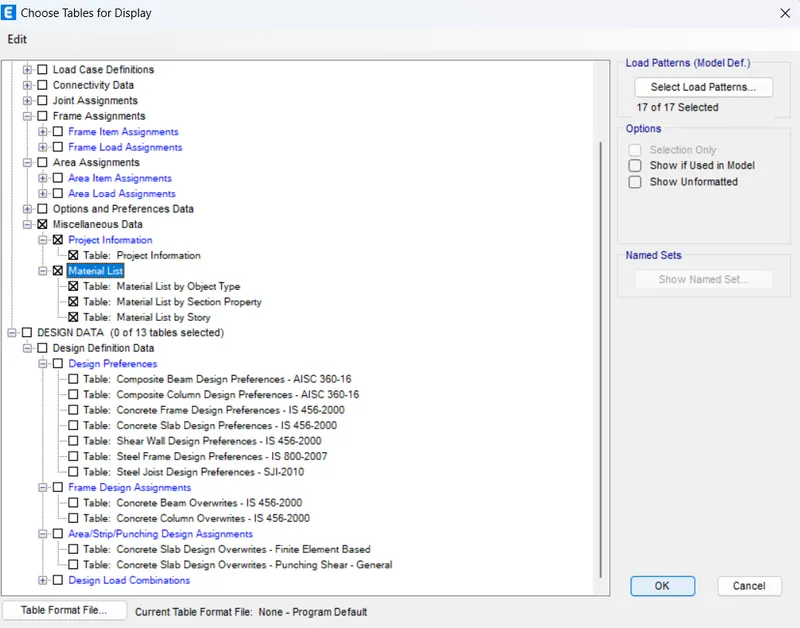

Analysis the model and save the project

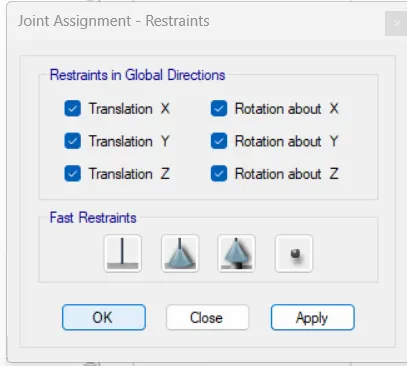

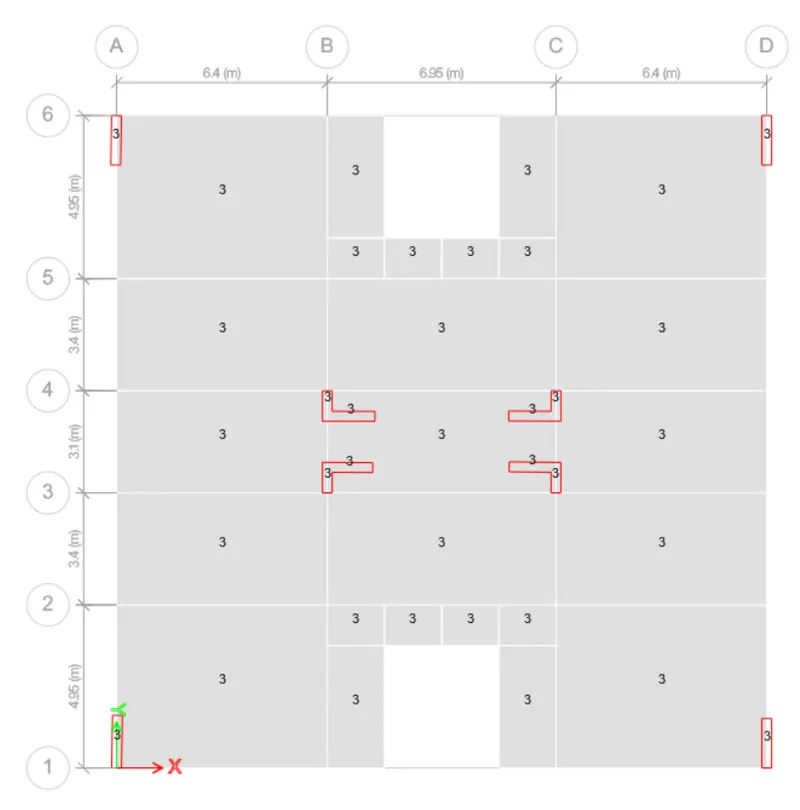

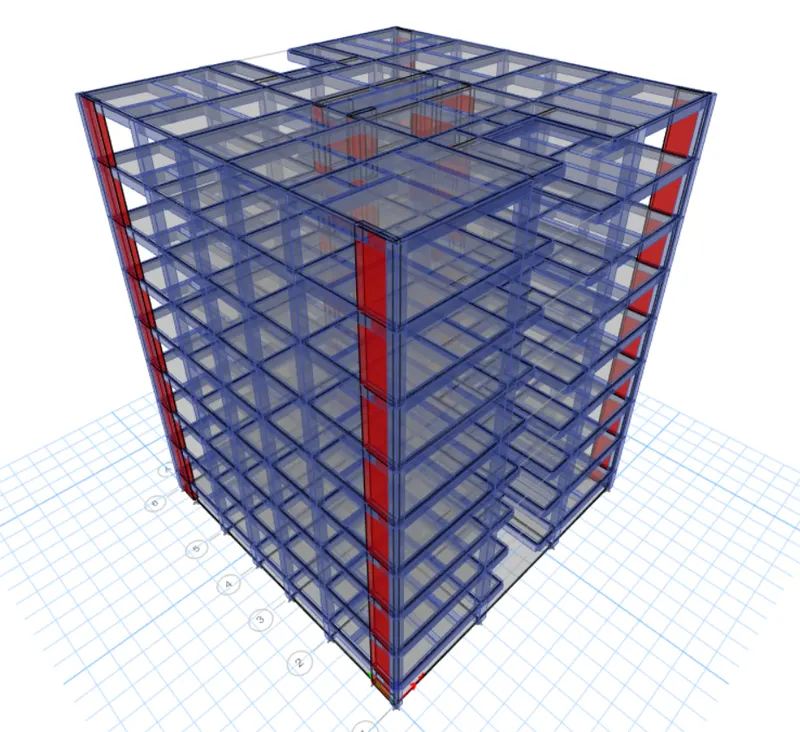

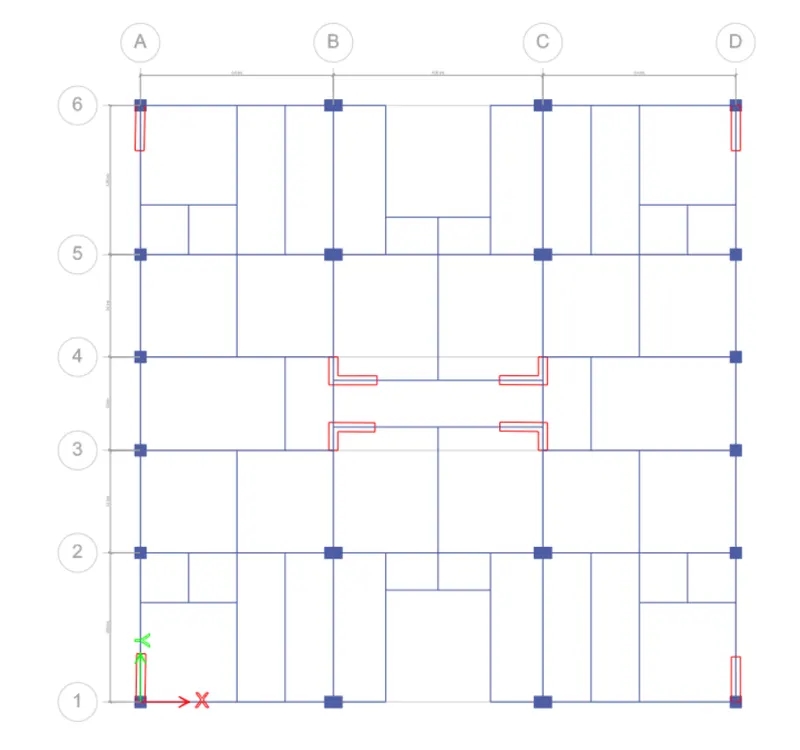

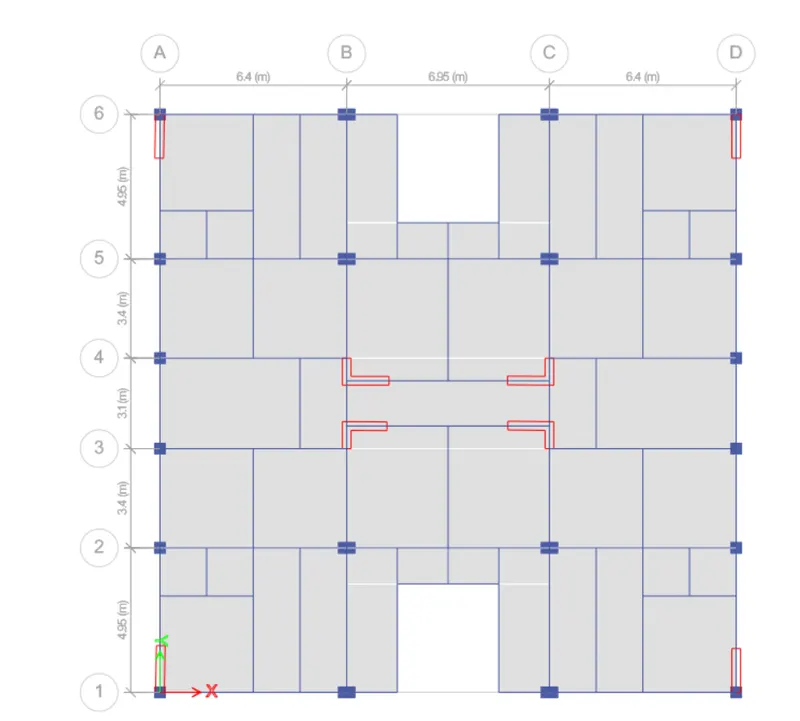

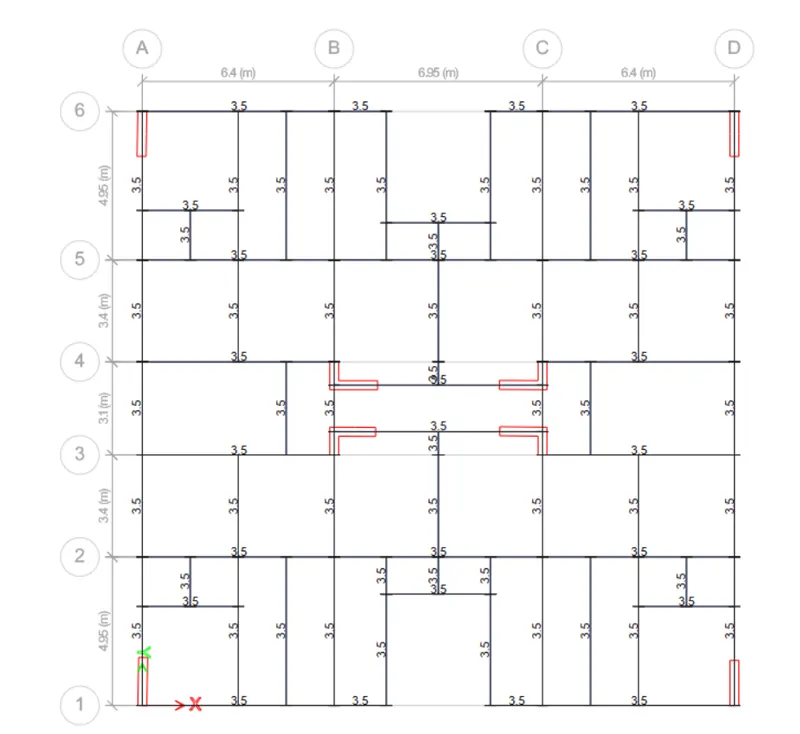

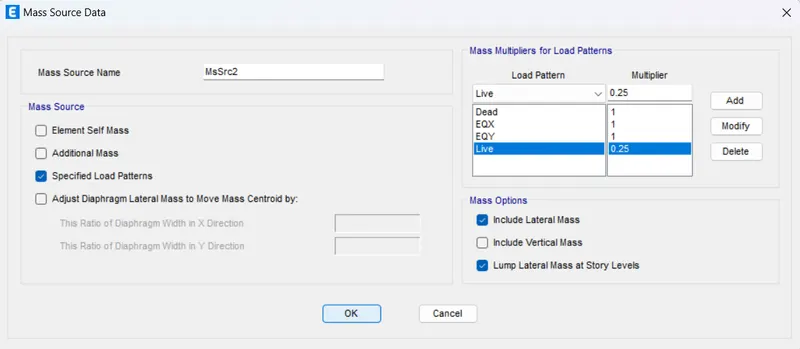

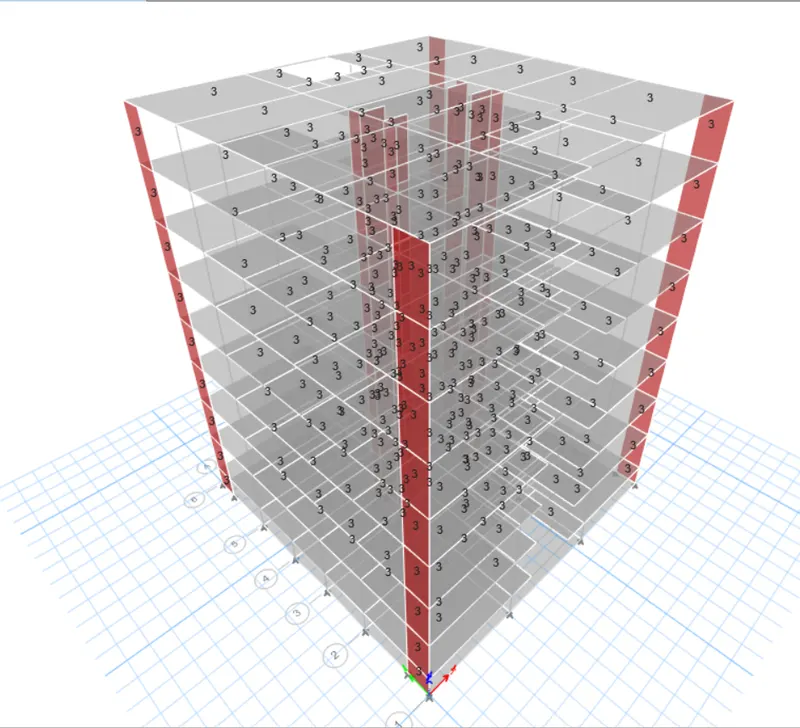

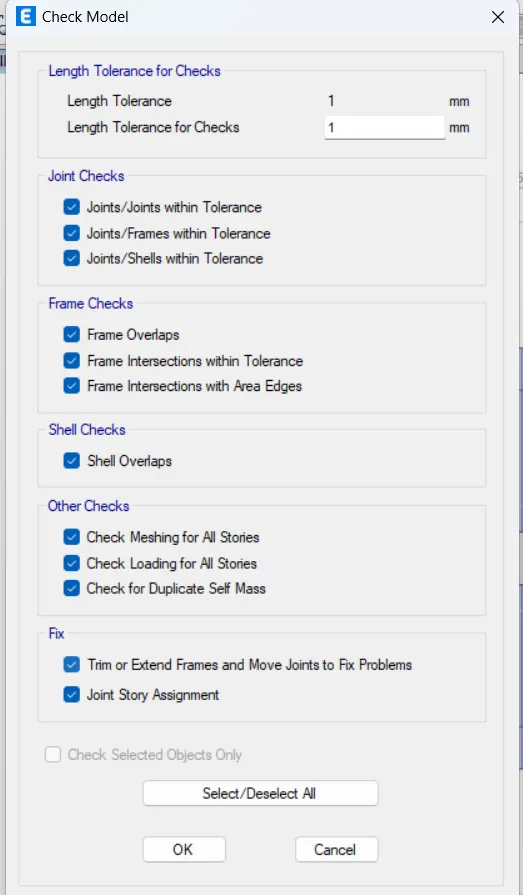

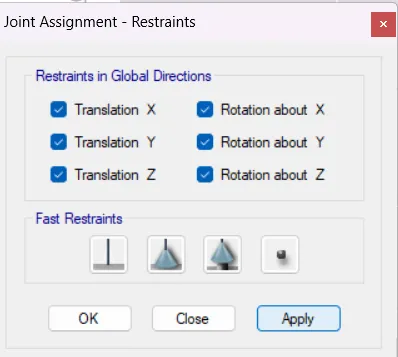

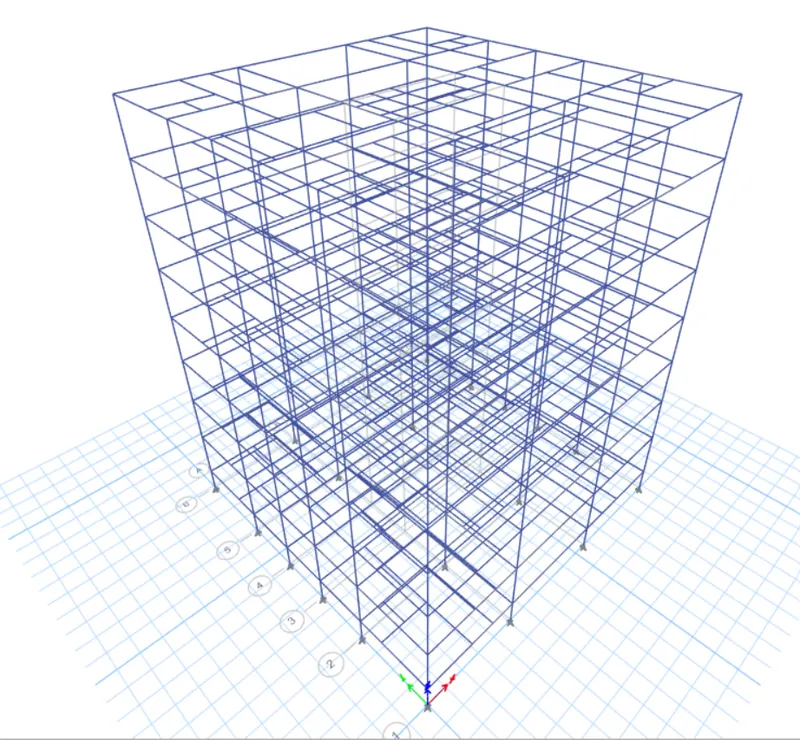

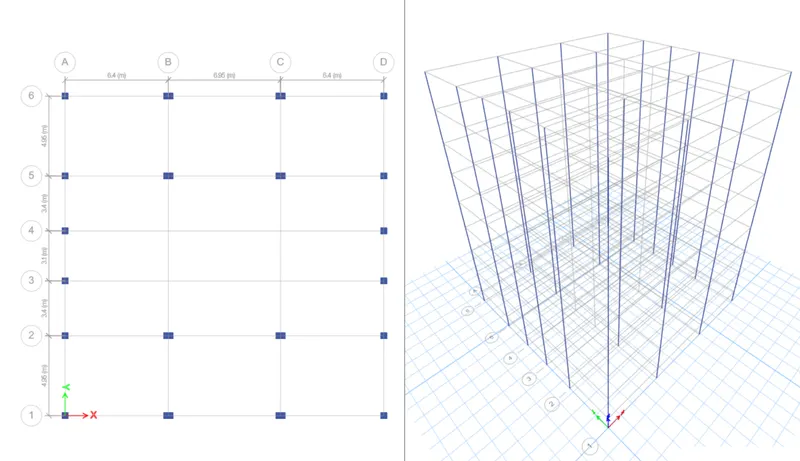

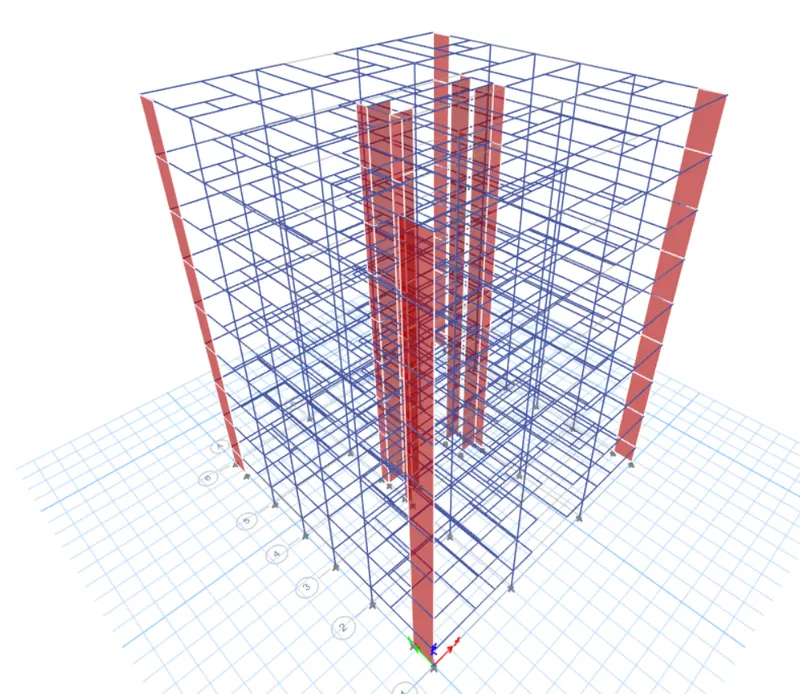

The step by step is provided below in the pictures.
