Structural Modelling using Etabs 2018

Aim- To model and analyze the G+7 storey building using ETABS with application of proper load cases and load combinations for the given typical floor plan drawing.

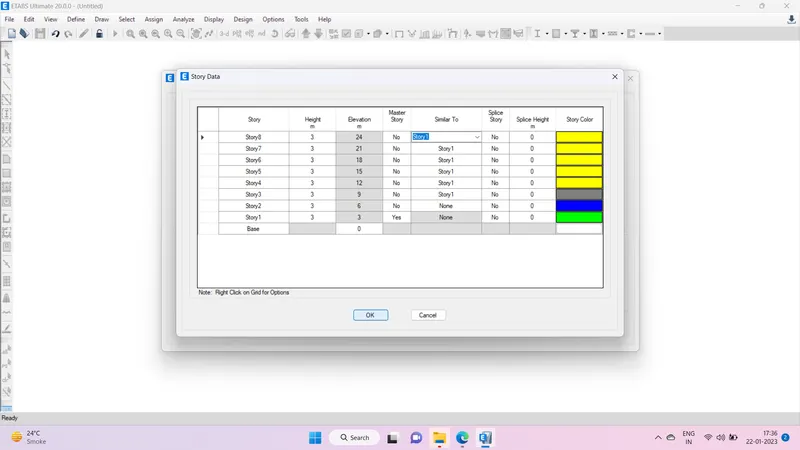

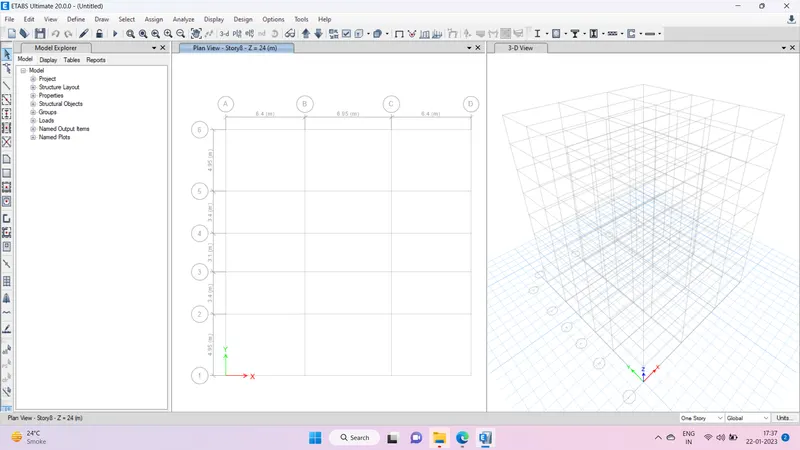

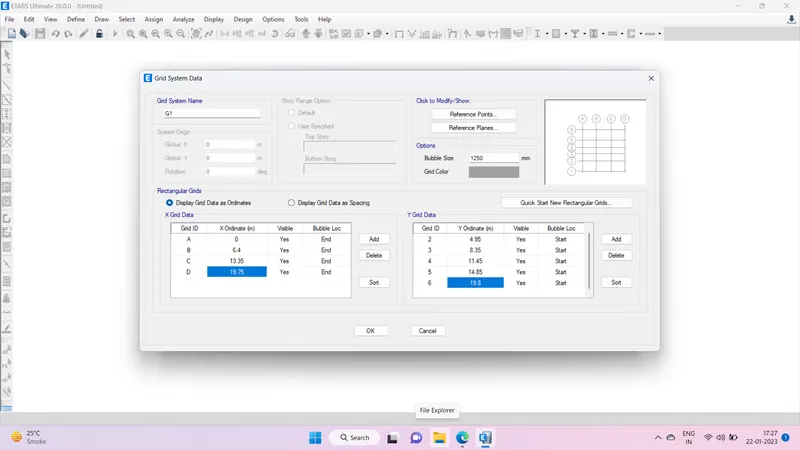

Step 1- Open Etabs and assign the grids and storey height as per architectural needs

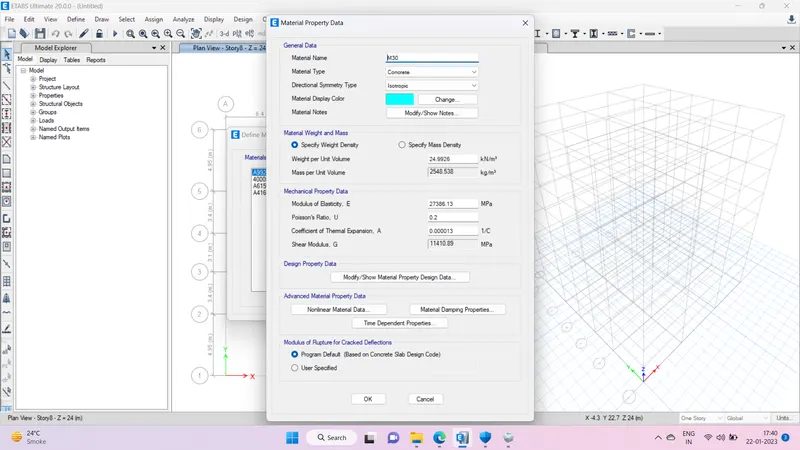

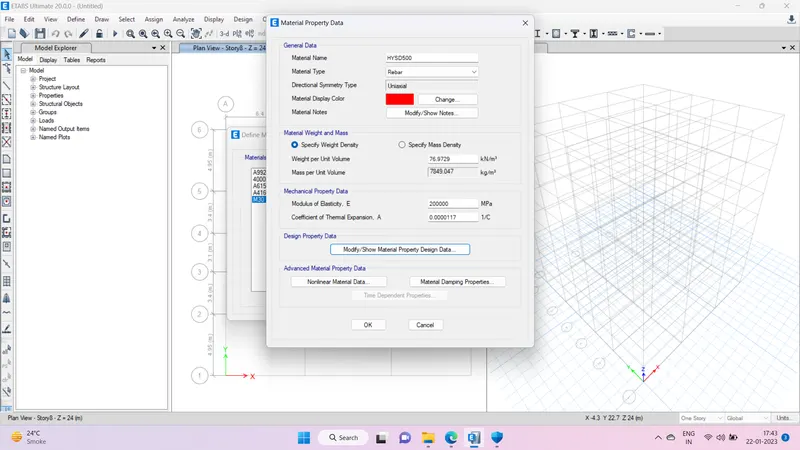

Step 2- Add material properties concrete and rebar using define -> material properties option.

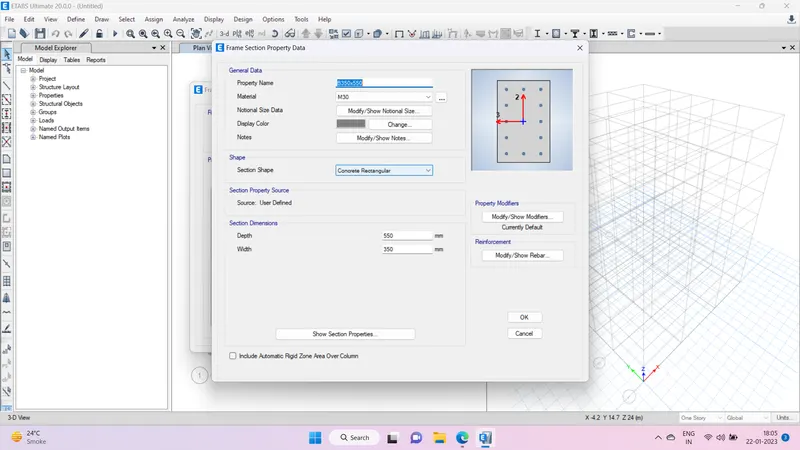

Step 3- Adding Beam and Columns definitions to the model

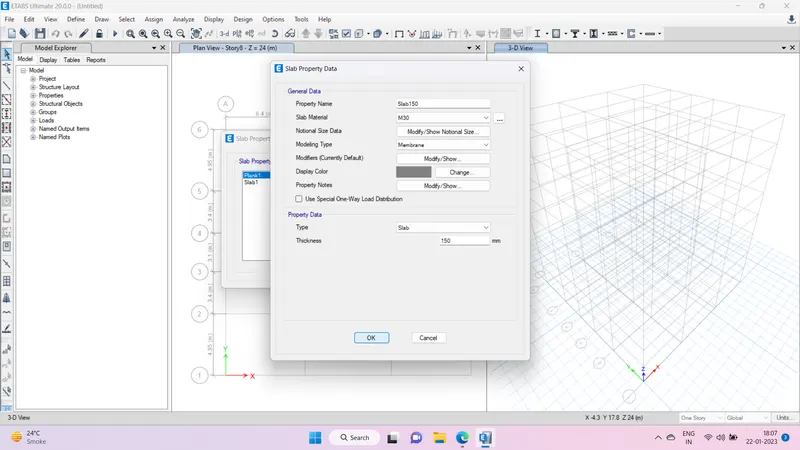

Step 4- Adding slab details

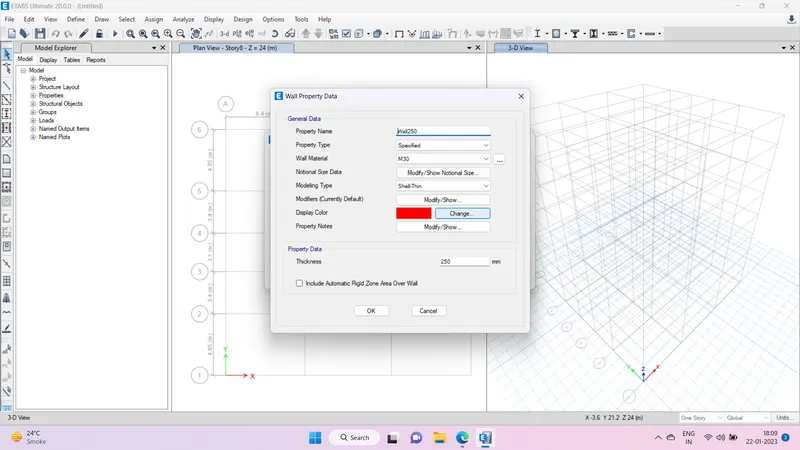

Step 5- Adding wall details

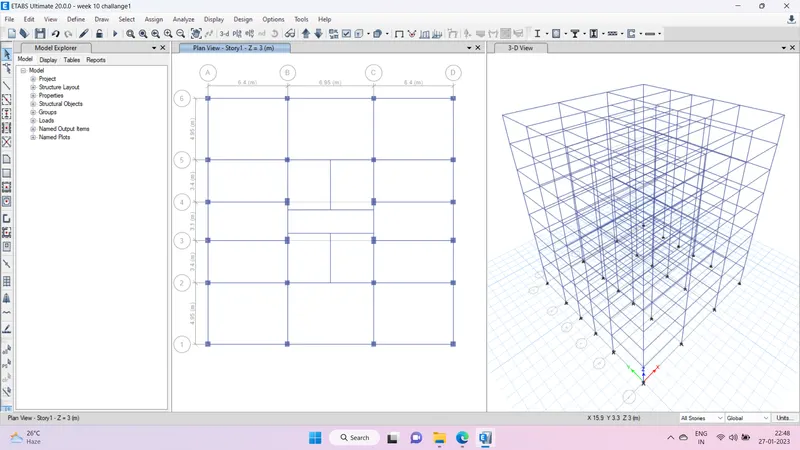

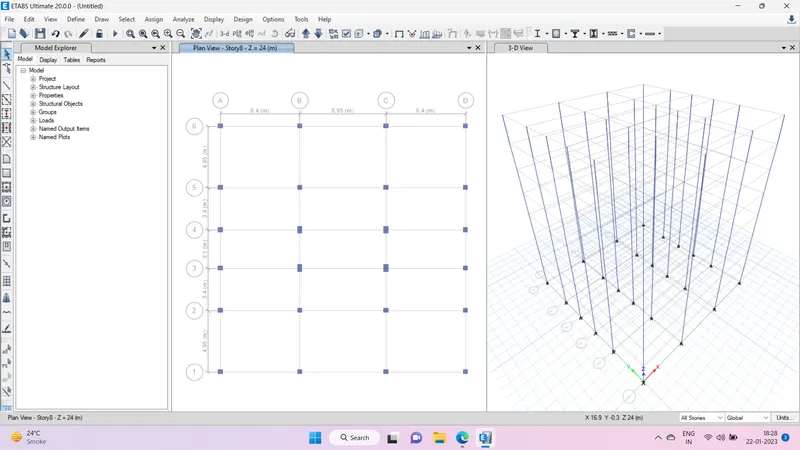

Step 6- Selecting quick draw option insert columns as per need

Step 7- Addition of beams as per given

Step 8- Addition of shear walls

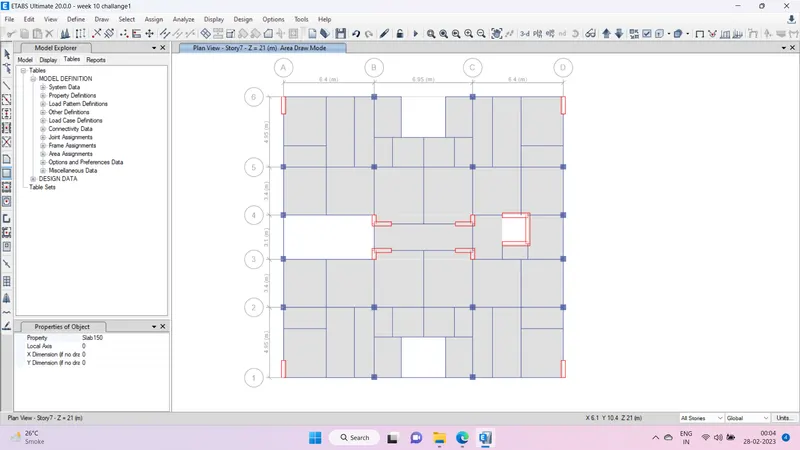

Step 9- Adding slabs

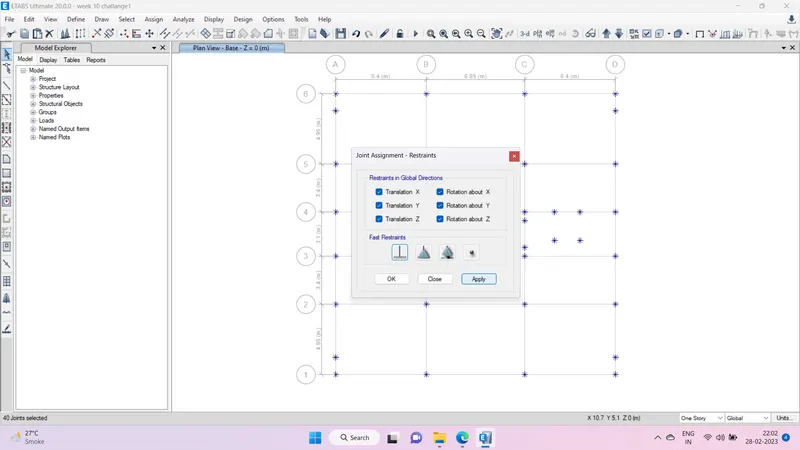

Step 8- Set fixed joint at the base of the structure

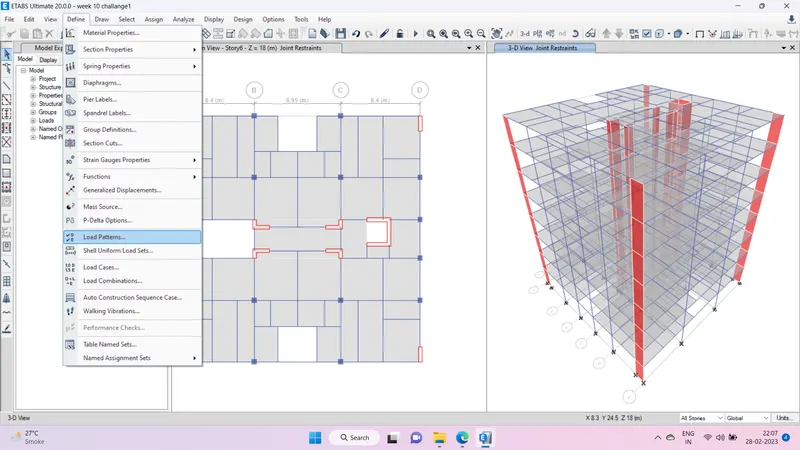

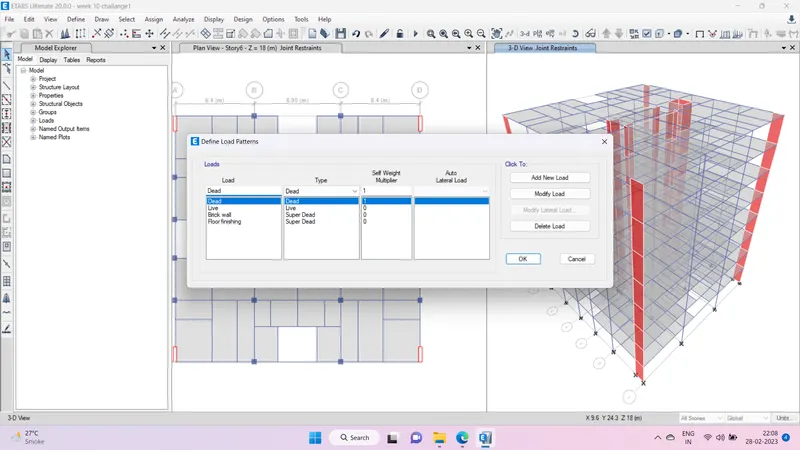

Step 9- Defining load patterns

Step 10- Defining live load, Dead load, Brick wall, etc

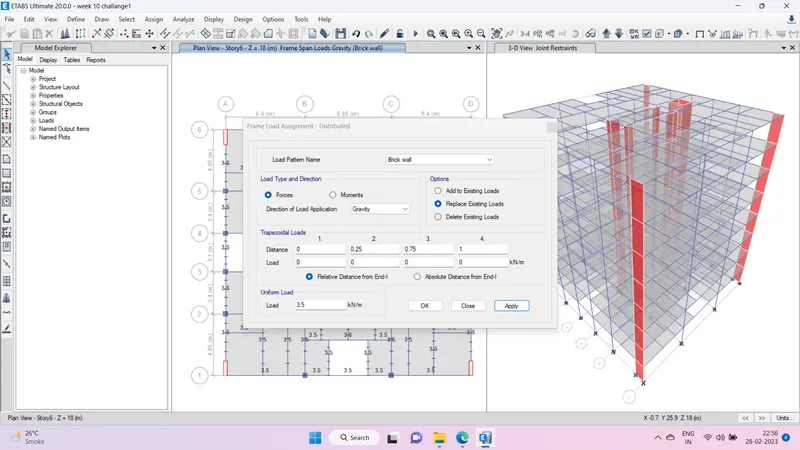

Step 11- Assigning Brick Load

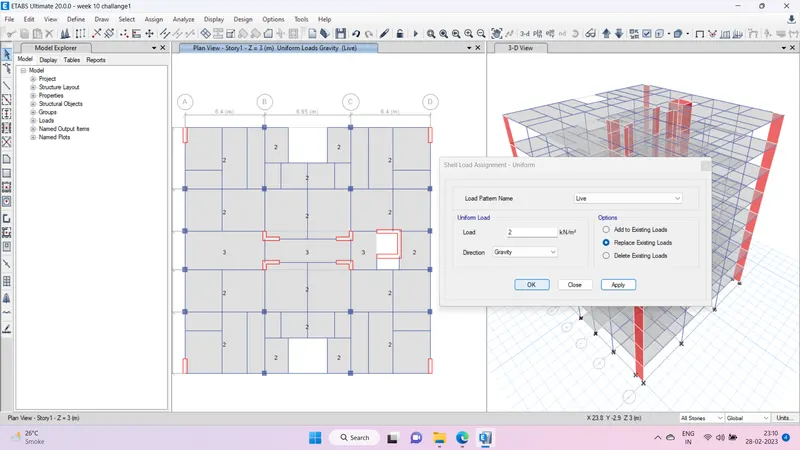

Step 12- Applying Live Load as per IS code

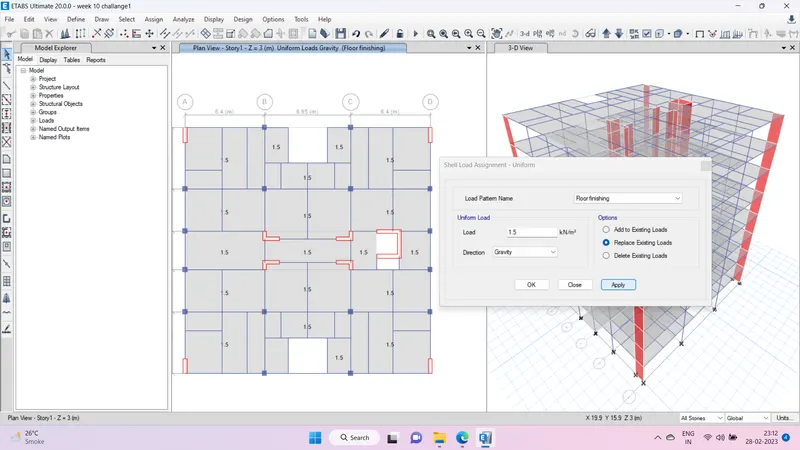

Step 13- Applying floor finishes load

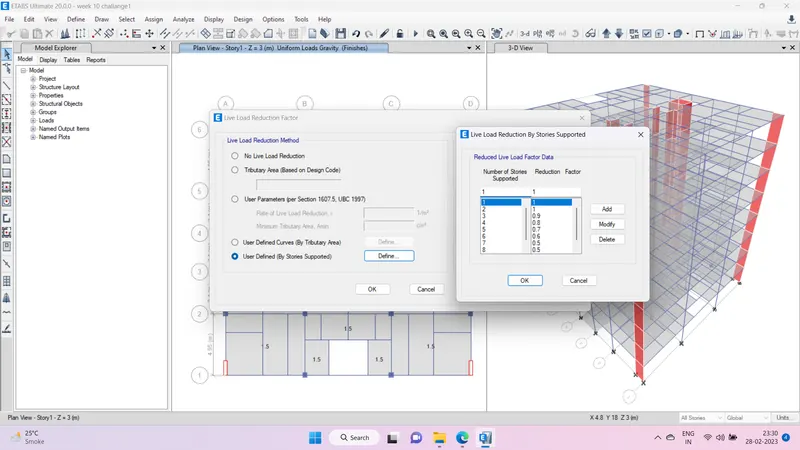

Step 14- Adding Live load reduction factor

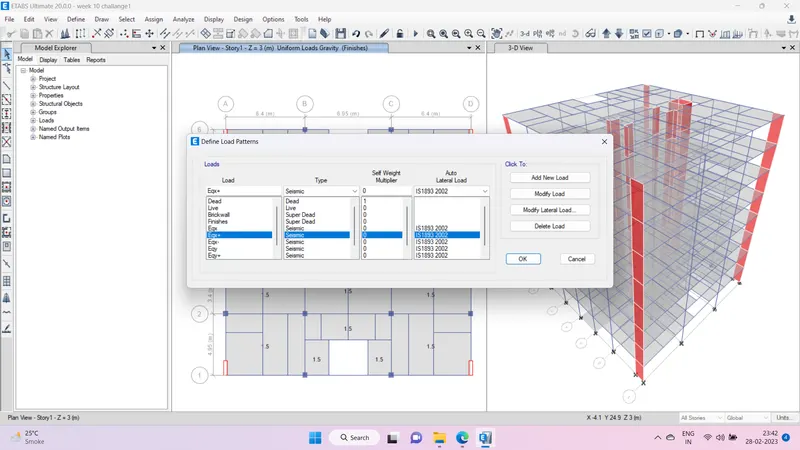

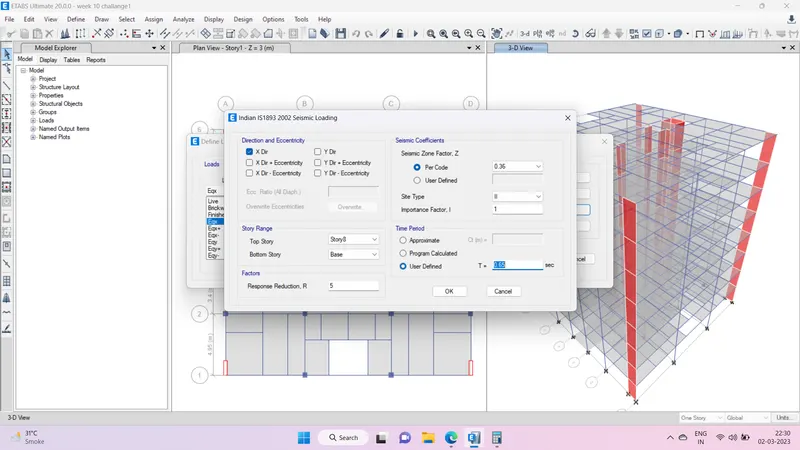

Step 15- Defining Earth quake loads in X & Y direction

Step 16- Modifying the Earthquake loads

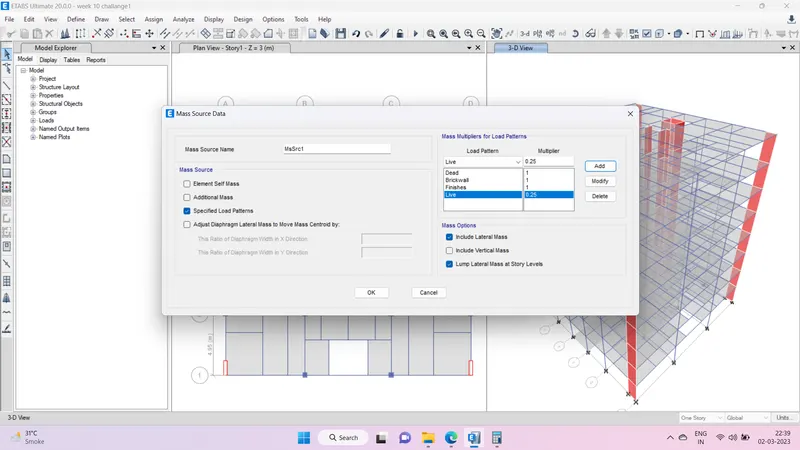

Step 17- Adding mass source data

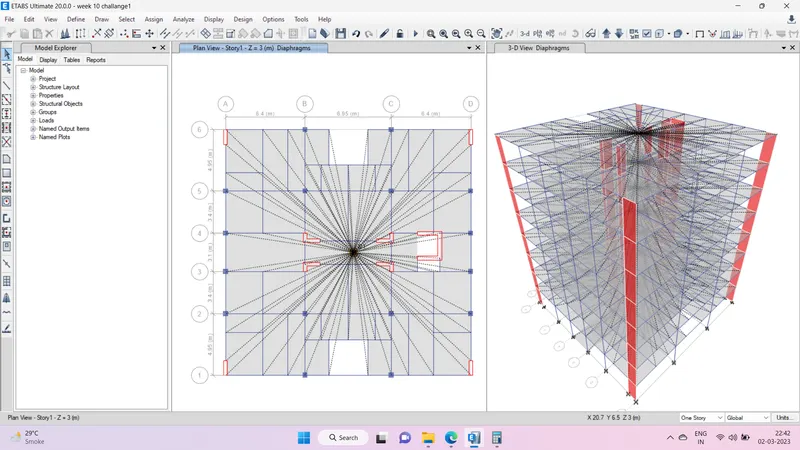

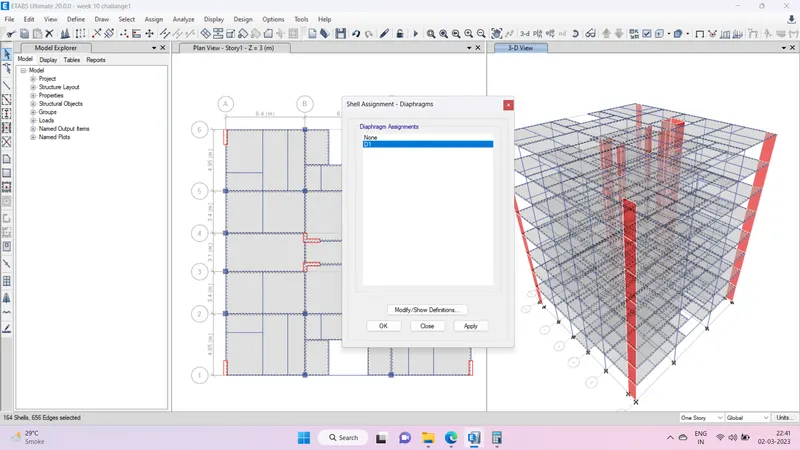

Step 18- Adding Diapragms

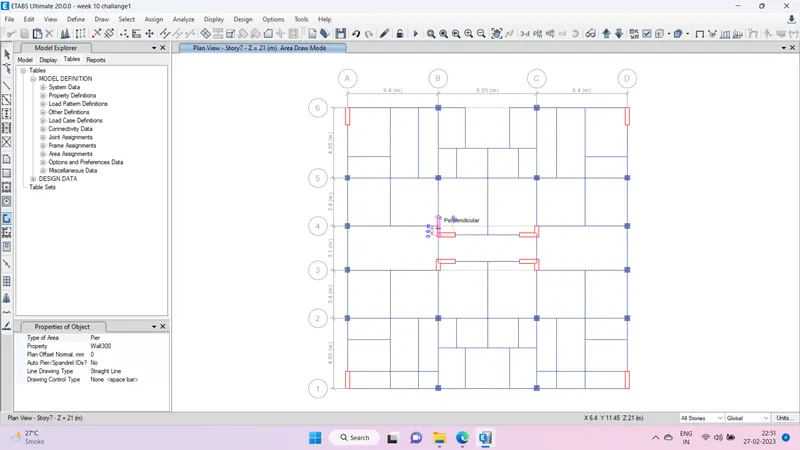

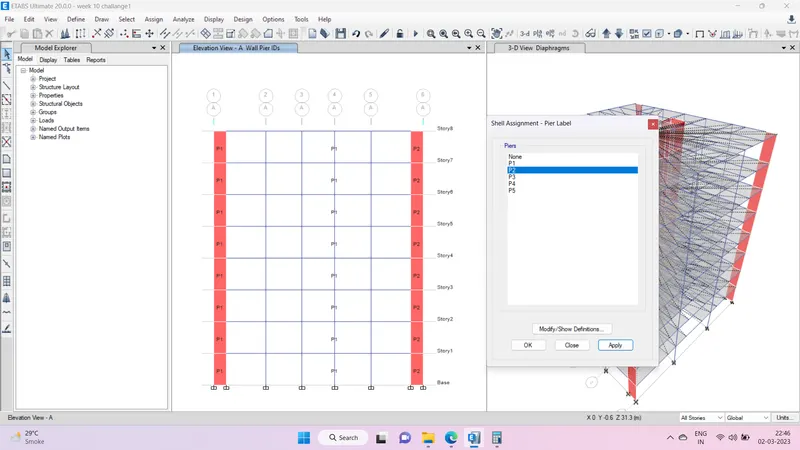

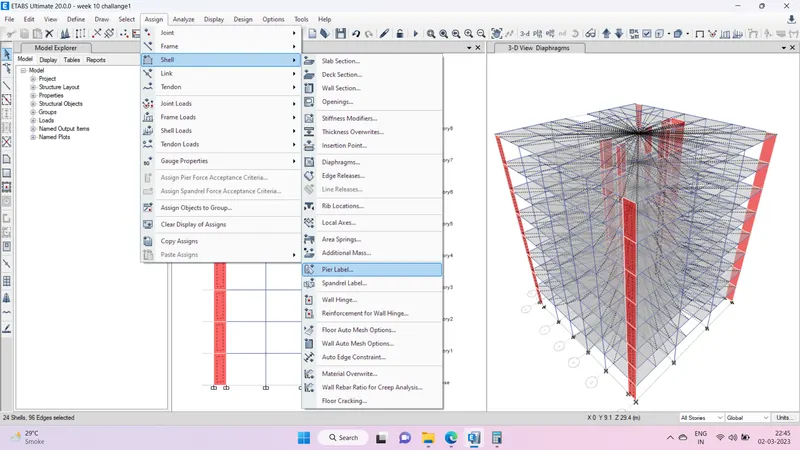

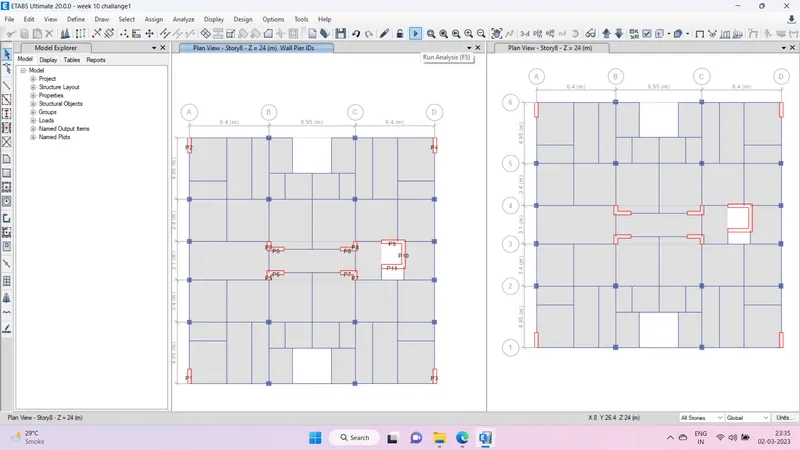

Step 19- Adding labels to the shear wall

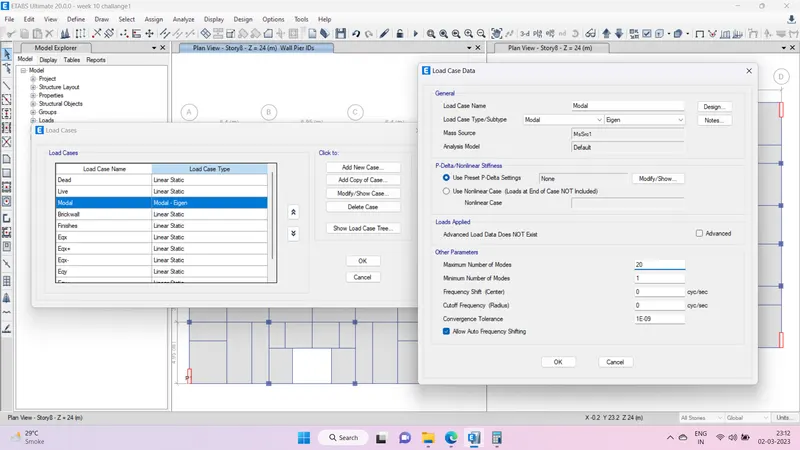

Step 20- Modal cases

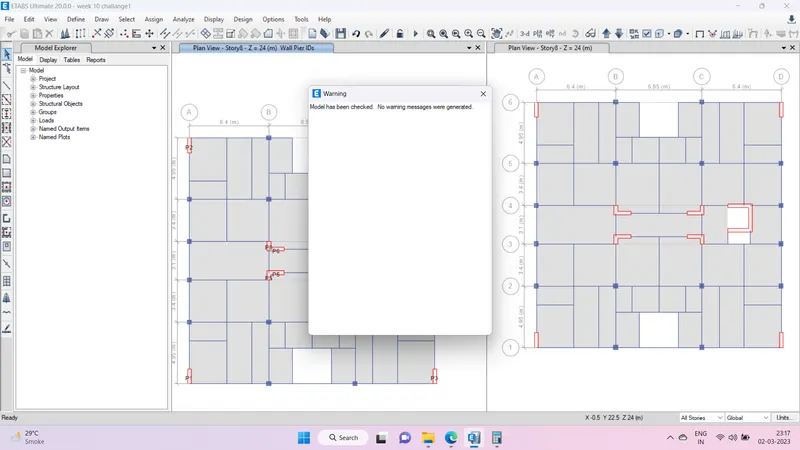

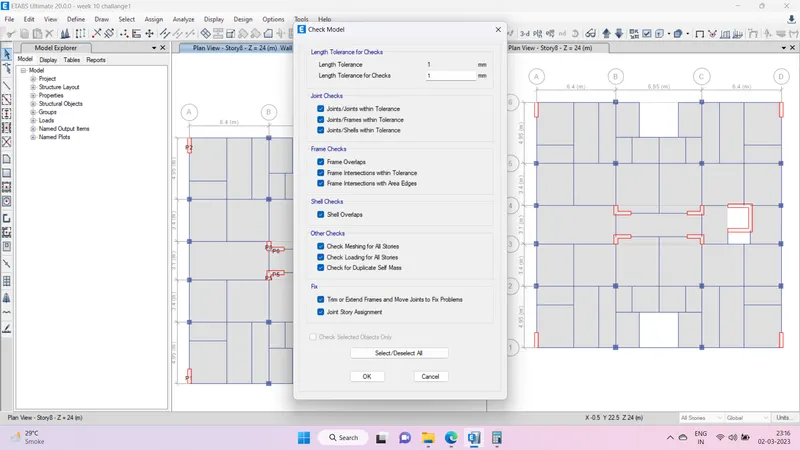

Step 21- Check modal from analyse

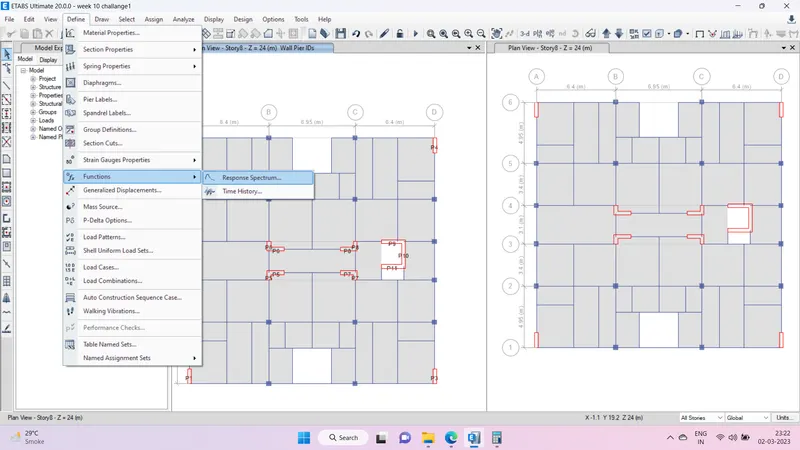

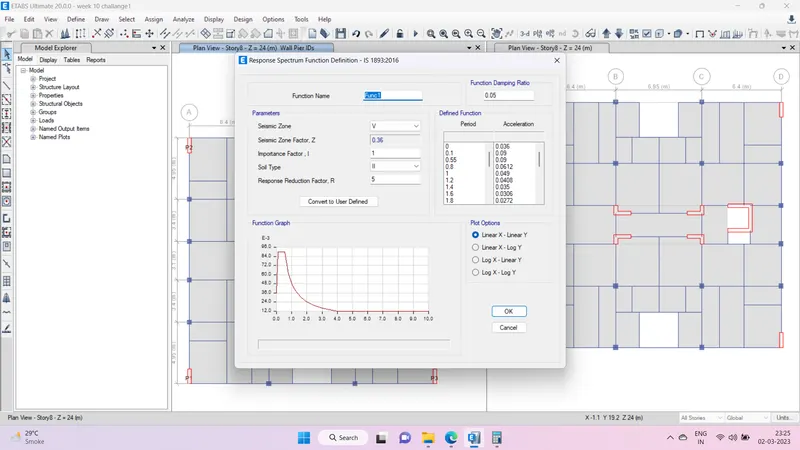

Step 21- Response spectrum

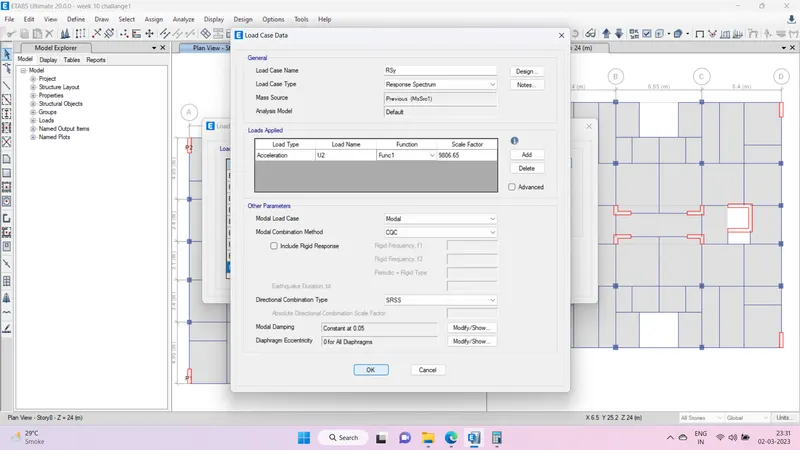

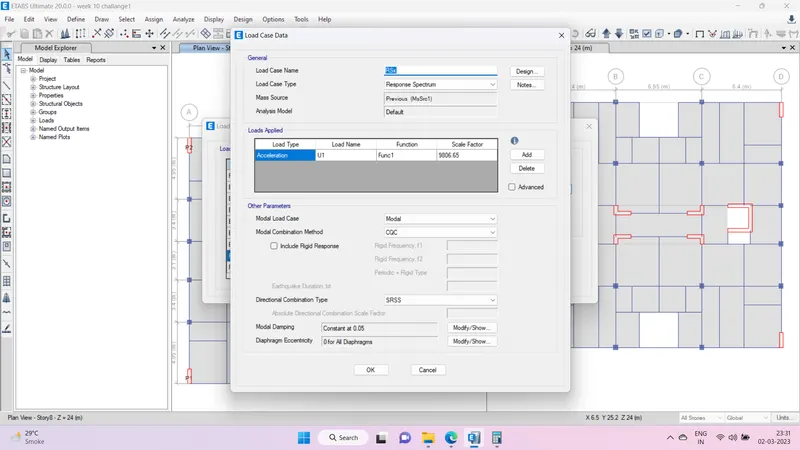

Step 22- Load case data bt adding response spectrum in X & Y direction

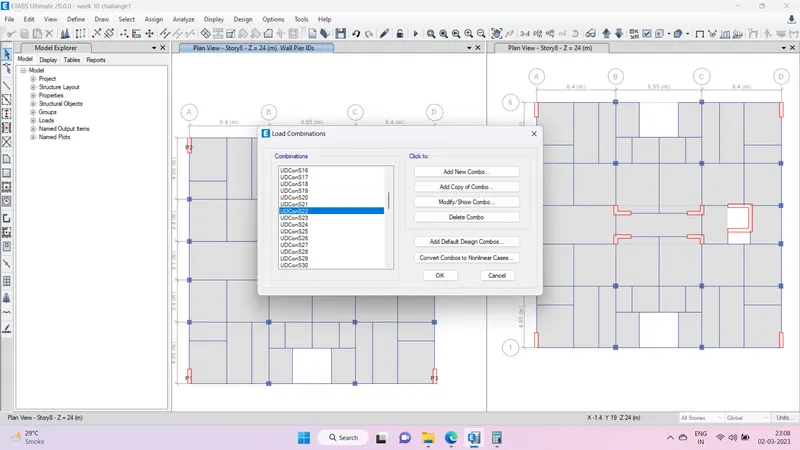

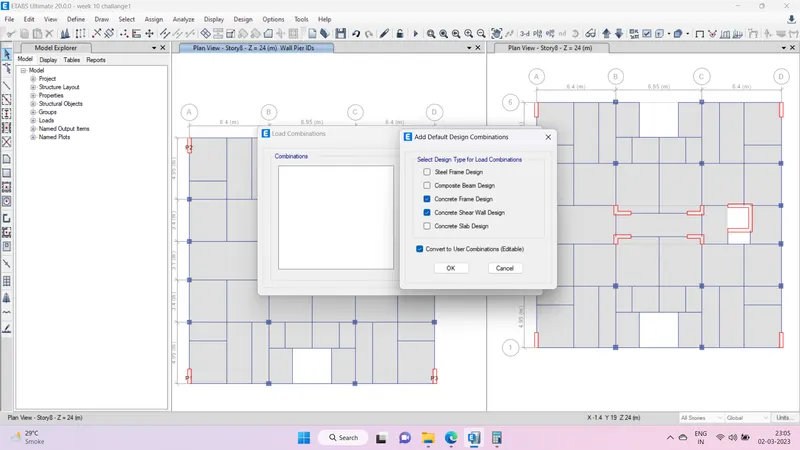

Step 23- Adding load combination

Results-

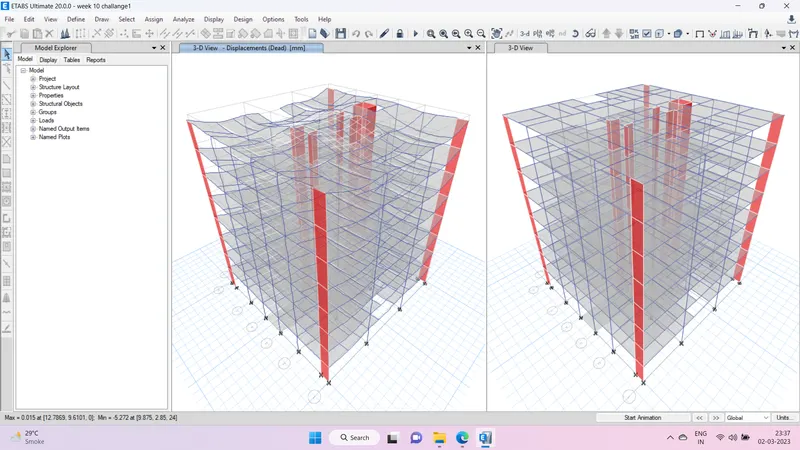

1) Run the analysis

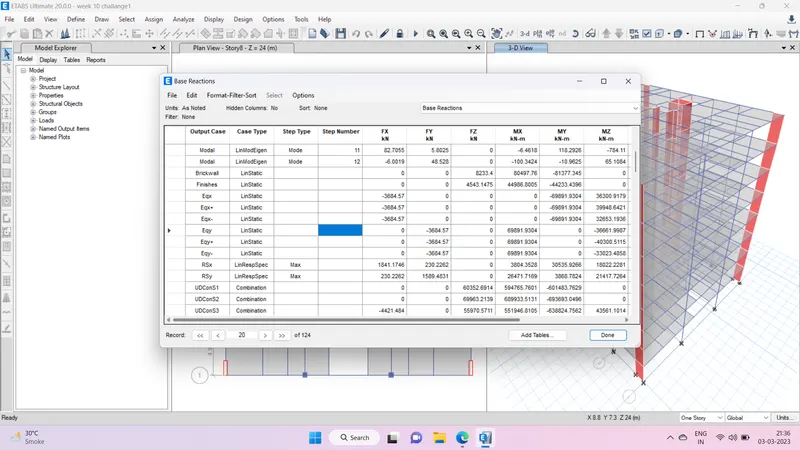

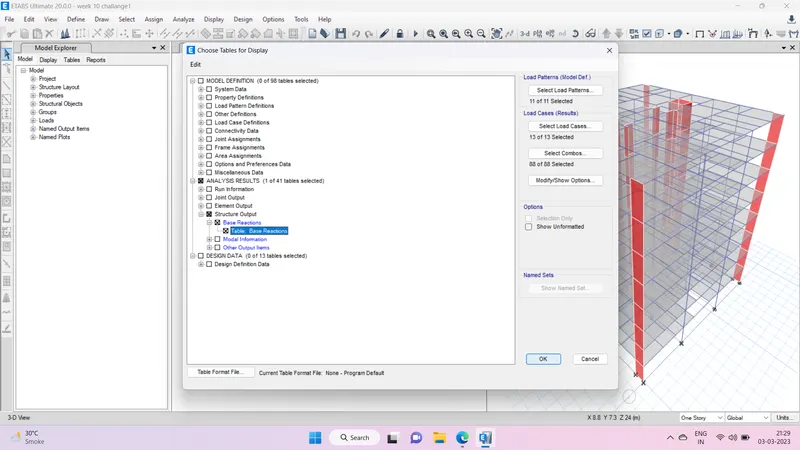

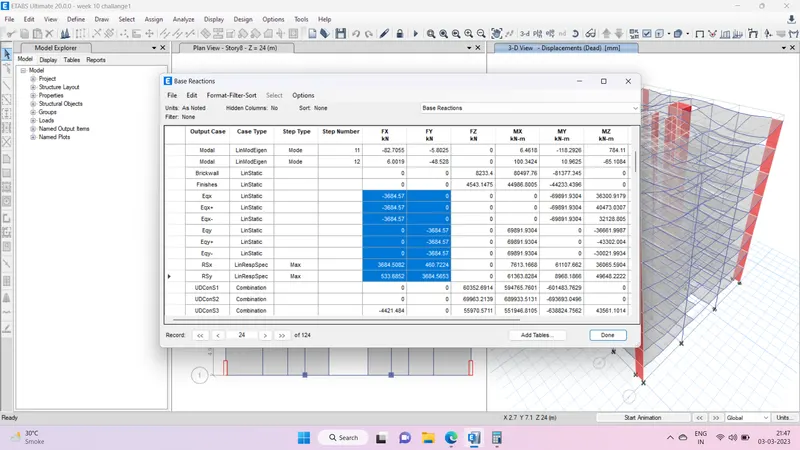

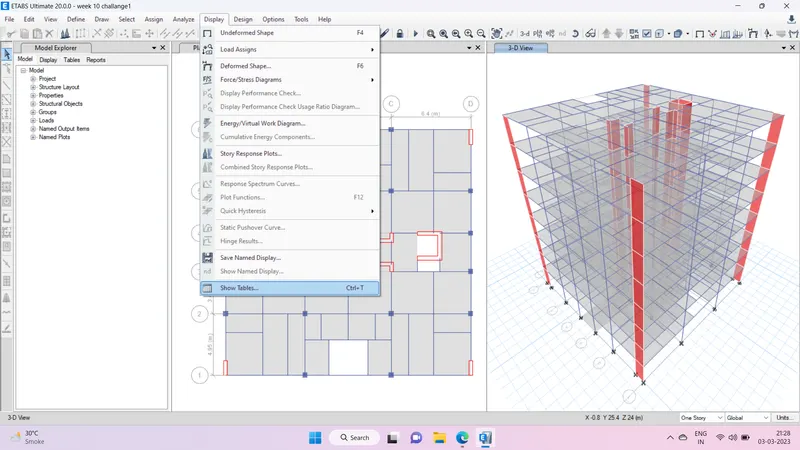

2) Base Reactions

The values of response spectrum in X & Y direction should be equivalent to the Eqx and Eqy, in our case it is not eqivalent. Therefore the scale of response factor should be increased

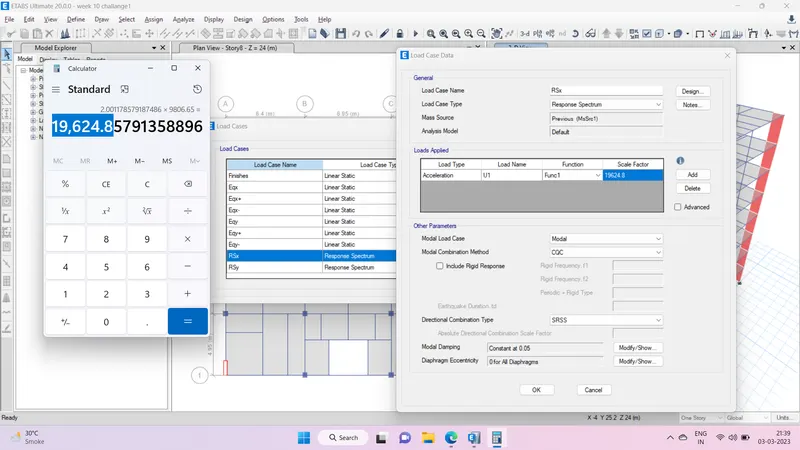

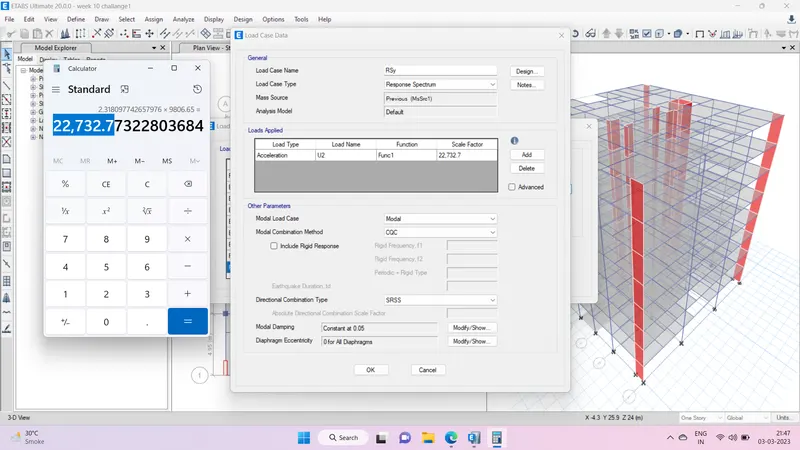

Increasing the responce factor by (Eqx/Rsx)*scale factor

Step Values of Eq and Rs are equivalent, hence OK

Save another file for response spectrum and Equivalent spectrum and run the analysis

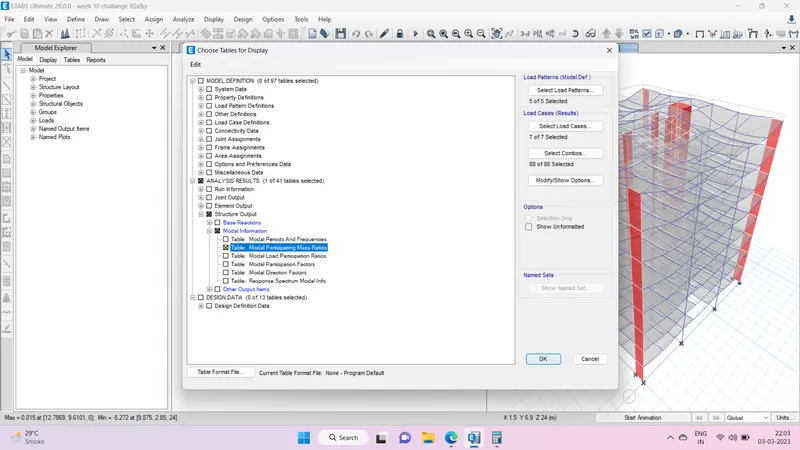

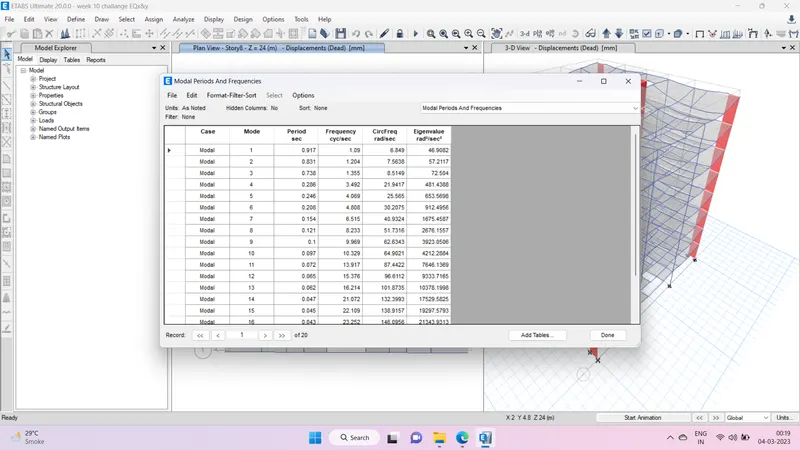

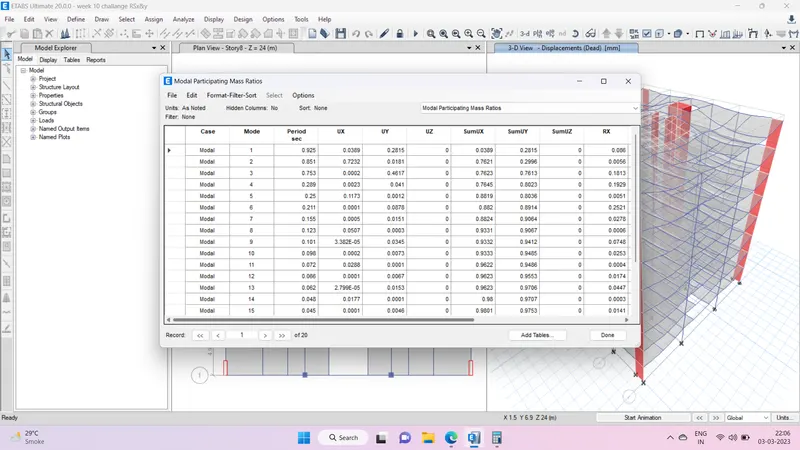

3) Mode participation ratio

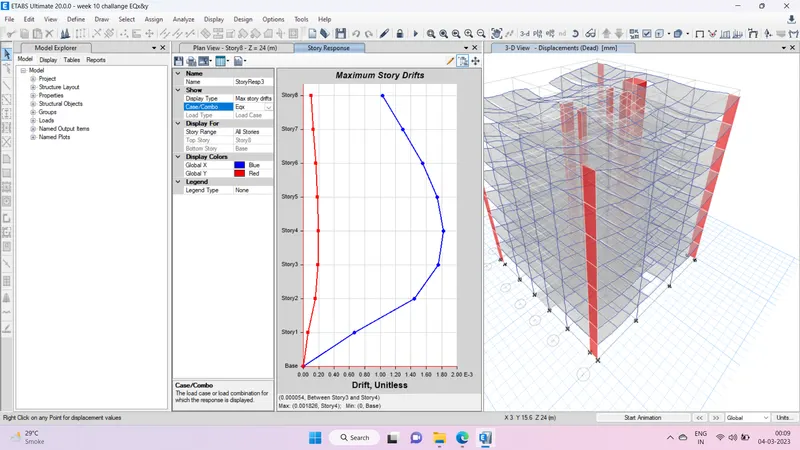

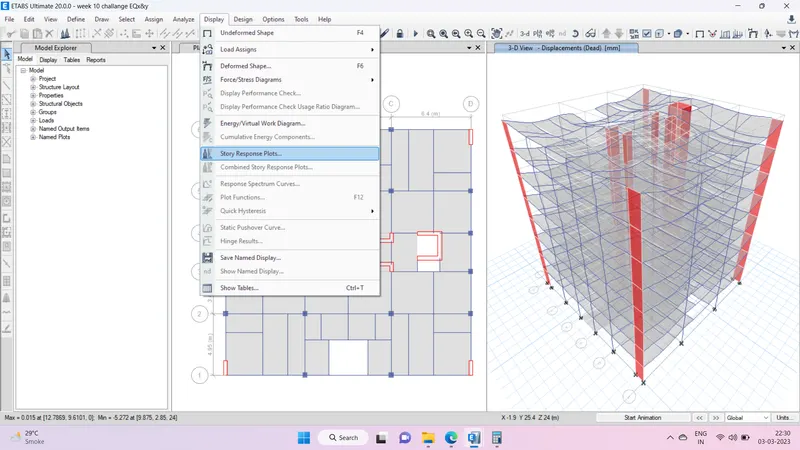

4) Story response plot

4) Time period
