Structural analysis of a buidling using Robot Structural Analysis

1. Ans :

• HVAC is Heating Ventilation and Air conditioning.
• This process is used to remove hot air inside the building and providing fresh air in the building.
• The airventilation to the overall building with more energy source these are the more essential for the building.

2. Ans:

• To create the HVAC , duct, collector we have to create the mechanical template for creating this components.
• First Manage link the Architectural link to the mechanical template and copy it using Copy/Moniter command in collabrate TAB.

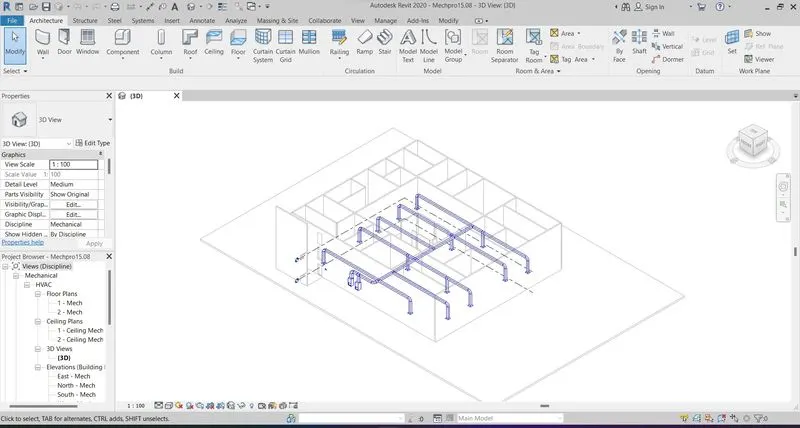

• Once copied we it select Mechanical Tab select AIRduct and select it in the floor plan and select the Airventelator.
• Select all the components and DUCT it .
• Select the connection type and press enter.
•

3. Ans :

• Use the add-ins tab to load plug-ins for robot structural analysis to your Revit software.
• In Autodest website we have to go search Robot structural analysis proffessional 2020 and install it.
• IT will be avaliable in Revit under Analysis TAB.

4. Ans :

• IT helps to analysis the building load capacity.
• We can perform during design.
• We can analysis each and individual elements seperately.

5. Ans :

• Once the structural template is done we have to move to analysis tab to analysis the building.
• First select the analysis model in 3D and select Analysis TAB and select the load ex.( Dead load, Live, Snow etc...).
• And load combination we have to apply the formula for the load and assign it using line or , area command etc...
• Then select the Boundary tab to select the column bottom with the point load for each column in analysis model and the boundary is created.
• Select the Analysis TAB and select ROBOT STRUCTURAL ANALYSIS PROFFESSIONAL 2020.

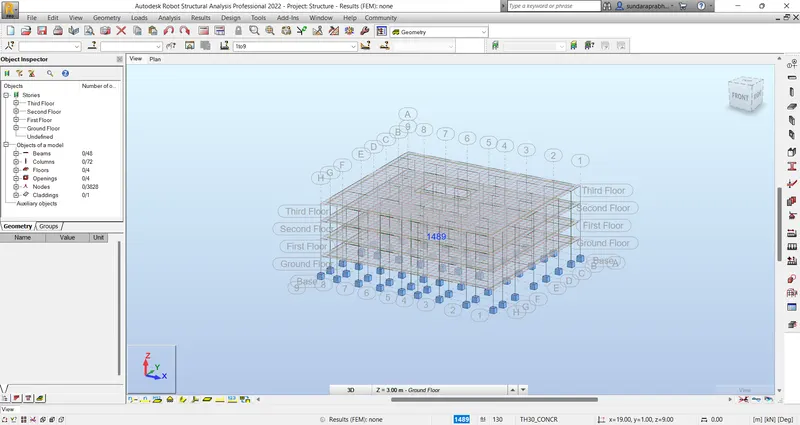

• Once open the ROBOT STRUCTURAL ANALYSIS and the model will appear on the tab.
• Select all and apply load combination and select ANALYSIS select calculate the load.

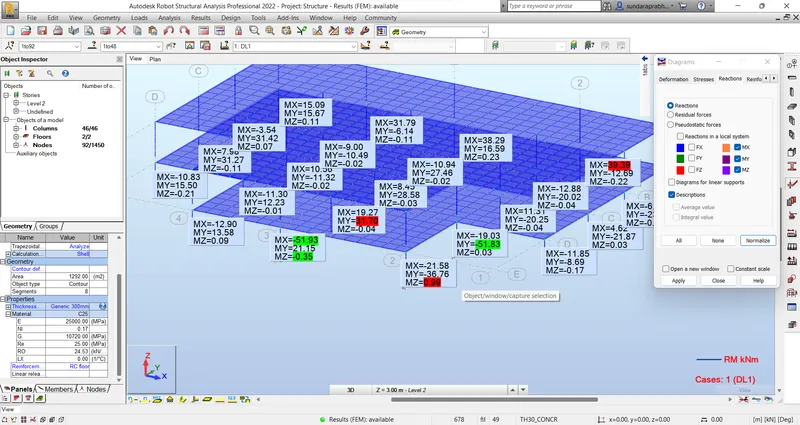

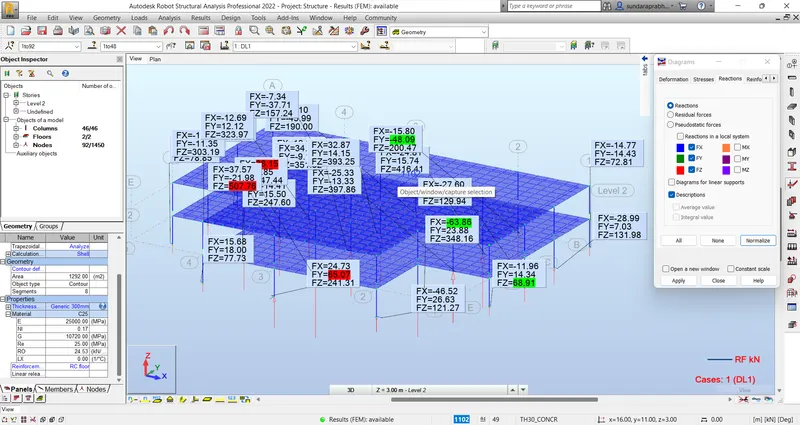

• Want to Measure the Force and Moment in the building using Diagram and select the reactions and discription and select force.

6. Ans :

• The energy analysis is used to analysis the over all airflow and light flow with in the building.
• The general principles
• Calculating heat loss and gain.
• Calculating the energy.
• Evaluating the cost.

The factor of sustainability improve the quality .

Lower energy.

Impact of climate change.

Resource consumption.

Non Toxic materials.
