Stock Bracket Assembly : Week 4 Challenge

STOCK BRACKET ASSEMBLY

The Stock Bracket Assembly consists of 8 Parts which are first created as part files and later on assembled in an assembly file using different constraints.

STOCK SUPPORT BASE:

The Stock Support Base was created by using different features like Pad, Pocket , Groove, Shaft, circular pattern, multi section solid

The views of the Stock Support Base are:

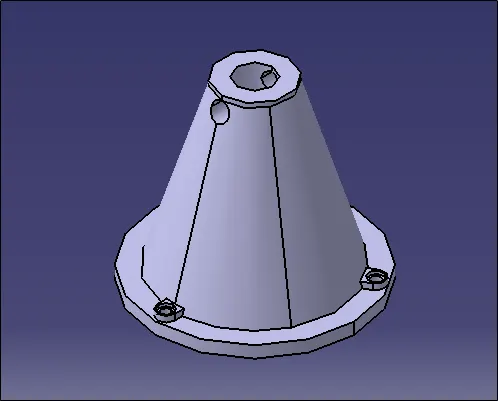

Fig 1. Stock Support base isometric view

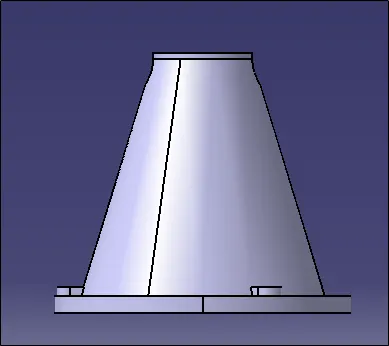

Fig 2. Stock Support Base Side view

SUPPORT ADJUSTING SCREW:

The support adjusting screw was modeled using features like pad.

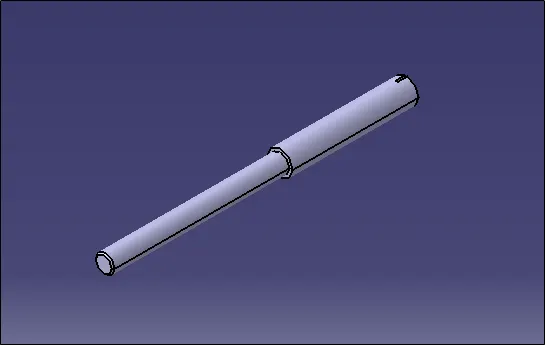

Fig 3. Support Adjusting Screw Isometric View

THRUST BEARING:

The Thrust Bearing was modeled using features like shaft, pocket, groove, chamfer, circular pattern.

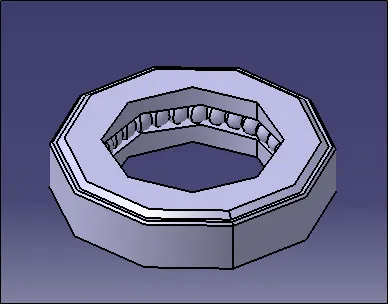

Fig 4. Thrust Bearing Isometric View

SUPPORT ROLLER BRACKET:

The Support Roller Bracket was modeled using features like Pad, Pocket, Mirror.

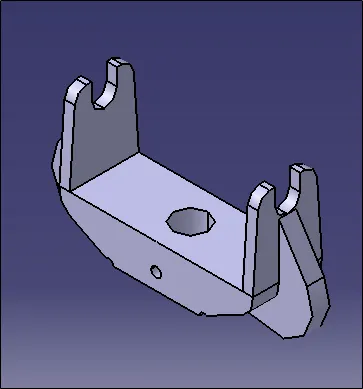

Fig 5. Support Roller Bracket isometric view

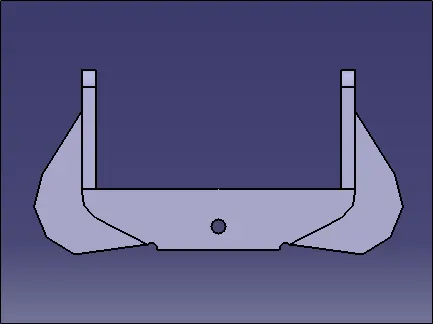

Fig 6. Support Roller Bracket Front View

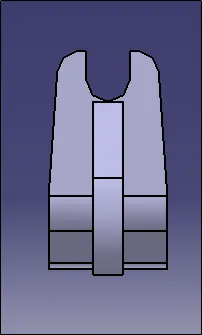

Fig 7. Support Roller Bracket Side View

ADJUSTING NUT HANDLE:

The Adjusting Nut handle was modeled using features like Pad, chamfer.

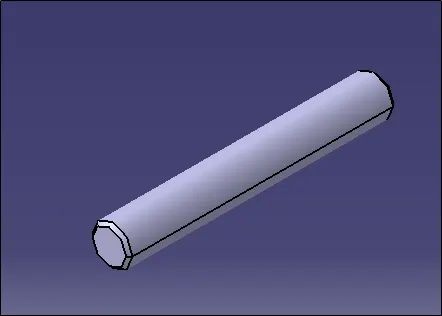

Fig 8. Adjusting Nut Handle Isometric View

ADJUSTING SCREW GUIDE:

The Adjusting Screw Guide was modeled using features like Pad, chamfer, Pocket.

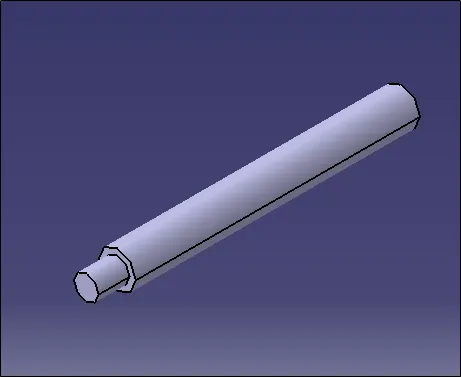

Fig 9. Adjusting Screw Guide Isometric View

ADJUSTING SCREW NUT:

The Adjusting Screw Nut was modeled using features like Pad, Pocket, Hole, Circular Pattern.

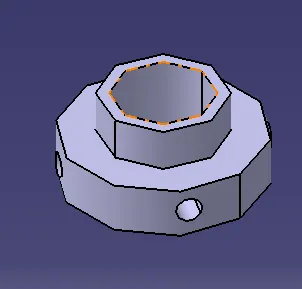

Fig 10. Adjusting Screw Nut

ASSEMBLY:

After creating all the different part files they are assembled together in an assembly file by using different constraints like offset constraint, surface contact and coincidence constraint.

The assembly views are:

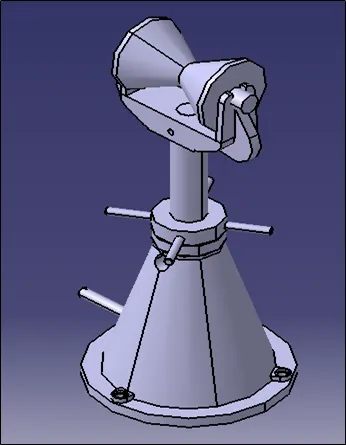

Fig 11. Stock Bracket Assembly Isometric View

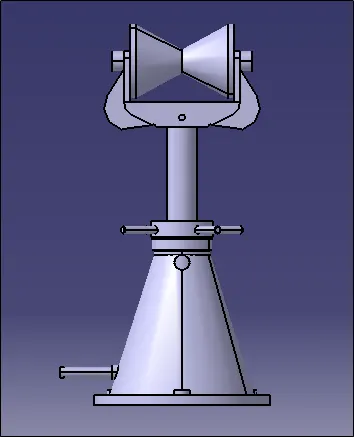

Fig 12. Stock Bracket Assembly Front View

*******
