Challenge

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

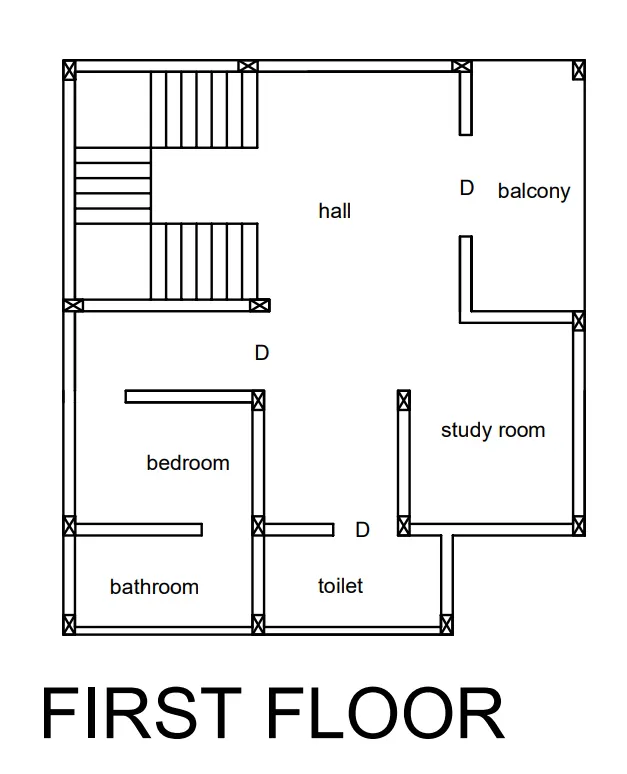

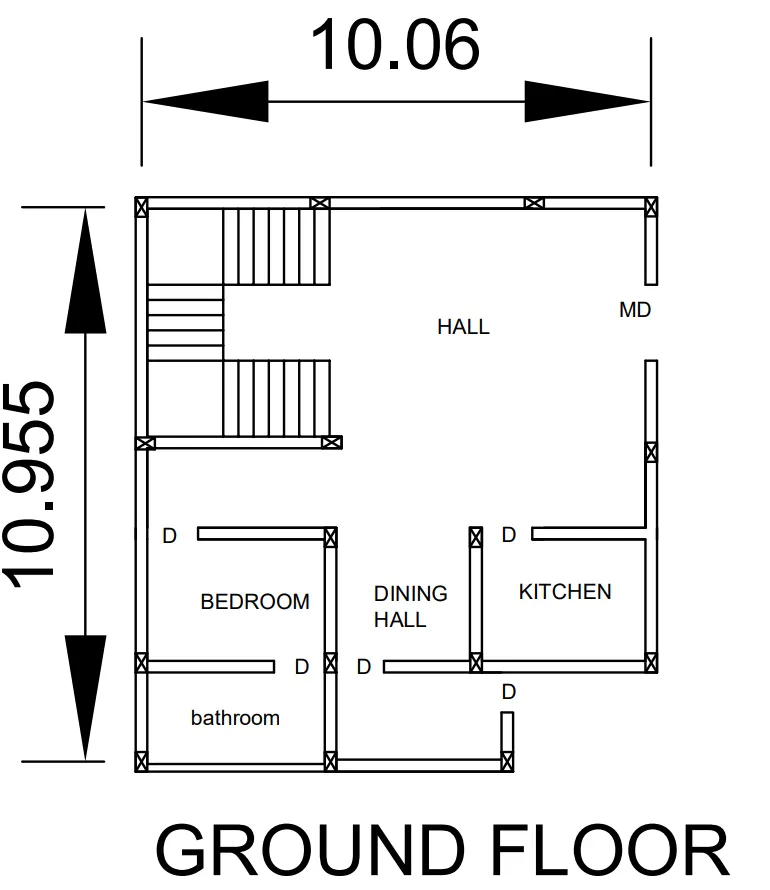

Aim: To sketch a g+1 floor residential plan according to vastu shastra and lsit down the names of the structural drawings.

vastu shastra is the ancient indian science of architecture and acts as a guideline to design your home in the way that enhances positice energy
our nature is abundant with powerhouse of energy sources like sun,wind,moon,water,earty and fire.
effects ofsunrays,flow of winds,pull of earth,s magnetic field and other such cosmic energies
a good home needs to radiate the right kind of energy.
a person dwelling in a house comes under the influence of a specific energy field.
architectural changes are not possible for entrance is north,east can be preferred
north-west is ideal for living rooms.
idols are placed in north east
south east is ideal for kitchen
south west is ideal for storage.

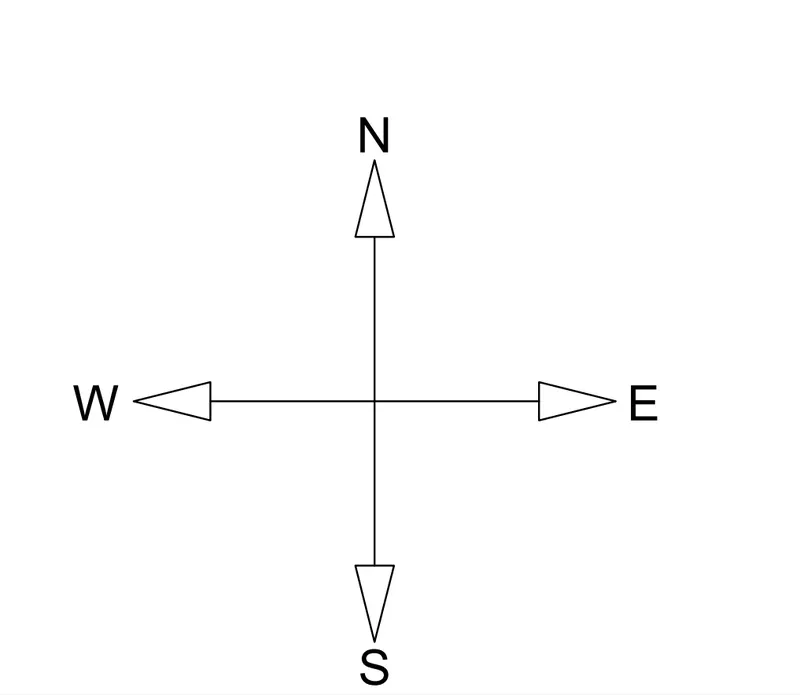

significance of four directions.

list of details that should be provided are

Aim: to assume sizes of the structural element and calculate the corresponding loads from themembers as per is code

procedure:

assumed dimensions of structural memebers

coloumn=230mmx380mm

beam=230mmx450mm

thickness of slab= 150mm

wall height=3m=3000mm

thickness of exterior wall=230mm

thickness of interior wall=150mm

riser=300mm

thread=150mm

depth of waist slab=250mm

depth of landing slab=200mm

dead load calculation:

unit weight of rcc=25kn/m³

unit weight of brickwork=20kn/m²

self weight of coloumn=0.23x0.38x3x25=6.55kn

self weight of beam=2.58kn

self weight of slab=0.15x25=3.75kn/m²

self weight of exterior wall=0.23x3x20=13.8kn/m

self weight of staircase:

inclined length=squareroot(150²+300²)=335mm

self weight of waist slab=(0.3354/300)x25x25=6.67kn/m

self weight of steps=0.5x0.15x25=1.835kn/m

live load as per is 875 part ii

kitchen= 2kn/m²

living room=2kn/m²

toilet and bathroom=2kn/m²

staircase=3kn/m²

balconies=3kn/m²

bedroom=2kn/m²

Wind load shall be considered for buildings exceeeding 10 meter height.here the building height is 7m and hence no wind load shall be considered.
