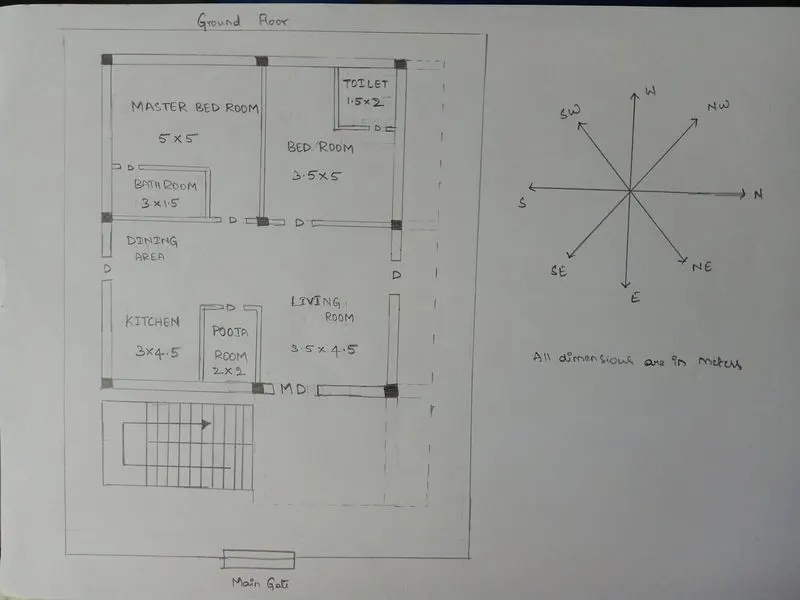

Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
Aim: Sketch and calculate the Dead load and live load for G+1 building as per vasthu shastra.
Introduction:
Vastu shastra is a sanskrit word which means " Science of architecture " (or) Vastu shastra ia an ancient vedic indian science of architecture, it contains many design ideas such as space arrangement, measurements and layout. Vastu shastra also called as the Yoga of designs and its guidelines are taken from the knowledge of ancient indian text " Vastu vidya".
Buildings which are constructed using principles of vastu are said to have healthier living space and best energy balance. The main idea behind vastu is to intregrated with spiritual beliefs and nature. Vastu shastra concept is based on combining scientifically the basic five elements - earth, water, fire, air and sky which creats a pleasant setting. Vastu shastra principles boosts health, wealth, prosperity and energy and making the working or living space enlightened.
Structural drawing required:
- General note: Drawings are not found in this, it contains details of structural drawings like concrete mix, curing time, lapping length, abbrevations, codes used etc.
- Excavation drawing: This drawing contains excavation dimensions of footing, footing plan, position of column and grid lines of column.
- Central line layout
- Column layout: This represents orientation of column and column position and reinforcement details of column.
- Plinth beam layout: It shows position, measurements and section of plinth beam and also represents reinforcement details of plinth beam.
- Lintel beam layout: It shows position, measurements and section of lintel beam and also represents reinforcement details of lintel beam.
- Roof beam and shuttering layout: This drawing gives the reinforcement details of roof beam, its section and details of shuttering.
- Roof slab layout: This drawing gives the reinforcement details of roof slab, its section and information of roof openings provided for various reasons like stairs or skylight.
- Lift pit and headroom with reinforcement details
Assume:
All columns size: 400 x 400mm
All beams size: 300 x 450mm
Thickness of slab: 125mm
Thickness of outer wall: 250mm
Thickness of inner walls: 200mm
Height of wall: 4.5m
Calculation of loads:
Dead Loads:

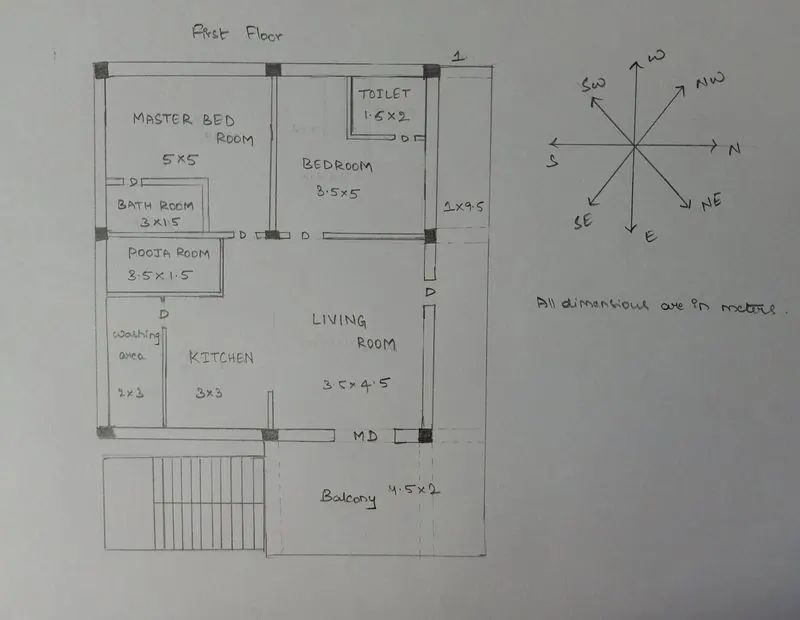

First floor:
Dead load from columns:
Total No.of columns = 9
Column size: 400 x 400mm
Height of column for first floor = 4.5m
Unit weight of RCC member= 25kN/m3
Deal load of structural member= unit weight x volume
Dead load from column= 25x0.4x0.4x4.5= 18kN
Total dead load from first floor columns= 9x18= 162kN
Total dead load from columns= 162kN
Dead load from Beams:
Beam size: 300 x 450mm
Length of beams in living room and kitchen area are 4.5m, 3.5m, 5m, 4.5m
Dead load from beams of living room= 25x0.3x0.45x(4.5+3.5)= 27kN
Dead load from beams of kitchen area= 25x0.3x0.45x(5+4.5)= 32kN
Length of beams in bed rooms are 5m, 5m, 5m, 5m, 3.5m, 5m, 3.5m
Dead load from beams of bedrooms= 25x0.3x0.45(5+5+5+5+3.5+5+3.5)= 108kN
In balcony front beams are provided upto 2m,
Dead load of those two beams= 25x0.3x0.45x2x2= 13.5kN
The 3 beams that are on rightside are also extended 1m towards north,
Dead load of 3 beams= 3x25x0.3x0.45x1= 10.12kN
Total dead load from first floor Beams= 27+32+108+13.5+10.12= 190.6kN
Total dead load from Beams= 190.6kN
Dead load from slab:
Thickness of slab= 125mm
Dead load of slab over living room= 25x0.125x3.5x4.5= 49.2kN
Dead load of slab over kitchen area= 25x0.125x5x4.5= 70.31kN
Dead load of slab over bed rooms= 25x0.125x8.5x5= 132.81kN
Dead load from slab over Balcony area= 25x0.125x(4.5x2+1x9.5)= 57.81kN
Total dead load from slab= 49.2+70.31+132.81= 310.13kN
Total DL from slab= 310.13kN
Dead load from walls:
Unit weight of brick masonry wall= 20kN/m3
Height of wall= 4.5m
Thickness of outer walls= 250mm
Thickness of inner walls= 200mm
Length of outer walls= 8.5+9.5+8.5+9.5= 36m
Dead load from outer walls= 20x0.25x4.5x36= 810kN
Length of inner walls= 3+3.5+1.5+5+5+3.5+3+1.5+1.5+2= 29.5m
Dead load from inner walls= 20x0.2x4.5x29.5= 531kN
Total dead load from walls= 810+531= 1341kN
Total dead load from walls= 1341kN
Parapet wall near Balcony:
Thickness of wall= 250mm
Height of parapet wall= 0.8m
Length of parapet wall of balcony=0.5(this length is provided beside stairs)+4.5+2+9.5+1= 17.5m
Dead load due to parapet wall=20x0.25x0.8x17= 70kN
Parapet wall on terrance:
Thickness of wall= 250mm
Height of parapet wall= 0.8m
Length of parapet wall on terrace= 5+0.5+4.5+2+9.5+1+8.5+9.5= 40.5m
Dead load of parapet wall on terrace= 20x0.8x0.25x40.5= 162kN
Total dead load from First floor= 162+190.62+310.13+1341+70+162= 2235.75kN
Total dead load from First floor= 2235.75kN
Dead load from ground floor:
Dead load due to columns:
Total No.of columns = 9
Column size: 400 x 400mm
Height of column for floor = 4.5m
Unit weight of RCC member= 25kN/m3
Deal load of structural member= unit weight x volume
Dead load from column= 25x0.4x0.4x4.5= 18kN
Total dead load from columns= 9x18= 162kN
Dead load due to beams:
Beam size: 300 x 450mm
Length of beams in living room and kitchen area are 4.5m, 3.5m, 5m, 4.5m
Dead load from beams of living room= 25x0.3x0.45x(4.5+3.5)= 27kN
Dead load from beams of kitchen area= 25x0.3x0.45x(5+4.5)= 32kN
Length of beams in bed rooms are 5m, 5m, 5m, 5m, 3.5m, 5m, 3.5m
Dead load from beams of bedrooms= 25x0.3x0.45(5+5+5+5+3.5+5+3.5)= 108kN
In balcony front beams are provided upto 2m,
Dead load of those two beams= 25x0.3x0.45x2x2= 13.5kN
The 3 beams that are on rightside are also extended 1m towards north,
Dead load of 3 beams= 3x25x0.3x0.45x1= 10.12kN
Total dead load from first floor Beams= 27+32+108+13.5+10.12= 190.6kN
Dead load from slab:
Thickness of slab= 125mm
Dead load of slab over living room= 25x0.125x3.5x4.5= 49.2kN
Dead load of slab over kitchen area= 25x0.125x5x4.5= 70.31kN
Dead load of slab over bed rooms= 25x0.125x8.5x5= 132.81kN
Dead load from slab over Balcony area= 25x0.125x(4.5x2+1x9.5)= 57.81kN
Total dead load from slab= 49.2+70.31+132.81= 310.13kN
Dead load from walls:
Unit weight of brick masonry wall= 20kN/m3
Height of wall= 4.5m
Thickness of outer walls= 250mm
Thickness of inner walls= 200mm
Length of outer walls= 8.5+9.5+8.5+9.5= 36m
Dead load from outer walls= 20x0.25x4.5x36= 810kN
Length of inner walls= 2+2+2+5+5+3.5+3+1.5+1.5+2= 27.5m
Dead load from inner walls= 20x0.2x4.5x27.5= 495kN
Total dead load from walls= 810+495= 1305kN
Total dead load from ground floor= 162+190.6+310.13+1305=1967.73kN
Total dead load from ground floor= 1968kN
Live load calculations:
Live load from terrace:
Assume live load on terrace= 0.75kN/m2
Live load from terrace= 0.75x8.5x9.5+0.75x4.5x2+0.75x1x9.5= 74.45kN
Live load from terrace= 74.45kN
Live load from first floor:
Assume live load= 2.5kN/m2
Balcony live load= 1.5kN/m2
Live load= 2.5x8.5x9.5= 202kN
Live load from balcony= (4.5x2+1x9.5)x1.5= 27.75kN
Total LL from first floor= 202+27.75= 230kN
Total Live load from first floor= 230kN
Live load from ground floor:
Assume LL= 2.5kN/m2
Live load= 2.5x8.5x9.5= 202kN
Live load from ground floor= 202kN
Total LL= 230+202+74.45= 506.45kN
Total live load= 432kN
Results:
Dead load:
First floor:
Dead load from first floor columns= 162kN
Dead load from Beams= 190.6kN
Dead load from slab= 310.13kN
Dead load from walls= 1341kN
Dead load due to balcony parapet wall=20x0.25x0.8x17= 70kN
Dead load of parapet wall on terrace= 162kN
Total dead load from First floor= 2236kN
Ground floor:
Dead load from columns= 162kN
Dead load from Beams= 190.6kN
Dead load from slab= 310.13kN
Total dead load from walls= 1305kN
Total dead load from ground floor= 1968kN
Total dead load of house= 4204kN
Live load:
First floor:
Live load from terrace= 74.45kN
Live load from first floor= 230kN
Live load from ground floor= 202kN
Total live load= 506.45kN
Total load from building (Dead load+Live load)= 4204+506.45= 4710.45kN
Total load from building= 4710.5kN
