Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code
AIM
- To sketch a G+1 floor residential plan, according to Vaastu Shastra, and the names of the structural drawings required to be provided to the site for construction.
- To assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and calculate the individual corresponding loads from the members as per IS code.
PROCEDURE

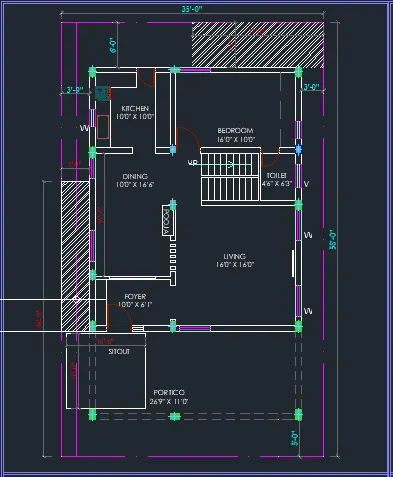

GROUND FLOOR PLAN (All dimensions are in Feet)
DIMENSIONS OF GROUND FLOOR
( Converting feet to meters )
- Portico - 26'9" * 11' = 8.2m * 3.35m
- Sitout - 10' * 10' = 3.05m * 3.05m
- Foyer - 10' * 6'1" = 3.05m * 1.86m
- LivingRoom - 16' * 16' = 4.88m * 4.88m
- DinningRoom - 10' * 16'6" = 3.05m * 5.06m
- KitchenRoom - 10' * 10' = 3.05m * 3.05m
- BedRoom 1 - 16' * 10' = 4.88m * 3.05m
- Toilet1 - 4'6" * 6'3" = 1.40m * 1.92m

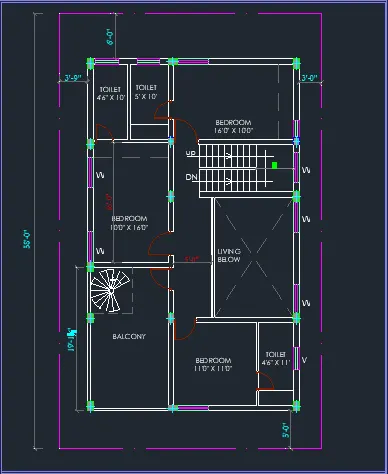

FIRST FLOOR PLAN (All Dimensions are in feet)
DIMENSIONS OF FIRST FLOOR
( Converting feet to meters)
- Bedroom2 - 16' * 10' = 4.88m * 3.05m
- Bedroom3 - 10' * 16' = 3.05m * 4.88m
- Bedroom4 - 11' * 11' = 3.35m * 3.35m
- Toilet2 - 4'6" * 10' = 1.40m * 3.05m
- Toilet3 - 5' * 10' = 1.53m * 3.05m
- Toilet4 - 4'6" * 11' = 1.40m * 3.35m
- Balcony - 10'4" * 18'9" = 3.17m * 5.76m
OTHER DIMENSIONS
- Thickness of internal wall = 0.15m
- Thickness of external wall = 0.23m
- Thickness of slab = 0.25m
- Dimensions of column = 0.3m * 0.3 m
- Dimensions of beam = 0.35m * 0.45m
- Height of wall of each floor = 3m
VASTU SHASTRA
- Entrance of house is provided in North direction
- Living room is placed in North-West direction
- Bedroom1 and Bedroom2 is placed in the North direction
- Bedroom3 is placed in the South-East direction
- Bedroom4 is placed in the North-West direction
- The kitchen is placed in the South-East direction
- The staircase is placed in the South-East corner direction
- Toilet1 faces the South direction,
- Toilet2 faces the North-West direction,
- Toilet3 faces South-East direction,
- Toilet4 faces the South-West direction
- The water closet is placed in the West direction

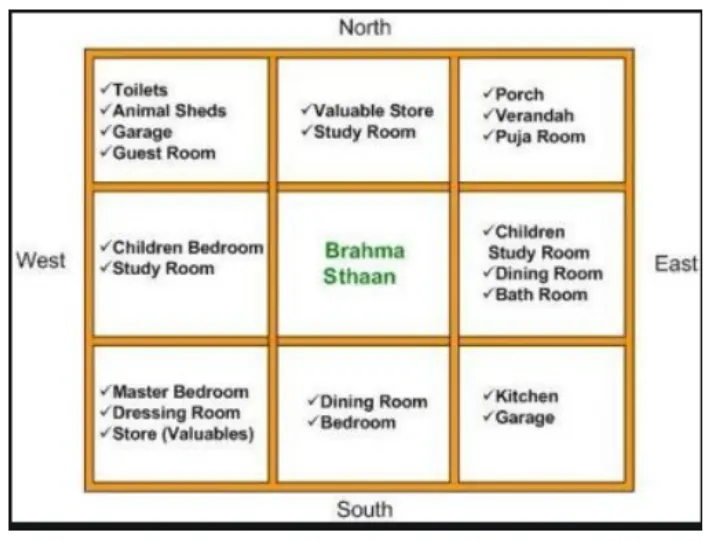

CONCEPT OF VASTU
LIST OF DRAWING PROVIDED AT THE CONSTRUCTION PROJECT
- Centerline drawing
- Footing and Column layout with reinforcement details
- Column scheduled with reinforcement
- Plinth beam with reinforcement details
- First-floor beam layout with reinforcement details
- Floor plan
- Foundation plan
- Design drawing
- Block plan
- Roof sleb layout
- Column layout
- Site plan
- Column section
- Septic tank design
- Overhead water tank design
- Plinth beam section
- Flooring plan
- Furniture plan
- Drainage plan
- Setting out plan
- Section drawing of the building
- Plumbing details
- Electrical details
CALCULATION OF LOAD
All columns and Beams are in the same size
DEAD LOAD
1 Dead load of Column
Dimensions of column = 0.3m * 0.3m
Height of column = (Slab thickness * 2) + (Height of wall for each floor * 2)
= (0.25*2) + (3*2) = 6.5m
Total volume of concrete = 0.3*0.3*6.5 = 0.585m^3
Unit weight of RCC = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of column = Volume of concrete * Unit weight
= 0.585 * 25 = 14.62KN
2 Dead load of beam
Dimensions of beam = 0.3*0.45
Total volume of concrete = 0.3*0.45*1 = 0.135m^3
Unit weight of RCC = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of Beam = Volume of concrete * Unit weight
= 0.135*25 = 3.375KN
3 Dead load of slab
Span of 1m is designed
Size of slab = 1 * 1
Thickness of slab = 0.25m
Density of slab = 25KN/m^3 ( As per IS 875 Part1 )
Dead load of Slab =Density * Unit weight * Dimensions
= 0.25 * 25 * 1 * 1 = 6.25KN
4 Dead load of Walls
EXTERNAL WALL
Thickness of wall = 0.23m
Unit weight = 20KN/m^3 ( As per IS 875 Part1 )
Height of Wall = 3m
Dead load = Thickness of wall * unit weight * height of the wall
= 0.23 * 20 * 3 = 13.8KN
INTERNAL WALL
Thickness of wall = 0.15m
Unit weight = 20KN/m^3 ( As per IS 875 Part1 )
Height of Wall = 3m
Dead load = Thickness of wall * unit weight * height of the wall
= 0.15*20*3 = 9KN
2 LIVE LOAD CALCULATION
According to IS875 Part 2
- Bedroom = 2 KN/m^2
- Living Room = 2 KN/m^2
- Kitchen = 2 KN/m^2
- Bathroom = 2 KN/m^2
- Toilet = 2 KN/m^2
- Terrace = 3 KN/m^2
- Balcony = 3 KN/m^2
- Portico = 3 KN/m^2
- Foyer = 3 KN/m^2
3 WIND LOAD CALCULATION
Wind load is designed when the height of the building exceeds 10m
The height of the building is 6.5m which is less than 10m
So, calculation of wind load is not required
REFERENCE USED
IS 875- 1987 (Part 1) for Dead load
IS 875- 1987 (Part 2) for Live load
IS 875- 1987 (Part 3) for Wind load
IS 456- 2000 for Reinforced concrete
RESULT
- The plan is prepared by Vastu Shastra concept considering all principles and considerations of Vaastu shastra
- Load calculations are done according to IS code consideration
