Section Modulus calculation and optimization
| Type | Value |
| Section Modulus of Hood |
I=1.694*10^4(mm^4) Y=902.005mm S=18.78mm^3 Section Modulus of Hood is Calulated. |
| Section Modulus of Hood Increase a 0.5mm Inner Panel |
I=1.712*10^4(mm^4) Y=902.054mm S=18.978mm^3 Increasing thickness of the Inner panel for Strength. |
| Section Modulus of Hood Increase a 1mm Inner Panel |
I=1.732*10^4(mm^4) Y=901.96mm S=19.202mm^3 Increasing thickness of the Inner panel 1mm for more Strength.. |

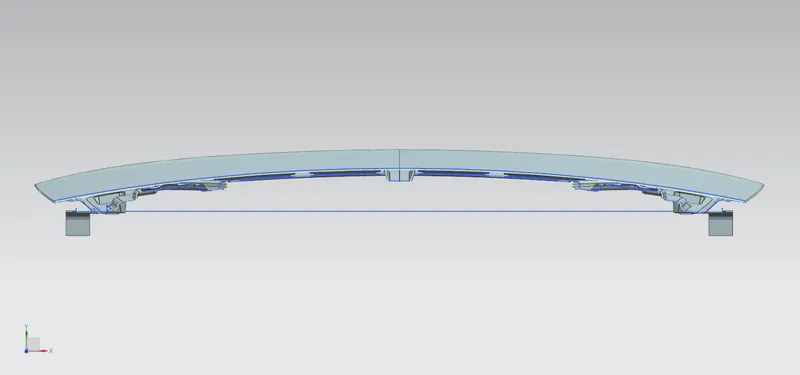

Cross Section View:

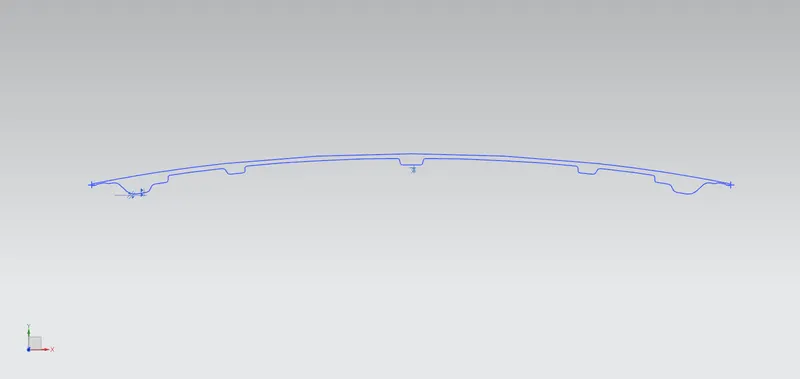

Section modulus:

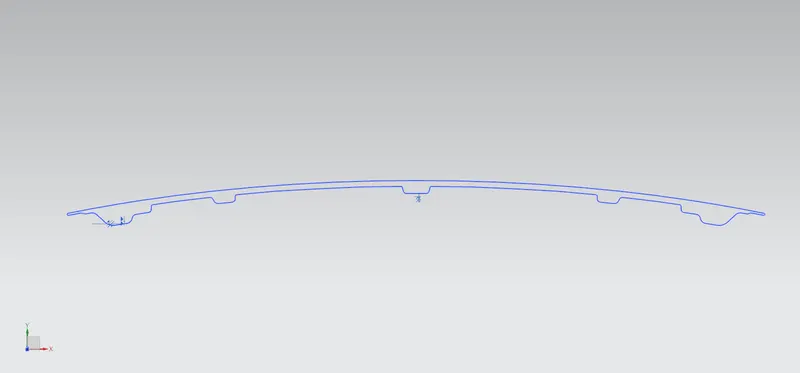

Section modulus 1mm:
