Section Modulus calculation and optimization

OBJECTIVE:-                 The main objective of this project is to learn the Basics of the BIW (Body in white) through designing the Back Door "also referred to as the Tail Gate of a car by considering all the Protocols and Standards of BIW Design. TAILGATE:-      …

AIM:-                  To design & develop the Roof of a car with its components by following the master section and design parameters. OBJECTIVE:-   To develop the essential flanges and reinforcements using roof styling as input.   To do a curvature study on the…

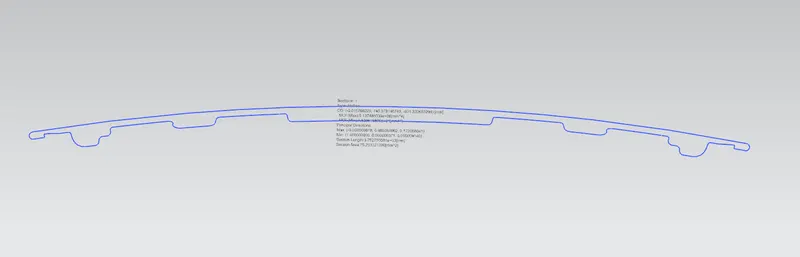

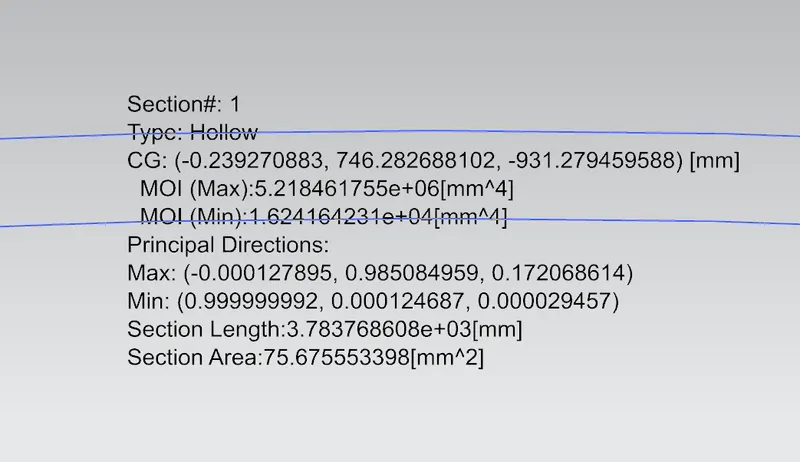

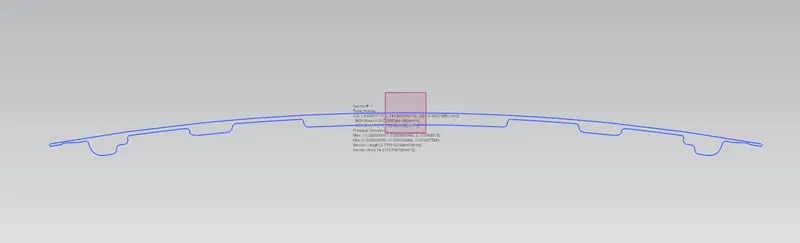

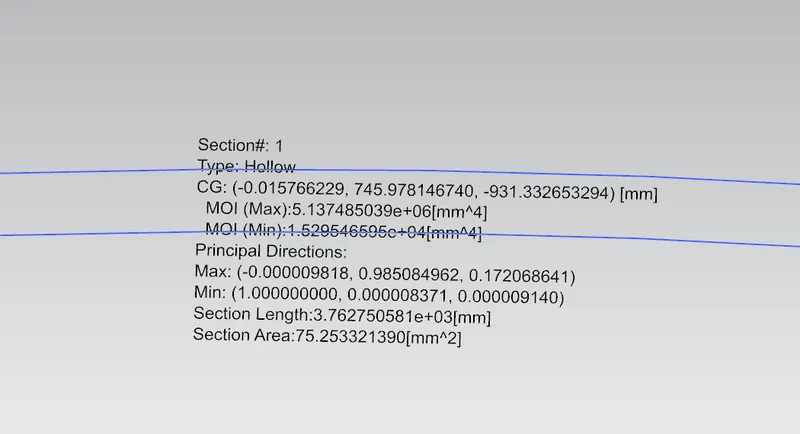

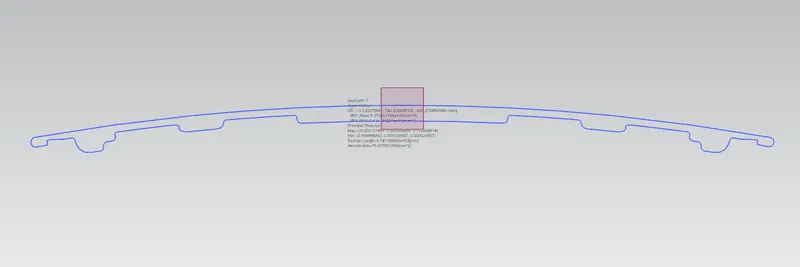

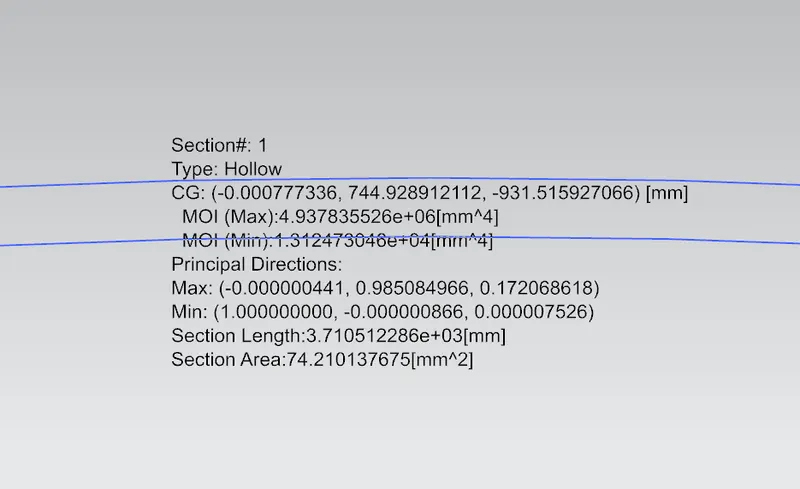

OBJECTIVE:-   To Calculate the section modulus for the previously designed hood.    To Come up with a new section that has improved the section modulus of the previous section. SECTION MODULUS:- Section modulus is the geometric property of a given cross-section used in the design of flexural members. Section…

OBJECTIVE:-                        To design the front fender of the car. FENDER:-                    Fender is the American English term for the part of an automobile that frames a wheel. It is the pressed…

CALCULATING THE FENDER WHEEL ARCH TO STUDY WHETHER THE CAR WILL PASS THE STANDARDS OR NOT: OBJECTIVE:-                      The objective of the project is to measure the wheel are areas of the front fender of a car by using the model provided by the styling team area.…

AIM:-                     To design Hood outer panel, inner panel, and the necessary reinforcements by following the Master section mentioned with the design parameter and to submit an assembly of Hood inner panel, outer panel, latch, hinge, and the reinforcementsHOOD:-…

UNDERCOATING:-                 The coating is the formulation of spray that is applied to the chassis protecting it from rusting. Applying to undercoat, as soon as you get your new car, is the best way to keep the chassis intact. This covers the undersurface saving it from road grime…

CASE STUDY:- PURPOSE:-          The purpose of the study is to help Mr.D.S.Pughazhyendhii chooses the best car which fulfills his necessity by benchmarking the latest available cars in the market so that he gets a suitable car for him and his family. CASE:-       Mr. D.S.…

AIM:- To design and develop vehicle interior door using Catia V5 with given class A surface along with Master section.  OBJECTIVE:- To create the thickened part using the master section for reference. To create the mounting features as per design guidelines in the industry and with master sections. To perform draft…

AIM:-                 To create the part model of the surface class A provided by the creation of the B and C surfaces. OBJECTIVE:-                The door armrest solid model with the design features involved and creation of the surface thickness…

QUICK RETRUN MECHANISM:- A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a…

AIM:- To create the master section for the given class A surface along with the required engineering features. OBJECTIVE:- The given class A surface into a component with the given engineering features from the given master section with the standards and perform the draft analysis on the component for the feasibility of…

AIM:  To create the Screw Bosses for the Centre console coin holder considering the design rules by using Catia V5.  OBJECTIVE: Create a tooling axis following the OEM standard Making the Rib According design rules Part Thickness: 40% NOMINAL VALUE and Draft angle: 0.5 Deg Performing the draft analysis to the…

DOOR APPLIQUE DESIGN WITH ENGINEERING FEATURES AIM: Creating the Driver Door RH Applique plastic component through the given Class-A Surface. To begin with, the tooling axis for the given Class-A Surface is created to meet the requirements of the draft angle and at the end perform the draft analysis on the model. Creating…

  Aim - TO Create the rib for the Centre console coin holder considering the design rules. PROCEDURE - DRAFT ANALYSIS - Before starting to work on the part we have to see the connectivity of class A. In order to create a tooling axis, we have to create lines in x-direction and y-direction and we have to bisect…

AIM:-        To create the center console Coin Holder plastic component through the given Class-A surface and at the end performing the draft analysis on the model. OBJECTIVE:- To ensure proper tree structure is followed. Geometrical sets should have a proper name based on the sketches present inside…

AIM:-              To create Core and Cavity design for Switch Bezel. OBJECTIVES:-  Create core and cavity block of switch bezel body.  Create a parting line and parting surface.  Performing draft analysis on switch bezel. PARTING SURFACE:-          …

AIM:-                Create the Switch Bezel Plastic component through the given class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the draft analysis on the model. …

AIM:-           To create the Base Bracket Plastic component through the given Class-A surface with creating the tooling axis for the given Class-A Surface meeting the draft angle requirements and perform the Draft analysis on the model.  TOOLS USED:-          …

AIM:-                    To create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model. OBJECTIVE:- To ensure proper tree structure is followed. To create Geometrical sets that should have…
