Section Modulus calculation and optimization

SECTION MODULUS CALCULATION

Moment of Inertia (I) of the beam cross-section about the neutral axis to the distance (ymax) of extreme fiber from the neutral axis

Moment of Inertia (I) _Resistance towards Bending.

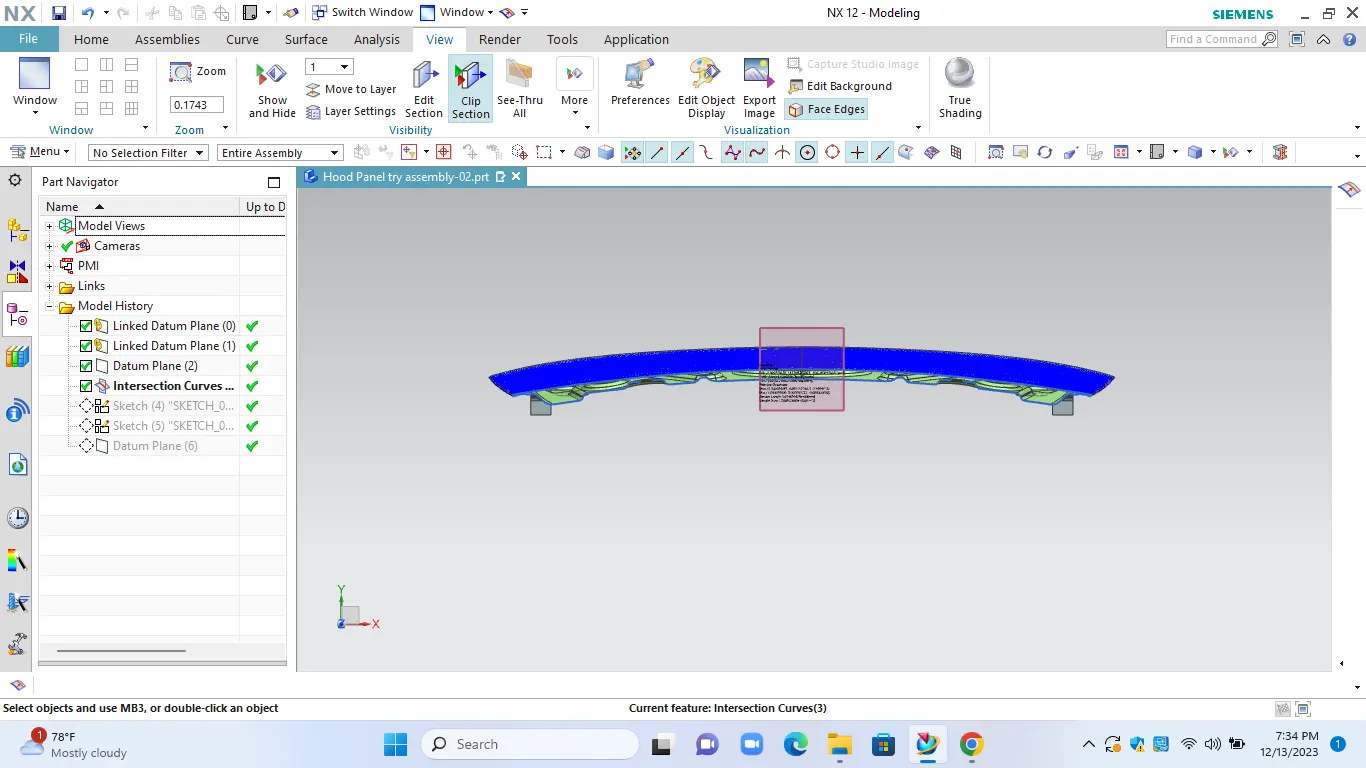

Complete HOOD Assembly into analaysis and take the assembly into the clip sction view.

Create sketch plane for section view and project intersection curves and project it.

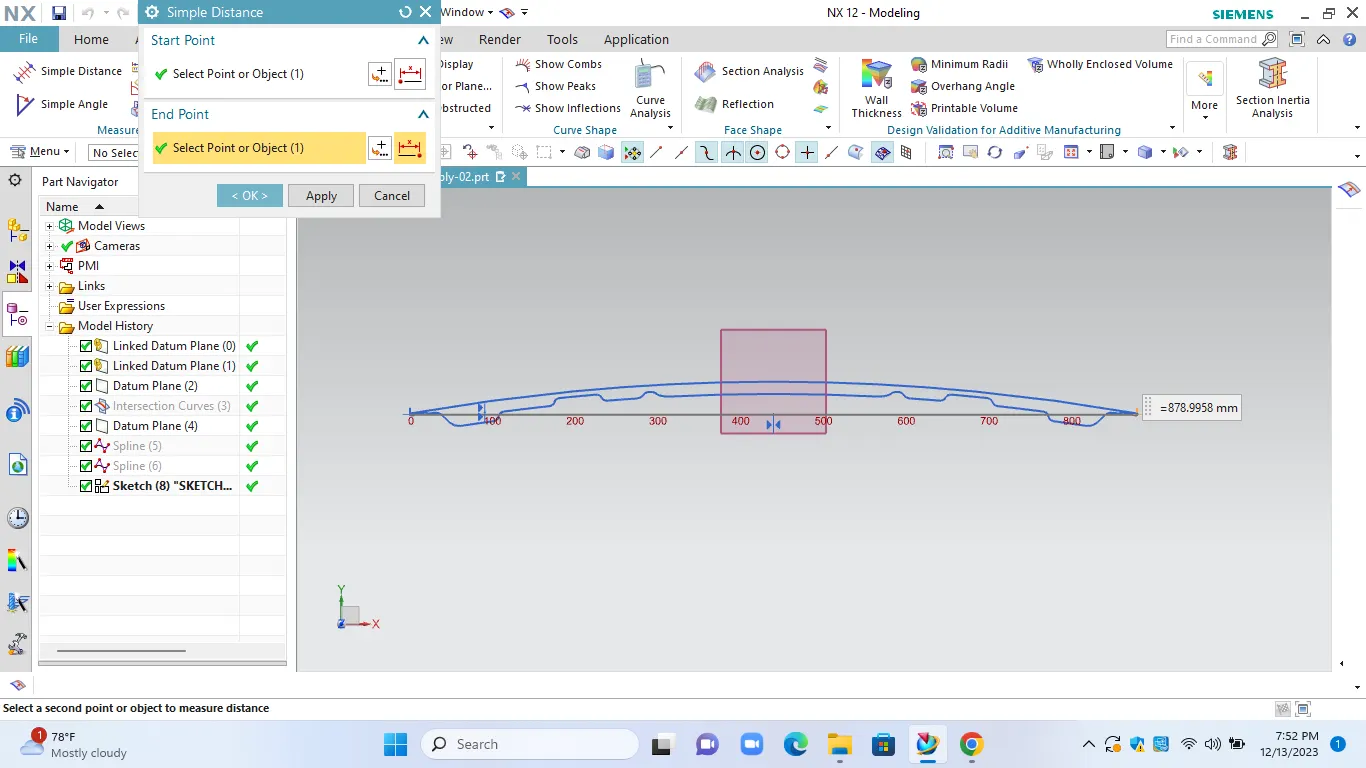

Calculate Total length of cross section of hood - 879.

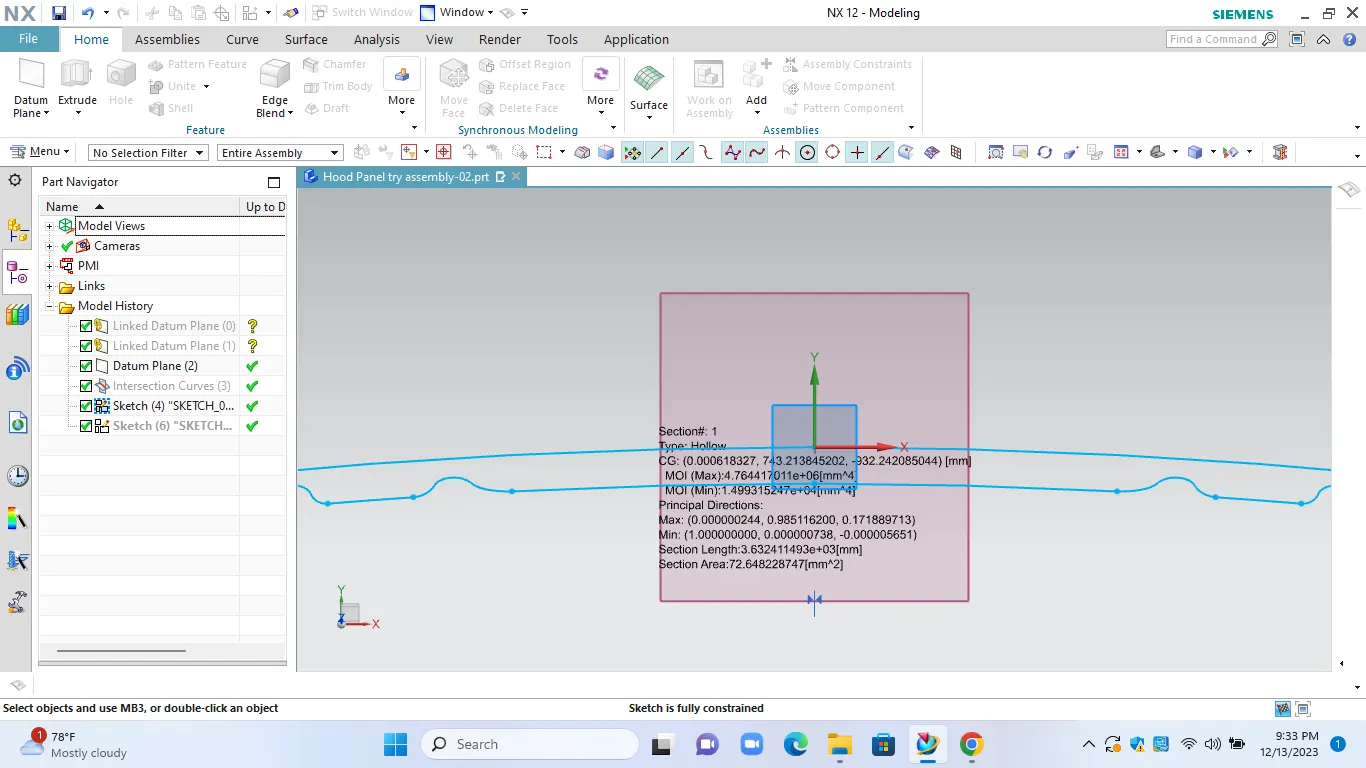

Moment Of Inertia I= 1.474

S=I/Y

S=1.474/879=0.0016769mm3

IMPROVE SECTION MODULUS

Improving Moment of inertia by offset inner panel (I)= 1.4993

Y Value remains Same 879mm

S= I/Y

S= 1.4993/879=0.0017056 mm^2
