Challenge

Section Modulus calculation and optimization

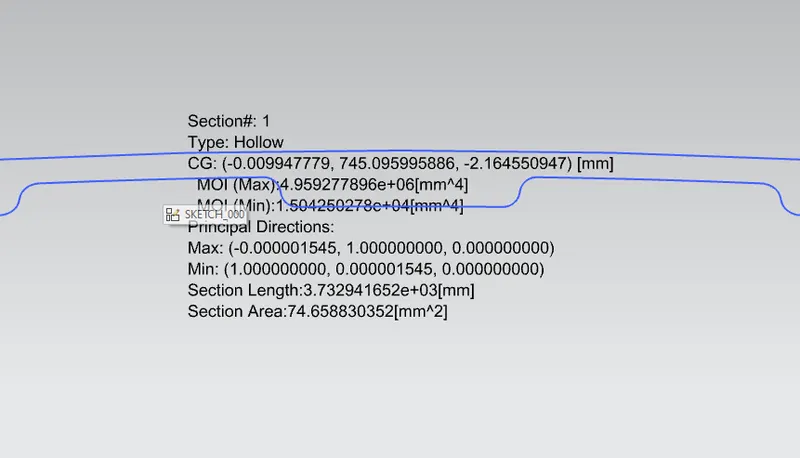

CASE 1

MOI(Max);4.959277896e+06[mm^4]

MOI(Min);1.504250278e+04[mm^4]

Y=439mm

s=I/Y

s=1.504250278e+04/439

s=0.01530360325

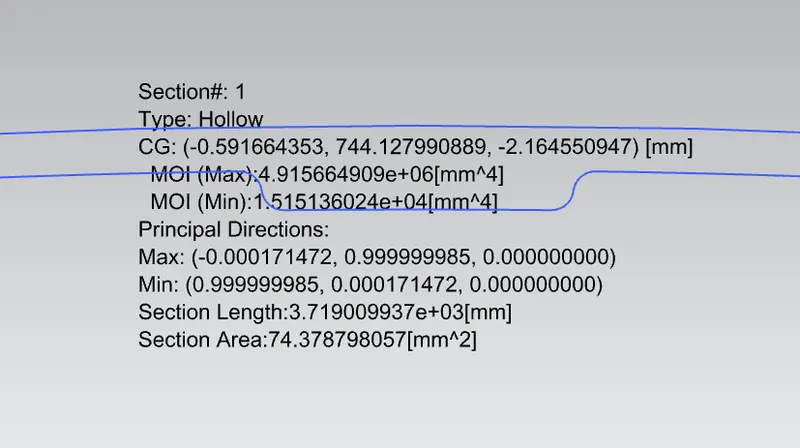

CASE 2

I have changed the emboss value and increase the strength

MOI(Max);4.915664909e+06[mm^4]

MOI(Min);1.515136024e+04[mm^4]

Y=439MM

S=I/Y

S=1.515136024e+04/439

S=0.01550360325
