Roof Design
ROOF (MAGNA STEYR TRAINING)

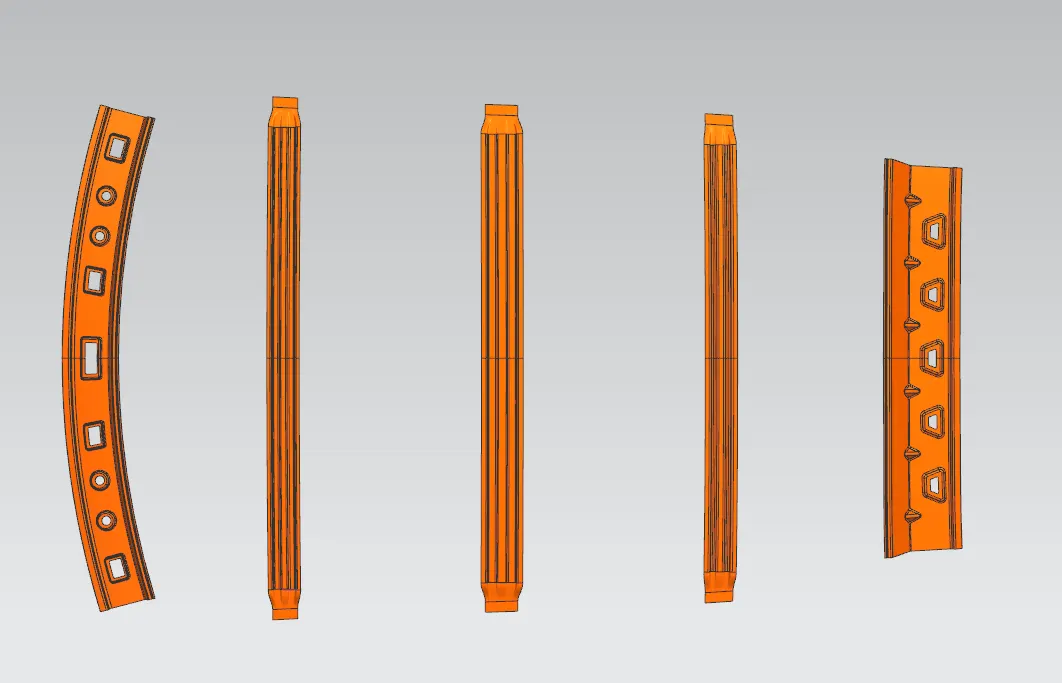

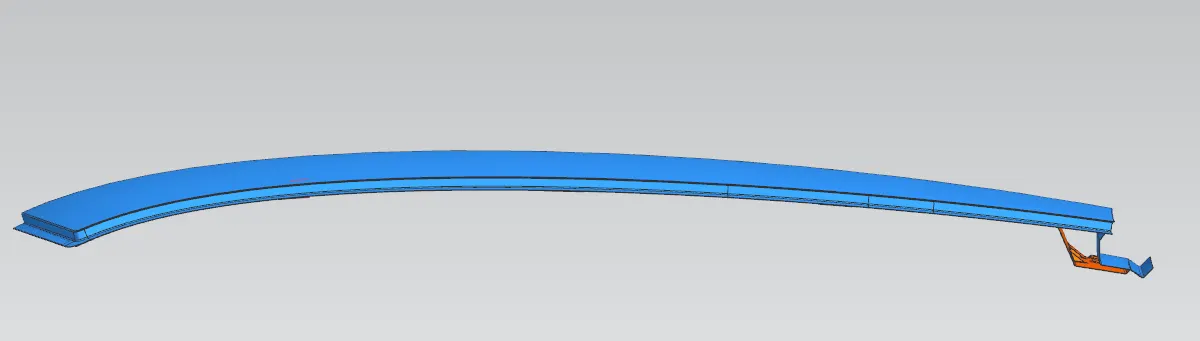

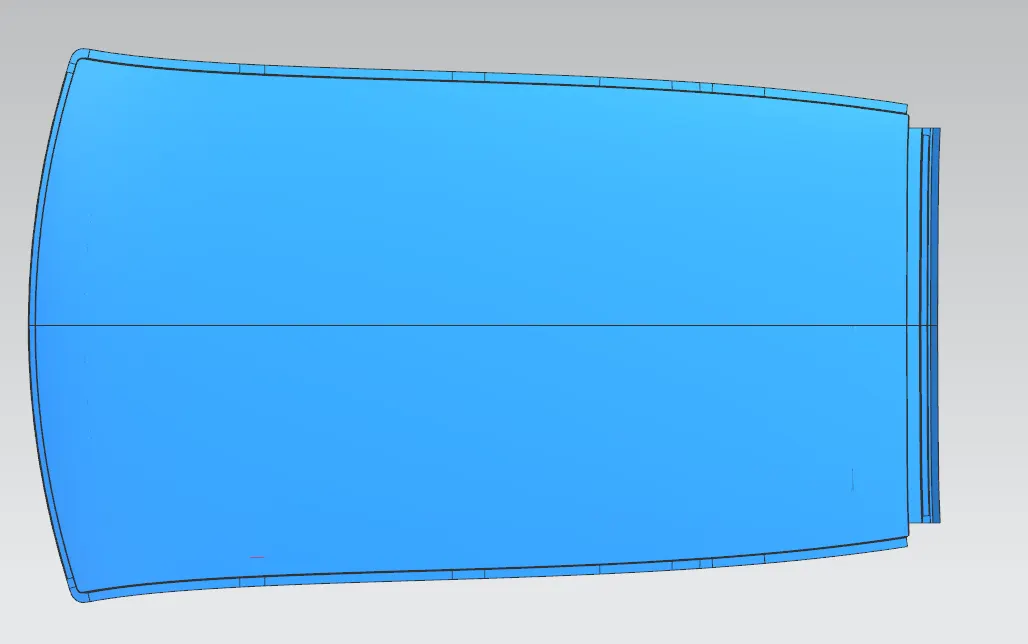

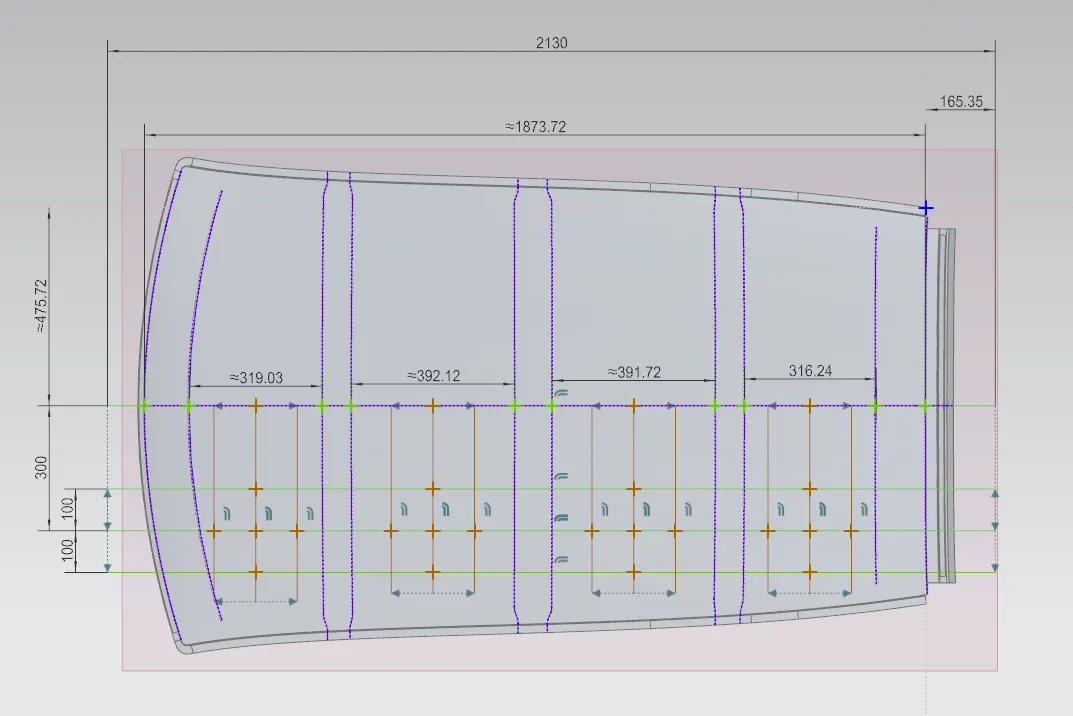

HEAT DISTORTION CRITERIA:
| Rx | Ry | R | L | t | I | W | a | b | c |
| 1735 | 2998 | 2197 | 1874 | 0.75 | 319 | 1.0316 | 3.242 | 0.119 | 0.351 |
| 4668 | 2954 | 3618 | 1874 | 0.75 | 392.1 | 1.3157 | 3.242 | 0.323 | 0.431 |
| 6631 | 2625 | 3761 | 1874 | 0.75 | 391.7 | 1.3413 | 3.242 | 0.349 | 0.431 |
| 6543 | 2661 | 3784 | 1874 | 0.75 | 316.2 | 1.2625 | 3.242 | 0.353 | 0.348 |
| <2> |

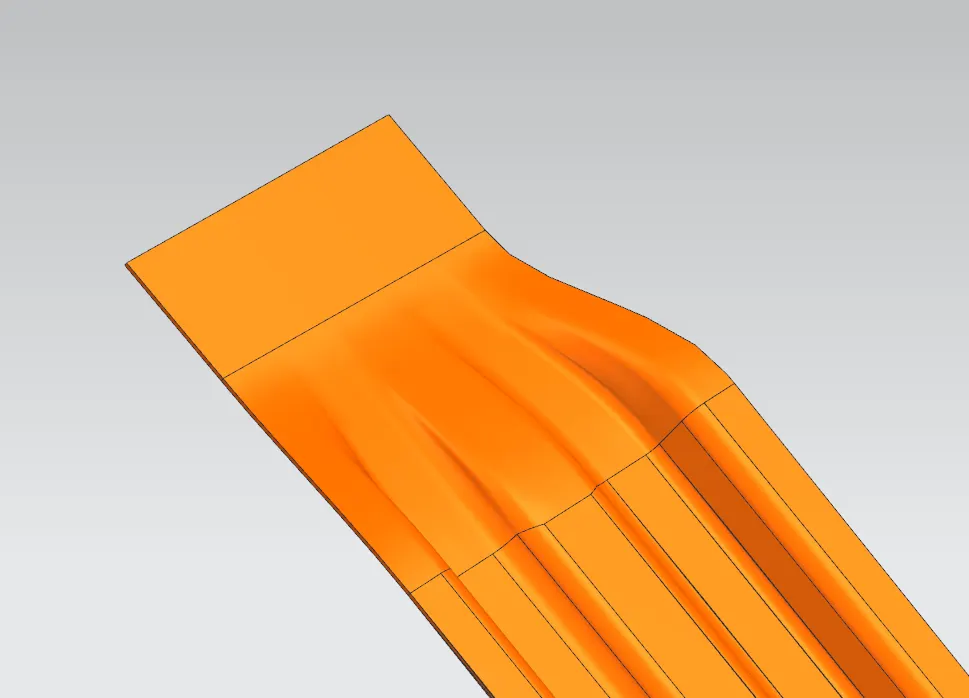

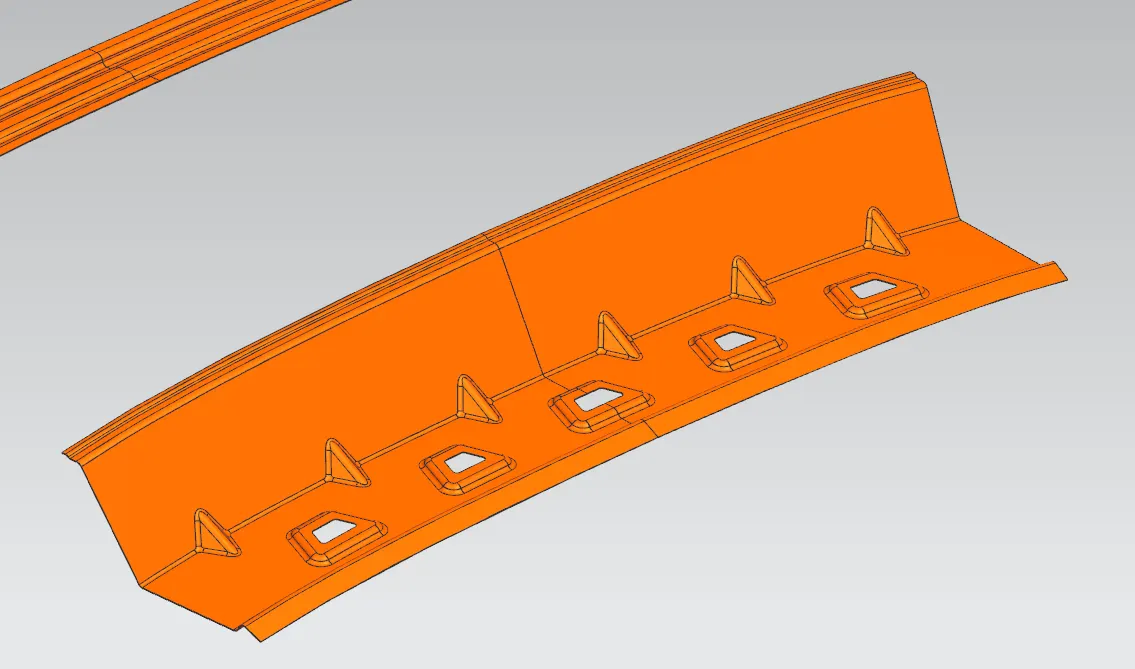

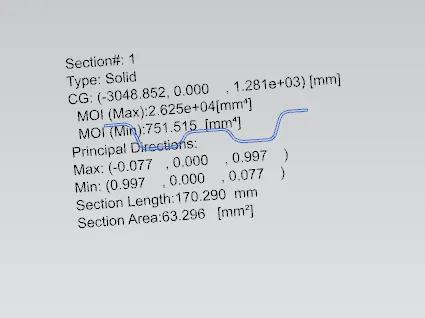

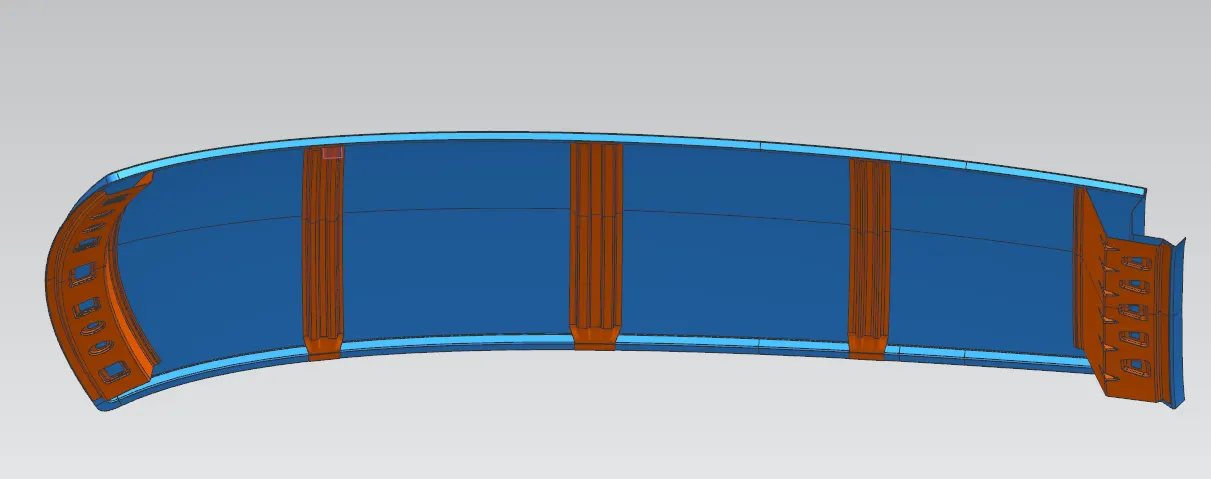

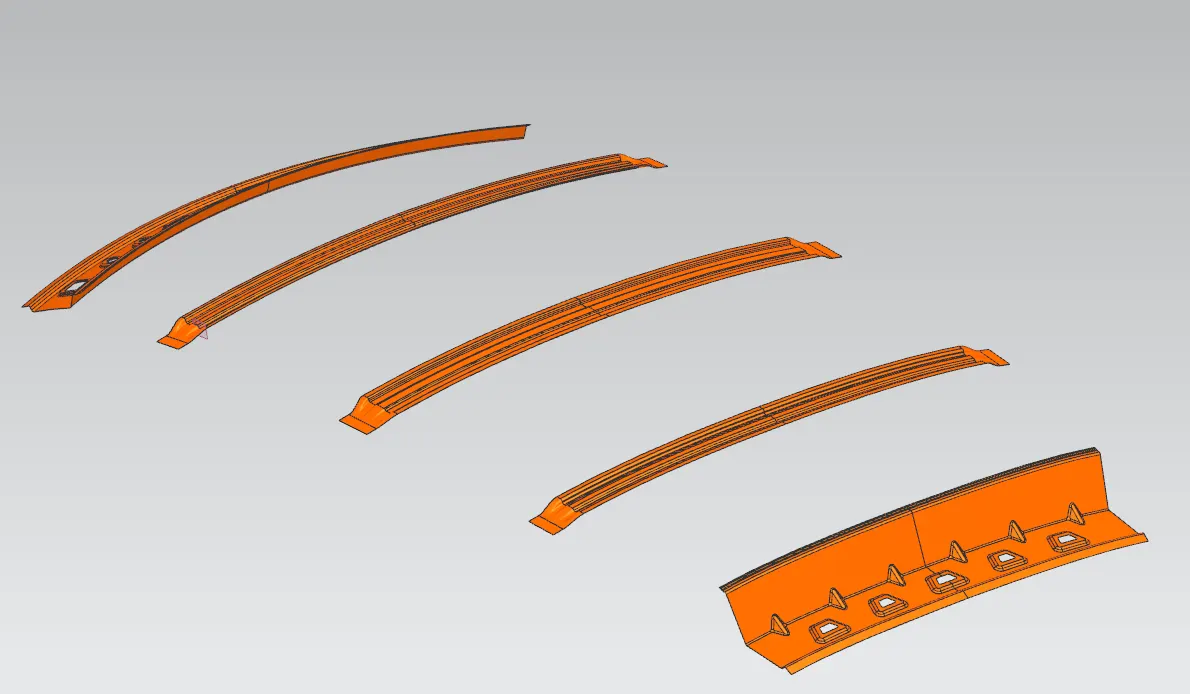

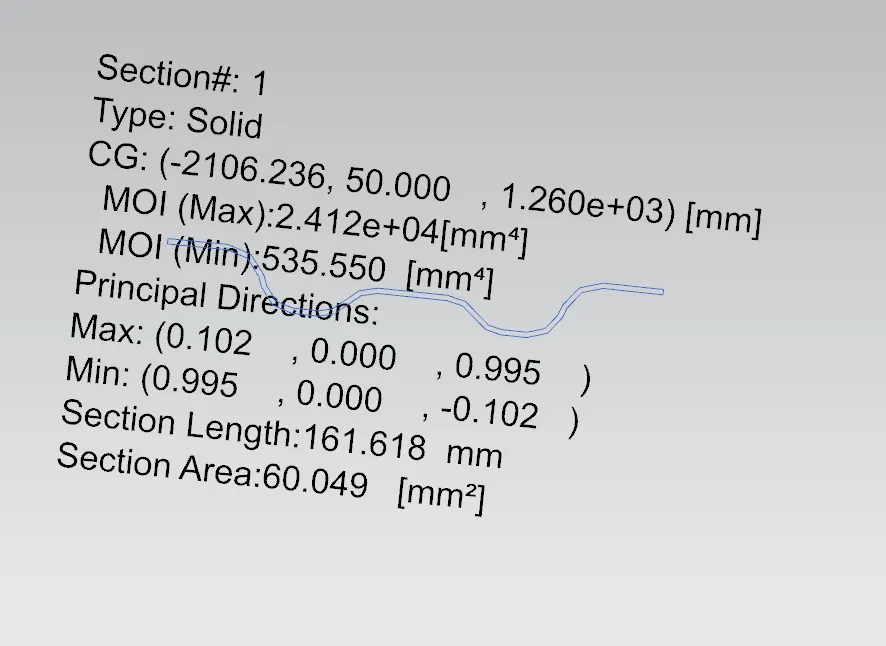

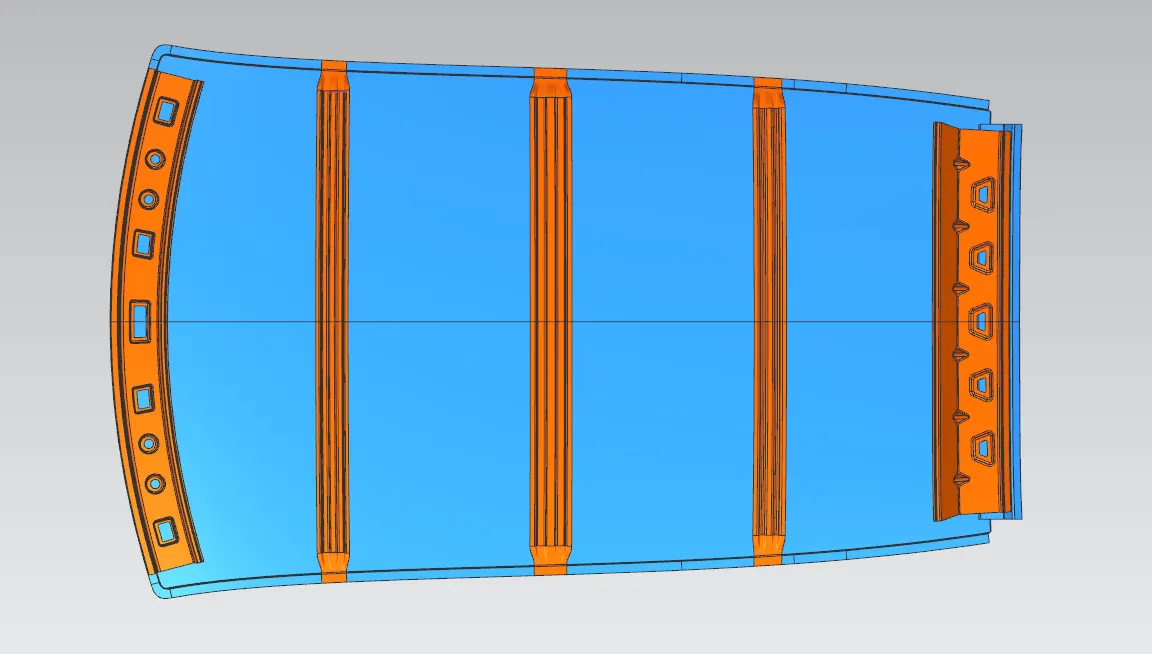

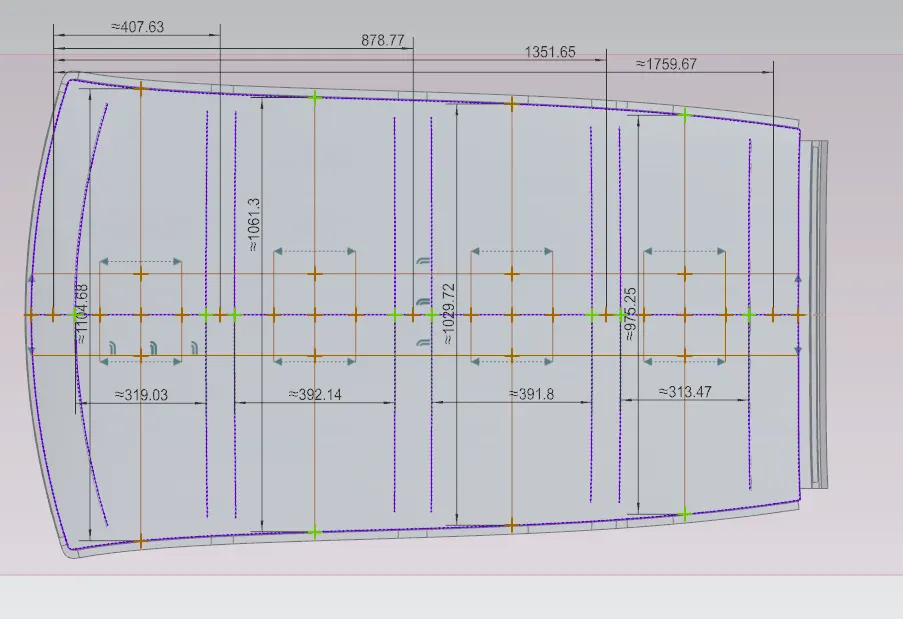

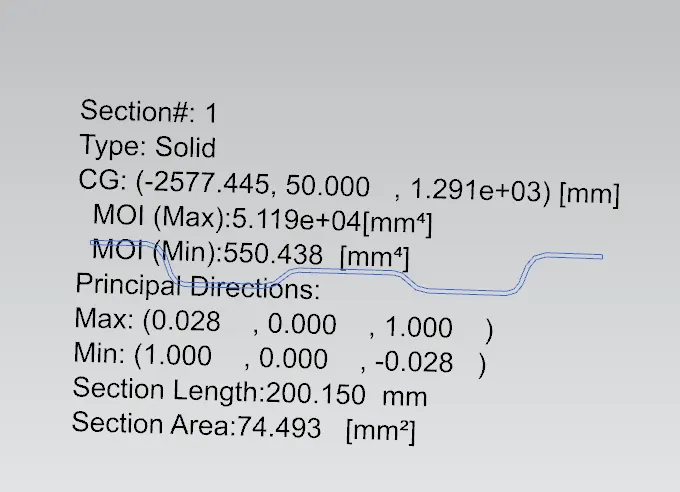

SNOW LOAD CRITERIA:
| Ly | Lx | My | Y | α | t | t*t | S | Rx | Ry | Iy | Qr | |||
| L1 | L2 | |||||||||||||
| CASE 1 | 1759.67 | 1104.68 | 551132.1 | 407.63 | 0.672556 | 0.75 | 0.5625 | 319.03 | 392.14 | 355.585 | 1835.27 | 2505.52 | 751.515 | 37.52412 |
| CASE 2 | 1759.67 | 1061.3 | 774108.5 | 878.77 | 0.871923 | 0.75 | 0.5625 | 392.14 | 391.8 | 391.97 | 4632.35 | 3206.9 | 550.438 | 5.896725 |
| CASE 3 | 1759.67 | 1029.72 | 551500.2 | 1351.65 | 0.584769 | 0.75 | 0.5625 | 391.8 | 313.47 | 352.635 | 6479.32 | 5196.2 | 535.55 | 4.286676 |
| CASE 4 | 1759.67 | 975.25 | 0 | 1759.67 | 0 | 0.75 | 0.5625 | 313.47 | 0 | 156.735 | 6478.05 | 7667.17 | #DIV/0! | |
| Qr>3.1 |
