Design of backdoor

                                                                                                                        TAILGATE DESIGN

                                                                                                                                                                              (NOTE: MAGNA STEYR TRAINING)

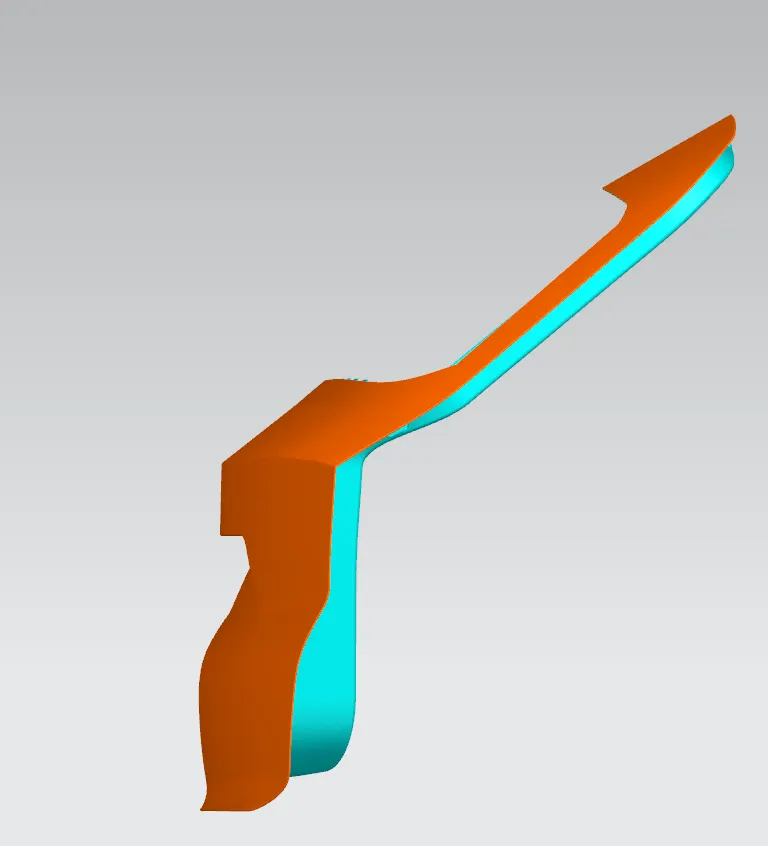

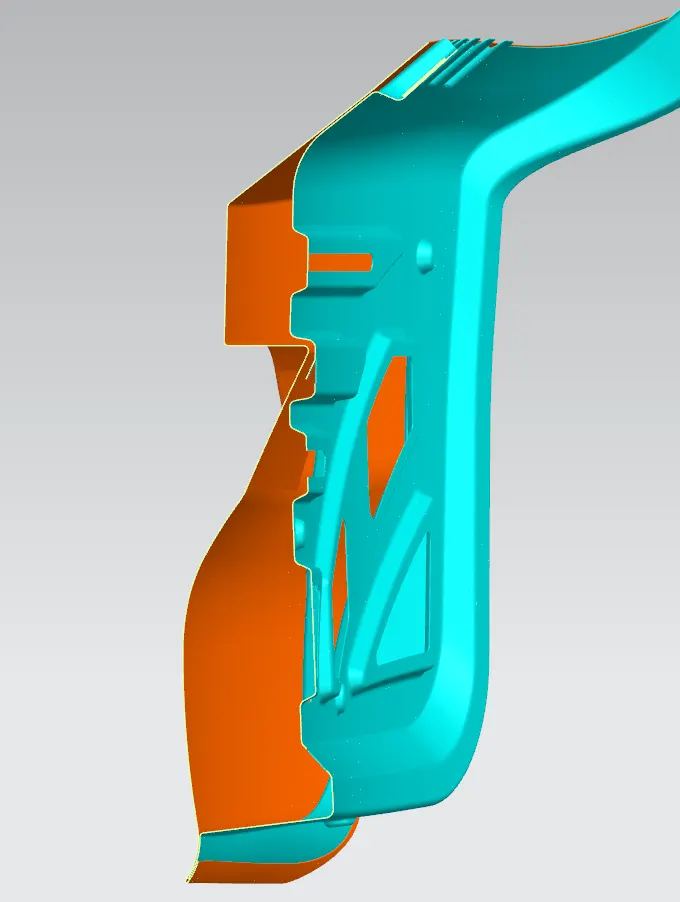

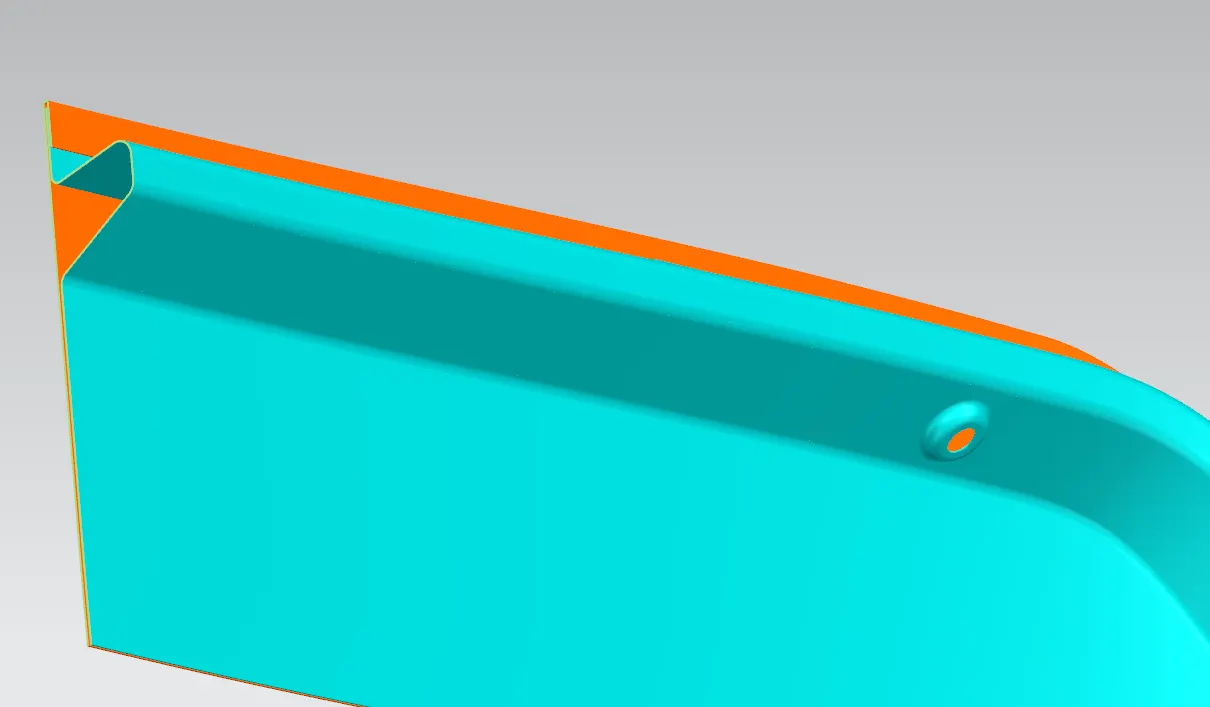

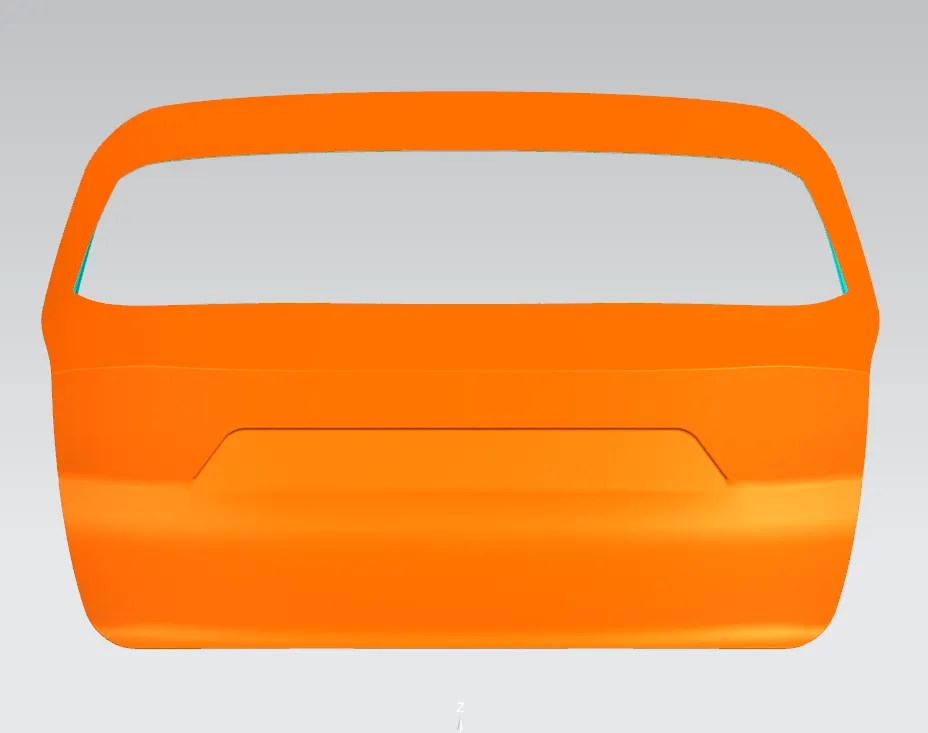

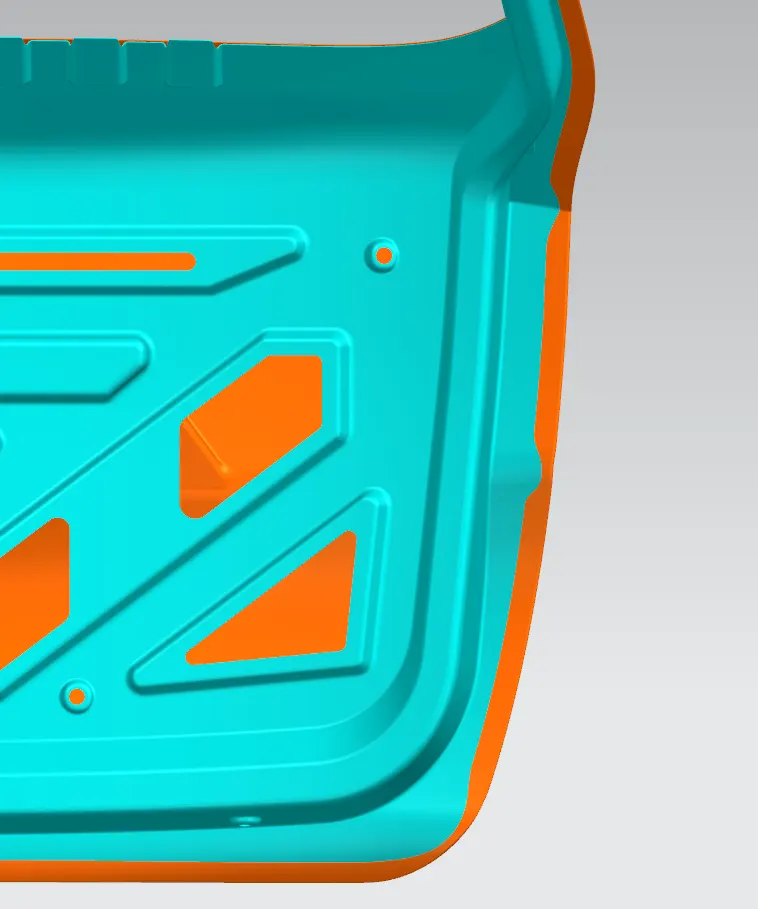

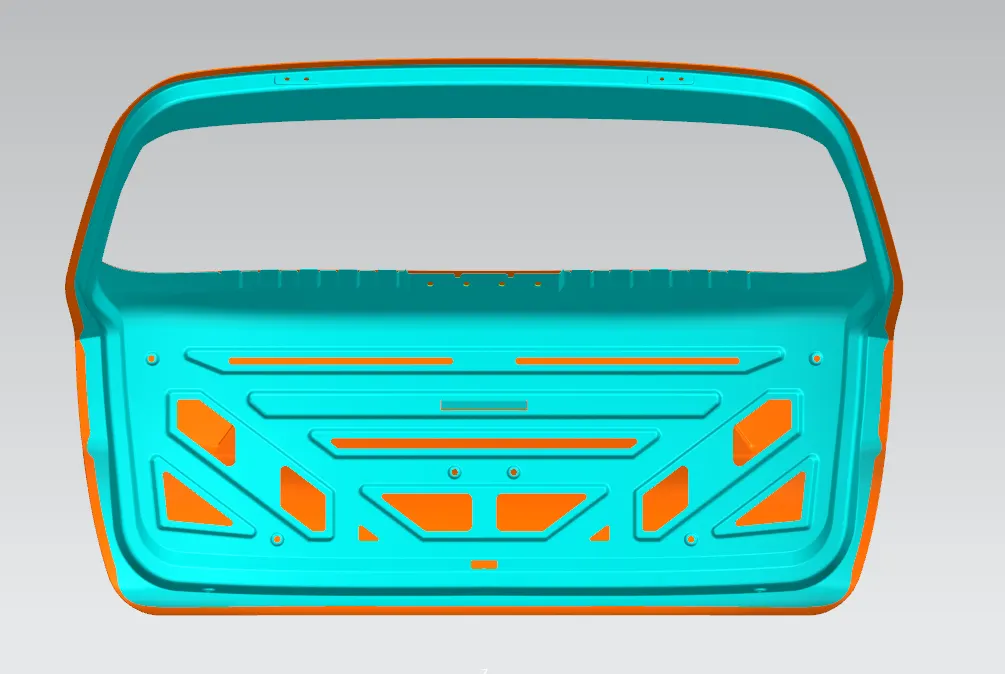

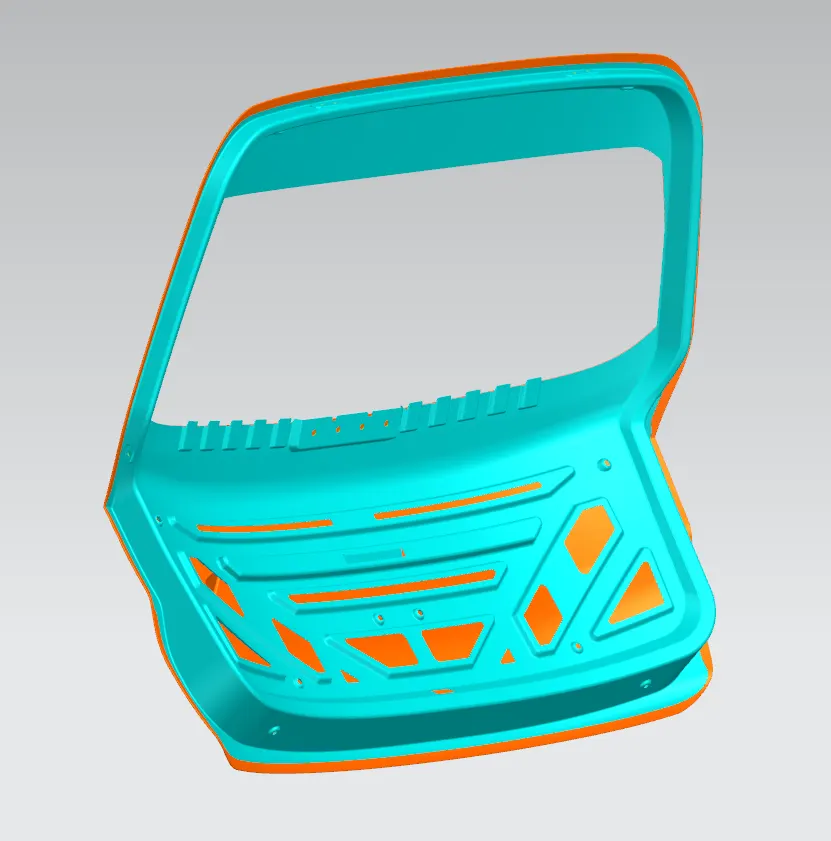

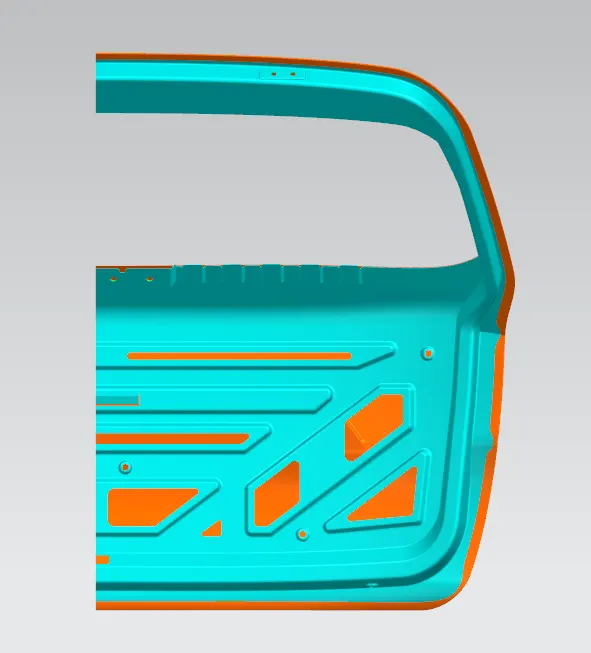

The parts include the rear door outer panel, rear door inner panel, mastic region, latch and striker reinforcement, wiper motor reinforcement, gas stay reinforcement, hinge reinforcement, and the hemming region



Rear door:







The manufacturing process of the rear door:

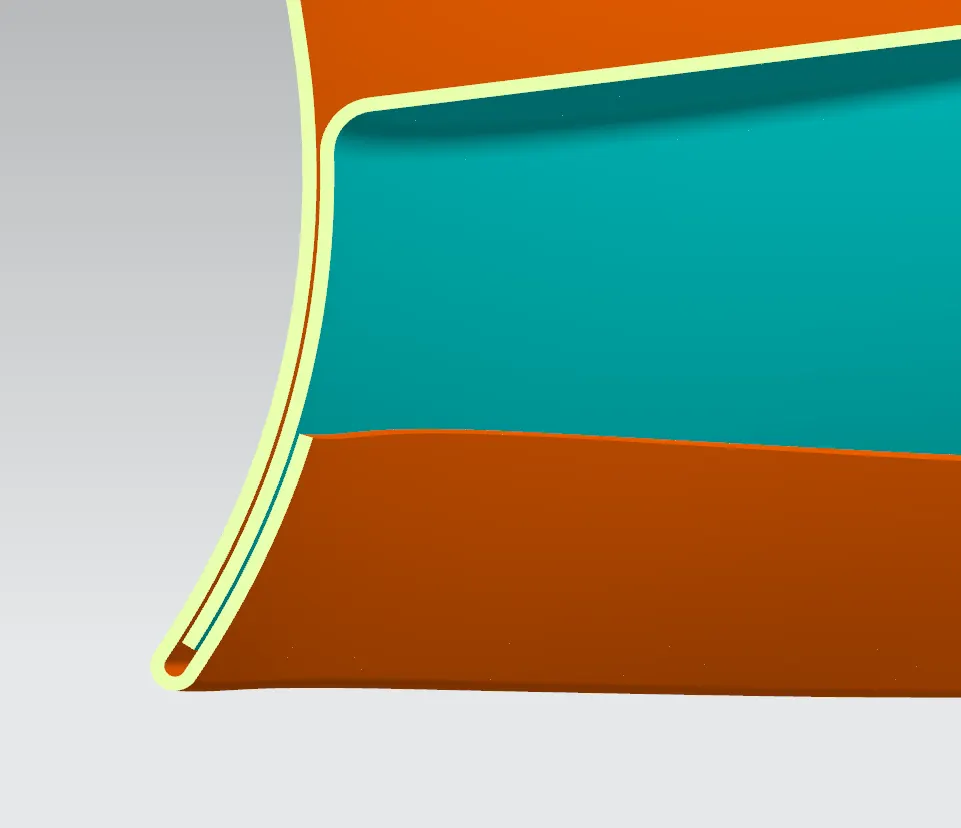

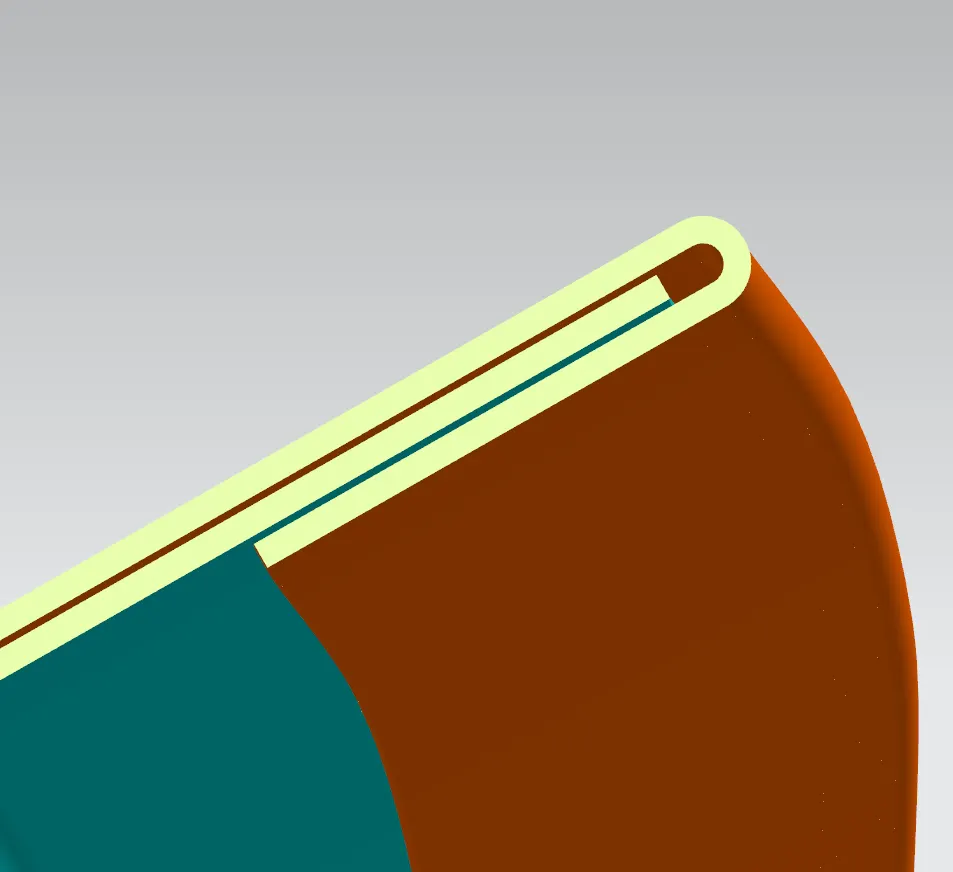

The rear door is manufactured by stamping and hemming. Stamping is the process of pressing the mold on a sheet metal surface to get the desired part and hemming is the process of joining of inner panel and outer panel. Hemming is done by bending and rolling the end of the outer panel to the inner panel. For stamping the draft angle of the part should be at 7 degrees, which is an optimal draft angle for sheet metal related products.



NOTE: THE INNER PANEL CAD PART IS ABOVE 20 MB AND I CAN'T UPLOAD IN THE BELOW BOX
