Introduction

The vital importants of this roof design is to show how the reinforcement roof bows are placed in it.

From the given master section of all individual roof parts all designed and explained below.

1. Outer Roof

From the provided 3d Data, all body parts are segregated by a feature group names as primary panel. And from the 3d data half of the roof surface has been extracted and named in a feature as Outer roof guide.

By reading the master section with the given dimesions and by the features law extension, offset surface, trim & extend, Trim sheet blend and thicken surface features the proper outer rood and its rear structure are also designed. Eventually the surface has been thickened and mirrored.

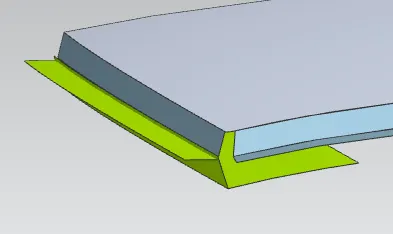

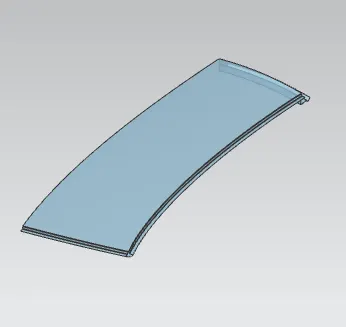

outer roof Sheet body After thicken surface

2. Front row roof

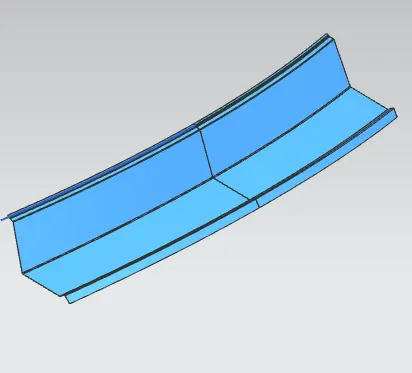

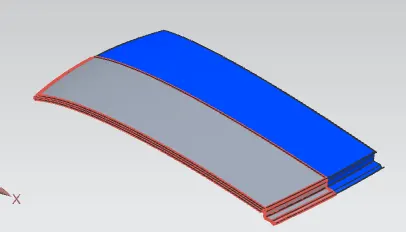

by offsetting the outer roof surface according to the master section dimensions the complete front roof was executed. Features are grouped as Front roof rail.

Eventually the surface has been thickened and mirrored.

3. Bow Row 1 & 2

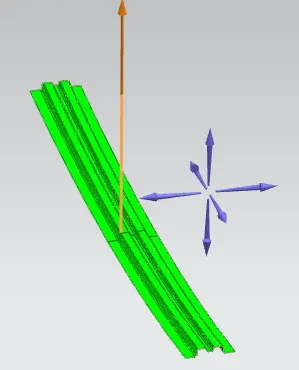

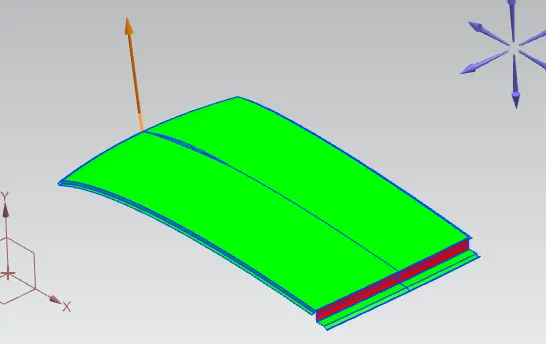

the same way what I have done in Front roof by offsetting the outer roof surface according to the master section dimensions the complete front roof was executed. Features are grouped as Bow roof. Eventually the surface has been thickened and mirrored.

4. Center Roof

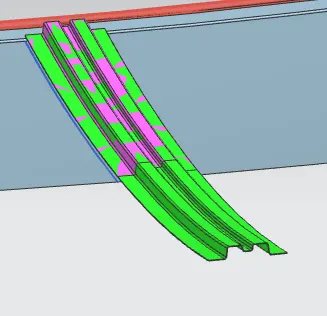

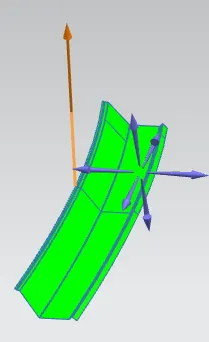

The same procedure has been followed to create the `W` alphabet letter sructured center roof. By offsetting the outer roof surface according to the master section dimensions the complete front roof was executed. Features are grouped as Center roof. Eventually the surface has been thickened and mirrored.

5. Rear Roof

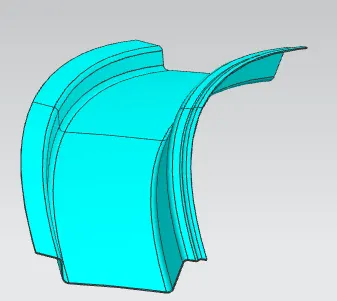

The process is the same I did for previous center roof and features and it has named Rear roof feature group.

By offsetting the outer roof surface according to the master section dimensions the complete front roof was executed. Features are grouped as Rear roof. Eventually the surface has been thickened and mirrored.
