Roof Design
ROOF DESIGN
INTRODUCTION : Automobile roof is the upper portion of an automobile which protects the passengers from sun, wind, rain. Various environmental conditions are taken into account for designing of the same. Even though it serves as styling surface roof should be provided with proper reinforcements for safeguarding passengers. Vehicle roof are vulnerable to high heat conditions & moderate load during snowy conditions.Heat load calculation & snow load calculation are done to get a proper design of roof rails. This ensures the safety of the passengers in the vehicle.
OBJECTIVE
The main objective of the project is to design a roof and associated reinforcements from the existing styling surface. heat load and snow load calculations will be done on the section of the roof for validating effectiveness of roof reinorcement.Perform the draft analysis for each reinforcements to asses the manufacturability.
DESIGN PARAMETERS
For designing roof we have to create no of roof rails for enough strength to withstand the load. Bow roofs are primarily fixed in flatter region to enhance strength. Front roof and rear roof rails are fixed to the ditch area using spot weld operation. And front, rear bow roof and center roof rails are fixed to roof using mastic sealants. Gap between roof rails and bow roof should be less for Better NVH. Following criterias are taken into account for roof rail design.
-
Visibility criteria
-
Head clearance
-
Curvature study
-
Hear distortion and snow load criteria
-
Draft analysis
Master sections :These are the crosssectional data for 3D model. These master sections are widely used in OEMs and in automotive industries to convey the functional requirements of product to the design engineer. It gives the parameters like length, width, height, radius and clearance should be considered while designing the particular part or component.
FRONT ROOF RAIL

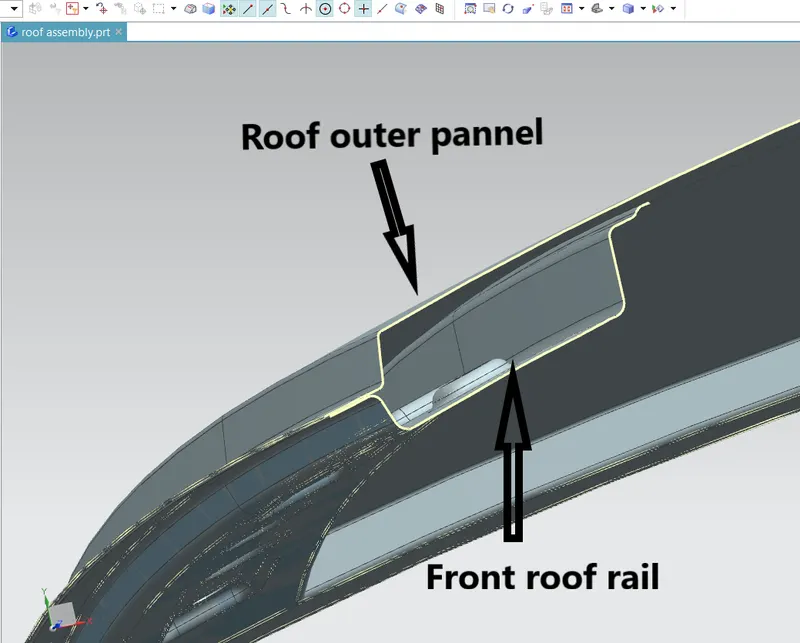

The front roof rail is used as the reinforcement to the roof surface to increase the strength and also used to mount the brackets for some features such as room lamp and rear view mirror. The width of the front roof rail is decided based on the visibility criteria. The depth of the front roof rail is decided in such a way that there should be enough headroom clearance between the head of the driver and the end surface of the roof rail to avoid clostrophobic efffect to the person.

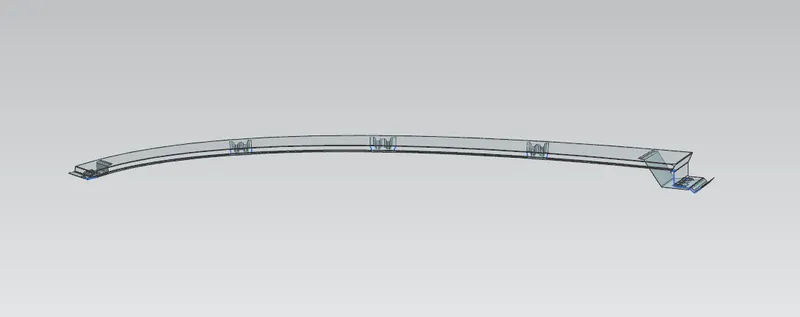

front roof design as per master section
CENTER ROOF RAIL
Center roof rail imparts strength for the center portion of outter roof pannel which is supported by B pillar at both ends.

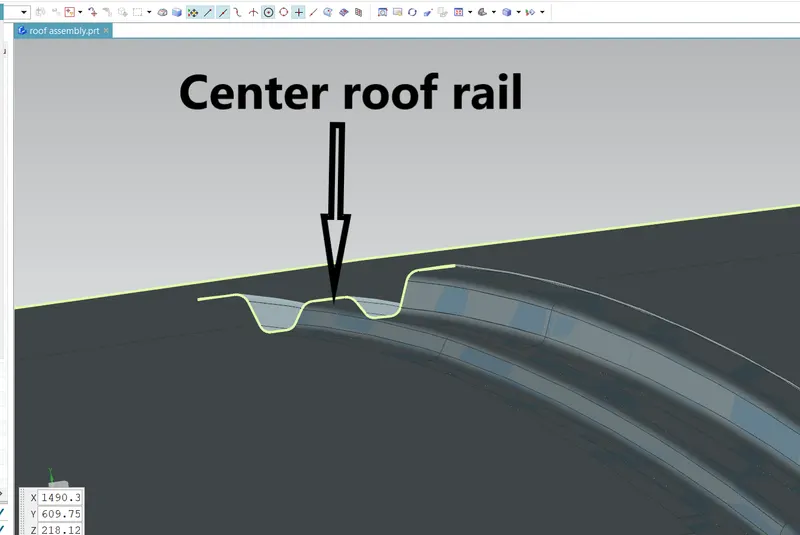

Center roof rail as per master section
BOW ROOF RAILS
These are used between center roof rail and front roof rail or center roof rail & rear roof rail to impart additional support. The number of bow roof rail depends on the length of roof pannel.

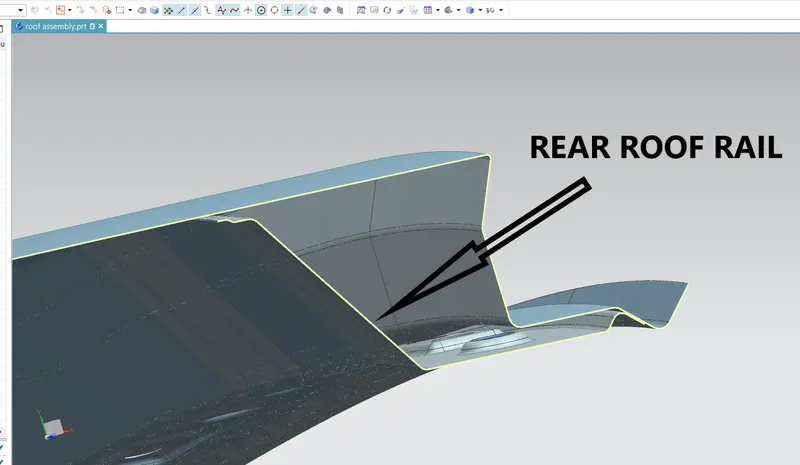

REAR ROOF RAIL
It is the reinforcement provided at rear side of the roof panel. Backdoor and bodyside panels are attached with this part.Provision for back door opening is also provided on rear roof rail.
DRAFT ANALYSIS

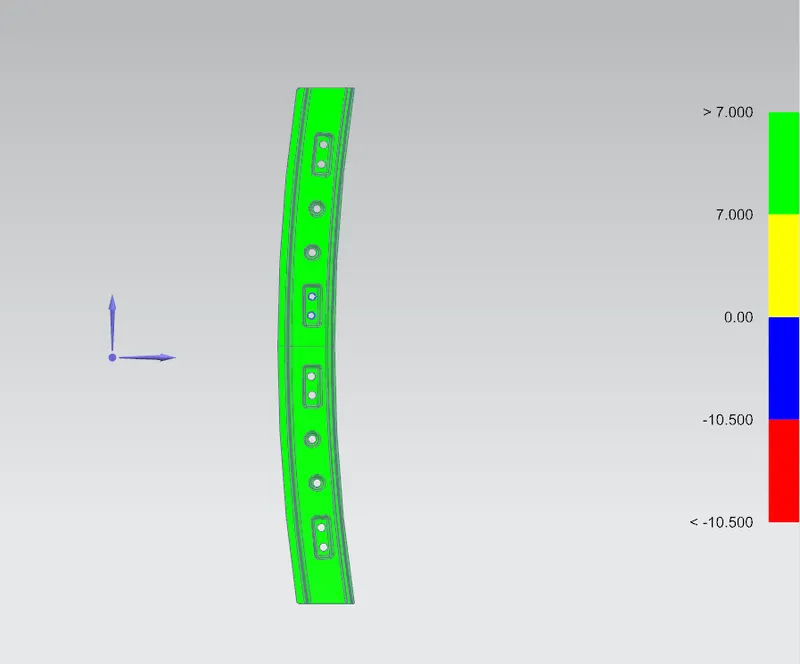

- DRAFT ANALYSIS OF FRONT ROOF RAIL

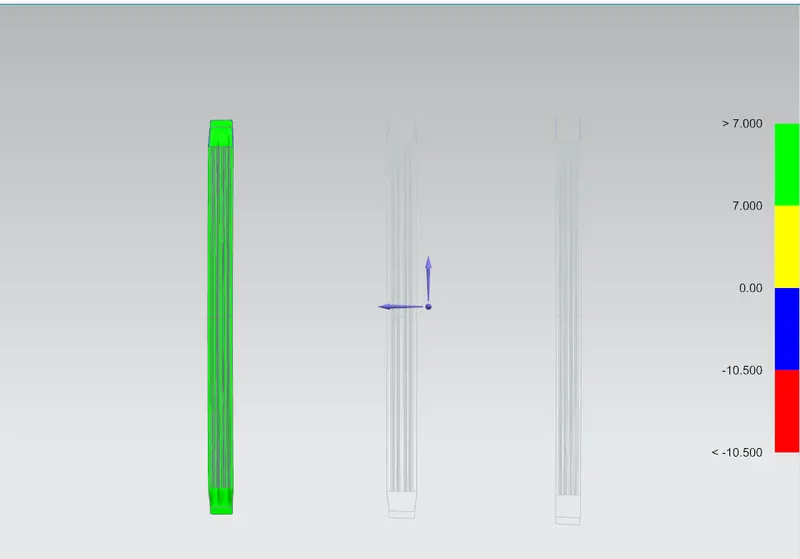

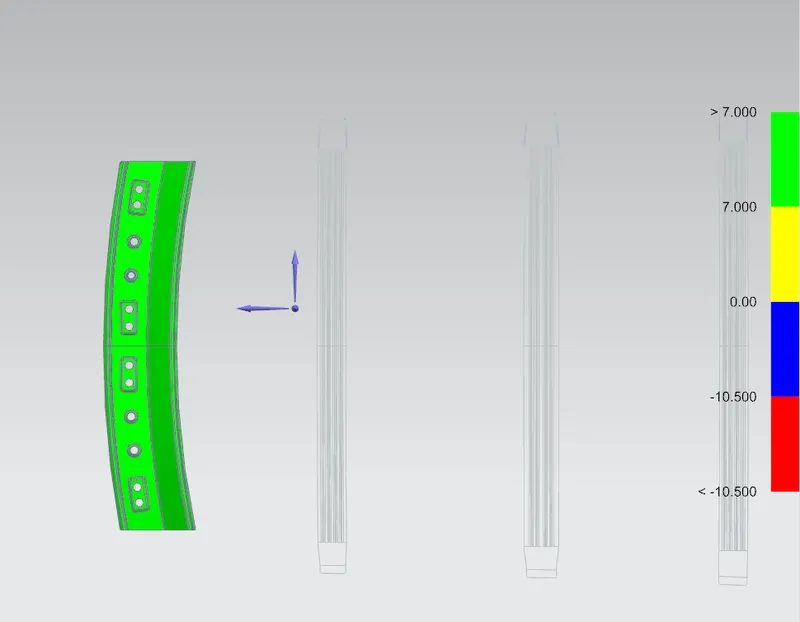

- DRAFT ANALYSIS OF CENTER ROOF RAIL

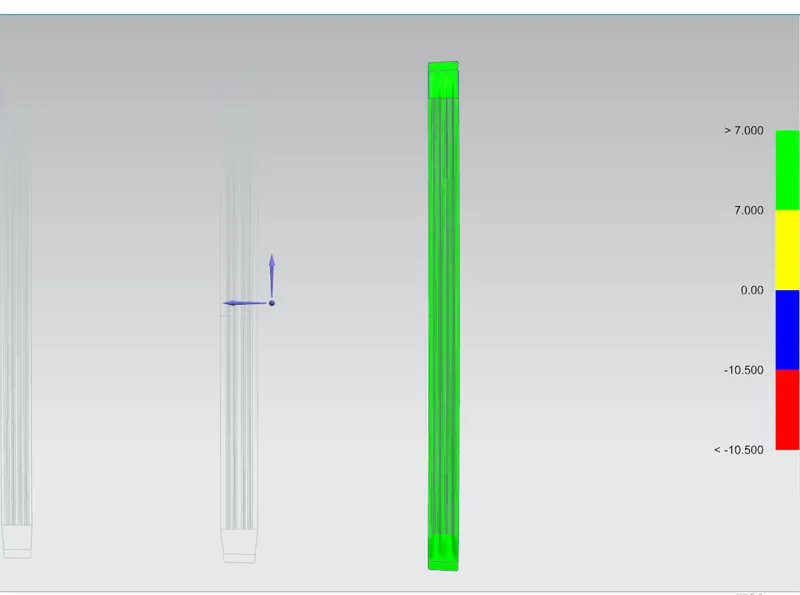

- DRAFT ANALYSIS OF BOW ROOF RAILS

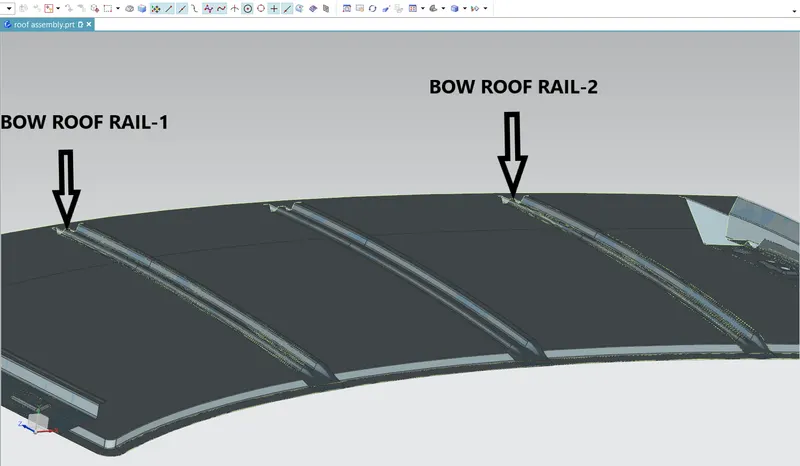

BOW ROOF RAIL-1
BOW ROOF RAIL-2

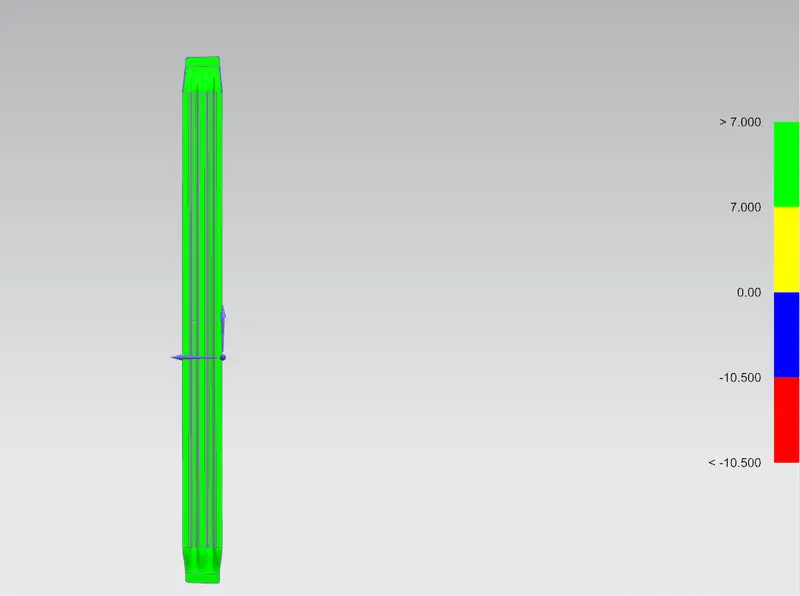

4.DRAFT ANALYSIS OF REAR ROOF RAIL

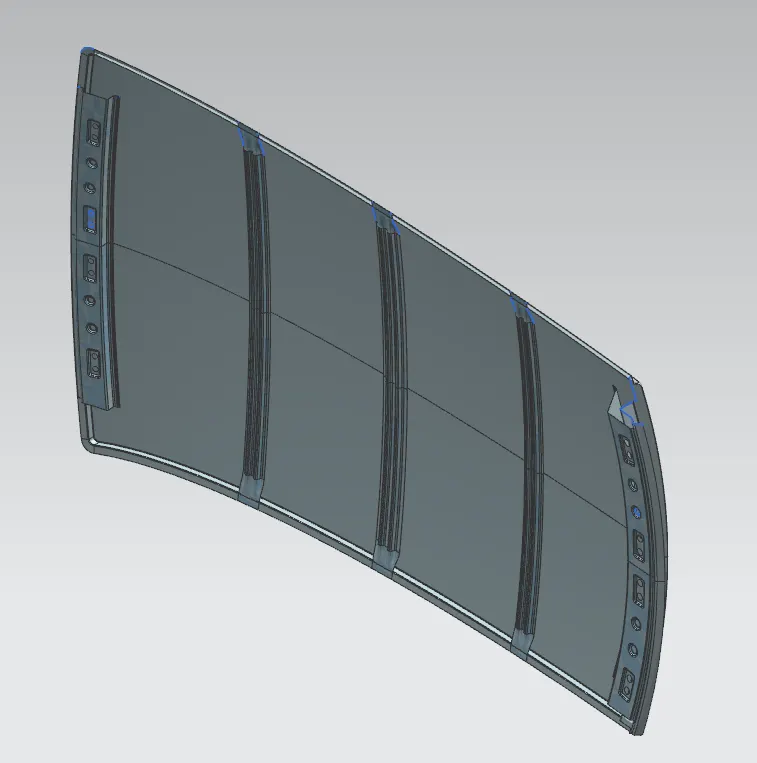

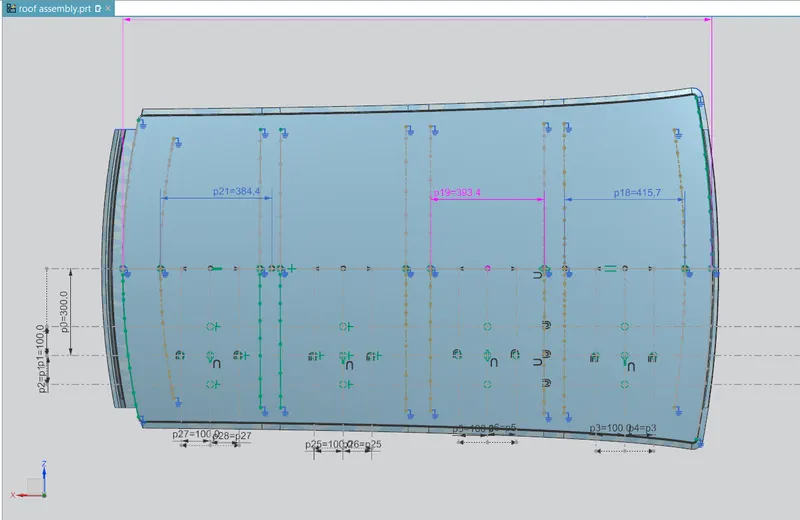

FINAL ASSEMBLY
HEAT LOAD CALCULATION
The heat distortion study plays an important role in Sheetmetal application. Heat distortion is temperature limit above which material cannot be used for structural application. This study is useful to find where the material starts to soften when exposed to a fixed load at elevated temperature. In order to avoid the bending, damage of the roof based on the heat distortion temperature.This study will help to locate the position of the bow roof rails to give enough strength.

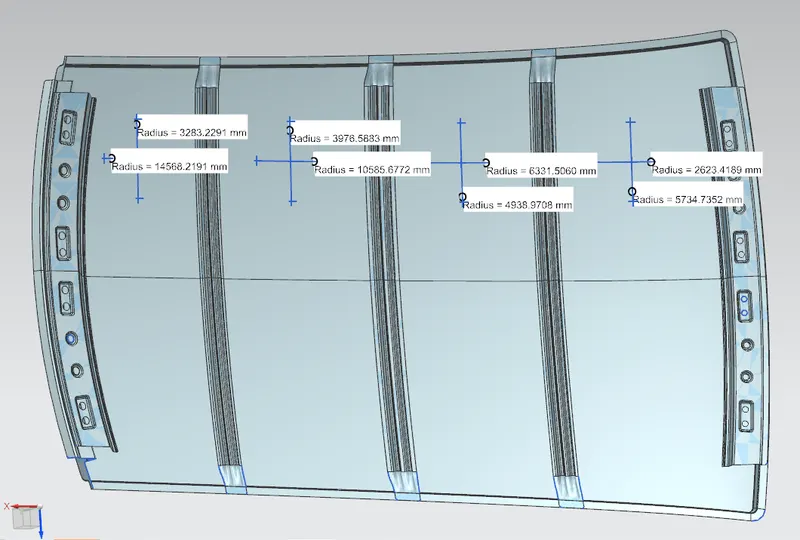

Bow – roof prediction Formula
W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68
Where
L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)
R = Roof curvature
R = 2(Rx*Ry)/(Rx+Ry)
Rx = X curvature
Ry = Y curvature
t = Roof plate thickness [mm]
l = Bow Roof Span [mm]
Judgement Condition : W<2.7
CALCULATIONS

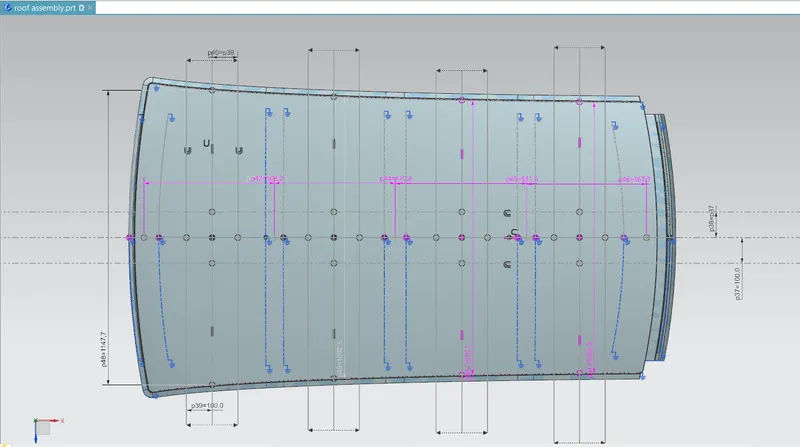

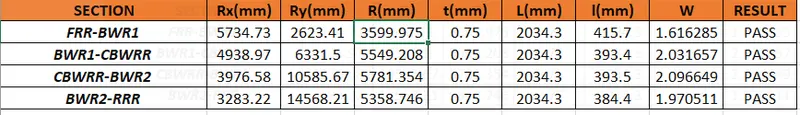

From the above table it can be concluded that all values of 'W' is less than 2.7,which implies the position of roof rails are as per standard.
SNOW LOAD CALCULATION

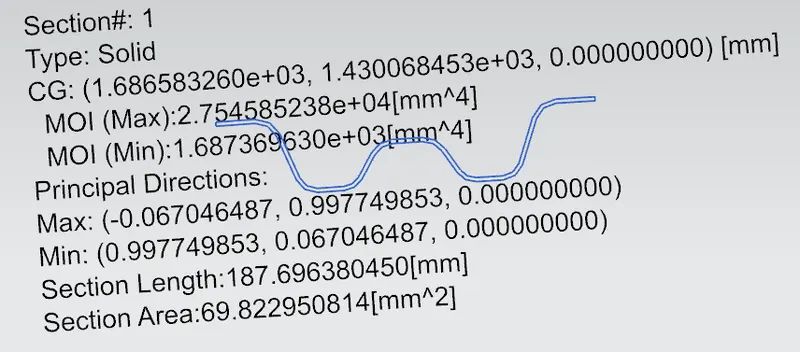

Snow load criteria study is used to check the durability of the roof to withstand the snow fall on the roof and reflex it is original shape without any permanent deformation after load being removed.
Qr = [Iy x t2] / [α x s x [(Rx + Ry)/2]2 x 10-8]
Where
α = My x Lx2 x 10-12 , My = Y(Ly-Y)
Judgement condition = Qr ≥ 3.1
250 ≤ s ≤ 380
t = Roof plate thickness [mm]
Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]
Length of Roof panel with the center point between Roof rail Front /Rear as the reference point of the front and the rear.
Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]
Width of the roof panel exposed on the surface.
Y = Distance front Front Roof Rail to Roof BOW[mm]
s = Distance for which Roof BOW bears divided load [mm]
s = L1/2 + L2/2

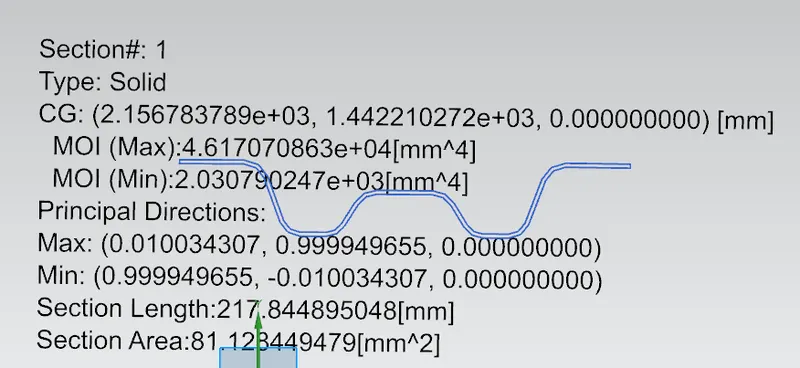

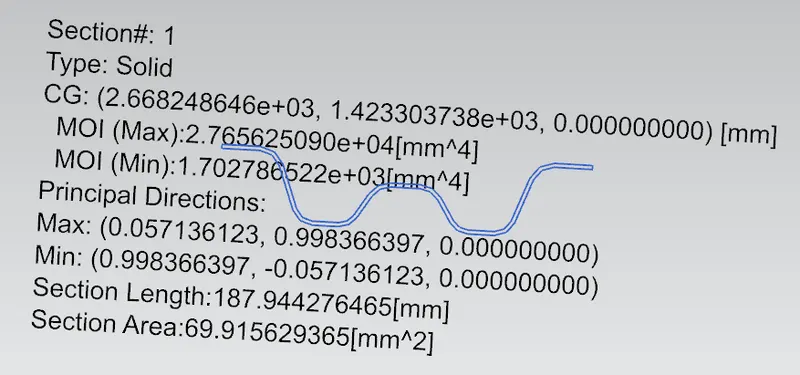

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

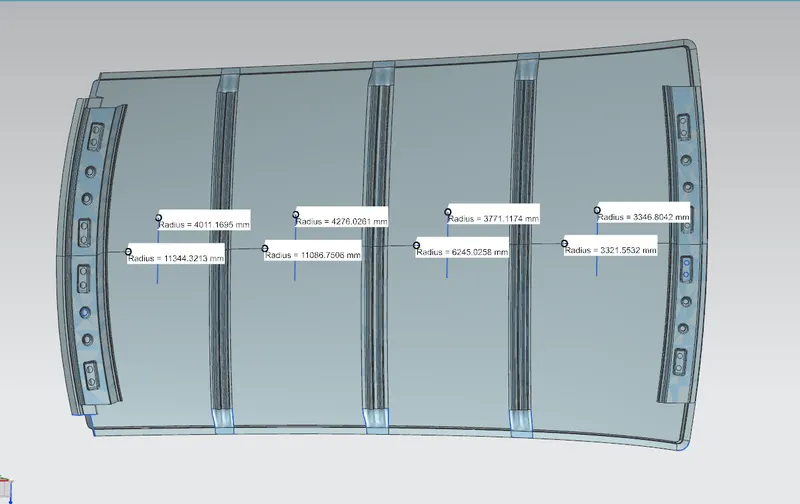

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]
Roof panel curvature Radius of the Length Lx in Front view
Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]
CALCULATIONS
From above calculations the value of 'Q' obtained is always greater than 3.1

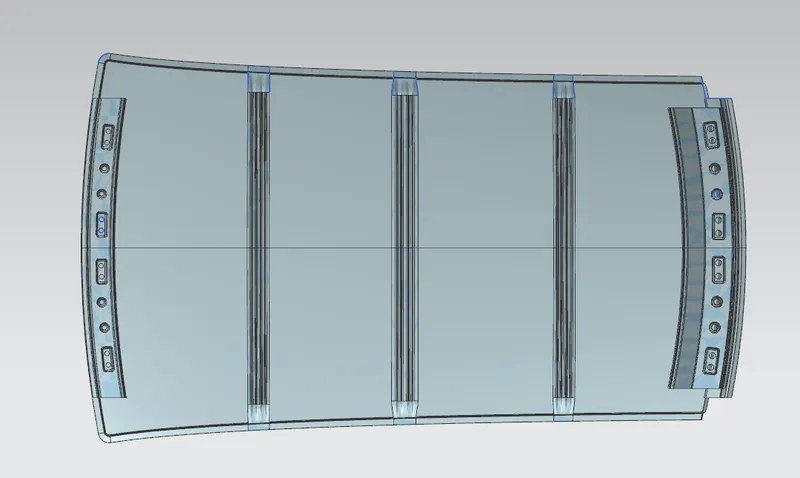

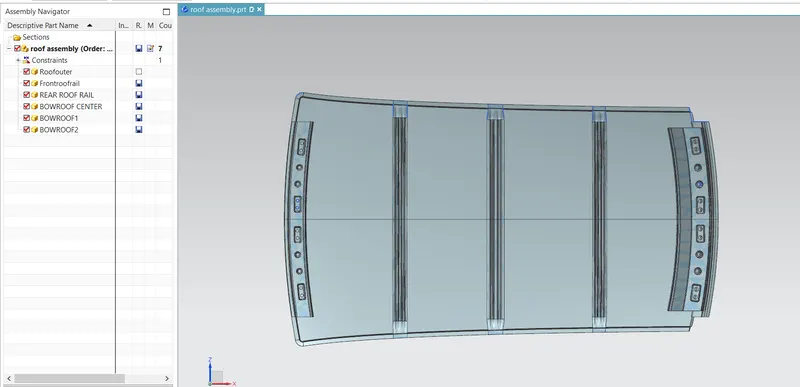

ROOF ASSEMBLY
CONCLUSION
Design of roof was succsessfully completed using SIEMENS NX as per the given master sections.The position of bow roof rails are as per the given standards.Draft analysis & section analysis ensure the manufacturability of every components.
