Roof Design

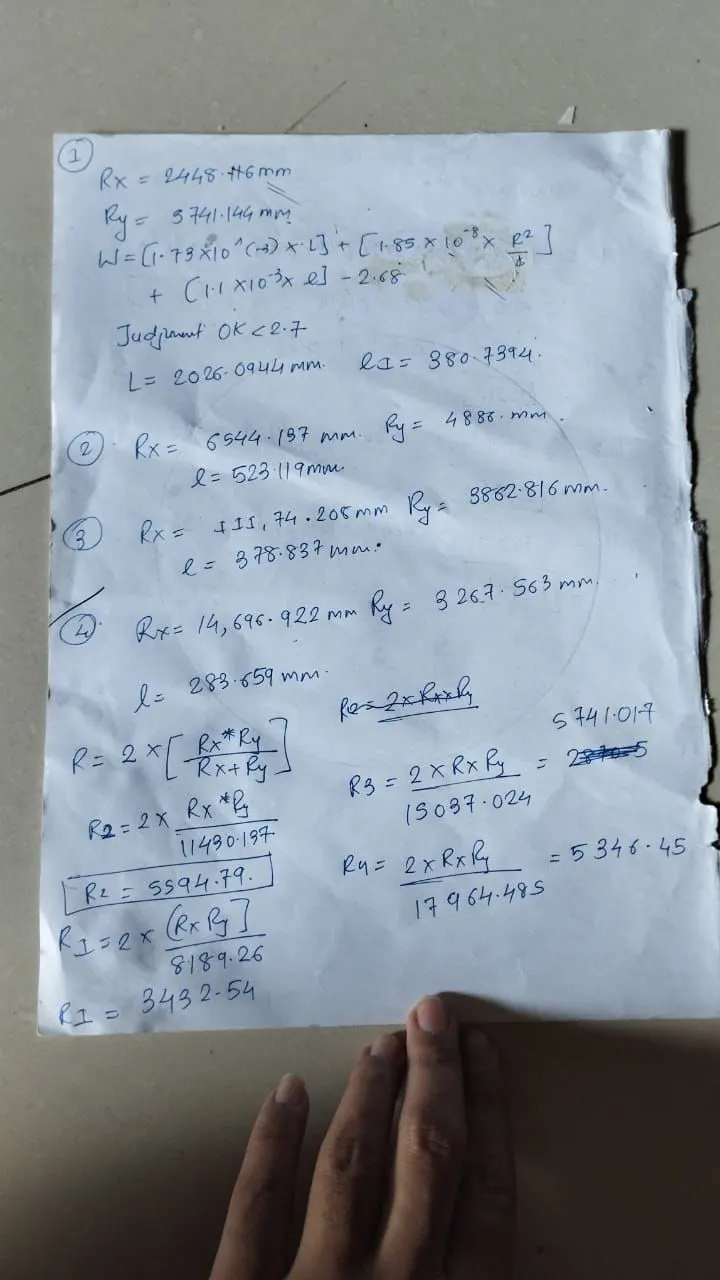

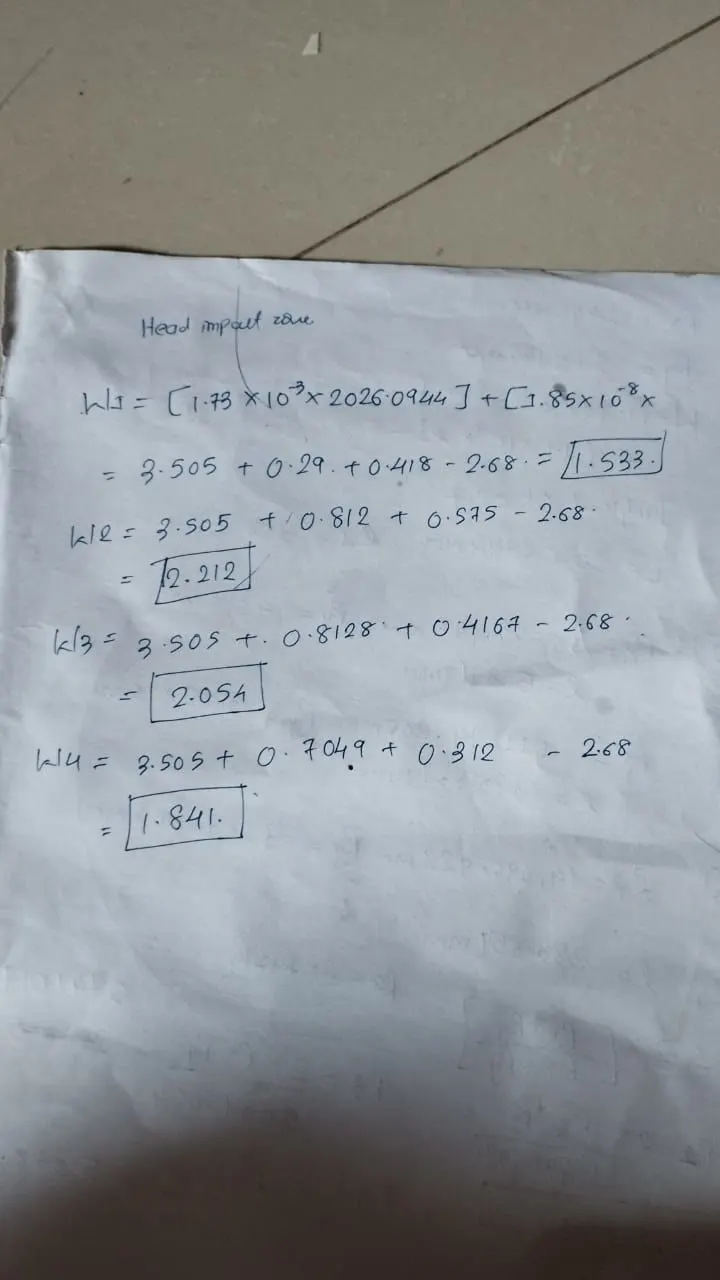

Heat load calculations values :

W1 = 1.533

W2 = 2.212

W3 = 2.054

W4 = 1.841

all values are below 2.7 hence all the regions are valid to sustain the heat loads.

Heat Load calculation Page 1 :

Page 2 :

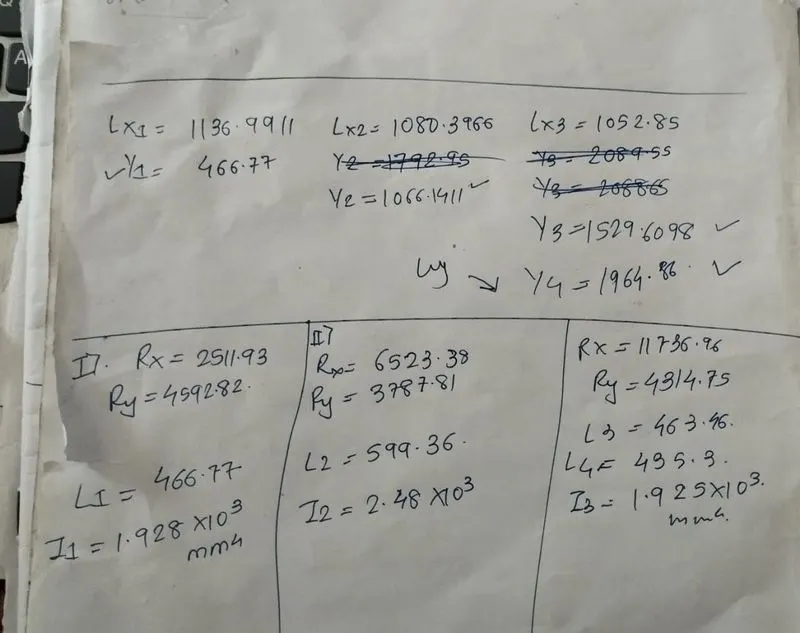

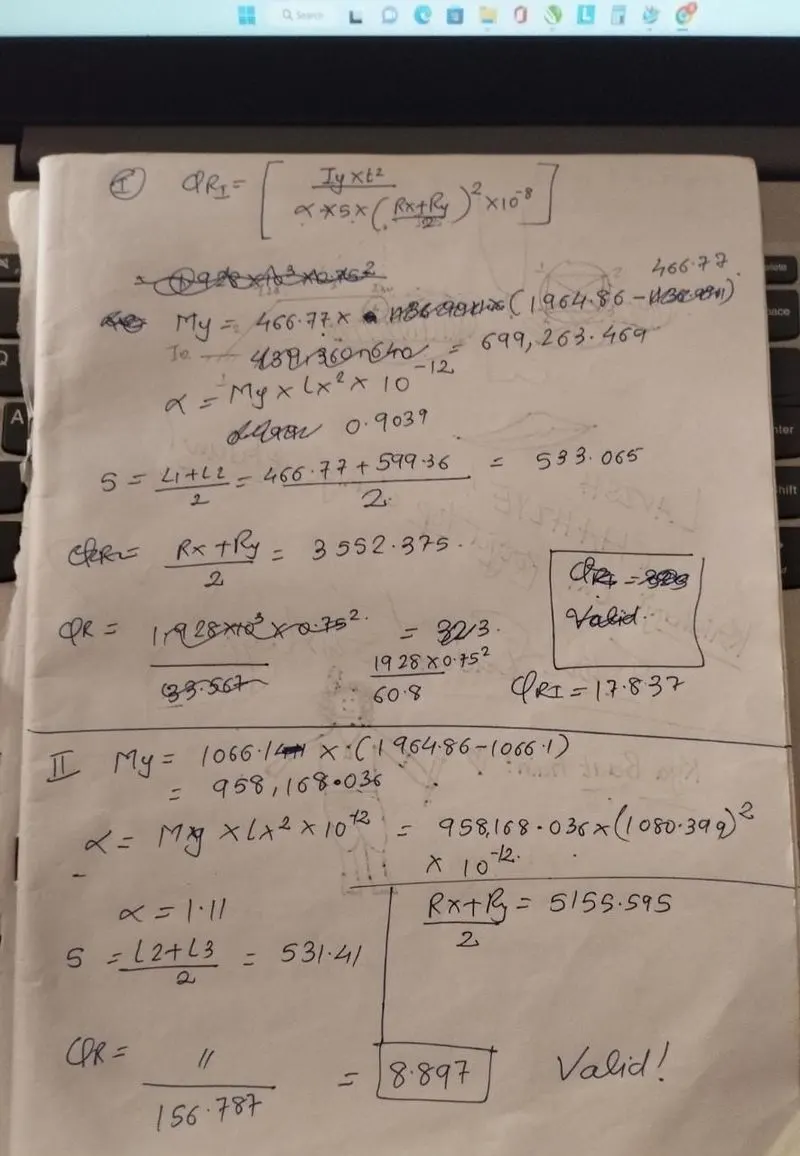

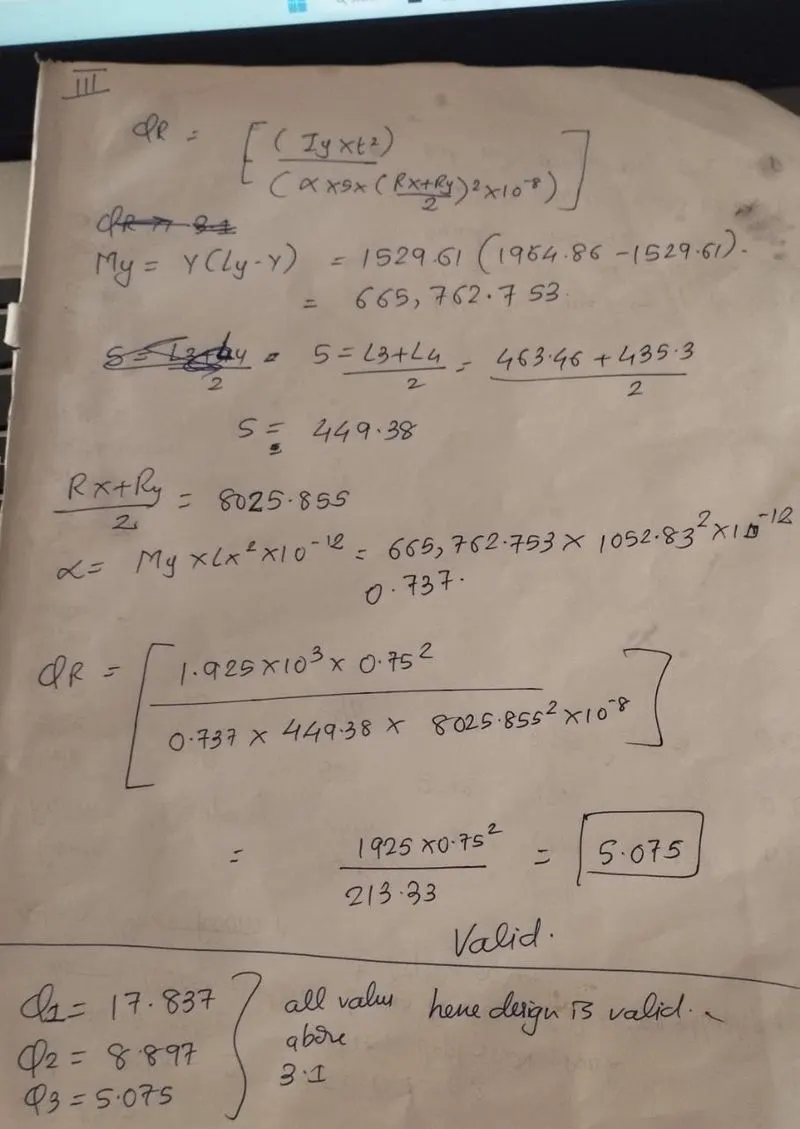

Snow Load calculations :

Q1 = 17.837

Q2 = 8.897

Q3 = 5.075

Q4 = infinity

all the values are above 3.1 hence all the regions are valid to sustain slow loads.

page 1 :

page 2:

page 3 :

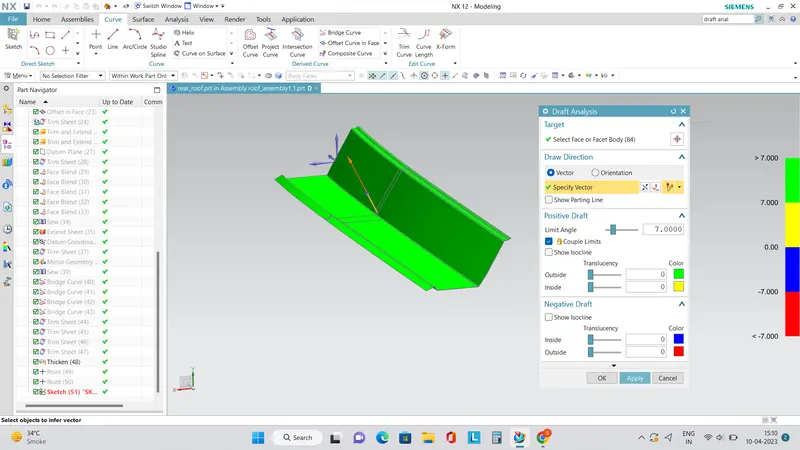

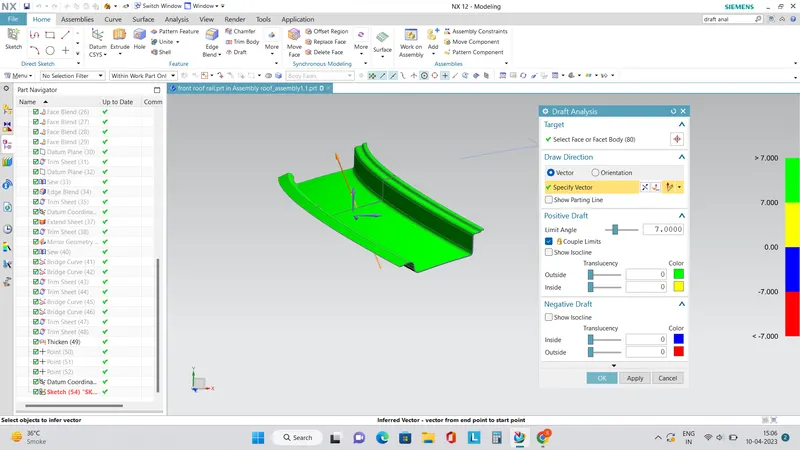

Draft Analysis :

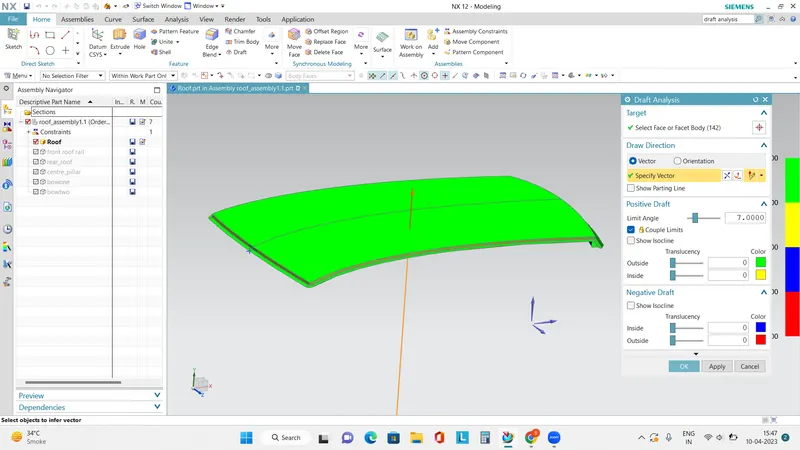

1) Outer Roof :

2) Front roof :

3) Rear Roof :

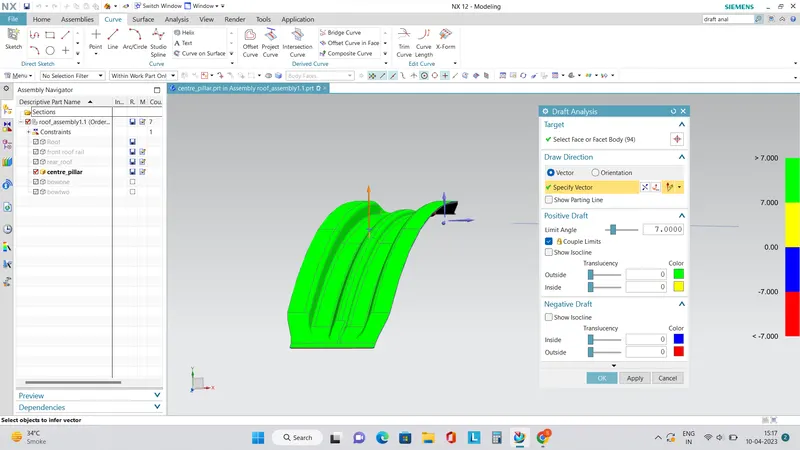

4) Centre roof :

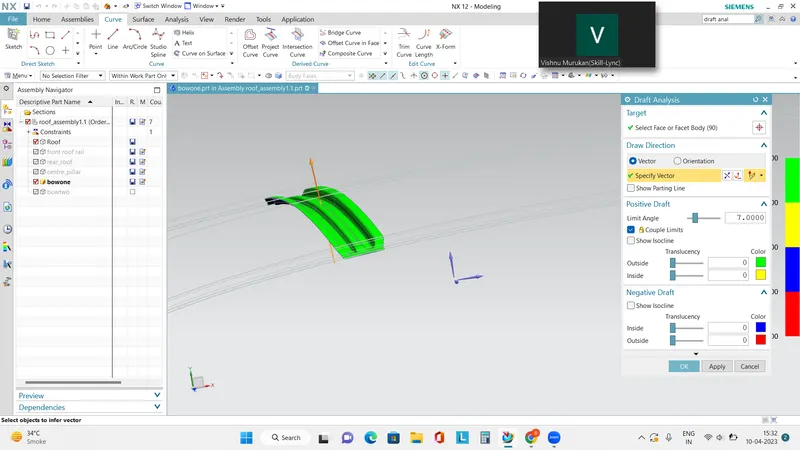

5) Bow roof one :

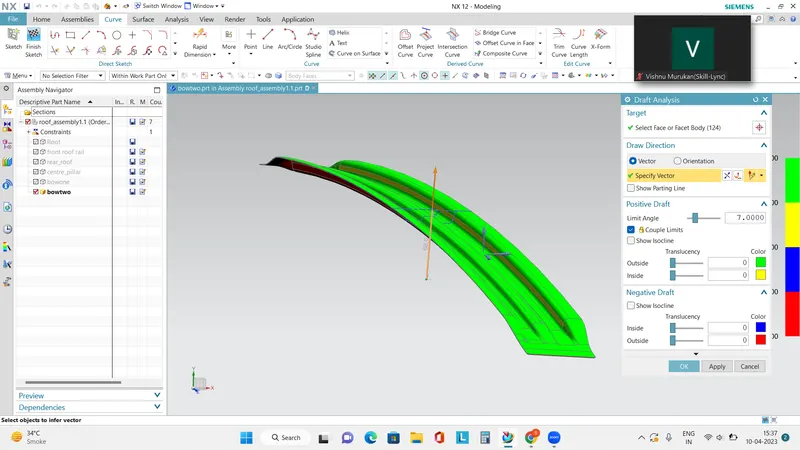

6) Bow roof two :

Different manufacturing process are :

Stamping, Punching, Laser cutting, Hydroforming, Bending.

Joining process are :

Mastick, Spot welding, Seam Welding. We mostly use spot welding.
