Roof Design

OBJECTIVE:

For the given roof styling, develop the essentials flanges and reinforcements, provide appropriate dimensions and check for draft analysis and to perform roof curvature study using NX-CAD

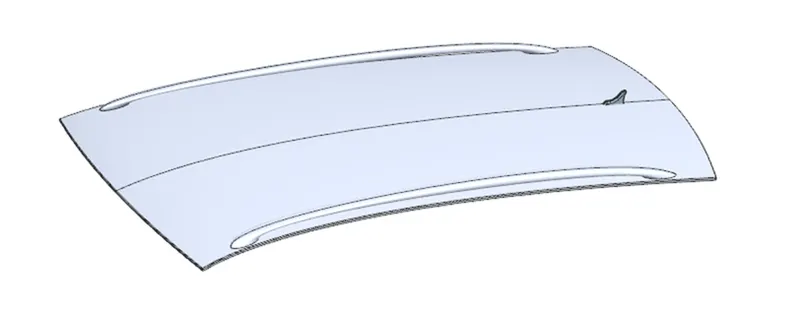

Roof

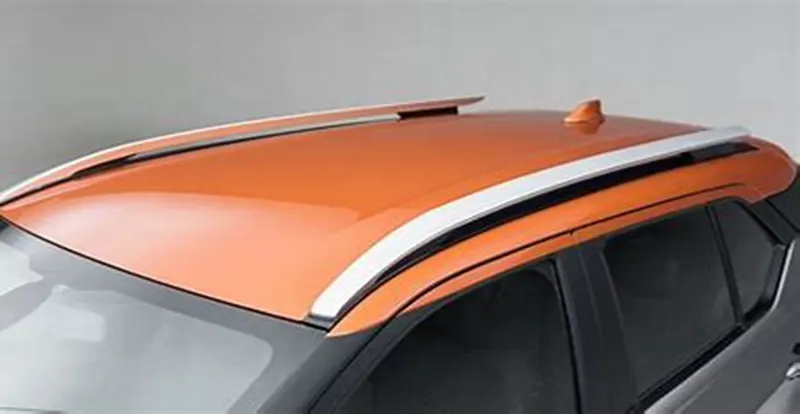

An automobile roof is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements.

Factors which is considered before creating Ditch area,

• Headroom clearance
• Visibility criteria
• Back door assembly
• Windshield assembly
•

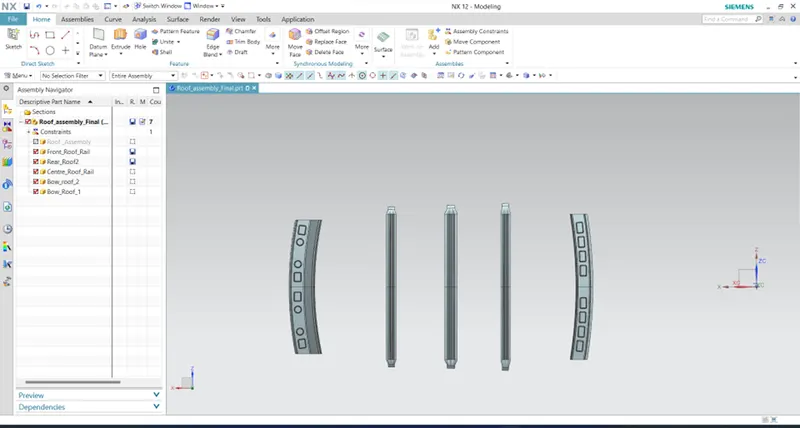

Components of roof:

• Front roof rail
• Rear roof rail
• Bow roof
• Centre roof rail
• Ditch area

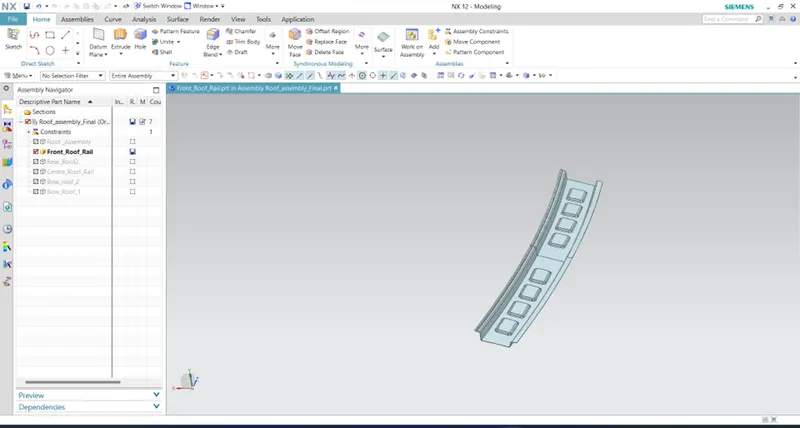

Front roof rail is used to provide strength to the roof panel front and it also acts as link between windshield glass, roof panel and headliner. Spot welds are applied at wind shield end of the rail and the other end is joined with roof using mastic sealent which also increases the strength.

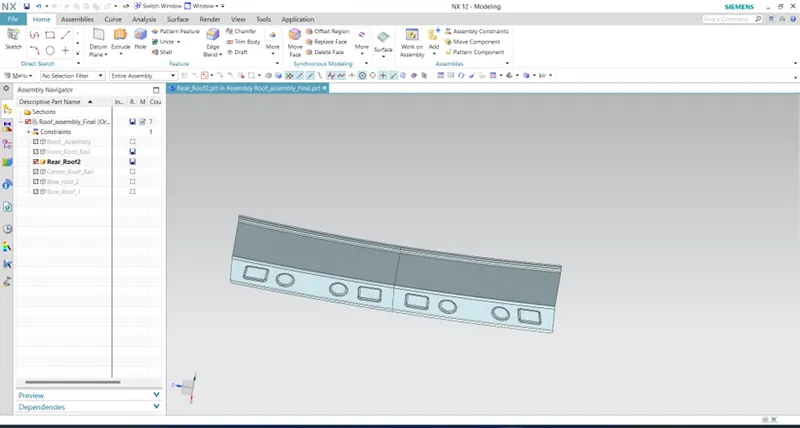

Rear roof rail:

Rear roof rail is again used to strengthen the roof and it acts as a link between back glass and roof which connected to the backdoor of the car. Spot welds are applied at back door end of the rail and the other end is joined with roof using mastic sealant .

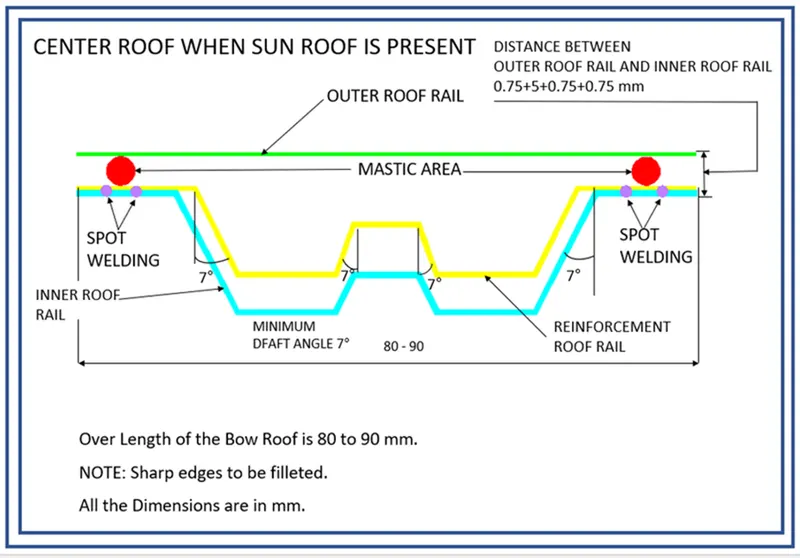

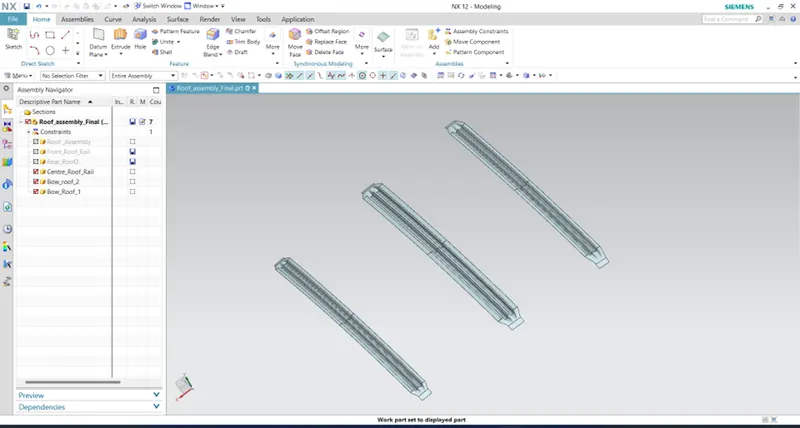

Centre Roof rail and Bow roof rails:

Centre roof rail will be at the centre of the roof to provide strength and stability to the roof. Here the centre roof rail is joint with the roof through mastic sealant.

Bow roof is used for strengthening purpose and also attached to the upper roof surface with mastic sealants

OUTPUT:

Curvature study on the Roof:

1.Roof crash test.

2.Snow load test.

3.Heat distortion criteria

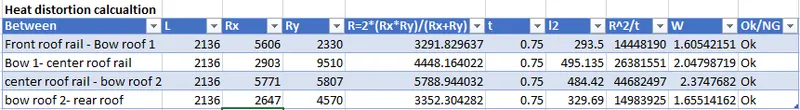

Heat distortion criteria:

Heat distortion temperature is a temperature at which the metal softens and deform under a specific load.This study is done to check the ability of the roof to withstand high temperature with respect to the position of the reinforcement which contribute to the increase strength.

• To calculate the heat distortion criteria by the bow roof position formula,
• We need to create a sketch , draw a line on the center of the roof on OY axis (mid horizontal axis)
• Next draw a line from the center line by a 300mm distance
• After that draw a line from 100mm distance on both sides of the 300mm line
• Then draw a line between the center of roof rails and draw the lines from the center line by the distance of 100mm on both sides.
• Atlast make an intersection on these lines from a coincident line to get points.

• Roof curvature (Rx & Ry) radius is measured by creating a 'Three point arc'

Prediction formula:W=[1.73×10^-3×L] + [1.85× 10^-8×R²/t]+[1.10×10^-3×l]-2.68

Judgemental condition:Ok<2.7>3.1

Where

L=Roof length in X-direction in mm (Roof dimension in O-Y)

R=Roof curvature

R=2(R_X×R_Y)/(R_X+R_y)

R_X=X Curvature

R_y=Y Curvature

T =Roof plate thickness in mm

L =Bow roof span in mm

The test value infer that the design is good and under the limit of standards.

Snow Load criteria:

Snow load criteria study is done to check the ability of the to withstand snowfall and bounce back to its orginal shape without any permenant deformation once the load is removed.

• To calculate the snow load condition, we have a snow load formula
• To measure the required values
• Created a sketch and draw a line on OY axis from the center of the roof
• From that line draw a parallel line distance of 100mm on both sides
• Then make intersection points of these lines and draw a three point arc

• Roof curvature (Rx & Ry) radius is measured by creating a 'Three point arc'

Snow load prediction formula :Q_r =[(I_y × t²)/(α × s×(R_X+R_Y/2)² × 10^-8)]

Where

α = M_y× L_x²× 10^-12 ,M_y=Y(L_y -Y)

Judgement Condition:Q_r≥3.1

t=Roof plate thicness in mm

L_Y =Distance between Front and rear roof rail on vehicle O-Y in mm i.e length of the roof panel with the centre point between roof rail FR/RR as the referance point of the front and rear

Y=Distance from front roof rail centre to bow roof in mm

S - Distance for which BOW bears divided load in mm

S= L₁/2+L₂/2

I_y=Geometrical moment of inertia of roof BOW (Cross-section)mm⁴

R_x=Lateral direction curvature radius of roof panel Y cross section on Roof ROW in mm

R_y =Longitudinal direction of the curvature radius of roof panel X cross section on BOW roof (mm)

The test value infer that the design is good and under the limit of standards

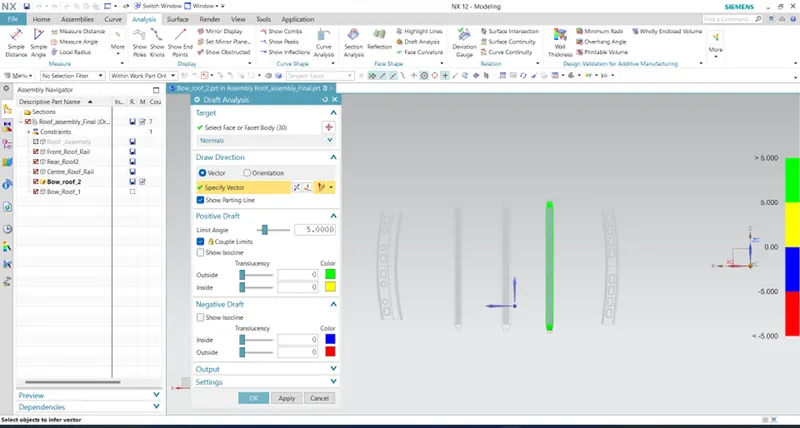

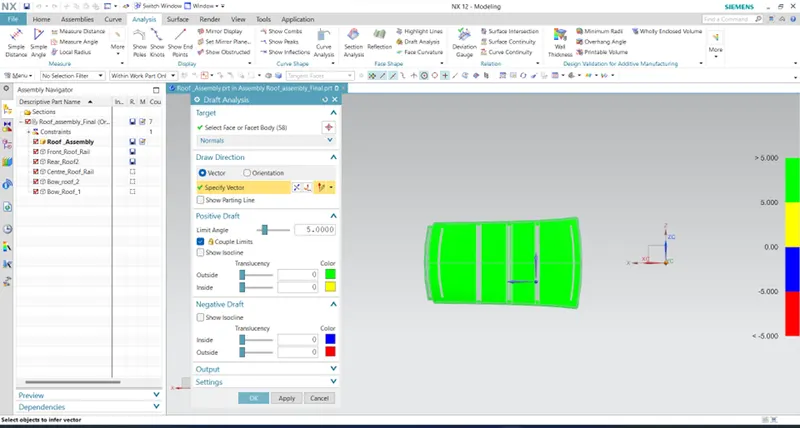

Draft Analysis

It is done to check if the features designed clear the minimum draft 5 degree for manufacturability. This type of analysis is performed based on colon ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values.

RESULT:

• Essential roof components such as bow and centre rails required with flanges and reinforcements are designed.
• Curvature study on roof was analysed with heat distortion and snow load standards
• Draft analysis was done to check tool ability
