Roof Design

ROOF :

   An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements

roof is a large component to give strength to the roof adding a bow roof and center roof and a rare roof rail gives strength to the roof's outer panel

DETAIL REPORT

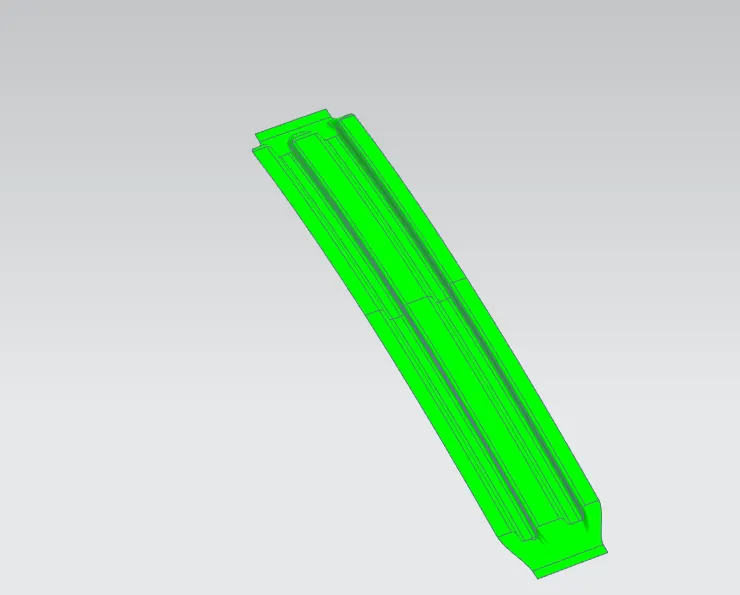

    FRONT  ROOF RAIL

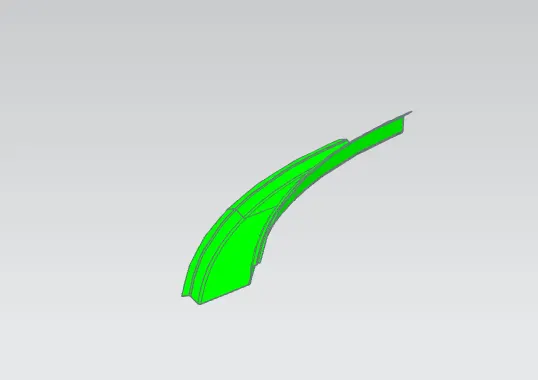

BOW ROOF RAIL 1

CENTER ROOF RAIL

BOW ROOF RAIL 2

RARE ROOF RAIL

ROOF INNER PANEL

IN THIS ROOF INNER PANEL I had some draft analysis issues in the roof inner panel some areas are not clearing I requested to styling engineer to resolve it

MANUFACTURING PROCESS FOR ROOF

•  STAMPING PROCESS

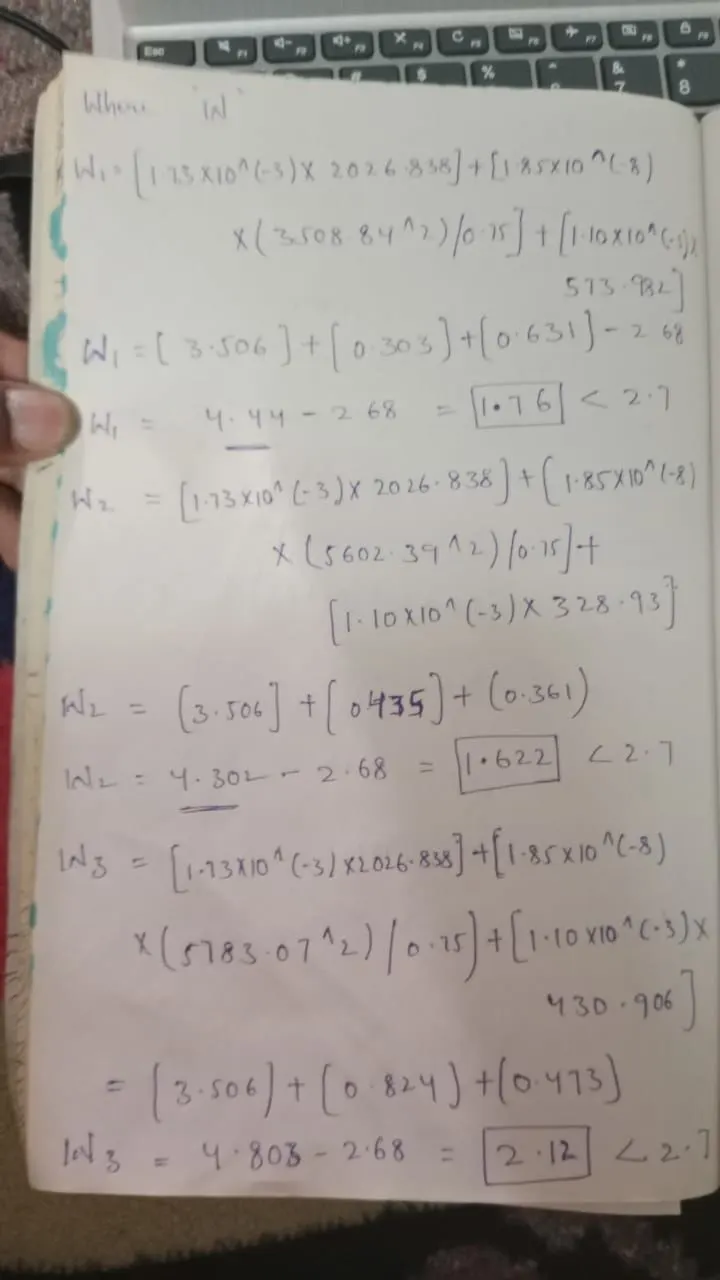

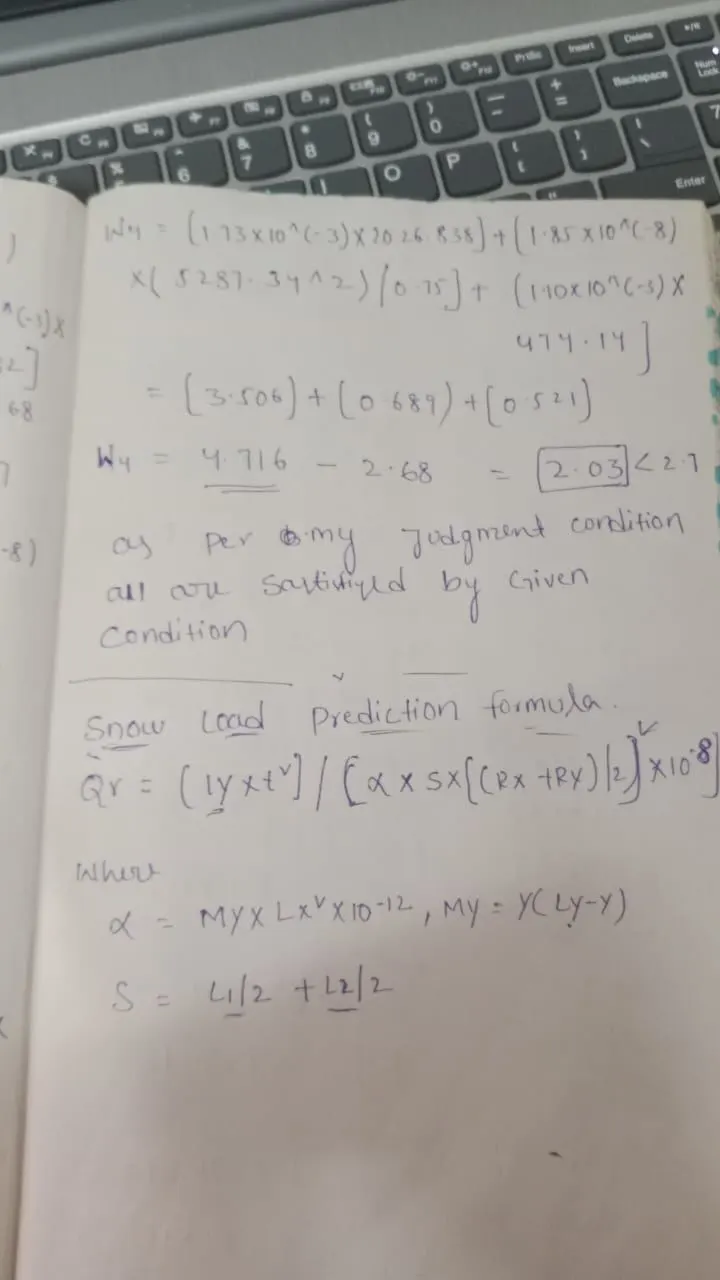

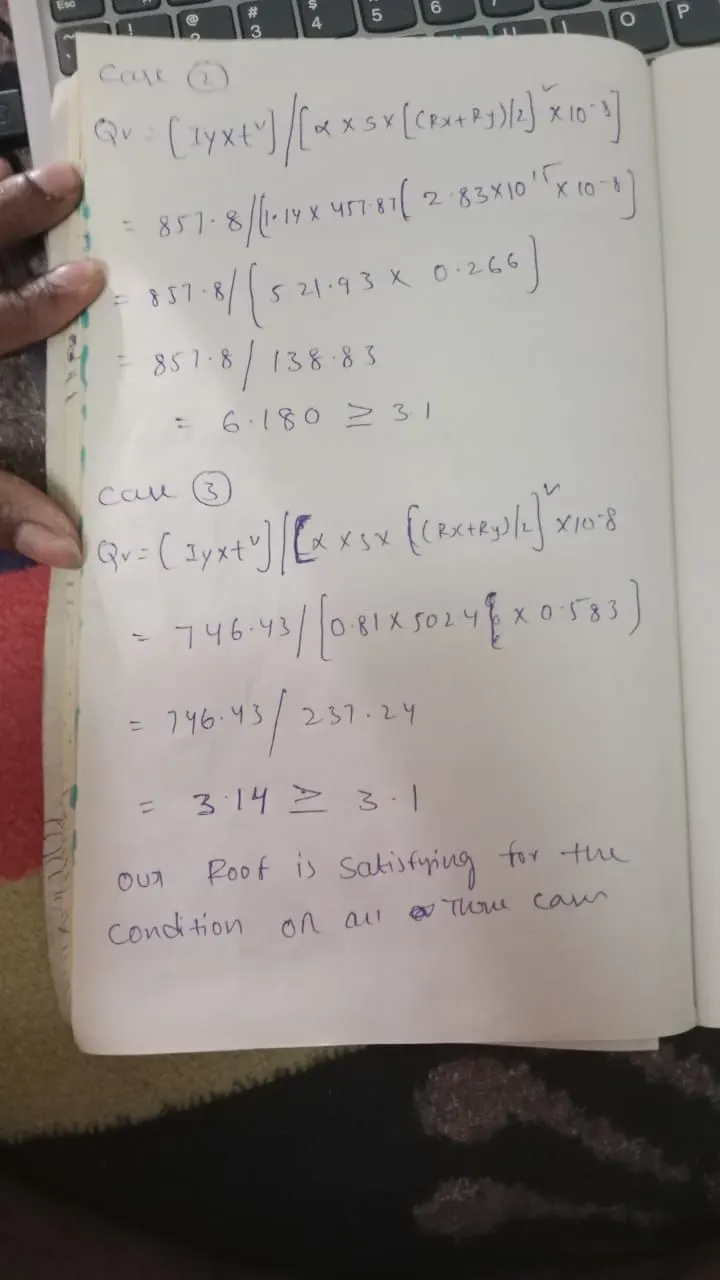

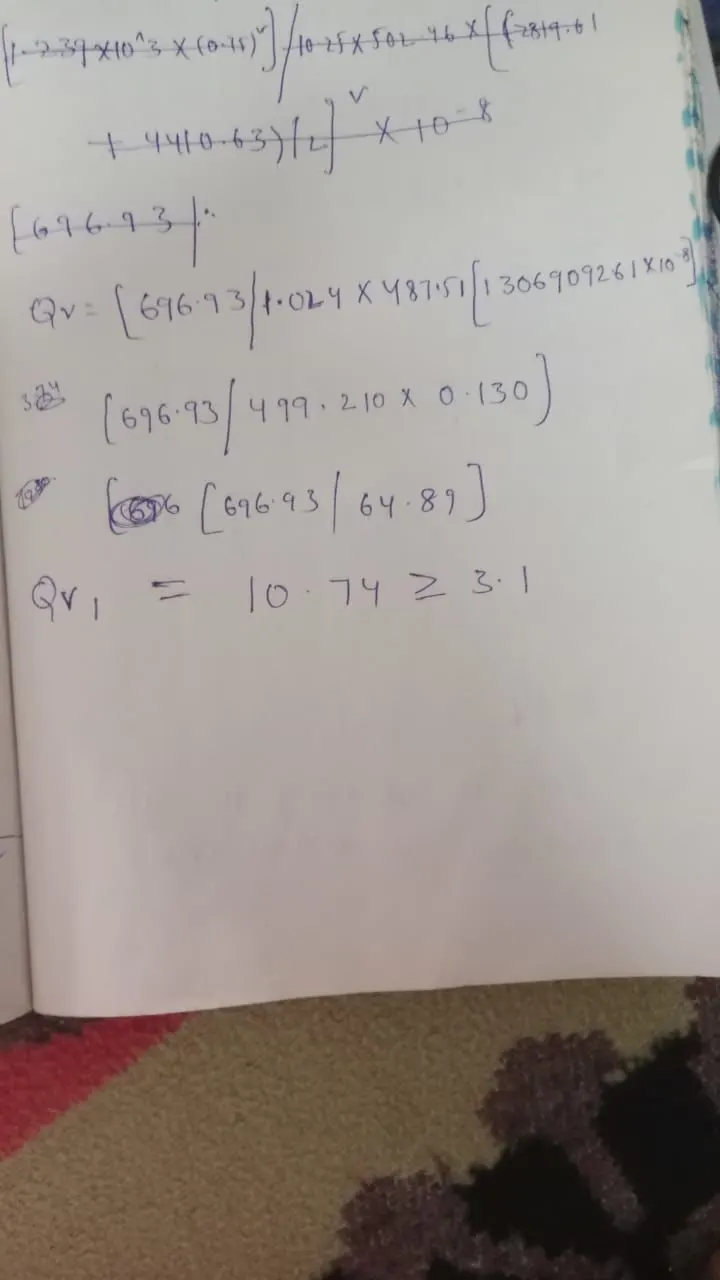

  BOW ROOF PREDICTION  AND SNOW ROOF  PREDICTION CALCULATION
