Roof Design

CAR ROOF

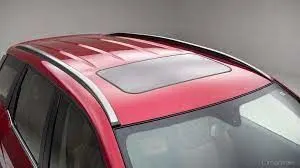

The roof of a car  is the top most outer surface of the car , which is typically curved and designed to protect the occupants from rain , wind and sunlight. The roof part of a car is the top portion of the vehicle . It is typically nade of meatal or plastic and is designed to protect the passengers and cargo from the elements.



The car roof is the combination of Front roof rail , bow roof rali, center roof rail and rear roof rail which are covered with the roof top.

Roof frame is the metal surface that supports the roof of car .

Roof panel is the outer most layer of the roof and is typically made from metal , vinyl or fiber glass.

Headliner is the fabric material on the inside of the roof of car.

Sunroof is an optional feature that can be added to cars roof and is typically made of glass or plastic.

Roof rail is metal bar that runs  along inside of the roof of car and is used to attach roof racks and other accessories.

The roof desin is done as per the master section using catia v5

ROOF DESIGN

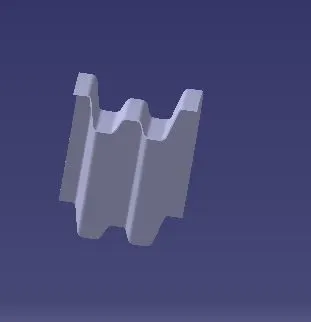

1.FRONT ROOF RAIL



As per the master section the front roof rail is designed.

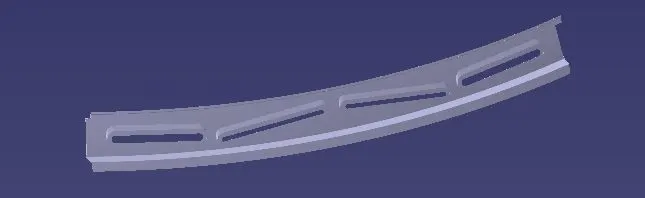

2.BOW ROOF RAIL



As per the master dection bow rof rail 1 & 2 is designed.

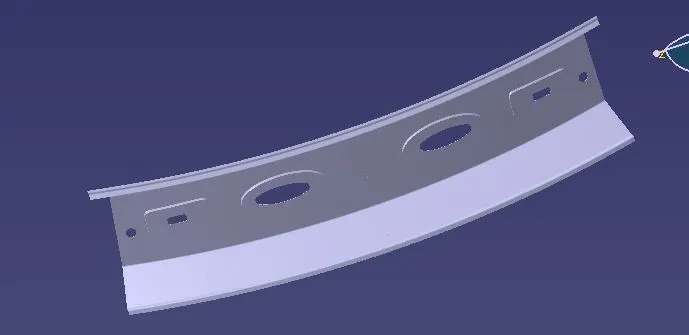

3.CENTER ROOF RAIL AND ITS RIENFORCEMENT



                                                      CENTER ROOF RAIL RIENFORCEMENT



                                                          CENTER ROOF RAIL

As per master section center roof rail rienforcement and center roof designed.

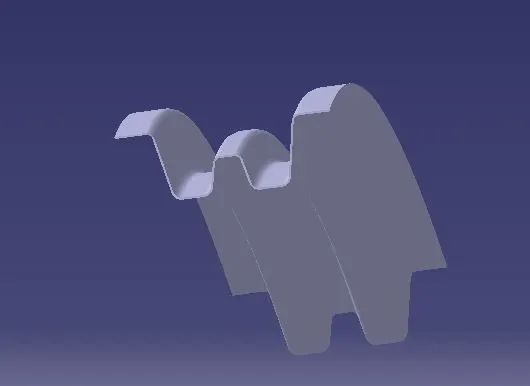

4.REAR ROOF RAIL



As per the master section rear roof rail is designed.

OVER ALL VIEW OF ROOF.



DRAFT ANALYSIS.

 Draft analysis is the process of assessing the value of professional sports team draft picks. It involves analyzing the strengths and weeknesses  of each player selecteed, as well as comparing them to players taken in similar position  and in similar rounds of the draft.

Draft analysis also consider the team overall  needs , as well as the over all success of the team in the previous speech.

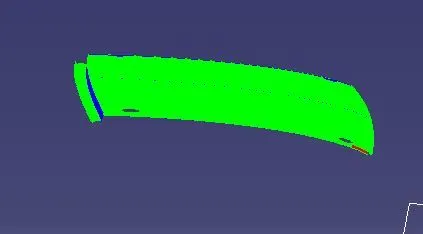

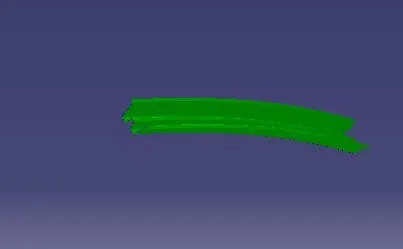

DRAFT ANALYSIS FOR  ROOF

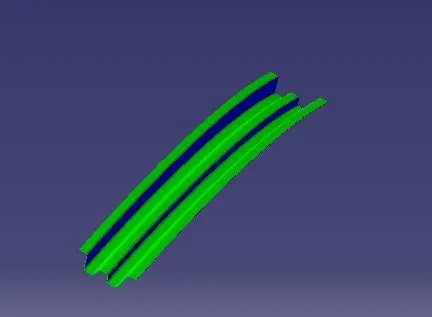

DRAFT ANALYSIS FOR  FRONT  ROOF

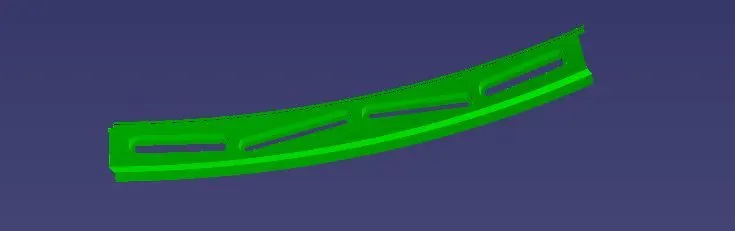

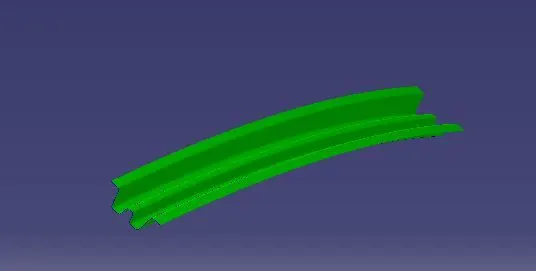

DRAFT ANALYSIS FOR  BOW ROOF



DRAFT ANALYSIS FOR  CENTER ROOF RIENFORCEMENT

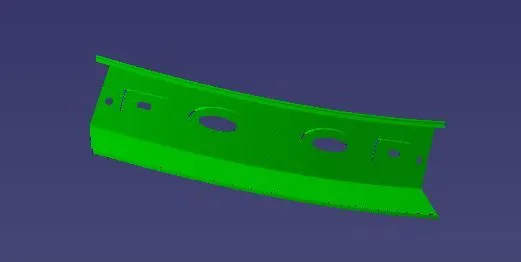

DRAFT ANALYSIS FOR  CENTER ROOF



DRAFT ANALYSIS FOR  REAR ROOF

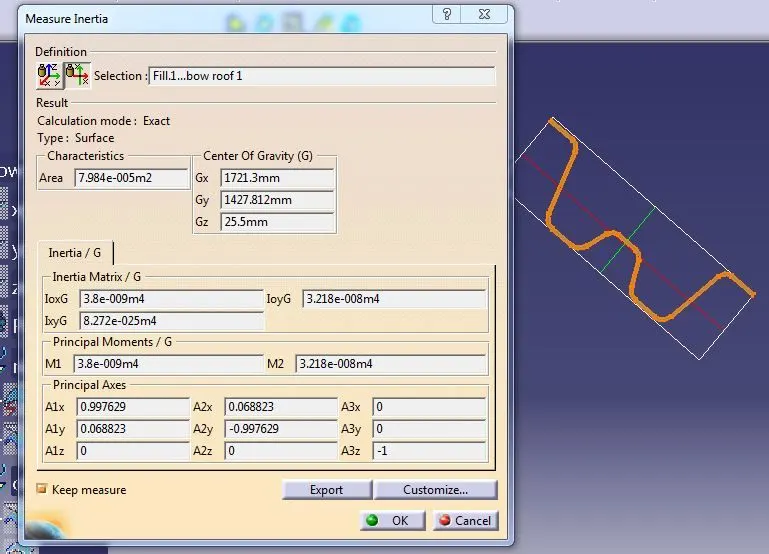

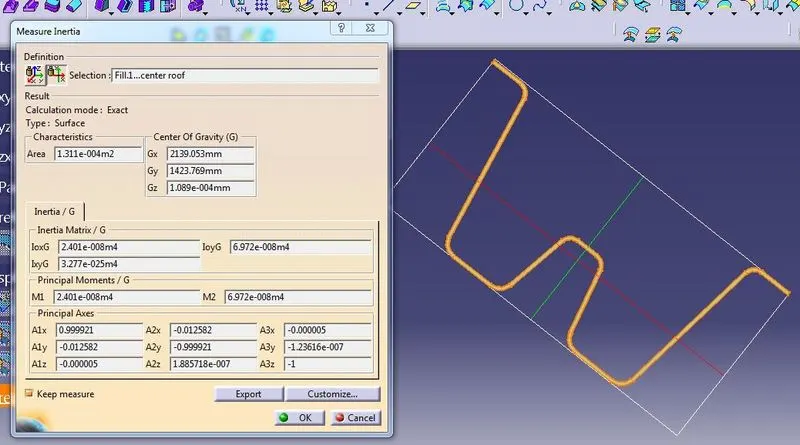

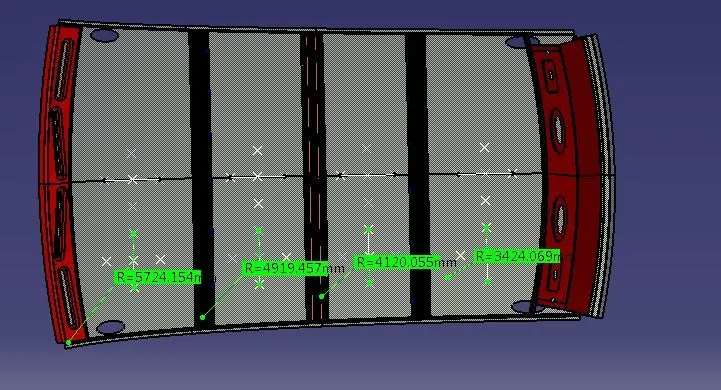

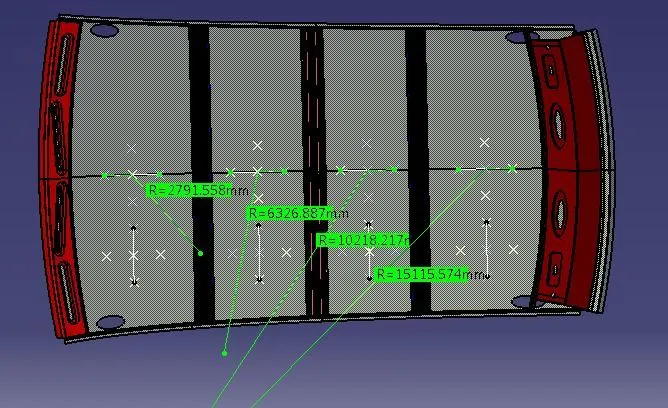

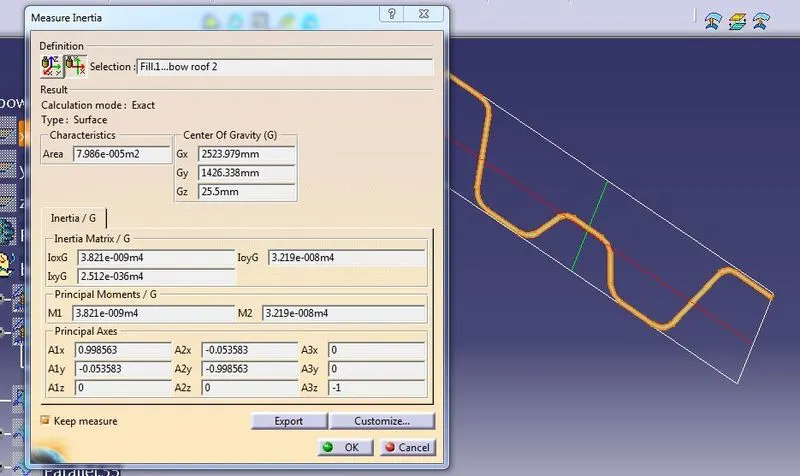

CALCULATION FOR ROOF

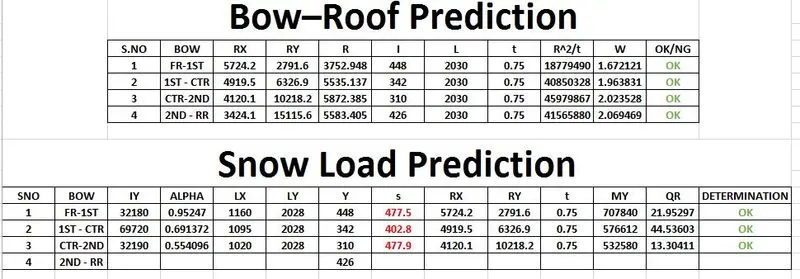

AS per the calculations bow roof perdication is satisfied and snow load predication is also satisified but s value not in the give tolerance , so we need to change the RX and RY values as per the requriments opr other wise need to add emposses on the top roof.

CONCULSION

AS per the master section the roff design , draft analysis and calculation are done .
