Roof Design

Automobile roof

An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Because the earliest automobiles were designed in an era of horse drawn carriages, early automobile roofs used similar materials and designs.

Types: -

1. Hardtops

When we talk about hardtops, we are referring to the common rigid forms of automobile roofs which we see around. In modern-day cars, this type of roof is made from metal or plastic.

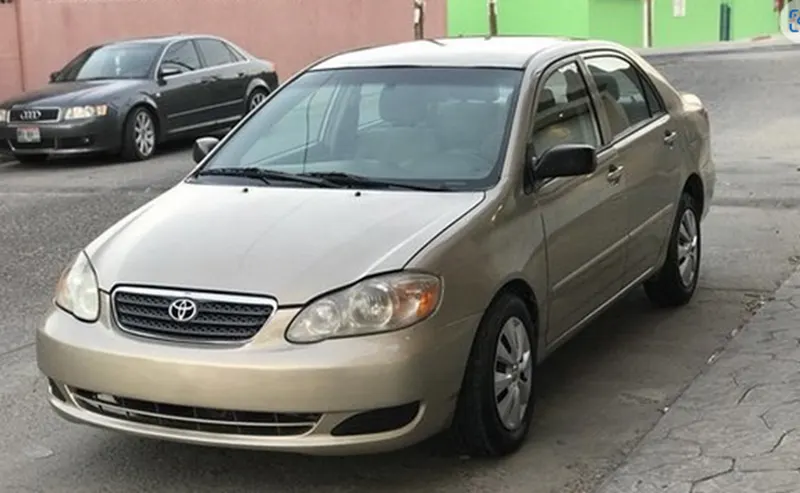

So, the common Toyota Corolla, Camry, and many of the cars in Nigeria are all Hardtops. However, we should say that there are different types. The one we just described is the fixed hardtop. Other types include:

• The detachable hardtops
• The retractable hardtops

These two types are designed as convertibles and would be discussed extensively when we get there.

The fixed hardtop is your traditional car roof and is suitable for all climes and weather. It protects car occupants from the sun and wind when driving. It also offers more sense of privacy and noise-free driving. Many cars designed this way also tend to be more stable and solid than other types of roofs.

2. Sunroof:

This type of roof is also quite popular. You might have been seeing it around. A sunroof is an operable type of roof that allows for an opening in the roof of an automobile; say a window in a roof. It can allow either light or air or both to enter the vehicle. They are either operated manually or automatically.

The keyword here is Opening in the roof. It is not the entire roof that is removed – that is a different type of roof.

There are 3 popular types of sunroofs. They include:

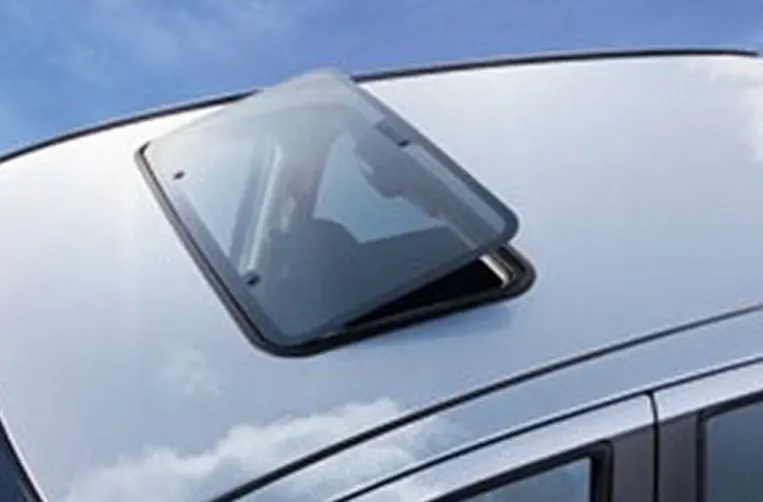

    a. Pop-up:

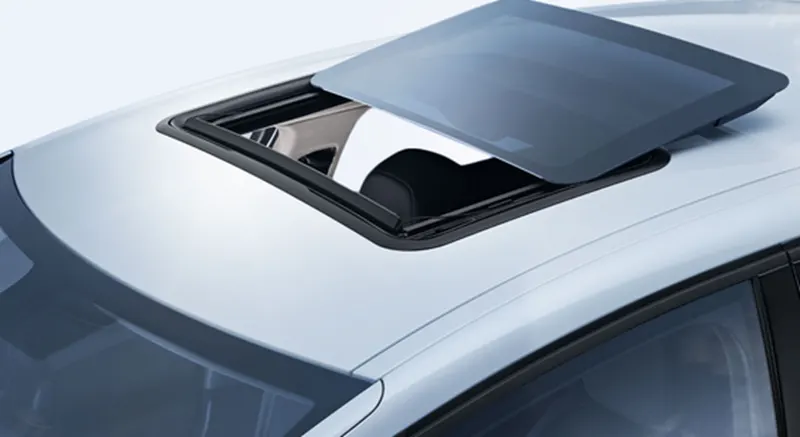

The pop-up sunroof usually tilts when you open it. It is the most basic and relatively cheaper type of sunroof. Some can even be removed so that they are kept properly, maybe in the trunk whenever you want to go ‘sunroof mode.’

       b. Spoiler:

It just means that it can slide. So, the spoiler is a pop-up that would slide, instead of tilting upwards. The advantage of this is that it can easily be restored to its original position by sliding.

    c. Panoramic sunroof:

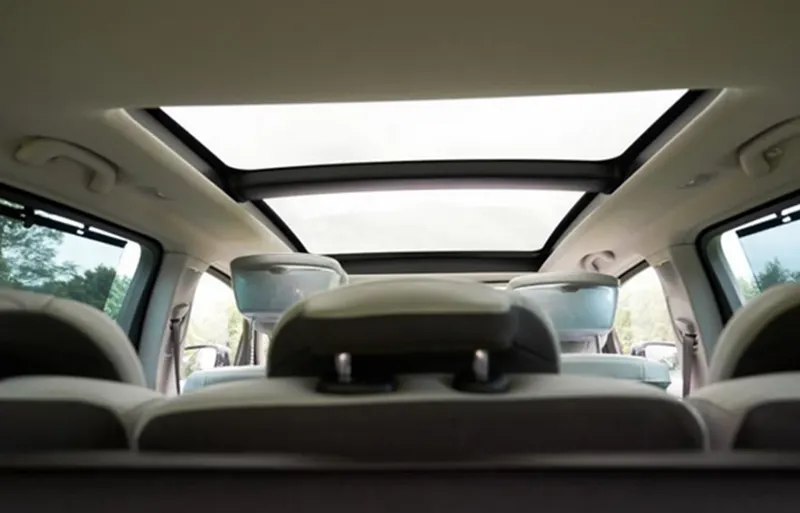

Panoramic sunroofs are distinct. While other sunroofs basically allow air and light or both into the front seats, the panoramic sunroof would allow for both the front and rear. Of course, this means the aperture would be larger than the spoiler or pop-up.

The sunroof allows car users to enjoy light and air without having to remove the entire roof. It also adds to the sleek design of the car and the automatically operated types just add to the awesome features of the car.

3. Convertibles:

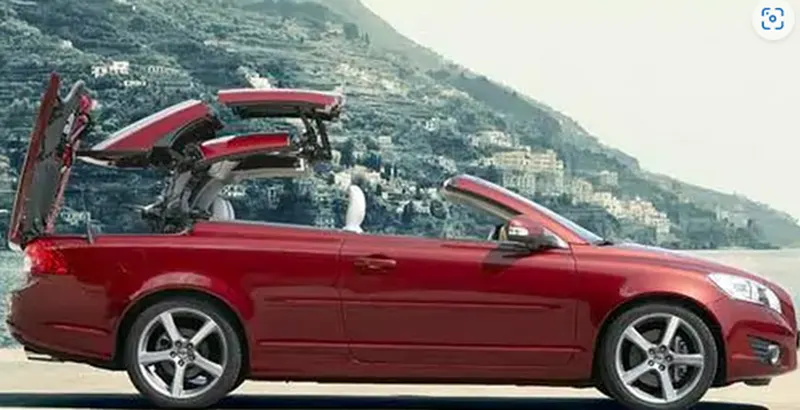

Convertibles are passenger cars that can be driven with or without the entire roof in place. They were first introduced as open-air vehicles; no roofs, no sides.

But by the end of the 19^th century and the early 20^th century, car engineers built more powerful engines that could power a folding roof. These were the forerunners of the convertibles that we have today.

There are different types of convertibles based on the method of conversion and the materials used.

    a. Retractable hardtops:

Made from metal or plastic and is retracted automatically.

    b. Detachable hardtops:

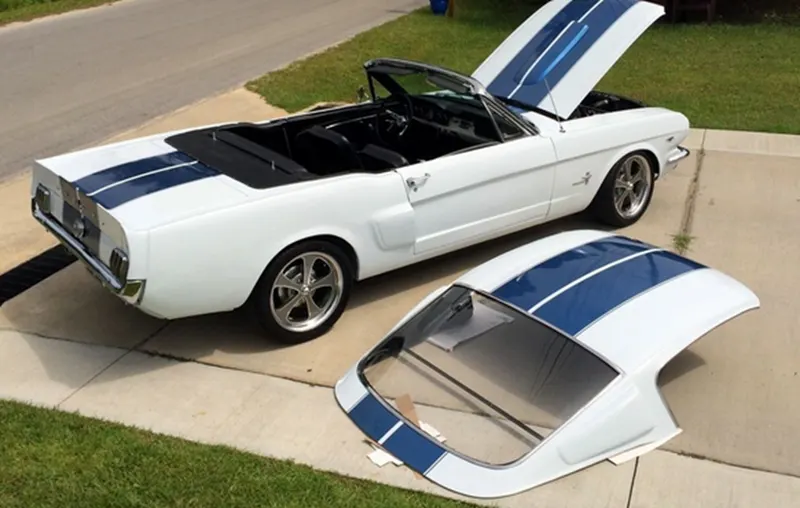

This type of hardtop is manually removed from the roof and then stored usually in the trunk. They are also made from metal or plastic.

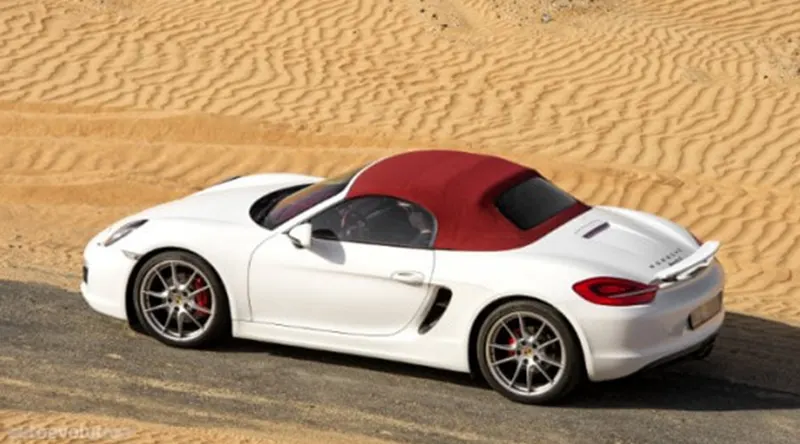

    c. Soft tops:

This type of convertibles have roofs that are not made from metal or plastic. They are made of textile. The earliest versions of the convertible used canvas for the roofs. More recent models use cloth materials instead. Other materials used now include latex, vinyl, polyvinyl chloride.

When the roof is folded, it is called a stack.

Manufacturing Techniques

By outer board machining process, bar-shaped assembly, ring-shaped component processing, and roof cant rail processing technology formed respectively.

Outside plate process: the first step, open the straight snips plate: first select the applicable cold coiling specification, and cold coiling is opened flat; Then according to the production material specification, will open cold coiling after the flat and is cut into the iron plate of the corresponding size; Finally the iron plate after shear is cleaned to iron filings; The first step, oil pressure, punch press: the first iron plate is extended; Secondly to its trimming and punching; Then to its flanging and punching; Finally, after punching completes, it is carried out to the operation of side folding; Completed the making of the outside plate.

Bar-shaped assembly and ring-shaped component process: the first step, blanking, stamps out an iron plate with the outline blank of many roof cant rails, a ring-shaped component, and a bar-shaped assembly; the Second step, carries out annular punching to ring-shaped component; Bar shaped assembly and roof cant rail are carried out to bar-shaped punching.

Car roof anabolic process: the first step, is by a plurality of M6 nuts of a side spot welding of the ring-shaped component; By two M6 nuts of the bar-shaped assembly two ends spot welding; the Second step, spots weld bar shaped assembly the opposite side of the corresponding nut of the ring-shaped component; And circular groups and the punching of bar-shaped assembly are aimed at; The 3rd step, is welded to ring-shaped component the inner side of the outside plate; The 4th step, spots weld roof cant rail the inner side of the outside plate; Finally car roof integral body is carried out to sanding thorn and ending.

Roof Crush Test

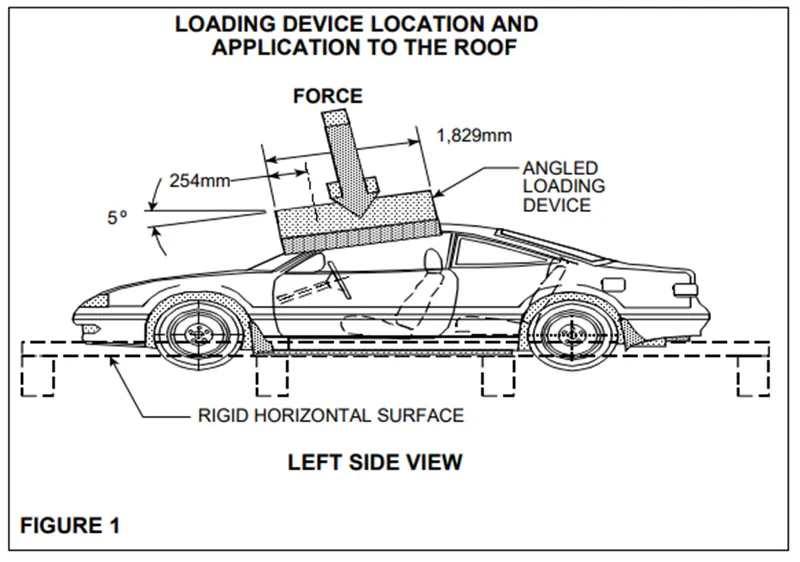

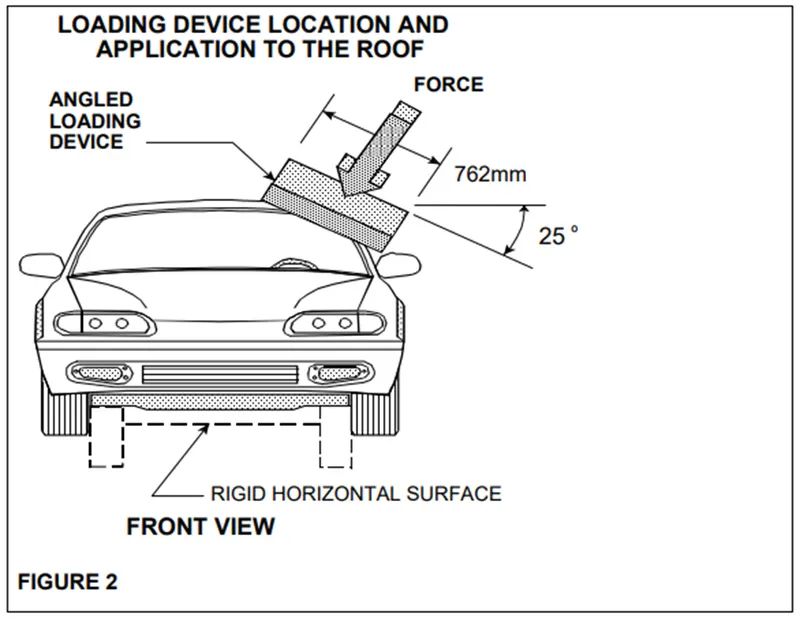

FMVSS 216, Roof Crush Resistance, establishes strength requirements for the passenger compartment roof of passenger cars, multipurpose passenger vehicles, trucks and buses with a GVWR of 2722 kilograms or less. The purpose of the standard is to reduce deaths and injuries due to the crushing of the roof into the passenger compartment in rollover accidents. The standard does not apply to school buses and passenger cars that conform to the dynamic rollover test requirements of FMVSS 208, Occupant Crash Protection, S5.3 by means that require no action by passenger car occupants. It also does not apply to convertibles, except for optional compliance with the standard as an alternative to the rollover test requirements in S5.3 of FMVSS 208. The prescribed static loading device is a rigid unyielding rectangular block 762 millimetres by 1,829 millimetres. It shall not move more than 127 millimetres to achieve the specified resistive load when applied to the forward edge of a vehicle’s roof – see Figures. The resistive load to be achieved is 1½ times the unloaded vehicle 2 weight (UVW) of the test vehicle or 22,240 Newtons, whichever is less. Both the left and right front portions of the vehicle's roof structure shall be capable of meeting the requirements but a particular passenger car need NOT meet further requirements after being tested at one location. The passenger car's sills shall be placed on a rigid horizontal surface and fixed rigidly in position. The vehicle's windows shall be closed and the doors shall be locked. Any convertible top or removable roof structure shall be secured in place over the occupant compartment. Remove roof racks or other non-structural components. The force shall be applied in a downward direction perpendicular to the lower surface of the static loading device at a rate of not more than 13 millimetres per second until reaching the compliant resistive load. The test shall be completed within 120 seconds. The static loading device shall be guided throughout the test so that it moves, without rotation, in a straight line with its lower surface oriented as follows and as shown in Figure. Its longitudinal axis is at a forward angle (side view) of 5º below the horizontal, and is parallel to the vertical plane through the vehicle's longitudinal centreline. B. Its lateral axis is at a lateral outboard angle, in the front view projection, 25º below the horizontal. C. Its lower surface is tangent to the surface of the vehicle. D. The initial contact point, or centre of the initial contact area, is on the longitudinal centreline of the lower surface of the static loading device and 254 millimetres from the forward most point of the centreline. E. If the vehicle being tested is a multipurpose passenger vehicle, truck, or bus that has a raised roof or altered roof, and the initial contact point of the static loading device is on the raised roof or altered roof to the rear of the roof over the front seat area, the plate is positioned so that the midpoint of the rearward edge of the lower surface of the static loading device is within 10 mm of the transverse vertical plane located at the rear of the roof over the front seat area.

Design consideration of Roof Design

•  Visibility Criteria for Driver
•  Head Clearance
•  Curvature Study
•  Heat Distortion and Snow Load Criteria
•  Draft Analysis

Roof Design

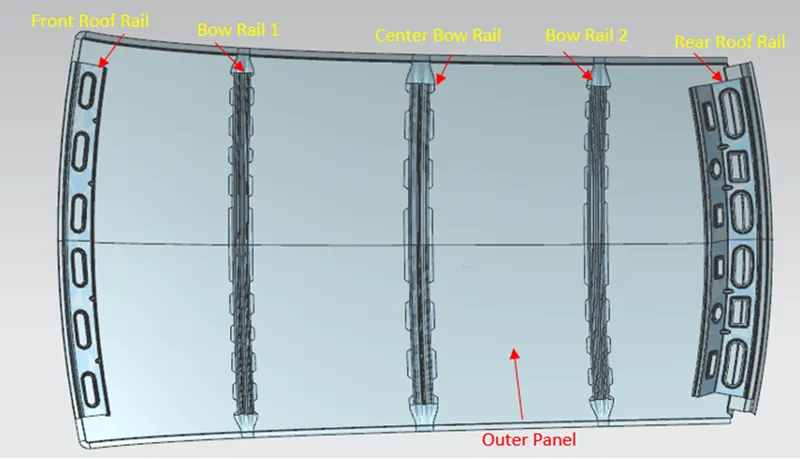

Parts of Roof: -

• Outer Roof Panel
• Front Roof Rail
• Bow Roof Rail 1
• Centre Roof Rail
• Bow Roof Rail 2
• Rear Roof Rail

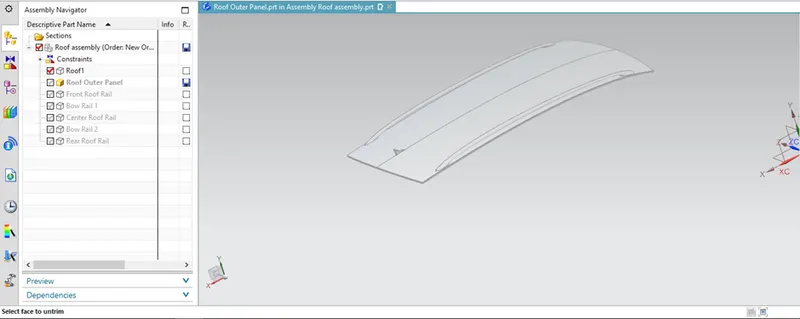

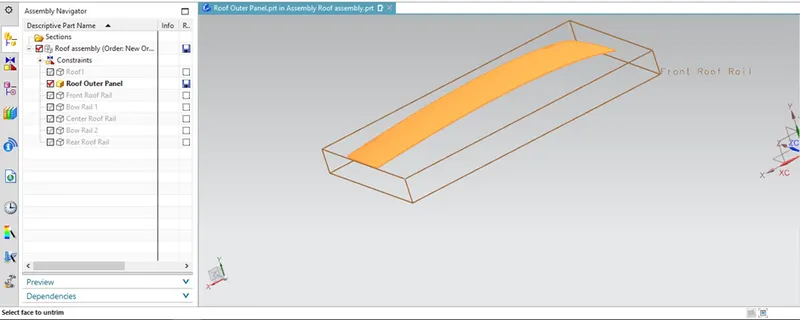

1. Extract Surface to work from Styling Surface

Outer panel is provided from the styling team from that extracting the surface to model the necessary reinforcements like Ditch area, Front Roof Rail, Bow Roof Rails, Centre Roof, and Rear Roof Rail.

• Design provided from styling team

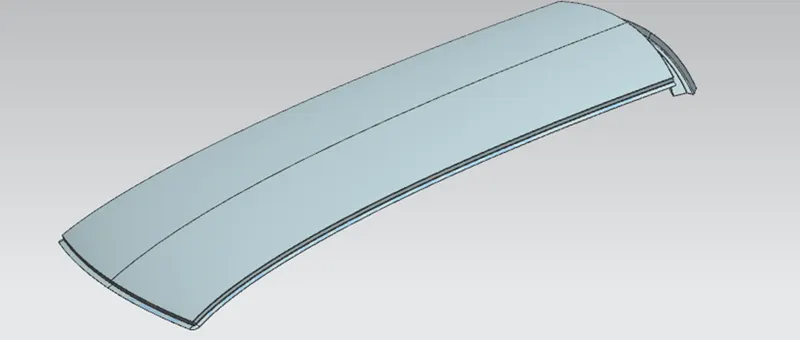

• Extracted surface

    2. Front and Rear Ditch area design

• The Ditch Area is the extended portion of the main Roof concealed by other BiW panels. The rail supports of the roof are attached to the Ditch Area using Spot welds, since it is not a styling surface and remains concealed.
• The styling team provided the master section for the roof ditch area, front roof rail, and rear roof rail as per the parameter of visibility criteria, headroom clearance, and other important parameter dimensions like fitment of the windshield, sealant rubber, etc.
• Design must be able for easing part manufacturing.

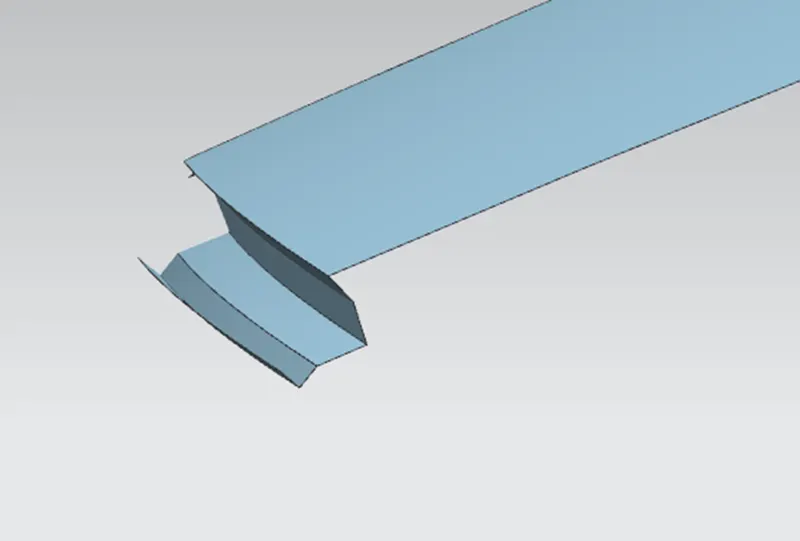

• Front Ditch Area

• Creates ditch area using extracted surface according to master section dimensions.

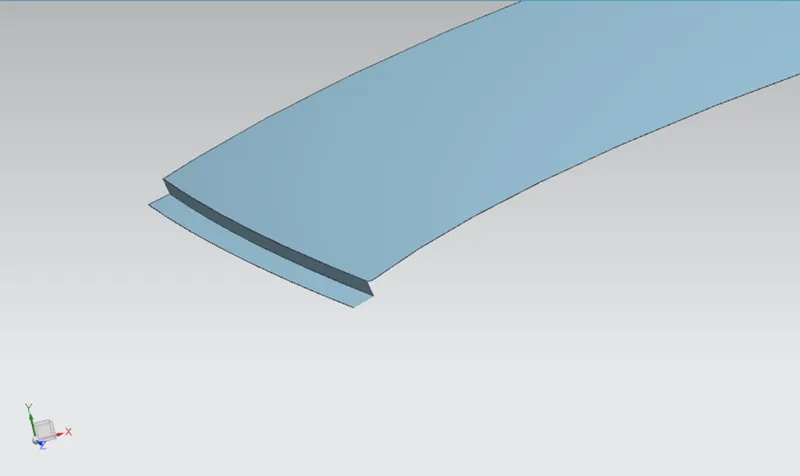

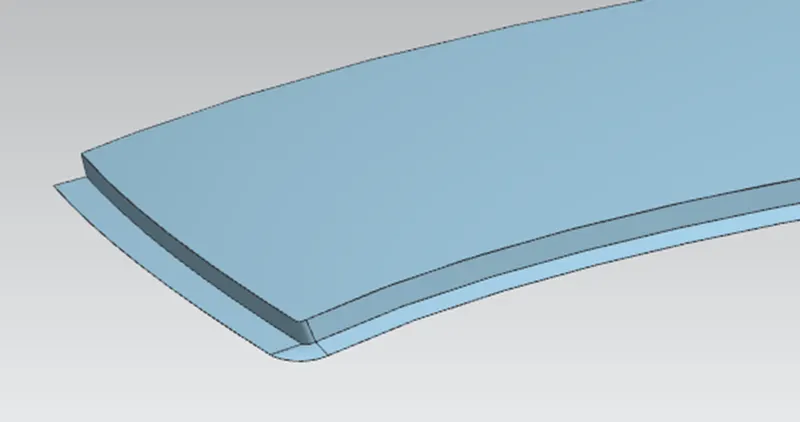

• The flange of around 15mm was created with the law extension command, corner relief at rear flanges, and a positive draft of more than 3 degrees considering the drawing operation process. The overall thickness of sheet metal considers 0.75mm throughout of Panel.

• The surface is offset from the outer panel to form the ditch area and by using the law extension, corner relief at rear flanges, and positive draft in the required degree considering for the drawing operation process. The overall thickness of sheet metal for the outer panel considers 0.75mm.

    3. Creates side walls for Bow Rails assembly in Outer Panel

• This side walls is further used for creating joining surface for Bow rails.
• To create this surface Bridge curve, Law of extension, edge blend, studio surface and sew command used.
• And now Outer Panel is ready.

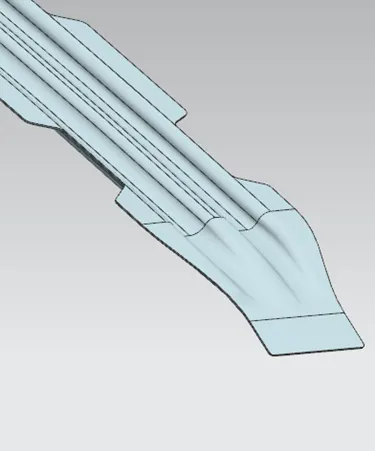

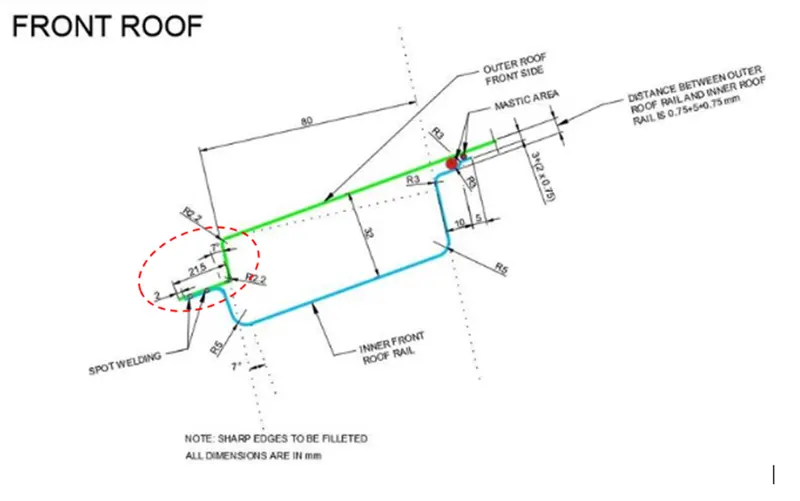

    4. Design of Front Roof Rail

• The front rail underpins the rooftop external shell at the front end. It is mounted with support rooftop rail fortification on the two closures.
• The rails are furnished with embosses and dart to improve the strength over the length and the rail is associated with the external board utilizing mastic sealants on one side and the other joinery is spot welded. It is the support that is joined with the Wind Shield Glass, Body Side Outer, and inner panels.
• It is usually made from Body Side Outer scrap and therefore the thickness of the rail is 0.75 mm. Draft angle must be 3-5 degrees or over.
• The bottommost flange is decided after taking into consideration the visibility criteria and the Headroom Clearance of the passenger.
• Spot Welds are applied at the Windshield end of the rail and the other end is joined with the roof using Mastic Sealants which also contributes to increased strength.

   5. Design of Rear Roof Rail

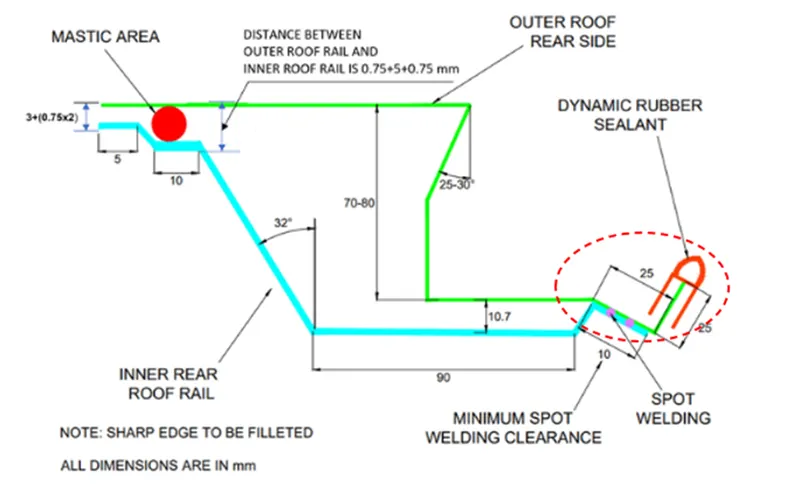

• It is the support that is joined to the Back Door and the Body Side Outer and inner panels.
• As the Front Roof Rail design, we have to take into consideration the rear Headroom Clearance and the rear visibility criteria while designing the Rear Roof Rail. Inputs are taken from the rear master section. It is the support that is joined to the Back Door, the Body Side Outer, and the inner panels. It is also usually made from Body Side Outer scrap and therefore the thickness of the rail is 0.75 mm.
• Similar to the Front Roof Rail design, we have to take into consideration the rear Headroom Clearance and the rear visibility criteria while designing the Rear Roof Rail. Inputs from the backdoor design are also taken to accommodate the required clearance. Spot Welds are applied at the Back door end of the rail and the other end is joined with the roof using Mastic Sealants.
• Also, in this dart and emboss added for strength.

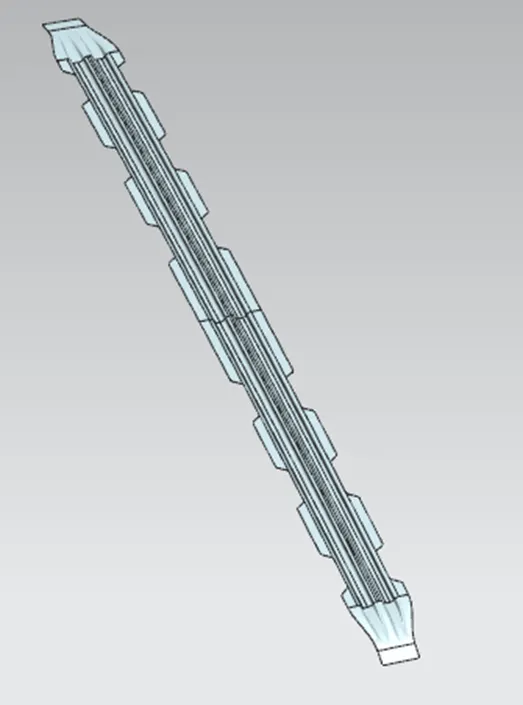

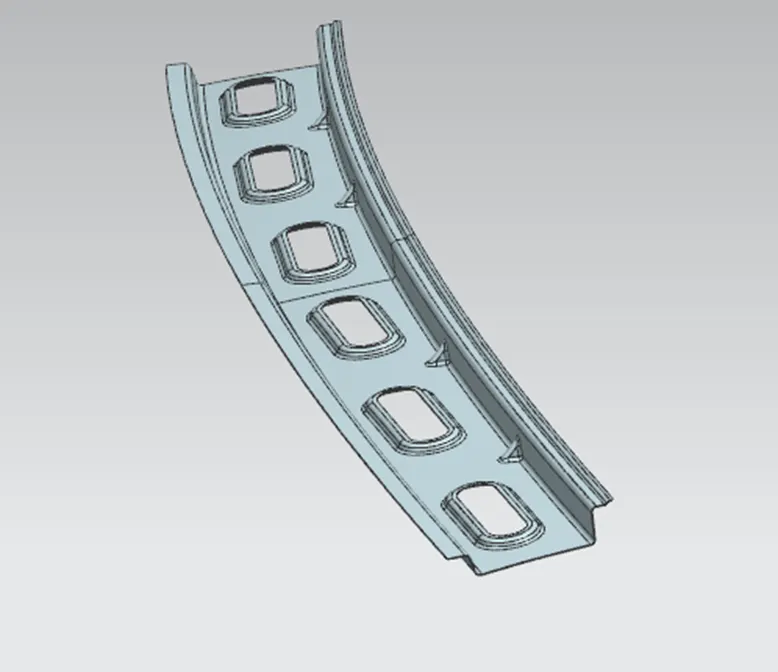

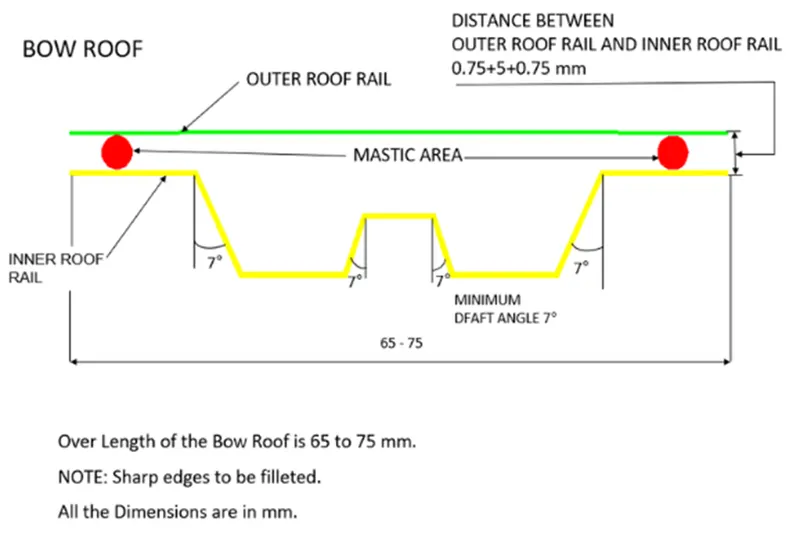

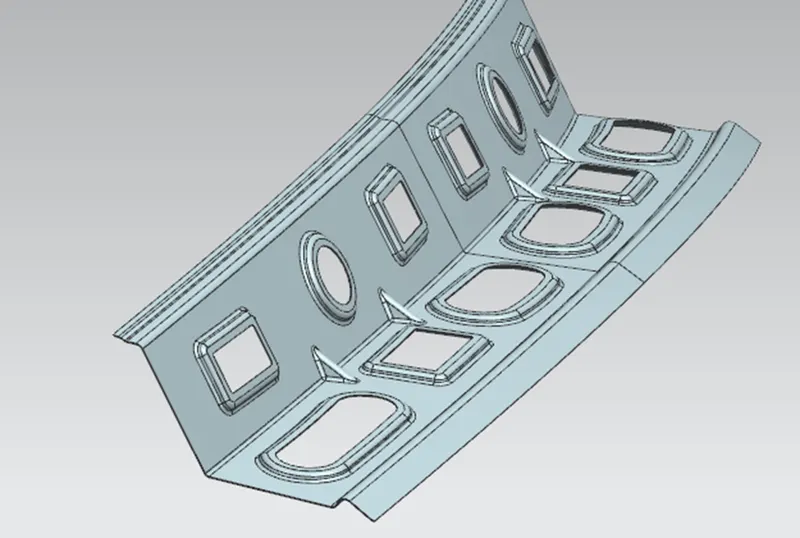

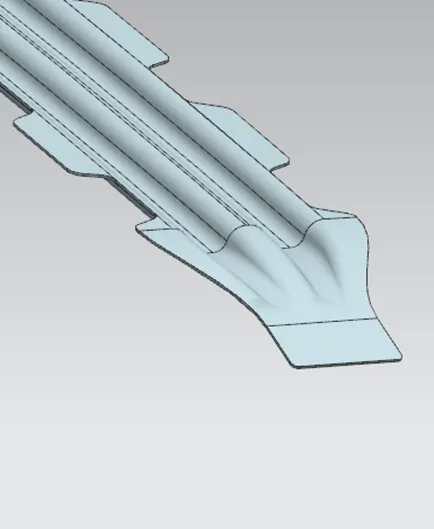

   6. Design of Bow Roof Rail 1 & 2

• The Bow roofs are given to improve the torsional stiffness and load-bearing capacity of the roof structure. The number of bow roofs provided will depend upon the overall dimensions of the roof. The longer the roof more the bow roofs are integrated into the BIW frame They are attached to the outer panel using mastic sealants. Each mastic point will have up to 80 mm circular effective area.

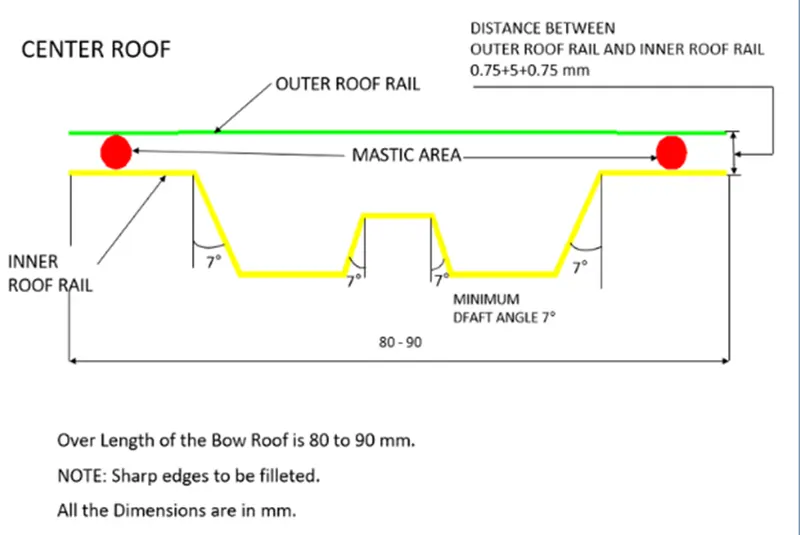

• The thickness of the Bow Roof is 0.75 mm and also mastic area has been created.
• In this design roof is consider as without sunroof design so this roof needs two Bow rails.
• Both rails are identical.



    7. Design of Centre Roof Rail

• Centre roof rail is provided to effectively support the flat area of the roof as it is more susceptible to failure under the action of the load.
• Usually, the centre reinforcement roof rail will be placed at the centre of the roof connecting the B pillar support structure which results in added support in the roll-over test.
• The thickness of the centre bow roof is 0.75 mm thickness.
• Design drawn by considering master section.

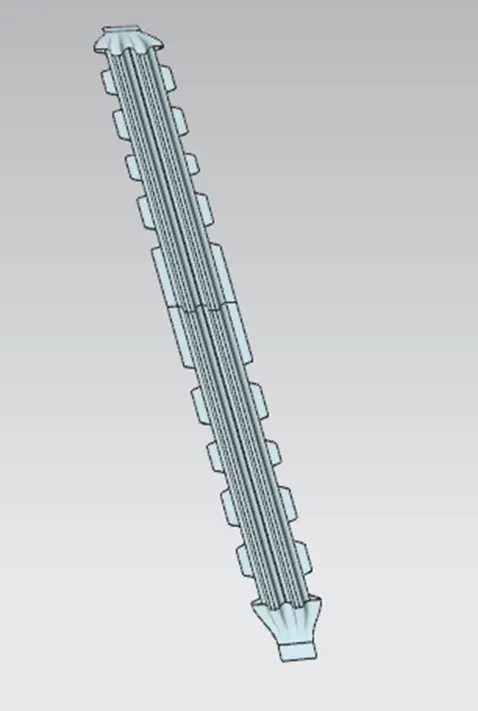

Final Assembly

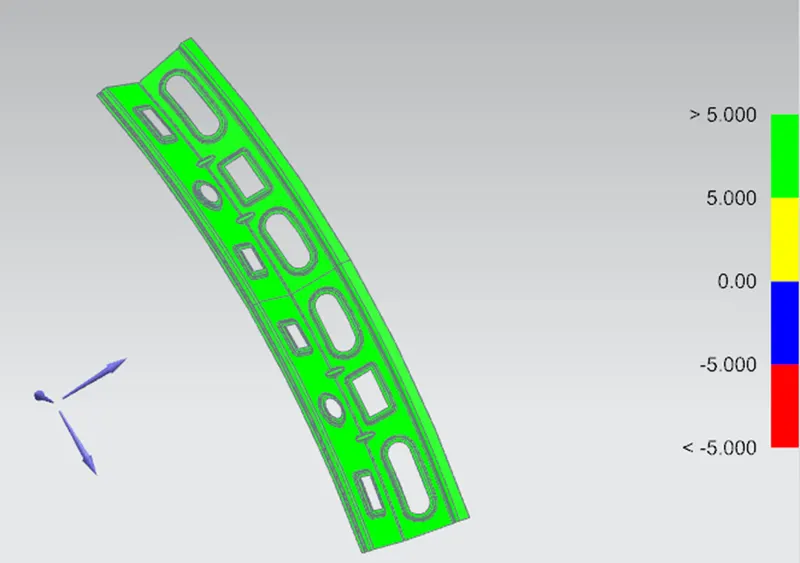

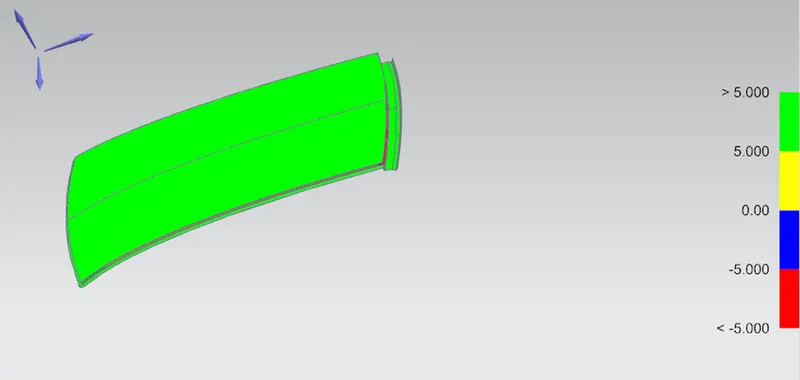

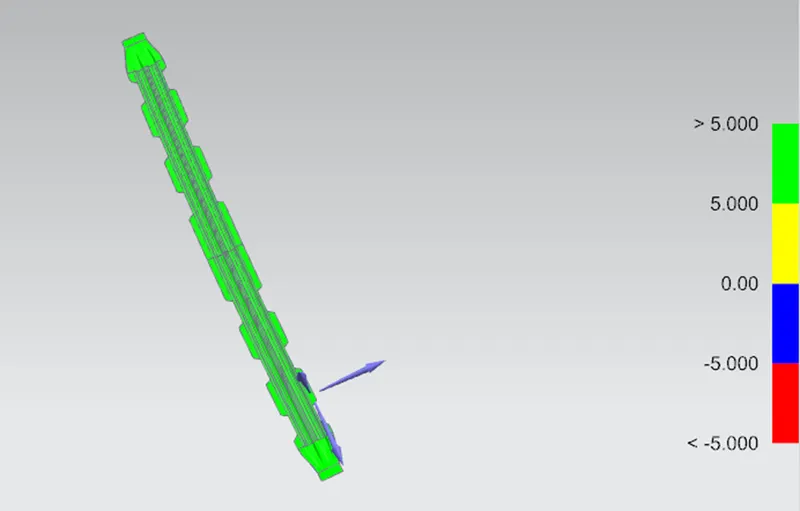

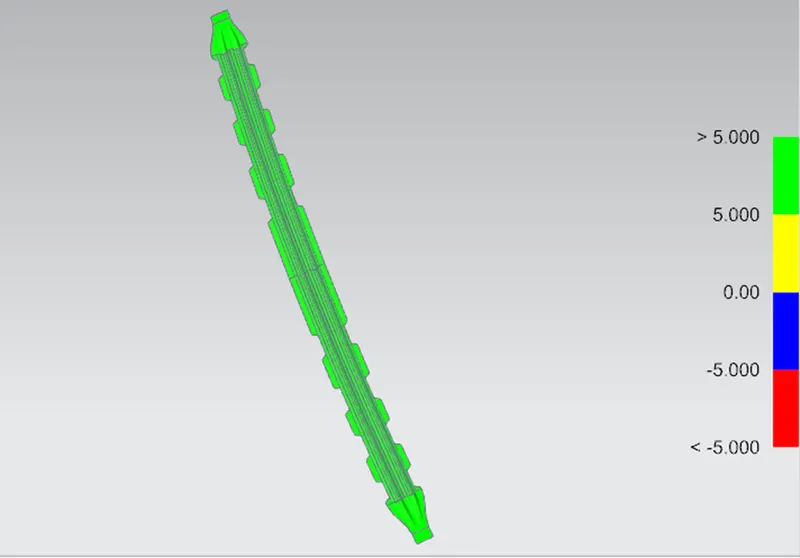

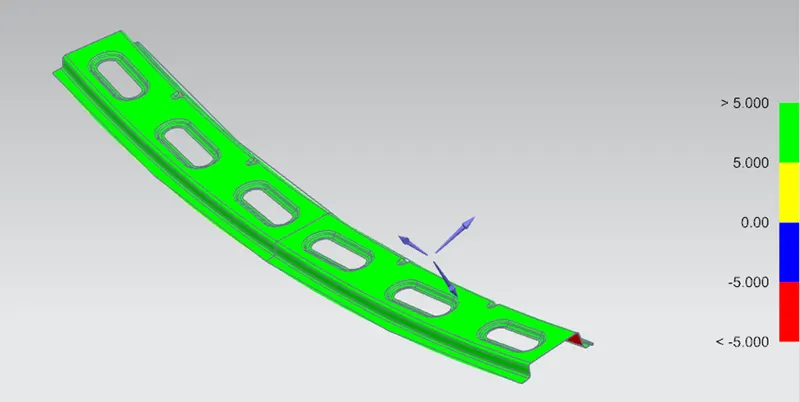

Draft Analysis

• Roof Panel

• Front Roof Rail

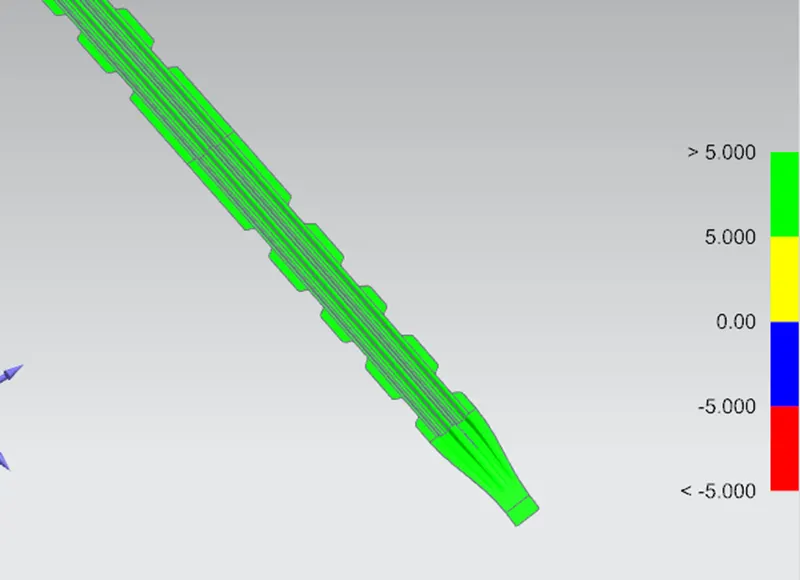

• Bow Rail 1

Improved: -

• Centre Bow Rail

• Bow Rail 2

• Rear Roof Rail

Heat Distortion Criteria

• The heat distortion study plays an important role in sheet metal usage. Heat distortion temperature is a temperature limit above which the material cannot be used for structural applications. This study is used to predict the heat distortion temperature at where the material starts to soften when exposed to a fixed load at an elevated temperature. To avoid bending or damage on the roof, based on heat distortion temperature, this study will predict the bow roof position on the roof to strengthen the roof.

Model Calculation: -

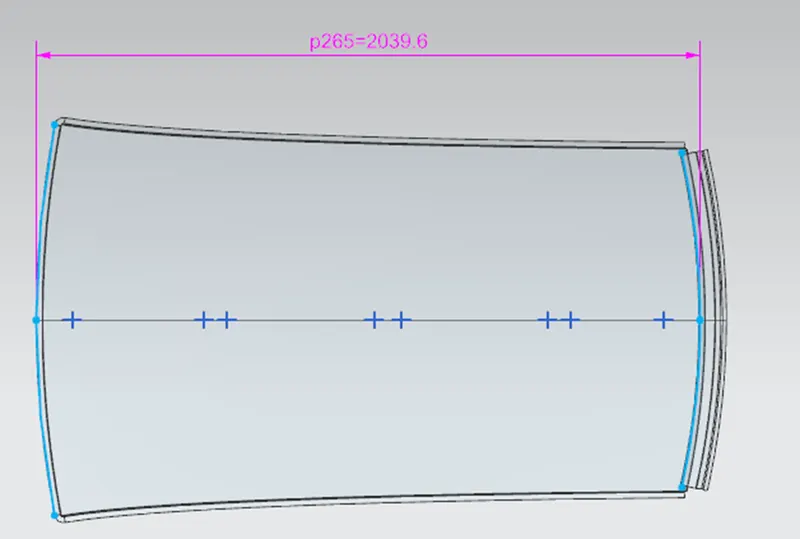

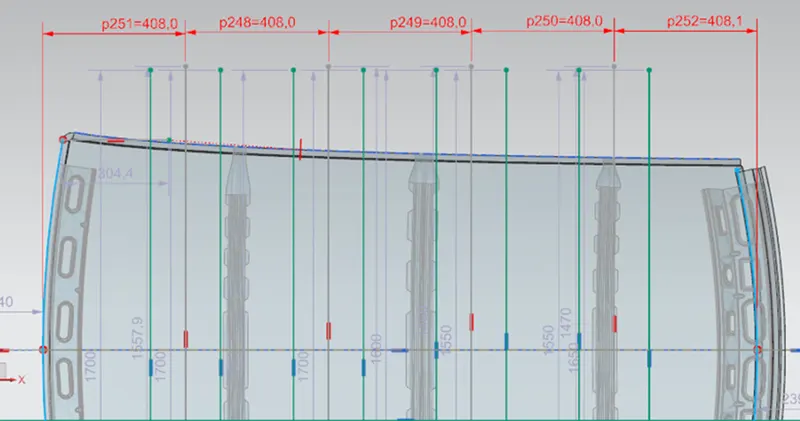

Roof Length (L):

L = 2040 mm



Calculating Rx and Ry:

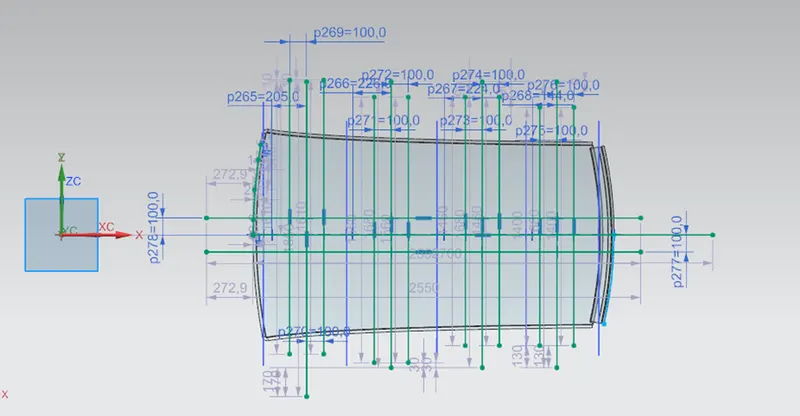

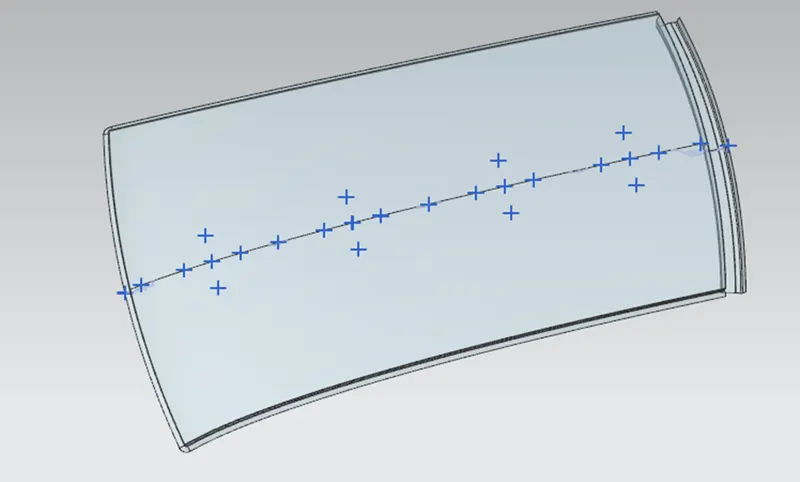

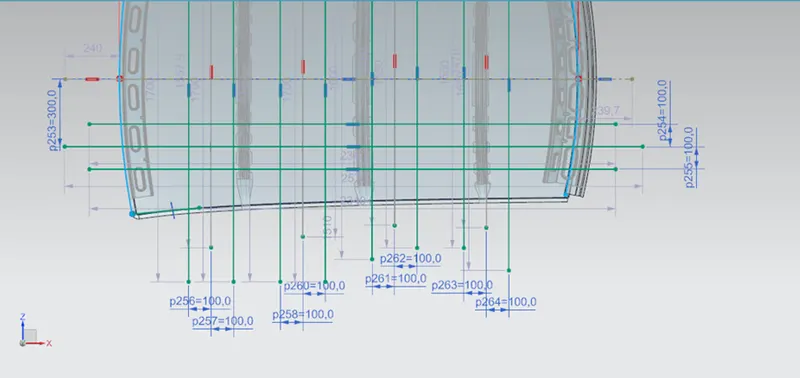

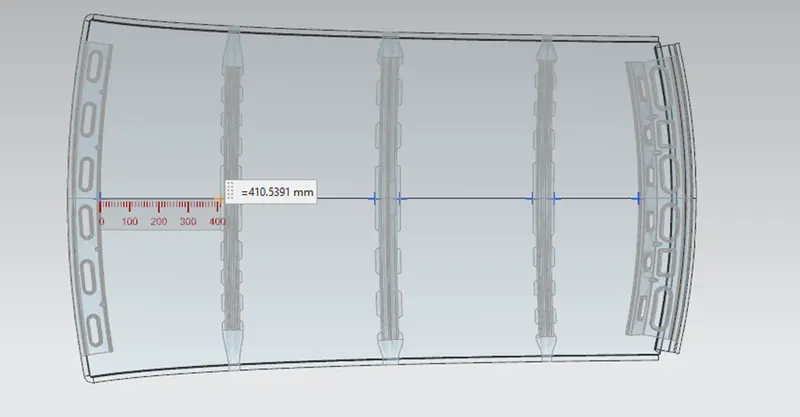

• From the 0-Y axis, at -3Y about a distance of 300mm is drawn parallel on the perpendicular plane as shown in the figure. Then after 100 mm lines are offset to either side of the -3Y line.
• Now centre lines are drawn between each adjacent roof rail edge respectively. Intersection points are marked on the sketch and exit the sketch. Make all geometry in construction lines except the points.
• Project the intersection points in the sketch to the roof surface as shown in the figure.
• Join the projected curves using an arc curve and measure the minimum radius and linear dimension of Rx and Ry.

Bow Roof Span (l):

• Measured distance for Front roof rail to Bow roof rail 1. Measure similarly for others.

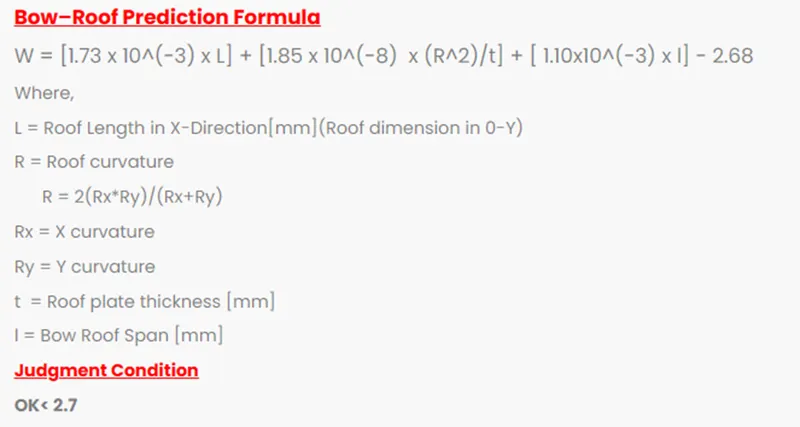

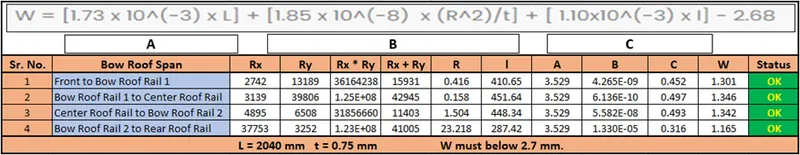

Calculation of W from above data:

• From above value chart, it is observed that W value is less than 2.7mm which is within criteria.

Conclusion:

• As per W value criteria it is proven that given design with assembly is perfect to sustain Heat Distortion Criteria.

Snow Load Criteria

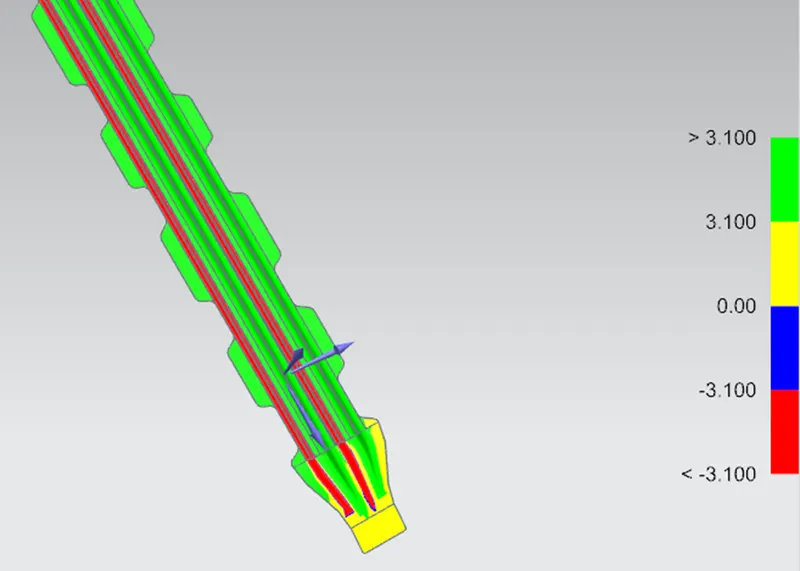

• Snow load criteria study is done to check the durability of the roof to withstand snowfall and reflex back to its original shape without any permanent deformation once the load is removed.

Model Calculation: -

• At the 0-Y axis on a perpendicular plane to the roof as shown in figure. Drawn 100 mm lines offset to either side of the 0Y axis line. Now centre lines are drawn between each adjacent roof rail edge respectively. Intersection points are marked on the sketch and exit the sketch. Make all geometry in construction lines except the points.
• Project the intersection points in the sketch to the roof surface as shown in figure.
• Join the projected curves using an arc curve and measure the minimum radius and linear dimension.

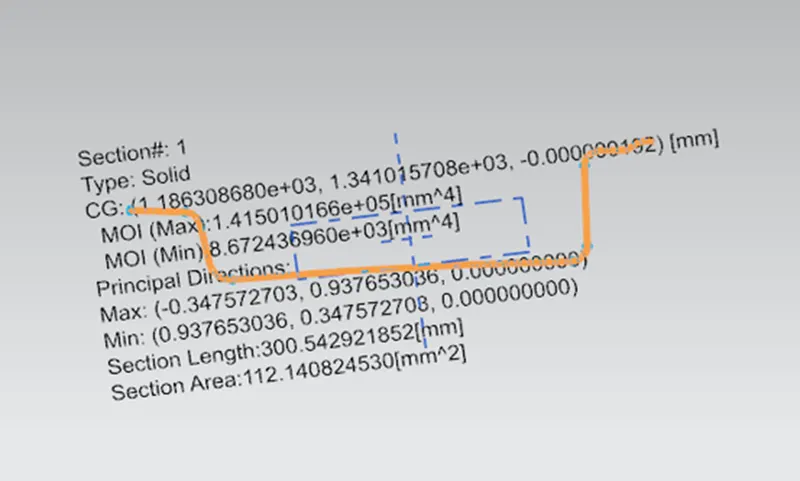

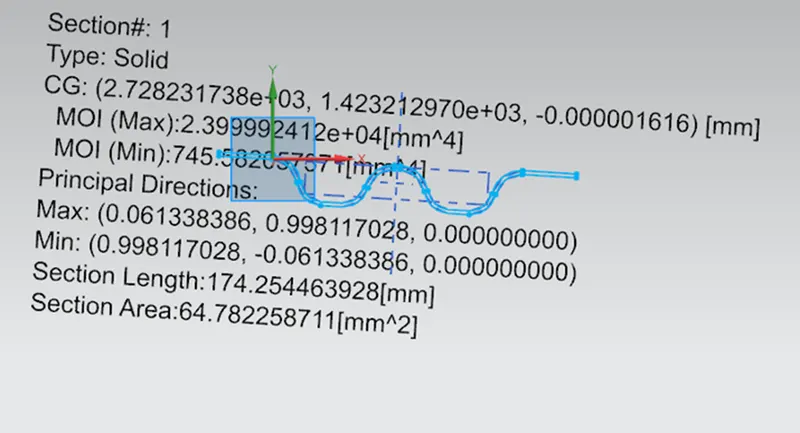

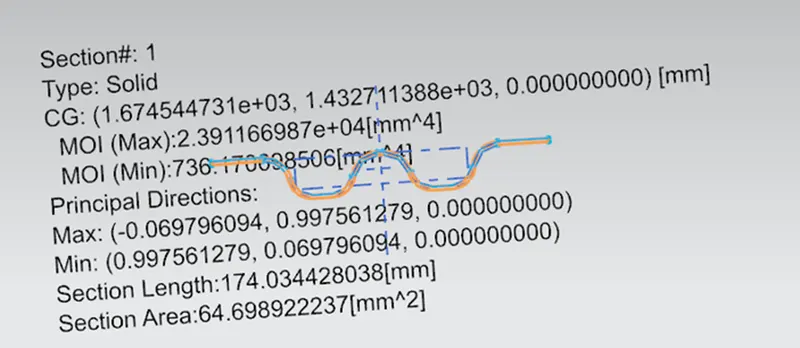

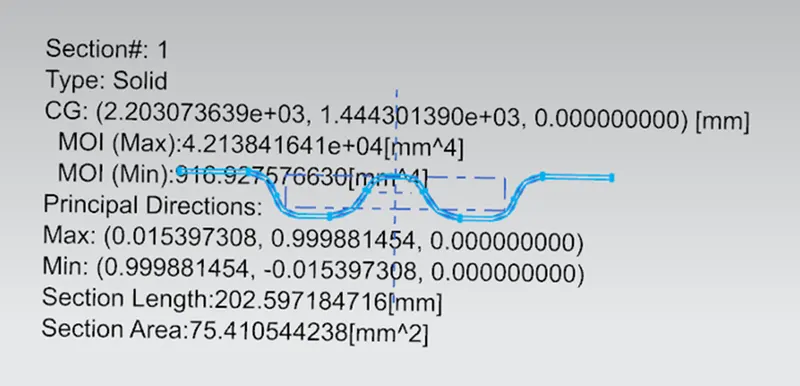

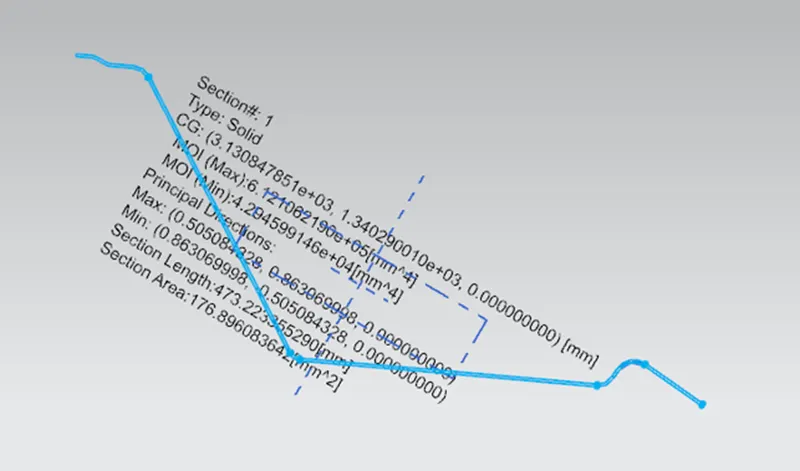

• Project the intersection plane bow roof and centre roof rail on the horizontal plane to find the moment of inertia of the respective section to find Iy values.

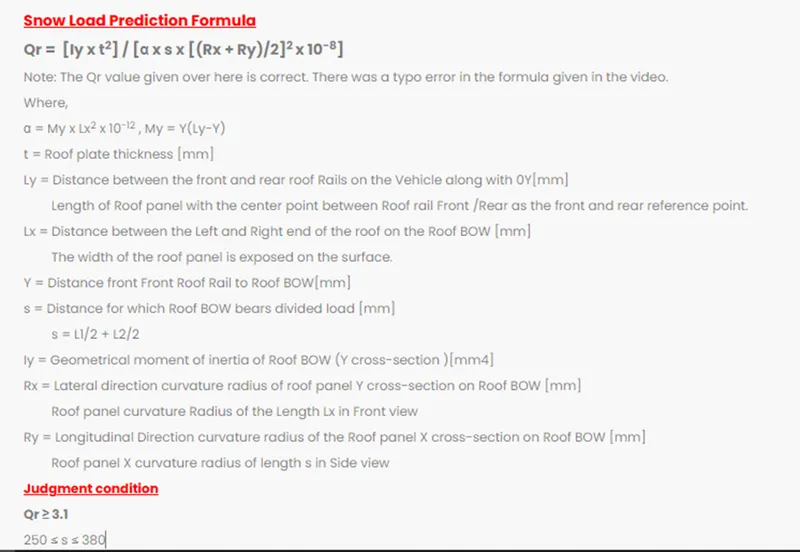

• Put all the linear and radial dimensions in the following formula to calculate Qr Value.

Section Modulus:

• Front Roof Rail

• Bow Roof Rail 1

• Centre Bow Roof Rail

• Bow Roof Rail 2

• Rear Roof Rail

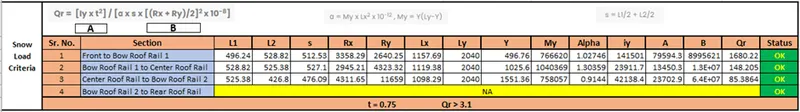

Calculation of Qr from data and formula:

• From above value chart, it is observed that Qr value is more than 3.1 which is within criteria.

Conclusion:

• As per Qr value criteria it is proven that given design with assembly is perfect to sustain Snow Load Criteria.

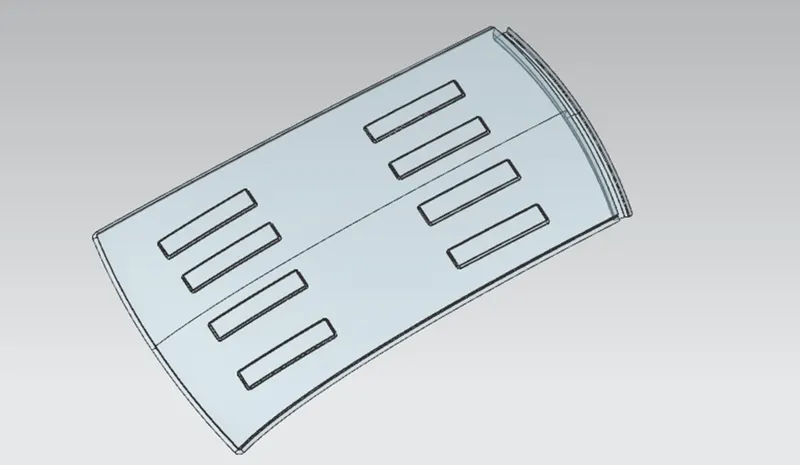

Outer Panel with Emboss



• To increase Heat Distortion and Snow Load Criteria this emboss is helping.
• Emboss add strength on surface so our criteria fulfil easily.
