CAR ROOF

CAR ROOF :-

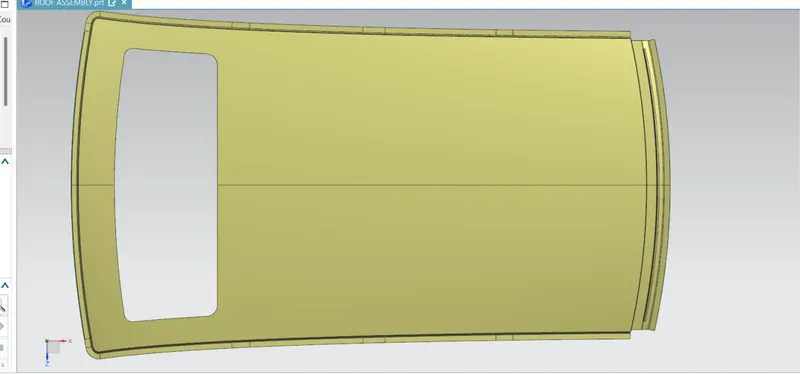

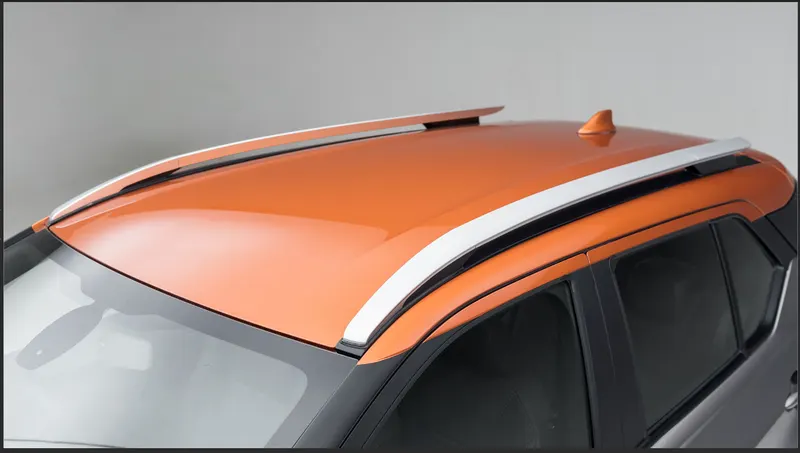

An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Roof is the structure above the wind shield glass having the reinforcements to provide the strength to the overall structure and to with stand the over head forces like snow

REINFORCEMENT :-

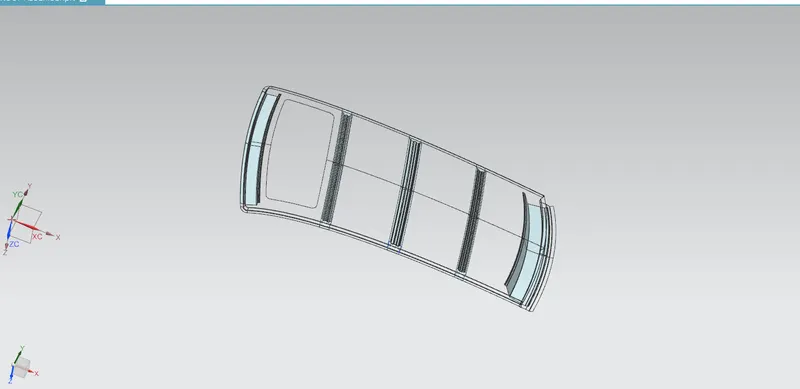

If the roof is flat it is very weak and cannot able to with stand the forces like snow , so in order to increase the strength of the roof these reinforcements like front roof rail, central roof rail, rear roof rail and the bow roofs are introduced and joined to the flat surface of the roof with the different joining process

Different types of reinforcements that the car has are :

Front roof rail

Bow roofs

Central roof rail and

Rear roof rail

REAR ROOF RAIL :

Rear roof rail is the one which joins the back door and the body side outer

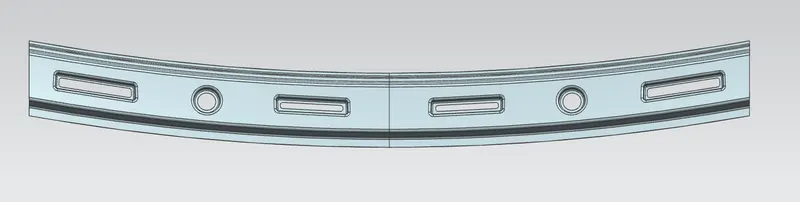

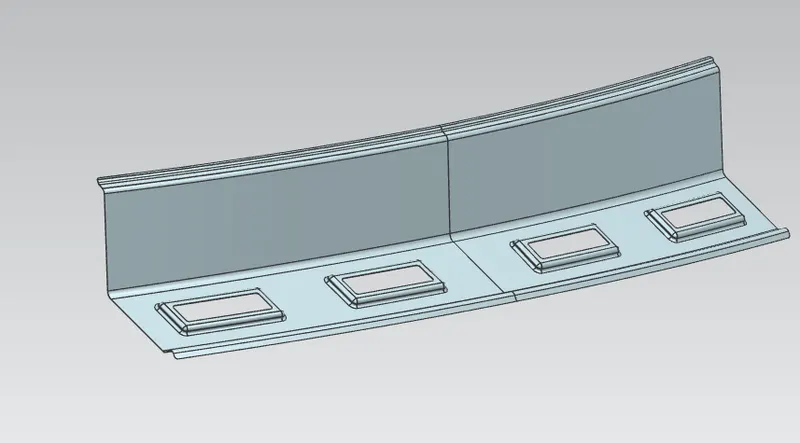

Front roof rail is the one which joins the wind shield glass , body side outer and the inner panel also. Here the front roof rail is designed based up on the master saection given

FRONT ROOF RAIL :

CENTRAL ROOF RAIL :

central roof rail helps in providing effectively support to the flat area of the roof as it is more susceptible to failure under the action of load . generally central roof rail is placed at the center of the roof which is connected to the B-pillar support structure . This central roof rail helps in adding the strength to the roof during the rool- over test. The thickness of the central roof rail is 1.25 mm .

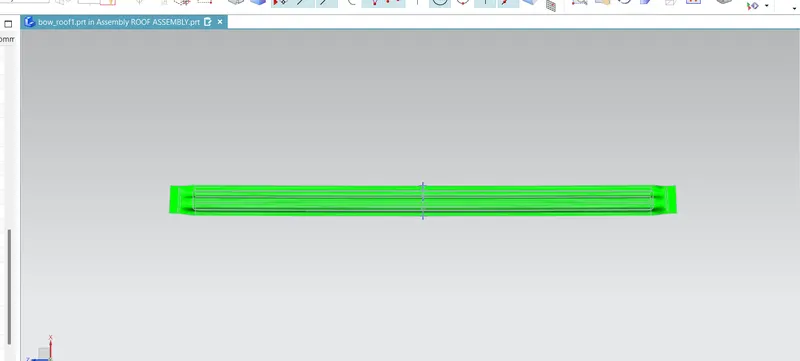

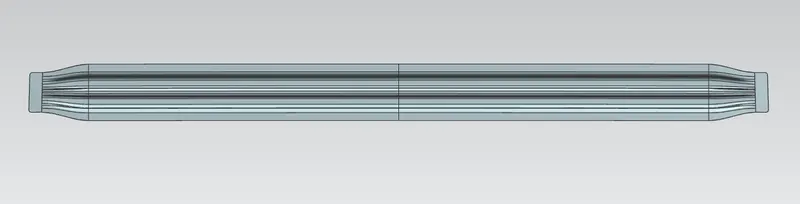

BOW ROOFS :

The bow roofs are give to improve the torsional stiffness and load bearing capacity of the roof structure . The number of bow roof present is depends on the overall size of the roof . Presently in this project two bow roofs are added.

JOINING PROCESS :

Mastics are introduced between the roof outer panel and the reinforcements for joining . where ever the mastic are introduced there is remarkable improve of the strength

Spot welding is also introduced to join the reinforcements and the outer panel

DESIGN CONSIDERATIONS FOR A ROOF :

* Visibility criteria

* Head clearance

* Curvature study

* Heat distortion and snow load criteria

* Draft analysis

ROOF CRUSH TEST :

Roof crush test is the design given by the IIHS ( insurance institute of highway safety ) . After analyzing the many accidents IIHS has then fixed some regulations , that how to perform the crush test .

IIHS gives the rating based up on this test . For this they consider two points while giving the rating

* How fast the car can reforms to its original shape after the roll over and

* How deep is the protrusion after the roll over

GOAL OF ROOF CRUSH TEST :

To minimize the protrusion into the occupant compartment , so that the seat belts and air bags can do there job in protecting the occupant

CONDITIONS TO FOLLOW FOR ROOF CRUSH TEST :

There are two conditions that should be followed for the roof crush test , they are

INITIAL CONDITION :

* Close and lock all the doors

* Close all the windows

SECOND CONDITION :

Fix the body sill or chassis frame on a hard lever surface horizontally

METHOD OF APPLYING THE FORCE :

The load is applied in such a way that 50 is tilted from the front end to the rear end and the load will be in 1800 mm in length and 750 mm in width . The load is applied at the position of 250 from the flatness of the roof . The load is applied on the roof for almost 120 sec and the crush speed at which the load applied is 13 mm/sec or less than that

RESULTS :

If the displacements goes above the requirements level then we have to increase the bow roof thickness or add more mastics points to increase the strength . the stronger the roof the better it can protect the occupants in the roll over crashes.

HEAT DISTORTION STUDY ON THE ROOF :

The heat distortion study plays a major role in sheet metal usage . heat distortion temperature is a temperature limit above which the material cannot be used for the structural applications . This study is used to predict the heat distortion temperature at where the material starts to soften when exposed to a fixed load at elevated temperature . In order to avoid bending or damages on the roof, based on the heat distortion temperature , this study will predict the bow roof position which helps to strengthen the roof .

Bow – roof prediction Formula

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

Where

L = Roof Length in X-Direction[mm](Roof dimension in 0-Y)

R = Roof curvature

R = 2(Rx*Ry)/(Rx+Ry)

Rx = X curvature

Ry = Y curvature

t = Roof plate thickness [mm]

l = Bow Roof Span [mm]

Judgement Condition : OK< 2.7> 3.1

HEAT DISTORTION CALCULATIONS BETWEEN FRONT ROOF RAIL AND BOW ROOF RAIL :-

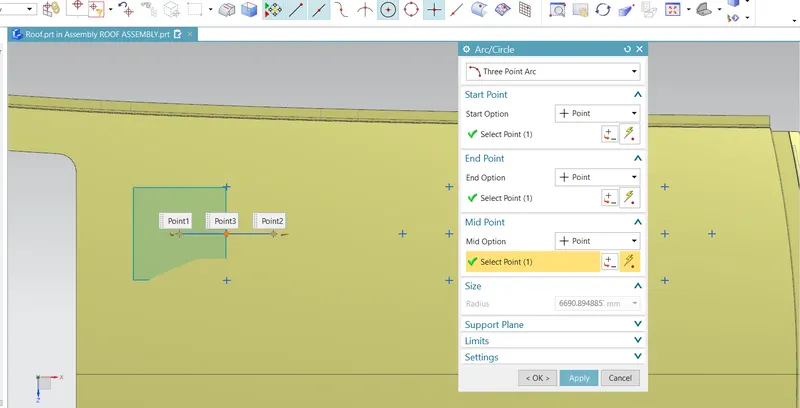

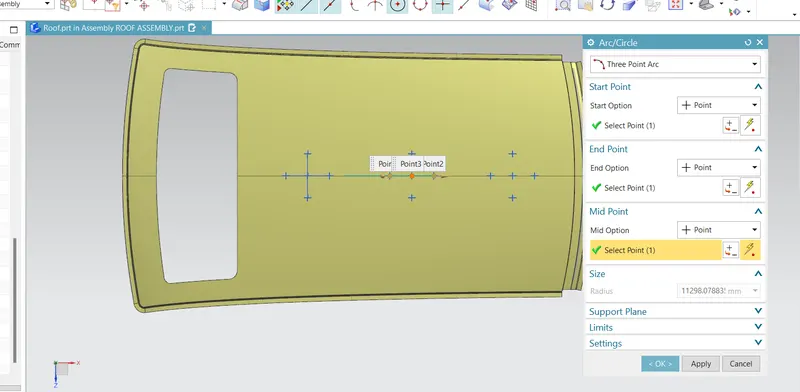

Ry value

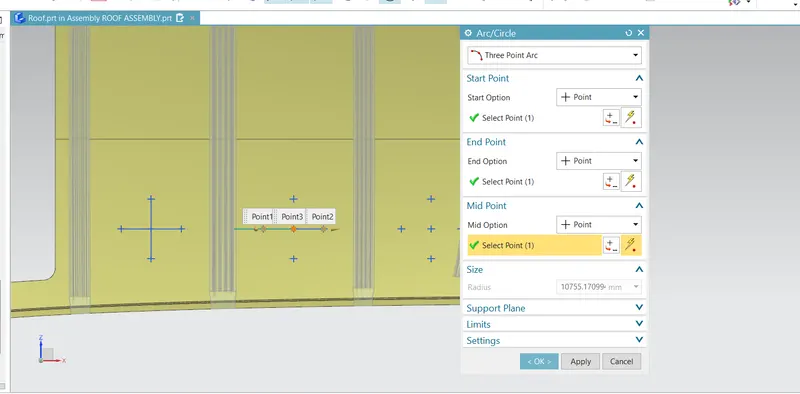

Rx value

L value

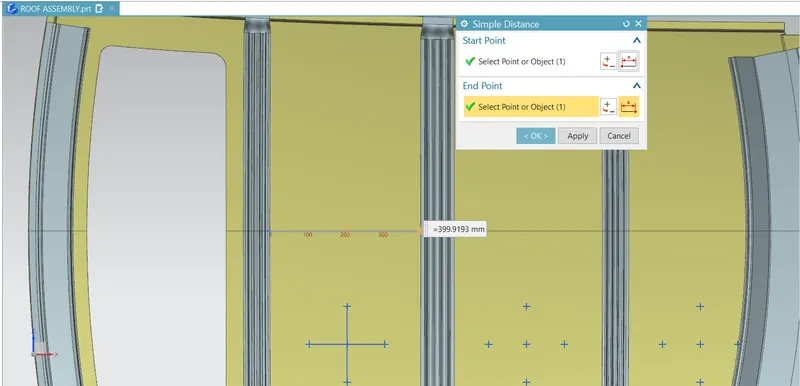

I value

APPLY THE VALUES IN THE FORMULA :

In order to find the heat distortion apply all the necessary values from the roof to the give formula

CALCULATIONS :-

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

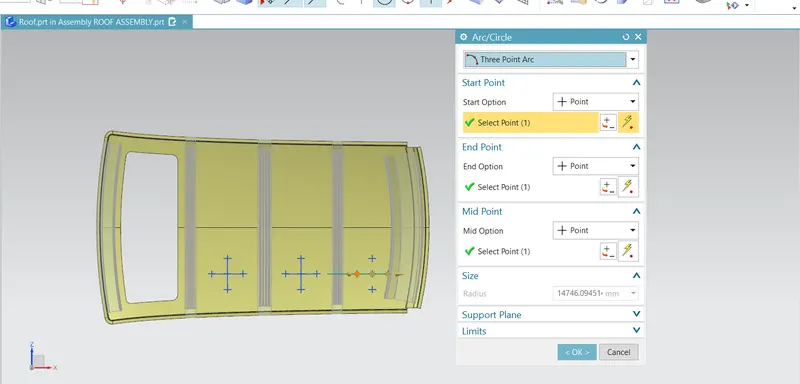

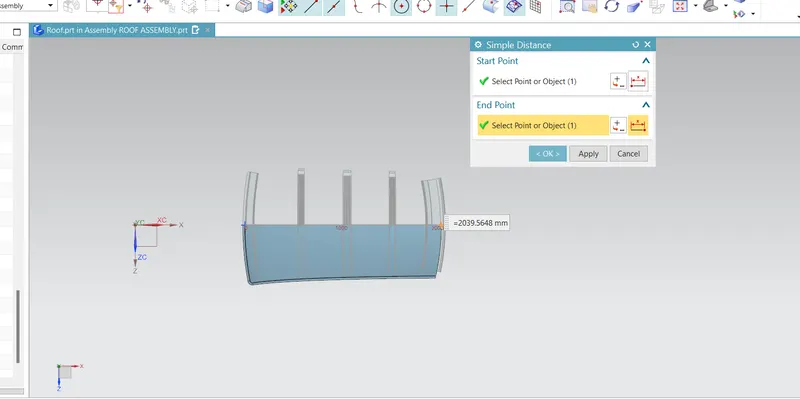

Where L = 2039.56 mm, and I = 399.91 mm and R = 2(Rx*Ry)/(Rx+Ry) = 5623.2414 mm t =0.75 mm

W = [1.73 x 10^(-3) x2039.56] + [1.85 x 10^(-8) x (5623.2414^2)/.75] + [ 1.10x10^(-3) x399.91] - 2.68

=2.05 mm

From the abovecalculation it can be concluded that all values of w<2.7 and also not w>3.1 so thus infers that current positioning of bow row are good in state as per design and found ok

HEAT DISTORTION CALCULATIONS BETWEENBOW ROOF RAIL AND CENTRE BOW ROOF:-

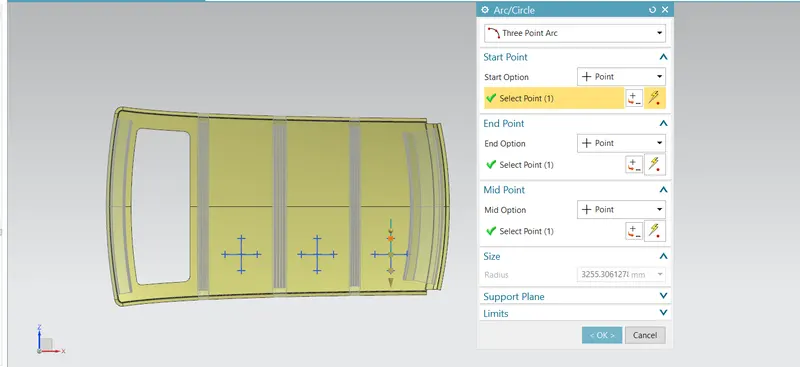

Ry value

Rx value

L value

I value

APPLY THE VALUES IN THE FORMULA :

CALCULATIONS :-

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

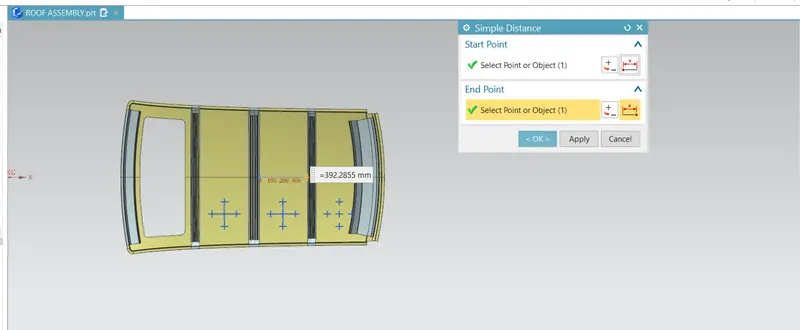

Where L = 2039.56 mm, and I = 392.28 mm and R = 2(Rx*Ry)/(Rx+Ry) = 5769.90 mm t =0.75 mm

W = [1.73 x 10^(-3) x 2039.56] + [1.85 x 10^(-8) x (5769.90^2)/.75] + [ 1.10x10^(-3) x 392.28] - 2.68

W = 2.091 mm

From the abovecalculation it can be concluded that all values of w<2.7 and also not w>3.1 so thus infers that current positioning of bow row are good in state as per design and found ok

HEAT DISTORTION CALCULATIONS BETWEEN BOW ROOF 2 AND REAR ROOF RAIL :-

Ry value

Rx value

L value

I value

APPLY THE VALUES IN THE FORMULA :

CALCULATIONS :-

W = [1.73 x 10^(-3) x L] + [1.85 x 10^(-8) x (R^2)/t] + [ 1.10x10^(-3) x l] - 2.68

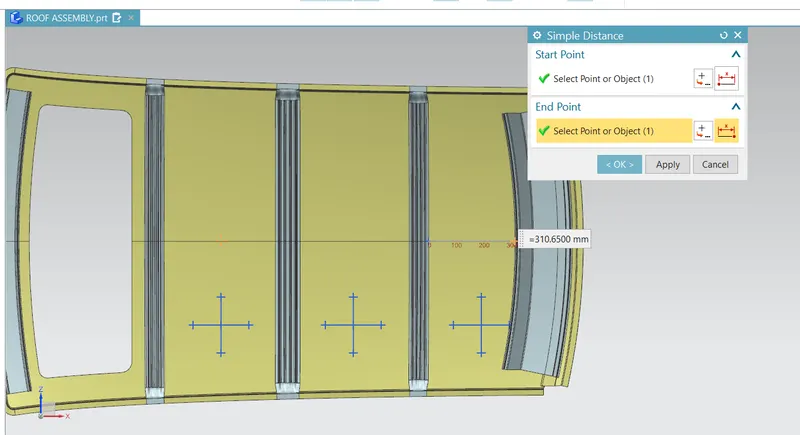

Where L = 2039.56 mm, and I = 310.65 mm and R = 2(Rx*Ry)/(Rx+Ry) = 5333.33 mm t =0.75 mm

W = [1.73 x 10^(-3) x 2039.56] + [1.85 x 10^(-8) x (533.33^2)/0.75] + [ 1.10x10^(-3) x 310.65] - 2.68

W = 1.88

From the abovecalculation it can be concluded that all values of w<2.7 and also not w>3.1 so thus infers that current positioning of bow row are good in state as per design and found ok

SNOW LOAD CRITERIA :-

This test is done to know how is the roof behaving when there is a snow over . normally due to the snow weight the dent will happen. But the roof should be designed in such a way that when the snow is removal the roof should go it its original position . This is the basic requirements for snow load criteria .

SNOW LOAD CALCUATION

Qr = [Iy x t^2] / [α x s x [(Rx + Ry)/2]^2 x 10^-8]

Where

α = My x Lx^2 x 10^-12 , My = Y(Ly-Y)

Judgement condition = Qr ≥ 3.1

250 ≤ s ≤ 380

t = Roof plate thickness [mm]

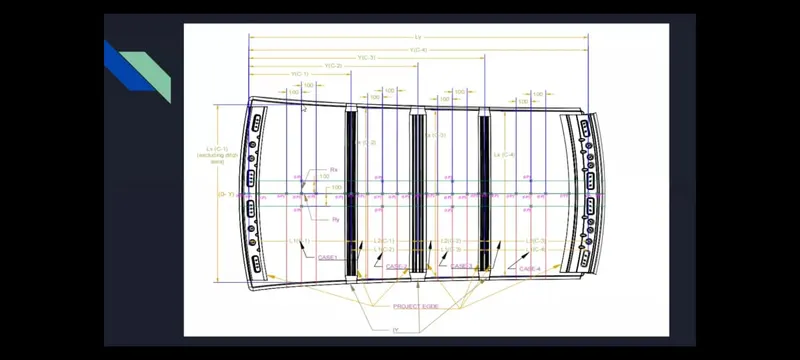

Ly = Distance between the front and rear roof Rails on the Vehicle along with 0Y[mm]

Length of Roof panel with the center point between Roof rail Front /Rear as the reference point of the front and the rear.

Lx = Distance between the Left and Right end of the roof on the Roof BOW [mm]

Width of the roof panel exposed on the surface.

Y = Distance front Front Roof Rail to Roof BOW[mm]

s = Distance for which Roof BOW bears divided load [mm]

s = L1/2 + L2/2

Iy = Geometrical moment of inertia of Roof BOW (Y cross-section )[mm4]

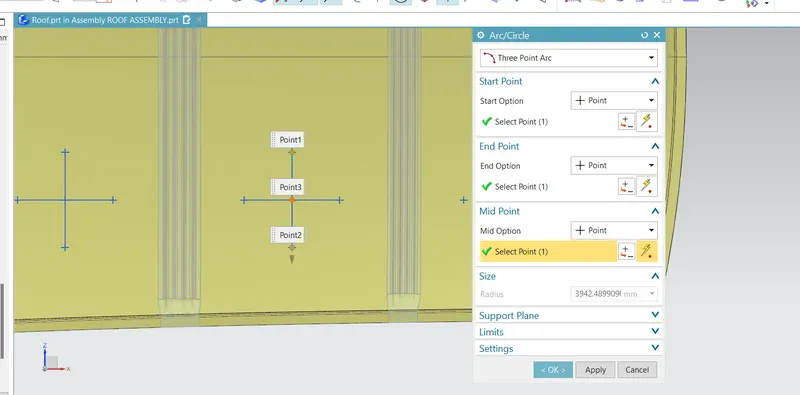

Rx = Lateral direction curvature radius of roof panel Y cross-section on Roof BOW [mm]

Roof panel curvature Radius of the Length Lx in Front view

Ry = Longitudinal Direction curvature radius of the Roof panel X cross-section on Roof BOW [mm]

SNOW LOAD CALCULATIONS BETWEEN BOW ROOF1 AND CENTRE ROOF RAIL :-

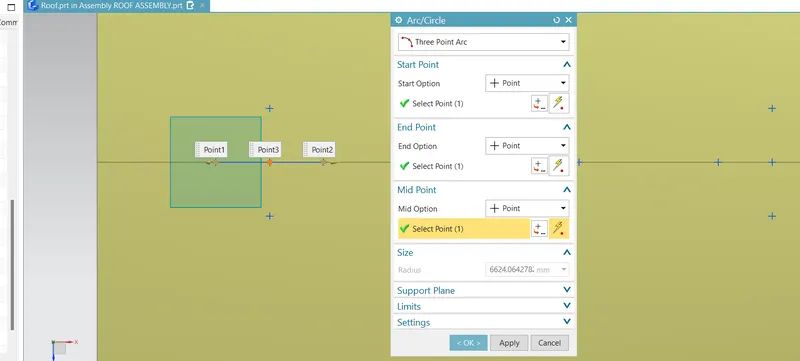

Rx value

Ry value

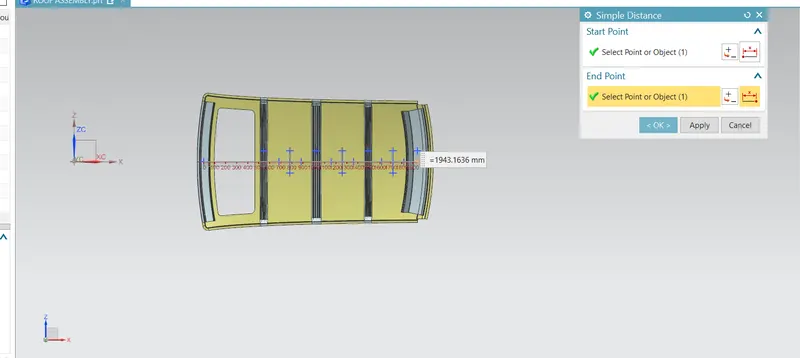

Ly value

Lx value

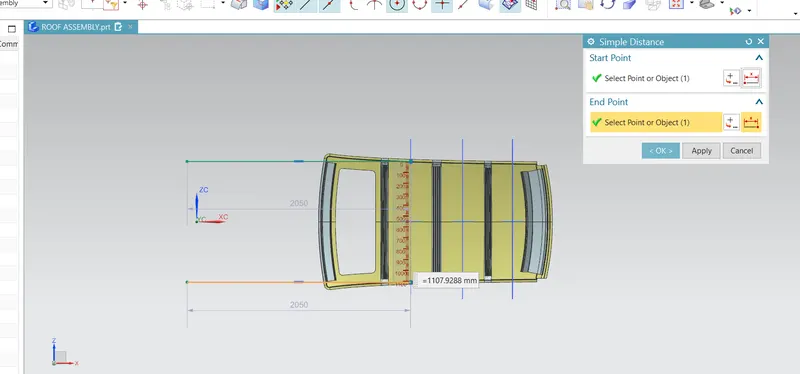

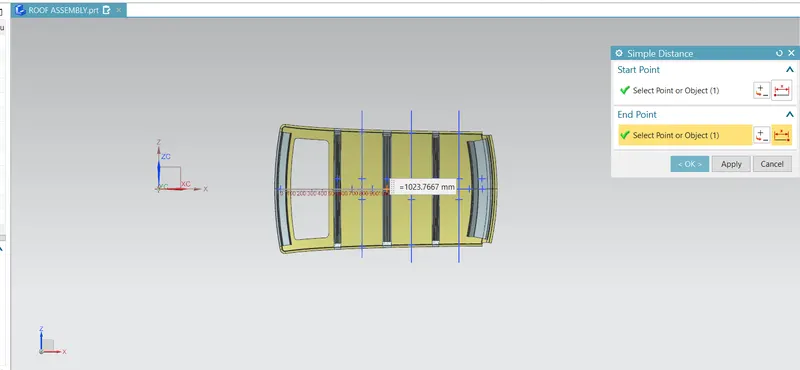

Y value

L1 value

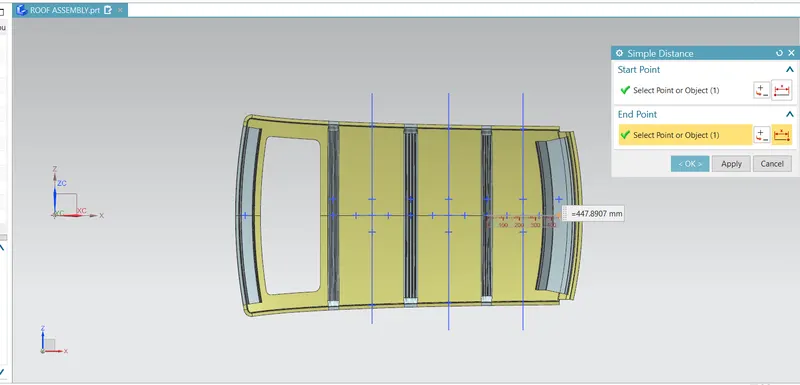

L2 value

Iy value

APPLY THE VALUES IN THE FORMULA :

CALCULATIONS :-

Qr = [Iy x t^2] / [α x s x [(Rx + Ry)/2]^2 x 10^-8]

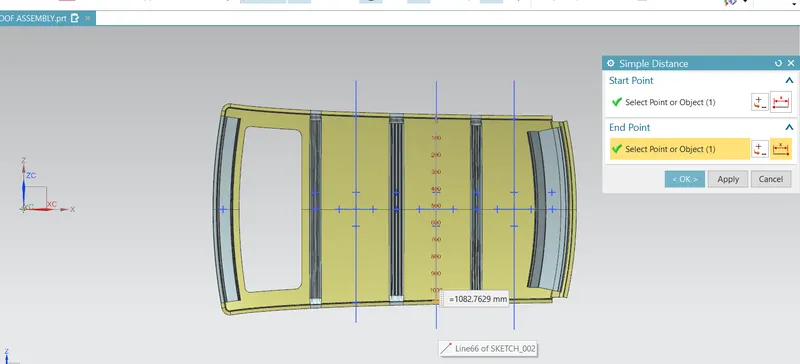

Where Ly = 1943.13mm Lx = 1107.93mm Y= 1023.76mm

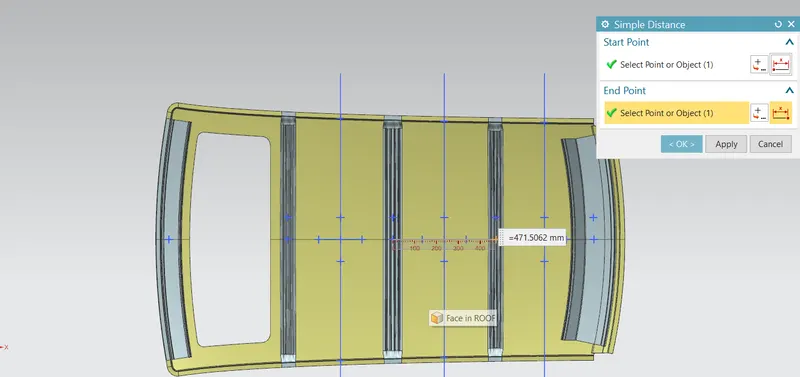

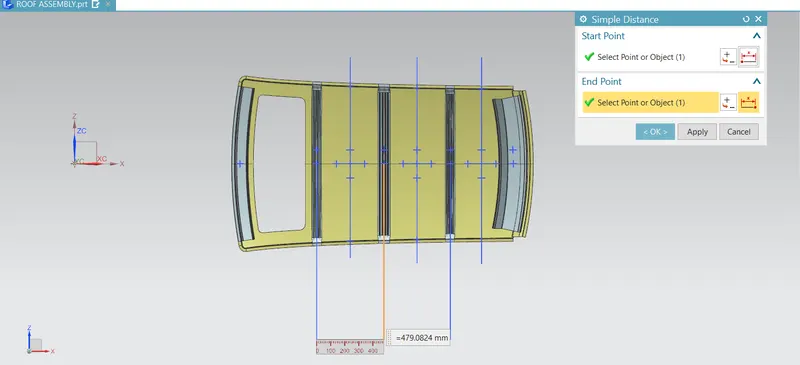

L1 = 479.08mm L2 =471.50mm and Iy = 1.545 x 10^3 mm^4 and α = 1.15 mm and S = 475.29 mm and Rx = 6624.06 mm

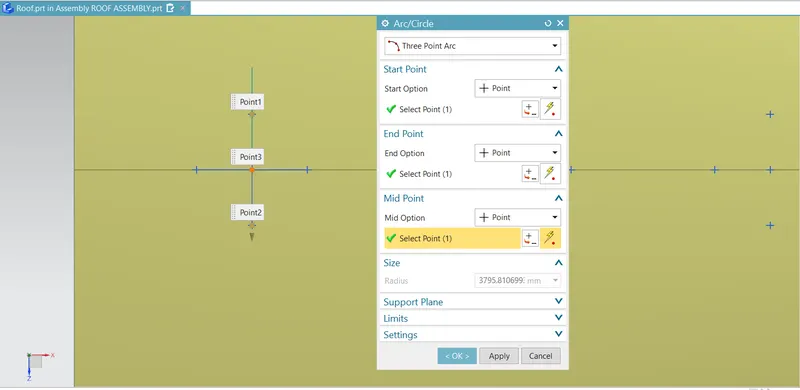

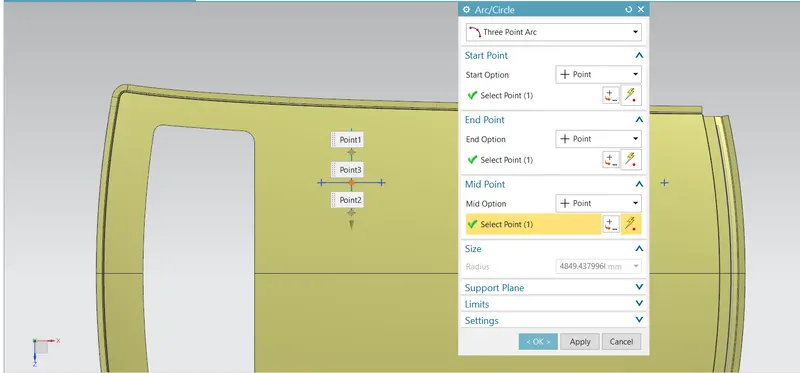

Ry = 3795.81 mm

So,

Qr = [1.545 x 10^3 x 0.75^2] / [1.15 x 475.29 x [(6624.06+ 3795.81)/2]^2 x 10^-8]

= 869/148.36

=5.85

It is observed from the values that obtained values of QR > 3.1

SNOW LOAD CALCULATIONS BETWEEN CENTRE ROOF RAIL AND BOW ROOF 2

Rx value

Ry value

Ly value

Lx value

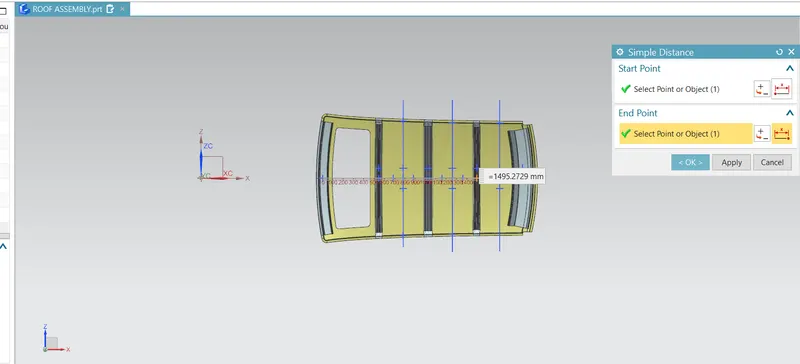

Y value

L1 value

L2 value

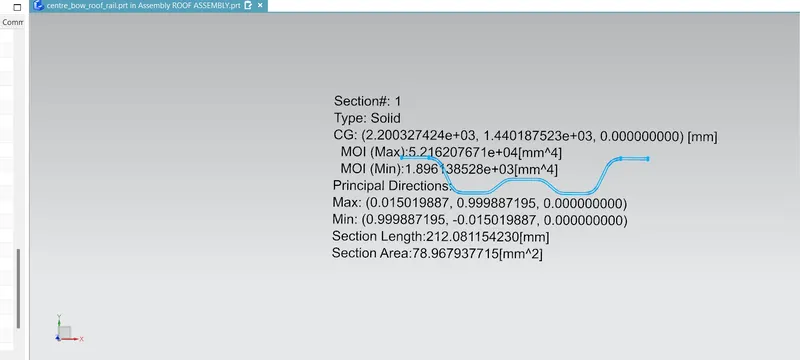

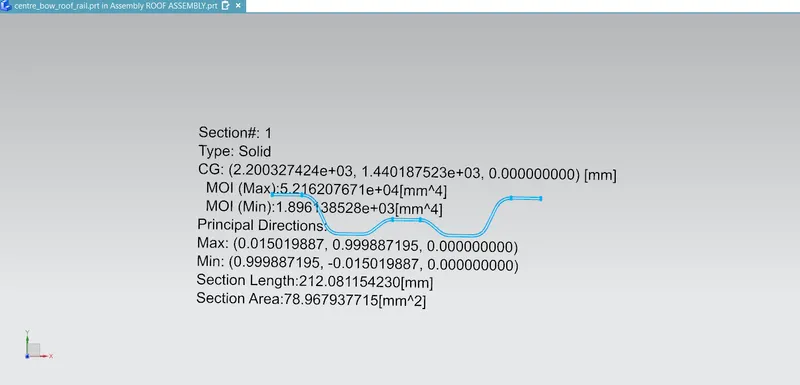

Iy value

APPLY THE VALUES IN THE FORMULA :

CALCULATIONS :-

Qr = [Iy x t^2] / [α x s x [(Rx + Ry)/2]^2 x 10^-8]

Where Ly = 1943.13mm Lx = 1082.76 mm Y= 1495.27 mm

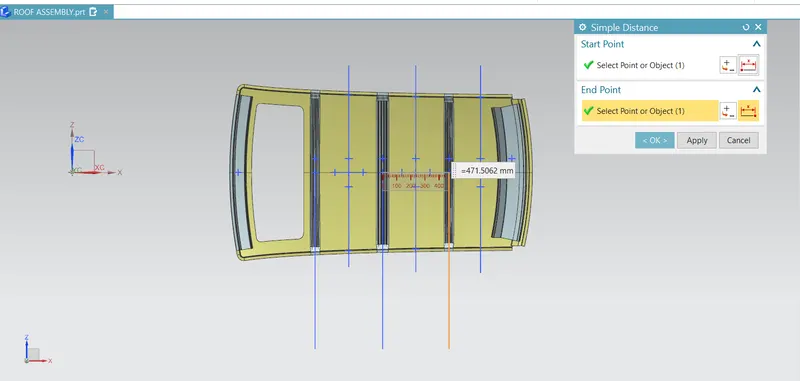

L1 = 471.50 mm L2 =447.89 mm and Iy = 1.896 x 10^3 mm^4 and α = 0.785 mm and S = 459.69 mm and Rx = 11290.07 mm

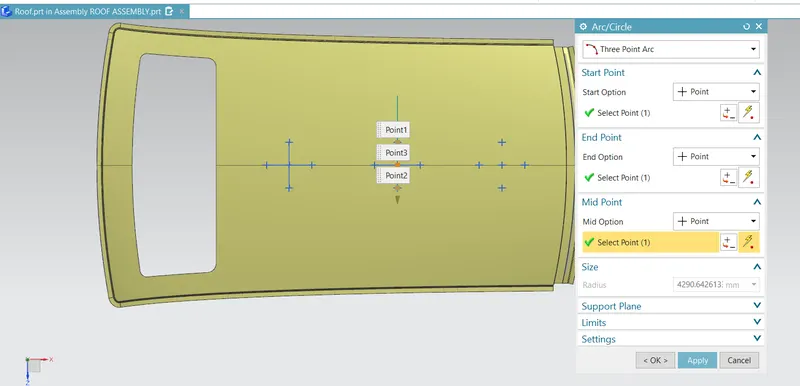

Ry = 4290.64 mm

So,

Qr = [1.896 x 10^3 x 0.75^2] / [0.785 x 459.69 x [(11290.07+ 4290.64)/2]^2 x 10^-8]

Qr = 4.90

It is observed from the values that obtained values of QR > 3.1

SECTION ANALYSIS :-

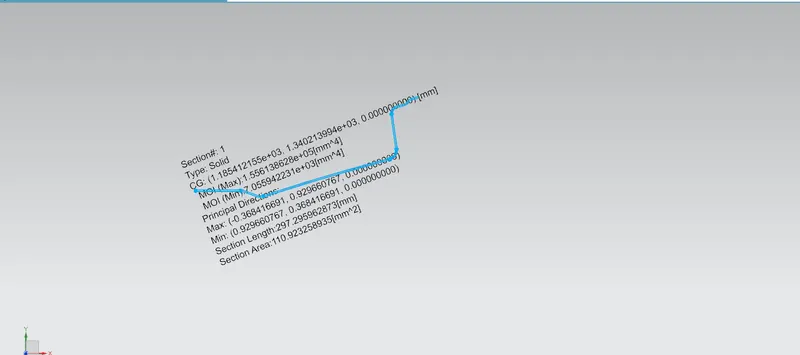

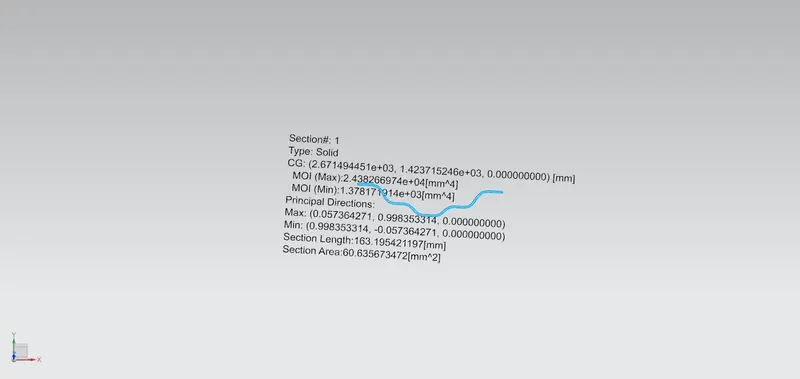

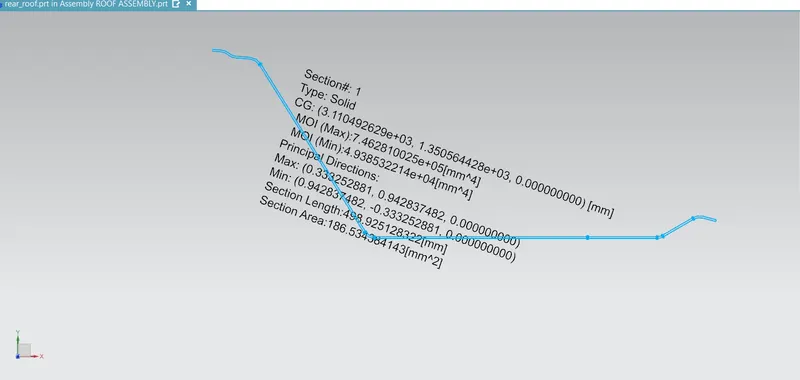

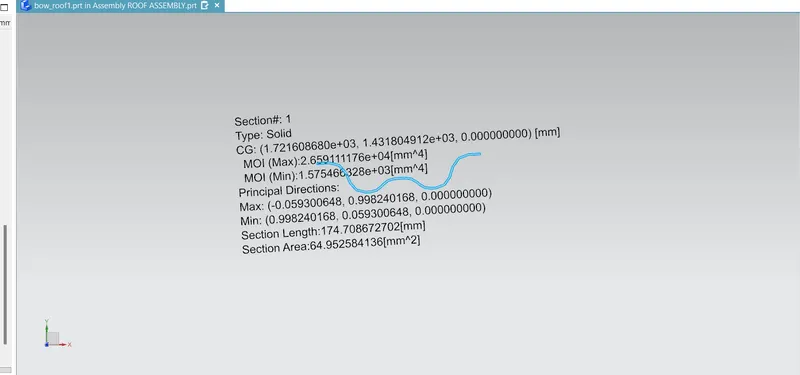

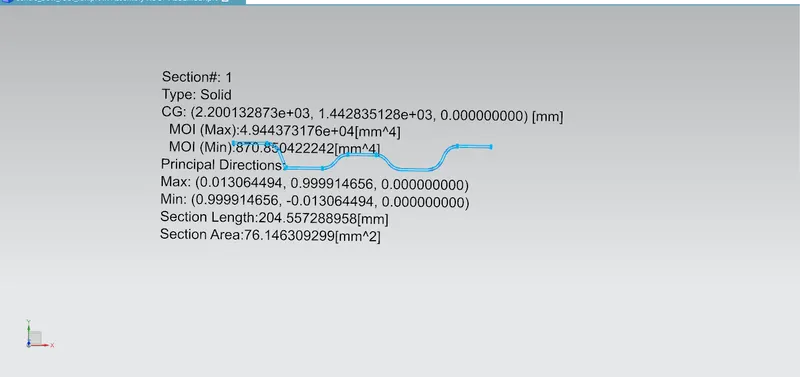

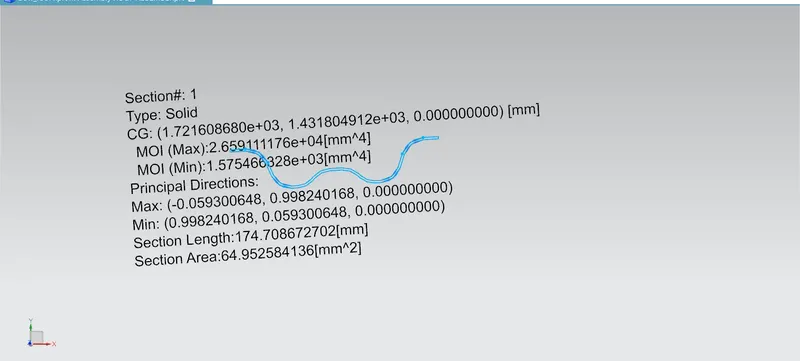

Section moment of inertia is used to predict the amount of deformation and deflection of a part. A higher moment of inertia is preferable as it reduces the amount of deflection for a given force. The thickness of the part and addition of flanges and embosses increase the section inertia of the part. Here the master sections of the roof and roof rails and their section analysis are given.

FRONT ROOF RAIL :-

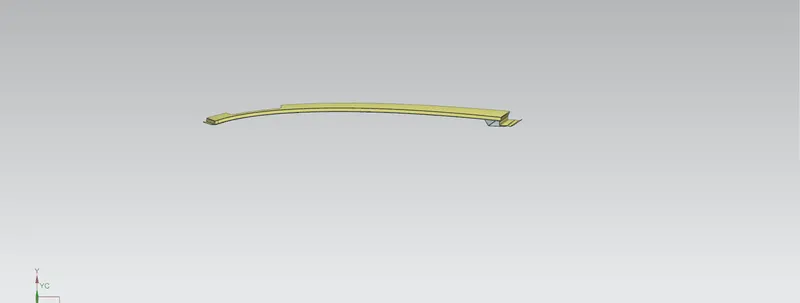

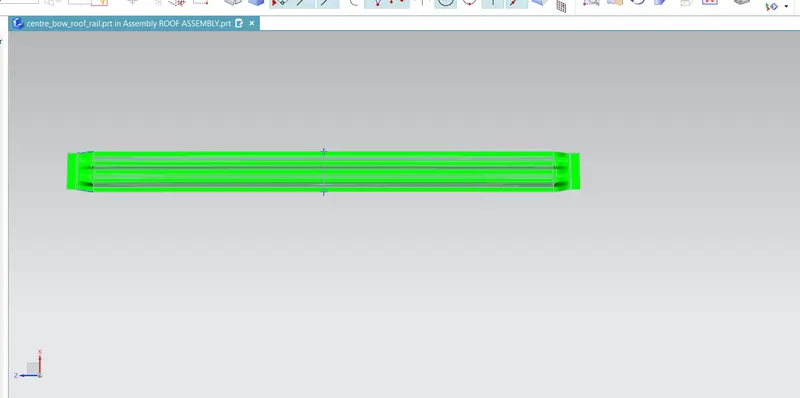

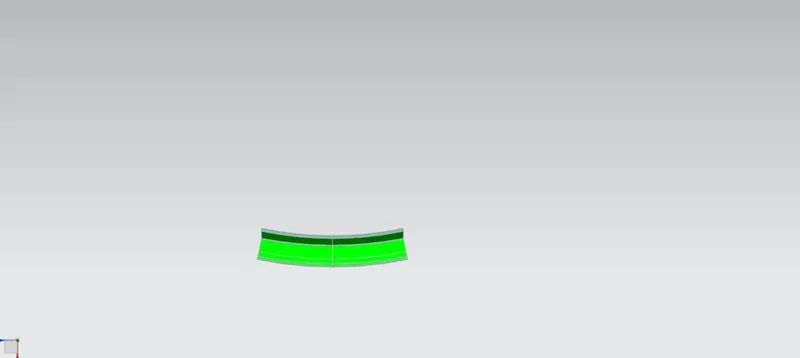

Create an intersection curve with the help of the plane and select the front roof rail
