RIB DESIGN FOR COIN HOLDER

Aim: To Design a rib for the given plastic component.

Software Used: CATIA-V5.

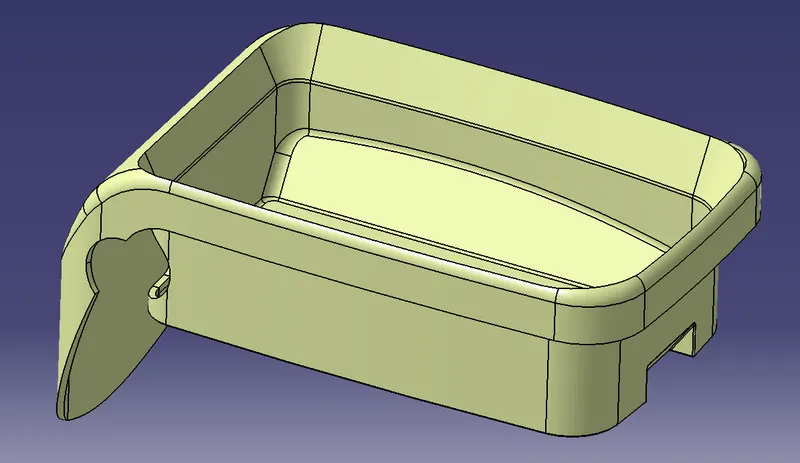

Input component: Coin Holder.

Introduction:
Rib: Ribs are thin, wall-like features typically designed into the geometry of a part to add internal support to walls or other features like bosses. In a similar fashion, gussets are support features that reinforce areas such as walls or bosses to the floor.

Ribs provide a means to economical stiffness and strength in molded parts without increasing overall wall thickness. They also facilitate:
1) Locating & arresting components of an assembly.
2) Providing alignment in mating parts.
3) Acting as stops or guides for mechanisms.

A well-designed rib will overcome the following disadvantages:
1) Increase part weight and cost proportional to the increase in thickness.
2) Increase molding cycle time required to cool the larger mass of material.
3) Increase the probability of sink marks.

Typical uses of Ribs:
1) Covers, cabinets and body components with long, wide surfaces that must have good appearance with low weight.
2) Rollers and guides for paper handling, where the surface must be cylindrical.
3) Gear bodies, where the design calls for wide bearing surfaces on the center shaft and on the gear teeth.
4) Frames and supports.

Ribs design involves 5 main issues:
1) Thickness.
2) Height.
3) Location.
4) Quantity.
5) Manufacturability.

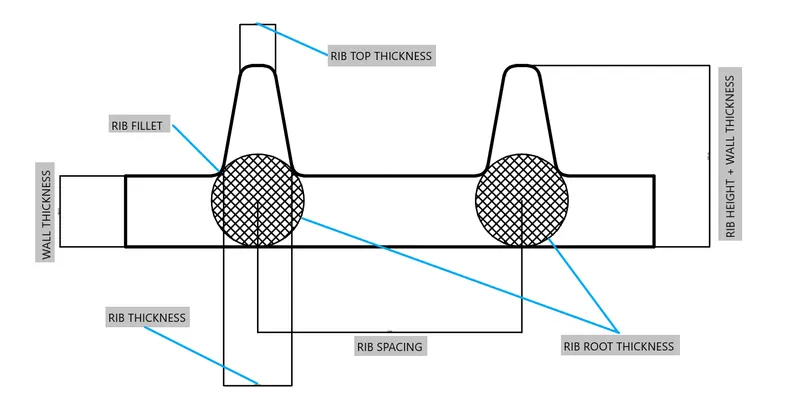

Rib Geometry:

1)Rib Thickness
Ribs should be designed to be 50-60 percent of the nominal wall thickness. Thinner does not provide much structure and may be hard to fill. Thicker ribs are tempting, but they can begin to introduce sinks on the cosmetic surface.
Bottom Rib Thickness :( 0.3 to 0.6) * Wall Thickness
Note: Top Rib Thickness should be minimum of 0.75mm.

2)Rib height
For maximum effectiveness, rib height should be no more than three times the nominal wall thickness. Since the rib will be thinner than the wall, it may be hard to fill it if it is taller.
Rib Height= (3 to 5) * Wall Thickness.

3)Rib spacing
Increase the number of ribs rather than their height in order to increase stiffness. Ribs should be spaced a minimum of two times the nominal wall thickness apart from one another.
Rib Height/Rib width ratio = 3:1 –steel.
Rib Height/Rib width ratio = 2:1 –preferred

4)Rib draft
A minimum 0.5-degree draft will ensure that they release from the tool during molding.
Rib draft = (0.5 to 1) degree.

5)Rib coring
Core thick ribs from the back or below to create a blank area and thinner rib walls. This will help mitigate cosmetic sinks.

6)Rib fillet:
Fillet at feature intersections to increase rib strength.
Rib fillet = 0.125 * Wall Thickness.

7)Rib Root Thickness:
It is the thickness at the intersection of Rib and Wall of the plastic component.
Rib Root Thickness = (0.3 to 0.5) * Wall Thickness

Design of Ribs for the given component:

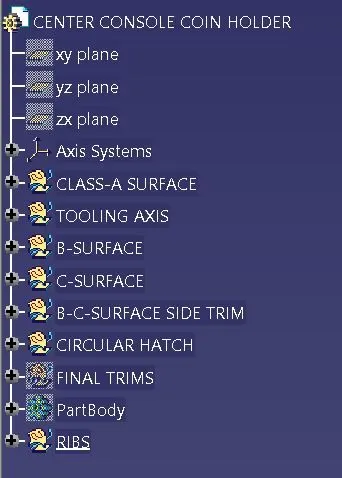

Design Tree:

Design Considerations:

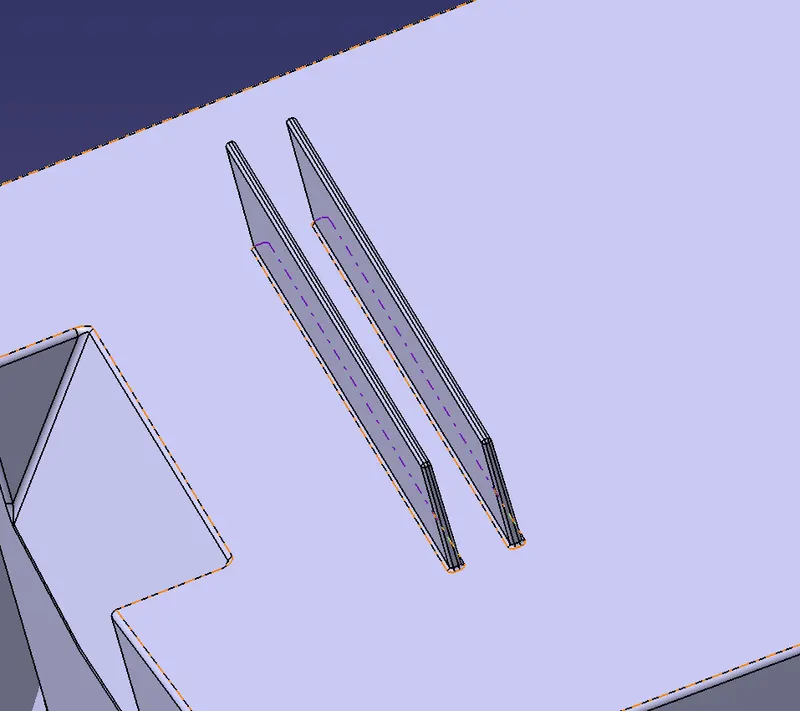

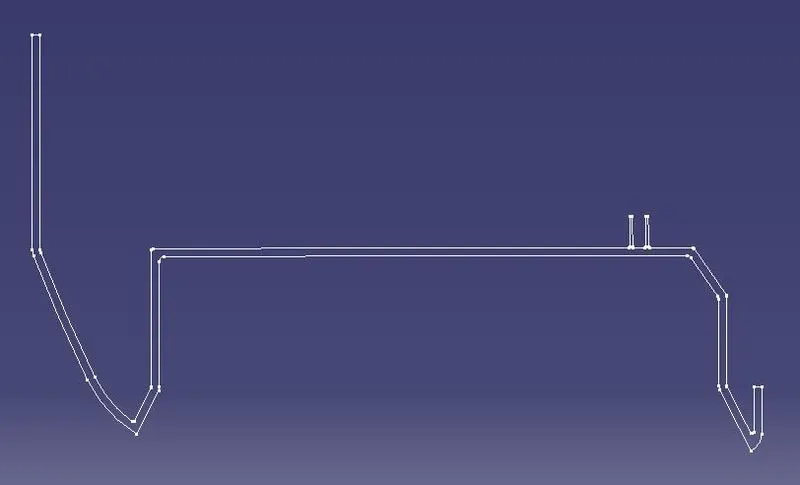

Rib Thickness = 1mm
Rib Height = 10mm
Rib Draft = 0.5 degree
Rib Fillet Radius = 1.25mm
Rib to Rib Spacing = 5mm

Conclusion:
Hence, Ribs were designed by considering the Design Rules of Rib.
