REVIT_ Scheduling & Estimation_Week 9
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements inline
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
ans)
- Using 3D model create a section box = BX
b. To create similar doors and windows in a floor plan layout = CS
c. To reduce the thickness of lines visible in plan views = TL
d. To apply override settings to a floor in the model section view =EOD
e. To increase the range of visibility in a plan view = VR
f. To select the previously selected items = CTRL + <-
g. To add annotations to the model views = Dl
h. To bring the model elements inline = AL
i. To rotate the model elements =RO
j. To move an object to another location = MV
k. To copy a model element = CO/CC
l. To mirror an element about an axis = MM
m. To create an array of model elements = AR
2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors

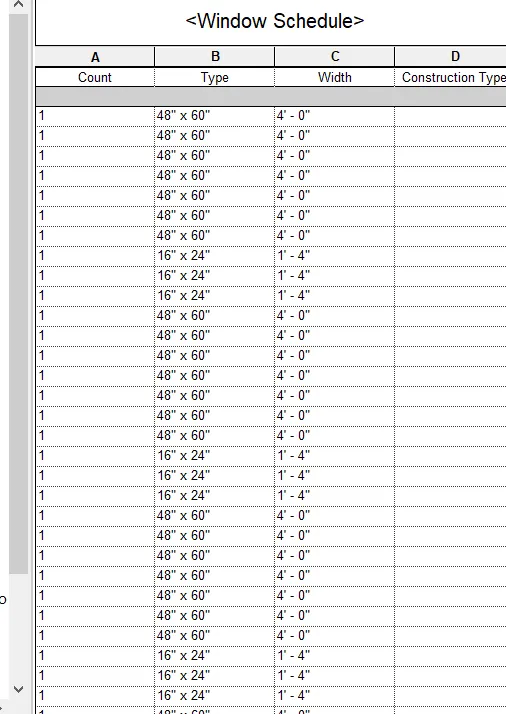

c. Windows

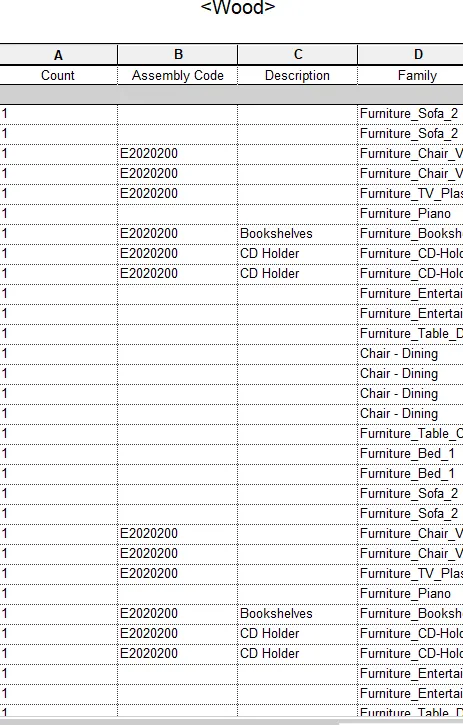

d. Material – Concrete/Wood
ans)

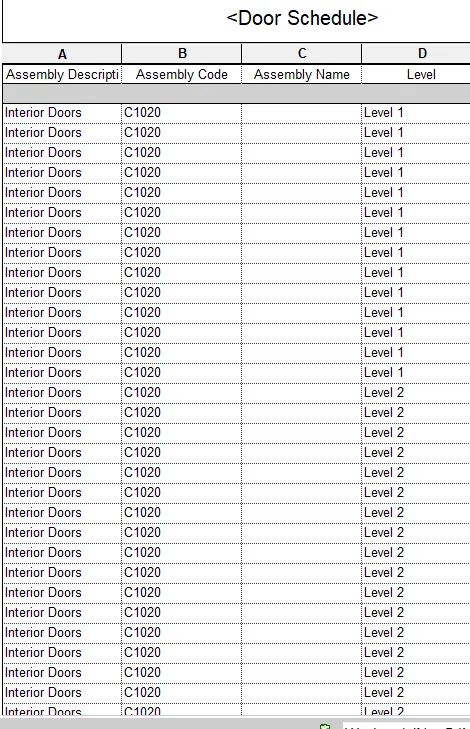

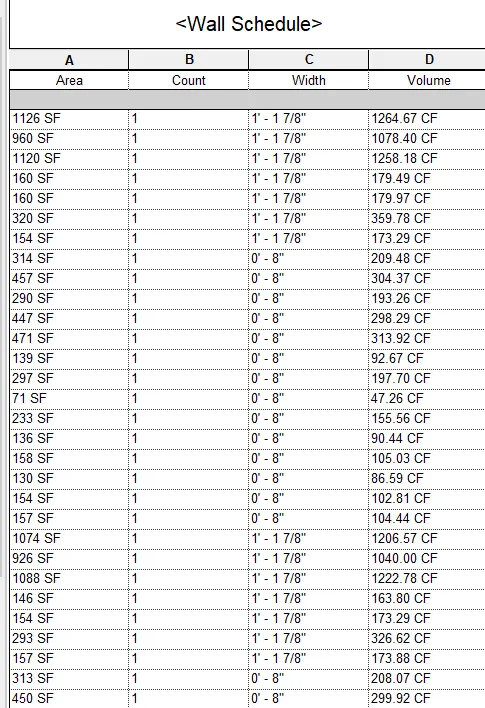

Aim : To prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
Tools Used:
- view
- schedule
- schedule quantities
- schedule properties
procedure:
1)go to view and click on schedule
2) select schedule quantities
3) a dialog box opens up, select the desired item to be scheduled and click add
4) add the parameters and click ok
a)
b)
c)
d)
3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

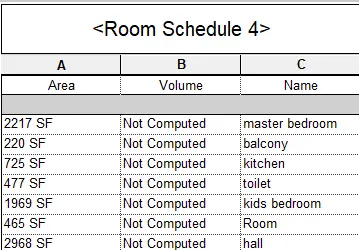

ans)Aim: Calculate area and volume of each room in the model
Tools Used:
- room tag
- schedul
procedure:
To crate a room schedule
1)irst tag all rooms with specified names
2) then click in schendule and select room
4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
ans)
Aim: To prepare total cost of materials used in the project
Tools Used:
- schedule
- material take off
Procedure:

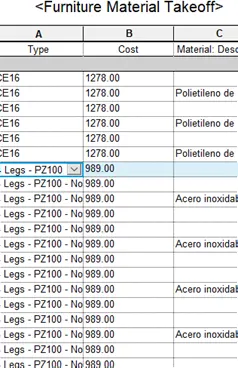

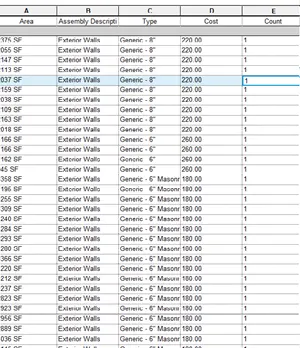

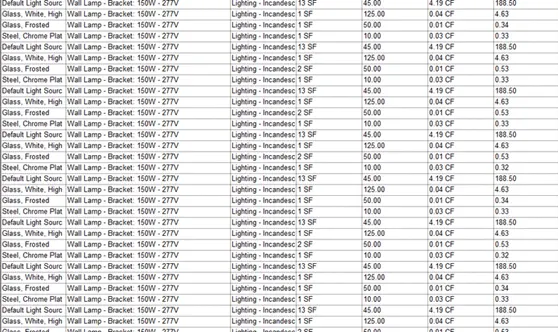

1)asign cost for each material
2) add cost parameter in the room schedule
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario

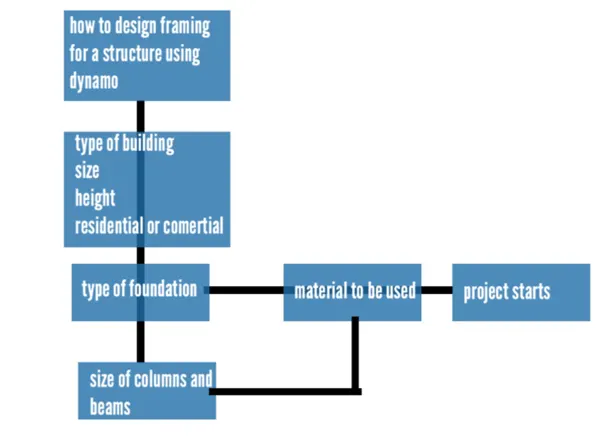

a. How to decide framings for a structure using Dynamo ?

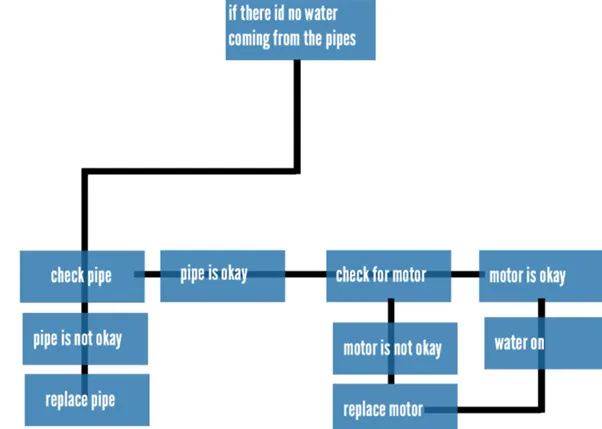

b. If there is no water coming from the pipes

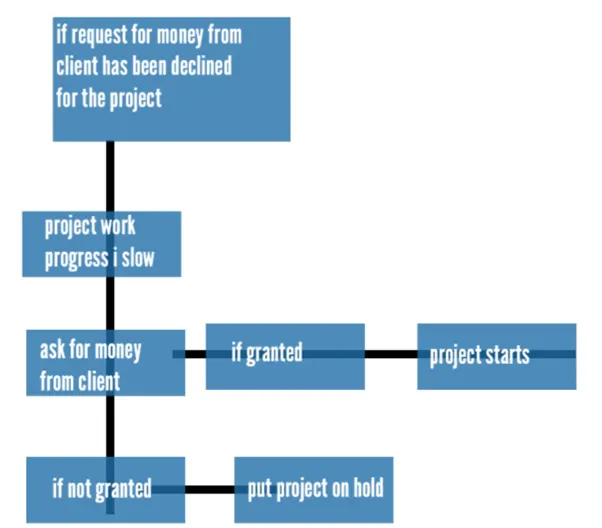

c. If request for money from client has been declined for the project
a)
b)
c)
6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
ans)
a)walls
type of wall
lenght
width
height
material used
cost
thicknesss
b)floor
type of floor
lenght
breath
area
volume
cost
thickness
c)doors
height of still
lenght
width
materials
type of door
height of lintel
thickness
d)windows
height of still
lenght
width
materials
type of window
height of intel
thickness
e)table
material
purpose of table
length
width
material
height
f)building
type of building
- of floors
height
width
area
material
loads on buildings
location
