Challenge

REVIT_Naviswork_Project- 4

HHemanth Varma Kunaparaju28 Dec 2020

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

1st ans)

Aim:-To Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class

Procedure:-Follow the images

Result:-Got the desired result

2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

2nd ans)

Aim:-To Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as animation in your Navisworks file

Tools used:-walk,record

Proceddure:-

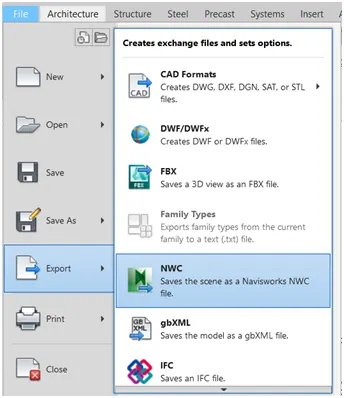

Step 1:-To export the revit file to be opened in navies work and manage as NWC file

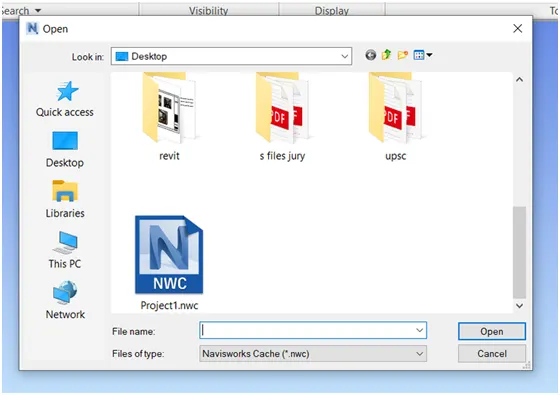

Step 2:-Now open the exported file

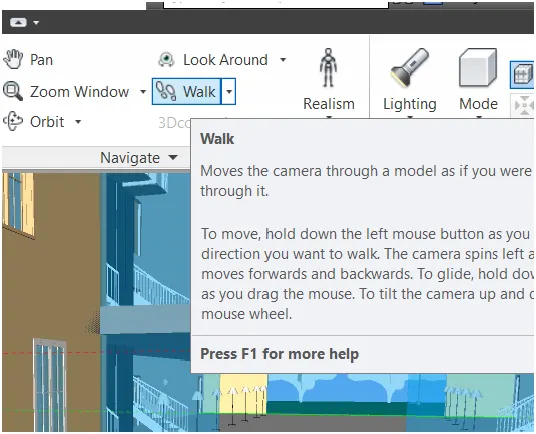

Step 3:-Now select the walk option from view toolbar

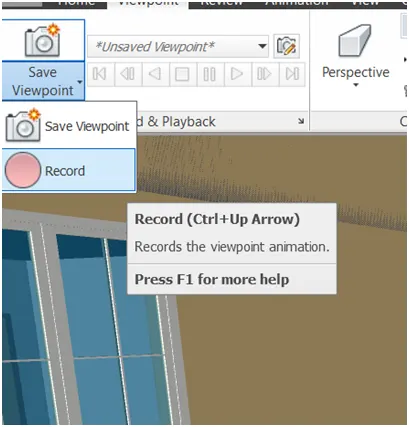

Step 4:-Now click record from the save viewpoint

Result:-We got the desired result

3) Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

3rd ans)

Aim:-To Use Navigate tool to use Realism feature to walk through the model and record your moving as animation in Navisworks file

Tools required:-Realsim and record

Procedure:-

Step 1:-We need to export the revit file to be opened in navies work and manage NWC file

Step 2:-Now we need to open the exported file

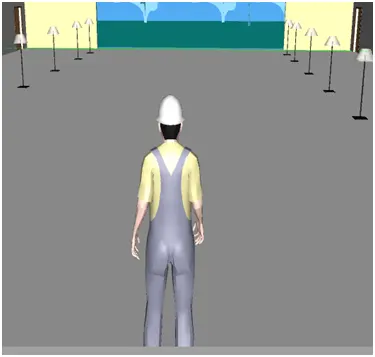

Step 3:-Select the realism option from view toolbar

Step 4:-Click record from the save viewpoint

4) Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models
a. Run the Clash Detection Test
b. Study the clashes between the two models
c. List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved
f. Save the results after color coding the clashes to the Navisworks file
g. In case of resolution annotate the clash and save the view to defined views in Navisworks

4th ans)

Aim:-To Embed both architecture and structure *.nwc file to your Navisworks file. Create a clash detection test between the two models

procedure:-

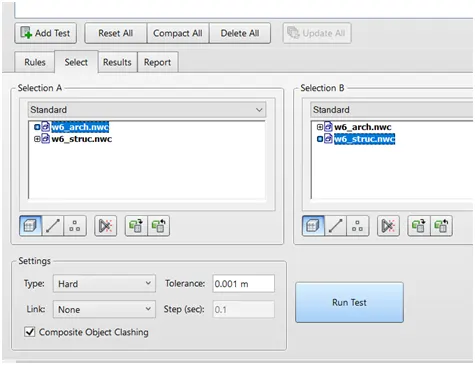

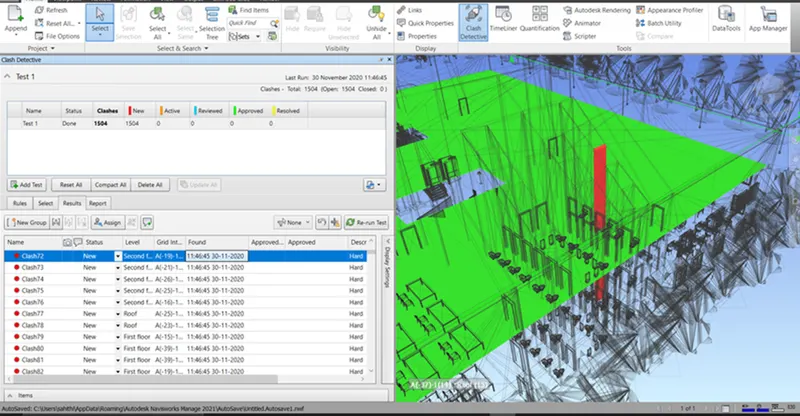

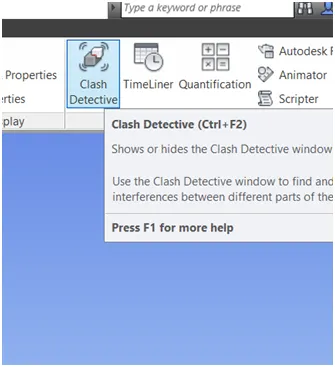

a. Run the Clash Detection Test

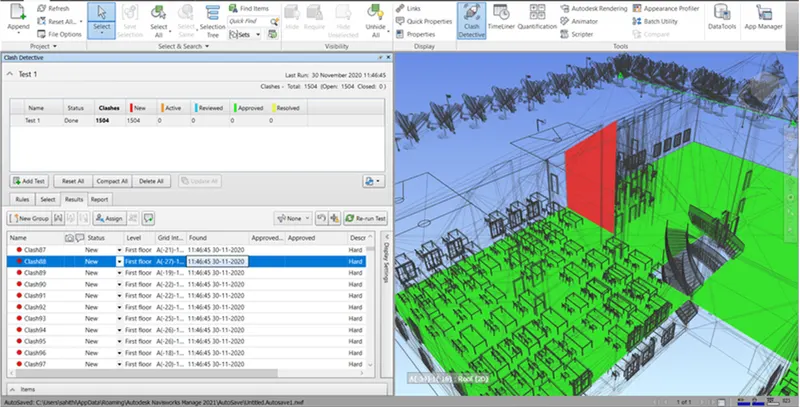

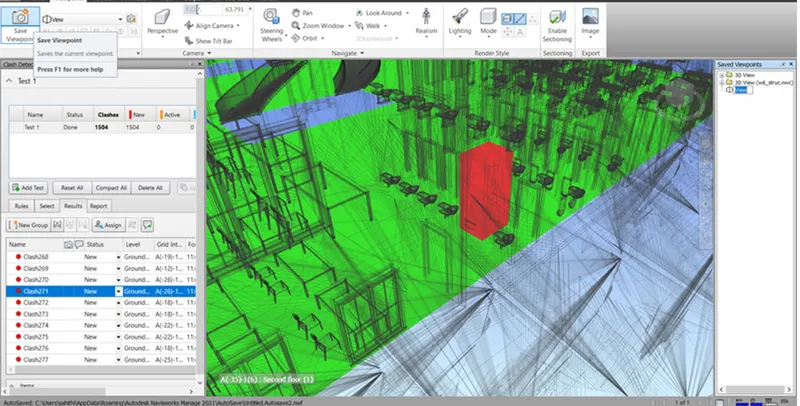

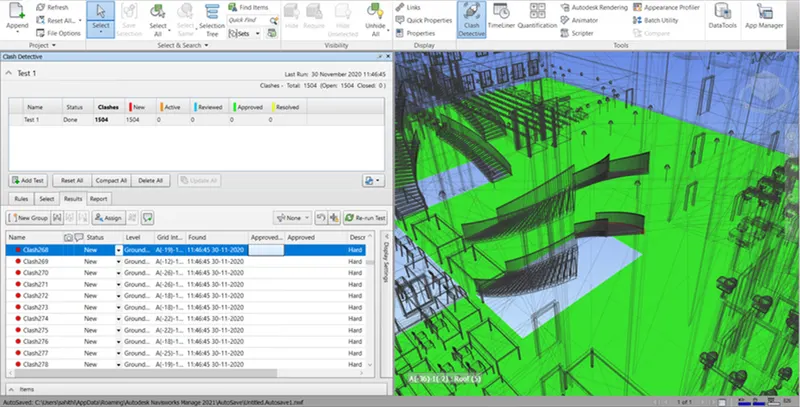

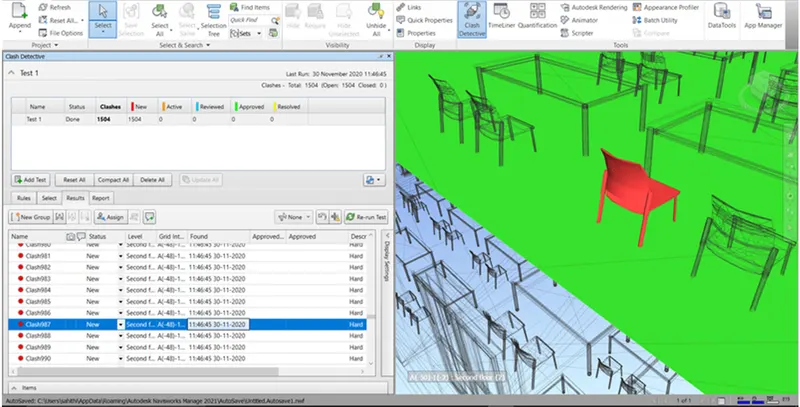

b. Study the clashes between the two models

c. List which of the clashes could be approved

d. List which of the clashes could be neglected ( will be taken care later)

e. List which of the clashes can be resolved

f. Save the results after color coding the clashes to the Navisworks file

Result:-We got the desired result

5) Using the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

5th ans)

AIm:-ByUsing the Timeliner feature in Navisworks prepare a schedule for the project developed in week 6 to 8 by adding reasonable assumptions for task start date and end date and simulate the task completion as a visual simulation. Record it and save the timeline simulation to Navisworks file

Tools used:-time liner and selection tree

Procedure:-

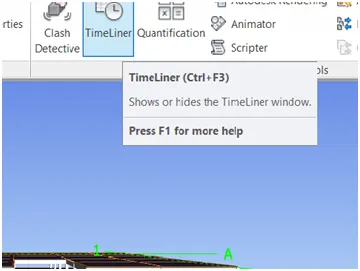

Step 1:-We need to click on the time liner under the home tab and a timeline window

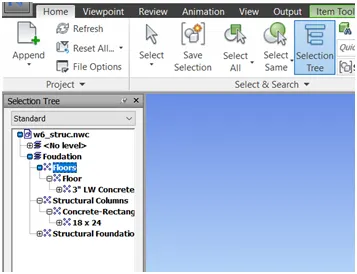

Step 2:-Now we need to pin the selection tree window

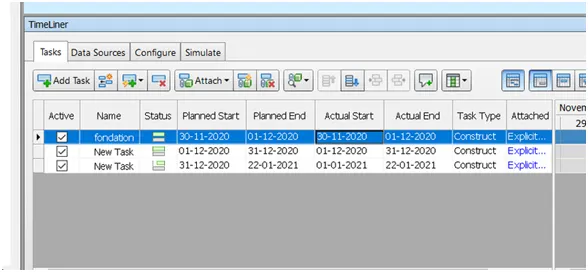

Step 3:-Now we need to add a task in the timeline window

Step 4:-To the tasks we need to attach the elemts by slecting the and we need to click attach

Step 5:-Now assign dates for task

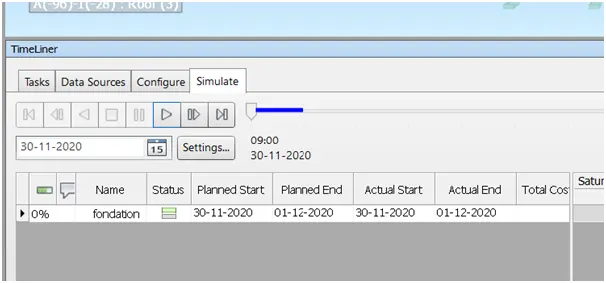

Step 6:-Now click stimulate to see the video for the time liner

Step 7:-From save view click record
