REVIT_3D Rendering of a House plan_Project 1
AIM :
To model a celing to the previously created project with the help of architectural tab above the walls at first floor level.
TOOLS USED :
Architecture tab.
Ceiling.
Sketch ceiling.
Pick lines.
PROCEDURE :
1. First open the previous project where we have completed the ground and first floor.
2. go to architcturetab and select the celing option
3. after that click on sketch ceiling and select the option boundary lines for the ceiling
4. then select the boundary lines and click on the thick mark on the ribbon
5. after that we get celing component constructed project
result: we will modeling the celing from architecture tab above the walls at the first level to previous project

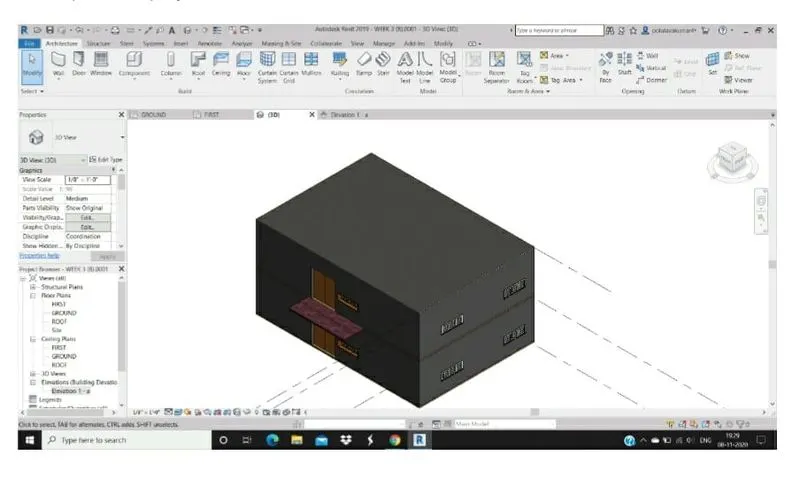

2 ans:

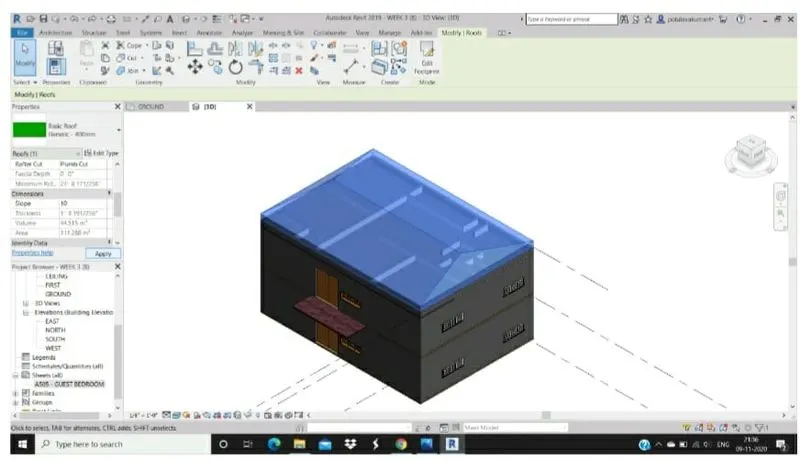

AIM : To model a roof to the structure created using architecture tab and adjusting the slope of the roof to 10 degrees.
TOOLS USED :
Architecture.
Roof.
Pick lines.
Properties.
Slope.

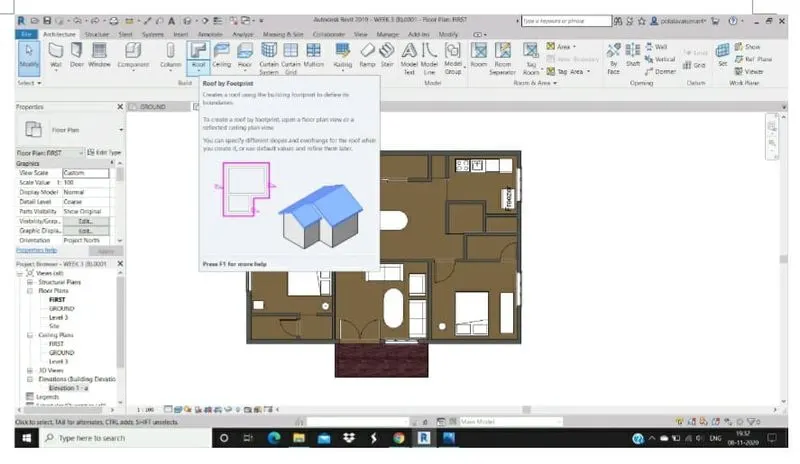

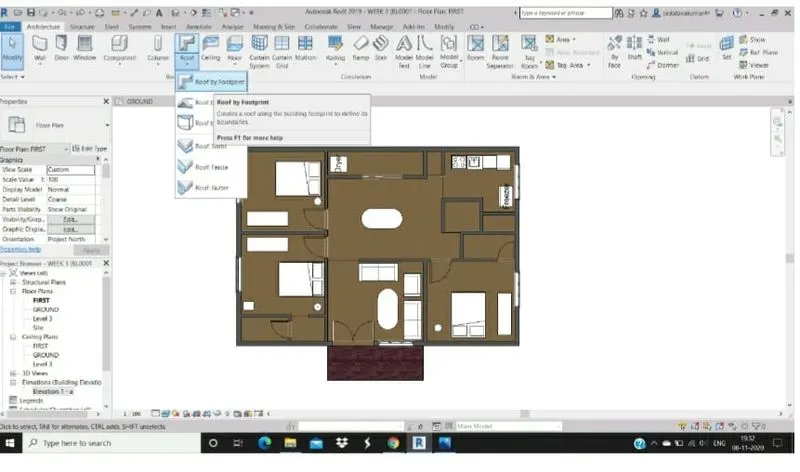

PROCEDURE :

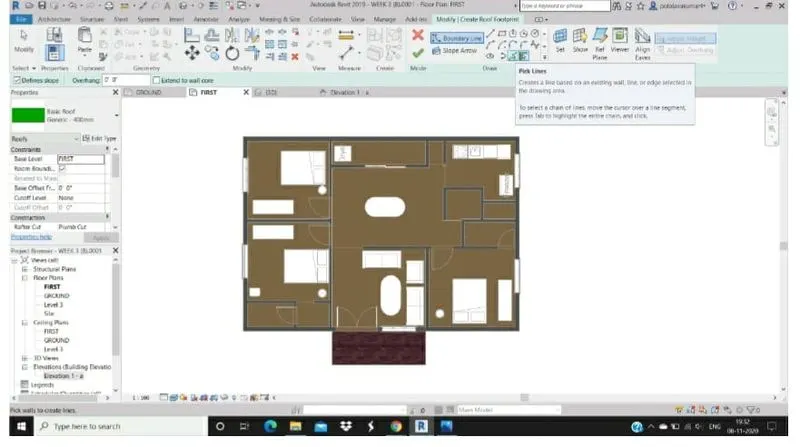

1. First open the drawing where the project is there and where the roof should be added.
2. goto architecture tab and slect the tool
3. click on the foot print option
4.then the select the pick lines options and boundary lines on the roof component is added
5. select the roof aand goto properities and select the roof option and enter the value of sloope as 10 on click on ok
result: when the following the above mentaioned steps we can add the roof components to the roof adjust the slope 10 degrees with the help of pro[erties option

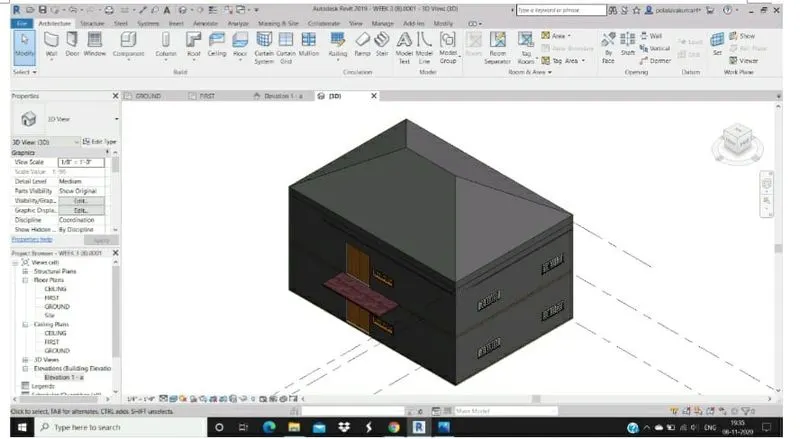

3.ans

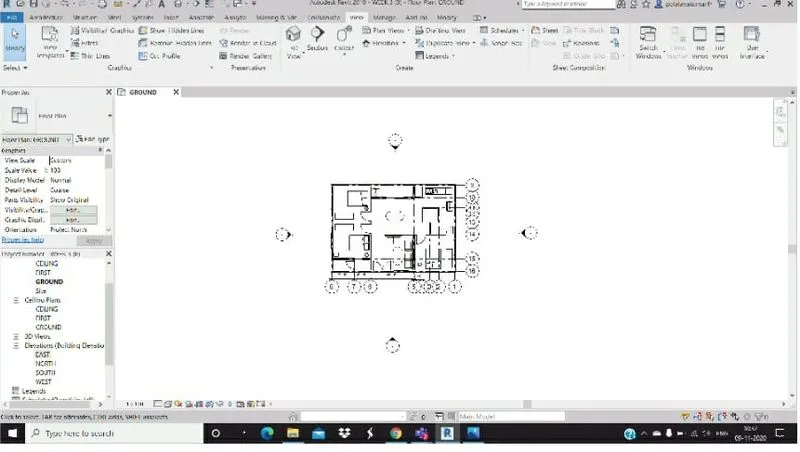

Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to
architecture and structural plans.
a. Architecture plan must have walls , floors and all the components placed within the building.
b. Structure plan must have details of only walls, floors and columns.
ANS 3)

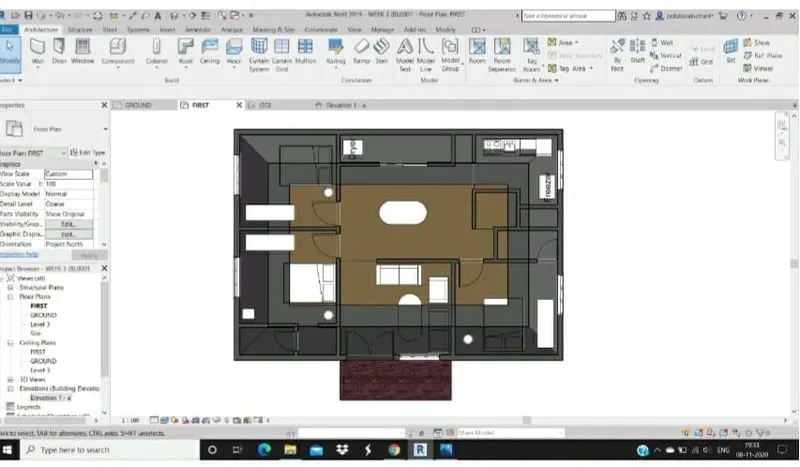

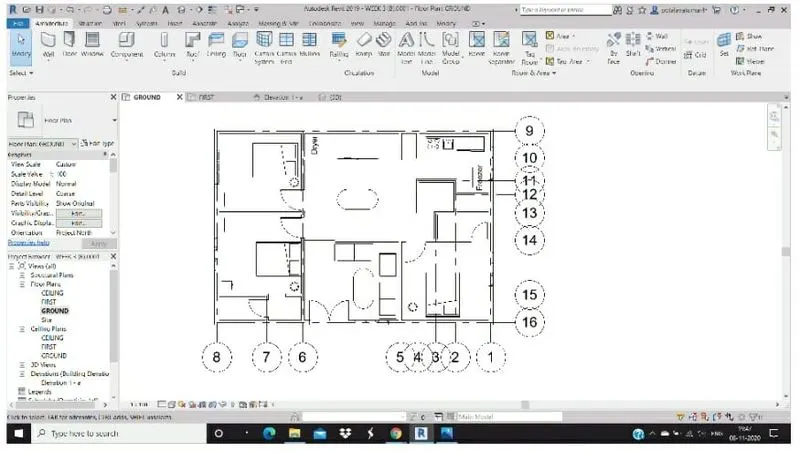

AIM : To create the plan views of ground floor level and first floor level includind walls, floors and components.
TOOLS USED :
Property browser.
Floor plans.
Ground.
First.
PROCEDURE :

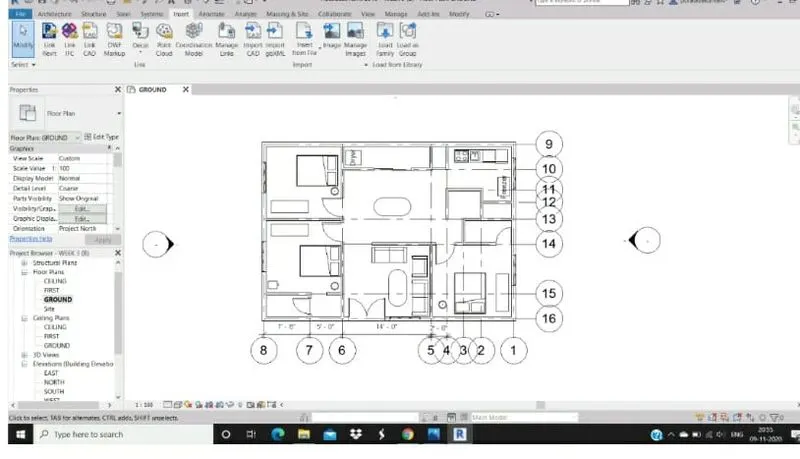

1. Open the project where the ground and first floor plans are there.
2. From property prowser select floor plans.
4. for the first floor plan click on the first floor plan view the floor plan
result: with the help of above steps we can achive ground and first floor plan
4ans

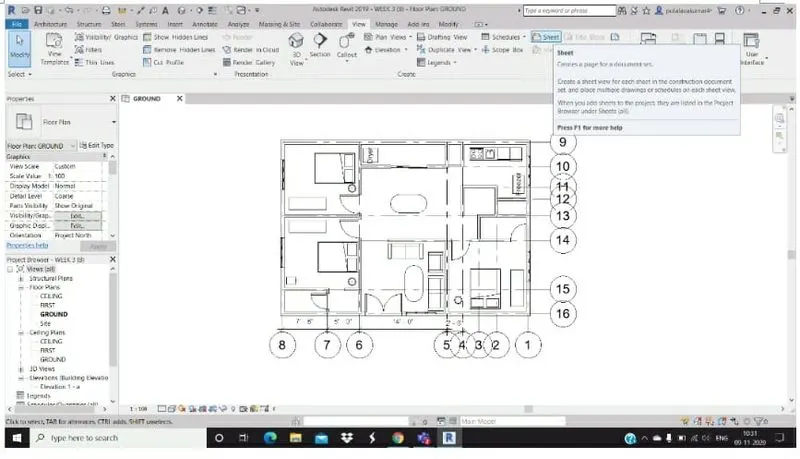

Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans.
b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.
ANS 4)

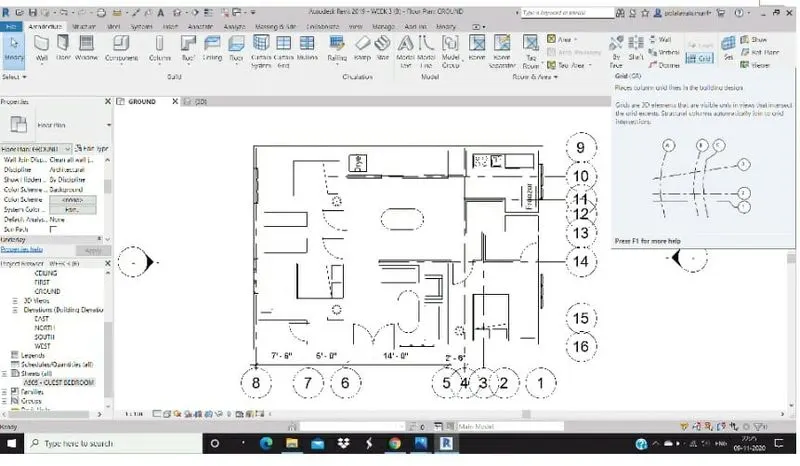

AIM : Add dimensions to the walls and floors with reference to the longitudinal and transverse grids created in the project file.
TOOLS USED :
Architecture.
Grids.
Annotate.
Aligned.
PROCEDURE :
1. Go to architecture tab and select grids option.
2. wit the help of grid option draw the longitudanal draw the longitudanal and transverse the grid lines
3. for naing the horizantal grid lines use a,b,c from top to bottom
4. for transversing the names 1,2,3,bfrom right to left
5.with the help of aligined tool from the architecture annotate the tools
RESULT :
With the help of the above steps we can add grid lines to the walls and with the help of aligned tool from annotate tab we can mark the dimensions from the grid lines to the components.
5ans'

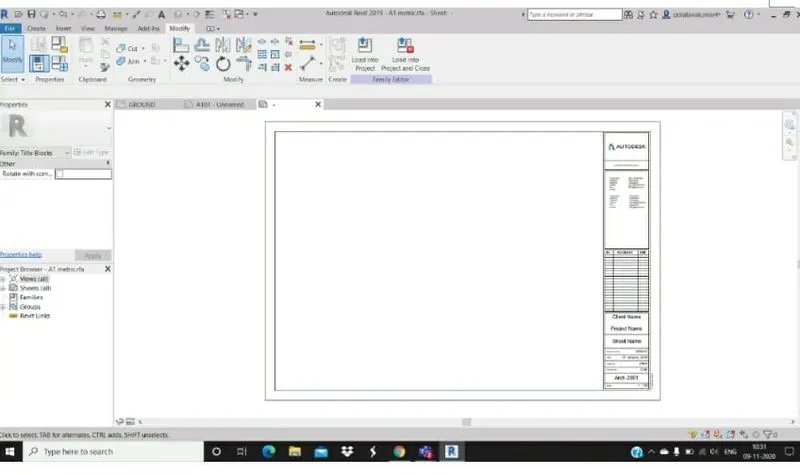

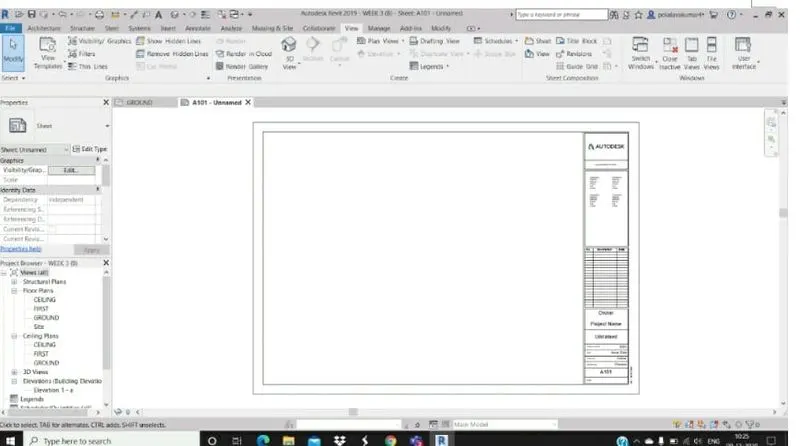

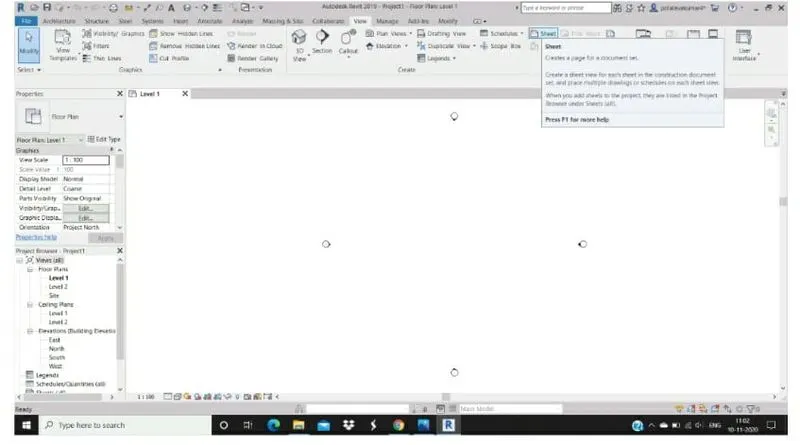

AIM : To create sheet template from the view tab and adjust the parameters on the sheet to add the appropriate views.
TOOLS USED :
View.
Sheet.
A1 metric.
Project browser.
Parameters.
PROCEDURE :
1. Go to view tab and click on sheets.

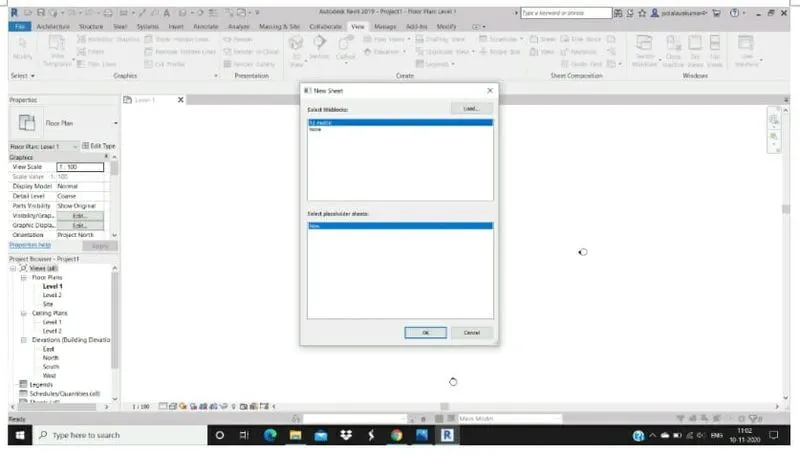

2. new sheet dialouge box opens select the type of sheet and clickon on
3. a default a
un named shhet appears on anew rtab
4. we can change the details on the sheet by dirctly clicking on the sheet by changing in the properities box
5. The new modified sheet with the required parameters is ready.
6. This modified sheet can be used for multiple purposes.
RESULT :
Thus a sheet can be created and modified from the view tab and the parameters can be adjusted.
6ans

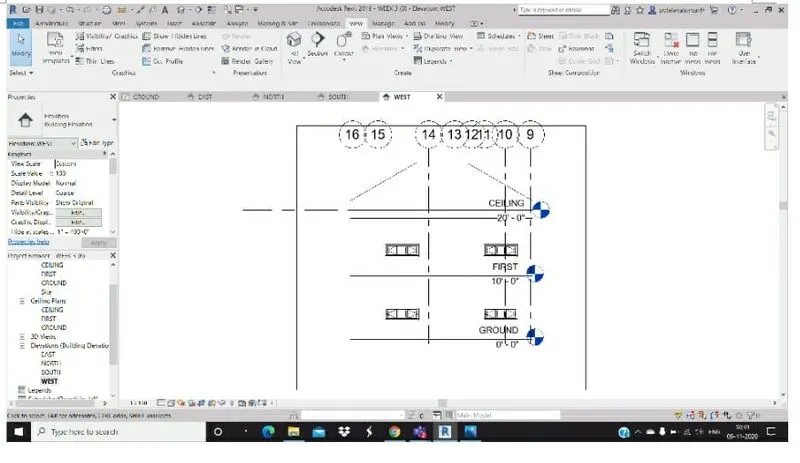

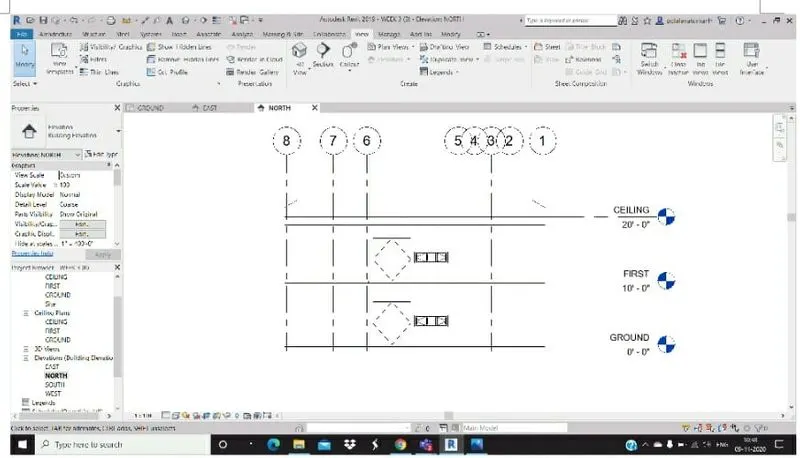

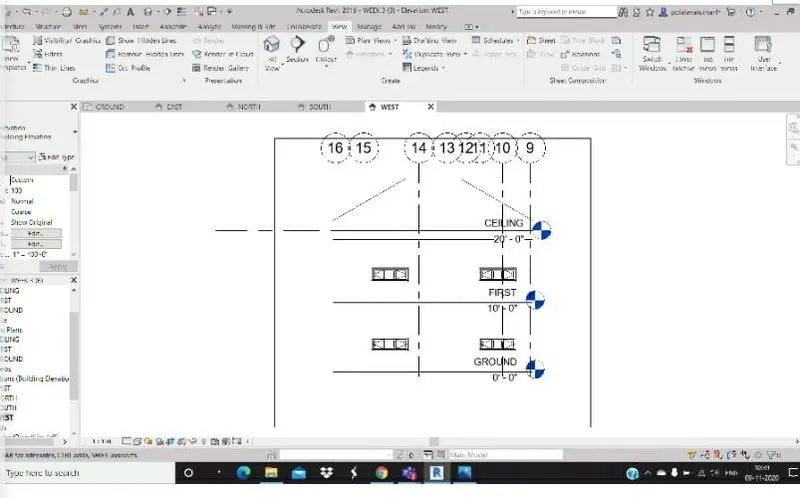

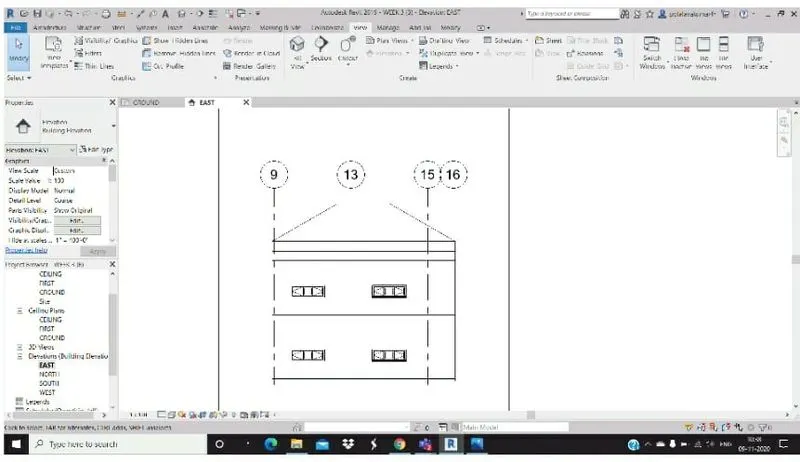

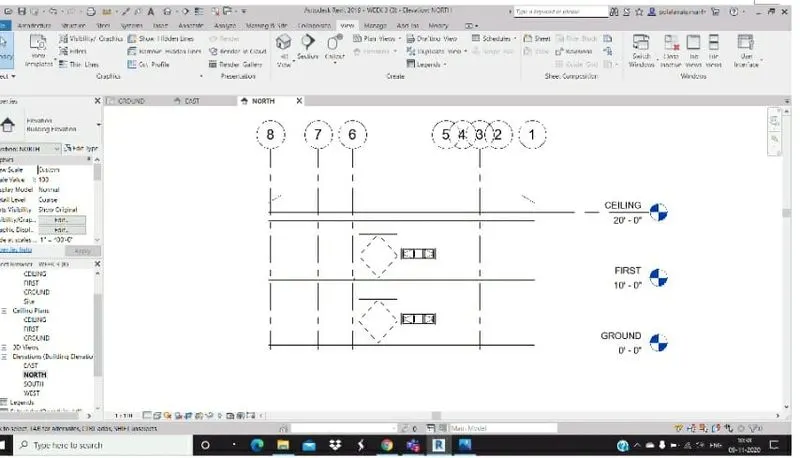

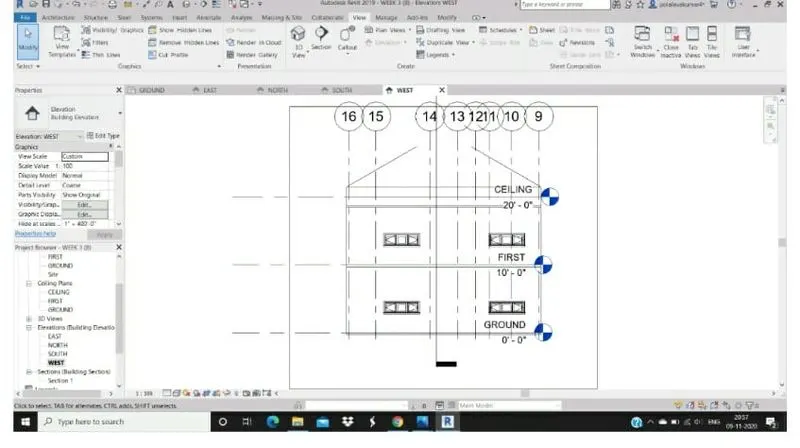

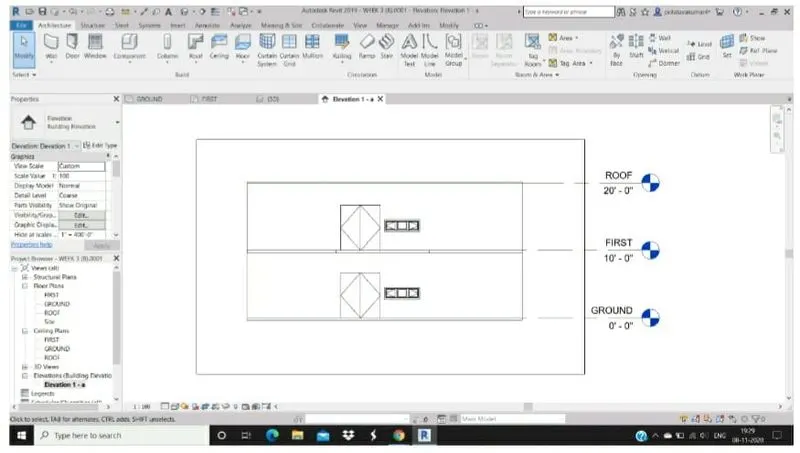

AIM : To create elevation views with the help of elevation tab by looking at your building from East, West, South and North.
TOOLS USED :
View.
Elevation.
Property browser.
East.
West.
South.
North.
Elevations.

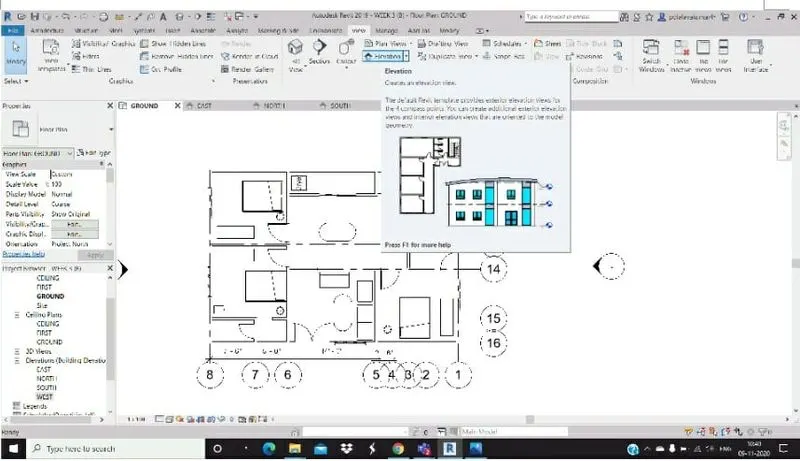

PROCEDURE :
1. Open the project in which you would like to view th elevations.
2. select the view tab browser and choose the option
3. click on the properly on rowser and choose on the elevation on option
4.select thre option view east elevation of the project
5. select the north option elevation on the project
6.select the south option elevation on the project
7. select the west option elevation on the project
RESULT :
With the help of elevation tab we can view the object in any direction and have a detailed look of the elavations.
7ans

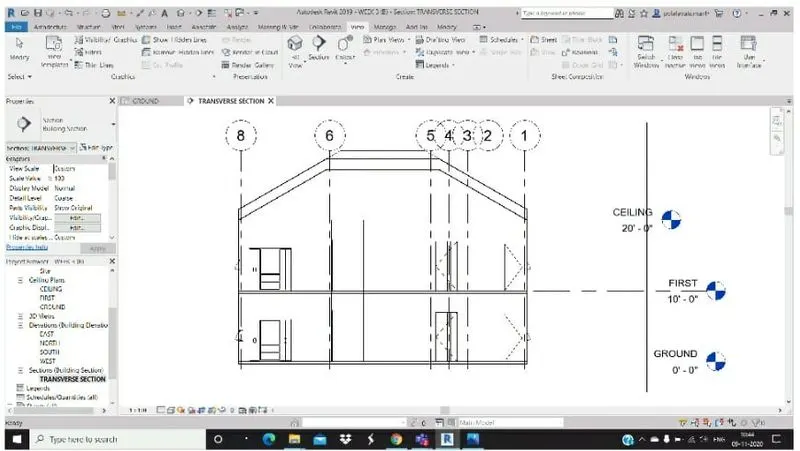

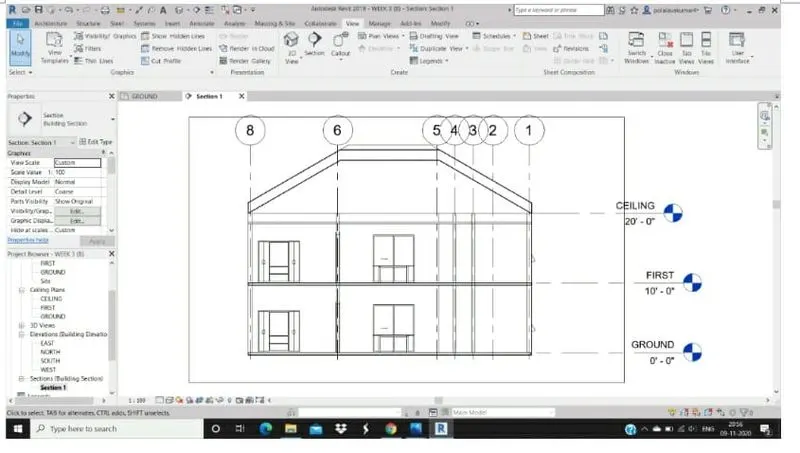

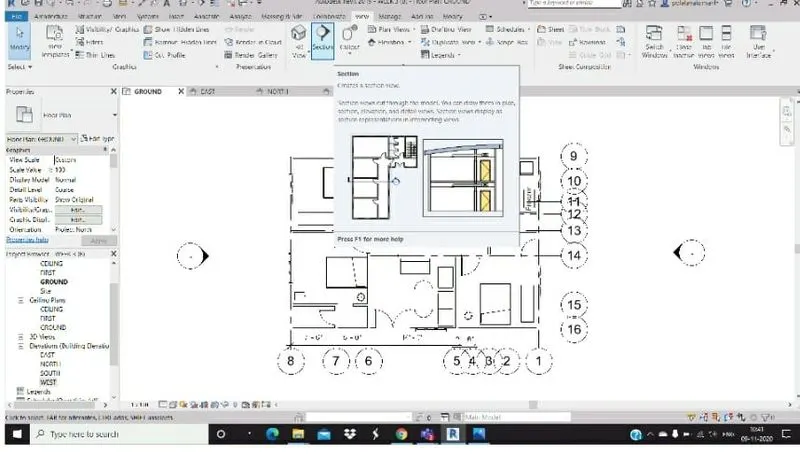

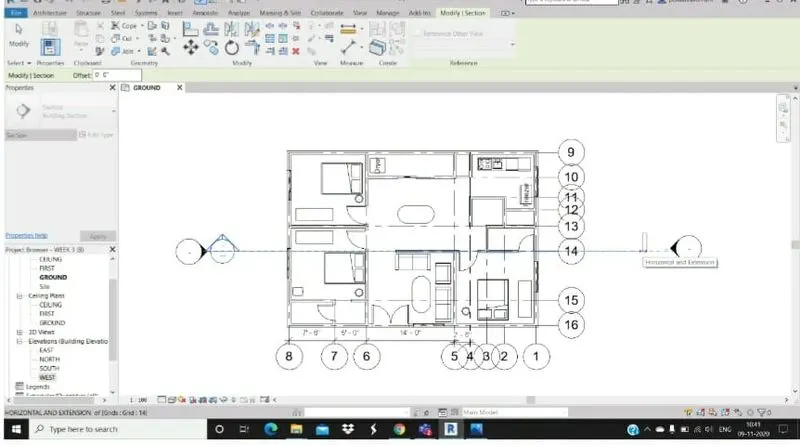

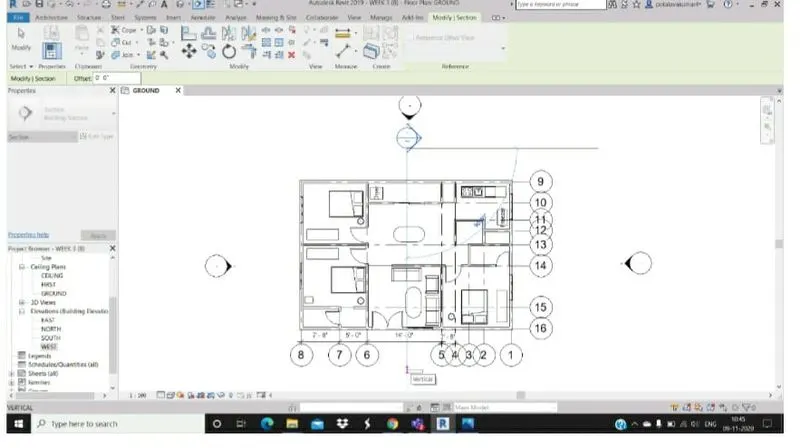

AIM : To produce section cut through each room either cutting across longitudinally or in transverse direction.
TOOLS USED :
View.
Section.
Property browser.
PROCEDURE :

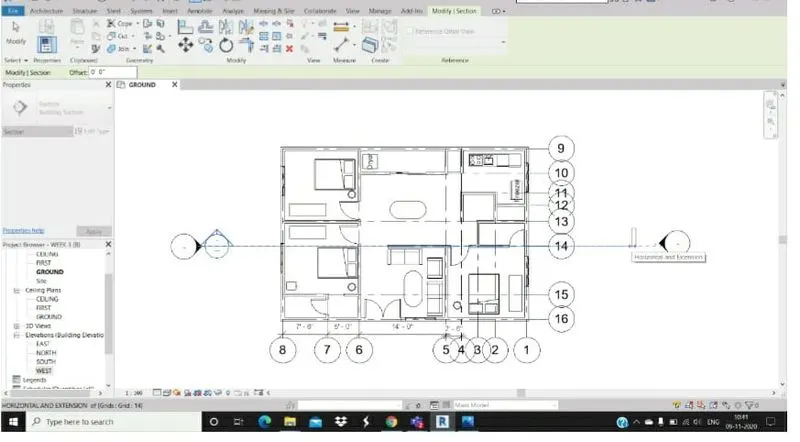

1. Open the drawing for which u want to provide the section view.
2. Go to view menu and select section option.
3. With the help of mouse place the cursor where you want to start the section. click on the final point where u cant the section to extend.
4. If the line is drawn horizontally we can get the transverse se
3.click on properly on browser and choose elevation option
4 selct ast option
5 select north option to north elevation
6 select south option to south elevation project
selecr west option elevation projecxt
RESULT :
With the help of elevation tab we can view the object in any direction and have a detailed look of the elavations.
7ans

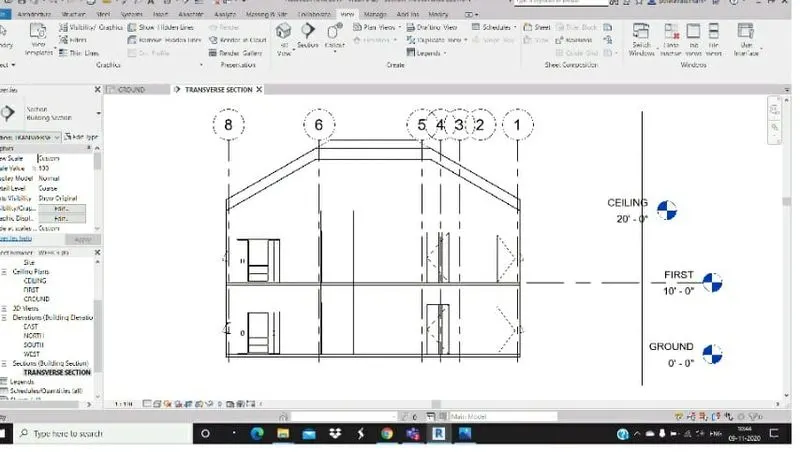

AIM : To produce section cut through each room either cutting across longitudinally or in transverse direction.
TOOLS USED :
View.
Section.
Property browser.
PROCEDURE :
1.Open the drawing for which u want to provide the section view.
2. Go to view menu and select section option.
3. With the help of mouse place the cursor where you want to start the section. click on the final point where u cant the section to extend.
4. If the line is drawn horizontally we can get the transverse section of the project.
RESULT :
We can draw longitudinal sections to the project so that the project can be explained and viewed clearly.
8ans
We can view an object in many views, and we can achieve to produce a model in 3D with the help of plan, elevation and sectional view.
PLAN VIEW : Plan view is the view formed when the object is projected on a horizontal plane. The image of the object is formed on the X-axis. When the plan view is seen from the direction perpendicular to the vertical plane the image observed is a straight line. The plan view can only be observed when seen perpendicular to the horizontal plane.
SECTION VIEW : Section view is the view which helps us to see the interior or inner part of the object. This view is mainly used to observe and analyze the interior parts. The parts which can not be explained in the normal 3D view , they can be observed more clearly in section view. With the help of the section view we can cut a part of portion for internal view.
ELEVATION VIEW : Elevation is the view of a 3D object when we see the object perpendicular to the vertical plane or parallel to the horizontal plane. Elevation view can also be called as side view and the object can be viewed from all the 4 directions North, South, East and West. In the elvation view we can see the detailed view of the levels or floors.
9ans

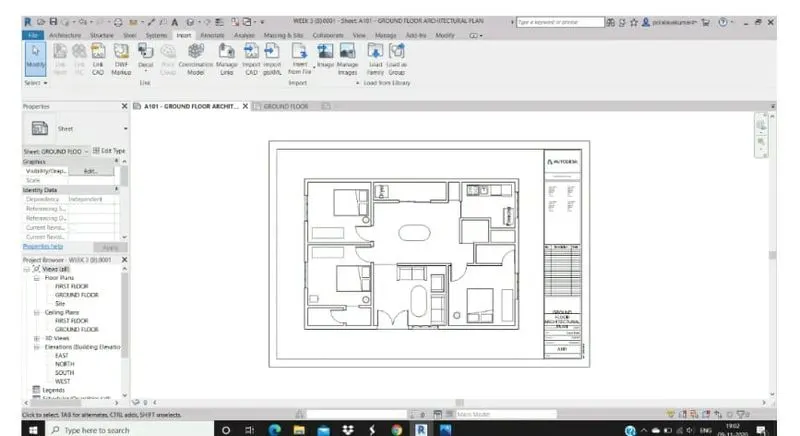

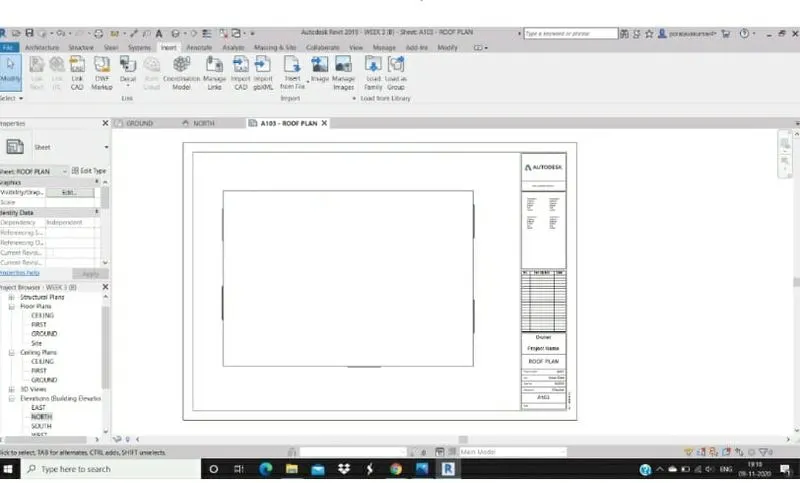

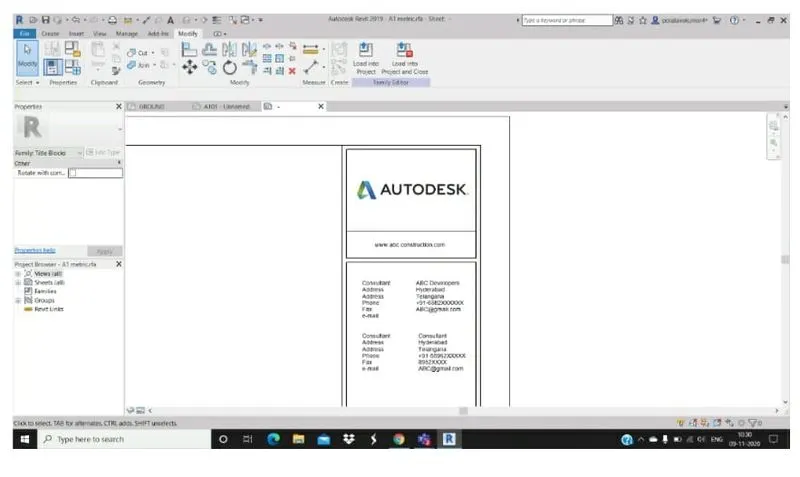

AIM : To use the sheet template produced to crerate multiple sheets.
TOOLS USED :
View.
Sheet.
Properties.
Graphics.
Insert.
Image.
PROCEDURE :
1. First go to view tab and select sheet.

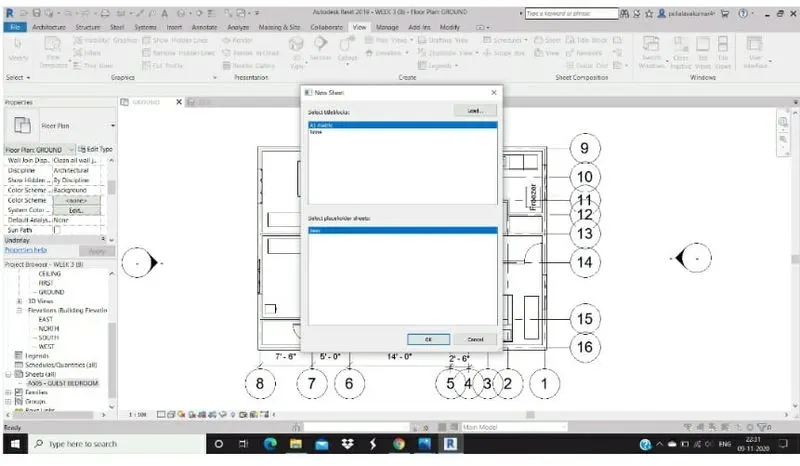

New sheet dialog box appears, select A1 metric and click on ok.3. A new default unnamed sheet appears in the new tab.
4. We can change the parameters on the sheet by directly clicking on the sheet or we can go to properties and change the parameters.
5. Name the sheet as A101 and add the ground floor architecture plan.6. Name the sheet as A102 and add the first floor architecture plan.7. Name the sheet as A103 and add the roof plan.8. Name the sheet as A201 and add the North-South elevation plan.
. Name the eet as A202 and add the East-West elevation plan
9. Name the eet as A202 and add the East-West elevation plan
10ans

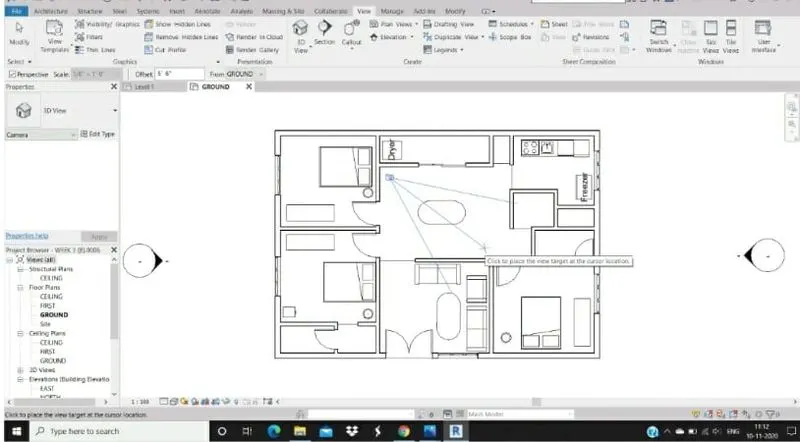

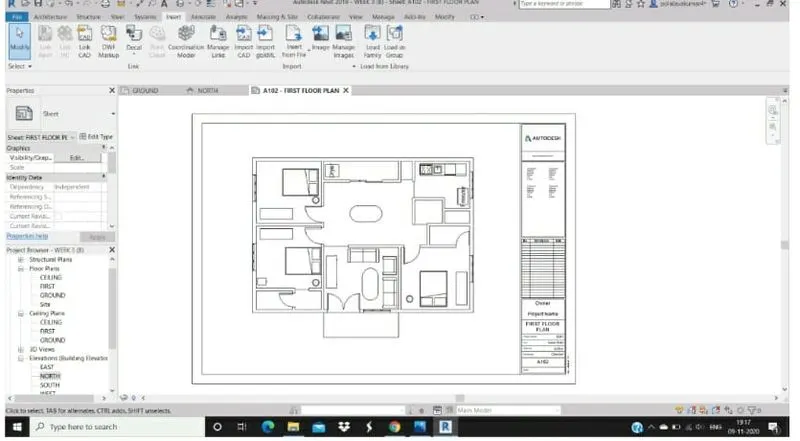

AIM : To create a camera 3D view in each rooms and create new sheets to add the 3D images. Name the sheets as A501, A502,......and so on.
TOOLS USED :
View.
3D view.
camera.
sheet.
Properties.
Graphics.

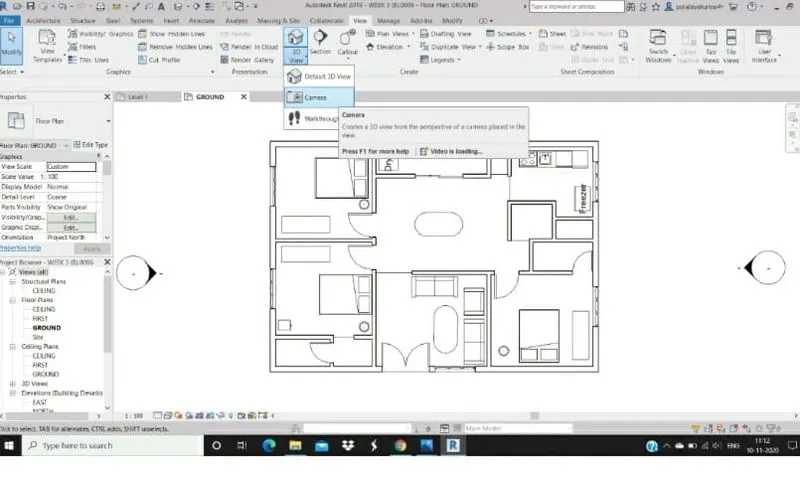

PROCEDURE :
1. Open the project and go to view tab and select 3D view.
2. Under 3D view selectg camera view.
3. With the help of camera view place the camera on the plan and tap at the point where you want to extend the view.
4. Then go to view tab and select sheets. 5. A new default unnamed sheet appears in the new tab.6. We can change the parameters on the sheet by directly clicking on the sheet or we can go to properties and change the parameters.

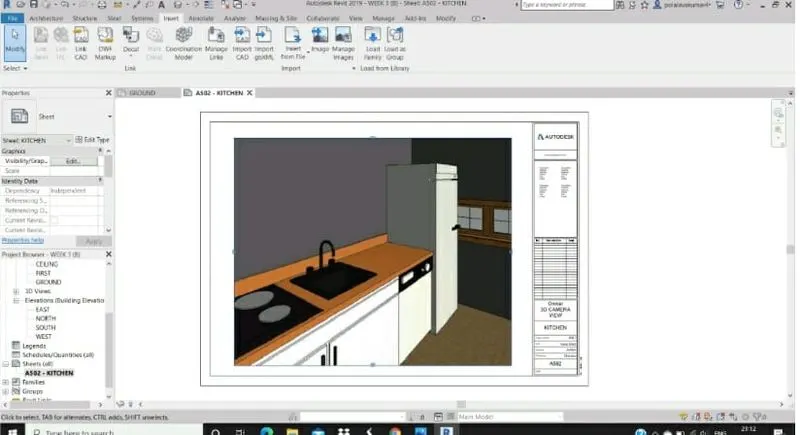

7. Name the sheet as A501 and add the 3D camera view images of master bedroom.
RESULT :
We have created camera 3D views for different views in the project and added them into sheets naming them as A501, A502,.....and so on up to A505.
.
