RENDERING OF AMERICAN CHOPPER

Rendering: Rendering is the process of creating realistic images of the photo realistic model with the environment. Rendering can be done in two ways they are:

1. Photoview 360
2. Solidworks visualize.

The following procedure is used to create a Rendering in photoview 360 for American chopper:

1. Open assembly chopper section.
2. Click on tools and select add - ins and then select photoview 360 and then ok.
3. Then go to chassis part and float chassis
4. Then assembly section and then mate and select top plane and bottom of tyre and side stand to mate and then rebuild and fix the chassis.
5. Then go to front wheel and then delete tangent mate and then float the chassis and then mate the top plane and front tyre.
6. Then select kick stand part folder and edit the sketch by roll back and then rebuild.
7. Then open gas tank part in assembly part and select edit decals from render tools, then browse the image from image path and select gas tank graphic image.
8. Then select the face of gas tank and adjust decals as per required and save.
9. Then add decals to rear wheel and oil tank and then save.
10. Then switch on perspective and modify the perspective then ok.
11. Then add camera and then select field of view as per required and then ok and save.
12. Then add background and environment scenes by using edit scene command in render tools.
13. Then go to options and then select output image and render quality and bloom and then select final render for preview.
14. Then add image scene and add camera and then adjust colour as per our consideration, then save all image like front view, top view, side view, isometric view and camera view in while we open in final render.

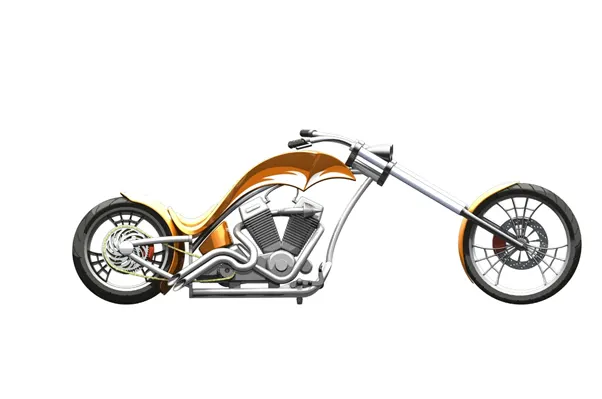

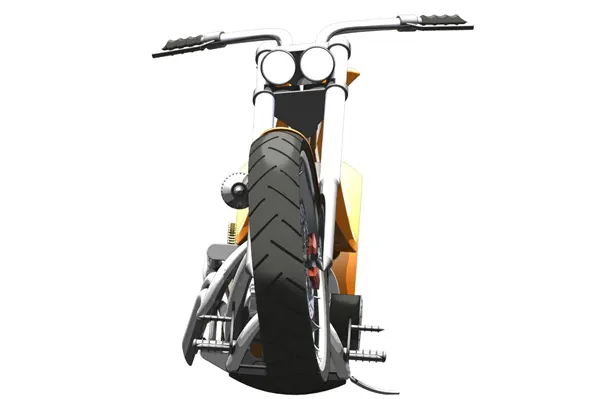

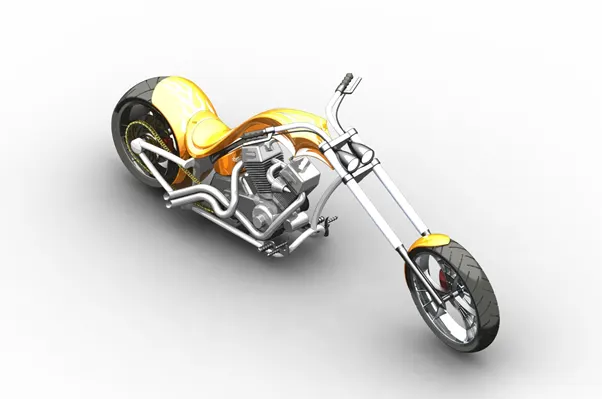

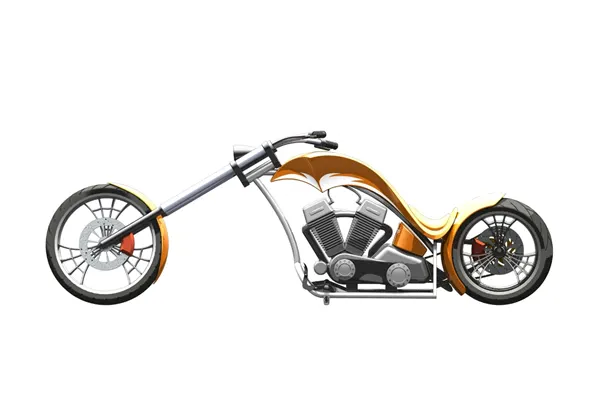

Render of American chopper
