Reinforcement detailing of Columns from ETABS output

Aim:

To providing details of longitudinal reinforcement for the two columns from foundation to terrace level

Procedure:

Step 1

Open a G+4 Etabs file

Click the concrete frame design tool

Select the display design info option

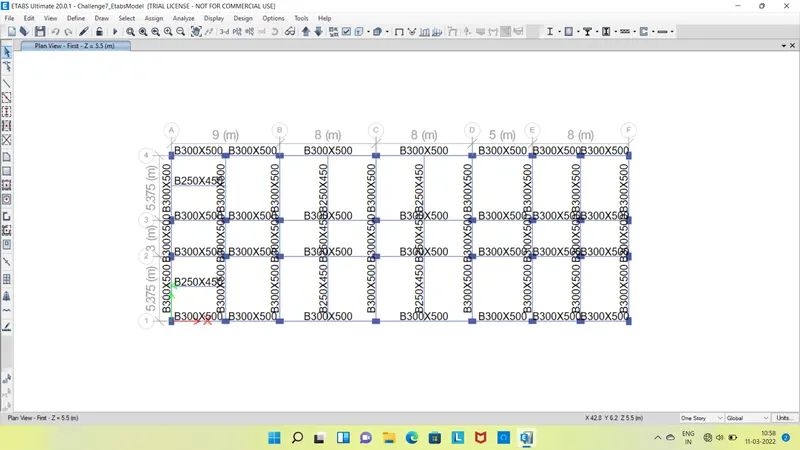

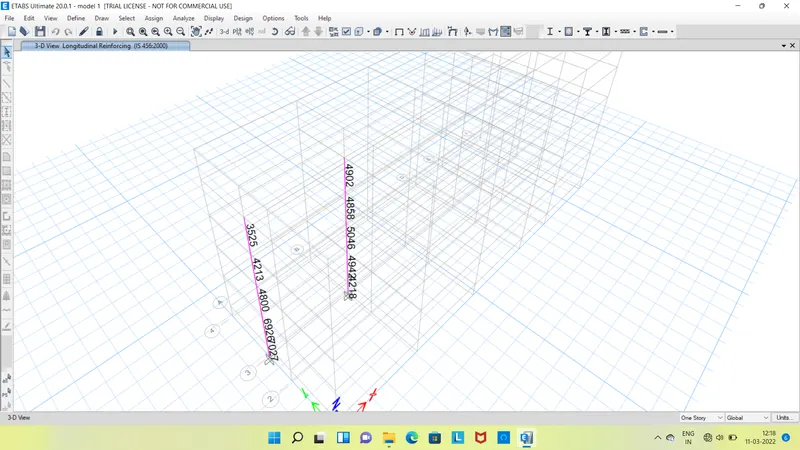

Choose design outputs as longitudinal reinforcement

Step 2

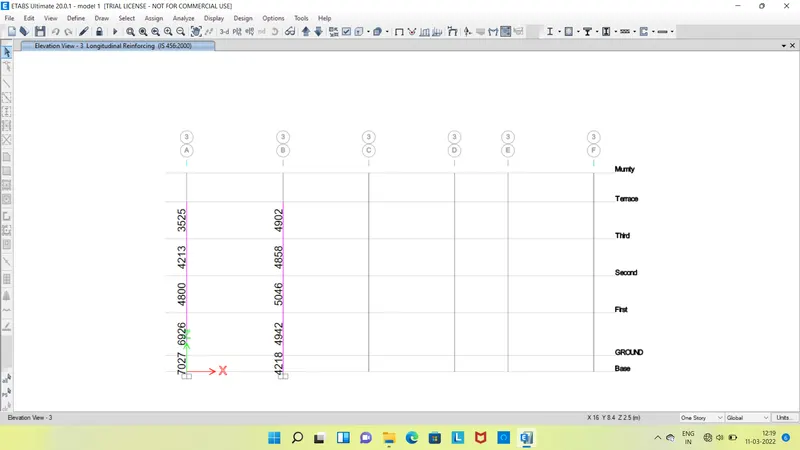

After selecting the longitudinal reinforcement click elevation view

To avoid the confusions click tick mark on ribbon and uncheck beam

Step 3

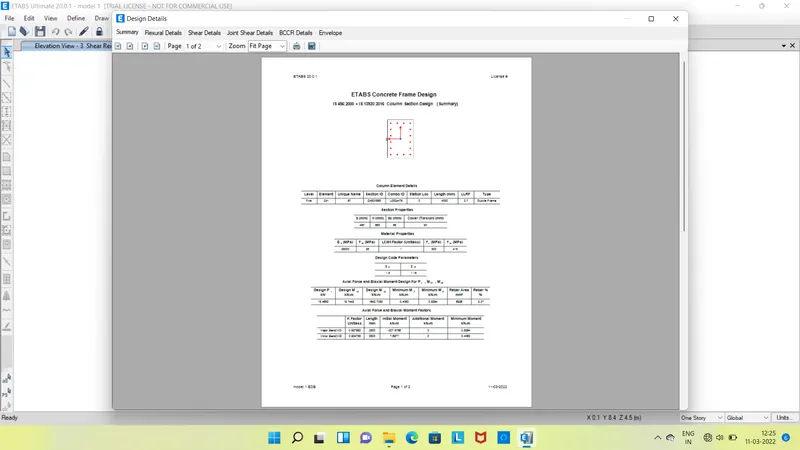

Now need to calculate the reinforcement details 3a and 3b

Step 4

For shear reinforcement click the concrete frame design tool

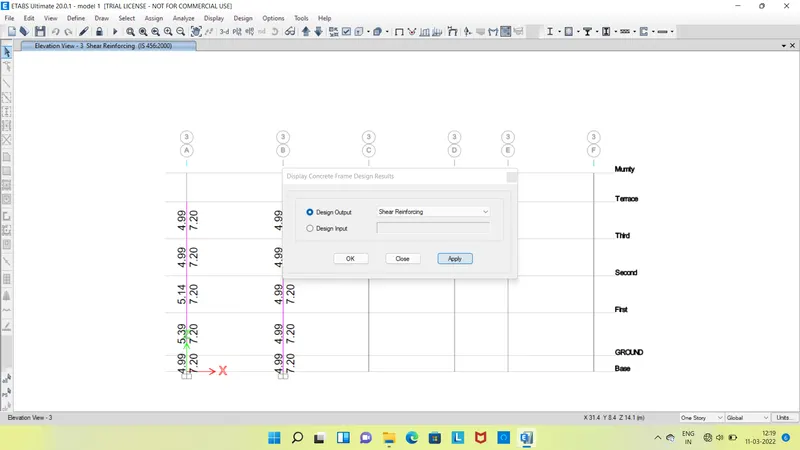

Choose shear reinforcing

Click apply and ok

Step 5

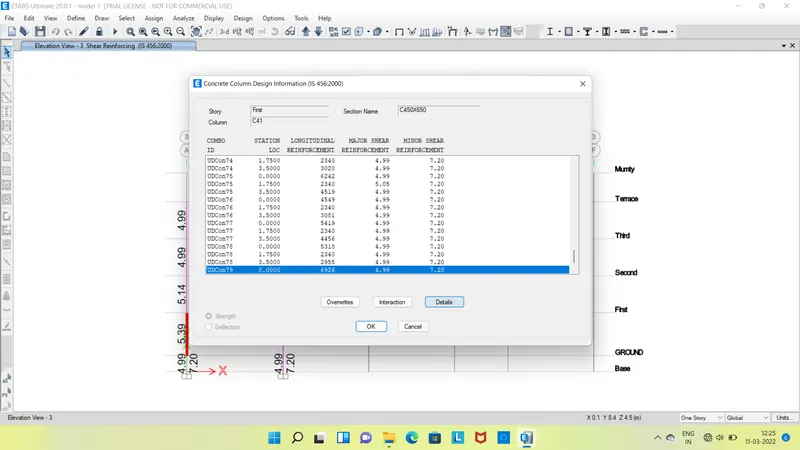

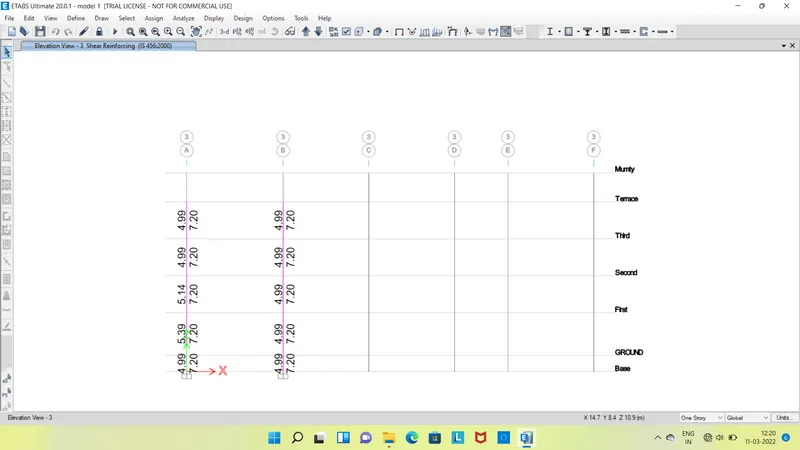

After selecting the shear reinforcement option the shear reinforcement values are obtained at each column

Step 6

Grid-A

From Base to first floor the maximum Ast is = 7027

So we can provide 10nos of 32mm dia bar = 10 x 804

= 8040mm^2

From first floor to terrace the maximum Ast is = 4800

So we can provide 6nos of 32mm dia bar = 6 x 804

= 4824mm^2

Grid-B

From Base to terrace the maximum Ast is = 5046

So we can provide 8nos of 32mm dia bar = 8 x 804

= 6432mm^2
