Reinforcement detailing of Columns from ETABS output
Challenge 9
1Q.
Answer:
Aim: To provide information on the two columns' longitudinal reinforcement from the foundation to the terrace level.
Procedure:

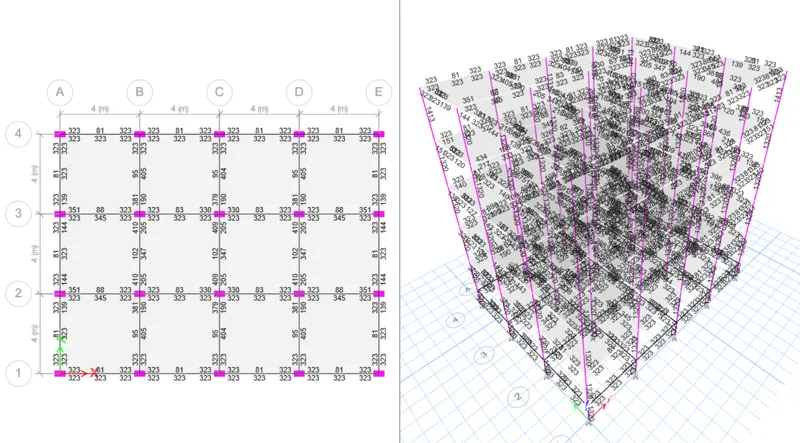

- Launch the G+4 Etab file.
- To use the Concrete Frame Design tool, click it.

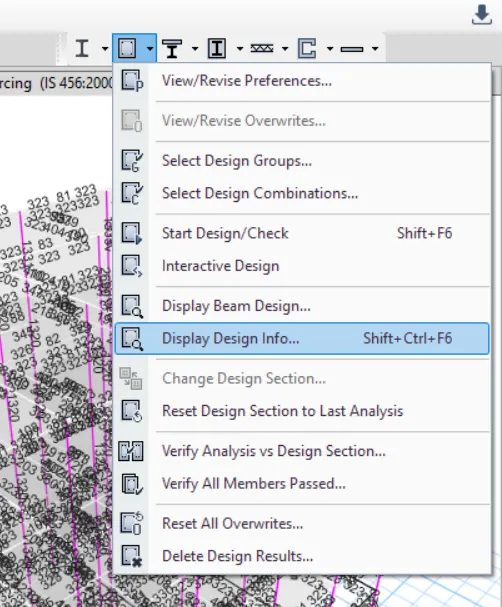

- The Display Design Info option should be chosen.

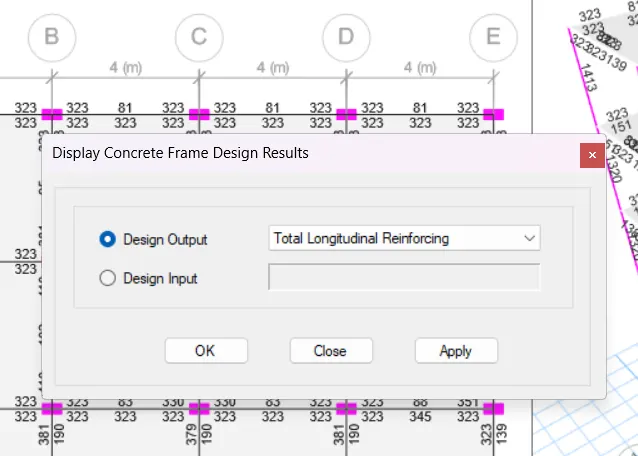

- Select longitudinal reinforcement as the design output.

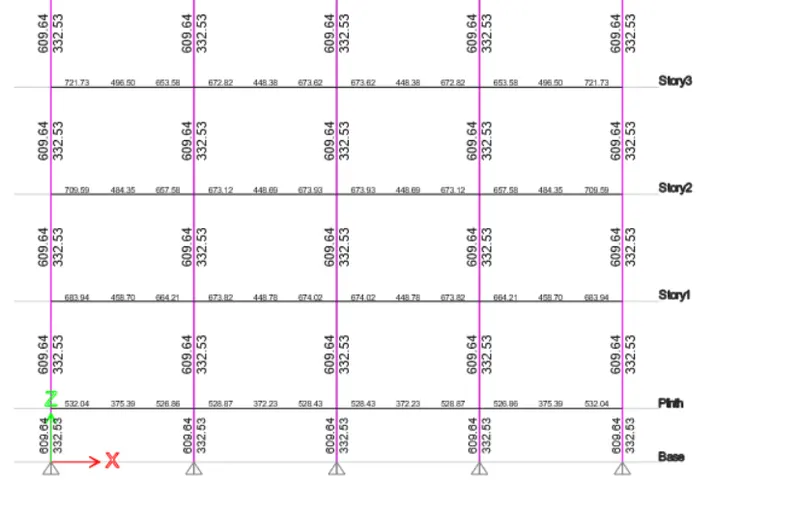

- Click Elevation View after choosing Longitudinal Reinforcement.
- Click the tick mark on the ribbon and uncheck the beam to eliminate any confusion.
- The details of 3a and 3b's reinforcement must now be calculated.
- Click the Concrete frame design tool to access the shear reinforcement tool.

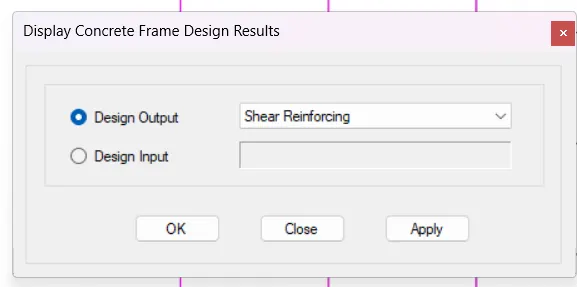

- Select shear reinforcement
- Click "apply" then "ok."
- The shear reinforcement values are obtained at each column after choosing the Shear Reinforcement option.

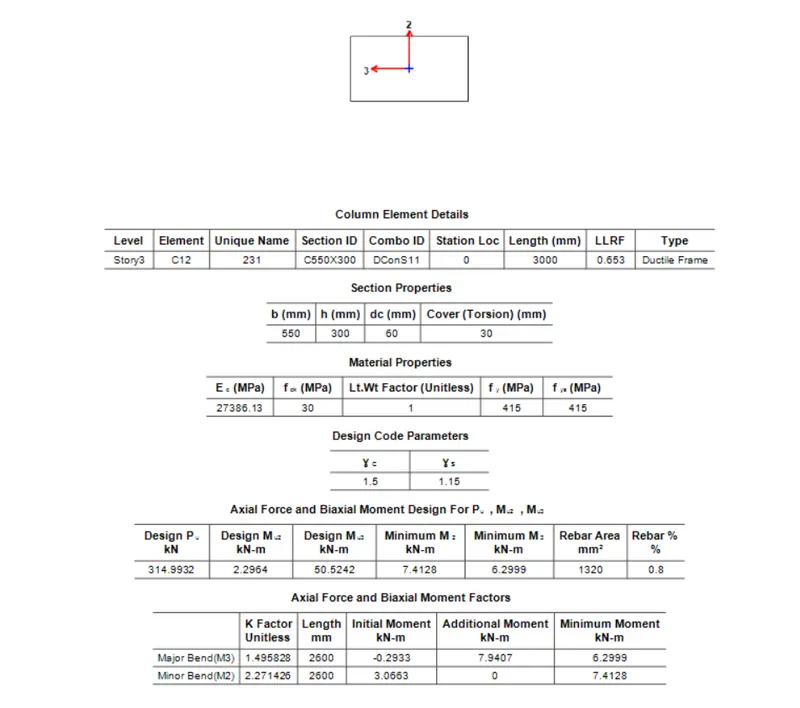

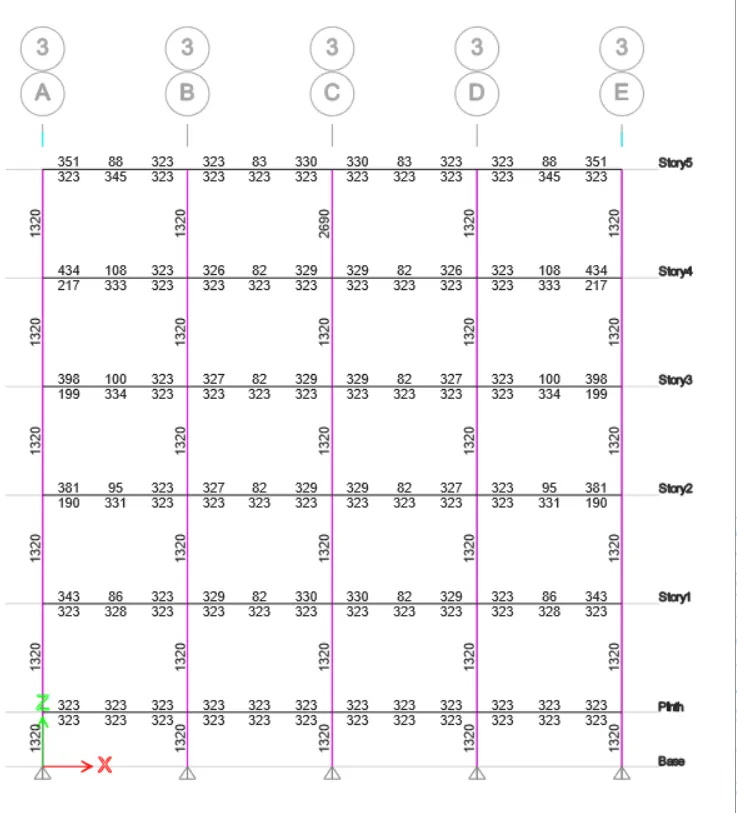

ETAABs Results:
Result: longitudinal reinforcement from the foundation to the terrace level provided as shown above.
