Reinforcement detailing of Columns from ETABS output

Aim: To Provide longitudinal reinforcement for column using ETABS

Procedure:

1. Download the given 5 storey building

2.Clicking the concrete frame design tool

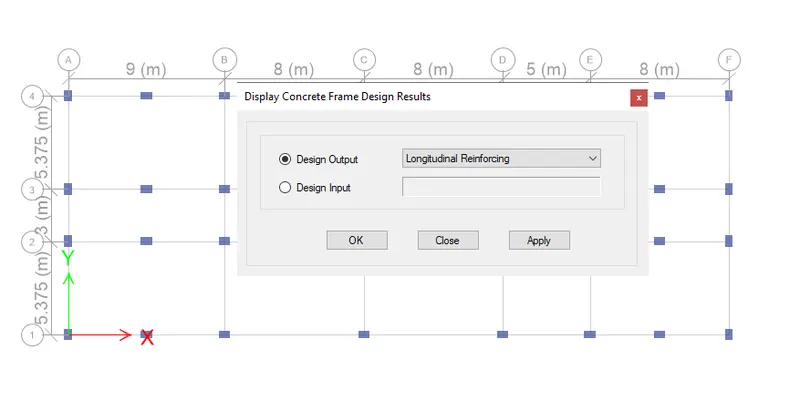

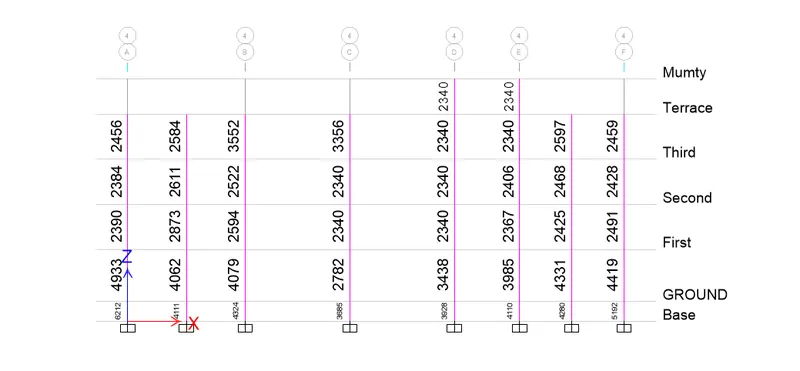

3. Choosing to display the longitudinal reinforcement

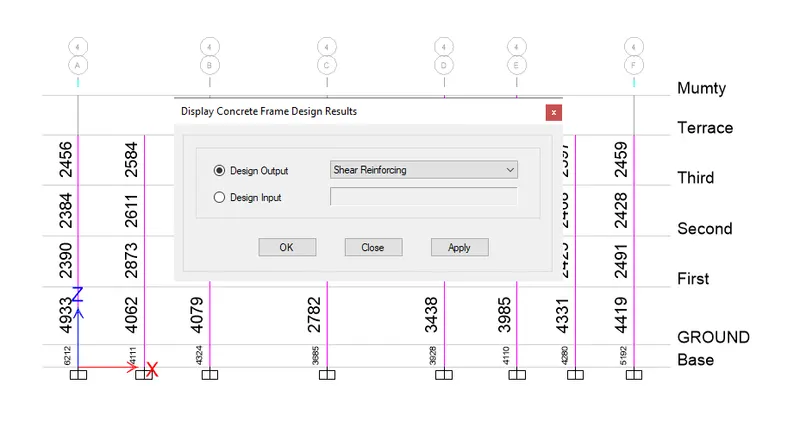

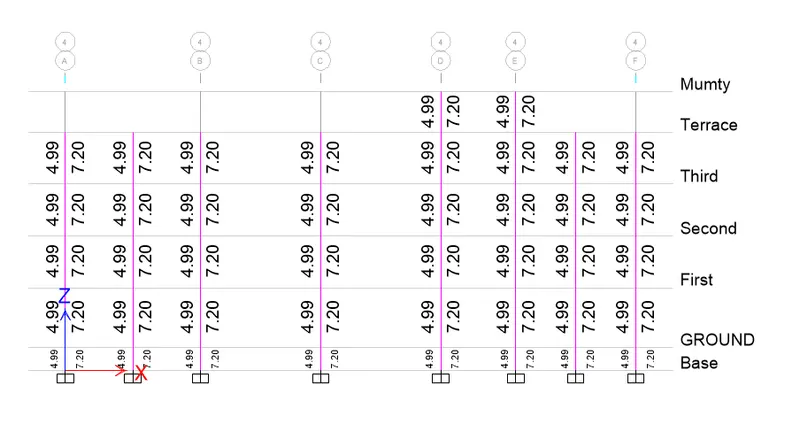

4. Choosing to display the Shear reinforcement

5. GRID A

a. Ast Max= 7027 (From base to 1st floor)

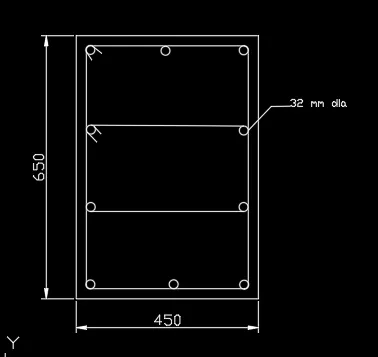

Providing 10 nos of 32mm dia

b.Ast Max= 4800 (From 1st floor to terrace)

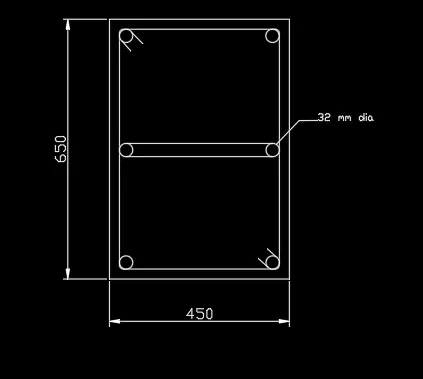

Providing 6 nos of 32mm dia

6. GRID B

a. Ast Max= 5046 (From base to terrace)

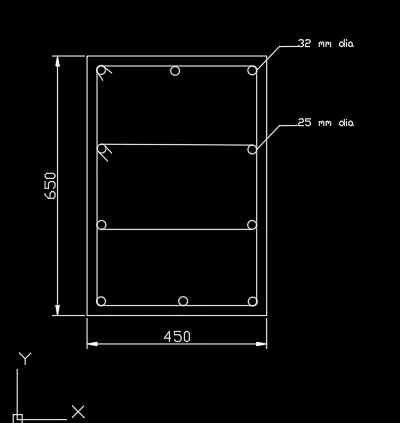

Providing 4 nos of 32mm dia and Providing 6 nos of 25mm dia
