Reinforcement detailing of Columns from ETABS output

AIM:- To details the column reinforcement for G+4 storey building.

Procedure:-

1. Open file in Etab software.

2. Select the 3A & 3B columns for all storey.

3. Run the analysis.

4. View in 3D plan or in Plan elevation section to see the both grid.

5. Go for design Check.

6. Display design info.

7. For lapping of main Reinforcement provide 41*d. where, d id the dia of main bar

Result:-

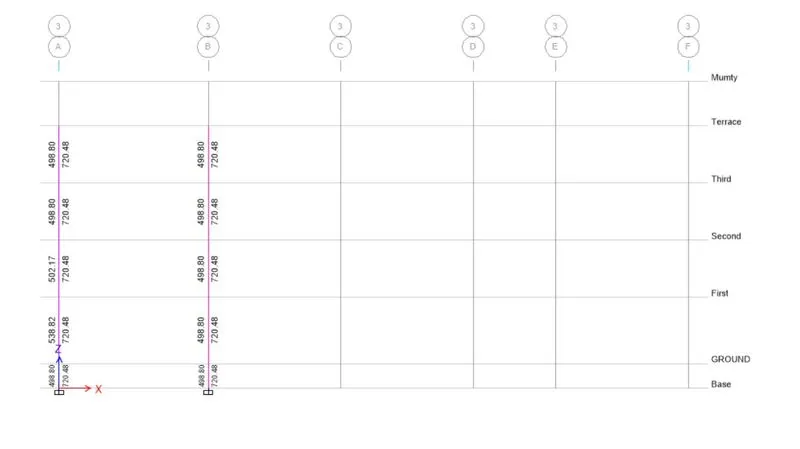

Area of Main Reinforcement along 3A & 3B grid

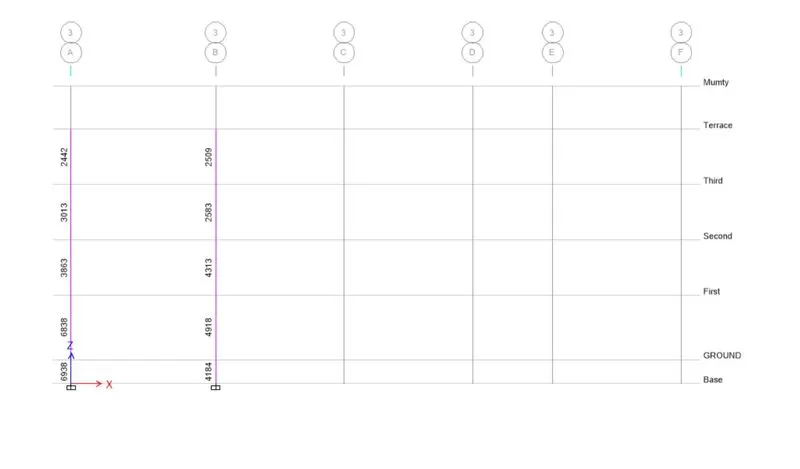

Area of Shear reinforcement along 3A & 3B grid.

7. Convert this area as similar to area of Reinforcement.

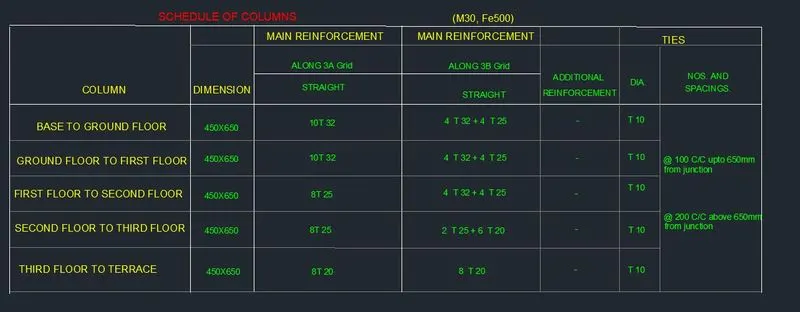

Schedule of Columns

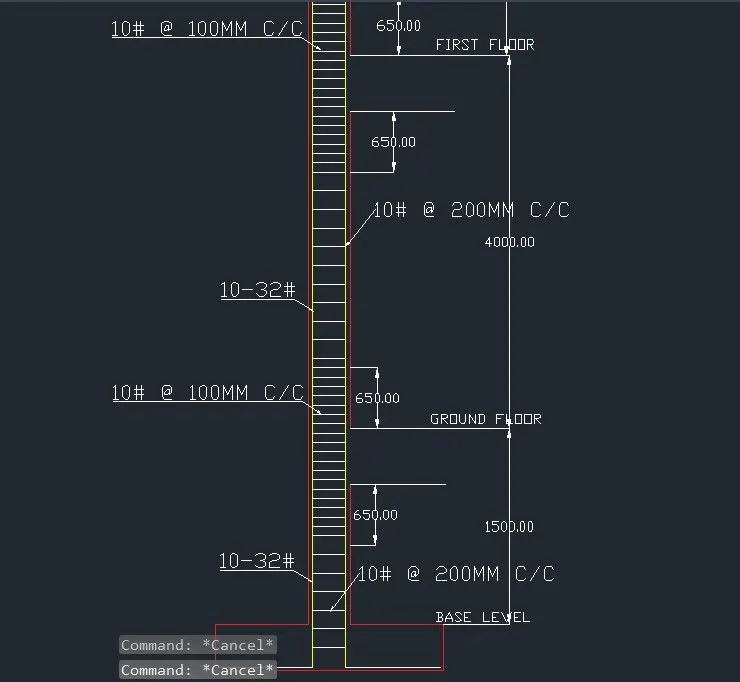

Section of Columns along 3A grid

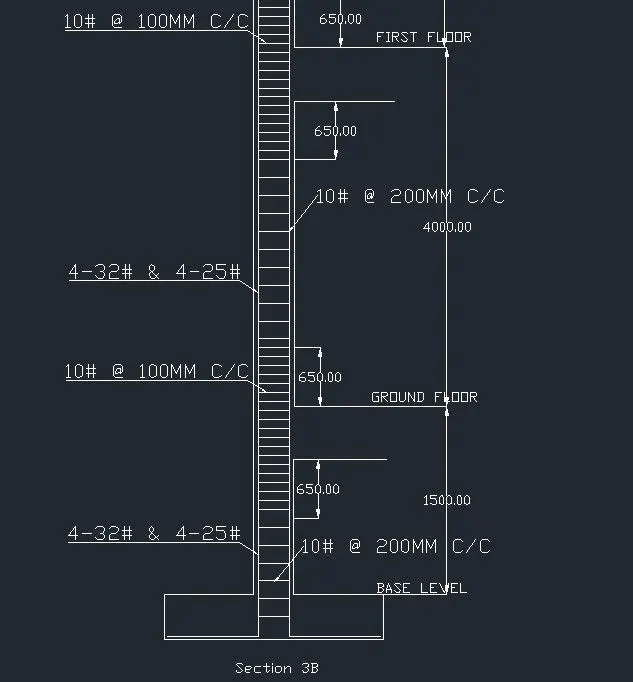

Section of Columns along 3B grid

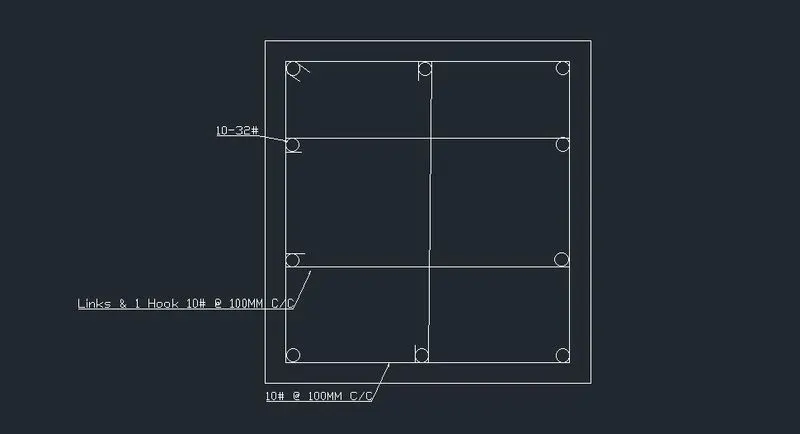

Section of Shear Reinforcement
