Radar Mast & Final Assembly of Yacht

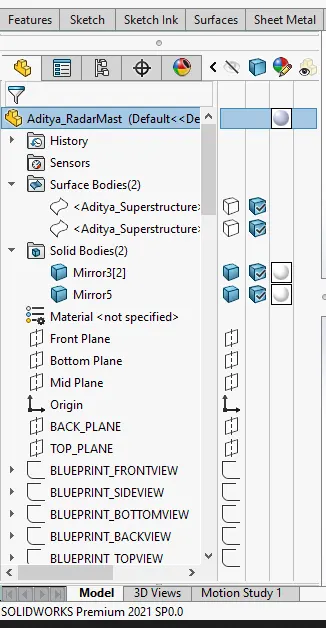

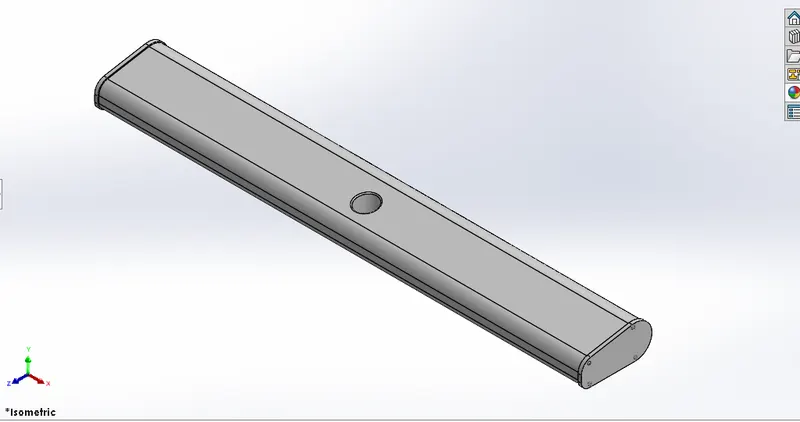

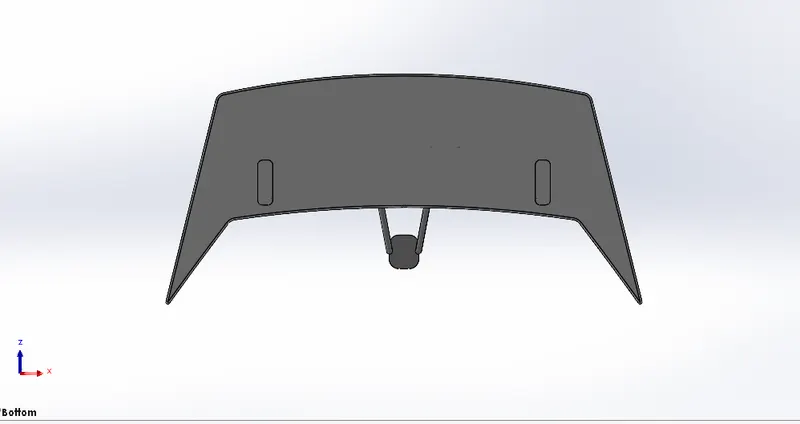

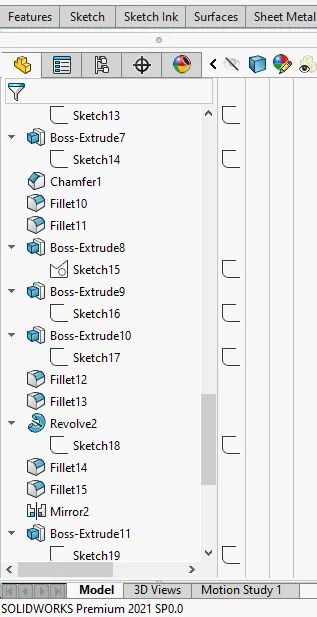

Aditya_Radarmast: -

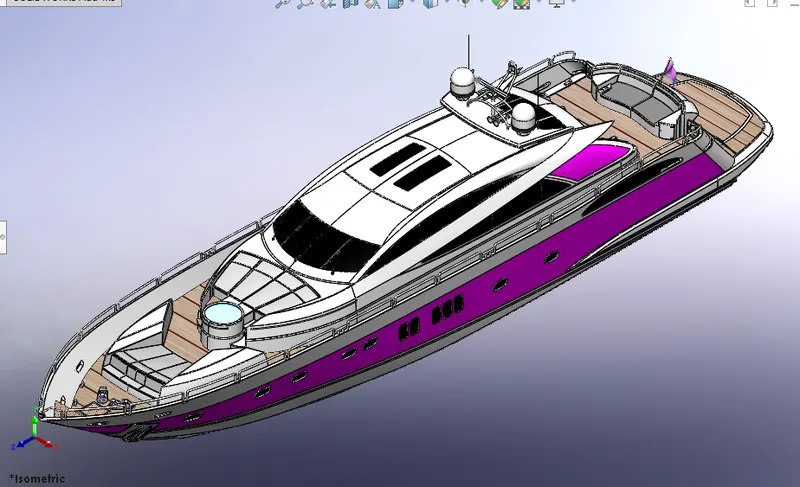

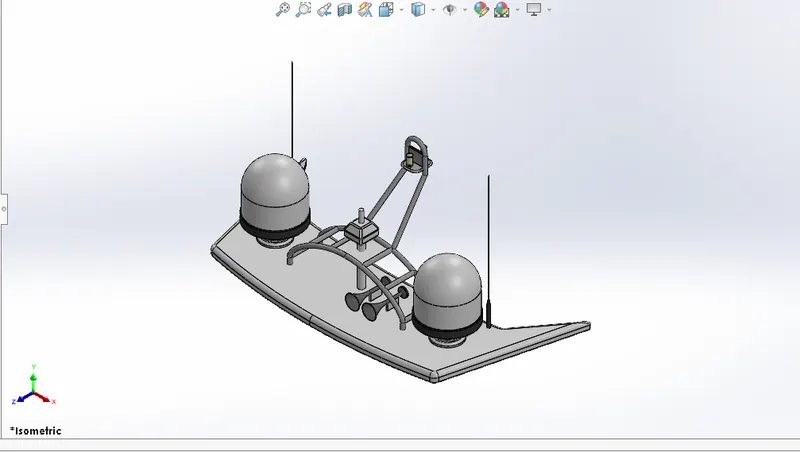

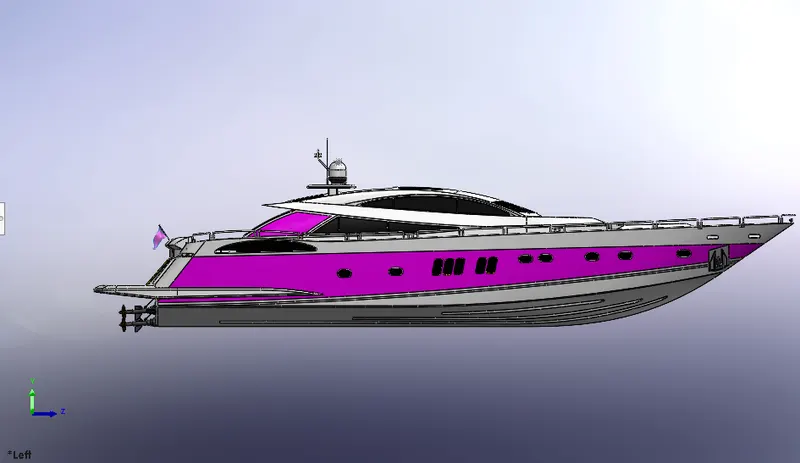

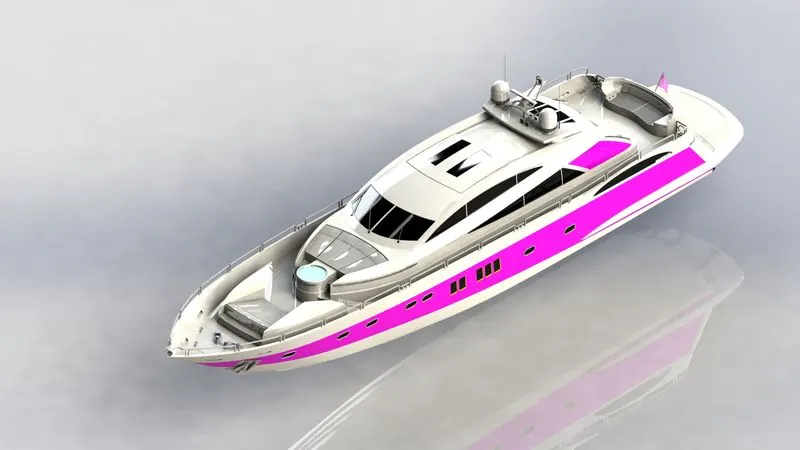

Isometric_view:-

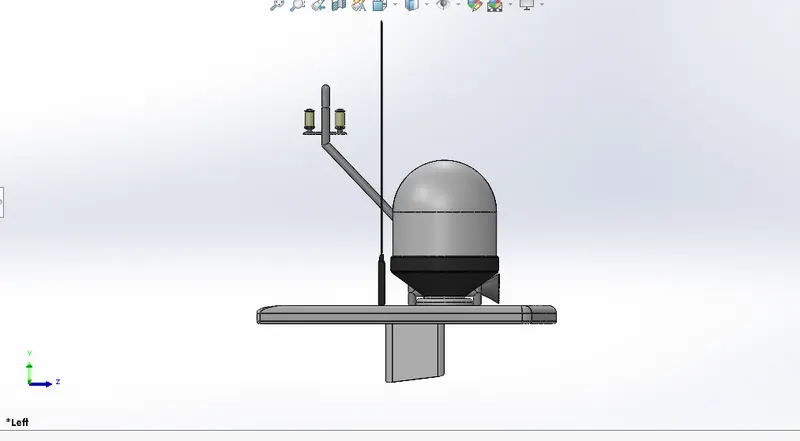

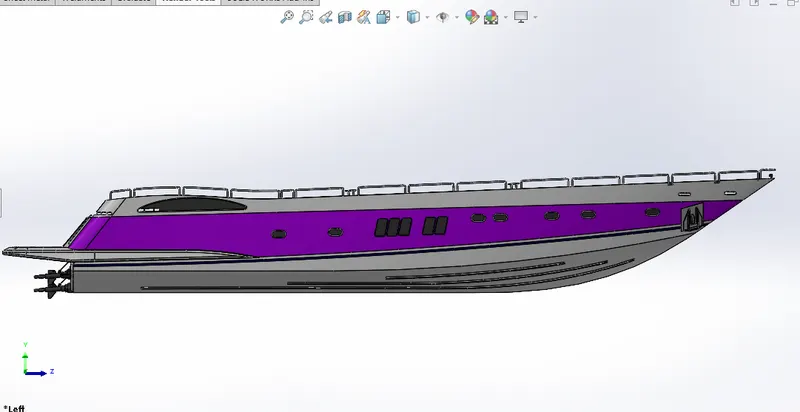

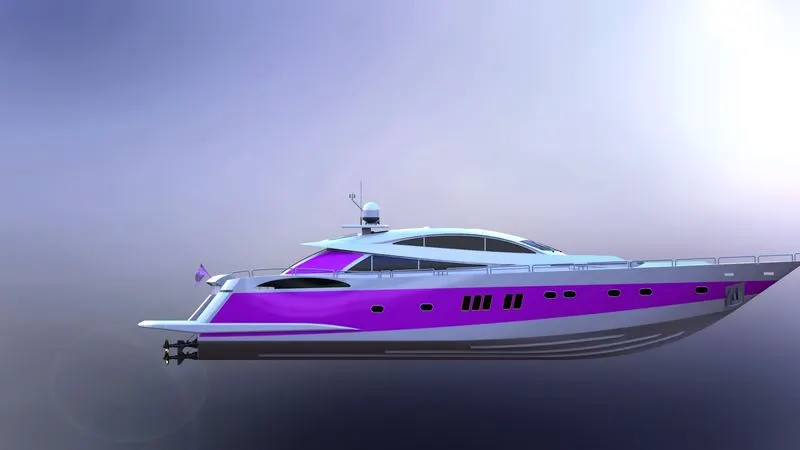

side_view:-

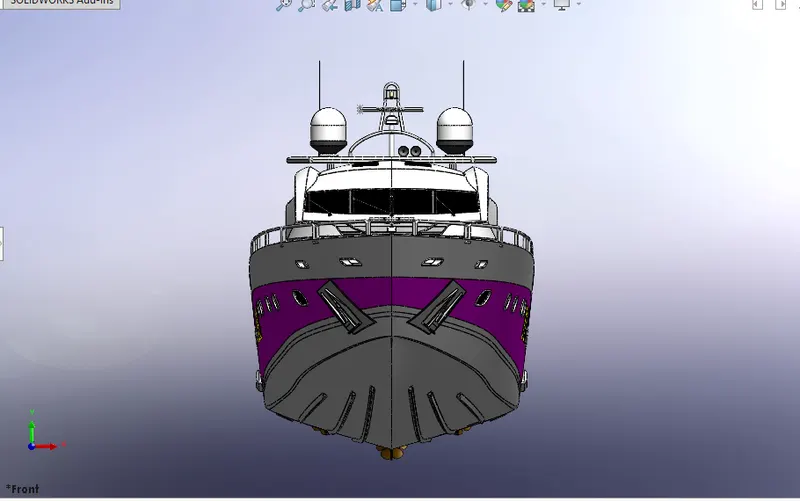

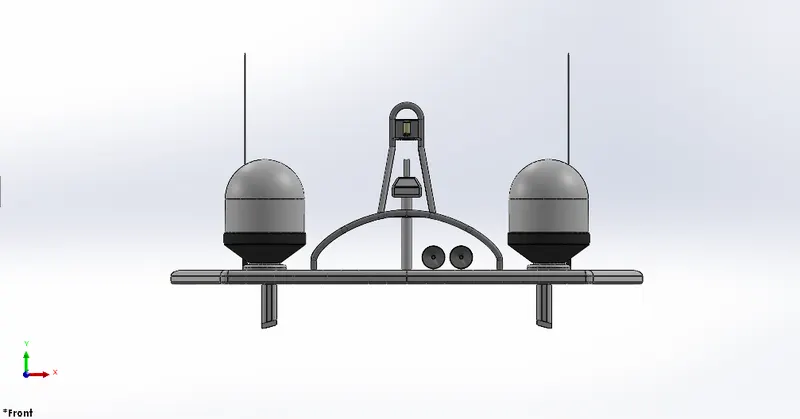

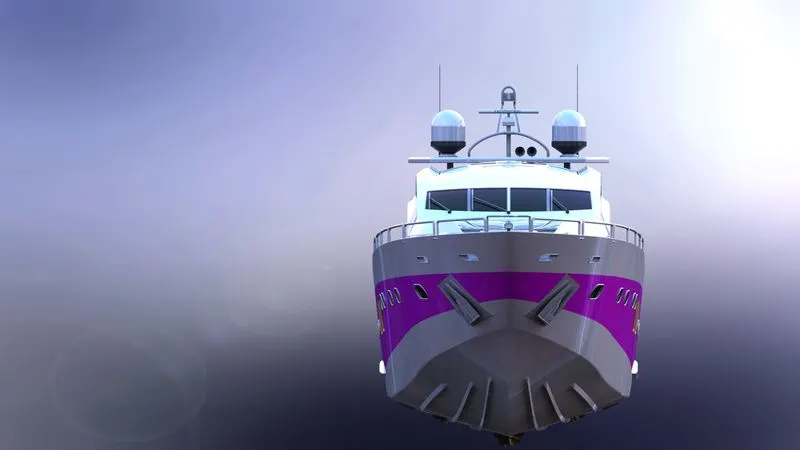

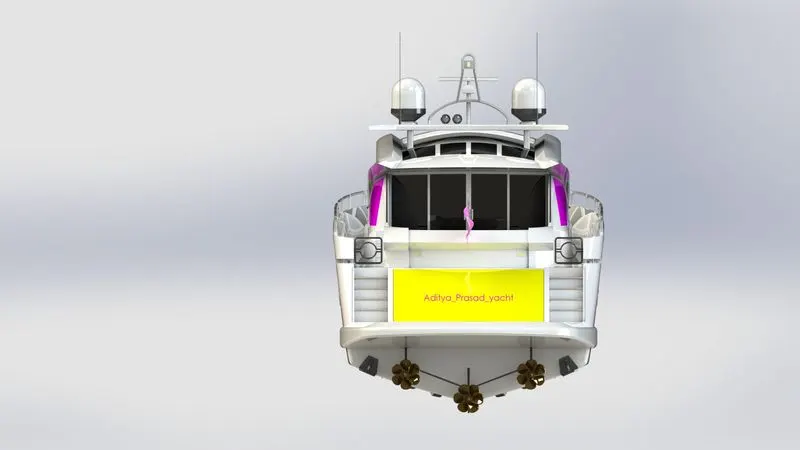

Front_view:-

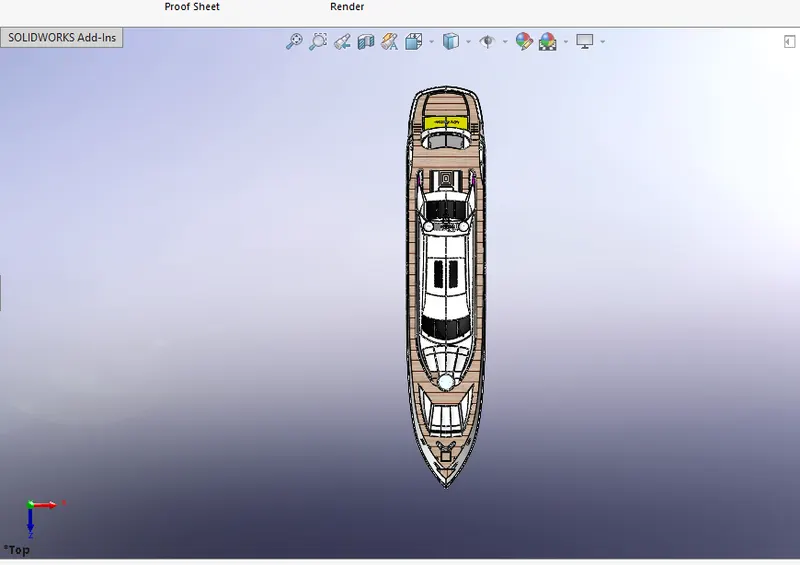

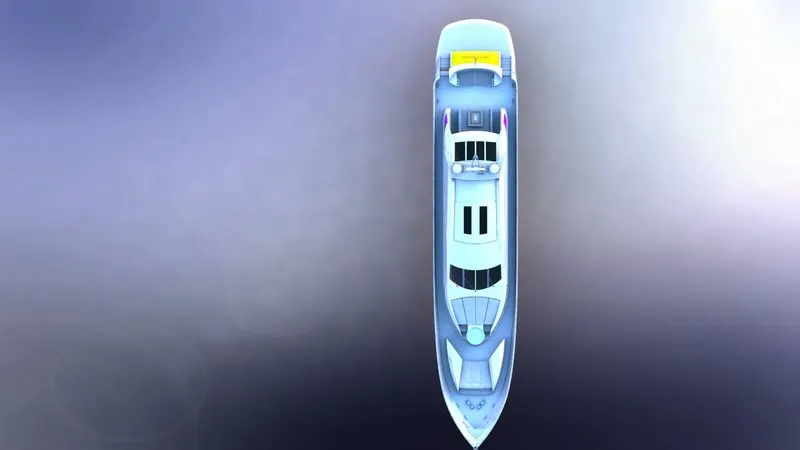

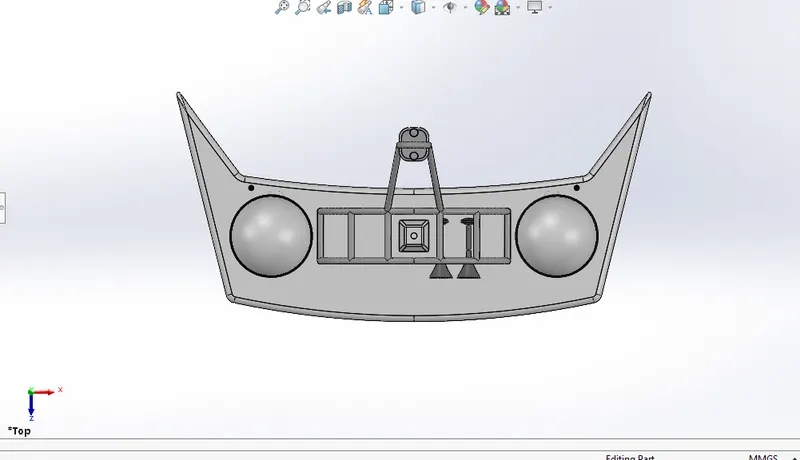

Top_view:-

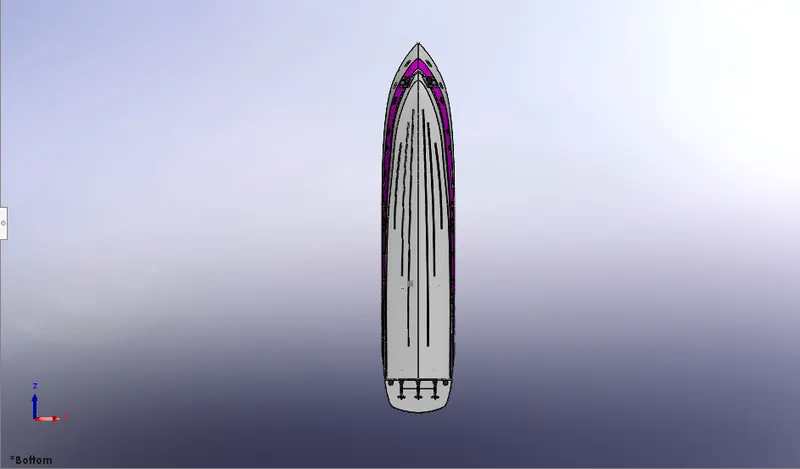

Bottom view:-

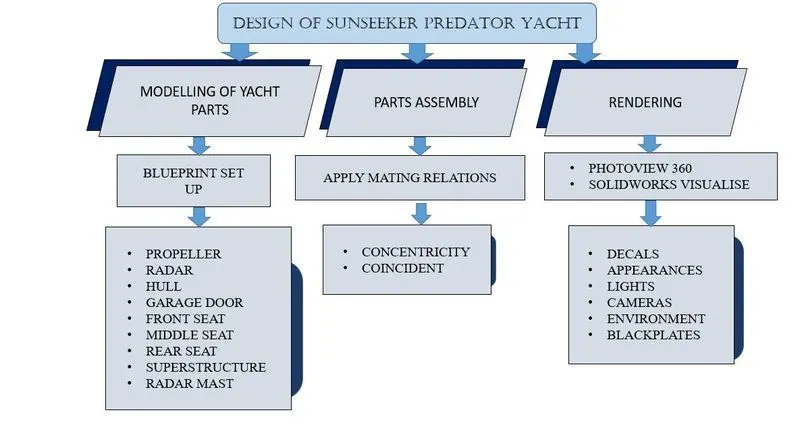

Yacht Design Using Solidworks

Objective: -

The Objective of the Project is to design and model all the Parts of American Predator Yacht and Assembling it to create The Photo Realistic rendering of the Yacht.

Introduction: -

A yacht is a sail or power vessel used for pleasure, cruising, or racing, there is no standard Definition, So The term applies to such vessels that have a cabin with amenities that accommodate Overnight use.

Multihull offers tradeoffs as cruising sailboats, compared with monohulls, they may be Catamarans or Trimarans. They rely on form stability—having separate hulls far apart—For their resistance to capsize. Their advantage includes greater: stability, speed. (For catamarans) living space, and shallower draft. Their drawbacks include: greater expenses greater wind age, more difficult tracking under sail, less load capacity, and more maneuvering room required because of their broad beam. They come with a variety of sleeping accommodations and (For catamarans) bridge-deck configurations.

Design of yacht involves creating individual parts and assembling them with respect to their Proper constrains and mates.

Present design of yacht consists of the following patterns-

Hull: -

A hull is a watertight body of a ship or boat. The hull may be open at the top and it may be fully or partially covered with a deck. Atop the deck may be a deck hose or other superstructures, such as a funnel, derrick, or mast. The line Where the hull meets the water surface is called the waterline.

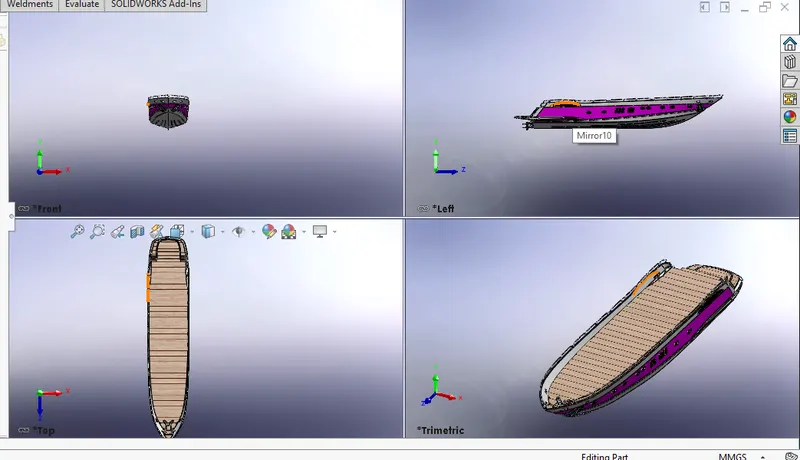

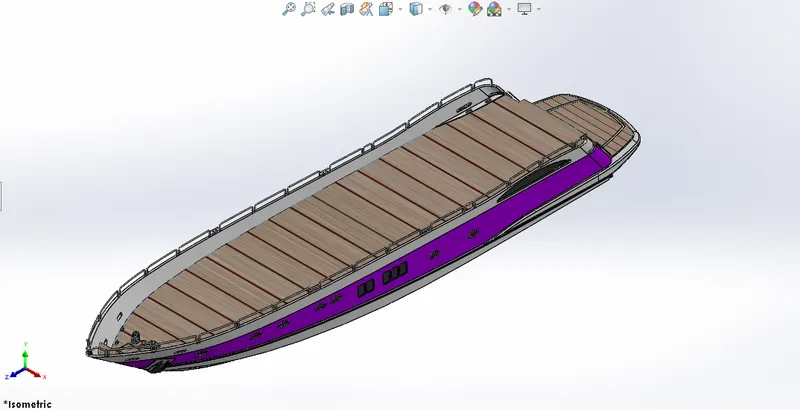

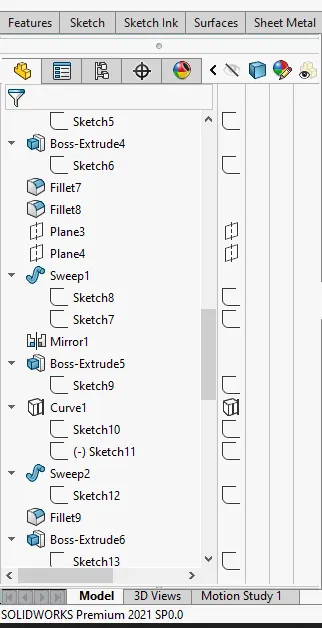

The design of hull involves preparation of outer shell surface and the deck surface. The outer shell is drafted with the required curves initially and are extruded a lofted, to obtain the required surface the curves are drawn on different planes and they are projected so that the required curvature is obtained in between the planes.

• Curve Projection: - It is one of the options in Solidworks tool which gives us the output curve for the two curves/lines drawn on different planes, this is the intersection point where the two curves meet.
• 3D sketch: - Very handy tool to draw any line or curve in space as it is confined to the axis helps t join the projected curves and work on different axis to create geometrical planes.
• Surface Extrude: - It is used to form surface bodies where the thickness is line thick.
• Surface Loft: - Loft is the option used to prepare very difficult surfaces formed with the help of 4 different curves.

These lofted or extruded surfaces which are in intersection are combined together with the help of surface knit

• Surface knit: - it helps to eliminate the minor gaps exist between two surfaces and join them together as like a singe surface. This option works only for surfaces not for solid bodies.

The hand rail present all over the Hull Top is first drafted on different planes using the convert entities option and as designed as shown in the picture and is Projected on to the surface of the Hull. These lines are converted into tubes with the help of sweep option which requires a circle at any one of the curves/lines.

• Convert Entities: - it is available in 2d sketching tab which converts the edges of the 3D object to the line Projected on to the surface.
• Sweep: - It helps to Produce Solid Tube along the guided curve/line path.

The for the anchors is Prepared using the option helix/spiral.

• Helix/spiral: - it is used to create any springs as this option contains pitch or height and revolution which describes how many rings with gap between them.

Thus, the half part of the hull is designed and mirrored along the middle plane to form the complete closed structure, Fillets and chamfers are used to smooth the sharp edges.

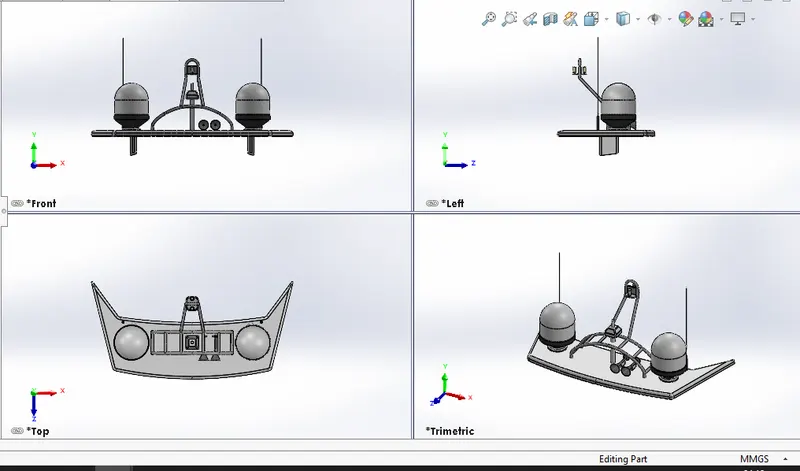

Radar and Radar mast: -

Radars are used to detect other ships and land obstacles, To Provide bearing and distance for collision avoidance and navigation at sea. They are electronic navigation instruments that use a rotating antenna to sweep a narrow beam of microwaves reflected from them, generating a picture of ships surroundings on a display screen.

Radar is a vital navigation component for safety at sea and near the shore. Captains need to be able to maneuver their ships within feet in the worst of conditions and to be able to navigate ‘’blind’’, When there is no visibility at night or due to bad weather. In addition to vessel-based marine radars, in port or in harbor, shore-based vessel traffic service radar systems are used by harbor masters and coast guard to monitor and regulate ship movements in busy waters.

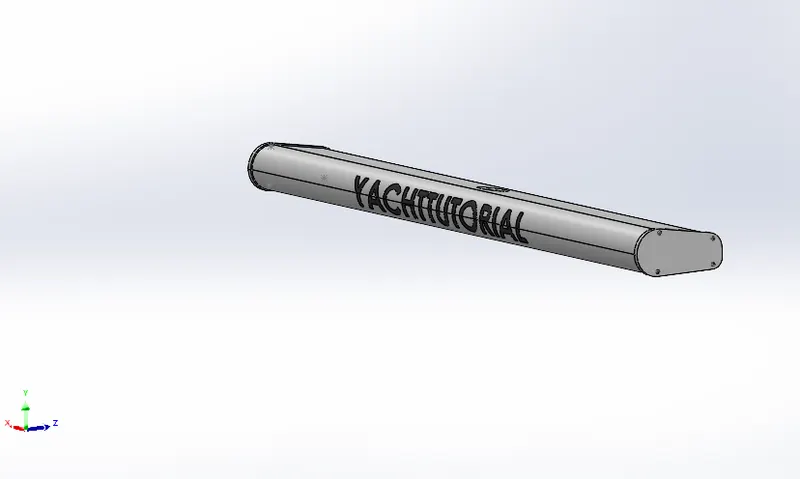

Here Radar is rotating stick which sweeps the incoming microwave signals and radar mast contains the system to produce the outgoing signals using the antenna.

Design of this component involves base creations initially in 2D sketcher and that is being extruded in the feature tab.

The lobes on two sides as shown in the picture is drawn on a plane which is created with reference to midplane offset at a required distance and using revolve tool solid cylinder object is formed on the base.

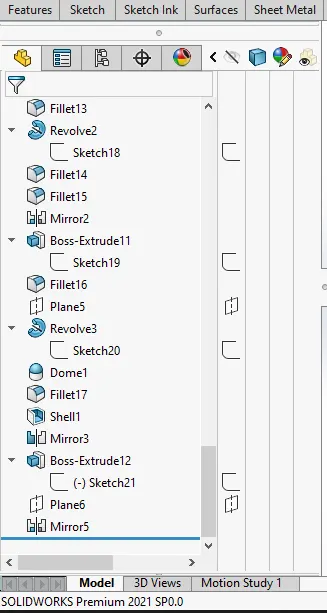

• Revolve: - This tool requires a closed sketch with the central axis which helps to form the cylindrical object with reference to central axis.

The antennas are the circular structures where the circle is being sketched or drafted on the base surface initially and extruded in feature tab.

Horns are created on a newly created reference geometrical plane using revolve tool circular horn is formed and the front hollow shape is been developed using shell option.

• Shell: - This tool helps to create the shell to the solid body which prompts to enter the thickness and reform the solid object into shell type object with the wall thickness as provided.

Front, Middle, and Rear seats: -

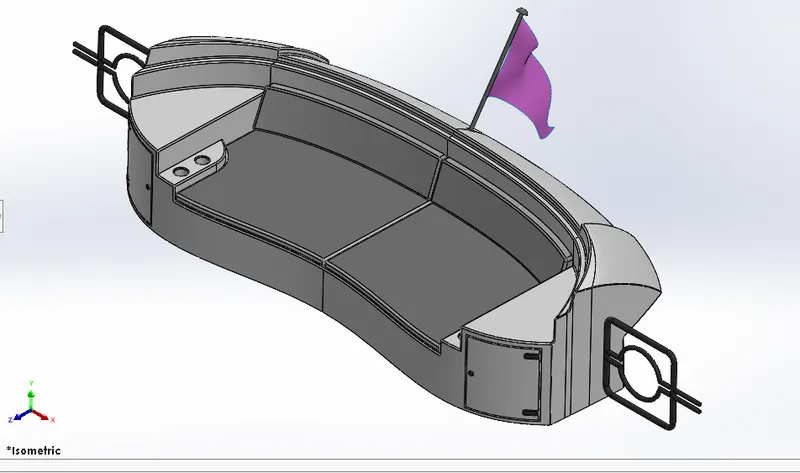

These front middle and rear seats are the accessories of the yacht for resting and sitting.

In this design the seats are drawn with reference to the deck surface and blueprint which is been imported into the Solidworks using tools sketch tool and sketch tools sketch picture.

The seat like appearance is obtained with the help of dome option which again consists of continuous and non-continuous option.

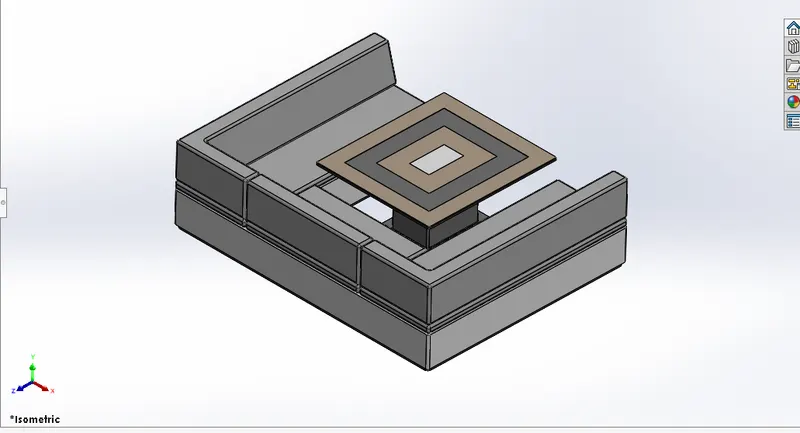

1. Front seat

1. Middle seat

1. Rear seat

Garage door: -

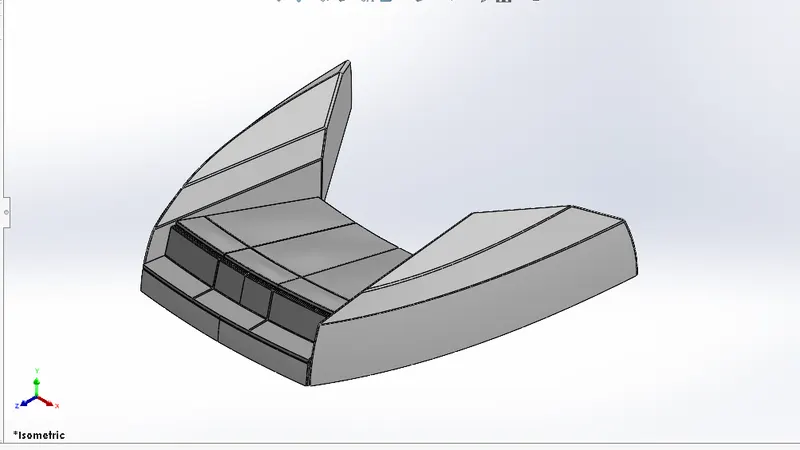

Garage is the part that is extracted from the hull structure rear part using split entities option and is been saved using different file name and it’s edited to fit in the hull a cover or door to the garage space created for storing or equipment’s or vehicles.

Super Structure: -

The most complicated part of the whole yacht design is its superstructure which sits on top of the deck surface.

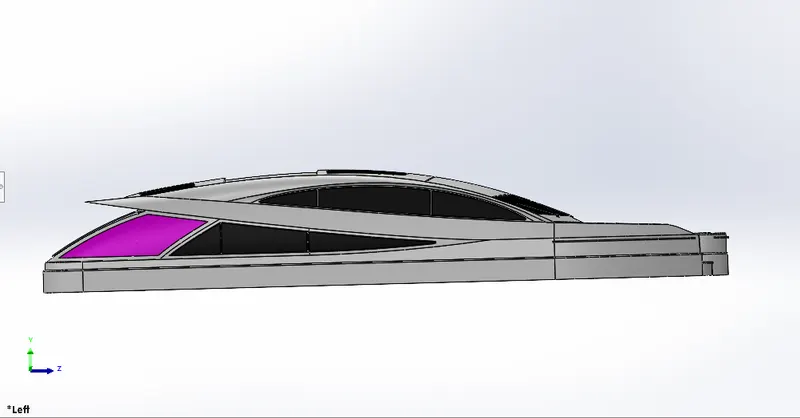

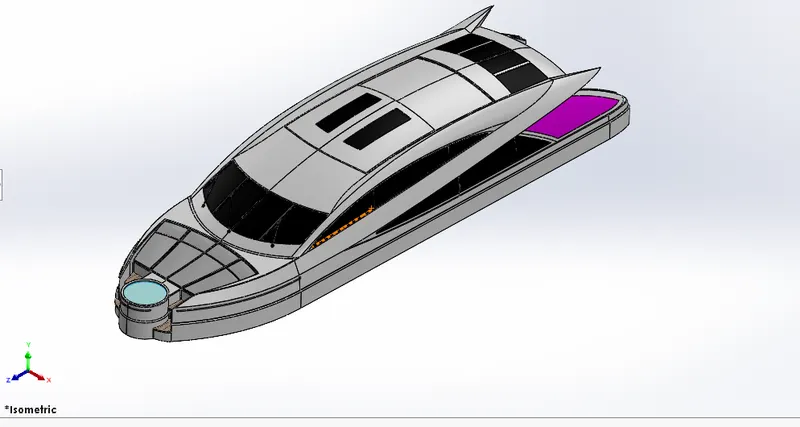

This Super structure also designed with the help of the imported blueprint top, Front and side views as shown in the below picture.

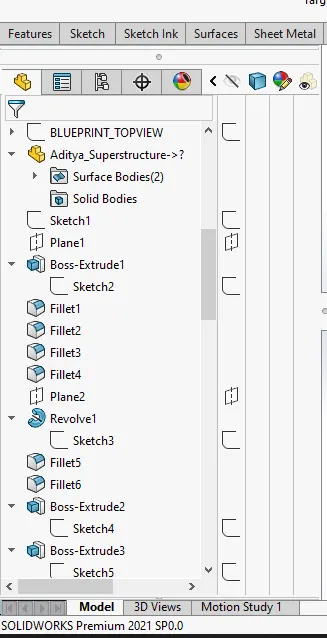

Initially the wall of the superstructure is created by Drawing a line on the bottom plane along with the curvature using the spline option and making it constrained using proper dimensions and being surface extruded in the feature manager tab.

The base wall is trimmed according to the estimated design and another surface is extruded with reference to the base wall edge using ruled surface

• Ruled Surface: - It is used to obtain the extrude Surface Perpendicular to the plane of reference and the added advantage of the ruled surface is that the surface can titled with and angle as prompted in the tool along with the length.

For obtaining the curves at various positions project curve option is used and they lofted together to form the required surface.

During the surface extrusion process unwanted surface are being produced which are trimmed using the trim tool.

• Surface trim: -The prompts to select the reference surface and next surface to be trimmed and it also options to keep the surface or remove the surface that was selected to trim.

After Creating all the necessary surfaces from all the sides of the surface are being knit using surface knit option to form a single body and converted into a solid body.

The conversion of solid body only happens when there are no gaps found between the surfaces that are being extruded and trimmed.

The seats attached to the super structure are extruded out from the line drawn on the midplane and extruded up to the surface and the appearance created with the help of dome tool as shown below.

Extra appearance is obtained on top and rear side of the super structure is obtained using extrude cur option. For this the required shapes are drawn on the required plane and is cut using the offset from surface option present in the selection tool bar present in the extrude option by providing the depth of cut.

Propeller: -

A propeller is a device with a rotating hub and radiating blades that are set at a pitch to form a helical spiral, that, when rotated, performs an action which is similar to Archimedes’ screw. It transforms rotational power in to linear thrust by acting upon a working fluid, such as water or air.

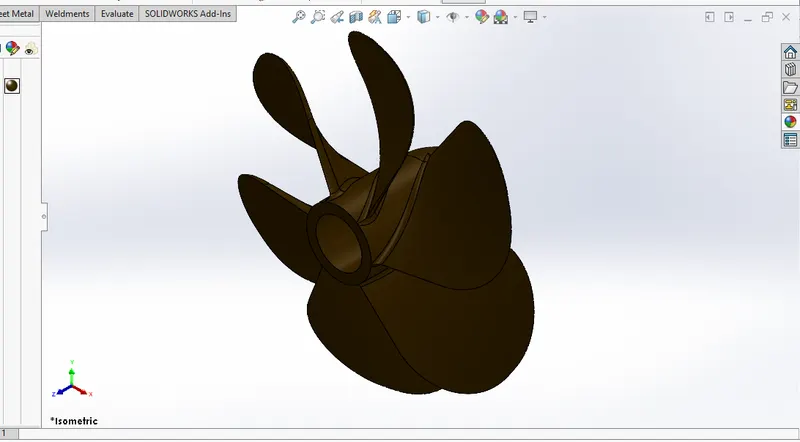

• For designing the propeller, the main hub is created by simple sketch line and spline drawn on the Front plane and extruded using the revolve option around the centerline.
• The wings are twisted parts created by sketching the two different rectangles on two different surfaces and formed into solid using loft option,
• The shape of the wings is obtained fillet applied at the two edges on top side.
• For inserting the shaft, the hole is created by sketching the circle on the hub back end and material is removed using extrude cut option. Color is applied to the propeller for appearance as shown in the figure.

Assembly: -

All the components are imported in to the assembly workbench are according to the tree chart and applied mates to fix their position with respect to the fixed body object.

Rendering: -

Rendering or image synthesis is the process of generating a photo realistic or non-photorealistic image from a 2D or 3D model by means of a computer program. The resulting image is referred to as the render.

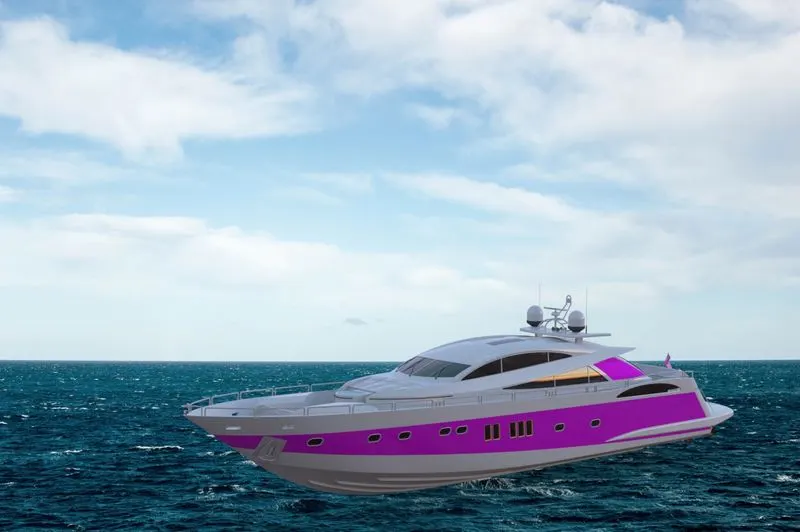

In Solid works rendering is done in photoview360 and Solidworks visualize. In this we need to import required Solidworks part/assembly components and by Backplate we get the rendered output image as shown below.

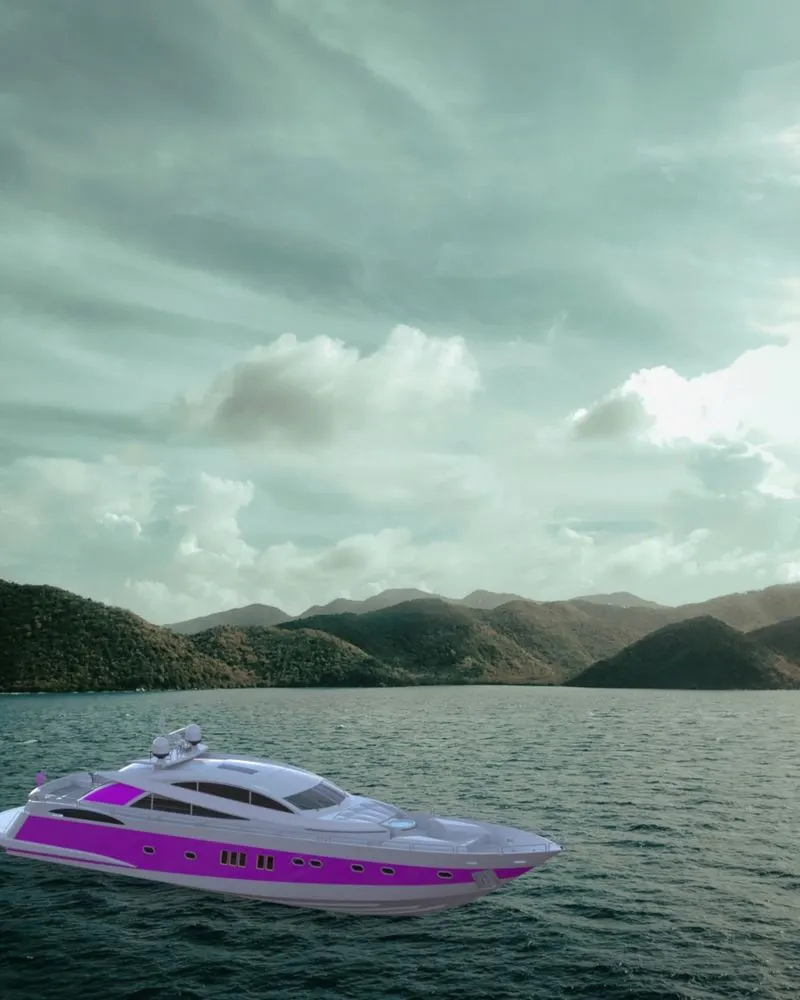

Using Solidworks visualize

Conclusion: -

Thus, the Project design, assembly, and photorealistic rendering Of an American predator yacht was modelled and rendered successfully.

Links For assemly and rendered files

https://drive.google.com/file/d/185htfZv9w8NNCZhj_q2Tr9oQFLYOgcnR/view?usp=sharing

https://drive.google.com/file/d/1Ll0GhaJDlquIpOpjgOX-9RlqA12rPVcT/view?usp=sharing

Learnings From the Project

Generally, when we surf the internet for models for practice, we get many models and engineering drawings in solid modelling. As we don’t get enough materials to practice surface modelling, there exists a situation where surface modelling is practiced out of own interest.

In this Project ‘’Yacht’ ’I had a very good opportunity to explore almost all commands in surface modelling in Solidworks. This Project gave me a good experience and opportunity to explore the different ways to create complex curves and surfaces and convert the surface model into solid model. As surface modelling requires precise curvature during the sketching stage else it will result in a bad geometry.

There are a number of ways to create a surface like extrude surface, loft surface, sweep surface, fill surface, extend surface, ruled surface, boundary surface etc. all the commands are used to create or form a surface, but all these commands cannot be used all the time, for instance, with sill command we can fill a surface and extrude command we can extrude a surface, we should have a very good strategy to create a desired surface, so that the model could be created effortlessly in very short time, which could be obtained only by out of the box thinking and experience and this project ‘’yacht’’ paved the way for it.

Trim command and surface knit are very useful in removing the excess part and joining two surfaces without any gaps respectively. 3D sketches were also used in this project and its very handy tool to create 3-dimensional curves and profiles.

Working in this project ‘’yacht’’ was a very good experience, I had the opportunity to learn the way of creating sketches in a better way and to explore features, especially in surface modelling, so that the model could done in better way. In less time and effort.
