Radar Mast & Final Assembly of Yacht

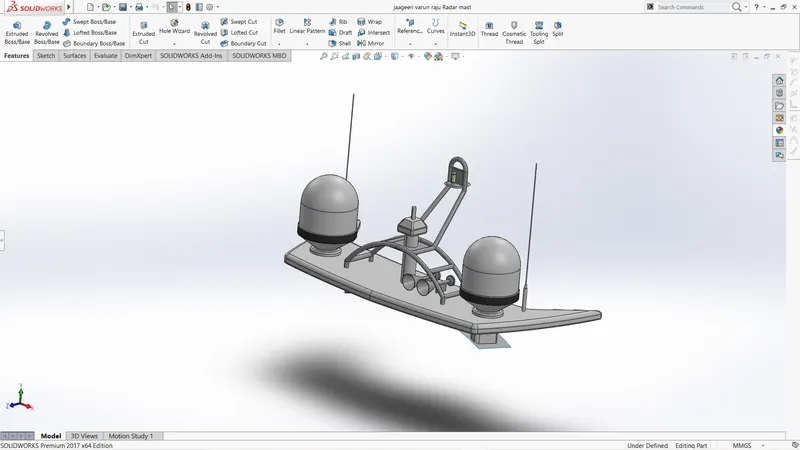

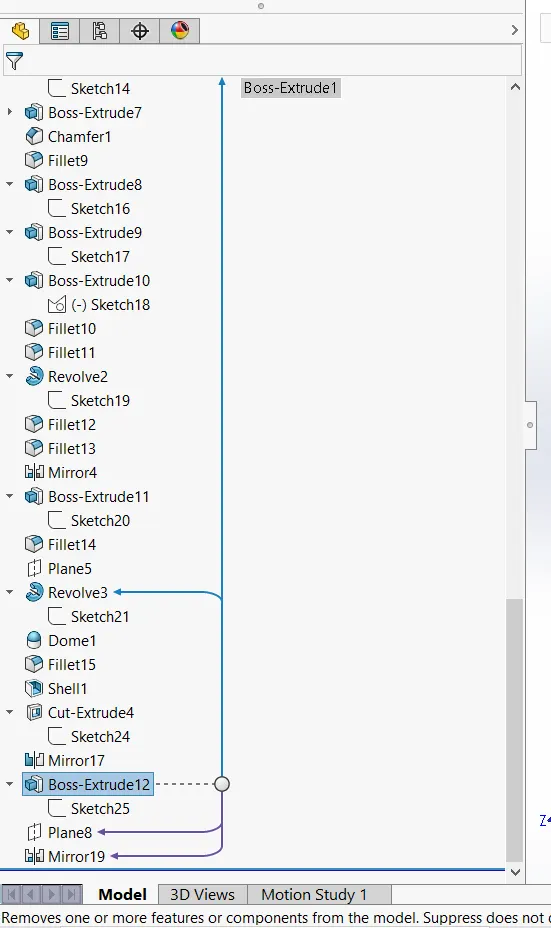

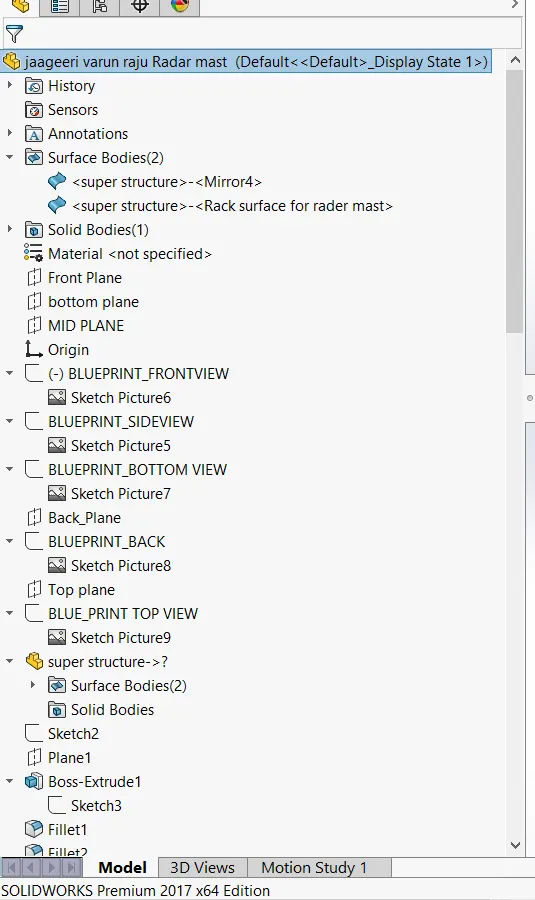

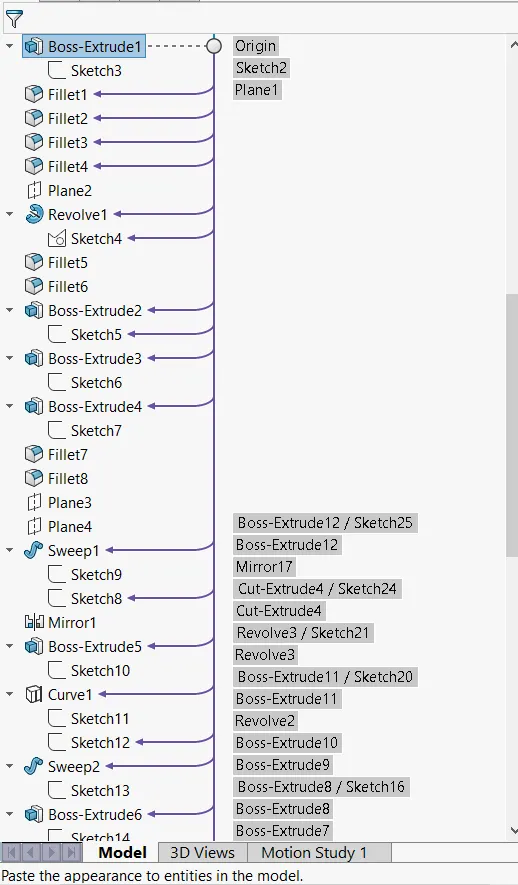

RADAR MAST
ASSEMBLY OF YACHAT
modelling of yachat is compeltly involved in surfacing while doing this project is explored some features/tools
sketch tools:-these tools are used to ceate sketch profiles on 2D planes /on solid faces.
sketch tools :-Line/circle/arc/parabola/spline/Rectangle/slot/Hexagon and a text tool
other sketch shapping tools:-sketch fillet/trim entities
sketch projection tools:- convert entities (projection of one sketch on another 2d plane)/project curves(using two different sketch profiles on two diffrent plane to project a curve on another 3D plane
Smart dimension :- it is dimensioning tool
SURFACING TOOLS:-using the sketch profile that created on 2D plane or by projection curves we can create a surface
Open profile surface tools :-These tools required a sketch profile having just a line /a edge of surface or solid using these much we can create a surface

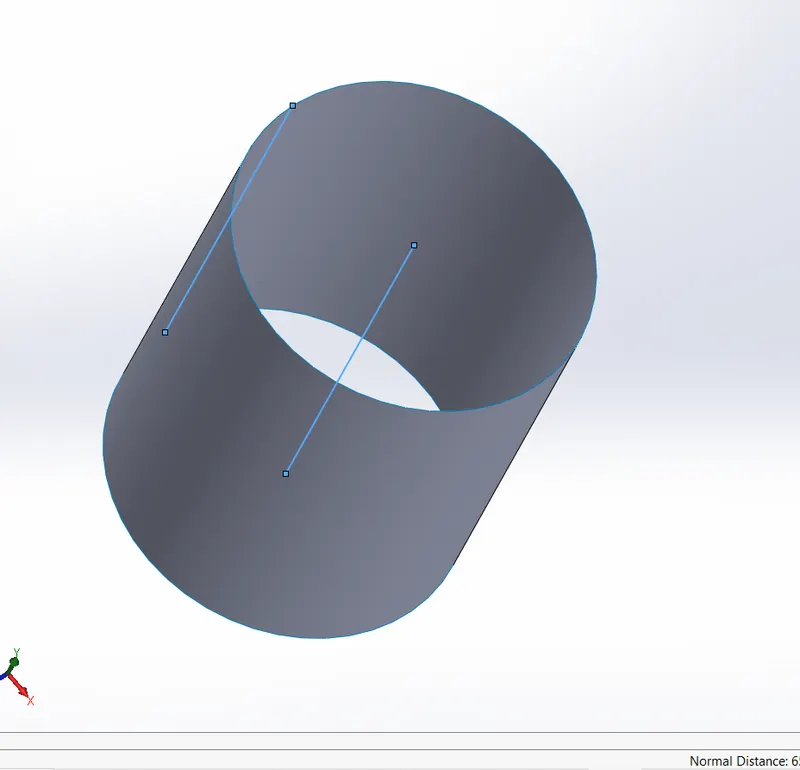

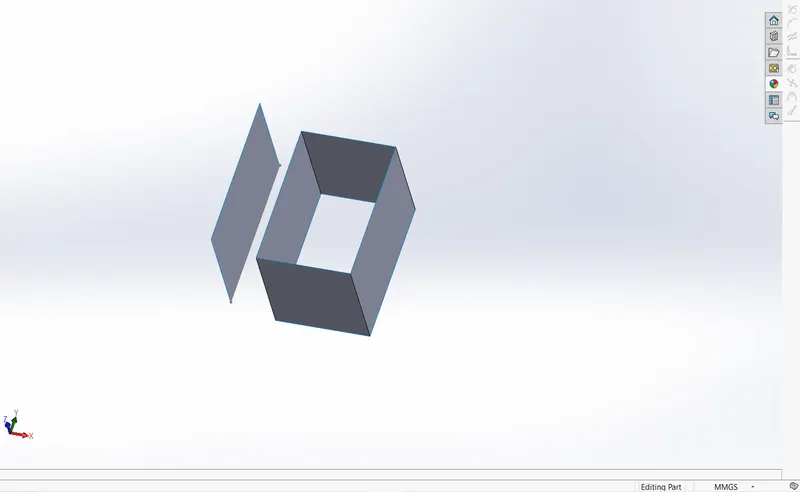

Extruded surface:-this tool creted an extuded surface it just creates a surface using the line only as shown in fig
Rvolve Surface:-it creates a surface like Extuded surface but around an axis of revoltion upto our desired angle.
Swept Surface:- It creates a surface using open/closed profile along another open/closed profile as a path.

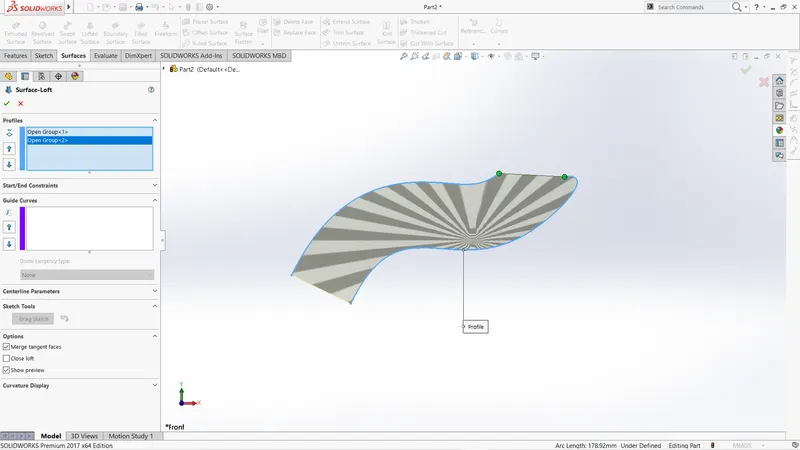

Lofted Surface:-It creates a surface between two or more open sketch profiles.

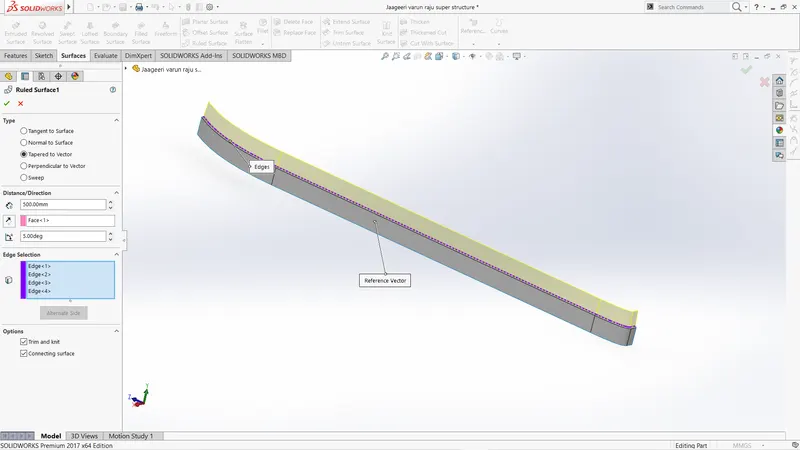

Ruled Surface:-it creates surface like extuded only but this requires direction vector also using them we can create surface in our desired direction.

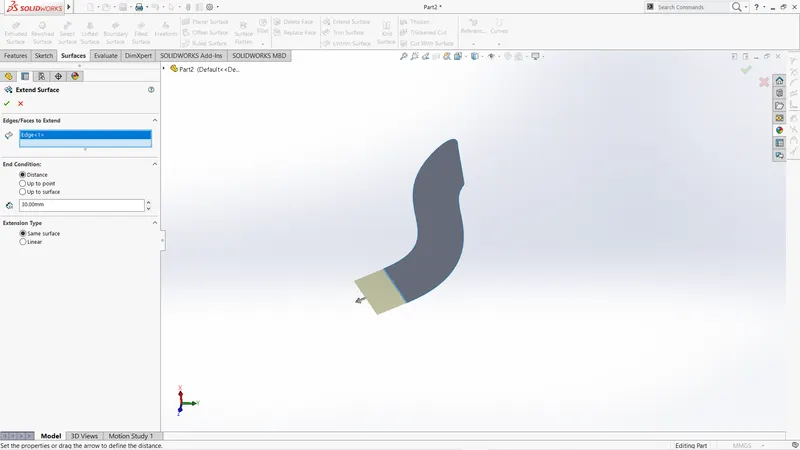

Extend Surface:-these tools requires a edge /face of surface it extends that existed surface.
Closed profile surfaces:-closed skectch profiles are need to create a surface.

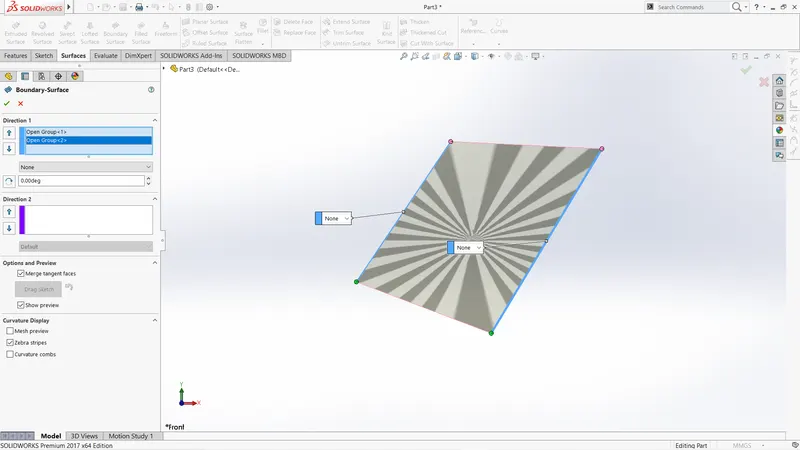

Boundary surface:-created a surface using the sketch profile as boundary.

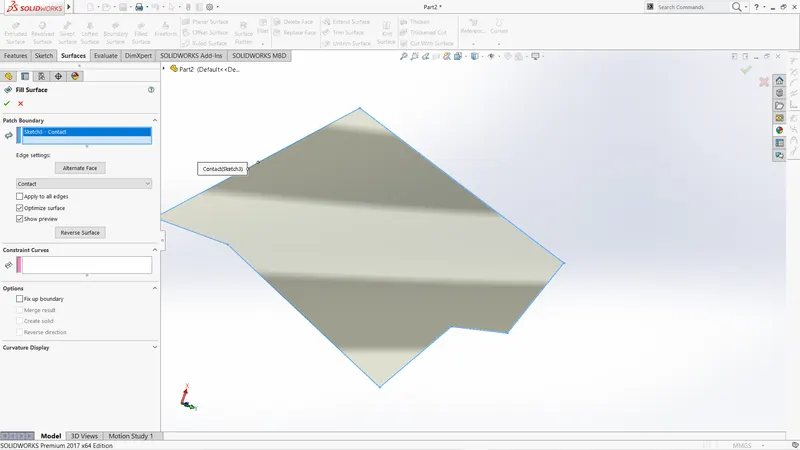

Filled Surface:- created a surface Inside the closed profile.
Some other tools

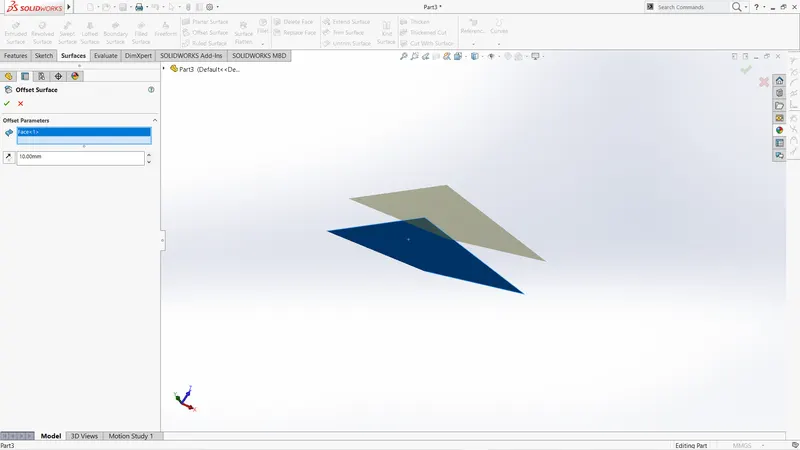

offset surface:-this tools is used a created a durface of existed solid or surface at a distance from the existed surface.
Trim surface:-used to trim the unwanted material from a existed surfaces.
METHODOLOGY

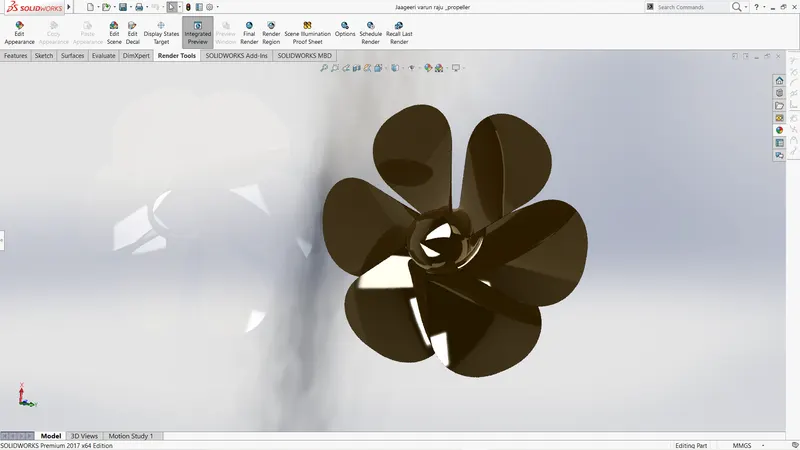

Propeller:-Extude boss/Extrude cut/lofted boss/circular patterns/fillet

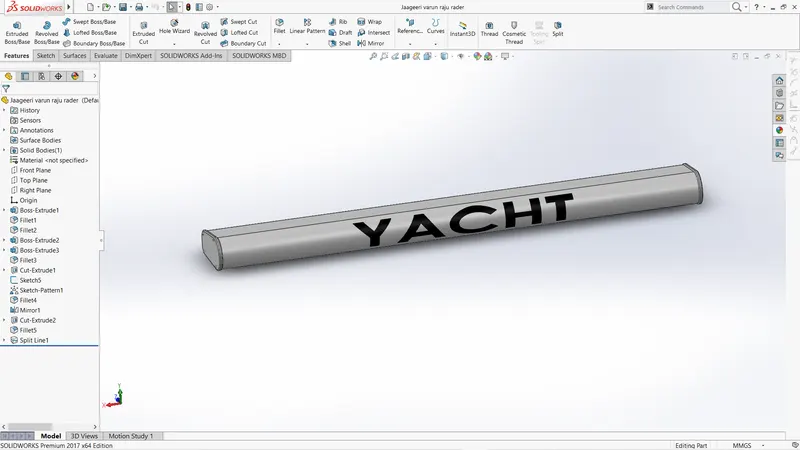

radar:-Exturde boss

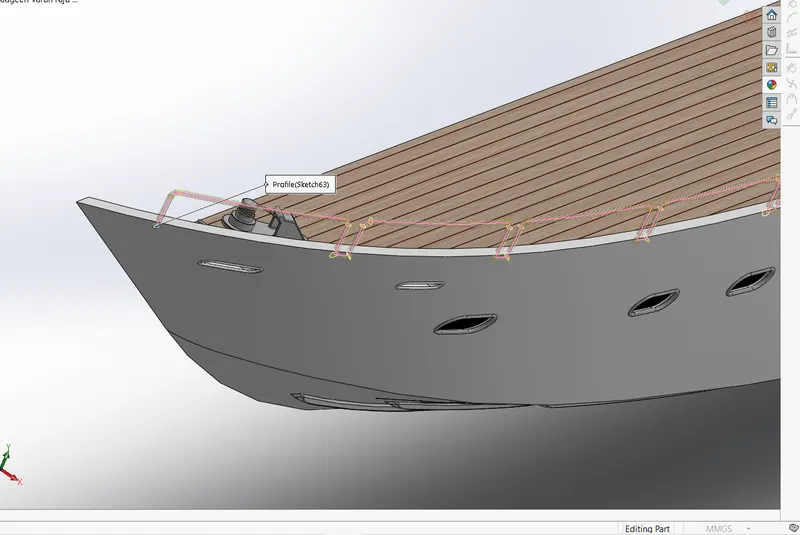

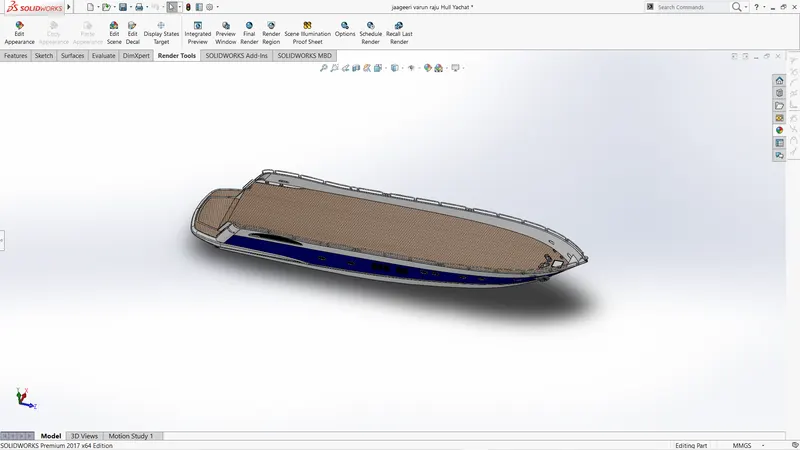

Hull ;-Swept surface/ruled surface/extude boss/swept boss

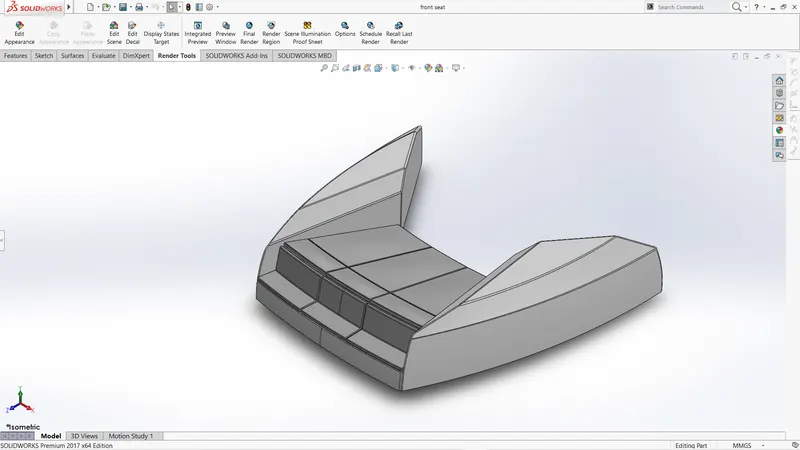

front seat:-swept surface/loft surface/trim surface/offset surface/mirror

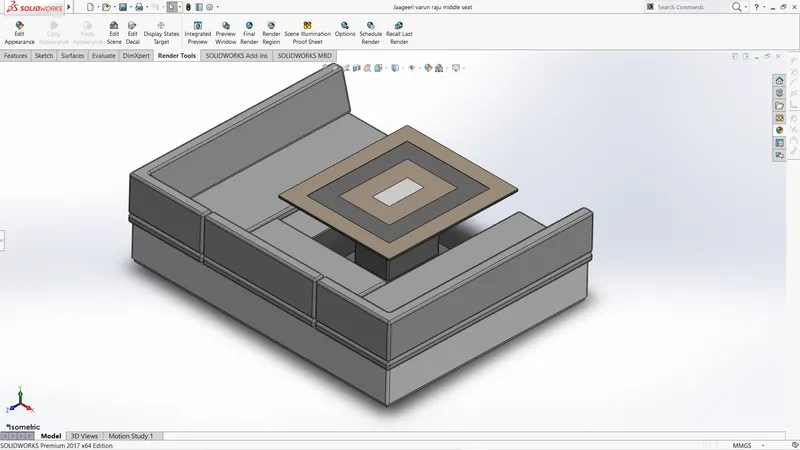

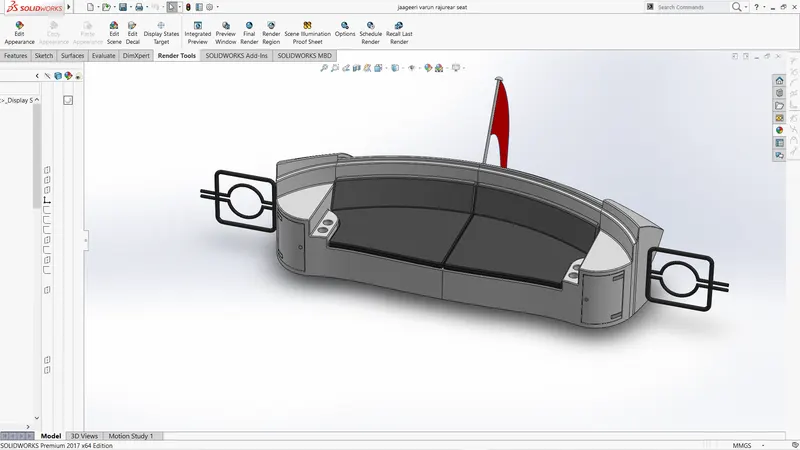

middle seat:-Extuded boss/offset surace/extuded cut
Rear seat :-swpet surface/loft surface/extuded boss/swept boss/extuded cut/filled surface

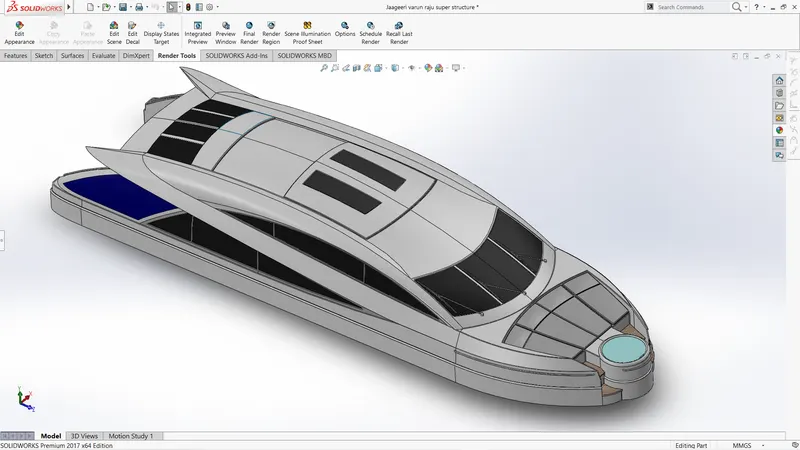

super sturcture :-extuderd surface/ruled surface/swept surface /loft surface/extuded boss /extuded cut

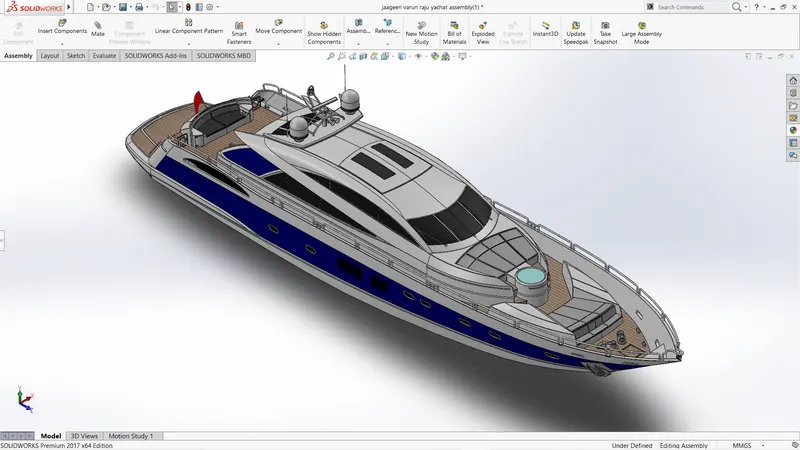

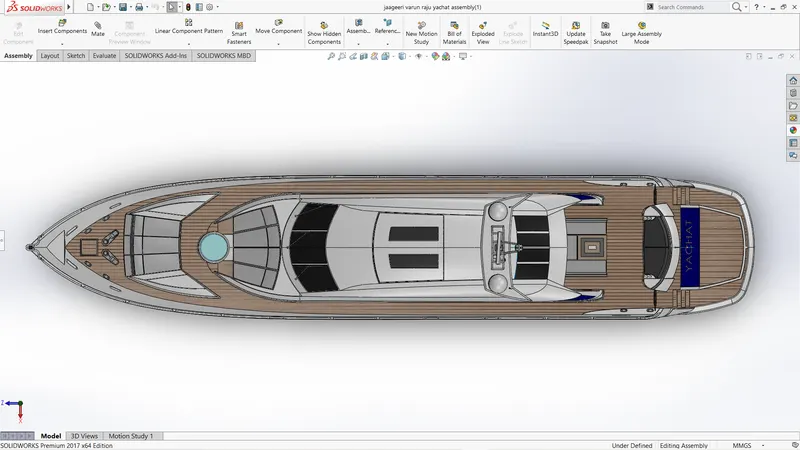

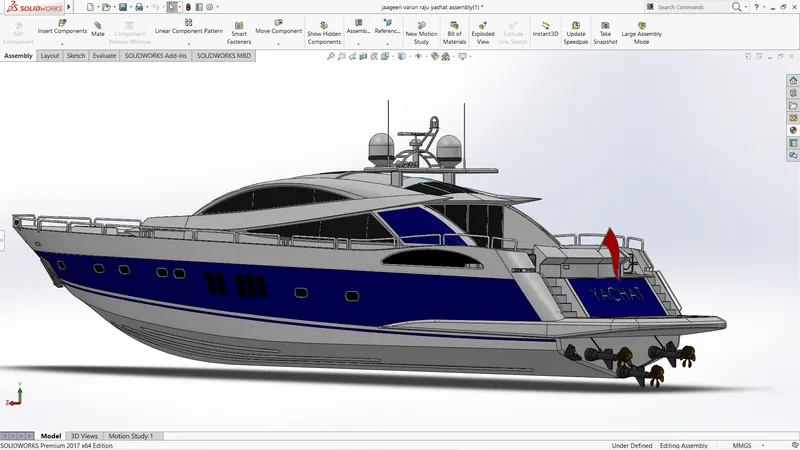

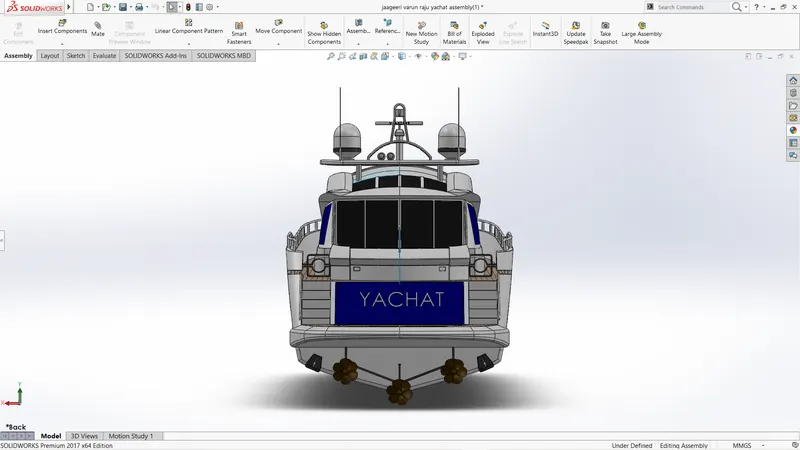

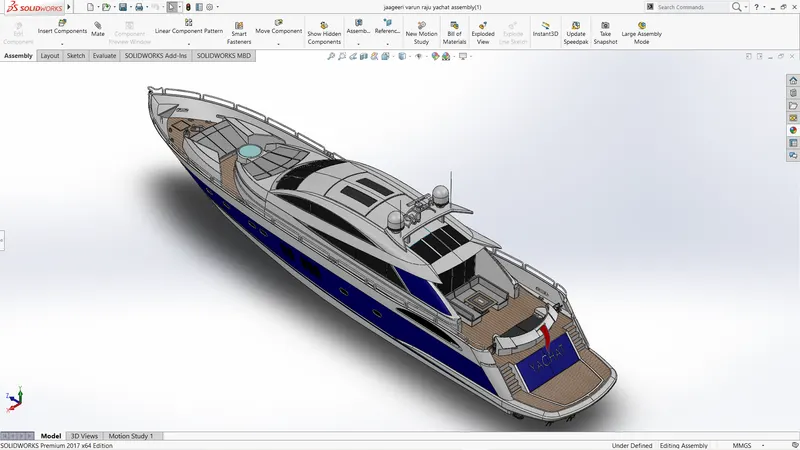

Assembly:-As i created all the parts of yacht on surfaces of hull and superstucture by creating surfaces in hull and superstucture and import them in appropriate models are were fixxed automatically in the assembly by just importing as all the standard planes of parts are same
Photo realistic renders
