Project - Speed Control of a Direct Current (DC) motor:

Summary:

The Project is based on speed control of a DC Motor By Using PID Controller.

Initially,simulink model of a Dc Motor is constructed, then make it as subsystem called "DC MOTOR".

Then,Subsystem Dc motor is connected to the discrete PID controller to maintain the desired speed as it is.

After that Pid controller begin with Kp,Ki,Kd as 1.0,1.0,0 after tuning accordingly, we can adjust Kp,Ki,Kd as

31.58, 82.37, 2.35 respectively. To obtain Control Design Objectives.

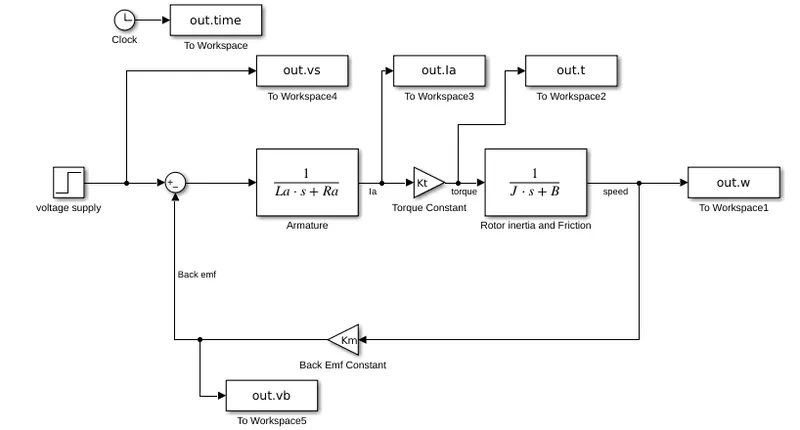

Simulink model for the DC motor:

Parameters:

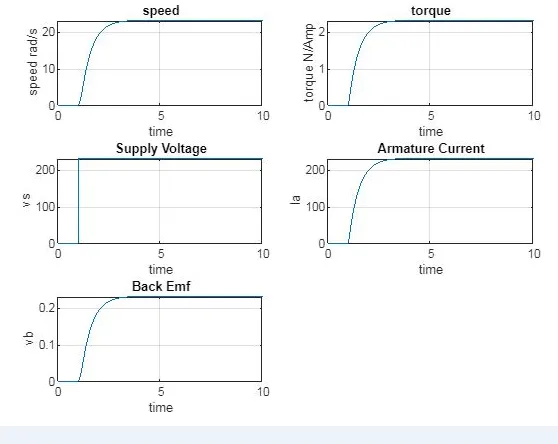

Plotting of Initial Dc Motor Behaviour in Various Scenario Without any Controller:

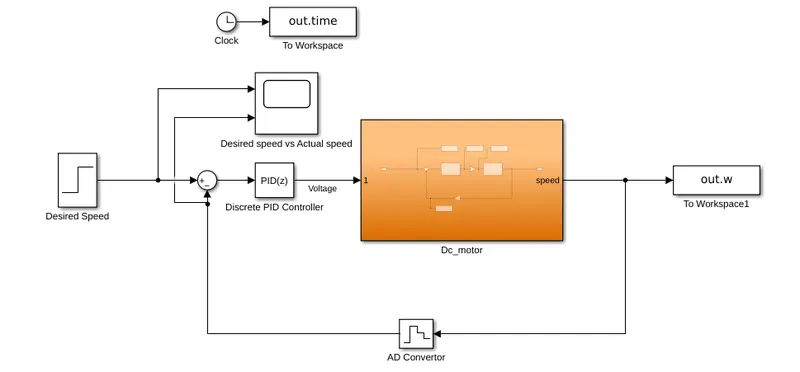

Design Dc Motor with Discrete PID Contoller:

Here, we make Dc motor as Subsystem and pid Controller is Used to Control Desired Speed.

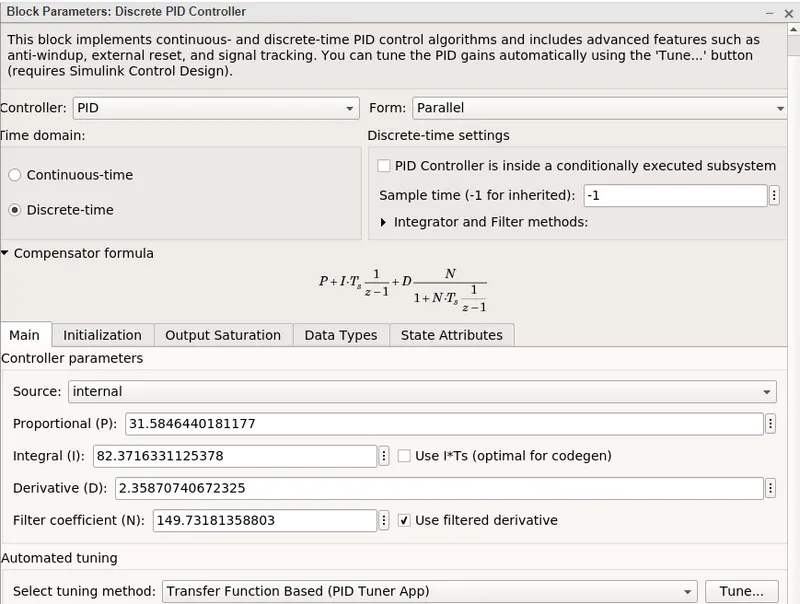

Block Parameters Of Discrete PID Controller:

Initially Kp=1,Ki=1,Kd=0, After Tuning we set Kp,Ki,Kd as 31.58, 82.37, 2.35 Respectively. To Obtain Desing Control Objectives Of settling time ,overshoot and Steady State Error within the limit.

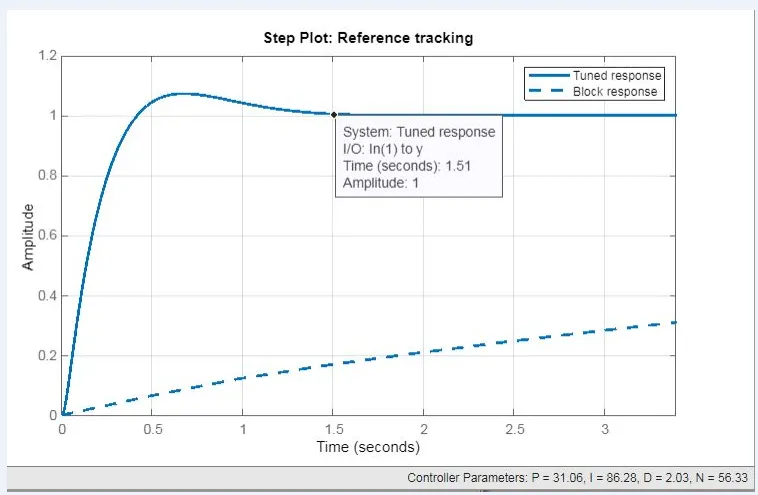

Plotting while Tuning as settling time as 1.51 sec:

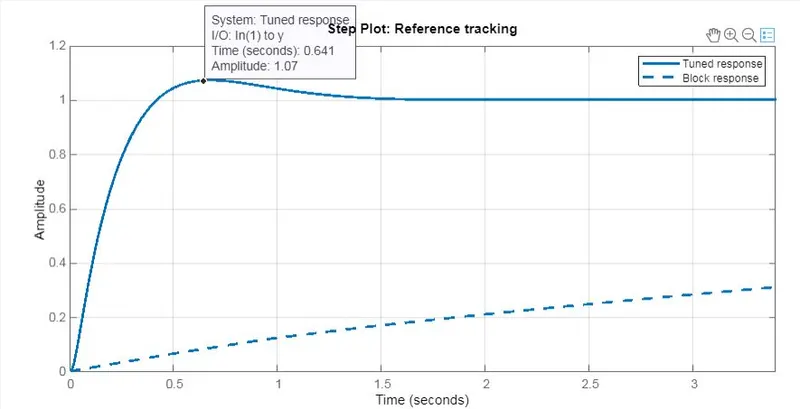

Plotting while Tuning as overshoot is less than 5%:

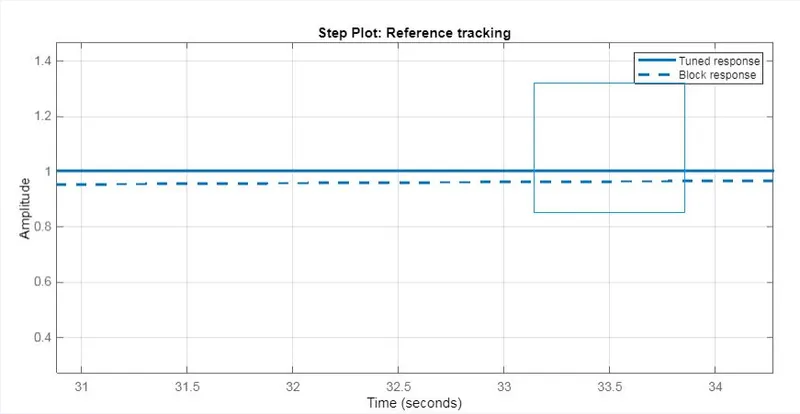

Plotting while Tuning as Steady State Error is less than 1%:

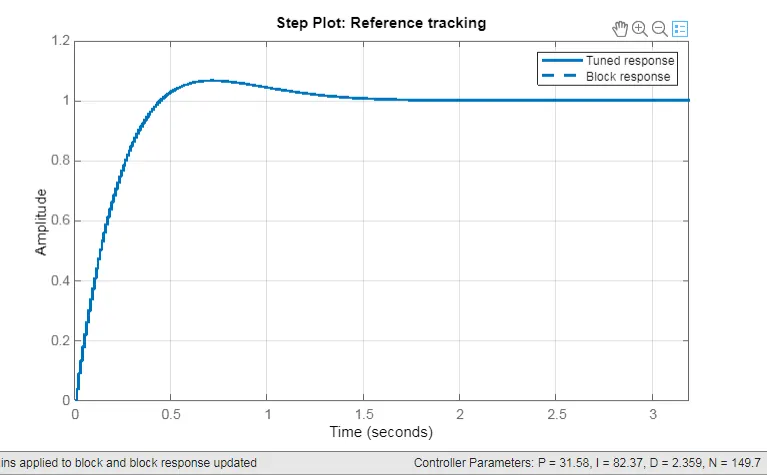

Final Plot After Updating into Block:

Maintaining Stability of a dynamic system:

Scope Results:

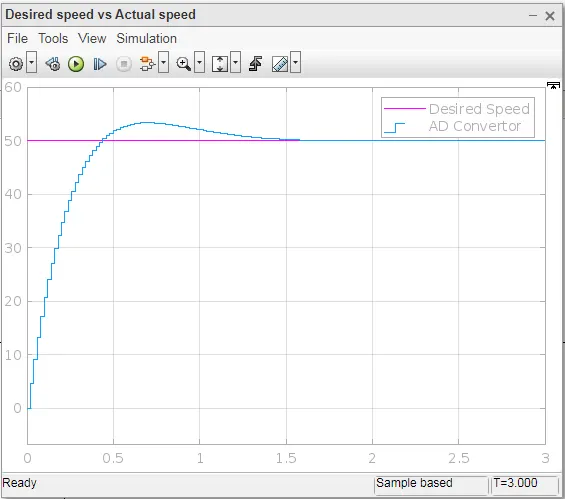

1) To maintain a desired speed for the motor (case 1:Desired Speed = 50):

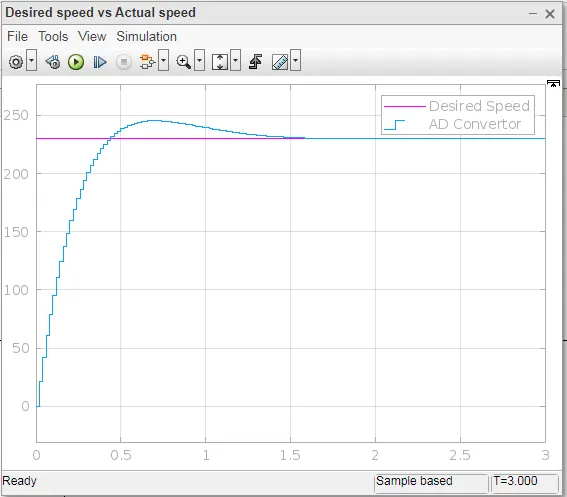

2) To maintain a desired speed for the motor (case 2:Desired Speed = 230):

In above two cases,we change desired speed as 50 in case 1 and 230 in case 2 , since the both a case, Plotting Remains same. Hence, we maintain desired Speed For a Dc Motor.
